raycillo Posted May 13, 2016 Share Posted May 13, 2016 Hi, Rockey. I mount efi partition and put config.plist in clover.. reboot and panic for ACPI Put my DSDT in ACPI/patched .... more load... panic for ...driver.usb.AppleUSBUHCIPCI Boot flags: -v dart=0 rootless=0 Thanks... Link to comment Share on other sites More sharing options...
chris1111 Posted May 13, 2016 Share Posted May 13, 2016 Hi, Rockey. I mount efi partition and put config.plist in clover.. reboot and panic for ACPI Put my DSDT in ACPI/patched .... more load... panic for ...driver.usb.AppleUSBUHCIPCI Boot flags: -v dart=0 rootless=0 Thanks... You need ad flag -v nv_disable=1 dart=0 rootless=0 1 Link to comment Share on other sites More sharing options...
raycillo Posted May 13, 2016 Share Posted May 13, 2016 Hi... is imposible... I try with: -v nv_disable=1 dart=0 rootless=0 -v nv_disable=1 dart=0 rootless=0 GraphicsEnabler=Yes -v nv_disable=1 dart=0 rootless=0 GraphicsEnabler=Yes npci=0x2000 kext-dev-mode=1 UseKernelCache=No(yes) PCIRootUID=1 USBLegacyOff=Yes UHCIacquire=Yes and combination ... all flags out all clover fix out all clover fix In I have create other usb boot, describe in http://www.insanelymac.com/forum/topic/308856-crear-booteable-usb-limpio/ panic for ...driver.usb.AppleUSBUHCIPCI Link to comment Share on other sites More sharing options...
raycillo Posted May 13, 2016 Share Posted May 13, 2016 I just want to install El Capitan... I have two usb. one with Clover and one Chameleon.. I'm not a fan of anyone... I did not know that insanelymac.com was a competition between groups, I thought it was a community to help people like me who are just starting or newbies... I'm sorry for your lost time.. Thank you anyway... 1 Link to comment Share on other sites More sharing options...
raycillo Posted May 15, 2016 Share Posted May 15, 2016 Thanks very much... i try and comment... this PC is very crazy, If successful in the installation, how can i extract the configuration from usb to hd? This Is possible? Thanks, good night. Link to comment Share on other sites More sharing options...
jaygrid Posted May 15, 2016 Share Posted May 15, 2016 Hi, i am a Z600 user, i am running 10.11.3 with only FaceTime iMessage problem, i gave up. My graphic card is NVIDIA GeForce GT 640 so take care of options here are my working confit.plist and my 10.11 kext folder if anything else is needed please ask me for it I think some of the kext could be deleted but i don't take risk with the system working I installed with Chris Dell690 tool Hope this help PD just curious, anyone have notice volume is less after wake up from sleep?? 10.11.zip config.plist.zip 2 Link to comment Share on other sites More sharing options...
atrapero Posted May 15, 2016 Share Posted May 15, 2016 Hi jaygrid Is your graphics card and cuda working fine? And firewire? I reinstall again everything but still don´t work I have two Z600 and everything work except this. I try with config.plist and DSDT from Rockey12 but no luck. Try with Quadro fx 4600, Geforce 210 and NVS 295. Either way this is my config.plist that works for me. config.plist.zip 1 Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 Hi friends..... After much hours... I install el Capitan.. But from hd no start... Is very very very complicated... panic for ...driver.usb.AppleUSBUHCIPCI With DSDT generic clover, run and panic for ...driver.usb.AppleUSBUHCIPCI With DSDT for this z600, don't boot, nothing, no msg, no panic, black screen, hd quiet... Nothing. Other thing, with boot installer create with clover dell prescition 690, don't boot. I create a new usb boot installer with other clover, boot with new clover, and select the usb installer from Dell prescition and boot correctly... And install in the HD... Any idea? Thanks Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 This is the actual clover folder... Clover is R.3333 Other DSDT for my z600 is DSDT.zip attach DSDT.aml.zip CLOVER.zip Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 Black screeen.... I'm sorry, I do changue the clover for other version? Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 Nothing... Only black screen.... Link to comment Share on other sites More sharing options...
chris1111 Posted May 16, 2016 Share Posted May 16, 2016 Nothing... Only black screen.... This 1 Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 None.... Try init from hd Try init usb -> hd Only black screen... No msg, no error... Noneee I use in usb clover r3330 and r3333 in hd... Link to comment Share on other sites More sharing options...
jaygrid Posted May 16, 2016 Share Posted May 16, 2016 Hi jaygrid Is your graphics card and cuda working fine? And firewire? I reinstall again everything but still don´t work I have two Z600 and everything work except this. I try with config.plist and DSDT from Rockey12 but no luck. Try with Quadro fx 4600, Geforce 210 and NVS 295. Either way this is my config.plist that works for me. Graphics work fine I think but i don't know how test that "cuda" What is cuda? I do not have any firewire device so don't know if it is working or not, sorry 1 Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 INSTALEDDDDDDDD... INSTALEDDDDDDD... Clover R3330 (Include in Clover Del 690) ----> Panic appleUSBUHCIPCi... Clover R3504 and R3526(New) --->Panic appleUSBUHCIPCi Clover version before 3320 -----> Black Screen, HD quiet... There is not charge I boot with HD and connect other USB, now show "Init hard drive", and Clover is R3280 and select HD with El Capitan -----> Boooooooooooootttttttt Successful...... and i do end the installation. But No init with HD, only if USB is connected, and select in the menu -->HD... The USB have EFI partition, but is empty... I don't know.... How i do? Link to comment Share on other sites More sharing options...
raycillo Posted May 16, 2016 Share Posted May 16, 2016 Hi Rockey12, thanks for ur patience, time an dedication... I do all ur procedure... i install using the Chris USB installer, with Clover R3330, I put the files in the folders... no luck... Panic in AppleUSBUHCIPCI... Try with various Config.Plist files try, try, try... without luck... Insert the usb.. init from HD, show Clover R3280, select HD and ... VOILAAAAAA... boot OK. Link to comment Share on other sites More sharing options...

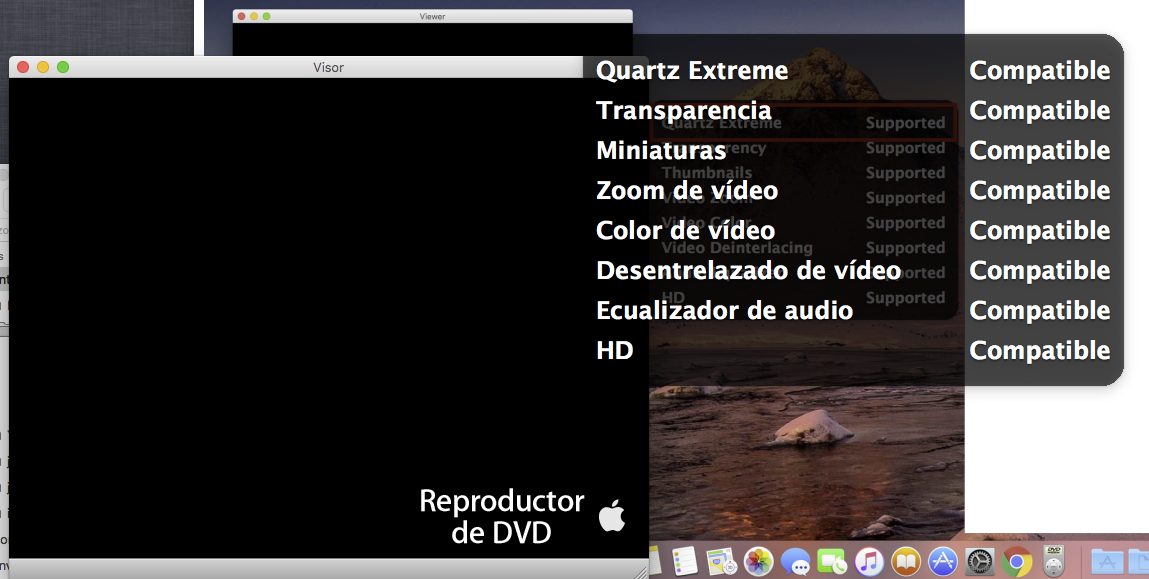

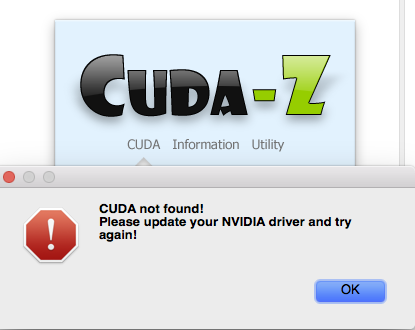

jaygrid Posted May 17, 2016 Share Posted May 17, 2016 Rockey12 you are a big help So my graphic is quartz compatible (is in spanish but clear enough) I try a program to test cuda but say i have to upgrade driver, don't know how. Rockey12, I tried to solve FaceTime but did not work, thanks anyhow It is safe to upgrade in z600 to 10.11.5?? 1 Link to comment Share on other sites More sharing options...

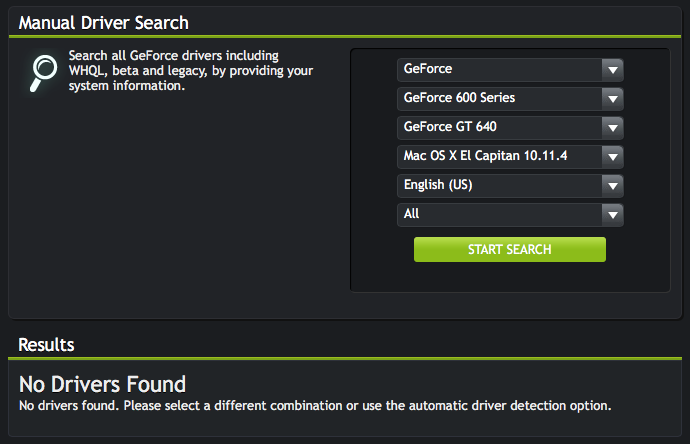

jaygrid Posted May 17, 2016 Share Posted May 17, 2016 No, i can't, there is not driver for GT640 for any version of El Capitan in Nvidia Link to comment Share on other sites More sharing options...

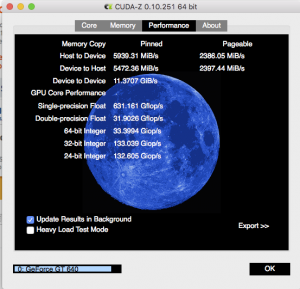

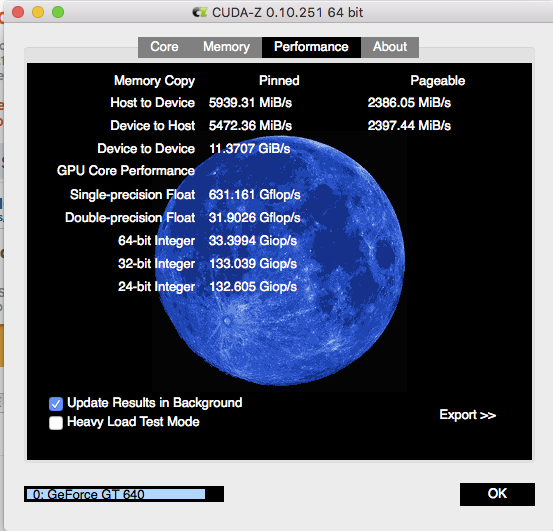

jaygrid Posted May 17, 2016 Share Posted May 17, 2016 Rockey, you are the best I don't know if is better but now is cuda (still don't know what is this) thank you 1 Link to comment Share on other sites More sharing options...
jaygrid Posted May 17, 2016 Share Posted May 17, 2016 Yes i tried to change serials even i take it from an Macair, but no luck Yes iCloud work perfect, photos, calendar, contact go to my iPhone whiteout problem Link to comment Share on other sites More sharing options...
@ROBASEFR Posted May 17, 2016 Share Posted May 17, 2016 Just want to signal that there is an update for Z400 bios version 3.60 out ! 3.60 Rev.A 14 apr. 2016 (For Windows and Linux) http://h20564.www2.hp.com/hpsc/swd/public/readIndex?sp4ts.oid=3718669&swLangOid=8&swEnvOid=4059 2 Link to comment Share on other sites More sharing options...
jaygrid Posted May 17, 2016 Share Posted May 17, 2016 i'm lucky with imessage work now i don't have someone to add i have found this but just work if u have a WIFI Card Go to your system preferences → network → make sure WI-FI selected → advanced → DNS tab. Add 8.8.8.8 to the DNS servers. Go back to FaceTime and try to verify your account again. Let me know if that works. No luck Link to comment Share on other sites More sharing options...

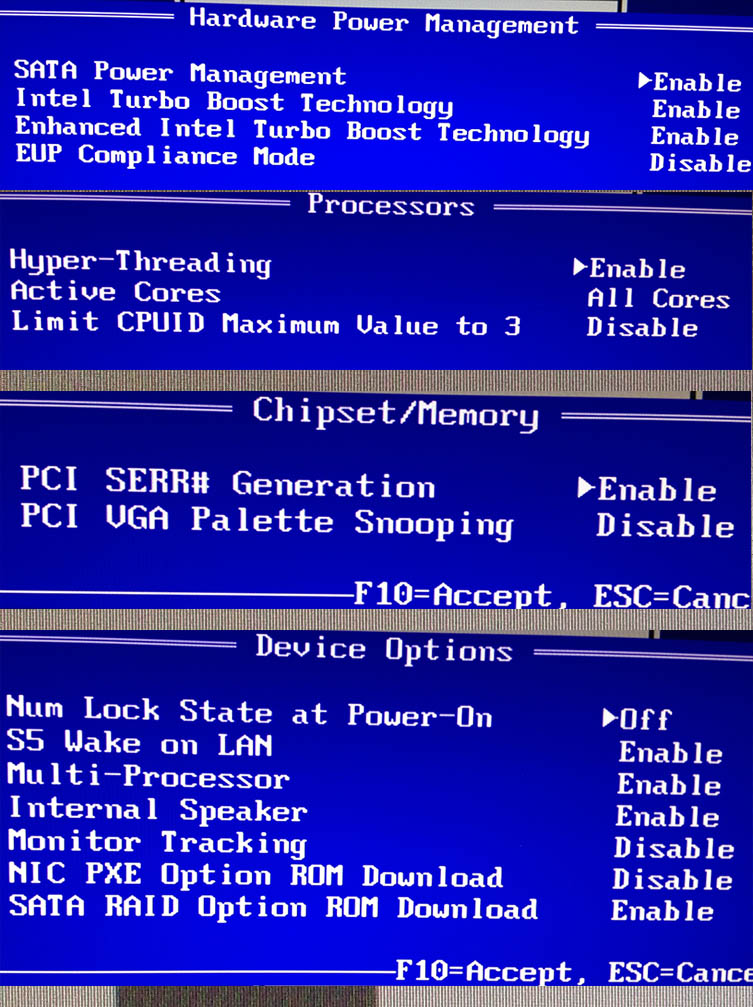

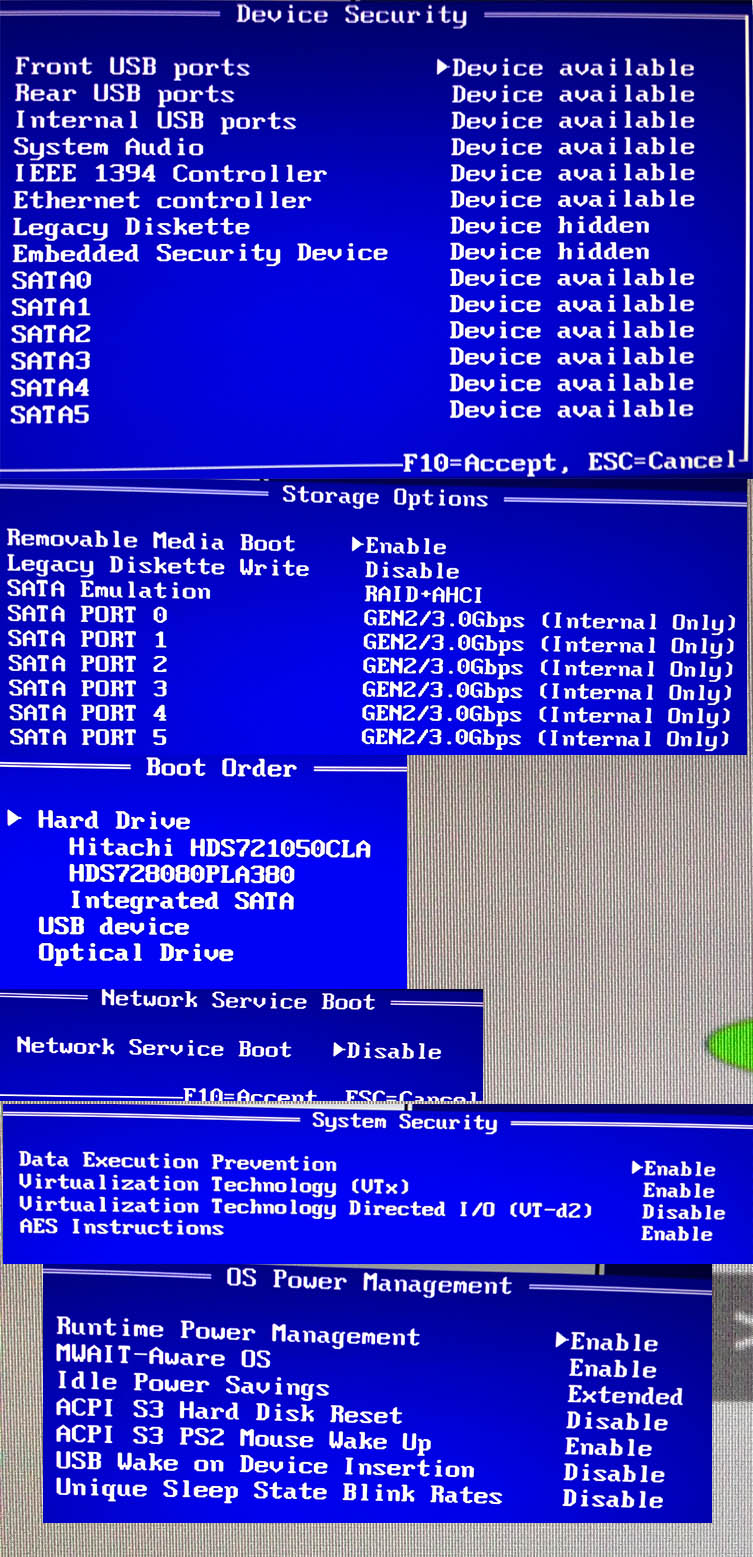

raycillo Posted May 17, 2016 Share Posted May 17, 2016 Hi, friends... i am again... I do have a reinstall all pc, fro clean. I have create the USB boot, with clover dell precision 690 usb creation tool, Install Clover on ESP and replace files on EFI partition. But not Boooottt..(panic AppleUSBUHCIPCI) . :( What is fail... Mi BIOS updated to latest version April 2016 This is my configuration Bios... is bad? Ur HDD should be connected to first SATA port which is Nr 0 ( yes, HD is Nr0) can u mount the efi partition on ur HDD (Yes Mount the hide efi partition ) I hope you are not using Mavricks and El Cap on the Same HDD (El Capitan is in one, Maverics is other..) Other note, when i use the DSDT for my Z600, Nothing happens. When i use the generic DSDT file, boot, but fail panic. Is this DSDT file incorrect? DSDT.zip Link to comment Share on other sites More sharing options...
jaygrid Posted May 17, 2016 Share Posted May 17, 2016 Try to Change the DNS From 8.8.8.8 to 8.8.4.4 no luck Link to comment Share on other sites More sharing options...
raycillo Posted May 17, 2016 Share Posted May 17, 2016 Hi, i try with 9 ports, no luck... I think that DSDT is corrupt and stop the machine, no msg, no error... only Ctrl + Alt + Del for reset... But generic DSDT, the machine boot... but error Or the bios update is incompatility..? http://h20564.www2.hp.com/hpsc/swd/public/detail?sp4ts.oid=3912020&swItemId=wk_164138_1&swEnvOid=4054 3.60 Rev.A(14 abr 2016) Link to comment Share on other sites More sharing options...
