Ozmosis UEFI bios modding guide

Pavo

By Pavo,
in Tutorials (The Genius Bar)

 Share
45 posts in this topic

Recommended Posts

Pavo
Pavo
Posted
Posted

Alot of people have been asking me to make them firmware with Ozmosis in them so I figured I would write this guide so people can start making their own firmware for Ozmosis.



WARNING: Flashing your BIOS is dangerous use with caution:



1. First thing you need is UEFITool made by CodeRush which can be downloaded >Here< and download and extract the Ozmosis.zip file that is attached.



2. You need to download your own UEFI BIOS from your motherboard website (example used is a MSI Z97-G45 Gaming firmware)



3. Open UEFITool and click on File..Open Image File..., when the window opens to select your firmware make sure to change the type to All Files...




4. Now you can do this step 2 ways:

a. You can look through the Volumes and find the one that has FileSystem or COREDXE and the other modules like below.


b. You can search for the FileSystem GUID (93022F8C-1F09-47EF-BBB2-5814FF609DF5) and place the Ozmosis module in the same Volume as it.


The main thing to remember here is that the Ozmosis modules must be in the same Volume as main modules in the firmware.



5. Now replace the FileSystem module with EnhancedFat by right clicking on the FileSystem module and selecting Replace as is....






if the that menu when you right click doesn't come up correctly you can always use the menu bar and have FileSystem module highlighted and click Action then File and then Replace as is..



You will see Remove on the FileSystem module and Replace on the EnhancedFat module that you just injected.




6. Now just go to the last module in that Volume and start adding the Ozmosis modules to the end of it by using the Insert after... selection. The best oder is as follows:

PartitionDXE, HFSPlus, Osmosis, SmcEmulatorKext





This part is unique to each board, you need to decide if you want your config inside your firmware or not, if not then you need to use the ESP for the Defaults.plist:



(Note: Your firmware only has so much space, use the Oz folder structure if your firmware can not handle all the your kexts)



Converting your own kexts to .ffs to be injected into firmware:



Tools need:

kexts2ffs which is attached



Extract the attached kext2ffs and you will see these folders and files:


Add your own kexts to the Kexts folder in Kext2Ffs like this:


Open the Ozm Folder and open the OzmosisDefaults.plist with either Xcode or PlistEdit Pro (DO NOT OPEN WITH a TextEditior)


Open your Clover config.plist again with either Xcode or PlistEdit Pro


Now this is where you have to look and see what can be carried over from Clover config.plist to OzmosisDefaults.plist that Ozmosis uses, I have attached a full list of settings that Ozmosis uses in its OzmosisDefaults.plist. The only things that can be moved from Clover config.plist to OzmosisDefaults.plist are:
Graphics in Clover config.plist:
<key>FBName</key>
<string>Macaque</string>
In OzmosisDefaults.plist:
<key>AtiFramebuffer</key>
<string>ReplaceMe</string>
Intel GFX in Clover config.plist:
<key>ig-platform-id</key>
<string>0x01620005</string>
In OzmosisDefaults.plist:
<key>AAPL,ig-platform-id</key>
<integer>0xDEADBEAF</integer>
If you want to inject anything for graphics you need to make sure DisableNvidaInjection, DisableAtiInjection and DisableIntelInjection are set to false like this:
Ati:
<key>DisableAtiInjection</key>
<false/>
Nvidia:
<key>DisableNvidaInjection</key>
<false/>
Intel:
<key>DisableIntelInjection</key>
<true/>
The SMBIOS section self explanitory so I am not going to go over that except how to fix iMessage and FaceTime if you currently have it working with using Clover
(Remember ROM must be 12 digits HEX and MLB must be 17 digits)
ROM:
Clover config.plist:
<key>ROM</key>
<data>xxxxxxxxxxx</data>
OzmosisDefaults.plist:
<key>HardwareAddress</key>
<string>xx:xx:xx:xx:xx:xx</string>
MLB(which is located in the SMBIOS as BoardSerialNumber):
Clover config.plist:
<key>BoardSerialNumber</key>
<string>xxxxxxxxxxxxxxxxx</string>
OzmosisDefaults.plist:
<key>BaseBoardSerial</key>
<string>xxxxxxxxxxxxxxxxx</string>
The only other thing that you can use from Clover config.p;its in OzmosisDefaults.plist is the boot-args
Clover config.plist:
<key>Arguments</key>
<string>kext-dev-mode=1</string>
OzmosisDefaults.plist:
<key>boot-args</key>
<string>kext-dev-mode=1</string>

Now once you have done everything you want in the OzmosisDefaults.plist save and close and run the KextToFfs.command.
You will see a terminal windows open and showing what is being converted. Close the terminal windows once converted is complete and find your converted kexts and OzmosisDefaults located in:
Kexts:
Kext2Ffs/Ffs/Kext/ (Note: if you want to use the compressed versions they are located in Kext2Ffs/Ffs/Kext/Compress/ which is recommended to save space in the firmware)
OzmosisDefaults:
Kext2Ffs/Ffs/Ozm/ (Note: if you want to use the compressed versions they are located in Kext2Ffs/Ffs/Ozm/Compress/ which is recommended to save space in the firmware)

This should what your final mod looks like:
Saving the firmware is different between Gigabyte, MSI, AsRock, ASUS

GA/MSI:
Click File>Save Image As.. and save the modded firmware as the original one (replace the original one), make sure to change file type to All Files and uncheck Hide Extensions

AsRock:

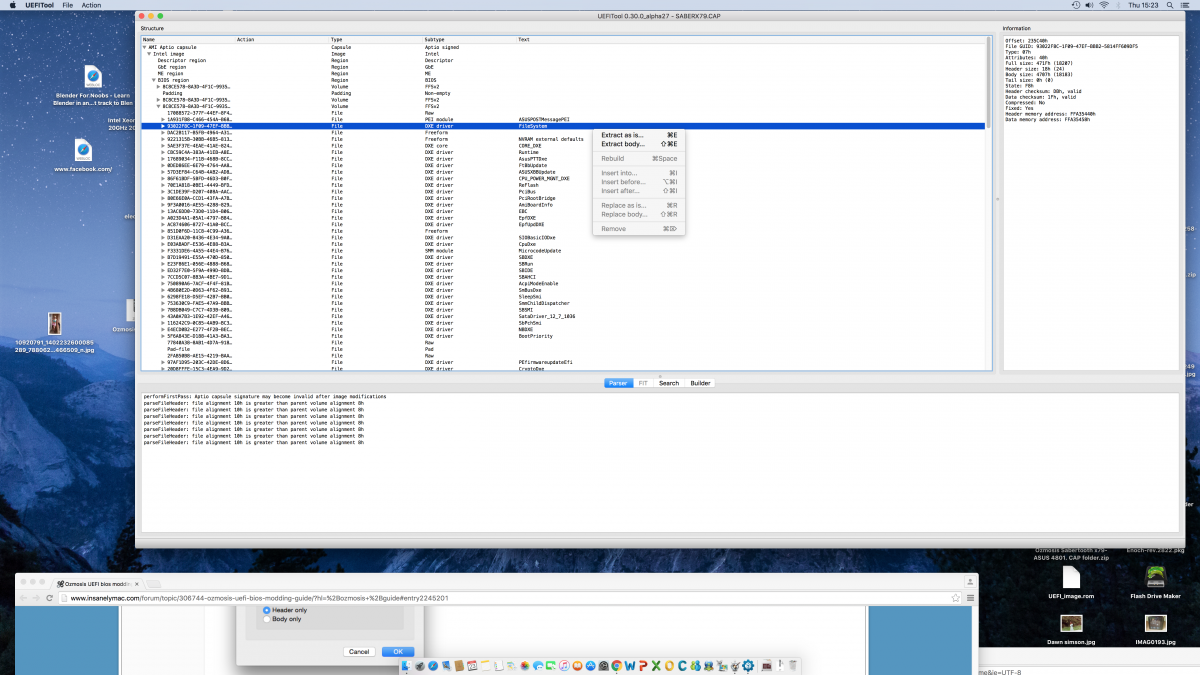

Right click on the AMI Aptio capsule module and select Extract Body

Save it as the same name as the original firmware but leave the file type as defaults and it should save the modded firmware as a .rom file

ASUS:
ASUS can be done 2 ways, so I will give credit to Fernando over at http://www.win-raid.com/t455f16-Guide-How-to-flash-a-modded-ASUS-or-ASRock-AMI-UEFI-BIOS.html for making a user friendly guide on how to flash modded firmware for ASUS boards

Flashing an ASUS BIOS file with the extension ".ROM"

This BIOS file type is not capsuled and usually not write protected. It is most common for ASUS P67 and Z68 mainboards.
That is why it should be no problem to get an accurately modded BIOS flashed into the BIOS chip by using the ASUS standard tool named "EZ Flash".

Flashing an ASUS BIOS file with the extension ".CAP"
These types of ASUS' BIOS files are capsuled and write protected, which makes it impossible to flash a modded .CAP BIOS the usual way.
There are at least 2 options how to solve this problem:

  • a.) Using the ASUS "USB Flashback" procedure
    Many ASUS mainboards with an Intel 7- 8- or 9-Series chipset do support this very easy to use feature to get a modded BIOS flashed. These boards have a special "Flashback USB port" and a special "USB Flashback button". For details please look into your mainboard manual or at >this< ASUS site (maybe the Smart Redirect Addon has to be disabled).
    Important for ASUS X99 Boards:
    Users of an ASUS X99 mainboard should read >this< post written by sinders, before they start flashing any modded BIOS by using the "USB Flashback" method.
    Procedure:
    1. Rename the modded BIOS file according to ASUS "USB BIOS Flashback Rules". The ASUS support is offering a tool named "BIOS Renamer for USB BIOS Flashback" for all mainboards, which support the USB Flashback feature. Furthermore the UBU tool offfers the renaming procedure as well.
    2. Copy the modded and renamed BIOS file onto a FAT32 formatted empty USB Flash drive and insert it into the special "USB Flashback port".
    3. Shut down the computer, but don't power it off.
    4. Hit the USB BIOS Flashback button. A LED light will start blinking. Press the button for some seconds (LED light should have blinked 3-4 times).
    5. Wait until the LED light doesn't blink anymore. This means, that the BIOS has been successfully flashed into the BIOS chip of the mainboard.
    6. Then all is done. You can power off the computer and remove the USB Flash drive.
  • b.) Using the AMI tool AFUDOS
    Users with an ASUS 7-, 8- or 9-Series chipset mainboard, which does not support the "USB BIOS Flashback" feature, should download the latest AFU tools from the AMI websites (>here< is the download link).
    Our Forum member CodeRush has written a detailed guide, which can be found >here<.

Ozmosis.zip

Kext2Ffs.zip

  • Like 13
  • Thanks 1
Link to comment
Share on other sites
