Nvidia Web Driver updates for El Capitan (UPDATE 07/11/2018)

[GreenMonstah83]

Is this a place where i can ask a question?  i have a Z170xUD5 motherboard and a I7 skyline processor.   My graphics card is 970GTX 4GB.  I have been using SMBIOS code for iMac17,1 but when I boot with the web drivers installed and nvda_driver=1 I only get a black screen when the logon screen should appear.  I have team viewer installed so I can remote to the computer.  What I notice is that it cannot see an external display attached.  It is only driving the (nonexistent) internal monitor.



If I switch the SMBIOS to MacPro3,1 -- that seems to resolve the graphics problem, but that has a whole set of other problems with USB ports etc.



Is there anything I can do to get the 970 to work correctly while the SMBIOS is set to iMac17,1?





--I found the answer to this on a different forum.  The answer is to edit the AppleGraphicsControl.kext.

I found instructions on how to do this by google searching for Solving NVIDIA Driver Install & Loading Problems



I have found that when you get the black screen and mouse cursor - you can either click in the general area of where your profile picture would be (or use the arrow keys to get over there and hit enter, for example arrow over 2x and then hit the enter key) and then enter your password - it allowed me to get back to the normal look & feel!   However, I have an additional twist to this... I was prompted by the nVidia driver manager to install the latest update and foolishly clicked to install.  Now it has me back in a reboot loop.



I have a Gigabyte Mobo (z77x-ud5h, purchased about 2.5 years ago, BIOS version F14) with a GeForce GTX 670 FTW card and the Intel i7 3770k processor.



Here is my boot log from when I most recently entered Safe Mode:

0:100  0:100  MemLog inited, TSC freq: 3503442266
0:100  0:000  LegacyRegion2: Chipset/proc: 0x01508086
0:100  0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100  0:000   Test PAM1=(0x41=90, 0x5a=00, 0x81=11, 0x91=00) at chipset 01508086
0:100  0:000  , Install = Success
0:114  0:014  BiosVideoDriverBindingStart!
0:114  0:000  BiosVideoCheckForVbe
0:114  0:000  EdidOverride not found
0:186  0:072   Edid1-
0:211  0:024   Edid0+
0:211  0:000   found Detail Timing 1920x1080
0:260  0:049     0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:261  0:001     1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:263  0:001     2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:265  0:001     3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3
0:275  0:010     4 1920x1080 attr=3BF - ok, edid+, working, highest, pref=4
0:277  0:001     5 1280x800 attr=3BF - ok, edid+, working
0:277  0:000  BV new mode: 4 1920x1080
0:617  0:340   SetMode pref 4 (4) = Success
5:028  4:410
5:028  0:000  Now is 8.1.2016,  23:56:39 (GMT+2047)
5:028  0:000  Starting Clover rev 3330 on CLOVER EFI
5:028  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68) @DD458398
5:028  0:000  SelfDirPath = \EFI\CLOVER
5:028  0:000  Total Memory Slots Count = 4
5:028  0:000  Type 17 Index = 0
5:028  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:028  0:000  SmbiosTable.Type17->Size = 8192MB
5:028  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
5:028  0:000  Type 17 Index = 1
5:028  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:028  0:000  SmbiosTable.Type17->Size = 8192MB
5:028  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
5:028  0:000  Type 17 Index = 2
5:028  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:028  0:000  SmbiosTable.Type17->Size = 8192MB
5:028  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
5:028  0:000  Type 17 Index = 3
5:028  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:028  0:000  SmbiosTable.Type17->Size = 8192MB
5:028  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
5:028  0:000  Boot status=0
5:028  0:000  Clover revision: 3330  running on To be filled by O.E.M.
5:028  0:000  ... with board Z77X-UD5H
5:028  0:000  CPU Vendor = 756E6547 Model=306A9
5:028  0:000  The CPU supported turbo
5:028  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
5:028  0:000  MSR 0xE2 before patch 1E000403
5:028  0:000  MSR 0xE4              00010414
5:028  0:000  MSR 0xCE              00081010_F0012300
5:028  0:000  non-usable FLEX_RATIO = F0000
5:028  0:000  corrected FLEX_RATIO = E0000
5:028  0:000  MSR 0x1B0             00000000
5:028  0:000  FSBFrequency=105MHz DMIvalue=100000kHz
5:028  0:000  Corrected FSBFrequency=100MHz
5:028  0:000  Vendor/Model/Stepping: 0x756E6547/0x3A/0x9
5:028  0:000  Family/ExtFamily: 0x6/0x0
5:028  0:000  MaxDiv/MinDiv: 35.0/16
5:028  0:000  Turbo: 37/38/39/39
5:028  0:000  Features: 0xBFEBFBFF
5:028  0:000  Threads: 8
5:028  0:000  Cores: 4
5:028  0:000  FSB: 100 MHz
5:028  0:000  CPU: 3700 MHz
5:028  0:000  TSC: 3700 MHz
5:028  0:000  PIS: 400 MHz
5:028  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
5:028  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
5:028  0:000  PCI (00|01:00.00) : 10DE 1189 class=030000
5:028  0:000  Found NVidia model=EVGA GeForce GTX 670
5:028  0:000  PCI (00|01:00.01) : 10DE 0E0A class=040300
5:028  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
5:028  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
5:028  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
5:028  0:000  LAN 0, Vendor=8086, MMIO=F7600000
5:028  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
5:028  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
5:028  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
5:028  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
5:028  0:000  PCI (00|03:00.00) : 1B4B 9172 class=010601
5:028  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
5:028  0:000  PCI (00|04:00.00) : 168C 0030 class=028000
5:028  0:000  PCI (00|00:1C.05) : 8086 244E class=060401
5:028  0:000  PCI (00|05:00.00) : 8086 244E class=060401
5:029  0:000  PCI (00|06:01.00) : 1106 3044 class=0C0010
5:029  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
5:029  0:000  PCI (00|07:00.00) : 1969 1091 class=020000
5:029  0:000  LAN 1, Vendor=1969, MMIO=F7200000
5:029  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
5:029  0:000  PCI (00|08:00.00) : 1B4B 9172 class=010601
5:029  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
5:029  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
5:029  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
5:029  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
5:029  0:000  Clover load options size = 0 bytes
5:030  0:000  Using OEM config.plist at path: EFI\CLOVER\config.plist
5:030  0:000  EFI\CLOVER\config.plist loaded: Success
5:031  0:000  Found theme directory: embedded
5:037  0:005  Found theme directory: random
5:041  0:004  Loading early settings
5:041  0:000  timeout set to 5
5:041  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
5:041  0:000  Default theme: embedded
5:041  0:000  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
5:041  0:000  Hiding entries with string Windows
5:041  0:000  LoadDrivers() start
5:042  0:000  Loading FSInject-64.efi  status=Success
5:044  0:002  Loading VBoxHfs-64.efi  status=Success
5:045  0:001   - driver needs connecting
5:046  0:000  1 drivers needs connecting ...
5:046  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
5:232  0:186  LoadDrivers() end
5:232  0:000  Console modes reported: 4, available modes:
5:232  0:000    Mode 1: 80x25
5:232  0:000    Mode 2: 80x50
5:232  0:000    Mode 3: 100x31
5:232  0:000    Mode 4: 240x56 (current mode)
5:232  0:000  SetScreenResolution: 1920x1080 - already set
5:232  0:000  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68)
5:233  0:000  ScanSPD() start
5:233  0:000  SMBus CmdReg: 0x3
5:233  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7635004, ioport: 0xF000, hostc: 0x1
5:233  0:000  Slots to scan [8]...
5:248  0:014  SPD[0]: Type 11 @0x50
5:257  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:257  0:000  Slot: 0 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:271  0:014  SPD[1]: Type 11 @0x51
5:280  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:280  0:000  Slot: 1 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:294  0:014  SPD[2]: Type 11 @0x52
5:303  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:303  0:000  Slot: 2 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:317  0:014  SPD[3]: Type 11 @0x53
5:326  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:326  0:000  Slot: 3 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:351  0:025  ScanSPD() end
5:361  0:009  Get Acpi Tables List from RSDT:
5:361  0:000   Found table: FACP  A M I len=132
5:361  0:000   Found table: APIC  A M I len=146
5:361  0:000   Found table: MCFG   len=60
5:361  0:000   Found table: HPET  A M I len=56
5:361  0:000   Found table: SSDT  SataTabl len=877
5:361  0:000   Found table: SSDT  Cpu0Ist len=2474
5:361  0:000   Found table: SSDT  CpuPm len=2706
5:361  0:000   Found table: MATS  A M I len=52
5:361  0:000  Calibrated TSC frequency =3503442266 =3503MHz
5:361  0:000  Loading main settings
5:361  0:000  Read NVCAP:0000000000000000000000000000000000000000
5:361  0:000  USB FixOwnership: true
5:361  0:000  Config set Fixes will override FixMask mask!
5:361  0:000     final mask=9FC279D7
5:361  0:000  Config set ResetAddr=0x0
5:361  0:000  Config calc ResetVal=0x0
5:361  0:000  Config set ResetVal=0x0
5:361  0:000  Config set ChassisType=0xD
5:361  0:000  Config set QPI = 0 disable table132
5:361  0:000  Config set CpuFreq=3503MHz
5:361  0:000  Config set CpuType=704
5:361  0:000  Config set BusSpeed=100098kHz
5:361  0:000  Error: invalid CustomUUID '' - should be in the format XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX
5:361  0:000  found 5 volumes with blockIO
5:361  0:000   0. Volume:
5:361  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
5:363  0:002    Result of bootcode detection: bootable unknown (legacy)
5:363  0:000   1. Volume:
5:363  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
5:363  0:000    found optical drive
5:363  0:000   2. Volume:
5:363  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,B05FC7EE-6093-4E99-9FA7-F6EC4DCAAB1E,0x28,0x64000)
5:364  0:000    Result of bootcode detection: bootable unknown (legacy)
5:364  0:000   3. Volume:
5:364  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68)
5:364  0:000    Result of bootcode detection: bootable unknown (legacy)
5:364  0:000    This is SelfVolume !!
5:364  0:000   4. Volume:
5:364  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,2C1D2739-1464-48AB-970C-02E68F92D3A1,0x3B8AB368,0x135F20)
5:364  0:000  PutNvramPlistToRtVars: nvram.plist not found
5:364  0:000   using embedded theme
5:364  0:000  Choosing theme <null string>
5:364  0:000  Custom entries start
5:364  0:000  Custom entries finish
5:364  0:000  Scanning loaders...
5:364  0:000   0: 'Whole Disc Boot' no file system
5:364  0:000   1: 'Whole Disc Boot' no file system
5:364  0:000   2: 'EFI'
5:366  0:001      AddLoaderEntry for Volume Name=EFI
5:367  0:001   3: 'Mountain'
5:370  0:002      AddLoaderEntry for Volume Name=Mountain
5:374  0:004      Check if volume Is Hibernated:
5:374  0:000      Check sleep image 'by signature':
5:376  0:001      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
5:376  0:000      SleepImage name from pref: ImageVolume = 'Mountain', ImageName = '\private\var\vm\sleepimage'
5:378  0:001      Reading first 512 bytes of sleepimage ...
5:378  0:000   OurBlockIoRead: Lba=14B79870, Offset=296F30E000 (BlockSize=512)
5:378  0:000   sig lion: 5E0F
5:378  0:000   sig snow: B756AFC8
5:378  0:000   no valid sleep image offset was found
5:378  0:000      Reading completed -> Success
5:378  0:000       sleepimage offset could not be acquired
5:378  0:000       hibernated: no - sign
5:397  0:019   4: 'Recovery HD'
5:398  0:000      AddLoaderEntry for Volume Name=Recovery HD
5:399  0:001  Custom legacy start
5:399  0:000  Custom legacy end
5:399  0:000  Scanning legacy ...
5:399  0:000   0: 'Whole Disc Boot' (legacy) not legacy
5:399  0:000   1: 'Whole Disc Boot' (legacy) not legacy
5:399  0:000   2: 'EFI' (legacy) not legacy
5:399  0:000   3: 'Mountain' (legacy) not legacy
5:399  0:000   4: 'Recovery HD' (legacy) not legacy
5:399  0:000  Custom tool start
5:399  0:000  Custom tool end
5:400  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
5:400  0:000  Checking EFI partition Volume 2 for Clover
5:400  0:000  GetEfiBootDeviceFromNvram: efi-boot-device-data not found
5:400  0:000  EfiBootVolume not found
5:400  0:000  Default boot entry not found
5:400  0:000  DefaultIndex=-1 and MainMenu.EntryCount=8
5:504  0:103  Found Mouse device:
5:504  0:000  GUI ready
15:586  10:081  ParseBootOption: invalid input params
15:586  0:000  BootOption of the entry is empty
15:586  0:000  StartLoader() start
15:586  0:000  Entry->Settings: <null string>
15:586  0:000  Finally: Bus=100098kHz CPU=3503MHz
15:586  0:000  Kernel and Kext Patches at DD6A7270:
15:586  0:000  	Allowed: y
15:586  0:000  	Debug: n
15:586  0:000  	KernelCpu: n
15:586  0:000  	Lapic: n
15:586  0:000  	Haswell-E: n
15:586  0:000  	AICPUPM: n
15:586  0:000  	AppleRTC: y
15:586  0:000  	KernelPm: n
15:586  0:000  	FakeCPUID: 0x0
15:586  0:000  	ATIController: null
15:586  0:000  	ATIDataLength: 0
15:586  0:000  	0 Kexts to load
15:586  0:000  	0 Kexts to patch
15:586  0:000  Loading boot.efi  status=Success
15:694  0:108  GetOSVersion: : 10.11.2
15:694  0:000  insert table 9 for dev 0:0
15:694  0:000  insert table 9 for dev 0:1
15:694  0:000  insert table 9 for dev 0:0
15:694  0:000  insert table 9 for dev 0:0
15:694  0:000  insert table 9 for dev 1:0
15:695  0:000  Trusting SMBIOS...
15:695  0:000  Channels: 2
15:695  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
15:695  0:000   partNum=CMZ32GX3M4X1600C10
15:695  0:000  SMBIOS Type 17 Index = 0 => 0 0:
15:695  0:000  BANK0 DIMM0 1333MHz 8192MB
15:695  0:000  mTotalSystemMemory = 8192
15:695  0:000   partNum=CMZ32GX3M4X1600C10
15:695  0:000  SMBIOS Type 17 Index = 1 => 2 2:
15:695  0:000  BANK1 DIMM0 1333MHz 8192MB
15:695  0:000  mTotalSystemMemory = 16384
15:695  0:000   partNum=CMZ32GX3M4X1600C10
15:695  0:000  SMBIOS Type 17 Index = 2 => 1 1:
15:695  0:000  BANK0 DIMM1 1333MHz 8192MB
15:695  0:000  mTotalSystemMemory = 24576
15:695  0:000   partNum=CMZ32GX3M4X1600C10
15:695  0:000  SMBIOS Type 17 Index = 3 => 3 3:
15:695  0:000  BANK1 DIMM1 1333MHz 8192MB
15:695  0:000  mTotalSystemMemory = 32768
15:695  0:000  NumberOfMemoryDevices = 4
15:695  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000
15:695  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0x8000
15:695  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0xC000
15:695  0:000  Type20[3]->End = 0x1FFFFFF, Type17[3] = 0x14000
15:695  0:000  Table 131 is present, CPUType=31
15:695  0:000  Change to: 704
15:695  0:000  RSDT 0xDE171028
15:695  0:000  FADT from RSDT: 0xDE1710E8
15:695  0:000  XSDT 0xDE171070
15:695  0:000  FADT from XSDT: 0xDE17C5F0
15:695  0:000  Xsdt reallocation done
15:695  0:000  old FADT length=F4
15:695  0:000  Found OperationRegion(GNVS, SystemMemory, DE22FE18, ...)
15:695  0:000  Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
15:695  0:000  Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
15:695  0:000  Found OperationRegion(CPSB, SystemMemory, DE105F98, ...)
15:695  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
15:695  0:000  Found OperationRegion(TVID, SystemMemory, FED40F00, ...)
15:695  0:000  Found OperationRegion(TPMR, SystemMemory, FED40000, ...)
15:698  0:003  Output DSDT before patch to /EFI/CLOVER/ACPI/origin/DSDT-or.aml
15:698  0:000  Apply DsdtFixMask=0x9FC279D7 new way
15:698  0:000     drop _DSM mask=0x0000
15:698  0:000  ========= Auto patch DSDT Starting ========
15:698  0:000  VideoCard devID=0x118910DE
15:698  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
15:698  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
15:698  0:000  USBADR[1] = 0x1A0000 and PCIe = 0xFFFE
15:710  0:011  Found Airport Atheros at 0x1C0004, 0x0, DeviceID=0x0030
15:710  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
15:710  0:000  first CPU found at 8A14 offset 8A17
15:710  0:000  score candidate at 8A10
15:710  0:000  score inserted in acpi_cpu_score _PR_
15:710  0:000  Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
  within the score: _PR_
15:711  0:000  Found PCIROOTUID = 0
15:711  0:000  Start RTC Fix
15:711  0:000  found RTC Length not match, Maybe will case CMOS reset will patch it.
15:711  0:000  found RTC had IRQNoFlag will move -3 bytes
15:711  0:000  ...len=B4BC
15:711  0:000  new size written to 23EA shift=0 len=B4BC
15:711  0:000  len after correct outers B4BC
15:711  0:000  Start PIC Fix
15:711  0:000  PIC size=A5 at 2296
15:711  0:000  found CRS at 22AA size 8D
15:711  0:000  found PIC had IRQNoFlag will move -3 bytes
15:711  0:000  Fix Device PIC size -3
15:711  0:000  Start HPET Fix
15:711  0:000  Start Display0 Fix
15:711  0:000  Found internal video device FFFF@486C, unusable
15:711  0:000  Creating DSM for NVIDIA card
15:711  0:000  patch Display #0 of Vendor=0x10DE in DSDT new way
15:711  0:000  Start NetWork Fix
15:712  0:000  found NetWork device [0x001C0006:0] at 46E7 and Name is PXSX
15:712  0:000  NetworkADR1=1C0006 NetworkADR2=0
15:712  0:000  network DSM created, size=5F
15:712  0:000  Start Airport Fix
15:712  0:000  found Airport device [001C0004:0] at 374B And Name is PXSX
15:712  0:000  Name PXSX present at 0xA2, renaming to ARPT
15:712  0:000  Name PXSX present at 0xE0, renaming to ARPT
15:712  0:000  AirportADR=374B add patch size=F1
15:712  0:000  adr 374B size of arpt=17
15:712  0:000  Start SBUS Fix PCI=1198 len=B599
15:712  0:000  device (SBUS) found at 69AE
15:712  0:000  SBUS code size fix = 0x0000005D
15:712  0:000  patch FRWR in DSDT
15:713  0:000  found Firewire device NAME(_ADR,0x00000000) at 46DB And Name is PXSX
15:713  0:000  Name PXSX present at 0xA2, renaming to FRWR
15:713  0:000  Name PXSX present at 0xE0, renaming to FRWR
15:713  0:000  Start Firewire Fix
15:713  0:000  Start HDMI141 Fix
15:713  0:000  have no HDMI device while HDMIADR2=1
15:713  0:000  HDMIADR1=10000 HDMIADR2=1
15:713  0:000    with default properties
15:713  0:000  Start USB Fix
15:713  0:000  USB bridge[140000] at 6548, size = 491
15:713  0:000  USB bridge[1A0000] at 61A8, size = 39E
15:713  0:000   found slave _DSM, skip
15:714  0:000  USB bridge[1D0000] at 5C6C, size = 53A
15:714  0:000   found slave _DSM, skip
15:714  0:000   deleting device CRT_
15:714  0:000   deleting device DVI_
15:714  0:000   deleting device SPKR
15:714  0:000   deleting device ECP_
15:715  0:000   deleting device LPT_
15:715  0:000   deleting device FDC0
15:715  0:000   deleting device ECP1
15:715  0:000   deleting device LPT1
15:716  0:000  Start PNLF Fix
15:716  0:000  found PWRB at 5991
15:716  0:000  Start _S3D Fix
15:716  0:000  OperationRegion (GNVS...) corrected to addr=0xDE22FE18
15:716  0:000  OperationRegion (MCHT...) corrected to addr=0xFED10000
15:716  0:000    indirect name=SRCB
15:716  0:000  OperationRegion (RCRB...) corrected to addr=0xFED1C000
15:716  0:000  OperationRegion (CPSB...) corrected to addr=0xDE105F98
15:716  0:000    indirect name=ASLB
15:716  0:000  ... value not defined
15:716  0:000  OperationRegion (IGDM...) corrected to addr=0x0
15:716  0:000  OperationRegion (TMMB...) corrected to addr=0xFED40000
15:716  0:000  OperationRegion (TVID...) corrected to addr=0xFED40F00
15:716  0:000  OperationRegion (TPMR...) corrected to addr=0xFED40000
15:716  0:000  Start ADP1 fix
15:716  0:000  no device(AC) exists
15:716  0:000  Start Darwin Fix
15:716  0:000  Name _OSI present at 0x18FA, renaming to OOSI
15:716  0:000  Name _OSI present at 0x9640, renaming to OOSI
15:716  0:000  Name _OSI present at 0x9647, renaming to OOSI
15:716  0:000  Name _OSI present at 0x9663, renaming to OOSI
15:716  0:000  Name _OSI present at 0x9683, renaming to OOSI
15:716  0:000  Name _OSI present at 0x96A3, renaming to OOSI
15:716  0:000  Name _OSI present at 0x96C1, renaming to OOSI
15:716  0:000  Name _OSI present at 0x96DD, renaming to OOSI
15:716  0:000  Start SHUTDOWN Fix len=B85C
15:717  0:000  ========= Auto patch DSDT Finished ========
15:766  0:049  ...saving DSDT failed with status=Write Protected
15:766  0:000  Patch table: SSDT  SataTabl
15:766  0:000   SSDT len = 0x36D
15:766  0:000  Patch table: SSDT  Cpu0Ist
15:766  0:000   SSDT len = 0x9AA
15:766  0:000  Patch table: SSDT  CpuPm
15:766  0:000   SSDT len = 0xA92
15:766  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
15:766  0:000   Xsdt has tables count=8
15:766  0:000  corrected XSDT length=100
15:767  0:000   CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
15:767  0:000  Maximum control=0x23
15:767  0:000  Turbo control=0x27
15:767  0:000  P-States: min 0x7, max 0x27
15:767  0:000  SSDT with CPU P-States generated successfully
15:767  0:000  SSDT with CPU C-States generated successfully
15:767  0:000  EdidDiscovered size=128
15:767  0:000  00 | 00 FF FF FF FF FF FF 00 04 69 FD 22 03 01 01 01
15:767  0:000  16 | 13 17 01 03 80 30 1B 78 2A 2A C5 A4 56 4F 9E 28
15:767  0:000  32 | 0F 50 54 B7 EF 00 D1 C0 81 40 81 80 95 00 B3 00
15:767  0:000  48 | 71 4F 81 C0 81 00 02 3A 80 18 71 38 2D 40 58 2C
15:767  0:000  64 | 45 00 DC 0C 11 00 00 1E 00 00 00 FF 00 44 35 4C
15:767  0:000  80 | 4D 51 53 30 34 33 39 35 33 0A 00 00 00 FD 00 32
15:767  0:000  96 | 4B 18 53 11 00 0A 20 20 20 20 20 20 00 00 00 FC
15:767  0:000  112 | 00 41 53 55 53 20 56 53 32 32 38 0A 20 20 00 FD
15:767  0:000  NVidia GFX injection not set
15:767  0:000  USB Controller [8086:1E31] :: PcieRoot(0x0)\Pci(0x14,0x0)
15:767  0:000  USB Controller [8086:1E2D] :: PcieRoot(0x0)\Pci(0x1A,0x0)
15:767  0:000  USB Controller [8086:1E26] :: PcieRoot(0x0)\Pci(0x1D,0x0)
15:767  0:000   RCBA access disabled; trying to enable
15:767  0:000  stringlength = 1752
15:767  0:000  CurrentMode: Width=1920 Height=1080
15:767  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DD458398
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DD458398
15:770  0:002  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
15:770  0:000    Extra kext: EFI\CLOVER\kexts\Other\AtherosE2200Ethernet.kext
15:779  0:008    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
15:790  0:010    Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext
15:799  0:009  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
15:801  0:001  Removed efi-boot-device-data variable: Not Found
15:801  0:000  Custom boot screen not used because entry has unset use graphics
15:801  0:000  Closing log

It looks like my ioreg file was just narrowly too big to upload, so here it is:

http://www.filedropper.com/imacioreg



Is there anything else that would help troubleshoot?

[GreenMonstah83]

Update to my last post... After running the repair permissions script, I was able to boot successfully!!



Here was my bdmesg output:

iMac:~ dbednarz1$ bdmesg
0:100  0:100  MemLog inited, TSC freq: 3503453306
0:100  0:000  LegacyRegion2: Chipset/proc: 0x01508086
0:100  0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100  0:000   Test PAM1=(0x41=90, 0x5a=00, 0x81=11, 0x91=00) at chipset 01508086
0:100  0:000  , Install = Success
0:114  0:014  BiosVideoDriverBindingStart!
0:114  0:000  BiosVideoCheckForVbe
0:114  0:000  EdidOverride not found
0:186  0:072   Edid1-
0:211  0:024   Edid0+
0:211  0:000   found Detail Timing 1920x1080
0:260  0:049     0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:261  0:001     1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:263  0:001     2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:265  0:001     3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3
0:275  0:010     4 1920x1080 attr=3BF - ok, edid+, working, highest, pref=4
0:277  0:001     5 1280x800 attr=3BF - ok, edid+, working
0:277  0:000  BV new mode: 4 1920x1080
0:628  0:351   SetMode pref 4 (4) = Success
5:038  4:409
5:038  0:000  Now is 10.1.2016,  7:10:11 (GMT+2047)
5:038  0:000  Starting Clover rev 3330 on CLOVER EFI
5:038  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68) @DD458398
5:038  0:000  SelfDirPath = \EFI\CLOVER
5:038  0:000  Total Memory Slots Count = 4
5:038  0:000  Type 17 Index = 0
5:038  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:038  0:000  SmbiosTable.Type17->Size = 8192MB
5:038  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
5:038  0:000  Type 17 Index = 1
5:038  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:038  0:000  SmbiosTable.Type17->Size = 8192MB
5:038  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
5:038  0:000  Type 17 Index = 2
5:038  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:038  0:000  SmbiosTable.Type17->Size = 8192MB
5:038  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
5:038  0:000  Type 17 Index = 3
5:038  0:000  SmbiosTable.Type17->Speed = 1333MHz
5:038  0:000  SmbiosTable.Type17->Size = 8192MB
5:038  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
5:038  0:000  Boot status=0
5:038  0:000  Clover revision: 3330  running on To be filled by O.E.M.
5:038  0:000  ... with board Z77X-UD5H
5:038  0:000  CPU Vendor = 756E6547 Model=306A9
5:038  0:000  The CPU supported turbo
5:038  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
5:038  0:000  MSR 0xE2 before patch 1E000403
5:038  0:000  MSR 0xE4              00010414
5:038  0:000  MSR 0xCE              00081010_F0012300
5:038  0:000  non-usable FLEX_RATIO = F0000
5:038  0:000  corrected FLEX_RATIO = E0000
5:038  0:000  MSR 0x1B0             00000000
5:038  0:000  FSBFrequency=105MHz DMIvalue=100000kHz
5:038  0:000  Corrected FSBFrequency=100MHz
5:038  0:000  Vendor/Model/Stepping: 0x756E6547/0x3A/0x9
5:038  0:000  Family/ExtFamily: 0x6/0x0
5:038  0:000  MaxDiv/MinDiv: 35.0/16
5:038  0:000  Turbo: 37/38/39/39
5:038  0:000  Features: 0xBFEBFBFF
5:038  0:000  Threads: 8
5:038  0:000  Cores: 4
5:038  0:000  FSB: 100 MHz
5:038  0:000  CPU: 3700 MHz
5:038  0:000  TSC: 3700 MHz
5:038  0:000  PIS: 400 MHz
5:038  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
5:038  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
5:038  0:000  PCI (00|01:00.00) : 10DE 1189 class=030000
5:038  0:000  Found NVidia model=EVGA GeForce GTX 670
5:038  0:000  PCI (00|01:00.01) : 10DE 0E0A class=040300
5:038  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
5:038  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
5:038  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
5:038  0:000  LAN 0, Vendor=8086, MMIO=F7600000
5:038  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
5:038  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
5:038  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
5:038  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
5:038  0:000  PCI (00|03:00.00) : 1B4B 9172 class=010601
5:038  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
5:039  0:000  PCI (00|04:00.00) : 168C 0030 class=028000
5:039  0:000  PCI (00|00:1C.05) : 8086 244E class=060401
5:039  0:000  PCI (00|05:00.00) : 8086 244E class=060401
5:039  0:000  PCI (00|06:01.00) : 1106 3044 class=0C0010
5:039  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
5:039  0:000  PCI (00|07:00.00) : 1969 1091 class=020000
5:039  0:000  LAN 1, Vendor=1969, MMIO=F7200000
5:039  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
5:039  0:000  PCI (00|08:00.00) : 1B4B 9172 class=010601
5:039  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
5:039  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
5:039  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
5:039  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
5:039  0:000  Clover load options size = 0 bytes
5:040  0:000  Using OEM config.plist at path: EFI\CLOVER\config.plist
5:040  0:000  EFI\CLOVER\config.plist loaded: Success
5:041  0:000  Found theme directory: embedded
5:047  0:005  Found theme directory: random
5:051  0:004  Loading early settings
5:051  0:000  timeout set to 5
5:051  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
5:051  0:000  Default theme: embedded
5:051  0:000  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
5:051  0:000  Hiding entries with string Windows
5:051  0:000  LoadDrivers() start
5:052  0:000  Loading FSInject-64.efi  status=Success
5:054  0:002  Loading VBoxHfs-64.efi  status=Success
5:055  0:001   - driver needs connecting
5:056  0:000  1 drivers needs connecting ...
5:056  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
5:242  0:186  LoadDrivers() end
5:242  0:000  Console modes reported: 4, available modes:
5:242  0:000    Mode 1: 80x25
5:242  0:000    Mode 2: 80x50
5:242  0:000    Mode 3: 100x31
5:242  0:000    Mode 4: 240x56 (current mode)
5:242  0:000  SetScreenResolution: 1920x1080 - already set
5:242  0:000  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68)
5:243  0:000  ScanSPD() start
5:244  0:000  SMBus CmdReg: 0x3
5:244  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7635004, ioport: 0xF000, hostc: 0x1
5:244  0:000  Slots to scan [8]...
5:258  0:014  SPD[0]: Type 11 @0x50
5:267  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:267  0:000  Slot: 0 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:281  0:014  SPD[1]: Type 11 @0x51
5:290  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:290  0:000  Slot: 1 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:304  0:014  SPD[2]: Type 11 @0x52
5:313  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:313  0:000  Slot: 2 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:328  0:014  SPD[3]: Type 11 @0x53
5:336  0:008  Found module with XMP version 1.3DDR speed 1333MHz
5:336  0:000  Slot: 3 Type 24 8192MB 1333MHz Vendor=Corsair PartNo=CMZ32GX3M4X1600C10 SerialNo=0000000000000000
5:362  0:025  ScanSPD() end
5:371  0:009  Get Acpi Tables List from RSDT:
5:371  0:000   Found table: FACP  A M I len=132
5:371  0:000   Found table: APIC  A M I len=146
5:371  0:000   Found table: MCFG   len=60
5:371  0:000   Found table: HPET  A M I len=56
5:371  0:000   Found table: SSDT  SataTabl len=877
5:371  0:000   Found table: SSDT  Cpu0Ist len=2474
5:371  0:000   Found table: SSDT  CpuPm len=2706
5:371  0:000   Found table: MATS  A M I len=52
5:371  0:000  Calibrated TSC frequency =3503453306 =3503MHz
5:371  0:000  Loading main settings
5:371  0:000  Read NVCAP:0000000000000000000000000000000000000000
5:371  0:000  USB FixOwnership: true
5:371  0:000  Config set Fixes will override FixMask mask!
5:371  0:000     final mask=9FC279D7
5:371  0:000  Config set ResetAddr=0x0
5:371  0:000  Config calc ResetVal=0x0
5:371  0:000  Config set ResetVal=0x0
5:371  0:000  Config set ChassisType=0xD
5:371  0:000  Config set QPI = 0 disable table132
5:371  0:000  Config set CpuFreq=3503MHz
5:371  0:000  Config set CpuType=704
5:371  0:000  Config set BusSpeed=100098kHz
5:371  0:000  Error: invalid CustomUUID '' - should be in the format XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX
5:372  0:000  found 5 volumes with blockIO
5:372  0:000   0. Volume:
5:372  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
5:373  0:001    Result of bootcode detection: bootable unknown (legacy)
5:373  0:000   1. Volume:
5:373  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
5:373  0:000    found optical drive
5:373  0:000   2. Volume:
5:373  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,B05FC7EE-6093-4E99-9FA7-F6EC4DCAAB1E,0x28,0x64000)
5:374  0:000    Result of bootcode detection: bootable unknown (legacy)
5:374  0:000   3. Volume:
5:374  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,2EBECD8C-23A1-4F87-9618-021B90F09F48,0x7978800,0x33F32B68)
5:374  0:000    Result of bootcode detection: bootable unknown (legacy)
5:374  0:000    This is SelfVolume !!
5:374  0:000   4. Volume:
5:374  0:000    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,2C1D2739-1464-48AB-970C-02E68F92D3A1,0x3B8AB368,0x135F20)
5:374  0:000  PutNvramPlistToRtVars: nvram.plist not found
5:374  0:000   using embedded theme
5:374  0:000  Choosing theme <null string>
5:375  0:000  Custom entries start
5:375  0:000  Custom entries finish
5:375  0:000  Scanning loaders...
5:375  0:000   0: 'Whole Disc Boot' no file system
5:375  0:000   1: 'Whole Disc Boot' no file system
5:375  0:000   2: 'EFI'
5:376  0:001      AddLoaderEntry for Volume Name=EFI
5:378  0:001   3: 'Mountain'
5:380  0:002      AddLoaderEntry for Volume Name=Mountain
5:384  0:004      Check if volume Is Hibernated:
5:384  0:000      Check sleep image 'by signature':
5:386  0:001      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
5:386  0:000      SleepImage name from pref: ImageVolume = 'Mountain', ImageName = '\private\var\vm\sleepimage'
5:388  0:001      Reading first 512 bytes of sleepimage ...
5:388  0:000   OurBlockIoRead: Lba=14B79870, Offset=296F30E000 (BlockSize=512)
5:388  0:000   sig lion: 5E0F
5:388  0:000   sig snow: B756AFC8
5:388  0:000   no valid sleep image offset was found
5:388  0:000      Reading completed -> Success
5:388  0:000       sleepimage offset could not be acquired
5:388  0:000       hibernated: no - sign
5:408  0:019   4: 'Recovery HD'
5:408  0:000      AddLoaderEntry for Volume Name=Recovery HD
5:409  0:001  Custom legacy start
5:409  0:000  Custom legacy end
5:409  0:000  Scanning legacy ...
5:409  0:000   0: 'Whole Disc Boot' (legacy) not legacy
5:409  0:000   1: 'Whole Disc Boot' (legacy) not legacy
5:409  0:000   2: 'EFI' (legacy) not legacy
5:409  0:000   3: 'Mountain' (legacy) not legacy
5:409  0:000   4: 'Recovery HD' (legacy) not legacy
5:409  0:000  Custom tool start
5:409  0:000  Custom tool end
5:410  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
5:410  0:000  Checking EFI partition Volume 2 for Clover
5:411  0:000  GetEfiBootDeviceFromNvram: efi-boot-device-data not found
5:411  0:000  EfiBootVolume not found
5:411  0:000  Default boot entry not found
5:411  0:000  DefaultIndex=-1 and MainMenu.EntryCount=8
5:514  0:103  Found Mouse device:
5:514  0:000  GUI ready
9:355  3:841  ParseBootOption: invalid input params
9:355  0:000  BootOption of the entry is empty
9:355  0:000  StartLoader() start
9:355  0:000  Entry->Settings: <null string>
9:355  0:000  Finally: Bus=100098kHz CPU=3503MHz
9:355  0:000  Kernel and Kext Patches at DD6A7270:
9:355  0:000  	Allowed: y
9:355  0:000  	Debug: n
9:355  0:000  	KernelCpu: n
9:355  0:000  	Lapic: n
9:355  0:000  	Haswell-E: n
9:355  0:000  	AICPUPM: n
9:355  0:000  	AppleRTC: y
9:355  0:000  	KernelPm: n
9:355  0:000  	FakeCPUID: 0x0
9:355  0:000  	ATIController: null
9:355  0:000  	ATIDataLength: 0
9:355  0:000  	0 Kexts to load
9:355  0:000  	0 Kexts to patch
9:355  0:000  Loading boot.efi  status=Success
9:464  0:108  GetOSVersion: : 10.11.2
9:464  0:000  insert table 9 for dev 0:0
9:464  0:000  insert table 9 for dev 0:1
9:464  0:000  insert table 9 for dev 0:0
9:464  0:000  insert table 9 for dev 0:0
9:464  0:000  insert table 9 for dev 1:0
9:464  0:000  Trusting SMBIOS...
9:464  0:000  Channels: 2
9:464  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
9:464  0:000   partNum=CMZ32GX3M4X1600C10
9:464  0:000  SMBIOS Type 17 Index = 0 => 0 0:
9:464  0:000  BANK0 DIMM0 1333MHz 8192MB
9:464  0:000  mTotalSystemMemory = 8192
9:464  0:000   partNum=CMZ32GX3M4X1600C10
9:464  0:000  SMBIOS Type 17 Index = 1 => 2 2:
9:464  0:000  BANK1 DIMM0 1333MHz 8192MB
9:464  0:000  mTotalSystemMemory = 16384
9:464  0:000   partNum=CMZ32GX3M4X1600C10
9:464  0:000  SMBIOS Type 17 Index = 2 => 1 1:
9:464  0:000  BANK0 DIMM1 1333MHz 8192MB
9:464  0:000  mTotalSystemMemory = 24576
9:464  0:000   partNum=CMZ32GX3M4X1600C10
9:464  0:000  SMBIOS Type 17 Index = 3 => 3 3:
9:464  0:000  BANK1 DIMM1 1333MHz 8192MB
9:464  0:000  mTotalSystemMemory = 32768
9:464  0:000  NumberOfMemoryDevices = 4
9:464  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000
9:464  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0x8000
9:464  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0xC000
9:464  0:000  Type20[3]->End = 0x1FFFFFF, Type17[3] = 0x14000
9:465  0:000  Table 131 is present, CPUType=31
9:465  0:000  Change to: 704
9:465  0:000  RSDT 0xDE171028
9:465  0:000  FADT from RSDT: 0xDE1710E8
9:465  0:000  XSDT 0xDE171070
9:465  0:000  FADT from XSDT: 0xDE17C5F0
9:465  0:000  Xsdt reallocation done
9:465  0:000  old FADT length=F4
9:465  0:000  Found OperationRegion(GNVS, SystemMemory, DE22FE18, ...)
9:465  0:000  Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
9:465  0:000  Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
9:465  0:000  Found OperationRegion(CPSB, SystemMemory, DE105F98, ...)
9:465  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
9:465  0:000  Found OperationRegion(TVID, SystemMemory, FED40F00, ...)
9:465  0:000  Found OperationRegion(TPMR, SystemMemory, FED40000, ...)
9:468  0:003  Output DSDT before patch to /EFI/CLOVER/ACPI/origin/DSDT-or.aml
9:468  0:000  Apply DsdtFixMask=0x9FC279D7 new way
9:468  0:000     drop _DSM mask=0x0000
9:468  0:000  ========= Auto patch DSDT Starting ========
9:468  0:000  VideoCard devID=0x118910DE
9:468  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
9:468  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
9:468  0:000  USBADR[1] = 0x1A0000 and PCIe = 0xFFFE
9:480  0:011  Found Airport Atheros at 0x1C0004, 0x0, DeviceID=0x0030
9:480  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
9:480  0:000  first CPU found at 8A14 offset 8A17
9:480  0:000  score candidate at 8A10
9:480  0:000  score inserted in acpi_cpu_score _PR_
9:480  0:000  Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
  within the score: _PR_
9:480  0:000  Found PCIROOTUID = 0
9:480  0:000  Start RTC Fix
9:480  0:000  found RTC Length not match, Maybe will case CMOS reset will patch it.
9:480  0:000  found RTC had IRQNoFlag will move -3 bytes
9:481  0:000  ...len=B4BC
9:481  0:000  new size written to 23EA shift=0 len=B4BC
9:481  0:000  len after correct outers B4BC
9:481  0:000  Start PIC Fix
9:481  0:000  PIC size=A5 at 2296
9:481  0:000  found CRS at 22AA size 8D
9:481  0:000  found PIC had IRQNoFlag will move -3 bytes
9:481  0:000  Fix Device PIC size -3
9:481  0:000  Start HPET Fix
9:481  0:000  Start Display0 Fix
9:481  0:000  Found internal video device FFFF@486C, unusable
9:481  0:000  Creating DSM for NVIDIA card
9:481  0:000  patch Display #0 of Vendor=0x10DE in DSDT new way
9:481  0:000  Start NetWork Fix
9:481  0:000  found NetWork device [0x001C0006:0] at 46E7 and Name is PXSX
9:481  0:000  NetworkADR1=1C0006 NetworkADR2=0
9:481  0:000  network DSM created, size=5F
9:482  0:000  Start Airport Fix
9:482  0:000  found Airport device [001C0004:0] at 374B And Name is PXSX
9:482  0:000  Name PXSX present at 0xA2, renaming to ARPT
9:482  0:000  Name PXSX present at 0xE0, renaming to ARPT
9:482  0:000  AirportADR=374B add patch size=F1
9:482  0:000  adr 374B size of arpt=17
9:482  0:000  Start SBUS Fix PCI=1198 len=B599
9:482  0:000  device (SBUS) found at 69AE
9:482  0:000  SBUS code size fix = 0x0000005D
9:482  0:000  patch FRWR in DSDT
9:482  0:000  found Firewire device NAME(_ADR,0x00000000) at 46DB And Name is PXSX
9:482  0:000  Name PXSX present at 0xA2, renaming to FRWR
9:482  0:000  Name PXSX present at 0xE0, renaming to FRWR
9:482  0:000  Start Firewire Fix
9:483  0:000  Start HDMI141 Fix
9:483  0:000  have no HDMI device while HDMIADR2=1
9:483  0:000  HDMIADR1=10000 HDMIADR2=1
9:483  0:000    with default properties
9:483  0:000  Start USB Fix
9:483  0:000  USB bridge[140000] at 6548, size = 491
9:483  0:000  USB bridge[1A0000] at 61A8, size = 39E
9:483  0:000   found slave _DSM, skip
9:484  0:000  USB bridge[1D0000] at 5C6C, size = 53A
9:484  0:000   found slave _DSM, skip
9:484  0:000   deleting device CRT_
9:484  0:000   deleting device DVI_
9:484  0:000   deleting device SPKR
9:484  0:000   deleting device ECP_
9:484  0:000   deleting device LPT_
9:485  0:000   deleting device FDC0
9:485  0:000   deleting device ECP1
9:485  0:000   deleting device LPT1
9:486  0:000  Start PNLF Fix
9:486  0:000  found PWRB at 5991
9:486  0:000  Start _S3D Fix
9:486  0:000  OperationRegion (GNVS...) corrected to addr=0xDE22FE18
9:486  0:000  OperationRegion (MCHT...) corrected to addr=0xFED10000
9:486  0:000    indirect name=SRCB
9:486  0:000  OperationRegion (RCRB...) corrected to addr=0xFED1C000
9:486  0:000  OperationRegion (CPSB...) corrected to addr=0xDE105F98
9:486  0:000    indirect name=ASLB
9:486  0:000  ... value not defined
9:486  0:000  OperationRegion (IGDM...) corrected to addr=0x0
9:486  0:000  OperationRegion (TMMB...) corrected to addr=0xFED40000
9:486  0:000  OperationRegion (TVID...) corrected to addr=0xFED40F00
9:486  0:000  OperationRegion (TPMR...) corrected to addr=0xFED40000
9:486  0:000  Start ADP1 fix
9:486  0:000  no device(AC) exists
9:486  0:000  Start Darwin Fix
9:486  0:000  Name _OSI present at 0x18FA, renaming to OOSI
9:486  0:000  Name _OSI present at 0x9640, renaming to OOSI
9:486  0:000  Name _OSI present at 0x9647, renaming to OOSI
9:486  0:000  Name _OSI present at 0x9663, renaming to OOSI
9:486  0:000  Name _OSI present at 0x9683, renaming to OOSI
9:486  0:000  Name _OSI present at 0x96A3, renaming to OOSI
9:486  0:000  Name _OSI present at 0x96C1, renaming to OOSI
9:486  0:000  Name _OSI present at 0x96DD, renaming to OOSI
9:486  0:000  Start SHUTDOWN Fix len=B85C
9:486  0:000  ========= Auto patch DSDT Finished ========
9:536  0:049  ...saving DSDT failed with status=Write Protected
9:536  0:000  Patch table: SSDT  SataTabl
9:536  0:000   SSDT len = 0x36D
9:536  0:000  Patch table: SSDT  Cpu0Ist
9:536  0:000   SSDT len = 0x9AA
9:536  0:000  Patch table: SSDT  CpuPm
9:536  0:000   SSDT len = 0xA92
9:536  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
9:536  0:000   Xsdt has tables count=8
9:536  0:000  corrected XSDT length=100
9:536  0:000   CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
9:536  0:000  Maximum control=0x23
9:536  0:000  Turbo control=0x27
9:536  0:000  P-States: min 0x7, max 0x27
9:537  0:000  SSDT with CPU P-States generated successfully
9:537  0:000  SSDT with CPU C-States generated successfully
9:537  0:000  EdidDiscovered size=128
9:537  0:000  00 | 00 FF FF FF FF FF FF 00 04 69 FD 22 03 01 01 01
9:537  0:000  16 | 13 17 01 03 80 30 1B 78 2A 2A C5 A4 56 4F 9E 28
9:537  0:000  32 | 0F 50 54 B7 EF 00 D1 C0 81 40 81 80 95 00 B3 00
9:537  0:000  48 | 71 4F 81 C0 81 00 02 3A 80 18 71 38 2D 40 58 2C
9:537  0:000  64 | 45 00 DC 0C 11 00 00 1E 00 00 00 FF 00 44 35 4C
9:537  0:000  80 | 4D 51 53 30 34 33 39 35 33 0A 00 00 00 FD 00 32
9:537  0:000  96 | 4B 18 53 11 00 0A 20 20 20 20 20 20 00 00 00 FC
9:537  0:000  112 | 00 41 53 55 53 20 56 53 32 32 38 0A 20 20 00 FD
9:537  0:000  NVidia GFX injection not set
9:537  0:000  USB Controller [8086:1E31] :: PcieRoot(0x0)\Pci(0x14,0x0)
9:537  0:000  USB Controller [8086:1E2D] :: PcieRoot(0x0)\Pci(0x1A,0x0)
9:537  0:000  USB Controller [8086:1E26] :: PcieRoot(0x0)\Pci(0x1D,0x0)
9:537  0:000   RCBA access disabled; trying to enable
9:537  0:000  stringlength = 1752
9:537  0:000  CurrentMode: Width=1920 Height=1080
9:537  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DD458398
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DD458398
9:540  0:002  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
9:540  0:000    Extra kext: EFI\CLOVER\kexts\Other\AtherosE2200Ethernet.kext
9:548  0:008    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
9:559  0:010    Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext
9:569  0:009  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
9:571  0:001  Removed efi-boot-device-data variable: Not Found
9:571  0:000  Custom boot screen not used because entry has unset use graphics
9:571  0:000  Closing log

[Codinger]

NVIDIA Web Drivers ok on nvs 3100m

[rhcp011235]

Anyone here using Nvidia web drivers and using final cut pro X? It seems to crash. Not sure if it's 10.11 only or 10.10 too.



Crash log: https://p.rhcp011235.rocks/view/417c97e4

[diskeeper]

No problem here with Final Cut Pro X 10.2.2 - OS X 10.11.3 beta (15D13b) - Web Driver 346.03.05b02

[rhcp011235]

No problem here with Final Cut Pro X 10.2.2 - OS X 10.11.3 beta (15D13b) - Web Driver 346.03.05b02



Would you mind giving me more info on your build? possible your config? even if in private? perhaps its something with my config? Ive seen this on a few. and i want to use my new rig coming as a video editing machine

Also, For those with UHD tv's and wanting 4K @ 60 HZ. I got my CLUB3D DP -> HDMI2 cable today.



IT WORKS AND GIVES ME FULL 4K @ 60HZ in OS X!!!!!!! I've never been so excited. this is like xmas all over again!







Get the adapter from Amazon:

Full DP -> HDMI2 - http://www.amazon.com/gp/product/B0194F1MY4

MINI DP -> HDMI - http://www.amazon.com/gp/product/B0194F1MPI

[createthis]

No problem here with Final Cut Pro X 10.2.2 - OS X 10.11.3 beta (15D13b) - Web Driver 346.03.05b02



Have you tried transitions? Fails in 10.11.2 using 346.03.04f02:

[rhcp011235]

Have you tried transitions? Fails in 10.11.2 using 346.03.04f02:



Correct. I believe as soon as you add a transition it will crash

[rhcp011235]

Anyone test 10.11.4 with the current web drivers? I assume they don't work without patch

[polyzargone]

Anyone test 10.11.4 with the current web drivers? I assume they don't work without patch



Not tried yet but they won't "as it" since the build number is 15E27e where 10.10.3 betas was 15Dxxx.

[polyzargone]

Works fine after patch !

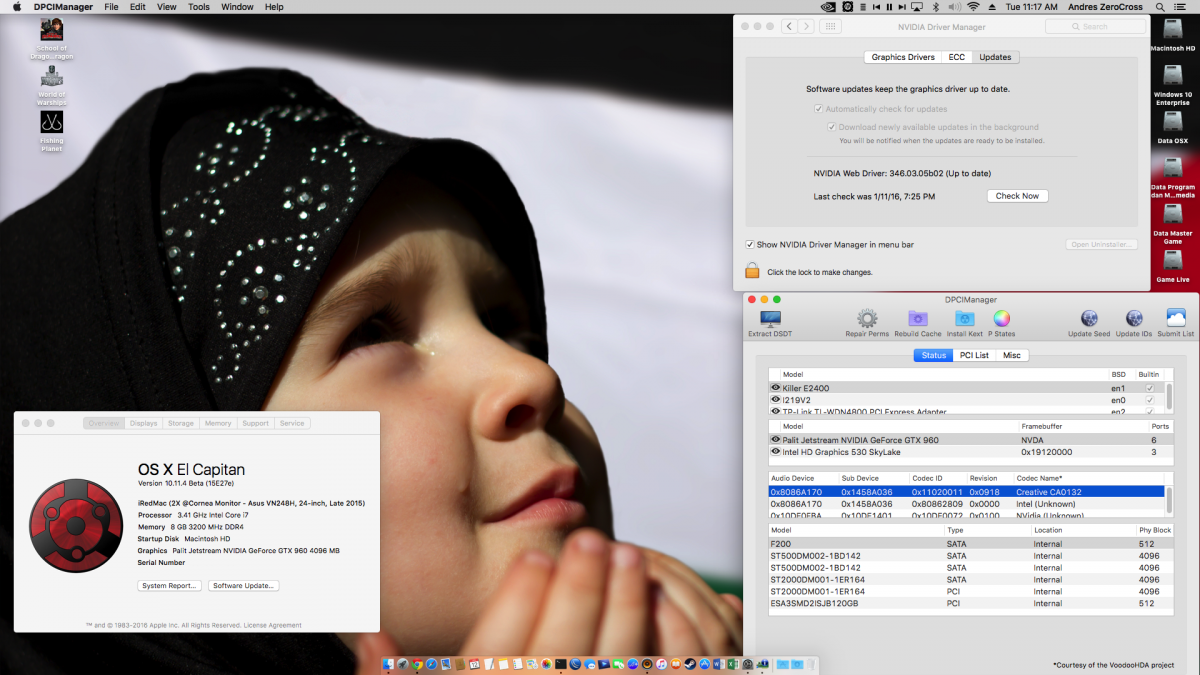

[Andres ZeroCross]

Working great here

[zhuangzi23]

Works fine after patch !



















May I ask what you patched? I updated the version #, but...no success.

[polyzargone]

Easy way : NVIDIA® WebDriver Updater.app 1.4 :





Or do it yourself !

[randomusername00]

Working here with a GTX970 (after patching the Info.plist, that is)

[zhuangzi23]

Easy way : NVIDIA® WebDriver Updater.app 1.4 :









Or do it yourself !

Funny. I used that tool but no luck. Hmmmmm. Thanks!

[VultUx]

Easy way : NVIDIA® WebDriver Updater.app 1.4 :



Or do it yourself !





Didn't work for me, first the program freeze I had to quit the process, but looking in /System/Library/Extensions/NVDAStartupWeb.kext/Contents/Info.plist the key

<key>NVDARequiredOS</key>
<string>15E</string>

Is there, but when I enabled nvda_drv=1 in Boot Args the MacOS reboot every time and I need to put nv_disable=1 again.



Any tips?

[polyzargone]

Repair permissions & rebuild cache using InsanelyRepairPermission app.


sudo InsanelyRepairPermission -rt /

Should work .

[VultUx]

Repair permissions & rebuild cache using InsanelyRepairPermission app.



sudo InsanelyRepairPermission -rt /

Should work .



Thank you, but no.



I had a lot of ERROR and after reboot with NVDA_DRV=1 reboot again.

...
ERROR repairing Permission for file:/System/Library/Extensions/Sandbox.kext/Contents/MacOS/Sandbox
ERROR repairing Permission for file:/System/Library/Extensions/SMARTLib.plugin/Contents/MacOS/SMARTLib
ERROR repairing Permission for file:/System/Library/Extensions/smbfs.kext/Contents/MacOS/smbfs
ERROR repairing Permission for file:/System/Library/Extensions/SMCMotionSensor.kext/Contents/MacOS/SMCMotionSensor
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/BSDKernel.kext/BSDKernel
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/IOKit.kext/IOKit
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Libkern.kext/Libkern
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/MACFramework.kext/MACFramework
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Mach.kext/Mach
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Private.kext/Private
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Unsupported.kext/Unsupported
ERROR repairing Permission for file:/System/Library/Extensions/TMSafetyNet.kext/Contents/Helpers/bypass
ERROR repairing Permission for file:/System/Library/Extensions/TMSafetyNet.kext/Contents/MacOS/TMSafetyNet
ERROR repairing Permission for file:/System/Library/Extensions/triggers.kext/Contents/MacOS/triggers
ERROR repairing Permission for file:/System/Library/Extensions/udf.kext/Contents/MacOS/udf
ERROR repairing Permission for file:/System/Library/Extensions/vecLib.kext/Contents/MacOS/vecLib
ERROR repairing Permission for file:/System/Library/Extensions/webcontentfilter.kext/Contents/MacOS/webcontentfilter
ERROR repairing Permission for file:/System/Library/Extensions/webdav_fs.kext/Contents/MacOS/webdav_fs
ERROR repairing Permission for file:/System/Library/Extensions/webdav_fs.kext/Contents/Resources/webdavfs_agent
Access time for /System/Library/Extensions updated successfully!
Access time for /Library/Extensions updated successfully!
Repair Process completed with errors!

[polyzargone]

SIP disabled ?

[VultUx]

SIP disabled ?

No, I'm using OZMOSIS don't need to disable SIP.



I will try to repair permissions from Recover, probably is that.



Thank you!

[polyzargone]

No, I'm using OZMOSIS don't need to disable SIP.



I will try to repair permissions from Recover, probably is that.



Thank you!



If you want to modify anything in System folder, you have to disable SIP, no matter what you're using !

[Micky1979]



Thank you, but no.



I had a lot of ERROR and after reboot with NVDA_DRV=1 reboot again.

...
ERROR repairing Permission for file:/System/Library/Extensions/Sandbox.kext/Contents/MacOS/Sandbox
ERROR repairing Permission for file:/System/Library/Extensions/SMARTLib.plugin/Contents/MacOS/SMARTLib
ERROR repairing Permission for file:/System/Library/Extensions/smbfs.kext/Contents/MacOS/smbfs
ERROR repairing Permission for file:/System/Library/Extensions/SMCMotionSensor.kext/Contents/MacOS/SMCMotionSensor
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/BSDKernel.kext/BSDKernel
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/IOKit.kext/IOKit
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Libkern.kext/Libkern
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/MACFramework.kext/MACFramework
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Mach.kext/Mach
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Private.kext/Private
ERROR repairing Permission for file:/System/Library/Extensions/System.kext/PlugIns/Unsupported.kext/Unsupported
ERROR repairing Permission for file:/System/Library/Extensions/TMSafetyNet.kext/Contents/Helpers/bypass
ERROR repairing Permission for file:/System/Library/Extensions/TMSafetyNet.kext/Contents/MacOS/TMSafetyNet
ERROR repairing Permission for file:/System/Library/Extensions/triggers.kext/Contents/MacOS/triggers
ERROR repairing Permission for file:/System/Library/Extensions/udf.kext/Contents/MacOS/udf
ERROR repairing Permission for file:/System/Library/Extensions/vecLib.kext/Contents/MacOS/vecLib
ERROR repairing Permission for file:/System/Library/Extensions/webcontentfilter.kext/Contents/MacOS/webcontentfilter
ERROR repairing Permission for file:/System/Library/Extensions/webdav_fs.kext/Contents/MacOS/webdav_fs
ERROR repairing Permission for file:/System/Library/Extensions/webdav_fs.kext/Contents/Resources/webdavfs_agent
Access time for /System/Library/Extensions updated successfully!
Access time for /Library/Extensions updated successfully!
Repair Process completed with errors!

Now we understad why.

Set CsrActiveConfig= 3 in the org.chameleon.Boot.plist (if you are using Enoch) or in RtVariables --> CsrActiveConfig= 0x03 in the config.plist in case of Clover. Reboot and retry

No, I'm using OZMOSIS don't need to disable SIP.



I will try to repair permissions from Recover, probably is that.



Thank you!

Sorry I was writing.. Using Ozmosis you can boot the Recovery HD and disable SIP from there, otherwise you can't repair nothing if System Integrity protection is enabled, and Disk Utility no longer have that option

[VultUx]

Now we understad why.

Set CsrActiveConfig= 3 in the org.chameleon.Boot.plist (if you are using Enoch) or in RtVariables --> CsrActiveConfig= 0x03 in the config.plist in case of Clover. Reboot and retry



Sorry I was writing.. Using Ozmosis you can boot the Recovery HD and disable SIP from there, otherwise you can't repair nothing if System Integrity protection is enabled, and Disk Utility no longer have that option

Thank you @polyzargone and @Micky1979 now worked!



But I had to do a few steps.

1. reboot in Recovery Mode
2. disable SIP (csrutil disable)
3. reboot to EL Capitan because in recovery mode I didn't have SUDO to run ./InsanelyRepairPermission
4. In El Capitan sudo ./InsanelyRepairPermission -rt /
5. reboot to Recory Mode
6. reenable SIP (csrutil enable) and reboot again to El Capitan
7. in El Capitan reeanable Nvidia in Ozmosis (nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args="nvda_drv=1")
8. reboot for the last time.

Thank you guys!

[polyzargone]

But I had to do a few steps.



3. reboot to EL Capitan because in recovery mode I didn't have SUDO to run ./InsanelyRepairPermission

You don't need to use sudo when you're in the Recovery HD. You are already logged as root . Just run this :



./InsanelyRepairPermission -rt /

6. reenable SIP (csrutil enable) and reboot again to El Capitan

Or leave it as disabled forever . I know one could consider this is a major security break but it's a Hackintosh after all and we all used kext-dev-mode=1 in Yosemite so… Just to say.



I mean, having SIP constantly enabled is that important ?
