gigamax i can confirm schot's issue as i also posted about it.

 the secondary config only works properly if it is renamed config.plist so config plist selection is broken somewhere in clover. it seems it could be that parts of clover are hardcoded to only read from a file called "config.plist" you can reproduce the bug and test it yourself by having 2 different config files (with different entries like kexts to patch) in the same clover efi after selecting the second config from the menu then looking at your kexts to patch you will see only the patches from "config.plist" not the second config you selected. it could be a reason to why there are complaints that kext patches are not working properly although they are. just not on any config that is not named config.plist i looked through the code but all i find was //zzzz

  • Like 1
Link to comment
Share on other sites

Hey guys



I’ve not been that involved for a while but seeing recent posts here I remember that wasn’t this hw.busfrequency problem fixed before by dropping DMI table type 132?


Looks like this was changed in commit #4042?
-  if (gSettings.QPI == 0xFFFF) {
+  if (gSettings.QPI == 0) {
I may be wrong and lots of other stuff has changed since then, but still, I thought I'd mention it.
  • Like 3
Link to comment
Share on other sites



Hey guys



I’ve not been that involved for a while but seeing recent posts here I remember that wasn’t this hw.busfrequency problem fixed before by dropping DMI table type 132?


Looks like this was changed in commit #4042?
-  if (gSettings.QPI == 0xFFFF) {
+  if (gSettings.QPI == 0) {
I may be wrong and lots of other stuff has changed since then, but still, I thought I'd mention it.





I don't know what changes Sherlocks made but you mentioned earlier that "SMBIOS table type 4 External Clock now shows Unknown as opposed to 100 MHz.", With the latest fix it correctly shows 25MHz as well as fixing the busfrequency value.



Reading on I see the fix for "unknown" was to set external clock to 25.

Link to comment
Share on other sites

okay. bug is resolved now.



please test and report.



Still not working right for me without QPI=100.



DMI Table:

	Version: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
	Voltage: 0.0 V
	External Clock: 11 MHz
	Max Speed: 1599 MHz
	Current Speed: 1600 MHz

Sysctl:

hw.tbfrequency: 1000000000
hw.cpufrequency_max: 1599000000
hw.cpufrequency_min: 1599000000
hw.cpufrequency: 1599000000
hw.busfrequency_max: 44000000
hw.busfrequency_min: 44000000
hw.busfrequency: 44000000
machdep.tsc.frequency: 3400000000



System Information:

  Nombre del modelo:	        Mac Pro
  Identificador del modelo:	MacPro5,1
  Nombre del procesador:	Intel Core i7
  Velocidad del procesador:	1,60 GHz
  Cantidad de procesadores:	1
  Cantidad total de núcleos:	4
  Caché de nivel 2:	        256 KB
  Caché de nivel 3:	        8 MB
  Memoria:	                16 GB

Piker's AppleIntelInfo:

AppleIntelInfo.kext v2.6 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x1ba5b56f452 (55 MHz)
MWAIT C-States...........................: 4384

Processor Brandstring....................: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz

Bootlog:

0:100  0:100  MemLog inited, TSC freq: 3398916956
0:100  0:000
0:100  0:000  Now is 23.6.2017,  0:37:46 (GMT)
0:100  0:000  Starting Clover revision: 4098 on American Megatrends EFI
0:100  0:000  Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.12.6 | XCODE: 8.3.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000) @AAD6418
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK0 A1_DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK1 A1_DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = Undefined
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR
0:100  0:000  Type 17 Index = 2
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK2 A1_DIMM2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK3 A1_DIMM3
0:100  0:000  SmbiosTable.Type17->Vendor = Undefined
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'TZ68K+' with board 'TZ68K+'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008407
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0100 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0101 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 13C2 class=030000
0:100  0:000   - GFX: Model=EVGA GeForce GTX 970 family 124 (Nvidia)
0:100  0:000  PCI (00|01:00.01) : 10DE 0FBB class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0122 class=038000
0:100  0:000   - GFX: Model=Intel HD Graphics 3000 (Intel)
0:100  0:000  PCI (00|00:16.00) : 8086 1C3A class=078000
0:100  0:000  PCI (00|00:1A.00) : 8086 1C2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1C20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1C10 class=060400
0:100  0:000  PCI (00|02:00.00) : 10EC 8168 class=020000
0:100  0:000   - LAN: 0 Vendor=Realtek
0:100  0:000  PCI (00|00:1C.01) : 8086 1C12 class=060400
0:100  0:000  PCI (00|03:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.02) : 8086 244E class=060401
0:100  0:000  PCI (00|04:00.00) : 1283 8893 class=060401
0:100  0:000  PCI (00|00:1C.04) : 8086 1C18 class=060400
0:100  0:000  PCI (00|06:00.00) : 168C 002E class=028000
0:100  0:000   - WIFI: Vendor=Atheros
0:100  0:000  PCI (00|00:1D.00) : 8086 1C26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1C44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1C02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1C22 class=0C0500
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 38 bytes
0:100  0:000  Clover started with option to boot boot.efi from Sierra
0:102  0:001  EFI\CLOVER\config.plist loaded: Success
0:102  0:000  === [ GetListOfThemes ] ===================================
0:105  0:003  - [00]: EMBEDDED
0:107  0:001  - [00]: RANDOM
0:108  0:001  - [00]: OSS2
0:116  0:007  - [01]: OSS
0:119  0:003  - [02]: Shield
0:125  0:006  === [ Found config plists ] ===============================
0:125  0:000  - config.plist
0:125  0:000  - configimac14.plist
0:125  0:000  - configimac12.plist
0:125  0:000  - configpro61.plist
0:125  0:000  === [ GetEarlyUserSettings ] ==============================
0:125  0:000  timeout set to 5
0:125  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:125  0:000  KextsToPatch: 3 requested
0:125  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: data len: 8
0:125  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: data len: 7
0:125  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: data len: 24
0:125  0:000  === [ LoadDrivers ] =======================================
0:127  0:002  Loading AppleImageCodec-64.efi  status=Success
0:128  0:001  Loading AppleKeyAggregator-64.efi  status=Success
0:129  0:000  Loading AppleUITheme-64.efi  status=Success
0:130  0:000  Loading DataHubDxe-64.efi  status=Success
0:131  0:001  Loading FIRMWA~1.EFI  status=Success
0:131  0:000  Loading FSInject-64.efi  status=Success
0:132  0:001  Loading OsxAptioFixDrv-64.efi  status=Success
0:133  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:134  0:000  Loading SMCHelper-64.efi  status=Success
0:134  0:000  Loading APFS.EFI  status=Success
0:140  0:005   - driver needs connecting
0:140  0:000  Loading HFSPlus-64.efi  status=Success
0:141  0:001   - driver needs connecting
0:141  0:000  Loading ApfsJumpStart.efi  status=Success
0:141  0:000   - driver needs connecting
0:141  0:000  3 drivers needs connecting ...
0:141  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:141  0:000  HFS+ driver loaded
0:141  0:000  APFS driver loaded
0:141  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:316  0:174  === [ InitScreen ] ========================================
0:316  0:000  SetScreenResolution: 1920x1080 - not found!
0:316  0:000  SetMaxResolution: found best mode 2: 1024x768
0:443  0:126  Video mode change to mode #2: Success
0:443  0:000   - set
0:443  0:000  Console modes reported: 3, available modes:
0:443  0:000   - [01]: 80x25 (current mode)
0:443  0:000   - [03]: 100x31
1:391  0:948  SetScreenResolution: 1024x768 - already set
1:391  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)
1:392  0:000  Using embedded font: Success
1:393  0:001  === [ GetMacAddress ] =====================================
1:393  0:000  === [ ScanSPD ] ===========================================
1:393  0:000  SMBus device : 8086 1C22 class=0C0500 status=Success
1:393  0:000  SMBus CmdReg: 0x1
1:393  0:000  Scanning SMBus [8086:1C22], mmio: 0xF7A04004, ioport: 0xF040, hostc: 0x1
1:393  0:000  Slots to scan [8]...
1:394  0:000  SPD[1]: Type 11 @0x51
1:411  0:016  XMP Profile1: 9*1/8ns
1:411  0:000  XMP Profile2: 10*3/28ns
1:411  0:000  Found module with XMP version 1.3
1:411  0:000  Using XMP Profile2 instead of standard frequency 1333MHz
1:411  0:000  DDR speed 1866MHz
1:411  0:000  Slot: 1 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=0000000000000000
1:411  0:000  SPD[3]: Type 11 @0x53
1:428  0:016  XMP Profile1: 9*1/8ns
1:428  0:000  XMP Profile2: 10*3/28ns
1:428  0:000  Found module with XMP version 1.3
1:428  0:000  Using XMP Profile2 instead of standard frequency 1333MHz
1:428  0:000  DDR speed 1866MHz
1:428  0:000  Slot: 3 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=0000000000000000
1:429  0:000  === [ GetAcpiTablesList ] =================================
1:435  0:005  Get Acpi Tables List from RSDT:
1:435  0:000   - [00]: FACP  A M I len=132
1:435  0:000   - [01]: APIC  A M I len=146
1:435  0:000   - [02]: SSDT  PROC len=470
1:435  0:000   - [03]: MCFG  A M I    len=60
1:435  0:000   - [04]: HPET  A M I len=56
1:435  0:000   - [05]: ASPT  PerfTune len=52
1:435  0:000  Calibrated TSC frequency =3398916956 =3398MHz
1:435  0:000  main.c gCPUStructure.ExternalClock = gCPUStructure.ExternalClock / 4
1:435  0:000  TEST: 24 MHz
1:435  0:000  === [ GetUserSettings ] ===================================
1:435  0:000  USB FixOwnership: no
1:435  0:000  Dropping 2 tables:
1:435  0:000   - [00]: Drop table  signature="MCFG" (4746434D)
1:435  0:000           - set table: 4746434D,                0 to drop: yes
1:435  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="PROC" (00000000434F5250)
1:435  0:000           - set table: 54445353,         434F5250 to drop: yes
1:435  0:000   - final DSDT Fix mask=10400000
1:435  0:000  EnableC7: yes
1:435  0:000  EnableC6: yes
1:435  0:000  EnableC4: yes
1:435  0:000  EnableC2: yes
1:435  0:000  ChassisType: 0x6
1:439  0:003  === [ ScanVolumes ] =======================================
1:439  0:000  Found 12 volumes with blockIO
1:439  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
1:439  0:000          Result of bootcode detection: bootable unknown (legacy)
1:439  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
1:440  0:000          Result of bootcode detection: bootable unknown (legacy)
1:440  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
1:440  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)
1:440  0:000          Found optical drive
1:440  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)
1:441  0:000          Result of bootcode detection: bootable Clover (clover)
1:442  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)
1:442  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)
1:443  0:000          Result of bootcode detection: bootable Clover (clover)
1:451  0:008          This is SelfVolume !!
1:451  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:452  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)
1:453  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)
1:453  0:000          Result of bootcode detection: bootable unknown (legacy)
1:486  0:033  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,4E94DB7F-4755-4958-A2A0-784496EBD3C0,0x64800,0xB98CD28)
1:487  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:487  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)
1:488  0:000  === [ InitTheme ] =========================================
1:490  0:002  Using theme 'Shield' (EFI\CLOVER\themes\Shield)
1:490  0:000  theme Shield defined in NVRAM found and theme.plist parsed
1:490  0:000  OS main and drive as badge
1:493  0:003  Loading font from ThemeDir: Success
1:494  0:000  Choosing theme Shield
1:494  0:000  after NVRAM boot-args=darkwake=0
1:494  0:000  === [ Dump SMC keys from NVRAM ] ==========================
1:494  0:000  found AppleSMC protocol
1:557  0:063  === [ AddCustomEntries ] ==================================
1:557  0:000  Custom entry 0 FullTitle:"Sierra" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"Sierra"
1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped
1:557  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped
1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped
1:557  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... match!
1:562  0:005      Check if volume Is Hibernated:
1:562  0:000      Check sleep image 'by signature':
1:568  0:005      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:568  0:000      using default sleep image name = \private\var\vm\sleepimage
1:570  0:002      sleepimage not found -> Not Found
1:570  0:000      hibernated: no - sign
1:578  0:007  Custom settings: <null string>.plist will  be applied
1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped
1:578  0:000  Custom entry 1 skipped because it is hidden.
1:578  0:000  Custom entry 2 FullTitle:"Windows 7" Path:"\EFI\Microsoft\Boot\bootmgfw.efi" Options:"-s -h" Type:7 Flags:0x0 matching Volume:"5148B030-E155-4B37-A23C-74EF4CAFDACA"
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... skipped
1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... match!
1:583  0:005  Custom settings: <null string>.plist will  be applied
1:583  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped
1:583  0:000  === [ ScanLoader ] ========================================
1:583  0:000  - [04]: 'EFI'
1:583  0:000  - [05]: 'Kodama'
1:591  0:007  - [06]: 'EFI'
1:592  0:001  - [07]: 'Sierra'
1:593  0:000          AddLoaderEntry for Volume Name=Sierra
1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)\System\Library\CoreServices\boot.efii` already exists for another entry!
1:593  0:000  - [08]: 'Recovery HD'
1:593  0:000          AddLoaderEntry for Volume Name=Recovery HD
1:593  0:000      Skipped because matching custom entry 1!
1:593  0:000  - [09]: 'EFI'
1:593  0:000          AddLoaderEntry for Volume Name=EFI
1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)\EFI\microsoft\Boot\bootmgfw.efii` already exists for another entry!
1:593  0:000  - [11]: 'TM'
1:594  0:000  === [ AddCustomTool ] =====================================
1:595  0:001  found tool \EFI\CLOVER\tools\Shell64U.efi
1:595  0:000  Checking EFI partition Volume 4 for Clover
1:595  0:000  Checking EFI partition Volume 6 for Clover
1:596  0:000   Found Clover
1:598  0:002          [!] Icon 5 (icons\func_reset.png) not found (path: EFI\CLOVER\themes\Shield)
1:598  0:000  Icon 5 decoded, pointer A952A18
1:599  0:001  === [ GetEfiBootDeviceFromNvram ] =========================
1:599  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:599  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)'
1:599  0:000    - LoaderPath: '<null string>'
1:599  0:000    - Guid = F6BDE7CF-0200-4231-803A-5AEC5D747368
1:599  0:000  === [ FindStartupDiskVolume ] =============================
1:599  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:599  0:000     - searching for that partition
1:599  0:000      - found entry 0. 'Sierra', Volume 'Sierra'
1:599  0:000  Boot redirected to Entry 0. 'Sierra'
1:599  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
1:746  0:147  MouseBirth: No mouse at ConIn, checking if any other device exists
1:753  0:006  GUI ready
27:050  25:297  === [ StartLoader ] =======================================
27:050  0:000  Finally: Bus=47058kHz CPU=1599MHz
27:050  0:000  Loading boot.efi  status=Success
27:087  0:036  GetOSVersion: 10.12.5 (16F73)
27:087  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
27:087  0:000  Filtering KextPatches:
27:087  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000  === [ PatchSmbios ] =======================================
27:087  0:000  insert table 9 for dev 0:0
27:087  0:000  insert table 9 for dev 0:1
27:087  0:000  insert table 9 for dev 0:0
27:087  0:000  insert table 9 for dev 0:0
27:088  0:000  Trusting SMBIOS...
27:088  0:000  Channels: 2
27:088  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
27:088  0:000  SMBIOS Type 17 Index = 0 => 0 0:
27:088  0:000   DIMM1 EMPTY
27:088  0:000  SMBIOS Type 17 Index = 1 => 2 2:
27:088  0:000   DIMM2 EMPTY
27:088  0:000   partNum=F3-1866C9-8GSR
27:088  0:000  SMBIOS Type 17 Index = 2 => 1 1:
27:088  0:000   DIMM3 1867MHz 8192MB
27:088  0:000   partNum=F3-1866C9-8GSR
27:088  0:000  SMBIOS Type 17 Index = 3 => 3 3:
27:088  0:000   DIMM4 1867MHz 8192MB
27:088  0:000  mTotalSystemMemory = 16384
27:088  0:000  NumberOfMemoryDevices = 4
27:088  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 0x2000
27:088  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 0x6000
27:088  0:000  === [ PatchACPI ] =========================================
27:088  0:000  RSDT 0xCACBD028
27:088  0:000  FADT from RSDT: 0xCACBD0C8
27:088  0:000  XSDT 0xCACBD068
27:088  0:000  FADT from XSDT: 0xCACC4160
27:088  0:000  Xsdt reallocation done
27:088  0:000  old FADT length=F4
27:088  0:000  Found OperationRegion(NBNV, SystemMemory, CAE12C18, ...)
27:088  0:000  Found OperationRegion(SSDT, SystemMemory, CAE1B898, ...)
27:088  0:000  Found OperationRegion(CSDT, SystemMemory, CAE12D98, ...)
27:088  0:000  Found OperationRegion(HCNT, SystemMemory, FED1F404, ...)
27:092  0:004  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT-v4.aml
27:093  0:001  Apply DsdtFixMask=0x10400000
27:093  0:000     drop _DSM mask=0x0000
27:093  0:000  === [ FixBiosDsdt ] =======================================
27:093  0:000  VideoCard devID=0x13C210DE
27:093  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
27:093  0:000  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
27:104  0:010  USBADR[1] = 0x1C0001 and PCIe = 0x0
27:104  0:000  Found Airport Atheros at 0x1C0004, 0x0, DeviceID=0x002E
27:104  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
27:104  0:000  first CPU found at 58EE offset 58F1
27:104  0:000  score candidate at 58EA
27:104  0:000  score inserted in acpi_cpu_score _PR_
27:104  0:000  Found ACPI CPU: P000 | P001 | P002 | P003 | P004 | P005 | P006 | P007 , within the score: _PR_
27:104  0:000  Found PCIROOTUID = 0
27:104  0:000   deleting device CRT_
27:104  0:000   deleting device DVI_
27:105  0:000   deleting device SPKR
27:105  0:000   deleting device ECP_
27:105  0:000   deleting device LPT_
27:105  0:000   deleting device FDC0
27:105  0:000   deleting device ECP1
27:105  0:000   deleting device LPT1
27:105  0:000  OperationRegion (NBNV...) corrected to addr=0xCAE12C18
27:105  0:000  === [ ACPIDropTables ] ====================================
27:105  0:000  Drop tables from Xsdt, SIGN=MCFG TableID=A M I    Length=60
27:105  0:000   Xsdt has tables count=6
27:105  0:000   Table: MCFG  A M I     60 dropped
27:105  0:000  Drop tables from Xsdt, SIGN=SSDT TableID=PROC Length=470
27:105  0:000   Xsdt has tables count=5
27:105  0:000   Table: SSDT  PROC  470 dropped
27:105  0:000  === [ PatchAllSSDT ] ======================================
27:105  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
27:105  0:000   Xsdt has tables count=4
27:105  0:000  === [ ACPIPatchedAML ] ====================================
27:105  0:000  Unsorted
27:105  0:000  Inserting SSDT-HDMI-NVIDIA-P0P1.aml from EFI\CLOVER\ACPI\patched ... Success
27:106  0:001  Inserting SSDT.AML from EFI\CLOVER\ACPI\patched ... Success
27:107  0:001  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
27:107  0:000  === [ RestSetup macOS ] ===================================
27:107  0:000  EdidDiscovered size=0
27:107  0:000  NVidia GFX injection not set
27:107  0:000  Intel HD Graphics 3000 [8086:0122] :: PciRoot(0x0)\Pci(0x2,0x0)
27:107  0:000    Found XGA Display - 4:3 :: Width=1024 Height=768
27:107  0:000    Default AAPL00,DualLink = 1
27:107  0:000    Low Resolution Display
27:107  0:000    AAPL00,DualLink: changed from 1 to not used
27:107  0:000    FakeID Intel GFX = 0x01268086
27:107  0:000    snb-platform-id = 0x00020000
27:107  0:000  Intel GFX revision  = 0x9
27:159  0:051   codec not detected
27:159  0:000  stringlength = 1466
27:159  0:000  CurrentMode: Width=1024 Height=768
27:159  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD6198
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD6198
27:163  0:004  Use origin smbios table type 1 guid.
27:163  0:000  Wrong FrontSideBus=47058000, set to 100MHz
27:173  0:010  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
27:176  0:002    Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
27:187  0:010      Extra PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
27:279  0:092    Extra kext: EFI\CLOVER\kexts\Other\CPUSensors.kext
27:289  0:009    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
27:303  0:014    Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
27:317  0:014    Extra kext: EFI\CLOVER\kexts\Other\LPCSensors.kext
27:375  0:057    Extra kext: EFI\CLOVER\kexts\Other\CoreDisplayFixup.kext
27:386  0:011  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
27:387  0:001    Extra kext: EFI\CLOVER\kexts\10.12\GPUSensors.kext
27:399  0:012    Extra kext: EFI\CLOVER\kexts\10.12\NvidiaGraphicsFixup.kext
27:410  0:010  SetStartupDiskVolume:
27:410  0:000    * Volume: 'Sierra'
27:410  0:000    * LoaderPath: '<null string>'
27:410  0:000    * DevPath: Sierra
27:410  0:000    * GUID = F6BDE7CF-0200-4231-803A-5AEC5D747368
27:410  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>F6BDE7CF-0200-4231-803A-5AEC5D747368</string></dict></dict></dict></array>
27:411  0:000  Custom boot is disabled

With r4084, QPI 100:

0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008407
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100 0:000 PIS: 100 MHz

7:289  6:137  === [ StartLoader ] =======================================
7:289  0:000  Finally: Bus=99968kHz CPU=3400MHz

Edited by Maniac10
Link to comment
Share on other sites

Still not working right for me without QPI=100.



DMI Table:

Version: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz	Voltage: 0.0 V	External Clock: 11 MHz	Max Speed: 1599 MHz	Current Speed: 1600 MHz
Sysctl:
hw.tbfrequency: 1000000000hw.cpufrequency_max: 1599000000hw.cpufrequency_min: 1599000000hw.cpufrequency: 1599000000hw.busfrequency_max: 44000000hw.busfrequency_min: 44000000hw.busfrequency: 44000000machdep.tsc.frequency: 3400000000
System Information:
Nombre del modelo:	        Mac Pro  Identificador del modelo:	MacPro5,1  Nombre del procesador:	Intel Core i7  Velocidad del procesador:	1,60 GHz  Cantidad de procesadores:	1  Cantidad total de núcleos:	4  Caché de nivel 2:	        256 KB  Caché de nivel 3:	        8 MB  Memoria:	                16 GB
Piker's AppleIntelInfo:
AppleIntelInfo.kext v2.6 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.Settings:------------------------------------------logMSRs..................................: 1logIGPU..................................: 1logCStates...............................: 1logIPGStyle..............................: 1InitialTSC...............................: 0x1ba5b56f452 (55 MHz)MWAIT C-States...........................: 4384Processor Brandstring....................: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
Bootlog:
0:100  0:100  MemLog inited, TSC freq: 33989169560:100  0:000  0:100  0:000  Now is 23.6.2017,  0:37:46 (GMT)0:100  0:000  Starting Clover revision: 4098 on American Megatrends EFI0:100  0:000  Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.12.6 | XCODE: 8.3.3]0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000) @AAD64180:100  0:000  SelfDirPath = \EFI\CLOVER0:100  0:000  === [ Get Smbios ] ========================================0:100  0:000  Type 16 Index = 00:100  0:000  Total Memory Slots Count = 40:100  0:000  Type 17 Index = 00:100  0:000  Ignoring insane frequency value 0MHz0:100  0:000  SmbiosTable.Type17->Speed = 0MHz0:100  0:000  SmbiosTable.Type17->Size = 0MB0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK0 A1_DIMM00:100  0:000  SmbiosTable.Type17->Vendor = <null string>0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>0:100  0:000  Type 17 Index = 10:100  0:000  SmbiosTable.Type17->Speed = 1867MHz0:100  0:000  SmbiosTable.Type17->Size = 8192MB0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK1 A1_DIMM10:100  0:000  SmbiosTable.Type17->Vendor = Undefined       0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000  0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR    0:100  0:000  Type 17 Index = 20:100  0:000  Ignoring insane frequency value 0MHz0:100  0:000  SmbiosTable.Type17->Speed = 0MHz0:100  0:000  SmbiosTable.Type17->Size = 0MB0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK2 A1_DIMM20:100  0:000  SmbiosTable.Type17->Vendor = <null string>0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>0:100  0:000  Type 17 Index = 30:100  0:000  SmbiosTable.Type17->Speed = 1867MHz0:100  0:000  SmbiosTable.Type17->Size = 8192MB0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK3 A1_DIMM30:100  0:000  SmbiosTable.Type17->Vendor = Undefined       0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000  0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR    0:100  0:000  Boot status=00:100  0:000  Running on: 'TZ68K+' with board 'TZ68K+'0:100  0:000  === [ GetCPUProperties ] ==================================0:100  0:000  CPU Vendor = 756E6547 Model=206A70:100  0:000   The CPU supported SSE4.10:100  0:000  The CPU supported turbo0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz0:100  0:000  MSR 0xE2 before patch 1E0084070:100  0:000  MSR 0xE2 is locked, PM patches will be turned on0:100  0:000  MSR 0xCE              00001000_700122000:100  0:000  MSR 0x1A0             008500890:100  0:000  corrected FLEX_RATIO = E00000:100  0:000  MSR 0x1B0             000000000:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz0:100  0:000  MaxDiv/MinDiv: 34.0/160:100  0:000  Turbo: 44/44/45/450:100  0:000  Features: 0xBFEBFBFF0:100  0:000  Threads: 80:100  0:000  Cores: 40:100  0:000  FSB: 25 MHz0:100  0:000  CPU: 1600 MHz0:100  0:000  TSC: 1600 MHz0:100  0:000  PIS: 100 MHz0:100  0:000  === [ GetDevices ] ========================================0:100  0:000  PCI (00|00:00.00) : 8086 0100 class=0600000:100  0:000  PCI (00|00:01.00) : 8086 0101 class=0604000:100  0:000  PCI (00|01:00.00) : 10DE 13C2 class=0300000:100  0:000   - GFX: Model=EVGA GeForce GTX 970 family 124 (Nvidia)0:100  0:000  PCI (00|01:00.01) : 10DE 0FBB class=0403000:100  0:000   - HDMI Audio: 0:100  0:000  PCI (00|00:02.00) : 8086 0122 class=0380000:100  0:000   - GFX: Model=Intel HD Graphics 3000 (Intel)0:100  0:000  PCI (00|00:16.00) : 8086 1C3A class=0780000:100  0:000  PCI (00|00:1A.00) : 8086 1C2D class=0C03200:100  0:000  PCI (00|00:1B.00) : 8086 1C20 class=0403000:100  0:000  PCI (00|00:1C.00) : 8086 1C10 class=0604000:100  0:000  PCI (00|02:00.00) : 10EC 8168 class=0200000:100  0:000   - LAN: 0 Vendor=Realtek0:100  0:000  PCI (00|00:1C.01) : 8086 1C12 class=0604000:100  0:000  PCI (00|03:00.00) : 1B21 1042 class=0C03300:100  0:000  PCI (00|00:1C.02) : 8086 244E class=0604010:100  0:000  PCI (00|04:00.00) : 1283 8893 class=0604010:100  0:000  PCI (00|00:1C.04) : 8086 1C18 class=0604000:100  0:000  PCI (00|06:00.00) : 168C 002E class=0280000:100  0:000   - WIFI: Vendor=Atheros0:100  0:000  PCI (00|00:1D.00) : 8086 1C26 class=0C03200:100  0:000  PCI (00|00:1F.00) : 8086 1C44 class=0601000:100  0:000  PCI (00|00:1F.02) : 8086 1C02 class=0106010:100  0:000  PCI (00|00:1F.03) : 8086 1C22 class=0C05000:100  0:000  === [ GetDefaultSettings ] ================================0:100  0:000  Clover load options size = 38 bytes0:100  0:000  Clover started with option to boot boot.efi from Sierra0:102  0:001  EFI\CLOVER\config.plist loaded: Success0:102  0:000  === [ GetListOfThemes ] ===================================0:105  0:003  - [00]: EMBEDDED0:107  0:001  - [00]: RANDOM0:108  0:001  - [00]: OSS20:116  0:007  - [01]: OSS0:119  0:003  - [02]: Shield0:125  0:006  === [ Found config plists ] ===============================0:125  0:000  - config.plist0:125  0:000  - configimac14.plist0:125  0:000  - configimac12.plist0:125  0:000  - configpro61.plist0:125  0:000  === [ GetEarlyUserSettings ] ==============================0:125  0:000  timeout set to 50:125  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)0:125  0:000  KextsToPatch: 3 requested0:125  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: data len: 80:125  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: data len: 70:125  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: data len: 240:125  0:000  === [ LoadDrivers ] =======================================0:127  0:002  Loading AppleImageCodec-64.efi  status=Success0:128  0:001  Loading AppleKeyAggregator-64.efi  status=Success0:129  0:000  Loading AppleUITheme-64.efi  status=Success0:130  0:000  Loading DataHubDxe-64.efi  status=Success0:131  0:001  Loading FIRMWA~1.EFI  status=Success0:131  0:000  Loading FSInject-64.efi  status=Success0:132  0:001  Loading OsxAptioFixDrv-64.efi  status=Success0:133  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success0:134  0:000  Loading SMCHelper-64.efi  status=Success0:134  0:000  Loading APFS.EFI  status=Success0:140  0:005   - driver needs connecting0:140  0:000  Loading HFSPlus-64.efi  status=Success0:141  0:001   - driver needs connecting0:141  0:000  Loading ApfsJumpStart.efi  status=Success0:141  0:000   - driver needs connecting0:141  0:000  3 drivers needs connecting ...0:141  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success0:141  0:000  HFS+ driver loaded0:141  0:000  APFS driver loaded0:141  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok0:316  0:174  === [ InitScreen ] ========================================0:316  0:000  SetScreenResolution: 1920x1080 - not found!0:316  0:000  SetMaxResolution: found best mode 2: 1024x7680:443  0:126  Video mode change to mode #2: Success0:443  0:000   - set0:443  0:000  Console modes reported: 3, available modes:0:443  0:000   - [01]: 80x25 (current mode)0:443  0:000   - [03]: 100x311:391  0:948  SetScreenResolution: 1024x768 - already set1:391  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)1:392  0:000  Using embedded font: Success1:393  0:001  === [ GetMacAddress ] =====================================1:393  0:000  === [ ScanSPD ] ===========================================1:393  0:000  SMBus device : 8086 1C22 class=0C0500 status=Success1:393  0:000  SMBus CmdReg: 0x11:393  0:000  Scanning SMBus [8086:1C22], mmio: 0xF7A04004, ioport: 0xF040, hostc: 0x11:393  0:000  Slots to scan [8]...1:394  0:000  SPD[1]: Type 11 @0x511:411  0:016  XMP Profile1: 9*1/8ns1:411  0:000  XMP Profile2: 10*3/28ns1:411  0:000  Found module with XMP version 1.31:411  0:000  Using XMP Profile2 instead of standard frequency 1333MHz1:411  0:000  DDR speed 1866MHz1:411  0:000  Slot: 1 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=00000000000000001:411  0:000  SPD[3]: Type 11 @0x531:428  0:016  XMP Profile1: 9*1/8ns1:428  0:000  XMP Profile2: 10*3/28ns1:428  0:000  Found module with XMP version 1.31:428  0:000  Using XMP Profile2 instead of standard frequency 1333MHz1:428  0:000  DDR speed 1866MHz1:428  0:000  Slot: 3 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=00000000000000001:429  0:000  === [ GetAcpiTablesList ] =================================1:435  0:005  Get Acpi Tables List from RSDT:1:435  0:000   - [00]: FACP  A M I len=1321:435  0:000   - [01]: APIC  A M I len=1461:435  0:000   - [02]: SSDT  PROC len=4701:435  0:000   - [03]: MCFG  A M I    len=601:435  0:000   - [04]: HPET  A M I len=561:435  0:000   - [05]: ASPT  PerfTune len=521:435  0:000  Calibrated TSC frequency =3398916956 =3398MHz1:435  0:000  main.c gCPUStructure.ExternalClock = gCPUStructure.ExternalClock / 41:435  0:000  TEST: 24 MHz1:435  0:000  === [ GetUserSettings ] ===================================1:435  0:000  USB FixOwnership: no1:435  0:000  Dropping 2 tables:1:435  0:000   - [00]: Drop table  signature="MCFG" (4746434D)1:435  0:000           - set table: 4746434D,                0 to drop: yes1:435  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="PROC" (00000000434F5250)1:435  0:000           - set table: 54445353,         434F5250 to drop: yes1:435  0:000   - final DSDT Fix mask=104000001:435  0:000  EnableC7: yes1:435  0:000  EnableC6: yes1:435  0:000  EnableC4: yes1:435  0:000  EnableC2: yes1:435  0:000  ChassisType: 0x61:439  0:003  === [ ScanVolumes ] =======================================1:439  0:000  Found 12 volumes with blockIO1:439  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)1:439  0:000          Result of bootcode detection: bootable unknown (legacy)1:439  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)1:440  0:000          Result of bootcode detection: bootable unknown (legacy)1:440  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)1:440  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)1:440  0:000          Found optical drive1:440  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)1:441  0:000          Result of bootcode detection: bootable Clover (clover)1:442  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)1:442  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)1:443  0:000          Result of bootcode detection: bootable Clover (clover)1:451  0:008          This is SelfVolume !!1:451  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)1:452  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)1:453  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)1:453  0:000          Result of bootcode detection: bootable unknown (legacy)1:486  0:033  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,4E94DB7F-4755-4958-A2A0-784496EBD3C0,0x64800,0xB98CD28)1:487  0:000          Result of bootcode detection: bootable Windows (vista,win)1:487  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)1:488  0:000  === [ InitTheme ] =========================================1:490  0:002  Using theme 'Shield' (EFI\CLOVER\themes\Shield)1:490  0:000  theme Shield defined in NVRAM found and theme.plist parsed1:490  0:000  OS main and drive as badge1:493  0:003  Loading font from ThemeDir: Success1:494  0:000  Choosing theme Shield1:494  0:000  after NVRAM boot-args=darkwake=01:494  0:000  === [ Dump SMC keys from NVRAM ] ==========================1:494  0:000  found AppleSMC protocol1:557  0:063  === [ AddCustomEntries ] ==================================1:557  0:000  Custom entry 0 FullTitle:"Sierra" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"Sierra"1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped1:557  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped1:557  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... match!1:562  0:005      Check if volume Is Hibernated:1:562  0:000      Check sleep image 'by signature':1:568  0:005      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success1:568  0:000      using default sleep image name = \private\var\vm\sleepimage1:570  0:002      sleepimage not found -> Not Found1:570  0:000      hibernated: no - sign1:578  0:007  Custom settings: <null string>.plist will  be applied1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... skipped1:578  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped1:578  0:000  Custom entry 1 skipped because it is hidden.1:578  0:000  Custom entry 2 FullTitle:"Windows 7" Path:"\EFI\Microsoft\Boot\bootmgfw.efi" Options:"-s -h" Type:7 Flags:0x0 matching Volume:"5148B030-E155-4B37-A23C-74EF4CAFDACA"1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped1:578  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped1:578  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... skipped1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... match!1:583  0:005  Custom settings: <null string>.plist will  be applied1:583  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped1:583  0:000  === [ ScanLoader ] ========================================1:583  0:000  - [04]: 'EFI'1:583  0:000  - [05]: 'Kodama'1:591  0:007  - [06]: 'EFI'1:592  0:001  - [07]: 'Sierra'1:593  0:000          AddLoaderEntry for Volume Name=Sierra1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)\System\Library\CoreServices\boot.efii` already exists for another entry!1:593  0:000  - [08]: 'Recovery HD'1:593  0:000          AddLoaderEntry for Volume Name=Recovery HD1:593  0:000      Skipped because matching custom entry 1!1:593  0:000  - [09]: 'EFI'1:593  0:000          AddLoaderEntry for Volume Name=EFI1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)\EFI\microsoft\Boot\bootmgfw.efii` already exists for another entry!1:593  0:000  - [11]: 'TM'1:594  0:000  === [ AddCustomTool ] =====================================1:595  0:001  found tool \EFI\CLOVER\tools\Shell64U.efi1:595  0:000  Checking EFI partition Volume 4 for Clover1:595  0:000  Checking EFI partition Volume 6 for Clover1:596  0:000   Found Clover1:598  0:002          [!] Icon 5 (icons\func_reset.png) not found (path: EFI\CLOVER\themes\Shield)1:598  0:000  Icon 5 decoded, pointer A952A181:599  0:001  === [ GetEfiBootDeviceFromNvram ] =========================1:599  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)1:599  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)'1:599  0:000    - LoaderPath: '<null string>'1:599  0:000    - Guid = F6BDE7CF-0200-4231-803A-5AEC5D7473681:599  0:000  === [ FindStartupDiskVolume ] =============================1:599  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)1:599  0:000     - searching for that partition1:599  0:000      - found entry 0. 'Sierra', Volume 'Sierra'1:599  0:000  Boot redirected to Entry 0. 'Sierra'1:599  0:000  DefaultIndex=0 and MainMenu.EntryCount=81:746  0:147  MouseBirth: No mouse at ConIn, checking if any other device exists1:753  0:006  GUI ready27:050  25:297  === [ StartLoader ] =======================================27:050  0:000  Finally: Bus=47058kHz CPU=1599MHz27:050  0:000  Loading boot.efi  status=Success27:087  0:036  GetOSVersion: 10.12.5 (16F73)27:087  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM27:087  0:000  Filtering KextPatches:27:087  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed27:087  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed27:087  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed27:087  0:000  === [ PatchSmbios ] =======================================27:087  0:000  insert table 9 for dev 0:027:087  0:000  insert table 9 for dev 0:127:087  0:000  insert table 9 for dev 0:027:087  0:000  insert table 9 for dev 0:027:088  0:000  Trusting SMBIOS...27:088  0:000  Channels: 227:088  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 2327:088  0:000  SMBIOS Type 17 Index = 0 => 0 0:27:088  0:000   DIMM1 EMPTY27:088  0:000  SMBIOS Type 17 Index = 1 => 2 2:27:088  0:000   DIMM2 EMPTY27:088  0:000   partNum=F3-1866C9-8GSR    27:088  0:000  SMBIOS Type 17 Index = 2 => 1 1:27:088  0:000   DIMM3 1867MHz 8192MB27:088  0:000   partNum=F3-1866C9-8GSR    27:088  0:000  SMBIOS Type 17 Index = 3 => 3 3:27:088  0:000   DIMM4 1867MHz 8192MB27:088  0:000  mTotalSystemMemory = 1638427:088  0:000  NumberOfMemoryDevices = 427:088  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 0x200027:088  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 0x600027:088  0:000  === [ PatchACPI ] =========================================27:088  0:000  RSDT 0xCACBD02827:088  0:000  FADT from RSDT: 0xCACBD0C827:088  0:000  XSDT 0xCACBD06827:088  0:000  FADT from XSDT: 0xCACC416027:088  0:000  Xsdt reallocation done27:088  0:000  old FADT length=F427:088  0:000  Found OperationRegion(NBNV, SystemMemory, CAE12C18, ...)27:088  0:000  Found OperationRegion(SSDT, SystemMemory, CAE1B898, ...)27:088  0:000  Found OperationRegion(CSDT, SystemMemory, CAE12D98, ...)27:088  0:000  Found OperationRegion(HCNT, SystemMemory, FED1F404, ...)27:092  0:004  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT-v4.aml27:093  0:001  Apply DsdtFixMask=0x1040000027:093  0:000     drop _DSM mask=0x000027:093  0:000  === [ FixBiosDsdt ] =======================================27:093  0:000  VideoCard devID=0x13C210DE27:093  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x027:093  0:000  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE27:104  0:010  USBADR[1] = 0x1C0001 and PCIe = 0x027:104  0:000  Found Airport Atheros at 0x1C0004, 0x0, DeviceID=0x002E27:104  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE27:104  0:000  first CPU found at 58EE offset 58F127:104  0:000  score candidate at 58EA27:104  0:000  score inserted in acpi_cpu_score _PR_27:104  0:000  Found ACPI CPU: P000 | P001 | P002 | P003 | P004 | P005 | P006 | P007 , within the score: _PR_27:104  0:000  Found PCIROOTUID = 027:104  0:000   deleting device CRT_27:104  0:000   deleting device DVI_27:105  0:000   deleting device SPKR27:105  0:000   deleting device ECP_27:105  0:000   deleting device LPT_27:105  0:000   deleting device FDC027:105  0:000   deleting device ECP127:105  0:000   deleting device LPT127:105  0:000  OperationRegion (NBNV...) corrected to addr=0xCAE12C1827:105  0:000  === [ ACPIDropTables ] ====================================27:105  0:000  Drop tables from Xsdt, SIGN=MCFG TableID=A M I    Length=6027:105  0:000   Xsdt has tables count=627:105  0:000   Table: MCFG  A M I     60 dropped27:105  0:000  Drop tables from Xsdt, SIGN=SSDT TableID=PROC Length=47027:105  0:000   Xsdt has tables count=527:105  0:000   Table: SSDT  PROC  470 dropped27:105  0:000  === [ PatchAllSSDT ] ======================================27:105  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=027:105  0:000   Xsdt has tables count=427:105  0:000  === [ ACPIPatchedAML ] ====================================27:105  0:000  Unsorted27:105  0:000  Inserting SSDT-HDMI-NVIDIA-P0P1.aml from EFI\CLOVER\ACPI\patched ... Success27:106  0:001  Inserting SSDT.AML from EFI\CLOVER\ACPI\patched ... Success27:107  0:001  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=827:107  0:000  === [ RestSetup macOS ] ===================================27:107  0:000  EdidDiscovered size=027:107  0:000  NVidia GFX injection not set27:107  0:000  Intel HD Graphics 3000 [8086:0122] :: PciRoot(0x0)\Pci(0x2,0x0)27:107  0:000    Found XGA Display - 4:3 :: Width=1024 Height=76827:107  0:000    Default AAPL00,DualLink = 127:107  0:000    Low Resolution Display27:107  0:000    AAPL00,DualLink: changed from 1 to not used27:107  0:000    FakeID Intel GFX = 0x0126808627:107  0:000    snb-platform-id = 0x0002000027:107  0:000  Intel GFX revision  = 0x927:159  0:051   codec not detected27:159  0:000  stringlength = 146627:159  0:000  CurrentMode: Width=1024 Height=76827:159  0:000  Beginning FSInjectionFSInjectionInstall ...- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD6198FSInjectionInstall ...- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD619827:163  0:004  Use origin smbios table type 1 guid.27:163  0:000  Wrong FrontSideBus=47058000, set to 100MHz27:173  0:010  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other27:176  0:002    Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext27:187  0:010      Extra PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext27:279  0:092    Extra kext: EFI\CLOVER\kexts\Other\CPUSensors.kext27:289  0:009    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext27:303  0:014    Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext27:317  0:014    Extra kext: EFI\CLOVER\kexts\Other\LPCSensors.kext27:375  0:057    Extra kext: EFI\CLOVER\kexts\Other\CoreDisplayFixup.kext27:386  0:011  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.1227:387  0:001    Extra kext: EFI\CLOVER\kexts\10.12\GPUSensors.kext27:399  0:012    Extra kext: EFI\CLOVER\kexts\10.12\NvidiaGraphicsFixup.kext27:410  0:010  SetStartupDiskVolume:27:410  0:000    * Volume: 'Sierra'27:410  0:000    * LoaderPath: '<null string>'27:410  0:000    * DevPath: Sierra27:410  0:000    * GUID = F6BDE7CF-0200-4231-803A-5AEC5D74736827:410  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>F6BDE7CF-0200-4231-803A-5AEC5D747368</string></dict></dict></dict></array>27:411  0:000  Custom boot is disabled
With r4084, QPI 100:
0:100  0:000  === [ GetCPUProperties ] ==================================0:100  0:000  CPU Vendor = 756E6547 Model=206A70:100  0:000   The CPU supported SSE4.10:100  0:000  The CPU supported turbo0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz0:100  0:000  MSR 0xE2 before patch 1E0084070:100  0:000  MSR 0xE2 is locked, PM patches will be turned on0:100  0:000  MSR 0xCE              00001000_700122000:100  0:000  MSR 0x1A0             008500890:100  0:000  corrected FLEX_RATIO = E00000:100  0:000  MSR 0x1B0             000000000:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz0:100  0:000  MaxDiv/MinDiv: 34.0/160:100  0:000  Turbo: 44/44/45/450:100  0:000  Features: 0xBFEBFBFF0:100  0:000  Threads: 80:100  0:000  Cores: 40:100  0:000  FSB: 25 MHz0:100  0:000  CPU: 1600 MHz0:100  0:000  TSC: 1600 MHz0:100  0:000  PIS: 100 MHz

Thank you for detail report.

I knew.

I correctly got point to resolve issue.

Now, cleaning up code and improve log.



I will post test4(last).



나의 LG-F800S 의 Tapatalk에서 보냄



Still not working right for me without QPI=100.





DMI Table:

	Version: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
	Voltage: 0.0 V
	External Clock: 11 MHz
	Max Speed: 1599 MHz
	Current Speed: 1600 MHz

Sysctl:

hw.tbfrequency: 1000000000
hw.cpufrequency_max: 1599000000
hw.cpufrequency_min: 1599000000
hw.cpufrequency: 1599000000
hw.busfrequency_max: 44000000
hw.busfrequency_min: 44000000
hw.busfrequency: 44000000
machdep.tsc.frequency: 3400000000



System Information:

  Nombre del modelo:	        Mac Pro
  Identificador del modelo:	MacPro5,1
  Nombre del procesador:	Intel Core i7
  Velocidad del procesador:	1,60 GHz
  Cantidad de procesadores:	1
  Cantidad total de núcleos:	4
  Caché de nivel 2:	        256 KB
  Caché de nivel 3:	        8 MB
  Memoria:	                16 GB

Piker's AppleIntelInfo:

AppleIntelInfo.kext v2.6 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x1ba5b56f452 (55 MHz)
MWAIT C-States...........................: 4384

Processor Brandstring....................: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz

Bootlog:

0:100  0:100  MemLog inited, TSC freq: 3398916956
0:100  0:000
0:100  0:000  Now is 23.6.2017,  0:37:46 (GMT)
0:100  0:000  Starting Clover revision: 4098 on American Megatrends EFI
0:100  0:000  Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.12.6 | XCODE: 8.3.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000) @AAD6418
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK0 A1_DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK1 A1_DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = Undefined
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR
0:100  0:000  Type 17 Index = 2
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK2 A1_DIMM2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = A1_BANK3 A1_DIMM3
0:100  0:000  SmbiosTable.Type17->Vendor = Undefined
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = F3-1866C9-8GSR
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'TZ68K+' with board 'TZ68K+'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008407
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0100 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0101 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 13C2 class=030000
0:100  0:000   - GFX: Model=EVGA GeForce GTX 970 family 124 (Nvidia)
0:100  0:000  PCI (00|01:00.01) : 10DE 0FBB class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0122 class=038000
0:100  0:000   - GFX: Model=Intel HD Graphics 3000 (Intel)
0:100  0:000  PCI (00|00:16.00) : 8086 1C3A class=078000
0:100  0:000  PCI (00|00:1A.00) : 8086 1C2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1C20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1C10 class=060400
0:100  0:000  PCI (00|02:00.00) : 10EC 8168 class=020000
0:100  0:000   - LAN: 0 Vendor=Realtek
0:100  0:000  PCI (00|00:1C.01) : 8086 1C12 class=060400
0:100  0:000  PCI (00|03:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.02) : 8086 244E class=060401
0:100  0:000  PCI (00|04:00.00) : 1283 8893 class=060401
0:100  0:000  PCI (00|00:1C.04) : 8086 1C18 class=060400
0:100  0:000  PCI (00|06:00.00) : 168C 002E class=028000
0:100  0:000   - WIFI: Vendor=Atheros
0:100  0:000  PCI (00|00:1D.00) : 8086 1C26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1C44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1C02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1C22 class=0C0500
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 38 bytes
0:100  0:000  Clover started with option to boot boot.efi from Sierra
0:102  0:001  EFI\CLOVER\config.plist loaded: Success
0:102  0:000  === [ GetListOfThemes ] ===================================
0:105  0:003  - [00]: EMBEDDED
0:107  0:001  - [00]: RANDOM
0:108  0:001  - [00]: OSS2
0:116  0:007  - [01]: OSS
0:119  0:003  - [02]: Shield
0:125  0:006  === [ Found config plists ] ===============================
0:125  0:000  - config.plist
0:125  0:000  - configimac14.plist
0:125  0:000  - configimac12.plist
0:125  0:000  - configpro61.plist
0:125  0:000  === [ GetEarlyUserSettings ] ==============================
0:125  0:000  timeout set to 5
0:125  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:125  0:000  KextsToPatch: 3 requested
0:125  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: data len: 8
0:125  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: data len: 7
0:125  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: data len: 24
0:125  0:000  === [ LoadDrivers ] =======================================
0:127  0:002  Loading AppleImageCodec-64.efi  status=Success
0:128  0:001  Loading AppleKeyAggregator-64.efi  status=Success
0:129  0:000  Loading AppleUITheme-64.efi  status=Success
0:130  0:000  Loading DataHubDxe-64.efi  status=Success
0:131  0:001  Loading FIRMWA~1.EFI  status=Success
0:131  0:000  Loading FSInject-64.efi  status=Success
0:132  0:001  Loading OsxAptioFixDrv-64.efi  status=Success
0:133  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:134  0:000  Loading SMCHelper-64.efi  status=Success
0:134  0:000  Loading APFS.EFI  status=Success
0:140  0:005   - driver needs connecting
0:140  0:000  Loading HFSPlus-64.efi  status=Success
0:141  0:001   - driver needs connecting
0:141  0:000  Loading ApfsJumpStart.efi  status=Success
0:141  0:000   - driver needs connecting
0:141  0:000  3 drivers needs connecting ...
0:141  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:141  0:000  HFS+ driver loaded
0:141  0:000  APFS driver loaded
0:141  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:316  0:174  === [ InitScreen ] ========================================
0:316  0:000  SetScreenResolution: 1920x1080 - not found!
0:316  0:000  SetMaxResolution: found best mode 2: 1024x768
0:443  0:126  Video mode change to mode #2: Success
0:443  0:000   - set
0:443  0:000  Console modes reported: 3, available modes:
0:443  0:000   - [01]: 80x25 (current mode)
0:443  0:000   - [03]: 100x31
1:391  0:948  SetScreenResolution: 1024x768 - already set
1:391  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)
1:392  0:000  Using embedded font: Success
1:393  0:001  === [ GetMacAddress ] =====================================
1:393  0:000  === [ ScanSPD ] ===========================================
1:393  0:000  SMBus device : 8086 1C22 class=0C0500 status=Success
1:393  0:000  SMBus CmdReg: 0x1
1:393  0:000  Scanning SMBus [8086:1C22], mmio: 0xF7A04004, ioport: 0xF040, hostc: 0x1
1:393  0:000  Slots to scan [8]...
1:394  0:000  SPD[1]: Type 11 @0x51
1:411  0:016  XMP Profile1: 9*1/8ns
1:411  0:000  XMP Profile2: 10*3/28ns
1:411  0:000  Found module with XMP version 1.3
1:411  0:000  Using XMP Profile2 instead of standard frequency 1333MHz
1:411  0:000  DDR speed 1866MHz
1:411  0:000  Slot: 1 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=0000000000000000
1:411  0:000  SPD[3]: Type 11 @0x53
1:428  0:016  XMP Profile1: 9*1/8ns
1:428  0:000  XMP Profile2: 10*3/28ns
1:428  0:000  Found module with XMP version 1.3
1:428  0:000  Using XMP Profile2 instead of standard frequency 1333MHz
1:428  0:000  DDR speed 1866MHz
1:428  0:000  Slot: 3 Type 24 8192MB 1866MHz Vendor=G Skill Intl PartNo=F3-1866C9-8GSR SerialNo=0000000000000000
1:429  0:000  === [ GetAcpiTablesList ] =================================
1:435  0:005  Get Acpi Tables List from RSDT:
1:435  0:000   - [00]: FACP  A M I len=132
1:435  0:000   - [01]: APIC  A M I len=146
1:435  0:000   - [02]: SSDT  PROC len=470
1:435  0:000   - [03]: MCFG  A M I    len=60
1:435  0:000   - [04]: HPET  A M I len=56
1:435  0:000   - [05]: ASPT  PerfTune len=52
1:435  0:000  Calibrated TSC frequency =3398916956 =3398MHz
1:435  0:000  main.c gCPUStructure.ExternalClock = gCPUStructure.ExternalClock / 4
1:435  0:000  TEST: 24 MHz
1:435  0:000  === [ GetUserSettings ] ===================================
1:435  0:000  USB FixOwnership: no
1:435  0:000  Dropping 2 tables:
1:435  0:000   - [00]: Drop table  signature="MCFG" (4746434D)
1:435  0:000           - set table: 4746434D,                0 to drop: yes
1:435  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="PROC" (00000000434F5250)
1:435  0:000           - set table: 54445353,         434F5250 to drop: yes
1:435  0:000   - final DSDT Fix mask=10400000
1:435  0:000  EnableC7: yes
1:435  0:000  EnableC6: yes
1:435  0:000  EnableC4: yes
1:435  0:000  EnableC2: yes
1:435  0:000  ChassisType: 0x6
1:439  0:003  === [ ScanVolumes ] =======================================
1:439  0:000  Found 12 volumes with blockIO
1:439  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
1:439  0:000          Result of bootcode detection: bootable unknown (legacy)
1:439  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
1:440  0:000          Result of bootcode detection: bootable unknown (legacy)
1:440  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
1:440  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)
1:440  0:000          Found optical drive
1:440  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)
1:441  0:000          Result of bootcode detection: bootable Clover (clover)
1:442  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)
1:442  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)
1:443  0:000          Result of bootcode detection: bootable Clover (clover)
1:451  0:008          This is SelfVolume !!
1:451  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:452  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)
1:453  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)
1:453  0:000          Result of bootcode detection: bootable unknown (legacy)
1:486  0:033  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,4E94DB7F-4755-4958-A2A0-784496EBD3C0,0x64800,0xB98CD28)
1:487  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:487  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)
1:488  0:000  === [ InitTheme ] =========================================
1:490  0:002  Using theme 'Shield' (EFI\CLOVER\themes\Shield)
1:490  0:000  theme Shield defined in NVRAM found and theme.plist parsed
1:490  0:000  OS main and drive as badge
1:493  0:003  Loading font from ThemeDir: Success
1:494  0:000  Choosing theme Shield
1:494  0:000  after NVRAM boot-args=darkwake=0
1:494  0:000  === [ Dump SMC keys from NVRAM ] ==========================
1:494  0:000  found AppleSMC protocol
1:557  0:063  === [ AddCustomEntries ] ==================================
1:557  0:000  Custom entry 0 FullTitle:"Sierra" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"Sierra"
1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped
1:557  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped
1:557  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped
1:557  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... match!
1:562  0:005      Check if volume Is Hibernated:
1:562  0:000      Check sleep image 'by signature':
1:568  0:005      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:568  0:000      using default sleep image name = \private\var\vm\sleepimage
1:570  0:002      sleepimage not found -> Not Found
1:570  0:000      hibernated: no - sign
1:578  0:007  Custom settings: <null string>.plist will  be applied
1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped
1:578  0:000  Custom entry 1 skipped because it is hidden.
1:578  0:000  Custom entry 2 FullTitle:"Windows 7" Path:"\EFI\Microsoft\Boot\bootmgfw.efi" Options:"-s -h" Type:7 Flags:0x0 matching Volume:"5148B030-E155-4B37-A23C-74EF4CAFDACA"
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,E9E71EDA-1C80-41E6-9C1E-556B47E4484B,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "Kodama" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,80D2347B-BC26-46D9-AAA8-50BD937454A7,0x64028,0x74662D60)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,0F32BE22-6EB4-44FF-A3A3-08EC0C5036DF,0x28,0x64000)) ... skipped
1:578  0:000      Checking volume "Sierra" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)) ... skipped
1:578  0:000      Checking volume "Recovery HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,D45A2926-9600-438E-86B8-21FBE6CBB061,0xDE5EC68,0x135F20)) ... skipped
1:578  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)) ... match!
1:583  0:005  Custom settings: <null string>.plist will  be applied
1:583  0:000      Checking volume "TM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,0850F8E8-65AB-4EDE-B97B-8A9C98E6026D,0xBAA8000,0x68C1ED88)) ... skipped
1:583  0:000  === [ ScanLoader ] ========================================
1:583  0:000  - [04]: 'EFI'
1:583  0:000  - [05]: 'Kodama'
1:591  0:007  - [06]: 'EFI'
1:592  0:001  - [07]: 'Sierra'
1:593  0:000          AddLoaderEntry for Volume Name=Sierra
1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)\System\Library\CoreServices\boot.efii` already exists for another entry!
1:593  0:000  - [08]: 'Recovery HD'
1:593  0:000          AddLoaderEntry for Volume Name=Recovery HD
1:593  0:000      Skipped because matching custom entry 1!
1:593  0:000  - [09]: 'EFI'
1:593  0:000          AddLoaderEntry for Volume Name=EFI
1:593  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,5148B030-E155-4B37-A23C-74EF4CAFDACA,0x28,0x64000)\EFI\microsoft\Boot\bootmgfw.efii` already exists for another entry!
1:593  0:000  - [11]: 'TM'
1:594  0:000  === [ AddCustomTool ] =====================================
1:595  0:001  found tool \EFI\CLOVER\tools\Shell64U.efi
1:595  0:000  Checking EFI partition Volume 4 for Clover
1:595  0:000  Checking EFI partition Volume 6 for Clover
1:596  0:000   Found Clover
1:598  0:002          [!] Icon 5 (icons\func_reset.png) not found (path: EFI\CLOVER\themes\Shield)
1:598  0:000  Icon 5 decoded, pointer A952A18
1:599  0:001  === [ GetEfiBootDeviceFromNvram ] =========================
1:599  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:599  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)'
1:599  0:000    - LoaderPath: '<null string>'
1:599  0:000    - Guid = F6BDE7CF-0200-4231-803A-5AEC5D747368
1:599  0:000  === [ FindStartupDiskVolume ] =============================
1:599  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,F6BDE7CF-0200-4231-803A-5AEC5D747368,0x64028,0xDDFAC40)
1:599  0:000     - searching for that partition
1:599  0:000      - found entry 0. 'Sierra', Volume 'Sierra'
1:599  0:000  Boot redirected to Entry 0. 'Sierra'
1:599  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
1:746  0:147  MouseBirth: No mouse at ConIn, checking if any other device exists
1:753  0:006  GUI ready
27:050  25:297  === [ StartLoader ] =======================================
27:050  0:000  Finally: Bus=47058kHz CPU=1599MHz
27:050  0:000  Loading boot.efi  status=Success
27:087  0:036  GetOSVersion: 10.12.5 (16F73)
27:087  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
27:087  0:000  Filtering KextPatches:
27:087  0:000   - [00]: AppleAHCIPort (Fix Orange Disk) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000   - [01]: AirPortAtheros40 (Wi-Fi Region to CN RoW) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000   - [02]: AppleTyMCEDriver (NO AppleTyMCEDriver) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
27:087  0:000  === [ PatchSmbios ] =======================================
27:087  0:000  insert table 9 for dev 0:0
27:087  0:000  insert table 9 for dev 0:1
27:087  0:000  insert table 9 for dev 0:0
27:087  0:000  insert table 9 for dev 0:0
27:088  0:000  Trusting SMBIOS...
27:088  0:000  Channels: 2
27:088  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
27:088  0:000  SMBIOS Type 17 Index = 0 => 0 0:
27:088  0:000   DIMM1 EMPTY
27:088  0:000  SMBIOS Type 17 Index = 1 => 2 2:
27:088  0:000   DIMM2 EMPTY
27:088  0:000   partNum=F3-1866C9-8GSR
27:088  0:000  SMBIOS Type 17 Index = 2 => 1 1:
27:088  0:000   DIMM3 1867MHz 8192MB
27:088  0:000   partNum=F3-1866C9-8GSR
27:088  0:000  SMBIOS Type 17 Index = 3 => 3 3:
27:088  0:000   DIMM4 1867MHz 8192MB
27:088  0:000  mTotalSystemMemory = 16384
27:088  0:000  NumberOfMemoryDevices = 4
27:088  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 0x2000
27:088  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 0x6000
27:088  0:000  === [ PatchACPI ] =========================================
27:088  0:000  RSDT 0xCACBD028
27:088  0:000  FADT from RSDT: 0xCACBD0C8
27:088  0:000  XSDT 0xCACBD068
27:088  0:000  FADT from XSDT: 0xCACC4160
27:088  0:000  Xsdt reallocation done
27:088  0:000  old FADT length=F4
27:088  0:000  Found OperationRegion(NBNV, SystemMemory, CAE12C18, ...)
27:088  0:000  Found OperationRegion(SSDT, SystemMemory, CAE1B898, ...)
27:088  0:000  Found OperationRegion(CSDT, SystemMemory, CAE12D98, ...)
27:088  0:000  Found OperationRegion(HCNT, SystemMemory, FED1F404, ...)
27:092  0:004  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT-v4.aml
27:093  0:001  Apply DsdtFixMask=0x10400000
27:093  0:000     drop _DSM mask=0x0000
27:093  0:000  === [ FixBiosDsdt ] =======================================
27:093  0:000  VideoCard devID=0x13C210DE
27:093  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
27:093  0:000  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
27:104  0:010  USBADR[1] = 0x1C0001 and PCIe = 0x0
27:104  0:000  Found Airport Atheros at 0x1C0004, 0x0, DeviceID=0x002E
27:104  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
27:104  0:000  first CPU found at 58EE offset 58F1
27:104  0:000  score candidate at 58EA
27:104  0:000  score inserted in acpi_cpu_score _PR_
27:104  0:000  Found ACPI CPU: P000 | P001 | P002 | P003 | P004 | P005 | P006 | P007 , within the score: _PR_
27:104  0:000  Found PCIROOTUID = 0
27:104  0:000   deleting device CRT_
27:104  0:000   deleting device DVI_
27:105  0:000   deleting device SPKR
27:105  0:000   deleting device ECP_
27:105  0:000   deleting device LPT_
27:105  0:000   deleting device FDC0
27:105  0:000   deleting device ECP1
27:105  0:000   deleting device LPT1
27:105  0:000  OperationRegion (NBNV...) corrected to addr=0xCAE12C18
27:105  0:000  === [ ACPIDropTables ] ====================================
27:105  0:000  Drop tables from Xsdt, SIGN=MCFG TableID=A M I    Length=60
27:105  0:000   Xsdt has tables count=6
27:105  0:000   Table: MCFG  A M I     60 dropped
27:105  0:000  Drop tables from Xsdt, SIGN=SSDT TableID=PROC Length=470
27:105  0:000   Xsdt has tables count=5
27:105  0:000   Table: SSDT  PROC  470 dropped
27:105  0:000  === [ PatchAllSSDT ] ======================================
27:105  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
27:105  0:000   Xsdt has tables count=4
27:105  0:000  === [ ACPIPatchedAML ] ====================================
27:105  0:000  Unsorted
27:105  0:000  Inserting SSDT-HDMI-NVIDIA-P0P1.aml from EFI\CLOVER\ACPI\patched ... Success
27:106  0:001  Inserting SSDT.AML from EFI\CLOVER\ACPI\patched ... Success
27:107  0:001  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
27:107  0:000  === [ RestSetup macOS ] ===================================
27:107  0:000  EdidDiscovered size=0
27:107  0:000  NVidia GFX injection not set
27:107  0:000  Intel HD Graphics 3000 [8086:0122] :: PciRoot(0x0)\Pci(0x2,0x0)
27:107  0:000    Found XGA Display - 4:3 :: Width=1024 Height=768
27:107  0:000    Default AAPL00,DualLink = 1
27:107  0:000    Low Resolution Display
27:107  0:000    AAPL00,DualLink: changed from 1 to not used
27:107  0:000    FakeID Intel GFX = 0x01268086
27:107  0:000    snb-platform-id = 0x00020000
27:107  0:000  Intel GFX revision  = 0x9
27:159  0:051   codec not detected
27:159  0:000  stringlength = 1466
27:159  0:000  CurrentMode: Width=1024 Height=768
27:159  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD6198
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: AAD6198
27:163  0:004  Use origin smbios table type 1 guid.
27:163  0:000  Wrong FrontSideBus=47058000, set to 100MHz
27:173  0:010  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
27:176  0:002    Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
27:187  0:010      Extra PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
27:279  0:092    Extra kext: EFI\CLOVER\kexts\Other\CPUSensors.kext
27:289  0:009    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
27:303  0:014    Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
27:317  0:014    Extra kext: EFI\CLOVER\kexts\Other\LPCSensors.kext
27:375  0:057    Extra kext: EFI\CLOVER\kexts\Other\CoreDisplayFixup.kext
27:386  0:011  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
27:387  0:001    Extra kext: EFI\CLOVER\kexts\10.12\GPUSensors.kext
27:399  0:012    Extra kext: EFI\CLOVER\kexts\10.12\NvidiaGraphicsFixup.kext
27:410  0:010  SetStartupDiskVolume:
27:410  0:000    * Volume: 'Sierra'
27:410  0:000    * LoaderPath: '<null string>'
27:410  0:000    * DevPath: Sierra
27:410  0:000    * GUID = F6BDE7CF-0200-4231-803A-5AEC5D747368
27:410  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>F6BDE7CF-0200-4231-803A-5AEC5D747368</string></dict></dict></dict></array>
27:411  0:000  Custom boot is disabled

With r4084, QPI 100:

0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008407
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100  0:000  PIS: 100 MHz







here is test4. please test sandy and older cpu(e7400)?

i want to exactly know clover log from old cpu(e7400)



thanks in advance

test4.zip

  • Like 2
Link to comment
Share on other sites

I use now refi shell to switch the config names



(rEFIt_UEFI/refit/menu.c) Need to set "gBootChanged = TRUE" first before processing new user config in "GetUserSettings".

---
+++
@@ -1030,21 +1030,21 @@
   }

   i++; //90
   if (InputItems[i].Valid) {
     Status = LoadUserSettings(SelfRootDir, ConfigsList[OldChosenConfig], &dict);
     if (!EFI_ERROR(Status)) {
+      gBootChanged = TRUE;
+      gThemeChanged = TRUE;
       Status = GetUserSettings(SelfRootDir, dict);
       if (gConfigDict[2]) FreeTag(gConfigDict[2]);
       gConfigDict[2] = dict;
       if (gSettings.ConfigName) {
         FreePool(gSettings.ConfigName);
       }
       gSettings.ConfigName = EfiStrDuplicate(ConfigsList[OldChosenConfig]);
-      gBootChanged = TRUE;
-      gThemeChanged = TRUE;
     }

 /*
     if (StriCmp(InputItems[i].SValue, gSettings.ConfigName) != 0) {
       gBootChanged = TRUE;
       gThemeChanged = TRUE;

  • Like 1
Link to comment
Share on other sites

I believe everything looks ok now:

AppleIntelInfo.kext v2.6 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x470f13c464 (8 MHz)
MWAIT C-States...........................: 4384

Processor Brandstring....................:        Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz

Sysctl:

hw.tbfrequency: 1000000000
hw.cpufrequency_max: 3400000000
hw.cpufrequency_min: 3400000000
hw.cpufrequency: 3400000000
hw.busfrequency_max: 100000000
hw.busfrequency_min: 100000000
hw.busfrequency: 100000000
machdep.tsc.frequency: 3400000000

Bootlog:

0:100  0:100  MemLog inited, TSC freq: 3398916972

0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008404
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100  0:000  PIS: 100 MHz

1:465  0:000  === [ GetAcpiTablesList ] =================================
1:471  0:005  Get Acpi Tables List from RSDT:
1:471  0:000   - [00]: FACP  A M I len=132
1:471  0:000   - [01]: APIC  A M I len=146
1:471  0:000   - [02]: SSDT  PROC len=470
1:471  0:000   - [03]: MCFG  A M I    len=60
1:471  0:000   - [04]: HPET  A M I len=56
1:471  0:000   - [05]: ASPT  PerfTune len=52
1:471  0:000  Calibrated TSC frequency =3398916972 =3398MHz
1:471  0:000  main.c gCPUStructure.ExternalClock = gCPUStructure.ExternalClock / 4
1:471  0:000  TEST: 24 MHz

7:709  6:016  === [ StartLoader ] =======================================
7:709  0:000  Finally: Bus=100000kHz CPU=3400MHz

DMI:

	Version: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
	Voltage: 0.0 V
	External Clock: 25 MHz
	Max Speed: 3400 MHz
	Current Speed: 1600 MHz

Thanks a lot for your quick work Sherlocks! And I already told my friend with the E7200 to test your build, surely he'll report back soon.

  • Like 1
Link to comment
Share on other sites

Tried test4 on my Z68 (i7-2600k). With QPI removed from config.plist.



bdmesg shows external clock at 25MHz and busfrequency at 1000000000.



I believe everything looks ok now:

AppleIntelInfo.kext v2.6 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x470f13c464 (8 MHz)
MWAIT C-States...........................: 4384

Processor Brandstring....................:        Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz

Sysctl:
hw.tbfrequency: 1000000000
hw.cpufrequency_max: 3400000000
hw.cpufrequency_min: 3400000000
hw.cpufrequency: 3400000000
hw.busfrequency_max: 100000000
hw.busfrequency_min: 100000000
hw.busfrequency: 100000000
machdep.tsc.frequency: 3400000000

Bootlog:
0:100  0:100  MemLog inited, TSC freq: 3398916972

0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=206A7
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E008404
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00001000_70012200
0:100  0:000  MSR 0x1A0             00850089
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 47 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/16
0:100  0:000  Turbo: 44/44/45/45
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 25 MHz
0:100  0:000  CPU: 1600 MHz
0:100  0:000  TSC: 1600 MHz
0:100  0:000  PIS: 100 MHz

1:465  0:000  === [ GetAcpiTablesList ] =================================
1:471  0:005  Get Acpi Tables List from RSDT:
1:471  0:000   - [00]: FACP  A M I len=132
1:471  0:000   - [01]: APIC  A M I len=146
1:471  0:000   - [02]: SSDT  PROC len=470
1:471  0:000   - [03]: MCFG  A M I    len=60
1:471  0:000   - [04]: HPET  A M I len=56
1:471  0:000   - [05]: ASPT  PerfTune len=52
1:471  0:000  Calibrated TSC frequency =3398916972 =3398MHz
1:471  0:000  main.c gCPUStructure.ExternalClock = gCPUStructure.ExternalClock / 4
1:471  0:000  TEST: 24 MHz

7:709  6:016  === [ StartLoader ] =======================================
7:709  0:000  Finally: Bus=100000kHz CPU=3400MHz

DMI:
	Version: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz
	Voltage: 0.0 V
	External Clock: 25 MHz
	Max Speed: 3400 MHz
	Current Speed: 1600 MHz
Thanks a lot for your quick work Sherlocks! And I already told my friend with the E7200 to test your build, surely he'll report back soon.



Nice report.

Now remain older cpu's report.



I will wait report. After confirm it, will clean up code and commit soon.



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

Idk what's going on here but the QPI configuration setting is useless. It only applies to Nehalem CPUs and it is merely cosmetic as the value should be read from the configured value in the CPU MSRs to actually use. What you want to change is the BusSpeedkHz key, however there is a separate bug that is causing your low bus frequency. For some reason the bus speed is treated as FSB and divided by four. When the FSB should be found by multiplying the core bus speed by 4. Also core i's don't have a FSB as the north bridge is integrated into the CPU.. So even more confused why this random change was made some time again. Maybe to fix some buggy older firmwares for Core2 or older CPUs that used FSB in place of core bus speed in SMBIOS?

  • Like 4
Link to comment
Share on other sites



(rEFIt_UEFI/refit/menu.c) Need to set "gBootChanged = TRUE" first before processing new user config in "GetUserSettings".

---
+++
@@ -1030,21 +1030,21 @@
   }

   i++; //90
   if (InputItems[i].Valid) {
     Status = LoadUserSettings(SelfRootDir, ConfigsList[OldChosenConfig], &dict);
     if (!EFI_ERROR(Status)) {
+      gBootChanged = TRUE;
+      gThemeChanged = TRUE;
       Status = GetUserSettings(SelfRootDir, dict);
       if (gConfigDict[2]) FreeTag(gConfigDict[2]);
       gConfigDict[2] = dict;
       if (gSettings.ConfigName) {
         FreePool(gSettings.ConfigName);
       }
       gSettings.ConfigName = EfiStrDuplicate(ConfigsList[OldChosenConfig]);
-      gBootChanged = TRUE;
-      gThemeChanged = TRUE;
     }

 /*
     if (StriCmp(InputItems[i].SValue, gSettings.ConfigName) != 0) {
       gBootChanged = TRUE;
       gThemeChanged = TRUE;

i tried it but it did no correct config.plist issue

Link to comment
Share on other sites

Hi Slice,



I get a red screen error on my legacy desktop GAP55aUd3/Intel i5-750/ATI HD 5770 with officially released Clover >r4060:








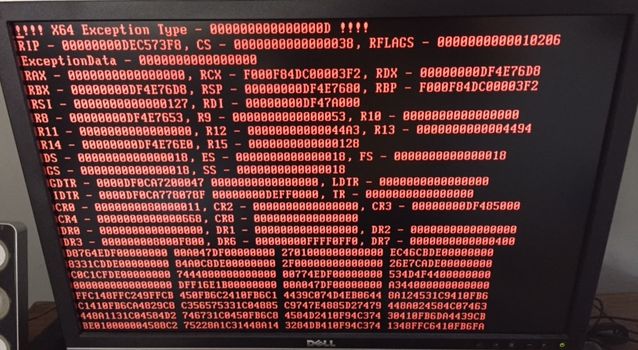

Seems that commit r4061 causes the regression -

in rEFIt_UEFI/refit.inf

+ XCODE:*_*_*_CC_FLAGS = -fsigned-char -O2 -fno-common





The system makes it to the Clover GUI but red screens when applying Clover DSDT fixes, attempting to boot OS X (see attached debug log for r4061).



My system boots fine if I use Clover compiled without the -fno-common flag for Xcode -  eg see attached boot log with r4097.

Clover r4061 -fno-common redscreen debug.log.zip

Clover r4097 Nehalem i5-750.log.zip

  • Like 2
Link to comment
Share on other sites

i just realized, i have this log from bdmesg

0:100  0:100  MemLog inited, TSC freq: 3300001550
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:254  0:000  Calibrated TSC frequency =3300001550 =3300MHz

is it have something to do with QPI or voodootsc kext?

Link to comment
Share on other sites

i just realized, i have this log from bdmesg

0:100  0:100  MemLog inited, TSC freq: 3300001550
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:254  0:000  Calibrated TSC frequency =3300001550 =3300MHz

is it have something to do with QPI or voodootsc kext?



maybe it's related in RAM setting in your config.plist.

Link to comment
Share on other sites

Hi Slice,



I get a red screen error on my legacy desktop GAP55aUd3/Intel i5-750/ATI HD 5770 with officially released Clover >r4060:





attachicon.gifClover 4061 red screen.JPG



Seems that commit r4061 causes the regression -

in rEFIt_UEFI/refit.inf

+ XCODE:*_*_*_CC_FLAGS = -fsigned-char -O2 -fno-common





The system makes it to the Clover GUI but red screens when applying Clover DSDT fixes, attempting to boot OS X (see attached debug log for r4061).



My system boots fine if I use Clover compiled without the -fno-common flag for Xcode -  eg see attached boot log with r4097.



This is not a good flag because in EFI binaries the rdata section is combined with the text section, that is needed. I believe this places the variables in the data section and that the -fcommon flag should be being used instead (it is the default, but not on all platforms).



i just realized, i have this log from bdmesg

0:100  0:100  MemLog inited, TSC freq: 3300001550
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:254  0:000  Calibrated TSC frequency =3300001550 =3300MHz

is it have something to do with QPI or voodootsc kext?



There are three situations that will cause this:

1. You have an SMBIOS/Memory section in config.plist that is not correctly configured and/or needed.

2. You have an SMBIOS that can't be trusted/reports wrong information and have disabled SPD scan through Boot/Fast=true or some other key.

3. You have SPD that reports wrong information and SMBIOS/Trust=false.

4. You have empty slots?



Also why is this randomly at the beginning of the log? And not where the memory is detected and configured? I question the validity of this without the whole log.

  • Like 1
Link to comment
Share on other sites

Sorry I didnt test it before post. But Clover should swap the old patches with the new one in GetUserSettings if "gBootChanged == TRUE". Hope lord @Slice will help you to find where the bug is..

your on the right path if i set all in clover code

lib.c, main.c, menu.c, settings.c to

gBootChanged = TRUE

then clover will see only kext to patch from second config so problem is inverted now.

maybe something wrong on sysctl edit for dell smbios implementation? maybe look at search query //zzzz entries?

Link to comment
Share on other sites

Nice report.

Now remain older cpu's report.



I will wait report. After confirm it, will clean up code and commit soon.



나의 LG-F800S 의 Tapatalk에서 보냄



Here's the report for the C2D E7200:



Sysctl r4035 (correct frequency?):

hw.busfrequency: 1068000000
With r4098:
hw.busfrequency: 264000000

Test4 bootlog:



bootlog test4 Sherlock r4098.txt





Besides my friend says that System Profile stopped reporting the bus speed/freq, only r4035 did:

  Nombre del modelo: iMac
  Identificador del modelo: iMac9,1
  Nombre del procesador: Intel Core 2 Duo
  Velocidad del procesador: 2,53 GHz
  Cantidad de procesadores: 1
  Cantidad total de núcleos: 2
  Caché de nivel 2: 3 MB
  Memoria: 4 GB
  Velocidad del bus: 1,07 GHz
  Versión de la ROM de arranque: IM91.008D.B08


Link to comment
Share on other sites

Here's the report for the C2D E7200:



Sysctl r4035 (correct frequency?):

hw.busfrequency: 1068000000
With r4098:

hw.busfrequency: 264000000
Test4 bootlog:



attachicon.gifbootlog test4 Sherlock r4098.txt



Besides my friend says that System Profile stopped reporting the bus speed/freq, only r4035 did:



Nombre del modelo: iMac

Identificador del modelo: iMac9,1

Nombre del procesador: Intel Core 2 Duo

Velocidad del procesador: 2,53 GHz

Cantidad de procesadores: 1

Cantidad total de núcleos: 2

Caché de nivel 2: 3 MB

Memoria: 4 GB

Velocidad del bus: 1,07 GHz

Versión de la ROM de arranque: IM91.008D.B08



Okay. Its very good report. I got it. Its complex cases. If you can, get r4035 full log like test4 log.

I will consider older cpu and qpi(for nehalm). more flexibe



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

There are three situations that will cause this:

1. You have an SMBIOS/Memory section in config.plist that is not correctly configured and/or needed.

2. You have an SMBIOS that can't be trusted/reports wrong information and have disabled SPD scan through Boot/Fast=true or some other key.

3. You have SPD that reports wrong information and SMBIOS/Trust=false.

4. You have empty slots?



Also why is this randomly at the beginning of the log? And not where the memory is detected and configured? I question the validity of this without the whole log.

1. i didnt configre SMBIOS/Memory in config.plist

2. trust has been checked in config.plist

3. SPD reported correctly with/without xmp detection in config.plist

4. yes, i have 8 slots in mobo, only use 4 slots.



bdmesg log is attached.

bdmesg.txt

Link to comment
Share on other sites

There's nothing wrong with your stuff:

5:938  0:000  Trusting SMBIOS...
5:938  0:000  Channels: 4
5:938  0:000  Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23
5:938  0:000   partNum=F4-2 00C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 0 => 0 0:
5:938  0:000  BANK 0 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 1 => 2 2:
5:938  0:000  BANK 1 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 2 => 4 4:
5:938  0:000  BANK 2 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 3 => 6 6:
5:938  0:000  BANK 3 DIMM0 2400MHz 8192MB
5:938  0:000  SMBIOS Type 17 Index = 4 => 1 1:
5:938  0:000  BANK 0 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 5 => 3 3:
5:938  0:000  BANK 1 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 6 => 5 5:
5:938  0:000  BANK 2 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 7 => 7 7:
5:938  0:000  BANK 3 DIMM1 EMPTY
5:938  0:000  mTotalSystemMemory = 32768
5:938  0:000  NumberOfMemoryDevices = 8

All this means there is no module present:

0:100  0:000  Type 17 Index = 1
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
  • Like 2
Link to comment
Share on other sites



There's nothing wrong with your stuff:

5:938  0:000  Trusting SMBIOS...
5:938  0:000  Channels: 4
5:938  0:000  Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23
5:938  0:000   partNum=F4-2 00C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 0 => 0 0:
5:938  0:000  BANK 0 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 1 => 2 2:
5:938  0:000  BANK 1 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 2 => 4 4:
5:938  0:000  BANK 2 DIMM0 2400MHz 8192MB
5:938  0:000   partNum=F4-2400C15-8GVR
5:938  0:000  SMBIOS Type 17 Index = 3 => 6 6:
5:938  0:000  BANK 3 DIMM0 2400MHz 8192MB
5:938  0:000  SMBIOS Type 17 Index = 4 => 1 1:
5:938  0:000  BANK 0 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 5 => 3 3:
5:938  0:000  BANK 1 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 6 => 5 5:
5:938  0:000  BANK 2 DIMM1 EMPTY
5:938  0:000  SMBIOS Type 17 Index = 7 => 7 7:
5:938  0:000  BANK 3 DIMM1 EMPTY
5:938  0:000  mTotalSystemMemory = 32768
5:938  0:000  NumberOfMemoryDevices = 8

All this means there is no module present:

0:100  0:000  Type 17 Index = 1
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz

oh ok, thanks for the explanation

Link to comment
Share on other sites

Hi Slice,



I get a red screen error on my legacy desktop GAP55aUd3/Intel i5-750/ATI HD 5770 with officially released Clover >r4060:





attachicon.gifClover 4061 red screen.JPG



Seems that commit r4061 causes the regression -

in rEFIt_UEFI/refit.inf

+ XCODE:*_*_*_CC_FLAGS = -fsigned-char -O2 -fno-common





The system makes it to the Clover GUI but red screens when applying Clover DSDT fixes, attempting to boot OS X (see attached debug log for r4061).



My system boots fine if I use Clover compiled without the -fno-common flag for Xcode -  eg see attached boot log with r4097.





i just realized, i have this log from bdmesg

0:100  0:100  MemLog inited, TSC freq: 3300001550
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:254  0:000  Calibrated TSC frequency =3300001550 =3300MHz

is it have something to do with QPI or voodootsc kext?







Here's the report for the C2D E7200:



Sysctl r4035 (correct frequency?):

hw.busfrequency: 1068000000
With r4098:
hw.busfrequency: 264000000

Test4 bootlog:



attachicon.gifbootlog test4 Sherlock r4098.txt





Besides my friend says that System Profile stopped reporting the bus speed/freq, only r4035 did:

  Nombre del modelo: iMac
  Identificador del modelo: iMac9,1
  Nombre del procesador: Intel Core 2 Duo
  Velocidad del procesador: 2,53 GHz
  Cantidad de procesadores: 1
  Cantidad total de núcleos: 2
  Caché de nivel 2: 3 MB
  Memoria: 4 GB
  Velocidad del bus: 1,07 GHz
  Versión de la ROM de arranque: IM91.008D.B08









hello.



here is bus fix file.



please test and upload cloverlog(full log=get log file), end type "sysctl hw.busfrequency" in terminal and write it when report.

i want to test each intel cpu generation.







thanks in advance

test5.zip

  • Like 2
Link to comment
Share on other sites

hello.



here is bus fix file.



please test and upload cloverlog(full log=get log file), end type "sysctl hw.busfrequency" in terminal and write it when report.

i want to test each intel cpu generation.







thanks in advance

Last login: Wed Jun 28 18:18:45 on console
Regis-iMac:~ regiyassin$ sysctl hw.busfrequency
hw.busfrequency: 100000000
Regis-iMac:~ regiyassin$

boot.txt

  • Like 1
Link to comment
Share on other sites

×
×
  • Create New...
