How to: Intel Pentium G3XXX and Celeron G1XXX (Haswell) works with speedstep Yosemite 10.10 and Mavericks 10.9


stinga11
 Share

237 posts in this topic

Recommended Posts

Mmmmm... i just realized that you are trying to install mavericks... my usb installer was made with El Capitan, using: sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/capi --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction



as i said by the messenger of this site, let me build my asus motherboard h81m-k , proces G3250 , download mavericks and try by this side how this behave... to figure it out what and where to make the changes (bios, version of clover and version of mavericks)...

i will inject nvidia drivers ´cause i will use an nvidia 210 GPU, (i don´t know the compatibility of your ATI)



i´ll tell you when i make the first test...



Best regards from Cabo México.

Hi



Yeah. sounds good.



My ATI HD5670 works with Mavericks OOB (if of course I can get Mavericks to install). I used it before on a P35 rig which was great until one day (and I have no idea what happened) Mavericks had a kernel panic which seemed to spread to all my other back up installations. (all of them went down) and I couldn't figure out what the issue was.



So I got this new board about 6 months ago, and it turns out it's a problem (Haswell) and so is my new processor Pentium 1150 4th generation.



So... choices are... try to get this working or buy a better processor and board.



Logic dictates that plan A must at least be tried first.

Link to comment
Share on other sites

  • 2 weeks later...

Mmmmm... i just realized that you are trying to install mavericks... my usb installer was made with El Capitan, using: sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/capi --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction



as i said by the messenger of this site, let me build my asus motherboard h81m-k , proces G3250 , download mavericks and try by this side how this behave... to figure it out what and where to make the changes (bios, version of clover and version of mavericks)...

i will inject nvidia drivers ´cause i will use an nvidia 210 GPU, (i don´t know the compatibility of your ATI)



i´ll tell you when i make the first test...



Best regards from Cabo México.

I finally got it working.

  • Like 1
Link to comment
Share on other sites

I finally got it working.



Hello PEI1 ! how did you make it work ???



i am stock with my asus motherboard... did you change something more in the BIOS?

did you recreate the usb instaler with certain tool?

what version of macOS are you using with the instaler? mavericks 10.9.5 ? or other version?

my ASUS H81M-K has the bios version 2.10.1208  (build date 02/22/2016)



still making test with my rig...



EDIT: I did cancel the test for nvidia 210, i couldn't make it work! does anybody use this gpu card and could you tell me in general words how to make it work and what OS X version recommend?

Link to comment
Share on other sites

  • 3 weeks later...

Ehi, molto tempo Lurker, non molto poster.

Siamo riusciti a trovare 10.12.5 Sierra oggi in esecuzione dopo un sacco di gingillarsi. Ho iniziato ieri.

Il mio sistema è un G3258 con GA-H81-DS2 w / BIOS FJ, 4GB di RAM e GTS250 Nvidia, in esecuzione in un vecchio caso G4 Mac :)

Ho usato Trifoglio in versione 4077 per fare questo lavoro, con FakeSMC.kext, NullCPUPowerManagement.kext e RealtekRTL8111.kext nella cartella 10.12 di kexts

Inoltre, ho generato SSDT-2.aml per il G3258 e mettere che nella cartella patch.

La mia config.plist è il seguente:

<? Xml version = "1.0" encoding = "UTF-8"?>
<! DOCTYPE plist PUBLIC "- // // DTD di Apple PLIST 1.0 // EN" " http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<Versione plist = "1.0">
<Dict>
<Key> #DisableDrivers </ key>
<Allineamento>
<String> CsmVideoDxe </ string>
<String> VBoxExt4 </ string>
</ Array>
<Key> ACPI </ key>
<Dict>
<Key> DSDT </ key>
<Dict>
<Key> #Patches </ key>
<Allineamento>
<Dict>
<Key> Commento </ key>
<String> Rinomina GFX0 a iGPU </ string>
<Key> Trova </ key>
<data>
R0ZYMA ==
</ Data>
<Key> Sostituire </ key>
<data>
SUdQVQ ==
</ Data>
</ Dict>
<Dict>
<Key> Commento </ key>
<String> Rinomina PEGP a GFX0 </ string>
<Key> Trova </ key>
<data>
L'argilla ==
</ Data>
<Key> Sostituire </ key>
<data>
R0ZYMA ==
</ Data>
</ Dict>
</ Array>
<Key> # Rtc8Allowed </ key>
<Falso />
<Key> #SuspendOverride </ key>
<Falso />
<Key> Debug </ key>
<Falso />
<Key> DropOEM_DSM </ key>
<Dict>
<Key> ATI </ key>
<Falso />
<Key> Firewire </ key>
<Falso />
<Key> HDA </ key>
<True />
<Key> HDMI </ key>
<True />
<Key> IDE </ key>
<Falso />
<Key> IntelGFX </ key>
<True />
<Key> LAN </ key>
<True />
<Key> LPC </ key>
<True />
<Key> NVidia </ key>
<True />
<Key> SATA </ key>
<Falso />
<Key> SMBus </ key>
<Falso />
<Key> USB </ key>
<True />
<Key> WIFI </ key>
<Falso />
</ Dict>
<Key> Correzioni </ key>
<Dict>
<Key> AddDTGP_0001 </ key>
<True />
<Key> AddHDMI_8000000 </ key>
<True />
<Key> AddIMEI_80000 </ key>
<True />
<Key> AddMCHC_0008 </ key>
<True />
<Key> AddPNLF_1000000 </ key>
<Falso />
<Key> DeleteUnused_400000 </ key>
<True />
<Key> FIX_ACST_4000000 </ key>
<True />
<Key> FIX_ADP1_800000 </ key>
<Falso />
<Key> FIX_INTELGFX_100000 </ key>
<Falso />
<Key> FIX_RTC_20000 </ key>
<True />
<Key> FIX_S3D_2000000 </ key>
<True />
<Key> FIX_TMR_40000 </ key>
<True />
<Key> FIX_WAK_200000 </ key>
<True />
<Key> FakeLPC_0020 </ key>
<True />
<Key> FixAirport_4000 </ key>
<Falso />
<Key> FixDarwin_0002 </ key>
<True />
<Key> FixDisplay_0100 </ key>
<True />
<Key> FixFirewire_0800 </ key>
<Falso />
<Key> FixHDA_8000 </ key>
<True />
<Key> FixHPET_0010 </ key>
<True />
<Key> FixIDE_0200 </ key>
<Falso />
<Key> FixIPIC_0040 </ key>
<True />
<Key> FixLAN_2000 </ key>
<True />
<Key> FixRegions_10000000 </ key>
<True />
<Key> FixSATA_0400 </ key>
<Falso />
<Key> FixSBUS_0080 </ key>
<True />
<Key> FixShutdown_0004 </ key>
<True />
<Key> FixUSB_1000 </ key>
<Falso />
<Key> NewWay_80000000 </ key>
<True />
</ Dict>
<Key> Nome </ key>
<String> DSDT.aml </ string>
<Key> ReuseFFFF </ key>
<Falso />
</ Dict>
<Key> DropTables </ key>
<Allineamento>
<Dict>
<Key> Firma </ key>
<String> DMAR </ string>
</ Dict>
<Dict>
<Key> Firma </ key>
<String> SSDT </ string>
<Key> TableID </ key>
<String> Cpu0Ist </ string>
</ Dict>
<Dict>
<Key> Firma </ key>
<String> SSDT </ string>
<Key> TableID </ key>
<String> cpupm </ string>
</ Dict>
<Dict>
<Key> Firma </ key>
<String> SSDT </ string>
<Key> TableID </ key>
<String> SaSsdt </ string>
</ Dict>
</ Array>
<Key> HaltEnabler </ key>
<True />
<Key> SSDT </ key>
<Dict>
<Key> # C3Latency </ key>
<String> 0x03E7 </ string>
<Key> #DoubleFirstState </ key>
<True />
<Key> #MaxMultiplier </ key>
<Integer> 12 </ intero>
<Key> #MinMultiplier </ key>
<Intero> 8 </ intero>
<Key> #PLimitDict </ key>
<Intero> 1 </ intero>
<Key> #UnderVoltStep </ key>
<Intero> 1 </ intero>
<Key> #UseSystemIO </ key>
<Falso />
<Key> DropOem </ key>
<Falso />
<Key> EnableC2 </ key>
<Falso />
<Key> EnableC4 </ key>
<Falso />
<Key> EnableC6 </ key>
<True />
<Key> EnableC7 </ key>
<Falso />
<Key> Genera </ key>
<Dict>
<Key> CStates </ key>
<True />
<Key> PStates </ key>
<True />
</ Dict>
<Key> PluginType </ key>
<Intero> 1 </ intero>
</ Dict>
</ Dict>
<Key> avvio </ key>
<Dict>
<Key> #XMPDetection </ key>
<String> -1 </ string>
<Key> Argomenti </ key>
<String> -xcpm -v </ string>
<Key> Debug </ key>
<True />
<Key> DefaultLoader </ key>
<String> boot.efi </ string>
<Key> DefaultVolume </ key>
<String> Macintosh HD </ string>
<Key> Legacy </ key>
<String> PBR </ string>
<Key> NeverHibernate </ key>
<True />
<Key> Timeout </ key>
<Integer> 10 </ intero>
</ Dict>
<Key> Dispositivi </ key>
<Dict>
<Key> #AddProperties </ key>
<Allineamento>
<Dict>
<Key> dispositivo </ key>
<String> NVidia </ string>
<Key> chiave </ key>
<String> @ 1, connettore di tipo </ string>
<Key> Valore </ key>
<data>
AAgAAA ==
</ Data>
</ Dict>
</ Array>
<Key> Audio </ key>
<Dict>
<Key> Inject </ key>
<String> 3 </ string>
<Key> ResetHDA </ key>
<True />
</ Dict>
<Key> FakeID </ key>
<Dict>
<Key> #ATI </ key>
<String> 0x67501002 </ string>
<Key> #IMEI </ key>
<String> 0x8C3A8086 </ string>
<Key> #IntelGFX </ key>
<String> 0x04128086 </ string>
<Key> #LAN </ key>
<String> 0x100E8086 </ string>
<Key> #NVidia </ key>
<String> 0x11de10de </ string>
<Key> #SATA </ key>
<String> 0x25628086 </ string>
<Key> #WIFI </ key>
<String> 0x431214e4 </ string>
<Key> #XHCI </ key>
<String> 0x0 </ string>
</ Dict>
<Key> NoDefaultProperties </ key>
<Falso />
<Key> USB </ key>
<Dict>
<Key> AddClockID </ key>
<True />
<Key> FixOwnership </ key>
<True />
<Key> HighCurrent </ key>
<True />
<Key> Inject </ key>
<True />
</ Dict>
<Key> UseIntelHDMI </ key>
<Falso />
</ Dict>
<Key> GUI </ key>
<Dict>
<Key> #Hide </ key>
<Allineamento>
<String> di Windows </ string>
<String> BOOTX64.EFI </ string>
</ Array>
<Key> personalizzato </ key>
<Dict>
<Key> #Entries </ key>
<Allineamento>
<Dict>
<Key> AddArguments </ key>
<String> -v </ string>
<Key> Argomenti </ key>
<String> Kernel = mach_kernel </ string>
<Key> Disabilitato </ key>
<True />
<Key> nascosto </ key>
<Falso />
<Key> Hotkey </ key>
<String> M </ string>
<Key> InjectKexts </ key>
<Falso />
NoCaches </ key> <key>
<Falso />
<Key> Percorso </ key>
<String> \ EFI \ BOOT \ BOOTX64.EFI </ string>
<Key> Titolo </ key>
<String> MyCustomEntry </ string>
<Key> Tipo </ key>
<String> OSXRecovery </ string>
<Key> Volume </ key>
<String> D68F1885-571C-4441-8DD5-F14803EFEF54 </ string>
</ Dict>
<Dict>
<Key> nascosto </ key>
<Falso />
<Key> InjectKexts </ key>
<Falso />
NoCaches </ key> <key>
<Falso />
<Key> subentries </ key>
<Allineamento>
<Dict>
<Key> AddArguments </ key>
<String> -v </ string>
<Key> Titolo </ key>
<String> Boot OS X 10.8.5 (12F36) Mountain Lion in modalità dettagliata </ ​​string>
</ Dict>
</ Array>
<Key> Titolo </ key>
<String> OS X 10.8.5 (12F36) Mountain Lion </ string>
<Key> Tipo </ key>
<String> OSX </ string>
<Key> Volume </ key>
<String> 454794AC-760D-46E8-8F77-D6EB23D2FD32 </ string>
</ Dict>
</ Array>
<Key> #Legacy </ key>
<Allineamento>
<Dict>
<Key> Disabilitato </ key>
<True />
<Key> nascosto </ key>
<Falso />
<Key> Hotkey </ key>
<String> L </ string>
<Key> Titolo </ key>
<String> MyLegacyEntry </ string>
<Key> Tipo </ key>
<String> di Windows </ string>
<Key> Volume </ key>
<String> 89433CD3-21F2-4D3C-95FC-722C48066D3A </ string>
</ Dict>
</ Array>
<Key> #TOOL </ key>
<Allineamento>
<Dict>
<Key> Disabilitato </ key>
<Falso />
<Key> nascosto </ key>
<Falso />
<Key> Hotkey </ key>
<String> B </ string>
<Key> Percorso </ key>
<String> \ EFI \ CLOVER \ tools \ memtest86.efi </ string>
<Key> Titolo </ key>
<String> memtest86.efi </ string>
</ Dict>
</ Array>
</ Dict>
<Key> Lingua </ key>
<String> it: 0 </ string>
<Key> Mouse </ key>
<Dict>
<Key> Abilitato </ key>
<Falso />
<Key> Specchio </ key>
<Falso />
<Key> Velocità </ key>
<Integer> 0 </ intero>
</ Dict>
<Key> Scan </ key>
<Dict>
<Key> voci </ key>
<True />
<Key> Legacy </ key>
<True />
<Key> Strumento </ key>
<True />
</ Dict>
<Key> Tema </ key>
<string>El_Capitan</string>
</ Dict>
<Key> Grafica </ key>
<Dict>
<Key> #BootDisplay </ key>
<Intero> 1 </ intero>
<Key> #CustomEDID </ key>
<data>
È /////// Vbn2QHuAQEBAQEUAQOAoFp4Cg3JoFdHmCcSSEwhCACBgAEBAQEB
AQEBAQEBAQEBAjqAGHE4LUBYLEUAQIRjAAAeAR0AclHQHiBuKFUAQIRjAAAe
AAAA/ABTT05ZIFRWCiAgICAgAAAA/QAwPg5GDwAKICAgICAgAb4CAyzwUB8Q
FAUTBBIRFhUDAgcGASAmCQcHFQdQgwEAAGgDDAAQALgtD + IAewI6gNByOC1A
ECxFgECEYwAAHgEdALxS0B4guChVQECEYwAAHgEdgBhxHBYgWCwlAECEYwAA
ngEdgNByHBYgECwlgECEYwAAngAAAAAAAAAAAAAADg ==
</ Data>
<Key> # ig-platform-id </ key>
<String> 0x04120004 </ string>
<Key> Inject </ key>
<Dict>
<Key> ATI </ key>
<Falso />
<Key> Intel </ key>
<Falso />
<Key> NVidia </ key>
<True />
</ Dict>
<Key> NvidiaGeneric </ key>
<True />
<Key> PatchVBios </ key>
<Falso />
</ Dict>
<Key> KernelAndKextPatches </ key>
<Dict>
<Key> AppleRTC </ key>
<True />
<Key> AsusAICPUPM </ key>
<True />
<Key> Debug </ key>
<Falso />
<Key> FakeCPUID </ key>
<String> 0x0306A0 </ string>
<Key> KernelCpu </ key>
<Falso />
<Key> KernelHaswellE </ key>
<Falso />
<Key> KernelLapic </ key>
<Falso />
<Key> KernelPm </ key>
<Falso />
<Key> KernelToPatch </ key>
<Allineamento>
<Dict>
<Key> Disabilitato </ key>
<Falso />
<Key> Trova </ key>
<data>
uaABAAAPMg ==
</ Data>
<Key> MatchOS </ key>
<String> 10.12 </ string>
<Key> Sostituire </ key>
<data>
uaABAAAxwA ==
</ Data>
</ Dict>
<Dict>
<Key> Commento </ key>
<String> xcpm sulla Sierra Haswell Celeron / Pentium </ string>
<Key> Disabilitato </ key>
<Falso />
<Key> Trova </ key>
<data>
g8PEg/si
</ Data>
<Key> MatchOS </ key>
<String> 10.12 </ string>
<Key> Sostituire </ key>
<data>
g8PGg/si
</ Data>
</ Dict>
</ Array>
<Key> KextsToPatch </ key>
<Allineamento>
<Dict>
<Key> Commento </ key>
<String> Crea tutte le unità ad essere interno </ string>
<Key> Trova </ key>
<data>
RXh0ZXJuYWw =
</ Data>
<Key> Nome </ key>
<String> AppleAHCIPort </ string>
<Key> Sostituire </ key>
<data>
SW50ZXJuYWw =
</ Data>
</ Dict>
</ Array>
</ Dict>
<Key> RtVariables </ key>
<Dict>
<Key> BooterConfig </ key>
<String> 0x28 </ string>
<Key> CsrActiveConfig </ key>
<String> 0x67 </ string>
</ Dict>
<Key> SMBIOS </ key>
<Dict>
<Key> ProductName </ key>
<String> iMac14,2 </ string>
<Key> SerialNumber </ key>
<String> C02LLM4AF8JC </ string>
<Key> fiducia </ key>
<True />
</ Dict>
<Key> SystemParameters </ key>
<Dict>
<Key> InjectKexts </ key>
<String> YES </ string>
<Key> InjectSystemID </ key>
<True />
</ Dict>
</ Dict>
</ Plist>

avvio post ho usato Clover 4077 di nuovo per installare il partizione EFI.
Network va bene, il sonno funziona bene. Ho usato correzione ALC di Toleda su GitHub per cercare di ottenere audio di lavorare, ma la giuria è ancora fuori su questo.

Spero che questo aiuta qualcuno sul loro cammino.
  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...

The Pentium Haswell only works with mountain lion 10.8.5. But with clover and a little bit of work it is possible have a pentium haswell working in the latest version of Mac OS X.



if you have a G1850
./ssdtPRGen.sh -target 2 -p G1850

Once finished you will have the ssdt.aml on the ~/Library/ssdtPRGen/. Move it to /EFI/CLOVER/ACPI/patched



If your motherboard is series 8 rename to SSDT-2.aml but if is series 9 rename to SSDT-4.aml







Does anyone knows if the ssdt.aml file needs to be renamed as ssdt-2.aml for a Pentium G4400 (1151) processor?  it is for a ASUS H110M series...

Link to comment
Share on other sites

  • 2 weeks later...

im wanting to install osx without access to any other mac..how would i go about this..i just want a clean easy way ...



i have these specs...



i7 4970



8 gig ripjaw ram



B85M-E45 mobo



sata hdd



r9 270x





Link to comment
Share on other sites

  • 3 weeks later...

hi guys



enjoy high sierra. :)



thanks to Pike and vit9696.



Comment  xcpm_bootstrap ⓒ Pike R. Alpha
Find     89 D8 04 C4 3C 22
Replace  89 D8 04 C6 3C 22
MatchOS  10.13.x

Comment  cpuid_set_info_rdmsr ⓒ vit9696
Find     B9 A0 01 00 00 0F 32
Replace  B9 A0 01 00 00 31 C0
MatchOS  10.13.x

if you have pentium of skylake or kabylake, use this
Comment  xcpm_idle ⓒ Pike R. Alpha
Find     B9 E2 00 00 00 0F 30
Replace  B9 E2 00 00 00 90 90
MatchOS  10.13.x

and you can use hwp.
  • Like 5
Link to comment
Share on other sites



hi guys



enjoy high sierra. :)



thanks to Pike and vit9696.



Comment  xcpm_bootstrap ⓒ Pike R. Alpha
Find     89 D8 04 C4 3C 22
Replace  89 D8 04 C6 3C 22
MatchOS  10.13.x

Comment  cpuid_set_info_rdmsr ⓒ vit9696
Find     B9 A0 01 00 00 0F 32
Replace  B9 A0 01 00 00 31 C0
MatchOS  10.13.x

if you have pentium of skylake or kabylake, use this
Comment  xcpm_idle ⓒ Pike R. Alpha
Find     B9 E2 00 00 00 0F 30
Replace  B9 E2 00 00 00 90 90
MatchOS  10.13.x

and you can use hwp.



On the xcpm_bootstrap, which cpuid use? C4 to C6

Link to comment
Share on other sites

Hi @Sherlocks



It's just me or with macOS 10.12 Sierra this patch won't work ? I did everything in the tutorial and I deleted the NullCPUPowerManagement.kext from the kexts folder but when I reboot the OS won't load. Gets stuck at the Apple logo without a loading bar. On El Capitan it worked without a problem but on Sierra it's dead.



Should I change something ? Or do I need to apply your pacthes for High Sierra even on Sierra ?



CPU: Intel Pentium G3220

Mobo: Gigabyte B85M-D2V

GPU: Gigabyte GTX 750 Ti

Link to comment
Share on other sites

On the xcpm_bootstrap, which cpuid use? C4 to C6



ivy bridge.



Hi @Sherlocks



It's just me or with macOS 10.12 Sierra this patch won't work ? I did everything in the tutorial and I deleted the NullCPUPowerManagement.kext from the kexts folder but when I reboot the OS won't load. Gets stuck at the Apple logo without a loading bar. On El Capitan it worked without a problem but on Sierra it's dead.



Should I change something ? Or do I need to apply your pacthes for High Sierra even on Sierra ?



CPU: Intel Pentium G3220

Mobo: Gigabyte B85M-D2V

GPU: Gigabyte GTX 750 Ti



here 10.12~10.13



FakeCPUID

0x0306A0



cpuid_set_info_rdmsr © vit9696

b9a00100000f32

b9a001000031c0

10.12.x,10.13.x



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

83c3c483fb22

83c3c683fb22

10.12.x



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

8d43c483f822

8d43c683f822

10.12.6



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

89d804c43c22

89d804c63c22

10.13.x



if you have skylake pentium

xcpm_idle_wrmsr © Pike R. Alpha

b9e20000000f30

b9e20000009090

10.12.x,10.13.x



enjoy :)



EDIT1

add patch on 10.12.6



EDIT2

i will test skylake pentium to match skylake id. and will post

  • Like 1
Link to comment
Share on other sites

ivy bridge.





here 10.12~10.13



FakeCPUID

0x0306A0



cpuid_set_info_rdmsr © vit9696

b9a00100000f32

b9a001000031c0

10.12.x,10.13.x



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

83c3c483fb22

83c3c683fb22

10.12.5



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

8d43c483f822

8d43c683f822

10.12.6



xcpm_bootstrap - Ivy Bridge © Pike R. Alpha

89d804c43c22

89d804c63c22

10.13.x



if you have skylake pentium

xcpm_idle_wrmsr © Pike R. Alpha

b9e20000000f30

b9e20000009090

10.12.x,10.13.x



enjoy :)



EDIT1

add patch on 10.12.6



EDIT2

i will test skylake pentium to match skylake id. and will post



Hi,



I added your patches via Clover but still I get stuck at the Apple logo.



Here is my config.plist:



https://paste.ee/p/Dm50r



Mine is G3220 Haswel CPU

Link to comment
Share on other sites

Hi,



I added your patches via Clover but still I get stuck at the Apple logo.



Here is my config.plist:



https://paste.ee/p/Dm50r



Mine is G3220 Haswel CPU



what is your mac os version now?

Hi,



I added your patches via Clover but still I get stuck at the Apple logo.



Here is my config.plist:



https://paste.ee/p/Dm50r



Mine is G3220 Haswel CPU



here



try this. and give me clover full log. i will check your system

config.plist.zip

Link to comment
Share on other sites

  • 4 weeks later...

Hi. Please help me.



I'm trying very hard but keeps on failing in installing Sierra 10.12 on my hackintosh.



Mobo: Asus H81-m D

Procie: Intel G3260 (haswell)

Video Card: GT 710 (1gb kepler) connected via hdmi

Hard drive: 1TB seagate

RAM: 8gb viper patriot





Currently running on the drive is my working Snow Leopard 10.6.8



I used the forbidden beast to create an installmedia of sierra on my 16gb flash drive.



The creation was finished, and it also created an EFI partition on the usb drive.



1. I mounted the usb EFI partition and edited the config.plist that i found on /EFI/CLOVER/config.plist according to the suggestions. Adding the KernelToPatch exactly as sysctl suggested. And then added -xcpm on the BOOT portion of the plist.



Saved the plist and then checked if there is a nullcpumanagement.kext in the /EFI/CLOVER/kext/10.12 and in the /EFI/CLOVER/kext/other. There is none.



On both directories, i made sure fakesmc.kext is present. It is there.

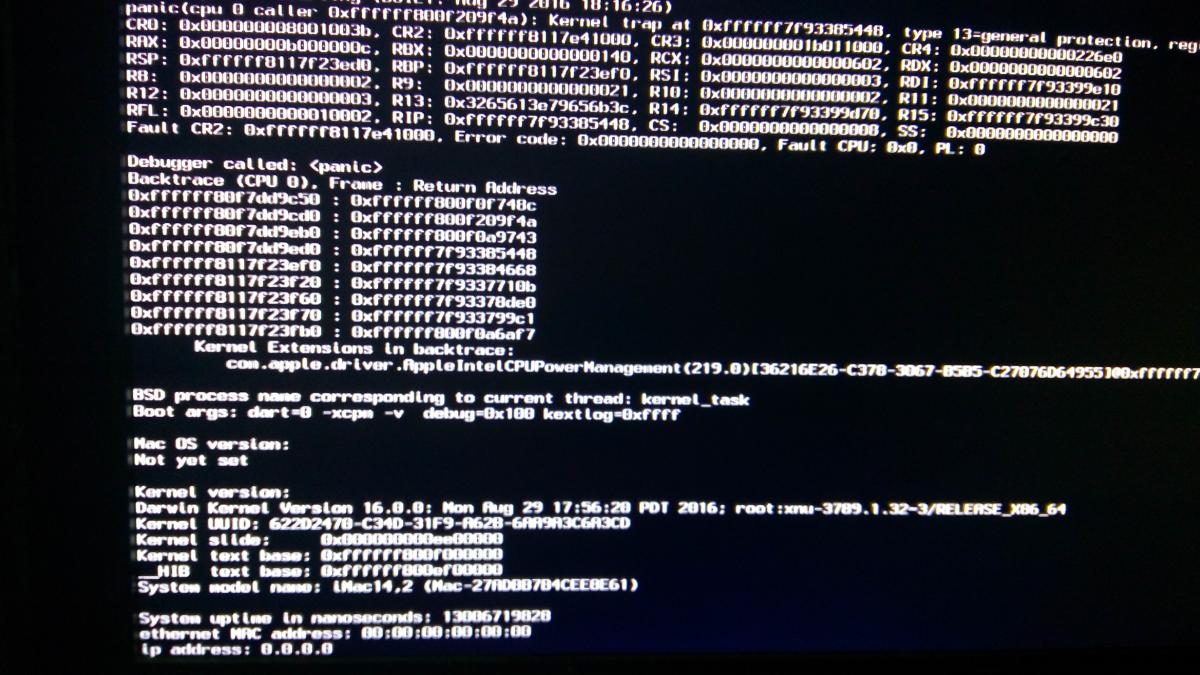

But booting on verbose, i get this panic screen.



Please help.

If you can provide me a working config.plist compatible for my setup i'll very much appreciate it.



I edited the config by hand via textwrangler as snow leopard has no working clover configurator.



And do i still have to patch the sierra mach_kernel in the USB installer?


config.plist.zip

Link to comment
Share on other sites

Anyone with similar configuration and has successfully installed?



Refere to the guide on page 1



You can download my config plist here ( set it to yours config with your smbios) http://www.insanelymac.com/forum/topic/325987-whatevergreen-support-topic/page-4



You must put your DSDT on Clover/ACPI/origin and SSDT on Clover/ACPI/patched on your installer.



Sure it will work.



All haswells celeron and pentium are supported with a kind of cosmetic patch.

Link to comment
Share on other sites

  • 4 weeks later...

is there anyone who installed HS DP?

in my case, can't install HS. very strange issue.

The closest I've come is using cpuid 0x0106E0, 306A0 gets kernel panic. It ends in white screen and gIOScrenlockstate. I had to cheat and use a cloned disk but with clone I can use 0x0306A0.

Link to comment
Share on other sites

The closest I've come is using cpuid 0x0106E0, 306A0 gets kernel panic. It ends in white screen and gIOScrenlockstate. I had to cheat and use a cloned disk but with clone I can use 0x0306A0.

I dont have a problem for using sierra to install or boot.



But if i try to install HS from usb, i cant pass first log with -v. I hard to see log. Because log pass fast with -v.



I just saw AppleIntelCpu kext kernel panic with mach_reboot message. Very strange.



I first guessed ACPI issue, so i disabled some ACPI tables. But still no luck. Continuely shown same message.



I'm considering to buy i3 cpu.. But i dont want. Cuz waste money...



Anyway can you use or install HS with no problem?

What is your cpu? My cpu is g4500 skylake pentium.



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

I dont have a problem for using sierra to install or boot.

But if i try to install HS from usb, i cant pass first log with -v. I hard to see log. Because log pass fast with -v.

I just saw AppleIntelCpu kext kernel panic with mach_reboot message. Very strange.

I first guessed ACPI issue, so i disabled some ACPI tables. But still no luck. Continuely shown same message.

I'm considering to buy i3 cpu.. But i dont want. Cuz waste money...

Anyway can you use or install HS with no problem?

What is your cpu? My cpu is g4500 skylake pentium.

나의 LG-F800S 의 Tapatalk에서 보냄

I have g3258 and it works fine in HS but I can't update or instal, I have to put disk in real MacBook or i5 6500 to get past updates. Once it's updated it works fine with 0x0306A0.



Hit space bar at clover screen and select -v don't reboot on panic and keep symbols to see final stopping point.

  • Like 1
Link to comment
Share on other sites

I have g3258 and it works fine in HS but I can't update or instal, I have to put disk in real MacBook or i5 6500 to get past updates. Once it's updated it works fine with 0x0306A0.



Hit space bar at clover screen and select -v don't reboot on panic and keep symbols to see final stopping point.

Thank you for info.

I buy i3 6100 skylake(used) to clear issue today. It can surely check problem.



After check, i will sell pentium.



나의 LG-F800S 의 Tapatalk에서 보냄

Link to comment
Share on other sites

I have g3258 and it works fine in HS but I can't update or instal, I have to put disk in real MacBook or i5 6500 to get past updates. Once it's updated it works fine with 0x0306A0.



Hit space bar at clover screen and select -v don't reboot on panic and keep symbols to see final stopping point.

i changed cpu from g4500 to i3 6100.

no more suffered symbol issue. i can use usb installer and recovery and install HS.



seems that maybe need more patch to avoid Symbol issue.



EDIT.

Cant catch correct issue now. Anyway i moved i3 processor.

Link to comment
Share on other sites

 Share

×
×
  • Create New...
