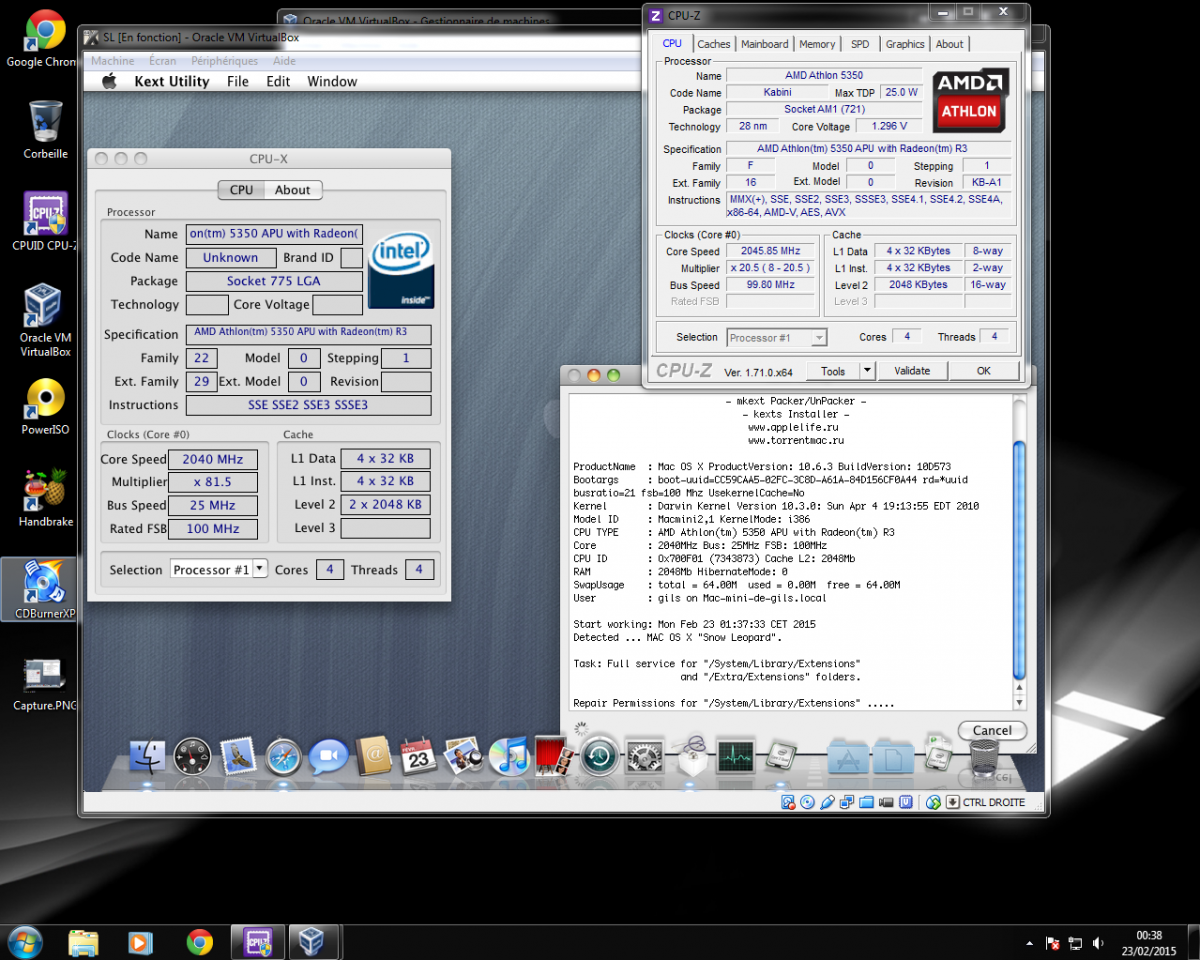

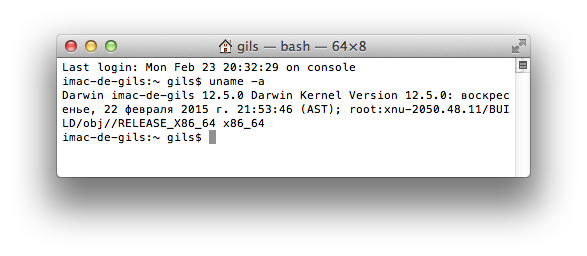

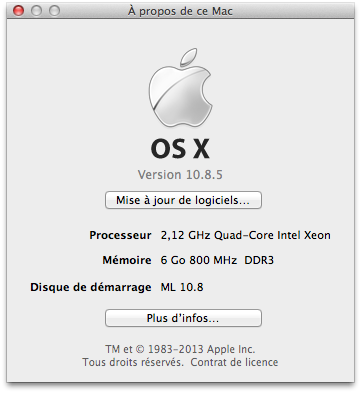

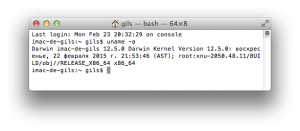

En virtualisant SL 10.6 ? l'erreur existe déjà !

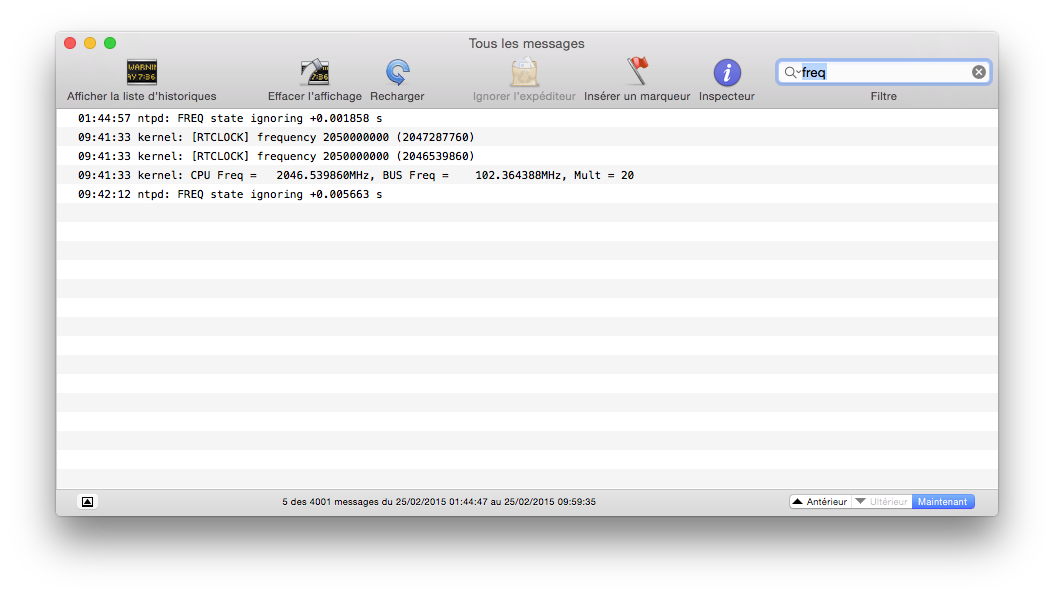

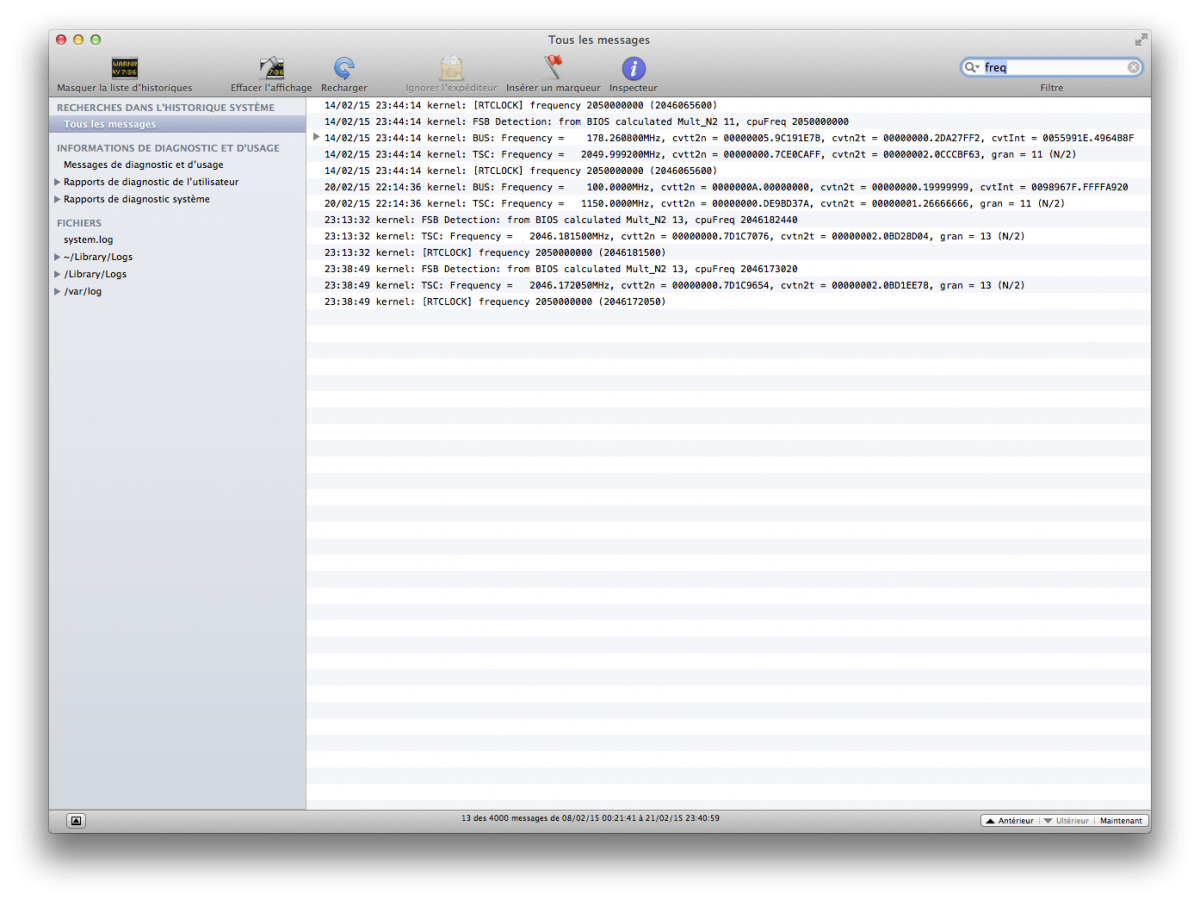

il est intéressant de voir que le problème des mélanges information des divers bus ne datent pas de maintenant , avec SL kernel Nawcom le problème existe déjà , cette valeur de 25 Mhz correspond à quoi ? le bus HPET fonctionnant entre 35 et 36 Mhz , ce n'est pas ça .

le problème est plus profond ..................



By virtualizing SL 10.6? the error already exists!

it is interesting to see that the problem of informing the various mixtures bus did not begin now with SL kernel Nawcom the problem already exists, this value corresponds to 25 Mhz what? HPET the bus operating between 35 and 36 MHz, this is not it.
the problem is deeper ..................


Link to comment
Share on other sites



:)



En virtualisant SL 10.6 ? l'erreur existe déjà !



il est intéressant de voir que le problème des mélanges information des divers bus ne datent pas de maintenant , avec SL kernel Nawcom le problème existe déjà , cette valeur de 25 Mhz correspond à quoi ? le bus HPET fonctionnant entre 35 et 36 Mhz , ce n'est pas ça .

le problème est plus profond ..................



By virtualizing SL 10.6? the error already exists!

it is interesting to see that the problem of informing the various mixtures bus did not begin now with SL kernel Nawcom the problem already exists, this value corresponds to 25 Mhz what? HPET the bus operating between 35 and 36 MHz, this is not it.
the problem is deeper ..................





:)







Last login: Mon Feb 23 10:03:24 on ttys000
Torachiyoteki-iMac:~ Torachiyo$ sysctl machdep.cpumachdep.cpu.max_basic: 5
machdep.cpu.max_ext: 2147483675
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD Athlon(tm) II X2 270 Processor
machdep.cpu.family: 16
machdep.cpu.model: 6
machdep.cpu.extmodel: 0
machdep.cpu.extfamily: 1
machdep.cpu.stepping: 3
machdep.cpu.feature_bits: 395049983 8396809
machdep.cpu.extfeature_bits: 4022598655 538623
machdep.cpu.signature: 1052515
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 HTT SSE3 MON CX16 POPCNT
machdep.cpu.extfeatures: SYSCALL 1GBPAGE EM64T LAHF RDTSCP TSCI
machdep.cpu.logical_per_package: 2
machdep.cpu.cores_per_package: 2
machdep.cpu.microcode_version: 0
machdep.cpu.mwait.linesize_min: 64
machdep.cpu.mwait.linesize_max: 64
machdep.cpu.mwait.extensions: 3
machdep.cpu.mwait.sub_Cstates: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 1024
machdep.cpu.tlb.inst.small: 32
machdep.cpu.tlb.inst.large: 16
machdep.cpu.tlb.data.small: 48
machdep.cpu.tlb.data.small_level1: 512
machdep.cpu.tlb.data.large: 48
machdep.cpu.tlb.data.large_level1: 128
machdep.cpu.address_bits.physical: 48
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 2
machdep.cpu.thread_count: 2
Last login: Sun Feb 22 21:52:23 on console
Torachiyoteki-iMac:~ Torachiyo$ sysctl machdep.cpu
machdep.cpu.max_basic: 1
machdep.cpu.max_ext: 2147483672
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD Athlon(tm) 64 Processor 3000+
machdep.cpu.family: 15
machdep.cpu.model: 47
machdep.cpu.extmodel: 2
machdep.cpu.extfamily: 0
machdep.cpu.stepping: 0
machdep.cpu.feature_bits: 126614527 1
machdep.cpu.extfeature_bits: 3821272063 1
machdep.cpu.signature: 135152
machdep.cpu.brand: 0
machdep.cpu.features:  FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 SSE3
machdep.cpu.extfeatures:  SYSCALL EM64T LAHF TSCI
machdep.cpu.cores_per_package: 1
machdep.cpu.microcode_version: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 512
machdep.cpu.tlb.inst.small: 32
machdep.cpu.tlb.inst.large: 8
machdep.cpu.tlb.data.small: 32
machdep.cpu.tlb.data.small_level1: 512
machdep.cpu.tlb.data.large: 8
machdep.cpu.address_bits.physical: 40
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 1
machdep.cpu.thread_count: 1
K8 miss Instruction: HTT MON CX16 POPCNT 1GBPAGE RDTSCP

CX16 = CMPXCHG16B

CPU Missing CX16 INS Unable to install 10.9

SO 10.9 & 10.10 don’t support the old processor (AMD:K8 754 & 939  Intel: P4 SSE2 CPU )

If the Processor supports CX16
Must Exist SSE3 instruction set



So SSE3 EMU on the OS X 10.9 & 10.10 = Garbage
Can only be used in the prior version 10.9
After 10.9 don‘t require

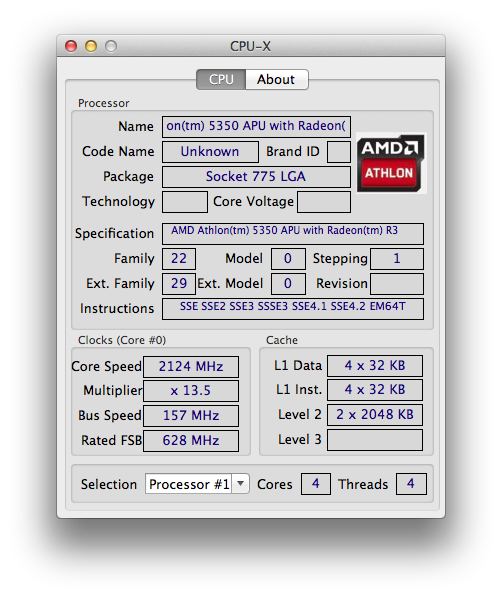

This CPU-X problem

AMD Family 0f-14(K8 K10) CPUID table & Family 15 16 (K15...) different
SO Don‘t waste time on CPU-X
  • Like 1
Link to comment
Share on other sites



K8 miss Instruction: HTT MON CX16 POPCNT 1GBPAGE RDTSCP

CX16 = CMPXCHG16B

CPU Missing CX16 INS Unable to install 10.9

SO 10.9 & 10.10 don’t support the old processor (AMD:K8 754 & 939  Intel: P4 SSE2 CPU )

If the Processor supports CX16
Must Exist SSE3 instruction set



So SSE3 EMU on the OS X 10.9 & 10.10 = Garbage
Can only be used in the prior version 10.9
After 10.9 don‘t require



This CPU-X problem

AMD Family 0f-14(K8 K10) CPUID table & Family 15 16 (K15...) different
SO Don‘t waste time on CPU-X



I have found that 10.9 & 10.10 always got invalid user opemu 64 errors and frozen in my K8 939-pin CPU's MB during booting since 1 year ago. But unable to figure out why and the solution up to now.

If lack of CX16 is the cause of failure, I should give up now.

BTW is it possible to install 10.8.x for those lack of CX16 CPU's MB ?

Link to comment
Share on other sites

I have found that 10.9 & 10.10 always got invalid user opemu 64 errors and frozen in my K8 939-pin CPU's MB during booting since 1 year ago. But unable to figure out why and the solution up to now.

If lack of CX16 is the cause of failure, I should give up now.

BTW is it possible to install 10.8.x for those lack of CX16 CPU's MB ?









10.8.5 tested on the K8 939
invalid kernel opcode (64-bit): 48 8B 08 ….


48 8B 08 = mov rcx qword [ds:rax]

this is REX X86 OPcode
K8 939 Don't support the REX Opcode
OPEMU emulation SSSE3 REX Only
if Add REX X86 Workload is huge
I do not have time to deal with


939 on the Lion 10.7.5 Can Works
  • Like 1
Link to comment
Share on other sites



10.8.5 tested on the K8 939
invalid kernel opcode (64-bit): 48 8B 08 ….


48 8B 08 = mov rcx qword [ds:rax]

this is REX X86 OPcode
K8 939 Don't support the REX Opcode
OPEMU emulation SSSE3 REX Only
if Add REX X86 Workload is huge
I do not have time to deal with


939 on the Lion 10.7.5 Can Works



Thanks for your prompt reply and help.

What did these errors mean and is there any solution to fix them ?

(1) invalid user opcode 64: 98 44 c1 8f ff 7f 00 00 2b 00 00 00 00 00 00 00

(2) Invalid user opcode (64-bit): f0 48 0f c7 0f 75 ef 5b c3 0f

Edited by jsl
Link to comment
Share on other sites

Thanks for your prompt reply and help.

What did these errors mean and is there any solution to fix them ?

(1) invalid user opcode 64: 98 44 c1 8f ff 7f 00 00 2b 00 00 00 00 00 00 00

(2) Invalid user opcode (64-bit): f0 48 0f c7 0f 75 ef 5b c3 0f



(1) invalid user opcode 64: 98 44 c1 8f ff 7f 00 00 2b 00 00 00 00 00 00 00



(2) Invalid user opcode (64-bit): f0 48 0f c7 0f 75 ef 5b c3 0f



1. IS Old OPEMU Version  98 44 c1 8f ff 7f 00 00  This is RIP 0x00007fff8fc14498 Not OPcode



2. Is Me Version: instruction encoding directly show



The first code : F0 48 0F C7 0F    lock cmpxchg16b qword [ds:rdi]  This Is CX16 opcode

This display mode I'm easy to debug




Link to comment
Share on other sites

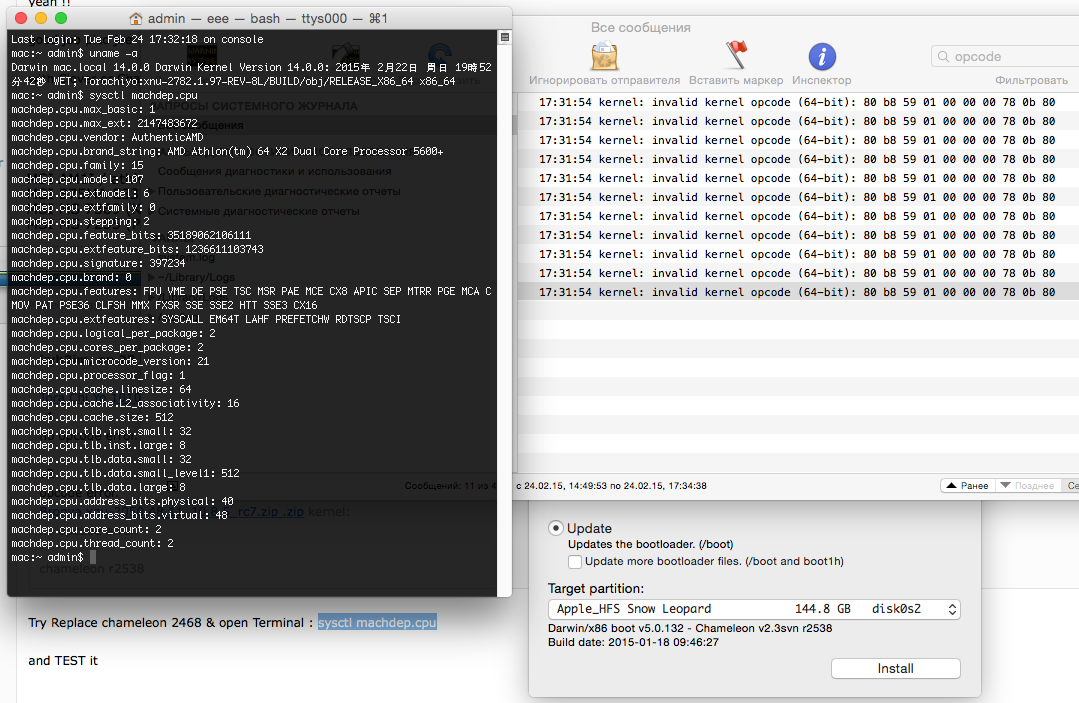

Try Replace chameleon 2468 & open Terminal : sysctl machdep.cpu



and TEST it

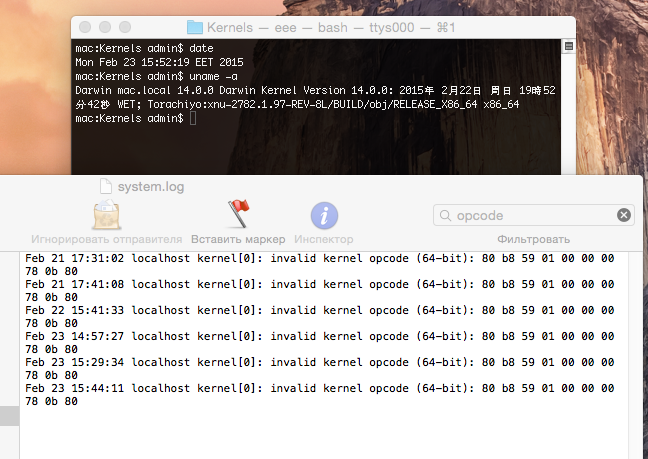

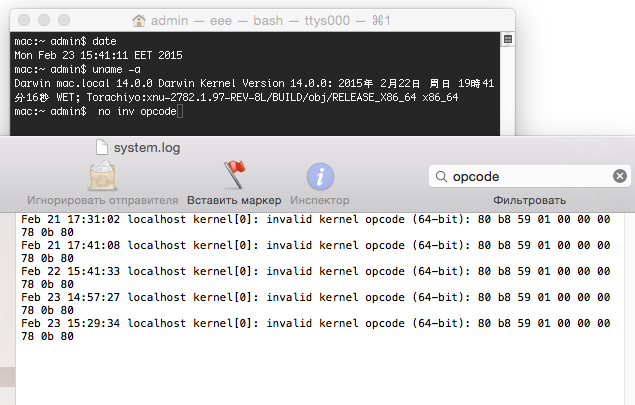

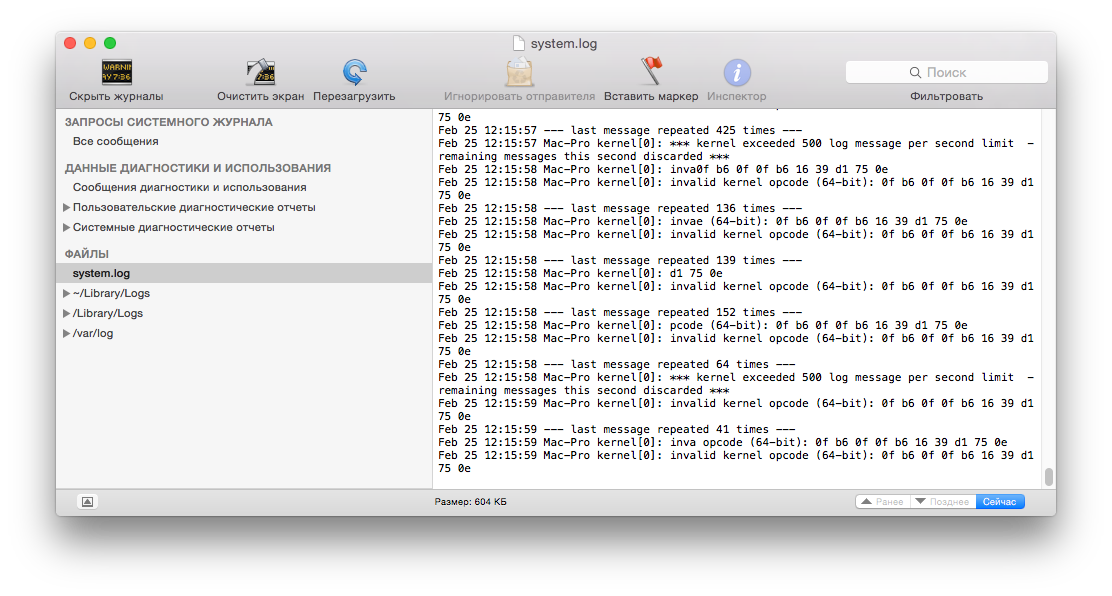

I tested your kernel with 2 bootloaders 2468 and  2538. And i have opcode error though in 2468 there's different one it's  invalid user opcode (64-bit): 0f 0b 8b 47 08 3d ff ff ff 7f. I have no chameleon modules and my smbios is MacPro3,1 if it helps. Also i think system works slower with kernel8m on 2468 rev.



Link to comment
Share on other sites

Guys!!

I would really love to test your kernels again, but I can't. So little help from your side would be useful :(

This is my thread http://www.insanelymac.com/forum/topic/304651-yosemite-10100-no-mouse-freezing/

For now I can boot with the newest kernel from Tora Chi Yo 8C...D etc. and Bronya RC5 but this is only boot test and then freeze.

Thanks for the hard work for Coders. Thanks Bronya, thanks Tora Chi Yo, and I am sorry for my absence for a long time :)

  • Like 1
Link to comment
Share on other sites

i going switch to Intel setup that might be a difference between  AMD FX setup on GPU performance  and i discover that Bronya kernels are way better for AMDfx but kernels like Tora Chi Yo, gils work is total BS !!!!!!!!!! to me excuse my french but that is the truth your kernels didn't improve nothing at all with any high end AMD Cpu's where back to square one to Bronya Rc4 level..what total nonsense with SSEPlus and Rtclock, EFIclock... its a waste of time , we all need to concertrate why on earth i getting less GPU memory bandwidth on Yosemite...i believe has to do with GPu drivers are more {censored} on Yosemite or its the AMDfx..so i going to find out with Intel setup if its yosemite problem or bad kernels

  • Like 1
Link to comment
Share on other sites

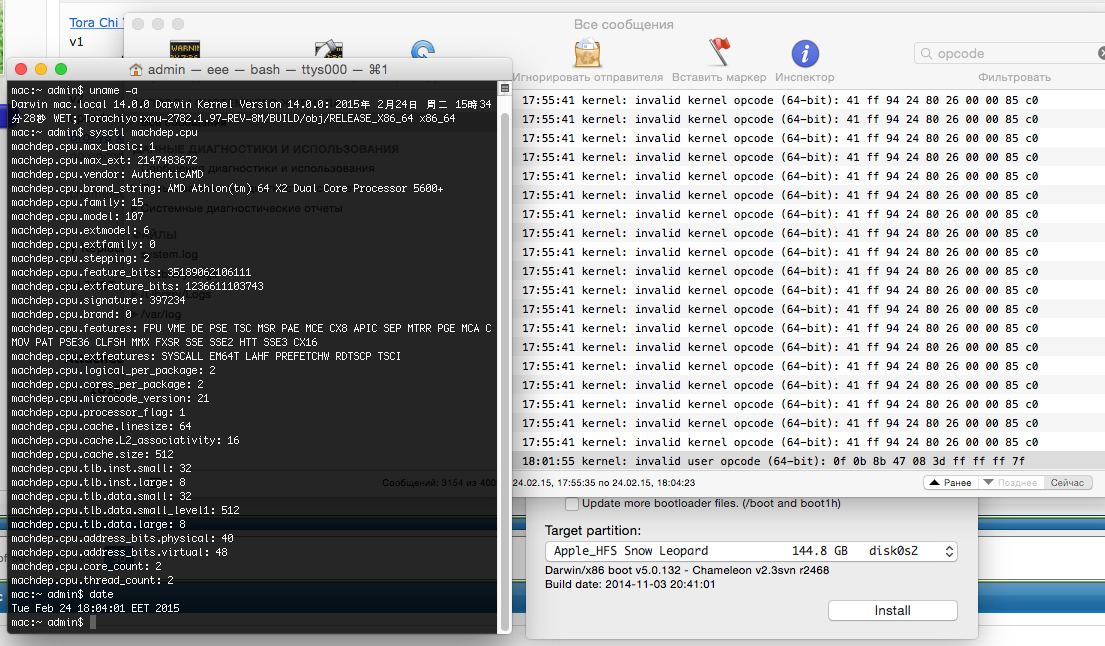

I tested your kernel with 2 bootloaders 2468 and  2538. And i have opcode error though in 2468 there's different one it's  invalid user opcode (64-bit): 0f 0b 8b 47 08 3d ff ff ff 7f. I have no chameleon modules and my smbios is MacPro3,1 if it helps. Also i think system works slower with kernel8m on 2468 rev.



TEST Target : K8 Athlon64 X2

TEST IT

Your nForce 630a Chipset Same with me

You can test my new version 1.0.5 Startup Time Delay Too Slow FIX

  • Like 2
Link to comment
Share on other sites



TEST Target : K8 Athlon64 X2

TEST IT

Your nForce 630a Chipset Same with me

You can test my new version 1.0.5 Startup Time Delay Too Slow FIX




V1: opcode error





V2: opcode error





Continue to use V2 of 1010-REV-8L. The best for me now)

  • Like 1
