doresreturns Posted January 24, 2015 Share Posted January 24, 2015 Hi guys, I successfully installed yosemite on my laptop. Almost everything is working fine including Audio, HDMI, etc. but I encountered some problem.. 1.Kernel panic when download things from internet and watch youtube videos (I think it caused by my TP-Link WN725N usb wifi) 2.My laptop can go sleep but it can't wake up maybe i just did something wrong (i didn't try hibernation though) My laptop model is SVS13A15GHB (similar to midi's one but came with windows 7) i7-3520M 8GB RAM 1600x900 screen resolution I'm still learning sorry for my English hope you guys understand btw, I attached my KP log (hope it's the right one since i'm new to this) EDIT: I skipped step 26) because it will cause kernel panic on bootup. what do you guys think? paniclog.zip Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 24, 2015 Share Posted January 24, 2015 Installed Windows 8.1 to dump vbios still no success used AIDA64 Extreme Edition GPU-Z (Bios not redable) Link to comment Share on other sites More sharing options...
midi-sama Posted January 24, 2015 Author Share Posted January 24, 2015 Hi guys, I successfully installed yosemite on my laptop. Almost everything is working fine including Audio, HDMI, etc. but I encountered some problem.. 1.Kernel panic when download things from internet and watch youtube videos (I think it caused by my TP-Link WN725N usb wifi) 2.My laptop can go sleep but it can't wake up maybe i just did something wrong (i didn't try hibernation though) My laptop model is SVS13A15GHB (similar to midi's one but came with windows 7) i7-3520M 8GB RAM 1600x900 screen resolution I'm still learning sorry for my English hope you guys understand btw, I attached my KP log (hope it's the right one since i'm new to this) EDIT: I skipped step 26) because it will cause kernel panic on bootup. what do you guys think? The Panic is indeed due to the TP-link USB (I see USB kexts and Network stuff!) You need to patch AGAIN the DSDT (and remove all other Clover DSDT Patches from your config.plist, which is already done if you made your config.plist as I said in the guide) STEP 20 - 23 And how the HELL does 26 give you KPs it just removes USB3.0 non-vanilla kexts and fixes Permissions!!! I think you should remove all USB devices before rebooting. @Sidd I can't find any ROM for your AMD card, gimme your full VAIO S/N, I'll look in Sony site if they have any "ROM UPDATE" ( ) Link to comment Share on other sites More sharing options...
midi-sama Posted January 24, 2015 Author Share Posted January 24, 2015 ok not that, the Model (edit your post and remove the S/N NOW) Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 24, 2015 Share Posted January 24, 2015 ok not that, the Model (edit your post and remove the S/N NOW) Sony Vaio E Series SVE15127CNB http://www.sony.co.in/support/product/SVE15127CN Link to comment Share on other sites More sharing options...
midi-sama Posted January 24, 2015 Author Share Posted January 24, 2015 hmm, sorry can't find any ROM Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 24, 2015 Share Posted January 24, 2015 i can see rom ubuntu@ubuntu:~$ find /sys/devices -name "rom" /sys/devices/pci0000:00/0000:00:01.0/0000:01:00.0/rom <- this is Bios (131kb)/sys/devices/pci0000:00/0000:00:1c.0/0000:02:00.0/rom <- this is VBios ROM (65kb) only need to copy ! But y does ubuntu is giving I/O error ! Link to comment Share on other sites More sharing options...
vusun123 Posted January 25, 2015 Share Posted January 25, 2015 Any luck using darwin dumper ? Link to comment Share on other sites More sharing options...

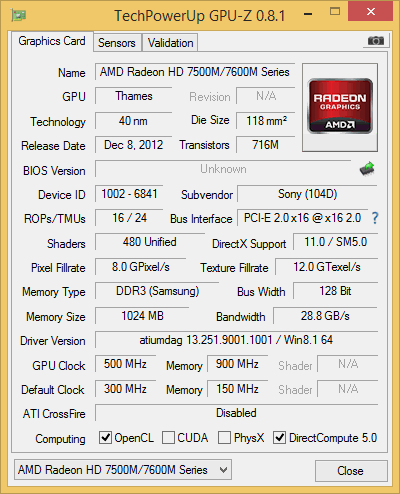

SiddRamesh Posted January 25, 2015 Share Posted January 25, 2015 Nope vusun how did u dumped ur VBios ROM ! GPU-Z ! Bios Not Readable Link to comment Share on other sites More sharing options...
vusun123 Posted January 25, 2015 Share Posted January 25, 2015 Nope vusun how did u dumped ur VBios ROM ! GPU-Z ! Bios Not Readable Darwin Dumper can't even do that ? Weird, the VAIO I got dumps perfectly with Darwin Dumper. GPU-Z is famous for not working with Mobility GPU, you don't know ? Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 25, 2015 Share Posted January 25, 2015 can u tell me the process with DarwinDumper ! Ill try. Link to comment Share on other sites More sharing options...
vusun123 Posted January 25, 2015 Share Posted January 25, 2015 can u tell me the process with DarwinDumper ! Ill try. Check only Video BIOS and let it dump ??? 1 Link to comment Share on other sites More sharing options...
midi-sama Posted January 25, 2015 Author Share Posted January 25, 2015 Vusun, I tried that on a HP with dual GPU (HD3k and Amd Radeon 6760) and it only dumped the Intel one. For Sidd, it will dump amd obviously, but why can't I dump the radeon too using DarwinDump? (I tried many times) Link to comment Share on other sites More sharing options...
vusun123 Posted January 25, 2015 Share Posted January 25, 2015 Vusun, I tried that on a HP with dual GPU (HD3k and Amd Radeon 6760) and it only dumped the Intel one. For Sidd, it will dump amd obviously, but why can't I dump the radeon too using DarwinDump? (I tried many times) On AMD Switchable capable laptop it will always dump the integrated one. In Sidd's case it's only AMD 7650M, so it will dump only that GPU Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 25, 2015 Share Posted January 25, 2015 it only dumps when m using one(downloaded) ! Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 26, 2015 Share Posted January 26, 2015 This is the log in terminal, bash-3.2# cd /Users/SiddRamesh/Desktop/Rad bash-3.2# ./RadeonDump -d Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEG0@1/IOPP/PEGP@0/RadeonPCI it matched on name "ATY,IpomoeaParent" Wrong signature: ffff. BIOS map failed. N DarwinDumper Log Hey how to patch ATI Framebuffer ! NoROMDarwinDumper_log 2.txt WithROMDarwinDumper_log.txt Link to comment Share on other sites More sharing options...
vusun123 Posted January 27, 2015 Share Posted January 27, 2015 Well damn, I don't know about that. But why would you need its ROM anyway ? You got full QE/CI working already Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 27, 2015 Share Posted January 27, 2015 Well damn, I don't know about that. But why would you need its ROM anyway ? You got full QE/CI working already Coz someone in this forum told me its not n good idea to use someone else ROM coz its device specific ! Link to comment Share on other sites More sharing options...
vusun123 Posted January 27, 2015 Share Posted January 27, 2015 Coz someone in this forum told me its not n good idea to use someone else ROM coz its device specific ! Then don't use that ROM Link to comment Share on other sites More sharing options...
SiddRamesh Posted January 27, 2015 Share Posted January 27, 2015 Hmmmm. Lots of confusion, no clean idea what to do Link to comment Share on other sites More sharing options...
lightryan Posted January 27, 2015 Share Posted January 27, 2015 hi midi ッ thanks for your case study. I try to edit a config.plist for many times these day. but I am failing. It seems I have the same laptop, my VAIO model is SVS131200C i3-3110m 8G RAM gt640le 1600 * 900 M5S 128G SSD so, could you please give me a copy of your config.plist ? thanks a lot 1 Link to comment Share on other sites More sharing options...
midi-sama Posted January 27, 2015 Author Share Posted January 27, 2015 hi midi ッ thanks for your case study. I try to edit a config.plist for many times these day. but I am failing. It seems I have the same laptop, my VAIO model is SVS131200C i3-3110m 8G RAM gt640le 1600 * 900 M5S 128G SSD so, could you please give me a copy of your config.plist ? thanks a lot Hey, No Problem, but I can't give you mine, you should make your own as shows the guide and cuz you have different specs and the model (which looks like inexistant, look in VAIO Care on the bottom) is kinda weird. Please make sure to give the right model, and other than that, does your PC come with Intel HD4000 or Nvidia Only (since your model is false, I can't know) ? Link to comment Share on other sites More sharing options...
vusun123 Posted January 28, 2015 Share Posted January 28, 2015 I assumes it's Nvidia only. In that case, DSDT patch is needed for LVDS to work 1 Link to comment Share on other sites More sharing options...

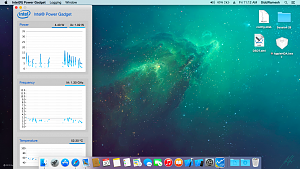

SiddRamesh Posted January 31, 2015 Share Posted January 31, 2015 M getting broken Frequency in Intel Power Gadget.Is it OK And also this !1/30/15 10:26:07.000 AM kernel[0]: X86PlatformPlugin::setRingTable - AICPM failed to load ring table with status 0x0: Get=0, Load=0, Install=01/30/15 10:26:07.000 AM kernel[0]: X86PlatformPlugin::configResourceHandler - Failed to set ring table!1/30/15 10:26:07.000 AM kernel[0]: IOPPF - Found another boot volume.SuperIODevice: [Fatal] found unsupported chip! ITE sequence ID=0xffff, Winbond sequence ID=0xfc111/30/15 10:26:07.000 AM kernel[0]: [AGPM Controller] unknownPlatform1/30/15 10:26:07.000 AM kernel[0]: IOPPF: AppleIntelCPUPowerManagement mode1/30/15 10:26:07.000 AM kernel[0]: X86PlatformShim::sendPStates - Success!1/30/15 10:26:07.000 AM kernel[0]: X86PlatformShim::sendPStates - Success!1/30/15 10:26:07.000 AM kernel[0]: X86PlatformShim::sendPStates - Success!1/30/15 10:26:07.000 AM kernel[0]: X86PlatformShim::sendPStates - Success!1/30/15 10:26:08.000 AM kernel[0]: X86PlatformShim::sendStepper - Done!Is Everything OK Link to comment Share on other sites More sharing options...
midi-sama Posted January 31, 2015 Author Share Posted January 31, 2015 Send us the whole AICPUPMInfo.kext log. ALL OF IT. Link to comment Share on other sites More sharing options...
