Zelda_link64 Posted November 11, 2016 Share Posted November 11, 2016 The error message is a strong indication that there is something wrong with the hardware, i.e. it's not a chip which is supported by the driver or maybe, the BIOS does something strange with the hardware I'm not aware of. Mieze Well, according to clover when I boot in verbose mode, it does recognize that I have killer e2400. it just errors out when loading your kext. Is there anything that you know of that might screw with it? Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2317050 Share on other sites More sharing options...

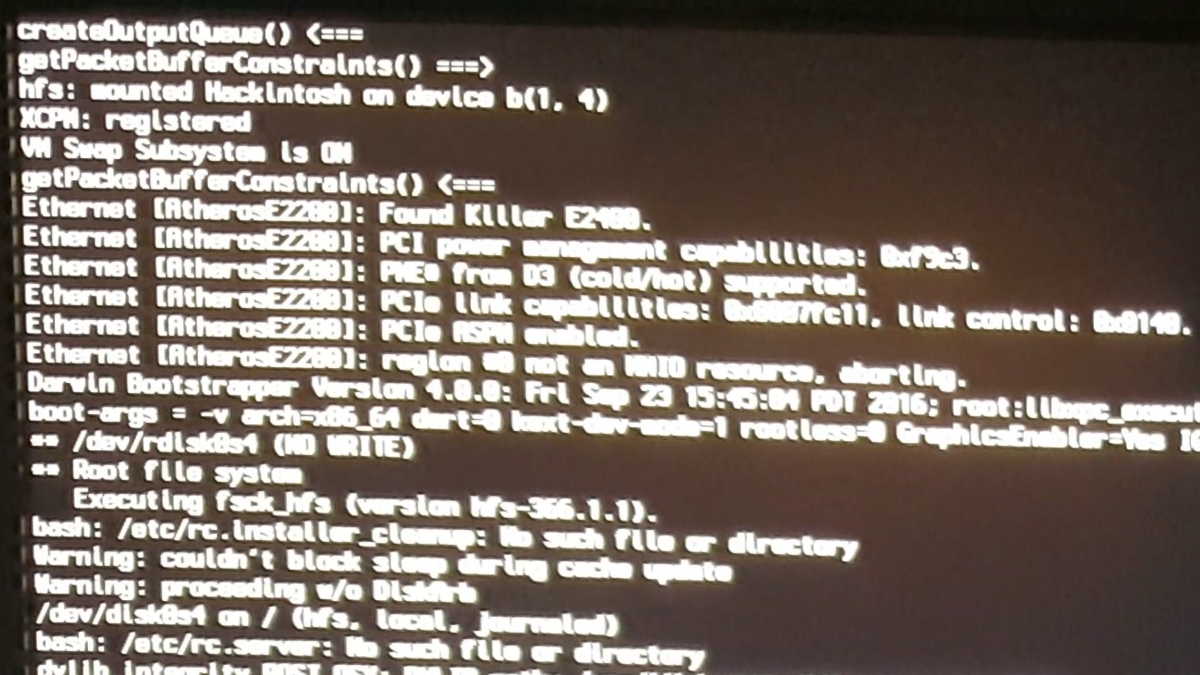

Mieze Posted November 11, 2016 Author Share Posted November 11, 2016 Well, according to clover when I boot in verbose mode, it does recognize that I have killer e2400. it just errors out when loading your kext. Is there anything that you know of that might screw with it? Screenshot_20161108-0044011.png Unfortunately no, because I have no documentation and the OS's function to enable the NIC's memory area for access fails for unknown reasons. There is nothing I can do about it. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2317053 Share on other sites More sharing options...
Zelda_link64 Posted November 11, 2016 Share Posted November 11, 2016 Ok,well thanks anyways for all your help. I bought a new wireless card for my laptop too. I know that it is compatible with mac, but will this error mess with it loading? Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2317058 Share on other sites More sharing options...
DriveTheOne Posted November 13, 2016 Share Posted November 13, 2016 Hi, I've E2400 ethernet, can you help me how correct? The user slayer2333 have it on him Alienware Skylake and it works. Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2318487 Share on other sites More sharing options...
Mieze Posted November 13, 2016 Author Share Posted November 13, 2016 @DriveTheOne: Disable the UEFI network stack and network boot. this kind of errors occur when something is still in control of the NIC preventing the driver from accessing it. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2318598 Share on other sites More sharing options...
DriveTheOne Posted November 14, 2016 Share Posted November 14, 2016 I don't understand, how to do? Thank you very much! Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2318691 Share on other sites More sharing options...
Mieze Posted November 14, 2016 Author Share Posted November 14, 2016 I don't understand, how to do? Thank you very much! Read the instructions in post#1 of this thread. Enter the BIOS settings and make sure that the UEFI network stack as well as network boot are disabled both. Reading through the thread you will find several users which had the same problem and solved it this way. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2318694 Share on other sites More sharing options...
DriveTheOne Posted November 14, 2016 Share Posted November 14, 2016 Read the instructions in post#1 of this thread. Enter the BIOS settings and make sure that the UEFI network stack as well as network boot are disabled both. Reading through the thread you will find several users which had the same problem and solved it this way. Mieze Okay, I've cheked, they were already configured and doesn't work. Tell me if I'm wrong. there are setting's bios: Frank Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2318705 Share on other sites More sharing options...
BobM Posted November 21, 2016 Share Posted November 21, 2016 Using this driver on a GA-z77x-ud3h (rev 1.2 with a AR8161 NIC) with a MacOS10.12.1 install booting via Clover v3899. Ethernet works, but very slow. Download test from a SMB server over LAN runs about 85-90 Mbps, whereas same test/same cable, etc with real MacBook runs about 750-800Mbps. I find that the kext will only work if System Prefs/Network/Ethernet/Advanced/Hardware is set to Configure:Automatically, and the connection gets set up at 100Mb. If I try Configure:Manually and select 1Gb speed it will not establish connection. I do not see any ethernet-related messages in logs. Grateful if someone can advise where else I should look to resolve this issue? Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2322432 Share on other sites More sharing options...
Mieze Posted November 21, 2016 Author Share Posted November 21, 2016 Using this driver on a GA-z77x-ud3h (rev 1.2 with a AR8161 NIC) with a MacOS10.12.1 install booting via Clover v3899. Ethernet works, but very slow. Download test from a SMB server over LAN runs about 85-90 Mbps, whereas same test/same cable, etc with real MacBook runs about 750-800Mbps. I find that the kext will only work if System Prefs/Network/Ethernet/Advanced/Hardware is set to Configure:Automatically, and the connection gets set up at 100Mb. If I try Configure:Manually and select 1Gb speed it will not establish connection. I do not see any ethernet-related messages in logs. Grateful if someone can advise where else I should look to resolve this issue? This is a hardware problem. Please see post#1 for a solution. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2322437 Share on other sites More sharing options...
DriveTheOne Posted November 21, 2016 Share Posted November 21, 2016 nothing about my problems? F Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2322599 Share on other sites More sharing options...
Mieze Posted November 21, 2016 Author Share Posted November 21, 2016 nothing about my problems? F Please send me an IOReg dump and we'll see what I can do. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2322602 Share on other sites More sharing options...
BobM Posted November 22, 2016 Share Posted November 22, 2016 This is a hardware problem. Please see post#1 for a solution. Mieze After more testing, looks like you are correct. Now suspect it is crappy cable or bad in-wall cable routing (close to mains or something). running iperf to a server on both this hack and a linux boot on same hardware is same result, and also iperf on a real Mac over same cable is same result. tried fiddling with speed settings on switch and hackintosh, but unable to force it to a Gigabit connection. Only uncertainty is that I did get close to gigabit thru this cable with real mac a week or two ago, but could be that bad cable issue is somehow intermittent. The acid test would be to try same machine but connected to a different cable back to my switch./server, but that would require disconnecting a mess of cables and lugging hardware to another room. too busy to try all that just now, so will live with the slow speed. May try re-doing the RJ connector/wall socket on the in-wall CAT5 one day. Thanks for help, anyway Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2322863 Share on other sites More sharing options...
aymanunited7 Posted December 3, 2016 Share Posted December 3, 2016 updated to 10.12 and installed killer e2400 Internet works but the only issue is the app store always getting an error while signing in saw some solutions to change en1 to en0 but i don't know how to do it I have msi x99a godlike gaming which has 2 ethernet ports on system pref>network shows en1 and en2 can you help me? Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2328357 Share on other sites More sharing options...
Mieze Posted December 3, 2016 Author Share Posted December 3, 2016 updated to 10.12 and installed killer e2400 Internet works but the only issue is the app store always getting an error while signing in saw some solutions to change en1 to en0 but i don't know how to do it I have msi x99a godlike gaming which has 2 ethernet ports on system pref>network shows en1 and en2 can you help me? You are definitely posting in the wrong thread because this is not a driver issue. Looks more like a messed up system configuration. Mieze Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2328411 Share on other sites More sharing options...
kuzmuk Posted December 9, 2016 Share Posted December 9, 2016 I experience "Fatal interrupt. Reseting chip. ISR=0x200" and "Fatal interrupt. Reseting chip. ISR=0x4200" a few times per day. Network card stops working and requires reboot to be able connect again. I was unable to google any solution for this issue. Do you have any idea how to fix this? Driver downloaded from this url: http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/, debug version, 2.2.0.OS Sierra, 10.12.1.Motherboard: GA-Z77-DS3H (rev. 1.1, Atheros AR8161)EEE disabledBIOS settings seems to be correct but maybe I missed something? Today I had 2 such network driver issues. I was streaming movie via samba to tv box and 2 times connection was dropped. Log file attached. log.log.zip Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2331773 Share on other sites More sharing options...
Mieze Posted December 13, 2016 Author Share Posted December 13, 2016 I experience "Fatal interrupt. Reseting chip. ISR=0x200" and "Fatal interrupt. Reseting chip. ISR=0x4200" a few times per day. Network card stops working and requires reboot to be able connect again. I was unable to google any solution for this issue. Do you have any idea how to fix this? Driver downloaded from this url: http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/, debug version, 2.2.0. OS Sierra, 10.12.1. Motherboard: GA-Z77-DS3H (rev. 1.1, Atheros AR8161) EEE disabled BIOS settings seems to be correct but maybe I missed something? Today I had 2 such network driver issues. I was streaming movie via samba to tv box and 2 times connection was dropped. Log file attached. I've checked your log file but I neither have any idea what happened nor am I able to reproduce the issue. I have two machines with Atheros NICs working 100% stable, one of them is my primary development system, the other one a server with 24/7 uptime but I remember user coolspot18 reported the same issue more than a year ago. Interestingly the issue disappeared after some time and reappeared 6 month later although I haven't changed the driver in between. Apart form that, it seems to be a rare issue as you two are the only users which seem to be affected. That's why I think that the cause is located somewhere else in your system, maybe a BIOS related problem. Mieze 1 Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2333805 Share on other sites More sharing options...
Carbonimax Posted December 28, 2016 Share Posted December 28, 2016 Hey, I have the same problem with the same log errors on a GA-Z170MX-Gaming 5 with Killer E2200 (EEE disable) on 10.11.x and 10.12.x. I have to reboot regularly to get Ethernet working. Kuzmuk, did you find the solution ? Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2340491 Share on other sites More sharing options...
Mieze Posted December 28, 2016 Author Share Posted December 28, 2016 Hey, I have the same problem with the same log errors on a GA-Z170MX-Gaming 5 with Killer E2200 (EEE disable) on 10.11.x and 10.12.x. I have to reboot regularly to get Ethernet working. In case you are dual booting Windows and OS X on your machine you might want to shut down the computer and wait a few minutes before you boot again when switching from Windows to OS X. As I have no datasheet, I can't rule out that there are some settings made by the Windows driver which survive a warm boot and cause the trouble under OS X. Mieze 1 Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2340842 Share on other sites More sharing options...
Scimiazzurro Posted January 15, 2017 Share Posted January 15, 2017 Hi, is possible to install/inject this kext via Clover? If yes, how to do it? (Is sufficient to insert them in the kext folder of EFI partition?) Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2349939 Share on other sites More sharing options...

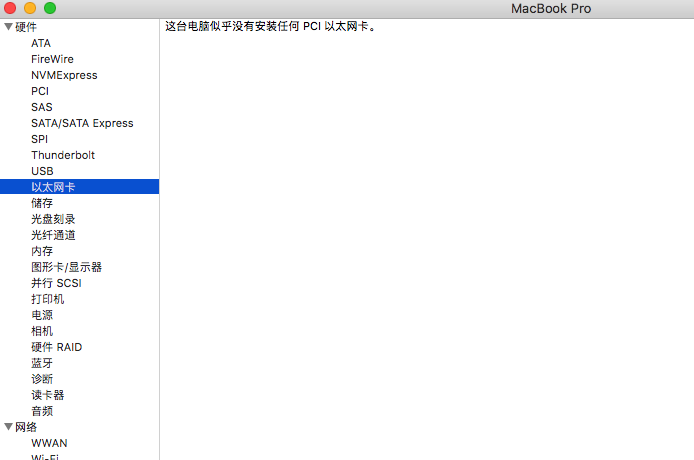

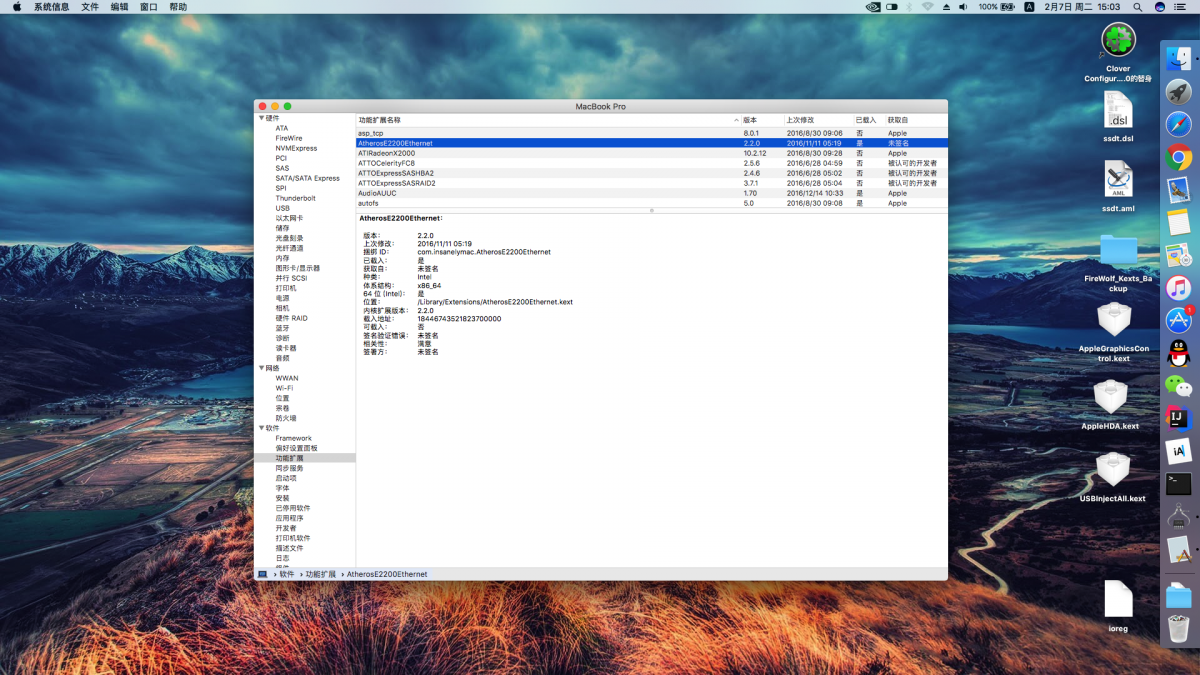

Kestrel.Bright Posted February 7, 2017 Share Posted February 7, 2017 so weird, the ethernet card down today. ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2364045 Share on other sites More sharing options...
Mieze Posted February 9, 2017 Author Share Posted February 9, 2017 After updating the source code on GitHub a few days ago, I also updated prebuilt binary in the download section to version 2.2.1, which is optimized for Sierra and also supports polled receive mode. Mieze 3 Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2365607 Share on other sites More sharing options...
Bronya Posted February 26, 2017 Share Posted February 26, 2017 Hi ! I inserted this function "pciDevice->setASPMState" in IOPCIFamily.kext for Maverick 10.9.5 ! Now and compiled and works driver AtherosE2200Ethernet.kext , version 2.2.1 with this my IOPCIFamily.kext on Maverick 10.9.5 !!! In archive added driver IOPCIFamily.kext ! Try ! ))) AtherosE2200Ethernet.zip 1 Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2374193 Share on other sites More sharing options...
Mieze Posted May 20, 2017 Author Share Posted May 20, 2017 I'm currently building a new development system with a Killer NIC and already bought an Asrock Z170 Gaming K4. Unfortunately with this board the system won't wakeup from sleep, although I spent the last 10 days trying to fix this issue but all my efforts have been in vain and I can't afford to waste more time. As proper sleep/wake support is crucial for me, I decided to give up on the Asrock board and get another one from a different manufacturer. Now I'm looking for a socket 1151 board which should meet the following requirements: Killer NIC Proper wakeup from sleep with Sierra Not too expensive. Is there anybody out there who could recommend me a mainboard which meets these requirements? Thanks in advance! Mieze 1 Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2427780 Share on other sites More sharing options...
Bradamante Posted July 28, 2017 Share Posted July 28, 2017 I can't answer that question but I can bring bad news for your AtherosE2200Ethernet v2.2.1. I got a Gigabyte GA-H77-D3H here, should be a Atheros AR8161 LAN chip. With the recommended ALXEthernet install from ##### 9.1.0 for Sierra I got the problem described here, where upon shutdown the system would reboot, displaying a message about a irregular shutdown. The system log would point at the ALXEthernet crashing. Otherwise that driver worked fine. So now I am trying AtherosE2200Ethernet v2.2.0 and v2.2.1 with the latest macOS Sierra X.12.6. I am using Kext Utility to install v2.2.0/1 into S/L/E or L/E, but to no avail. There is no ethernet port in system preferences (as there usually is when you plug in the cable). Looking at system report -> extensions I can see the AtheroisE2200Ethernet, but it is not loaded. Probably because it is not signed? Or do I have to install directly into the EFI partition? The ##### for Sierra tool does not seem to work like that, their stuff goes into L/E. For reference, AppleHDADisabler and VoodooHDA do work in these folders and they show in the list as not signed, yet loaded. EDIT: Let me retract that. Some forum threads gave me the impression that my GA-H77-D3H Rev 1.0 hat the AR8161 chip. While the Rev 1.1 of that board might have that, the Rev 1.0 version appearantly has the AR8151 on board. As a result, AtherosL1cEthernet.kext installed into Clovers kext folder works fine, just as it did on El Capitan. As it does on the GA-Z77MX-D3H, just fyi. Link to comment https://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/page/10/#findComment-2470849 Share on other sites More sharing options...
