jinbingmao Posted January 22, 2020 Share Posted January 22, 2020 13 minutes ago, Andrey1970 said: Vcore always multi=1 You shall give heavy load of the CPU to see. Unable to get the correct data using "OC" boot. Using clover boot is the right data. Link to comment Share on other sites More sharing options...
Andrey1970 Posted January 22, 2020 Share Posted January 22, 2020 13 minutes ago, jinbingmao said: Unable to get the correct data using "OC" boot. Using clover boot is the right data. 1 Link to comment Share on other sites More sharing options...
jinbingmao Posted January 22, 2020 Share Posted January 22, 2020 7 minutes ago, Andrey1970 said: Is there any plan to increase the temperature monitoring of main board Link to comment Share on other sites More sharing options...
Andrey1970 Posted January 22, 2020 Share Posted January 22, 2020 1 minute ago, jinbingmao said: Is there any plan to increase the temperature monitoring of main board Ask https://github.com/joedmru Link to comment Share on other sites More sharing options...

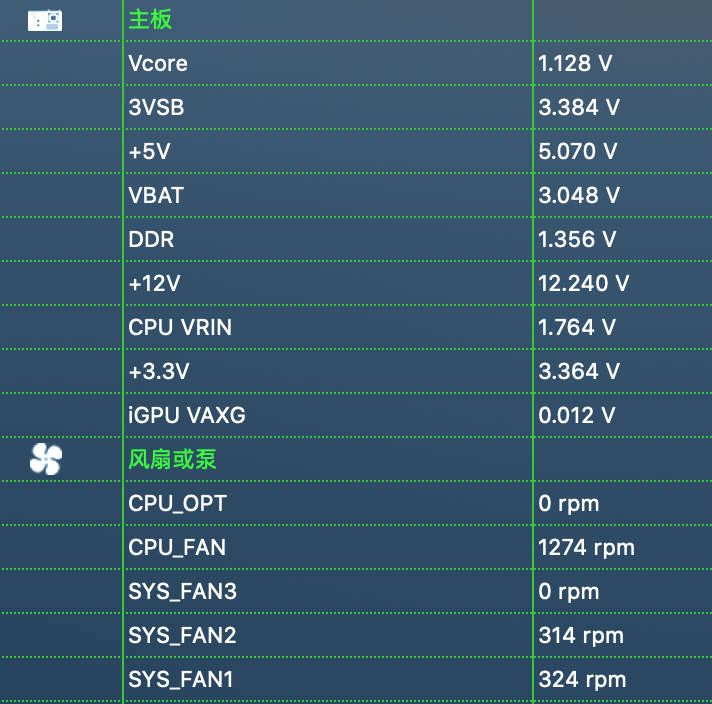

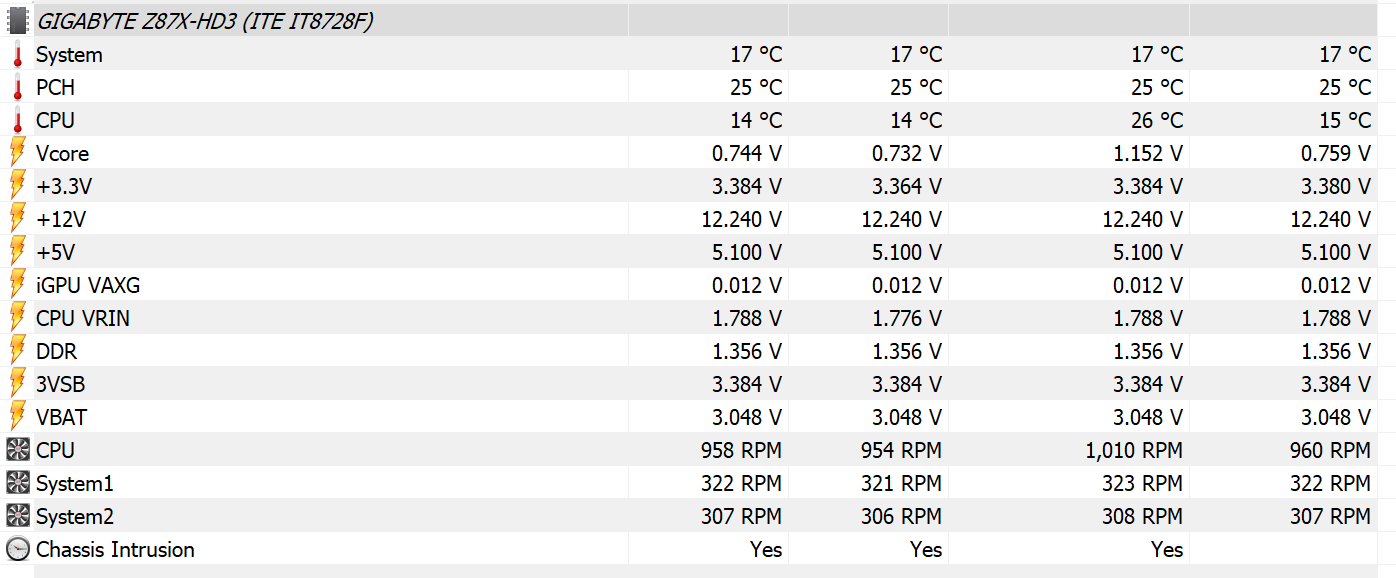

jinbingmao Posted January 22, 2020 Share Posted January 22, 2020 (edited) Gigabyte Z87X-HD3 Z87P-D3.plist Z87X-HD3.plist zh-Hans.lproj.zip Edited January 23, 2020 by jinbingmao Link to comment Share on other sites More sharing options...
Andrey1970 Posted January 22, 2020 Share Posted January 22, 2020 Gigabyte Z87X-UD4H-CF.plist.zip Link to comment Share on other sites More sharing options...
jinbingmao Posted January 22, 2020 Share Posted January 22, 2020 If z87x-hd3.plist is renamed lpc.plist and replaced. "OC" can display correct data normally. Link to comment Share on other sites More sharing options...

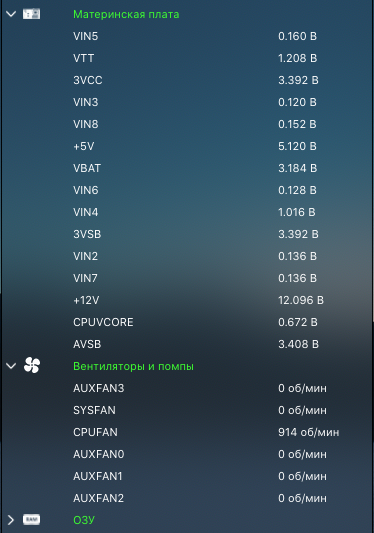

ctich Posted January 22, 2020 Share Posted January 22, 2020 @vector sigma Thanks! Tell me, is it difficult to add the ability to sort sensors? To install in the correct order. Example: CPUVCORE +12V +5V 3VCC 3VSB VIN0 .... VIN8 Link to comment Share on other sites More sharing options...
Mike Ranger Posted January 23, 2020 Share Posted January 23, 2020 Ideally, HWSensors could be configured (e.g. by plist) to only show values of interest. So I can select what information I can display in what order. As an example... most fans are not active or relevant, so it makes a lot of sense to only pick the relevant ones. Link to comment Share on other sites More sharing options...

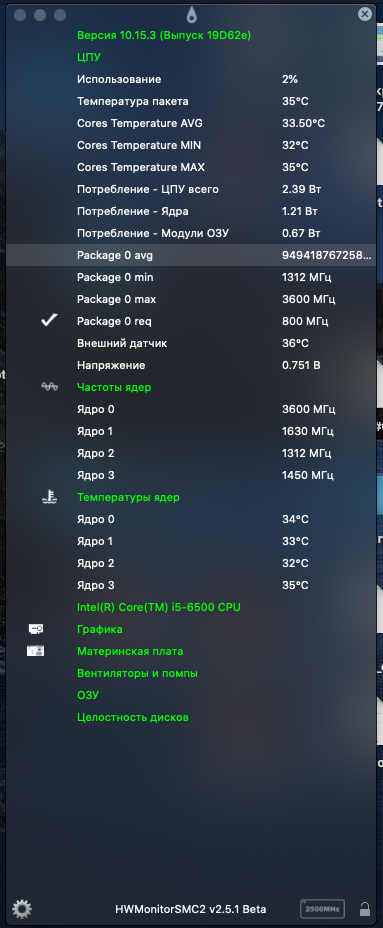

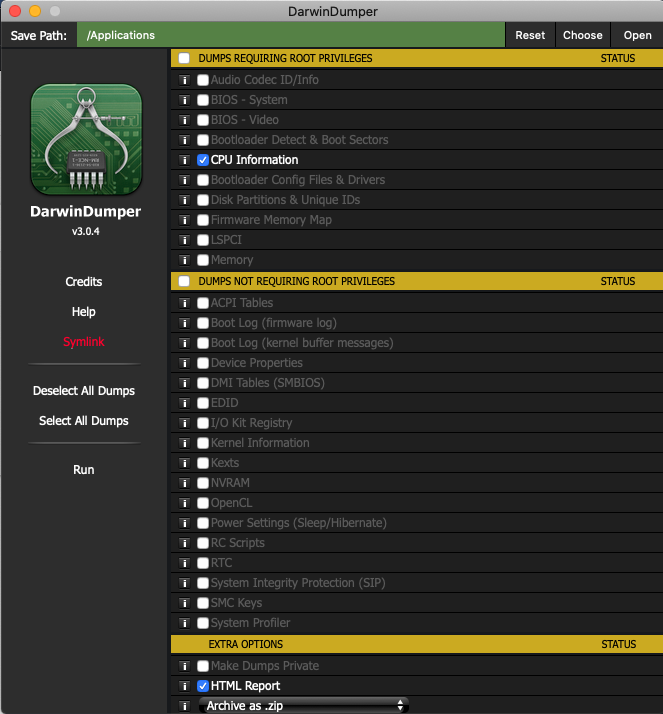

tyufhl Posted January 23, 2020 Share Posted January 23, 2020 (edited) @vector sigma hi, after the launch of DarwinDumper / CPU such a picture Edited January 23, 2020 by tyufhl Link to comment Share on other sites More sharing options...
Slice Posted January 24, 2020 Author Share Posted January 24, 2020 9 hours ago, tyufhl said: @vector sigma hi, after the launch of DarwinDumper / CPU such a picture DarwinDumper contains Pike R. Alpha's' AppleIntelInfo.kext v2.9. which is very wrong and dangerous. Exclude it from /DarwinDumper.app/Contents/Resources/public/drivers/AppleIntelInfo.kext Move to trash! 1 Link to comment Share on other sites More sharing options...
tyufhl Posted January 24, 2020 Share Posted January 24, 2020 @Slice if I need just one AppleIntelInfo.kex load? Link to comment Share on other sites More sharing options...
vector sigma Posted January 24, 2020 Share Posted January 24, 2020 On 1/22/2020 at 5:30 AM, Andrey1970 said: @vector sigma It wrong ! Vcore always multi=1. Delete there multi. You shall give heavy load of the CPU to see. I wrote it with an eye closed 1 Link to comment Share on other sites More sharing options...
vector sigma Posted January 24, 2020 Share Posted January 24, 2020 On 1/22/2020 at 7:18 AM, jinbingmao said: Z87X-HD3.plist zh-Hans.lproj.zip On 1/22/2020 at 7:26 AM, Andrey1970 said: Z87X-UD4H-CF.plist.zip Thanks, but wait a moment. If we are going to create a database, we need rules naming things: 1) SYS_FAN2 or Sys Fan 2? What is CPU_OPT? What to do with unconnected sensors? My NTC sensor has more fans than the motherboard have, so I'm going to skip the sensor: Is that the case for your CPU_OPT? I mean, if the LPC chip has has an unused line (no connector on the motherboard), this must be skipped.... my 2 cents. 2) if we have a convention for naming things, and we follow it, the app can translate SYS_FAN2 (or Sys fan 2) into your native language. What do you think? On 1/22/2020 at 7:33 PM, ctich said: @vector sigma Thanks! Tell me, is it difficult to add the ability to sort sensors? To install in the correct order. Example: CPUVCORE +12V +5V 3VCC 3VSB VIN0 .... VIN8 It can be done at app initialization, in alphabetical order, what ever will be. I'll take a look on it when I have more time with out priority. 1 Link to comment Share on other sites More sharing options...
vector sigma Posted January 24, 2020 Share Posted January 24, 2020 On 1/23/2020 at 1:03 AM, Mike Ranger said: Ideally, HWSensors could be configured (e.g. by plist) to only show values of interest. So I can select what information I can display in what order. As an example... most fans are not active or relevant, so it makes a lot of sense to only pick the relevant ones. That is why I say we need rules. Once a configurations is made, that configuration must contains all the fans that a motherboard can really have: you cannot have the chassys Fan for your own purpose (the noise) but the configuration must include it because this will help other users. Later I'll add the possibility to load a config from the nvram (a path to a plist), so anyone can customize even more names or skip unused sensors. This can be usefull when you doesn't have Fans... but Pumps. Link to comment Share on other sites More sharing options...

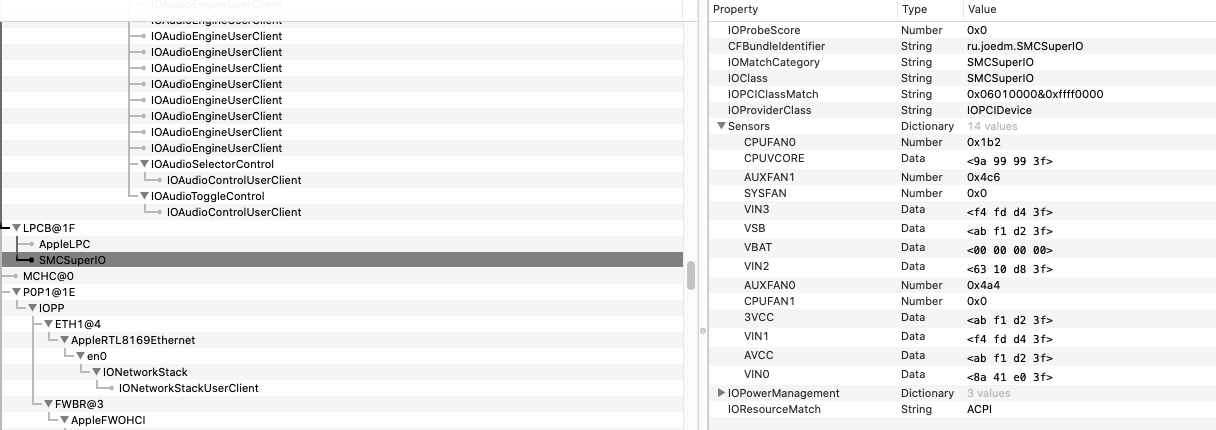

vector sigma Posted January 24, 2020 Share Posted January 24, 2020 @Slice, I propose to do that as well: maybe we can switch from smc keys to that using a boot flag ..like '-hwnokeys' Link to comment Share on other sites More sharing options...
Andrey1970 Posted January 24, 2020 Share Posted January 24, 2020 2 minutes ago, vector sigma said: Thanks, but wait a moment. If we are going to create a database, we need rules naming things: 1) SYS_FAN2 or Sys Fan 2? What is CPU_OPT? What to do with unconnected sensors? My NTC sensor has more fans than the motherboard have, so I'm going to skip the sensor: Is that the case for your CPU_OPT? I mean, if the LPC chip has has an unused line (no connector on the motherboard), this must be skipped.... my 2 cents. 2) if we have a convention for naming things, and we follow it, the app can translate SYS_FAN2 (or Sys fan 2) into your native language. What do you think? I wrote as on the motherboard. CPU_OPT it for cpu pump or cpu fan2. Parameter skip is good idea. I offer such names: System Fan Х CPU Fan Х Link to comment Share on other sites More sharing options...
vector sigma Posted January 24, 2020 Share Posted January 24, 2020 9 minutes ago, Andrey1970 said: I wrote as on the motherboard. Wait, you're right, than is a good Idea! 2 Link to comment Share on other sites More sharing options...
vector sigma Posted January 24, 2020 Share Posted January 24, 2020 20 minutes ago, zkingtut said: Hi guys I am currently using VirtualSMC v1.1.0 with HWMonitorSMC2.app_v2.5.1Beta by@vector sigma So far everything seems to be OK . But I can't monitor Fan Speed I don't know where should I start to make fan appear in HwMonitor ? How to add it ? How to customize SMCsuperIO.kext for my fan ? I had the same issue with FakeSMC.kext as well ( Laptop is Lenovo ThinkPad P50 , Catalina 10.15.2 , Clover 5103 ) Thank you I think you can't. Slice made possible for Dell only, but usually laptop's fans can't be controlled, or at least is not clear how. But if you want only to show them, you should take a look at ACPIMonitor.kext, but require acpi knowledge and skills. 1 Link to comment Share on other sites More sharing options...
Slice Posted January 24, 2020 Author Share Posted January 24, 2020 No, ACPIMonitor is developed only for FakeSMC. 2 Link to comment Share on other sites More sharing options...
Slice Posted January 25, 2020 Author Share Posted January 25, 2020 16 hours ago, vector sigma said: @Slice, I propose to do that as well: maybe we can switch from smc keys to that using a boot flag ..like '-hwnokeys' Real Macs have SMC keys for FAN, temperatures, voltages. Why we should take values from ioreg data that absent in real Mac? VC0C [flt ] (bytes 80 14 85 3f) VC0G [flt ] (bytes 42 f4 05 3b) VD2R [flt ] (bytes dc ab 41 41) VG0C [flt ] (bytes b0 d1 5a 3f) VG0I [flt ] (bytes af 12 63 3f) VM0R [flt ] (bytes c0 5c 99 3f) F0AB [sp78] (bytes e5 00) F0AH [spf0] (bytes 0e 10) F0AL [spf0] (bytes 0a 8c) F0AP [spf0] (bytes 00 71) F0AS [sp78] (bytes 22 80) F0Ac [fpe2] 1197 (bytes 12 b4) F0ID [{fds] (bytes 00 00 10 00 4d 61 69 6e 20 00 00 00 00 00 00 00) F0Mn [fpe2] 1200 (bytes 12 c0) F0Mt [ui16] 0 (bytes 00 00) F0Mx [fpe2] 2700 (bytes 2a 30) F0Tg [fpe2] 1200 (bytes 12 c0) FNum [ui8 ] 1 (bytes 01) FOff [ui8 ] 0 (bytes 00) FPDc [fp79] (bytes 21 34) FRmn [ui16] 0 (bytes 00 00) FRmp [ui16] 0 (bytes 00 00) FS! [ui16] 0 (bytes 00 00) FSDc [ui16] 0 (bytes 69 00) etc.... 1 Link to comment Share on other sites More sharing options...
vector sigma Posted January 25, 2020 Share Posted January 25, 2020 5 hours ago, Slice said: Real Macs have SMC keys for FAN, temperatures, voltages. Why we should take values from ioreg data that absent in real Mac? Oh no, I did not suggest to abandon SMC keys, otherwise third party Monitors will stop working, of course. But I ask for a possibility to do that (with a boot flag? and switch from fakeSMC->callPlatformFunction to something else?) and so reuse common configurations (Raw data should be the same, I guess)... which I see peoples start posting... . Other than that there will be no encoding and so no decoding, no open and closed of the smc driver, with a little visible cpu usage in less (is not my imagination, in my lappy is). P.S. HWMonitorSMC2 looks (once) for a children of IOPCIDevice->LPCB that contains "Sensors", if present, it will not search for SMC keys. Will do it otherwise, as usual. 1 Link to comment Share on other sites More sharing options...
magnifico Posted January 26, 2020 Share Posted January 26, 2020 Hi Slice Please how do i get the kext from the project? I don't have xcode installed ... can you link a download? Link to comment Share on other sites More sharing options...
Slice Posted January 26, 2020 Author Share Posted January 26, 2020 5 hours ago, magnifico said: Hi Slice Please how do i get the kext from the project? I don't have xcode installed ... can you link a download? There is https://github.com/CloverHackyColor/FakeSMC3_with_plugins/releases 2 Link to comment Share on other sites More sharing options...
moozuki Posted January 27, 2020 Share Posted January 27, 2020 I feel I'm close to figuring this out! Z170M-D3H.zip Link to comment Share on other sites More sharing options...
