Joni_78 Posted December 28, 2018 Share Posted December 28, 2018 I noticed today that my Samsung 1TB 970 EVO M.2 temperature was over 80°C after gaming. I checked what kind of reading I get in Windows using HWinfo. For example when just idling, CPU Package is 40°C. While idling in macOS there's 62°C on CPU heatsink with HWmonitorSMC2. Would it be possible to get CPU Package reading? Radeon temperature is about the same +4°C compared to HWinfo. On Samsung SSD's there are two sensors, would it be possible to get both readings? Link to comment Share on other sites More sharing options...
Joni_78 Posted December 30, 2018 Share Posted December 30, 2018 On 12/28/2018 at 5:28 PM, Amble said: I noticed today that my Samsung 1TB 970 EVO M.2 temperature was over 80°C after gaming. I checked what kind of reading I get in Windows using HWinfo. For example when just idling, CPU Package is 40°C. While idling in macOS there's 62°C on CPU heatsink with HWmonitorSMC2. Would it be possible to get CPU Package reading? Radeon temperature is about the same +4°C compared to HWinfo. On Samsung SSD's there are two sensors, would it be possible to get both readings? NM the CPU Package, I see it now on HWmonitor. It's just missing often with several other entries when HWmonitor is set as autostart and I have close and start it again to see all entries. Link to comment Share on other sites More sharing options...

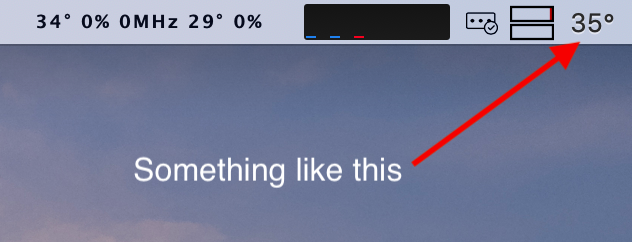

RandomTech Posted December 30, 2018 Share Posted December 30, 2018 (edited) Very nice app as I'm getting used to it! Only one thing, the fonts look very tiny on my 4K 24'' monitor so can you please give us an option to use larger fonts? Edit: I mean fonts in the menu bar Edited December 30, 2018 by RandomTech Link to comment Share on other sites More sharing options...
Joni_78 Posted December 30, 2018 Share Posted December 30, 2018 (edited) 1 hour ago, RandomTech said: Very nice app as I'm getting used to it! Only one thing, the fonts look very tiny on my 4K 24'' monitor so can you please give us an option to use larger fonts? Edit: I mean fonts in the menu bar I would prefer that too. One thing i've been wondering also. I was a programmer on my previous life. C# mostly, so I have no idea about GUI stuff on xcode. Would it be a hard job to redo the GUI? It just seems like it's really old or not made with new GUI elements or whatever there is on apple's world. Comparing it to iStat sensors GUI for example, the iStat is much cleaner looking and much "snappier" when you interact with the GUI. Edited December 30, 2018 by Amble 1 Link to comment Share on other sites More sharing options...
Joni_78 Posted December 30, 2018 Share Posted December 30, 2018 (edited) Also imo the sensors should be under the device the sensor is located. For example in HWinfo in Windows there is device and it's sensors below like this: CPU: Intel i7-7700K Package temperature Core temperature ... Motherboard: Gigabyte GA-Z270N-WiFi CPU heatsink temperature Ambient temperature ... Now on HWmonitor for example the CPU heatsink temperature is under the CPU and if I understood correctly from the sources, it comes from the motherboard ITEIT87x.kext. Edited December 31, 2018 by Amble Link to comment Share on other sites More sharing options...
Slice Posted January 1, 2019 Author Share Posted January 1, 2019 On 12/30/2018 at 10:44 PM, Amble said: I would prefer that too. One thing i've been wondering also. I was a programmer on my previous life. C# mostly, so I have no idea about GUI stuff on xcode. Would it be a hard job to redo the GUI? It just seems like it's really old or not made with new GUI elements or whatever there is on apple's world. Comparing it to iStat sensors GUI for example, the iStat is much cleaner looking and much "snappier" when you interact with the GUI. The GUI of HWMonitorSMC2 is very new. It is still under development provided by Vector Sigma. 1 Link to comment Share on other sites More sharing options...
losinka Posted January 17, 2019 Share Posted January 17, 2019 On 12/21/2018 at 7:18 PM, vector sigma said: Guys I will resume the development of HWM2 after the Christmas holidays (after January 6) as very soon I'll be out of Italy. See you, Merry Christmas and Happy New Year to all! Are you ok? Do you have a New Year smoothly flowing to Easter? Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2019 Share Posted January 20, 2019 On 1/17/2019 at 9:08 AM, losinka said: Are you ok? Do you have a New Year smoothly flowing to Easter? Yes I'm ok thanks.... only I have more job than I expected for the beginning of the year Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2019 Share Posted January 20, 2019 (edited) On 12/30/2018 at 9:22 PM, Amble said: Now on HWmonitor for example the CPU heatsink temperature is under the CPU and if I understood correctly from the sources, it comes from the motherboard ITEIT87x.kext. This is a point of view. Depends if you want to see CPU related stuff under the CPU group or CPU's related stuff under the Motherboard group. Honestly I can't see so much difference and what HWInfo really doesn't influence me, but then I have to ask you a question: during a CPU test stress is better to watch in a place only, or in more than one place? ... I made my self this question and why it is under the CPU group. though the ITE chip (isn't a kext but is read by him) is soldered in to the motherboard and a group exchange is possible for this reason. On 12/30/2018 at 8:44 PM, Amble said: Very nice app as I'm getting used to it! Only one thing, the fonts look very tiny on my 4K 24'' monitor so can you please give us an option to use larger fonts? Tried the gadget? It was made for that purpose since you can enlarge the view and the font becomes bigger... EDIT anyway to change font you have just to edit one line: let f = NSFont(name: "Lucida Grande Bold", size: 9.0)! EDIT 2 That last was also for @RandomTech, I quoted Mr. Amble's post by mistake Edited January 20, 2019 by vector sigma Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2019 Share Posted January 20, 2019 On 12/30/2018 at 8:44 PM, Amble said: One thing i've been wondering also. I was a programmer on my previous life. C# mostly, so I have no idea about GUI stuff on xcode. Would it be a hard job to redo the GUI? It just seems like it's really old or not made with new GUI elements or whatever there is on apple's world. Comparing it to iStat sensors GUI for example, the iStat is much cleaner looking and much "snappier" when you interact with the GUI. the GUI is very new as Slice already said. Honestly what iStat do is to use iPhone buttons like which imho is orrific and I really hate them. You will have noticed that this project is free and opensource so that anyone can fork and made a request and sure I will be glad to implement someone else ideas also because I have a job that keeps almost all my time and no one ask for a donation or for money... just because we are enthusiasts, but not more. Consider also that the code I made lately is the only you can see (at least in swift) unlike happens for others. Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2019 Share Posted January 20, 2019 On 12/28/2018 at 4:28 PM, Amble said: For example when just idling, CPU Package is 40°C. While idling in macOS there's 62°C on CPU heatsink with HWmonitorSMC2. Would it be possible to get CPU Package reading? Radeon temperature is about the same +4°C compared to HWinfo. What is stopping you to install the InstelPowerGadget.framework that enable the reading of all these things?? Link to comment Share on other sites More sharing options...
RandomTech Posted January 20, 2019 Share Posted January 20, 2019 6 hours ago, vector sigma said: anyway to change font you have just to edit one line: let f = NSFont(name: "Lucida Grande Bold", size: 9.0)! is it in the Info.plist ? Link to comment Share on other sites More sharing options...
vector sigma Posted January 20, 2019 Share Posted January 20, 2019 11 minutes ago, RandomTech said: is it in the Info.plist ? is in the source code. During this week I'll take a look on it 1 Link to comment Share on other sites More sharing options...
RandomTech Posted January 20, 2019 Share Posted January 20, 2019 1 hour ago, vector sigma said: is in the source code. During this week I'll take a look on it Thanks Link to comment Share on other sites More sharing options...
losinka Posted February 17, 2019 Share Posted February 17, 2019 On 12/9/2018 at 6:34 PM, vector sigma said: The app read everythings is connected through pci and has a gpu compatible class-code. Everything is fine becouse macOS connect thunderbolt devices like that as pci devices. The IOAccelerator is what we need to show properties of your card because contains the "PerformanceStatistics", but eGPU doesn't respond to this class and "PerformanceStatistics" is published under a children of display0 (or whatever it is connected). So, I need to think on how retrieve those info before, and then create code to try Do you habe any ideas about two Vega cards? Thank you. Link to comment Share on other sites More sharing options...
Riley Freeman Posted February 21, 2019 Share Posted February 21, 2019 I updated FakeSMC on my laptop from r167 to r184 last night. Booted back into Mojave no problem but it hung going into Sierra. Rolled back and it was fine. I checked the plist of the new FakeSMC kext and it shows it was built with the 10.14 SDK. Perhaps this has broken backwards compatibility? Running r173 now (which uses 10.11 SDK) and all is well again. Just letting you know ahead of the next official release. 1 Link to comment Share on other sites More sharing options...
Rodion2010 Posted February 21, 2019 Share Posted February 21, 2019 6 hours ago, Riley Freeman said: it was built with the 10.14 SDK. Perhaps this has broken backwards compatibility? it is possible here is the newest R188 built by Sierra works from Mavericks to Mojave Release 10.6.zip Link to comment Share on other sites More sharing options...
vector sigma Posted February 21, 2019 Share Posted February 21, 2019 On 2/17/2019 at 9:14 PM, losinka said: Do you habe any ideas about two Vega cards? Thank you. Vega cards aren't the problem, but egpus are apparently. Unfortunately, lately I have little time for this, also a apfs corruption happens here so I lost some files. Anyway before cristmass I do a test code without implementing it in any app, but you can run in this command line: vclist.zip run it and post the Terminal output.... hoping for 11 hours ago, Riley Freeman said: I updated FakeSMC on my laptop from r167 to r184 last night. Booted back into Mojave no problem but it hung going into Sierra. Rolled back and it was fine. I checked the plist of the new FakeSMC kext and it shows it was built with the 10.14 SDK. Perhaps this has broken backwards compatibility? Running r173 now (which uses 10.11 SDK) and all is well again. Just letting you know ahead of the next official release. I have an idea on why this happen but I need some tests to be done (... when I'll have time) anyway in which OS isn't working? Link to comment Share on other sites More sharing options...
Rodion2010 Posted February 21, 2019 Share Posted February 21, 2019 (edited) 35 minutes ago, vector sigma said: I have an idea on why this happen but I need some tests to be done (... when I'll have time) anyway in which OS isn't working? FakeSMC built with 10.14 SDK does not work in Sierra The same built with 10.10...10.11 SDK works for any OS (Mavericks ... Mojave) not sure about very old OSes Edited February 21, 2019 by Rodion2010 Link to comment Share on other sites More sharing options...
vector sigma Posted February 21, 2019 Share Posted February 21, 2019 10 minutes ago, Rodion2010 said: FakeSMC built with 10.14 SDK does not work in Sierra The same built with 10.10...10.11 SDK works for any OS (Mavericks ... Mojave) not sure about very old OSes Is kextload complain about any? (e.g. running a plugin built in Mojave) Link to comment Share on other sites More sharing options...
Rodion2010 Posted February 21, 2019 Share Posted February 21, 2019 42 minutes ago, vector sigma said: Is kextload complain about any? (e.g. running a plugin built in Mojave) kextload - just failed to load here is more detailed kexlibs output 7 symbols not found in any library kext: __ZN16IOPlatformDevice26_RESERVEDIOPlatformDevice1Ev __ZN16IOPlatformDevice26_RESERVEDIOPlatformDevice0Ev __ZN16IOPlatformDevice13matchLocationEP9IOService ___memmove_chk __ZN9IODTNVRAM9metaClassE __ZN16IOPlatformDevice26_RESERVEDIOPlatformDevice3Ev __ZN16IOPlatformDevice26_RESERVEDIOPlatformDevice2Ev 1 Link to comment Share on other sites More sharing options...
vector sigma Posted February 22, 2019 Share Posted February 22, 2019 16 hours ago, Rodion2010 said: kextload - just failed to load here is more detailed kexlibs output Thanks! Link to comment Share on other sites More sharing options...
losinka Posted February 22, 2019 Share Posted February 22, 2019 18 hours ago, vector sigma said: Vega cards aren't the problem, but egpus are apparently. Unfortunately, lately I have little time for this, also a apfs corruption happens here so I lost some files. Anyway before cristmass I do a test code without implementing it in any app, but you can run in this command line: vclist.zip run it and post the Terminal output.... hoping for ---------------------------------------------------- vclist (vector sigma 2018), found 2 graphics cards! ---------------------------------------------------- Model = Radeon RX Vega 64 vendor ID = <02100000> vendor ID = <7f680000> revision ID = <c1000000> subsystem ID = <7fe30000> sub system VendorID = <a21d0000> Device Utilization = 0% Total Power = 10 Watts Temperature = 35° Fan Speed = 0 RPM Fan Speed = 40% vram Used = 61300736 bytes vram Free = 2120420800 bytes ---------------------------------------------------- Model = Radeon Vega Frontier Edition vendor ID = <02100000> vendor ID = <63680000> revision ID = <00000000> subsystem ID = <766b0000> sub system VendorID = <02100000> Device Utilization = 0% Total Power = 7 Watts Temperature = 18° Fan Speed = 2011 RPM Fan Speed = 41% vram Used = 4063232 bytes vram Free = 16935099840 bytes 1 Link to comment Share on other sites More sharing options...
vector sigma Posted February 22, 2019 Share Posted February 22, 2019 15 minutes ago, losinka said: ---------------------------------------------------- vclist (vector sigma 2018), found 2 graphics cards! ---------------------------------------------------- Model = Radeon RX Vega 64 vendor ID = <02100000> vendor ID = <7f680000> revision ID = <c1000000> subsystem ID = <7fe30000> sub system VendorID = <a21d0000> Device Utilization = 0% Total Power = 10 Watts Temperature = 35° Fan Speed = 0 RPM Fan Speed = 40% vram Used = 61300736 bytes vram Free = 2120420800 bytes ---------------------------------------------------- Model = Radeon Vega Frontier Edition vendor ID = <02100000> vendor ID = <63680000> revision ID = <00000000> subsystem ID = <766b0000> sub system VendorID = <02100000> Device Utilization = 0% Total Power = 7 Watts Temperature = 18° Fan Speed = 2011 RPM Fan Speed = 41% vram Used = 4063232 bytes vram Free = 16935099840 bytes So we have the code . I hope to have time this weekend to implement this change also because require a total refactoring of what already exist. Wait, you don't have an IGPU? Link to comment Share on other sites More sharing options...
losinka Posted February 22, 2019 Share Posted February 22, 2019 (edited) 5 minutes ago, vector sigma said: So we have the code . I hope to have time this weekend to implement this change also because require a total refactoring of what already exist. Thank you! 5 minutes ago, vector sigma said: Wait, you don't have an IGPU? now I have (0-connector) Edited February 22, 2019 by losinka 1 Link to comment Share on other sites More sharing options...
