vector sigma
vector sigma
Posted
Posted
On 11/26/2018 at 8:09 AM, Alpha22 said:

vector sigma

possible to have the latest version to try

thank

There's no latest version other then last one you can find here: https://sourceforge.net/projects/hwsensors3.hwsensors.p/files/.

The very very latest is under testing by me and not commited, but soon I'll post it to let you try before doing a commit.



  • Like 1
  • Thanks 1
Link to comment
Share on other sites
  • 2 weeks later...
vector sigma
vector sigma
Posted
Posted (edited)
16 minutes ago, losinka said:

And so?



HWGraphics-2.zip

my_ioreg-2.ioreg.zip

The app read everythings is connected through pci and has a gpu compatible class-code. Everything is fine becouse macOS connect thunderbolt devices like that as pci devices. The IOAccelerator is what we need to show properties of your card because contains the "PerformanceStatistics", but eGPU doesn't respond to this class and "PerformanceStatistics" is published under a children of display0 (or whatever it is connected).

So, I need to think on how retrieve those info before, and then create code to try:)

Edited by vector sigma
  • Thanks 1
Link to comment
Share on other sites
losinka
losinka
Posted
Posted

FYI only

The information in the ioreg is true. The first two strings is Vega RX64 and the second two strings is VegaFE.

[losinka@mac-pro]:~/Downloads$ ioreg -l | perl -lne 'print $1, $2 while /(?:"PerformanceStatistics".*\K("Temperature\(C\)"=\d+)|("Fan Speed\(RPM\)"=\d+))/g'
"Fan Speed(RPM)"=1510
"Temperature(C)"=28
"Fan Speed(RPM)"=2011
"Temperature(C)"=22
[losinka@mac-pro]:~/Downloads$



Link to comment
Share on other sites
MacNB
MacNB
Posted
Posted (edited)

My RX580 GPU not showing in HWMonitorSMC2 App.

This is what I did:

I just downloaded HWSensors3 DMG from SF.

I removed my existing FakeSMC.kext from E/C/K/Other (and related sensor kexts).

I copied the new FakeSMC, IntelCPUMonitor, ITEIT87x and RadeonMonitor to E/C/K/Other and rebooted.

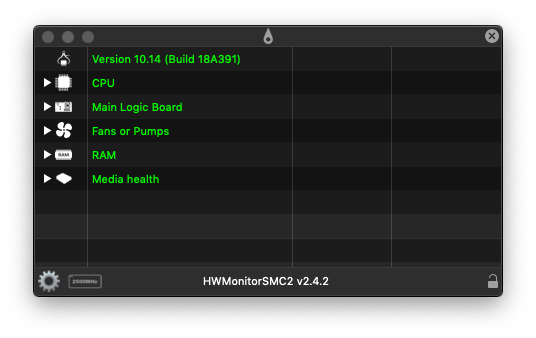

HWMonitorSMC2 App shows no GPU:1505120447_Screenshot2018-12-10at16_57_21.png.9750a903763862cb3aeb9c9fa6e38e23.png



Then I go into preferences for the App and tick the box "Use IOAccelerator's monitoring for GPUs" and restarted the App.

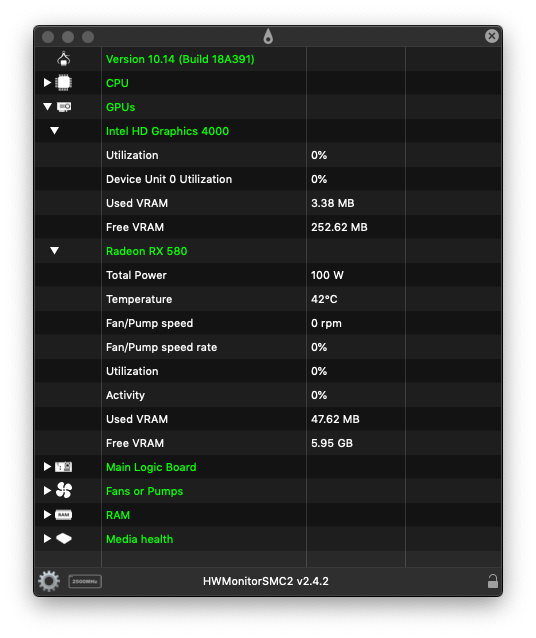

Now I see :




So, what is the point of RadeonMonitor.kext ?

How to display GPU info without  ticking "Use IOAccelerator's monitoring for GPUs" box ?



Edited by MacNB
typo
Link to comment
Share on other sites
  • 2 weeks later...
p.H
p.H
Posted
Posted (edited)

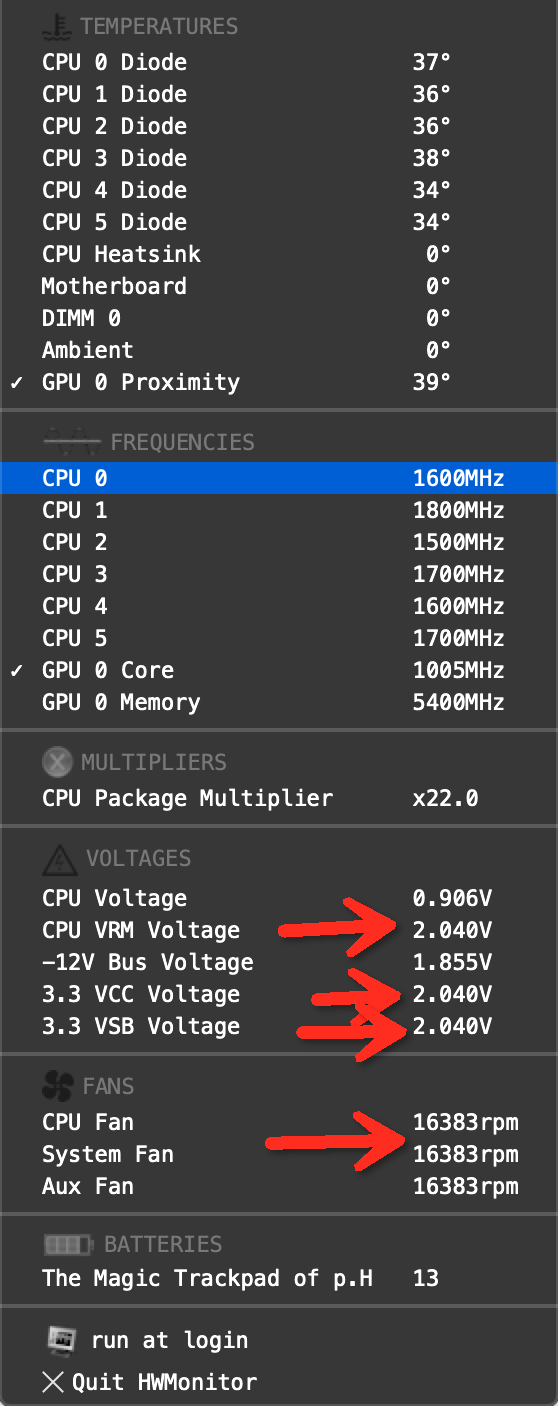

Hi, I'd like to know what I could do to improve those readings. No doubt those reading are wrong. Here're some info from HWMonitor dump.

My config: Asus Prime Z370A + 8700K + GTX650Ti

Mainboard Model		PRIME Z370-A

LPCIO
-------------------------------------------------------------------------

LPCIO Vendor			Nuvoton
LPCIO Model			NCT6793/NCT5563
LPCIO Vendor ID			0x5CA3
LPCIO Chip ID			0xD1
LPCIO Revision ID		0x21

Hardware monitor		Nuvoton NCT6791D
	Voltage 0		5.08 Volts [0x7F] (+5V)
	Voltage 1		3.38 Volts [0xD3] (+3.3V)
	Voltage 2		12.29 Volts [0x80] (+12V)
	Voltage 3		1.07 Volts [0x86] (VIN3)
	Voltage 4		1.94 Volts [0x79] (VIN4)
	Voltage 5		0.67 Volts [0x2A] (VCORE)
	Temperature 0		28 degC (82 degF) [0x1C] (Mainboard)
	Temperature 1		30 degC (86 degF) [0x1E] (CPU)
	Temperature 2		28 degC (82 degF) [0x1C] (TMPIN2)
	Temperature 3		30 degC (86 degF) [0x1E] (TMPIN3)
	Temperature 5		50 degC (122 degF) [0x32] (TMPIN5)
	Temperature 6		22 degC (71 degF) [0x16] (TMPIN6)
	Fan 1			830 RPM [0x33E] (CPU)




Edited by p.H
Link to comment
Share on other sites
jaymonkey
jaymonkey
Posted
Posted (edited)

Hi Guys,



I recently swapped out my old GTX980Ti for a Vega 64 Liquid Cooled GPU in my video edit Hack so i could update to Mojave (now running 10.14.2)

I wanted to see what sort of temps .. etc the Vega was running at so I removed the old HWMonitor App, FakeSMC and Sensor plugins

and installed the latest HWMonitorSMC2 App and the FakeSMC, IntelCPUMonitor & W836x kexts and enabled the option to use the IOAccelerator's for GPU Monitoring.



It works great and i can finally monitor whats going on with my Vega 64 ... great work guys !!



However there is something very odd going on with the Vega 64 Total Power reading ..

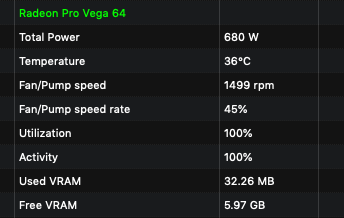

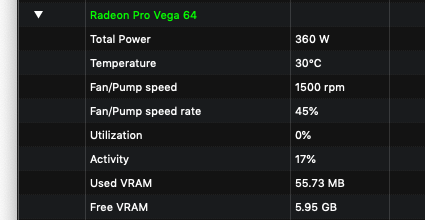

If i run a benchmark like FurMark in the default window mode then the Power reading seems about right at around 360W (yes Vega 64 really are that power hungry)






However if i run FurMark (or any other Benchmark) in fullscreen (3440x1440) the reading almost doubles to around 680W which is obviously incorrect






I know AMD Vega's are power hungry devices but that clearly is not correct, the result is the same with any app that uses the GPU for 3D Open GL/CL Rendering

such as Vally, Heaven, FurMark  ... etc,  if the output is windowed the Total Power seems correct, but if i run it full screen then Total Power is crazy high ??



When running heaven or valley in window mode ... the bigger the window the higher the reading ?



It's very strange .... has anyone else seen this issue ?

Pretty sure its a MacOS thing as if i execute the terminal command



 ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan\|Power



It also reports incorrect Power readings when running a 3d app ad fullscreen :-



MonkeyMac-Pro-2018:~ Jay$ ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan\|Power'
"Fan Speed(%)"=45
"Fan Speed(RPM)"=1501
"Temperature(C)"=33
"Total Power(W)"=683
MonkeyMac-Pro-2018:~ Jay$



Cheers

Jay





Edited by jaymonkey
Link to comment
Share on other sites
Slice
Slice
Posted
  • Author
Posted

It is already great achievement if you can start macOS on such hardware. Sensors monitoring looks to be a minor problem.

Test HWMonitorSMC2.app and report what is wrong.



  • Like 1
Link to comment
Share on other sites
Rodion2010
Rodion2010
Posted
Posted (edited)
19 hours ago, p.H said:

Hi, I'd like to know what I could do to improve those readings. No doubt those reading are wrong.



About Voltages  ... You need to find or calculate correct Ri/Rf for your motherboard and place it into kext info.plist

These values can be found in Linux LMSensors sources, sometimes in DSDT

Example

<key>VIN3</key>

<dict>

<key>Name</key>

<string>3VCC</string>

<key>Rf</key>

<integer>100</integer>

<key>Ri</key>

<integer>100</integer>

<key>VRef</key>

<integer>0</integer>

</dict>





Edited by Rodion2010
  • Like 1
Link to comment
Share on other sites
XLNC
XLNC
Posted
Posted (edited)
6 hours ago, Slice said:

It is already great achievement if you can start macOS on such hardware. Sensors monitoring looks to be a minor problem.

Test HWMonitorSMC2.app and report what is wrong.

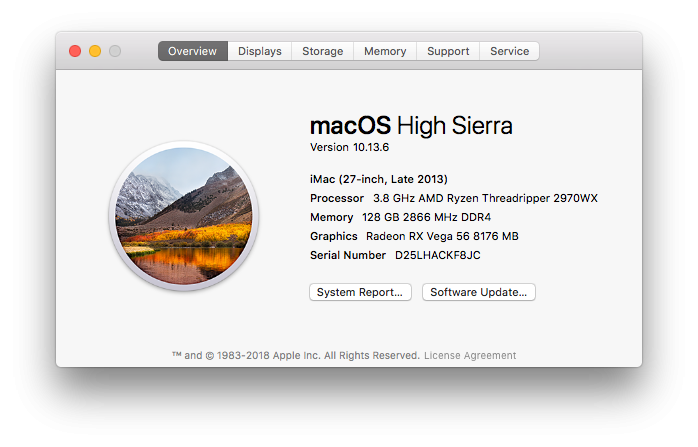

Already got macos 10.13.6 installed and booted up : )
i also got macos 10.13.6 installed on many other AMD Threadripper 1950x systems but they all dont show temperatures. same problem as with this system.

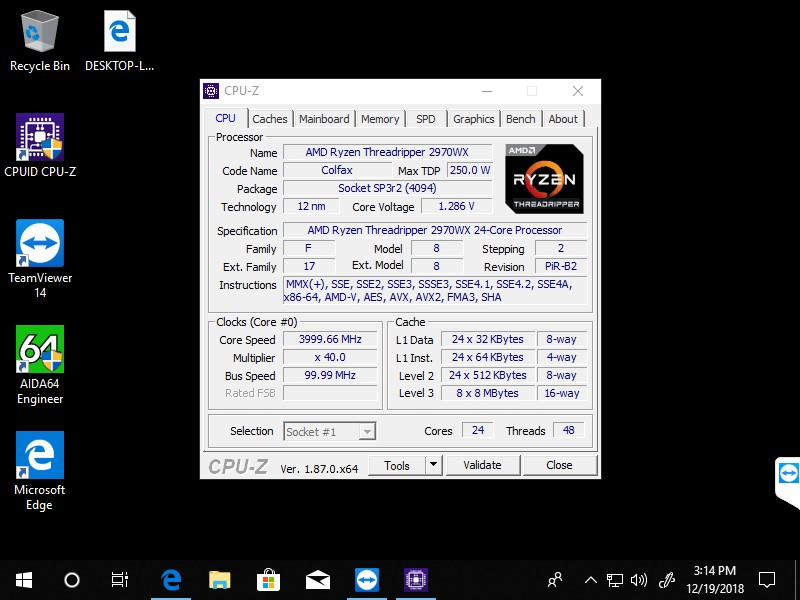

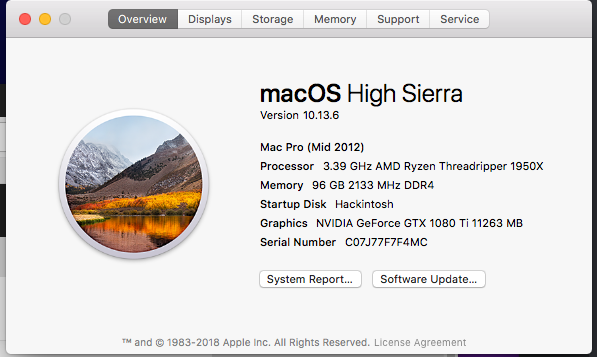

here is a pic from one of the 1950x system.



For temperature the kexts i used is :

in HWmonitorSMC.app it only shows GPU temp and nothing else.


Edited by XLNC
Link to comment
Share on other sites
p.H
p.H
Posted
Posted
5 hours ago, Rodion2010 said:



About Voltages  ... You need to find or calculate correct Ri/Rf for your motherboard and place it into kext info.plist

These values can be found in Linux LMSensors sources, sometimes in DSDT

Example

<key>VIN3</key>

<dict>

<key>Name</key>

<string>3VCC</string>

<key>Rf</key>

<integer>100</integer>

<key>Ri</key>

<integer>100</integer>

<key>VRef</key>

<integer>0</integer>

</dict>







Thanks for your suggestion. https://github.com/lm-sensors/lm-sensors/tree/master/configs This is the place where I tried to find my config. But I did not find it though.

Just to maker sure I am searching the right place.

Link to comment
Share on other sites
vector sigma
vector sigma
Posted
Posted
On 12/9/2018 at 9:23 PM, losinka said:

FYI only

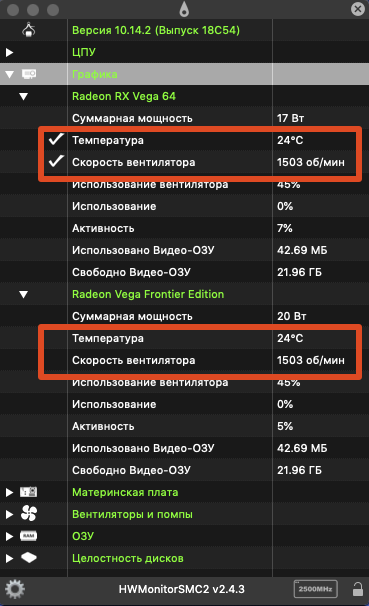

The information in the ioreg is true. The first two strings is Vega RX64 and the second two strings is VegaFE.


[losinka@mac-pro]:~/Downloads$ ioreg -l | perl -lne 'print $1, $2 while /(?:"PerformanceStatistics".*\K("Temperature\(C\)"=\d+)|("Fan Speed\(RPM\)"=\d+))/g'
"Fan Speed(RPM)"=1510
"Temperature(C)"=28
"Fan Speed(RPM)"=2011
"Temperature(C)"=22
[losinka@mac-pro]:~/Downloads$

Yes the second reading comes from the display where a eGPU is attached



On 12/20/2018 at 1:29 AM, jaymonkey said:

Hi Guys,



I recently swapped out my old GTX980Ti for a Vega 64 Liquid Cooled GPU in my video edit Hack so i could update to Mojave (now running 10.14.2)

I wanted to see what sort of temps .. etc the Vega was running at so I removed the old HWMonitor App, FakeSMC and Sensor plugins

and installed the latest HWMonitorSMC2 App and the FakeSMC, IntelCPUMonitor & W836x kexts and enabled the option to use the IOAccelerator's for GPU Monitoring.



It works great and i can finally monitor whats going on with my Vega 64 ... great work guys !!



However there is something very odd going on with the Vega 64 Total Power reading ..

If i run a benchmark like FurMark in the default window mode then the Power reading seems about right at around 360W (yes Vega 64 really are that power hungry)






However if i run FurMark (or any other Benchmark) in fullscreen (3440x1440) the reading almost doubles to around 680W which is obviously incorrect






I know AMD Vega's are power hungry devices but that clearly is not correct, the result is the same with any app that uses the GPU for 3D Open GL/CL Rendering

such as Vally, Heaven, FurMark  ... etc,  if the output is windowed the Total Power seems correct, but if i run it full screen then Total Power is crazy high ??



When running heaven or valley in window mode ... the bigger the window the higher the reading ?



It's very strange .... has anyone else seen this issue ?

Pretty sure its a MacOS thing as if i execute the terminal command



 ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan\|Power



It also reports incorrect Power readings when running a 3d app ad fullscreen :-




MonkeyMac-Pro-2018:~ Jay$ ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan\|Power'
"Fan Speed(%)"=45
"Fan Speed(RPM)"=1501
"Temperature(C)"=33
"Total Power(W)"=683
MonkeyMac-Pro-2018:~ Jay$



Cheers

Jay





These values are just read from the ioreg with no interpretation, i.e. HWMonitorSMC2.app just read what your driver says just as you can do using the Terminal. But, why do you think they are wrong?

Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted (edited)

dopo la befana e non natale :D e cambia croccantini al micio che mi pare incazzato :hysterical:



after the befana and not Christmas and change croccantini to the cat that I think pissed off



PS: buone vacanze :)

Edited by iCanaro
  • Like 1
Link to comment
Share on other sites
jaymonkey
jaymonkey
Posted
Posted (edited)
On 12/21/2018 at 6:09 PM, vector sigma said:



These values are just read from the ioreg with no interpretation, i.e. HWMonitorSMC2.app just read what your driver says just as you can do using the Terminal. But, why do you think they are wrong?



@vector sigma



MonkeyMac-Pro-2018:~ Jay$ ioreg -l |grep \"PerformanceStatistics\" | cut -d '{' -f 2 | tr '|' ',' | tr -d '}' | tr ',' '\n'|grep 'Temp\|Fan\|Power'
"Fan Speed(%)"=45
"Fan Speed(RPM)"=1501
"Temperature(C)"=33
"Total Power(W)"=683
MonkeyMac-Pro-2018:~ Jay$

No way the Total Power reading is correct, if Vega was really drawing 683W it would explode .... :lol::lol:



When running a Open GL App (like FurMark) the Total Power data point appears to scale with the rendered output window size, for instance if you run the MacOS version of FurMark at the default size of 1024 x 640 the Total Power Reading (on my system) will be around 330W if you resize the window the Total Power data point changes depending upon the size of the FurMark output window ... if i make it smaller it will drop below 330W if i make it full screen it goes up to 680W !!! ... The rendered output window size seems to dictate the Total Power data point, which is totally incorrect ... if you do the same thing under windows it will always be the same value no matter the resolution of the furMark output window which is what one would expect.



When running a Open CL App (like LuxMark) the Total Power power is pegged at 680W (on my system) or the same value as when running Open GL app at full screen.



It's not an issue with HWMonitorSMC2 but due to a bug/error in Apples IOAccelerator module ... hopefully Apple will fix it in the next release of Mojave.



Quite why/how Apple managed this is beyond belief ... clearly MacOS is calculating the value by some sort of multiplier rather than reading it direct from the Vega's on board diagnostic sensors.



Cheers

Jay

Edited by jaymonkey
  • Like 1
Link to comment
Share on other sites
XLNC
XLNC
Posted
Posted (edited)
On 12/20/2018 at 11:09 AM, Slice said:

It is already great achievement if you can start macOS on such hardware. Sensors monitoring looks to be a minor problem.

Test HWMonitorSMC2.app and report what is wrong.



@Slice
any support for this cpu ? : )

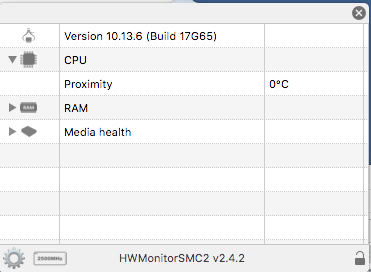

here is the pics you asked from HWMonitorSMC2.app  :




and from HWMonitorSMC.app :


here are the kext using from latest release :

1954362515_ScreenShot2018-12-20at5_33_26PM.png.912b537da190d34b81eb0396da7cf1f3.png.e7d1b3f11f0446ff1bf979ee69440883.png


https://www.insanelymac.com/forum/topic/299861-hwsensors3/?do=findComment&amp;comment=2654617

Edited by XLNC
