arsradu Posted September 1, 2014 Share Posted September 1, 2014 I have to say that i have the same problem as arsradu and i have the clover patch for IOGraphicsFamily and the kext from this post but the problem remains the same and i don't think we are the only ones with that as yosemite is still in beta and many people have not tested yet.VGA/HDMI/DVI? What's your case? Does it make any difference? Can anyone confirm? Link to comment Share on other sites More sharing options...
alexanderq Posted September 1, 2014 Share Posted September 1, 2014 My output is HDMI and i have no other way to test it. 1 Link to comment Share on other sites More sharing options...
arsradu Posted September 1, 2014 Share Posted September 1, 2014 My output is HDMI and i have no other way to test it.Thank you very much. That's what I wanted to know. This is great info. So the issue doesn't seem to be related to the port you're using, be it digital or analog. At this point I would say the issue is somewhere else. But, as always, I might be wrong. So feel free to come up with more info that might help fix this issue. Link to comment Share on other sites More sharing options...
Mirone Posted September 1, 2014 Share Posted September 1, 2014 Tonight I'll try using the VGA port. 1 Link to comment Share on other sites More sharing options...
wern apfel Posted September 1, 2014 Share Posted September 1, 2014 1. Finally! Someone cared enough to post an answer to this. Thank you! 2. Adding @0,AAPL,boot-display as property or setting the nVidia Injection to true, made no difference whatsoever to me. I still got only the first stage boot, perfectly fine, and only the loading bar, with no logo, for the second stage boot. I've downloaded your regfile, @0,AAPL,boot-display does nothing for you, you have to set @1,AAPL,boot-display because the display is attached to the second port 1 Link to comment Share on other sites More sharing options...
arsradu Posted September 1, 2014 Share Posted September 1, 2014 I've downloaded your regfile, @0,AAPL,boot-display does nothing for you, you have to set @1,AAPL,boot-display because the display is attached to the second port I did that just now. And...same thing. Maybe there is something else that I need to do? Link to comment Share on other sites More sharing options...

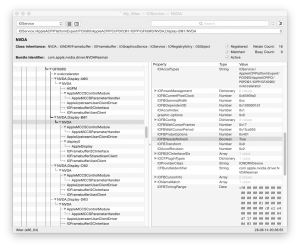

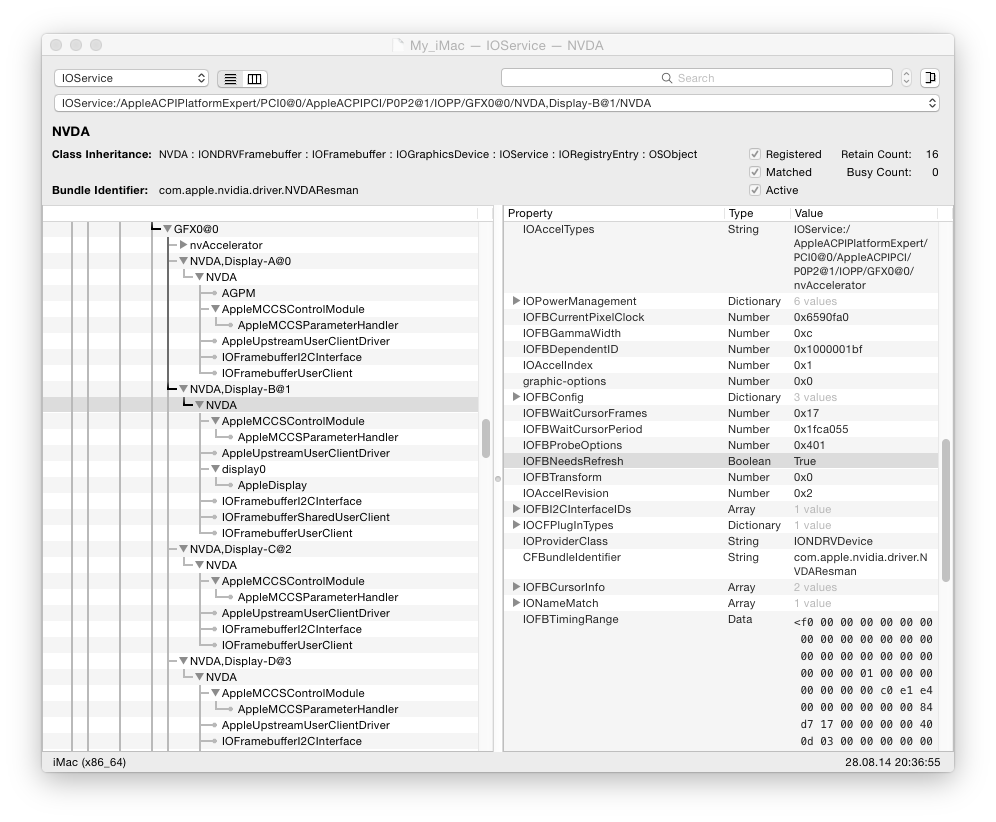

wern apfel Posted September 1, 2014 Share Posted September 1, 2014 I did that just now. And...same thing. Maybe there is something else that I need to do? look at your ioreg IOFBNeedsRefresh must be False, otherwise your injection failed 1 Link to comment Share on other sites More sharing options...
arsradu Posted September 1, 2014 Share Posted September 1, 2014 look at your ioreg IOFBNeedsRefresh must be False, otherwise your injection failed How do I edit that? Link to comment Share on other sites More sharing options...
Mirone Posted September 1, 2014 Share Posted September 1, 2014 confirmed, I have the Apple logo on the second stage boot using VGA (D-Sub). 2 Link to comment Share on other sites More sharing options...
alexanderq Posted September 2, 2014 Share Posted September 2, 2014 look at your ioreg IOFBNeedsRefresh must be False, otherwise your injection failed Mine it is true so injection failed right,If yes what can i do to fix that? Link to comment Share on other sites More sharing options...
wern apfel Posted September 2, 2014 Share Posted September 2, 2014 How do I edit that? Add attached dsdt to clovers acpi/patched folder and restart dsdt.aml.zip 1 Link to comment Share on other sites More sharing options...
Mirone Posted September 2, 2014 Share Posted September 2, 2014 As I said earlier only use @0,AAPL,boot-display does not solve We need change GFX0 to GFX1 and also use @0,AAPL,av-signal-type without this didn't work for me. 1 Link to comment Share on other sites More sharing options...
arsradu Posted September 2, 2014 Share Posted September 2, 2014 Add attached dsdt to clovers acpi/patched folder and restart Using this dsdt.aml sends the system into reboot when loading the second boot stage. First stage loads normally. Couldn't get an ioreg since...well, the system is non-bootable. Link to comment Share on other sites More sharing options...
wern apfel Posted September 2, 2014 Share Posted September 2, 2014 Using this dsdt.aml sends the system into reboot when loading the second boot stage. First stage loads normally. Couldn't get an ioreg since...well, the system is non-bootable. can you disable the internal gpu in BIOS ?, see whats happes Link to comment Share on other sites More sharing options...
arsradu Posted September 2, 2014 Share Posted September 2, 2014 can you disable the internal gpu in BIOS ?, see whats happesWell, that happens. The internal GPU was already disabled. Link to comment Share on other sites More sharing options...
wern apfel Posted September 3, 2014 Share Posted September 3, 2014 Well, that happens. The internal GPU was already disabled. Your ioreg show me an loaded azul framebuffer, agpm, hd5000 kexts Mine it is true so injection failed right,If yes what can i do to fix that? add this to your dsdt gfx _DSM section "@0,AAPL,boot-display", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, Link to comment Share on other sites More sharing options...
arsradu Posted September 3, 2014 Share Posted September 3, 2014 Your ioreg show me an loaded azul framebuffer, agpm, hd5000 kexts add this to your dsdt gfx _DSM section "@0,AAPL,boot-display", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, At the time of the first test, I did have the on-board graphics on. That's why you saw it in the last ioreg that I uploaded here. However, in the latest test, the on-board graphics was off (i turned it off), and, as I told you above, I couldn't get a new ioreg since the system was non-bootable. If I would have been able to boot up again, you would have seen that the on-board graphics was disabled. Link to comment Share on other sites More sharing options...
wern apfel Posted September 3, 2014 Share Posted September 3, 2014 At the time of the first test, I did have the on-board graphics on. That's why you saw it in the last ioreg that I uploaded here. However, in the latest test, the on-board graphics was off (i turned it off), and, as I told you above, I couldn't get a new ioreg since the system was non-bootable. If I would have been able to boot up again, you would have seen that the on-board graphics was disabled. Another 2 dsdts, maybe your ioreg has changed with disabled intel gpu dsdt.aml.zip dsdt.aml 2.zip Link to comment Share on other sites More sharing options...
arsradu Posted September 4, 2014 Share Posted September 4, 2014 Another 2 dsdts, maybe your ioreg has changed with disabled intel gpu Well, I got the same result. Reboot when loading the second stage boot. With both DSDTs. And I double checked that internal graphics card is disabled. Link to comment Share on other sites More sharing options...
wern apfel Posted September 4, 2014 Share Posted September 4, 2014 Another one, disable graphics enabler dsdt.aml.zip 1 Link to comment Share on other sites More sharing options...
arsradu Posted September 5, 2014 Share Posted September 5, 2014 Another one, disable graphics enabler I don't think I'm using graphics enabler... Does Clover use graphics enabler? If so, how do I disable it? Edit: tried the last dsdt. Same result. Link to comment Share on other sites More sharing options...
Diazz72 Posted September 5, 2014 Share Posted September 5, 2014 OK, so new problem with DP7: Progress bar is in left down corner and there is no apple logo, any one have this problem and any possible solution? Link to comment Share on other sites More sharing options...
ericChng Posted September 5, 2014 Share Posted September 5, 2014 OK, so new problem with DP7: Progress bar is in left down corner and there is no apple logo, any one have this problem and any possible solution? No not here at all, no change with DP7 and startup status bar and logo. I am still missing the boot2 stage logo, but apart from that it is very fast and almost stable. Link to comment Share on other sites More sharing options...
wern apfel Posted September 5, 2014 Share Posted September 5, 2014 I don't think I'm using graphics enabler... Does Clover use graphics enabler? If so, how do I disable it? Edit: tried the last dsdt. Same result. uncheck FixDisplay in the config.plist, try with dsdt from post 613, upload your ioreg with disabled intel gpu Link to comment Share on other sites More sharing options...
arsradu Posted September 5, 2014 Share Posted September 5, 2014 uncheck FixDisplay in the config.plist, try with dsdt from post 613, upload your ioreg with disabled intel gpu That dsdt (from post 613) didn't make any difference to me. I got the same result. All the fixes were disabled. Also, Intel GPU is still disabled. I couldn't get an ioreg after booting with that dsdt. But I did take an ioreg before that. So you can check out the disabled intel gpu. The ioreg can be found here. Link to comment Share on other sites More sharing options...
