r9 290 (non-x) yosemited help


Orkaliz
 Share

205 posts in this topic

Recommended Posts

OH MY GOD!!! if this really works im fully back on the X!!!



Im back to windows for about 2 months now because i couldnt get my 2nd display to work proper which is a no-go for me...





gonna try this NOW!!!

How did it workout for you! just a little more info. I am using DIV-D for my main display and HDMI for my second display

Link to comment
Share on other sites

How did it workout for you! just a little more info. I am using DIV-D for my main display and HDMI for my second display

Oh,  unfortunately it didnt work for me =( i think ive lost my last spark of hope now.. im even already looking to get a used 27" imac but the money.... oh the dear money... i've just spent a stack on a new pc in dec 14



but to be honest, im still checking the forum almost daily, lookin for a new way or a solution.





both of the monitors turn off when booting and i think it has something to do with the connector data/patch but i couldnt get the hang of it when i was reading through this tutorial ->http://www.insanelymac.com/forum/topic/303186-how-to-modification-of-amd-fb-clover-injection/





ps. you said you was using the kexts from 10.10.3 beta.. i was trying this on 10.10.3 final, but im also using hdmi and dvi

Link to comment
Share on other sites

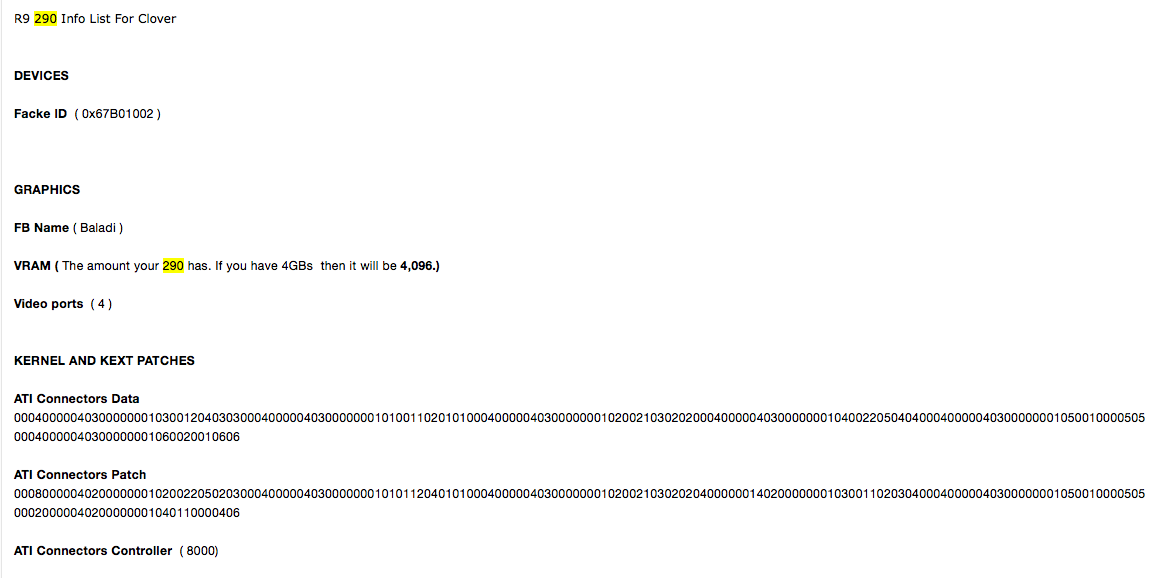

I have it fully working. all ports.   here is the clover setup you will need. Also i am using the 8000 and 4000 kext from 10.10.3 beta





Can I see your ACPI settings? Because clover has next options for fixing a display or add HDMI and It has some different impact according to your SMB settings.

Link to comment
Share on other sites

Oh,  unfortunately it didnt work for me =( i think ive lost my last spark of hope now.. im even already looking to get a used 27" imac but the money.... oh the dear money... i've just spent a stack on a new pc in dec 14



but to be honest, im still checking the forum almost daily, lookin for a new way or a solution.





both of the monitors turn off when booting and i think it has something to do with the connector data/patch but i couldnt get the hang of it when i was reading through this tutorial ->http://www.insanelymac.com/forum/topic/303186-how-to-modification-of-amd-fb-clover-injection/





ps. you said you was using the kexts from 10.10.3 beta.. i was trying this on 10.10.3 final, but im also using hdmi and dvi

I can send you my config file if you want ..

Can I see your ACPI settings? Because clover has next options for fixing a display or add HDMI and It has some different impact according to your SMB settings.

Do you want a copy of my ACPi folder ?

Link to comment
Share on other sites

Today I tried to update clover above r3156 with result of black screen.

The system was still responsive, so I was able to reboot or shutdown with shortcut command.

It was configured using ATI Inject and Fake ID only.

After a bit of testing I got it up to Desktop again.

Setup with:

<key>Graphics</key>

<dict>
          <key>FBName</key>
          <string>Futomaki</string>
          <key>Inject</key>
          <dict>
                     <key>ATI</key>
                     <true/>
          </dict>
          <key>LoadVBios</key>
          <true/>
          <key>VRAM</key>
          <integer>4096</integer>
          <key>VideoPorts</key>
          <integer>4</integer>
</dict>

The card is a MSI R9 290 Gaming 4G (1002:67b1)
Maybe that helps someone else.
Link to comment
Share on other sites

to be honest... ive lost the motivation for trying around but as soon as i got it back ( plus a bit leisure time ) im gonna try the files sent by Audiohacks and the Config posted by verleihnix

Link to comment
Share on other sites



Today I tried to update clover above r3156 with result of black screen.

The system was still responsive, so I was able to reboot or shutdown with shortcut command.

It was configured using ATI Inject and Fake ID only.

After a bit of testing I got it up to Desktop again.

Setup with:

<key>Graphics</key>

<dict>
          <key>FBName</key>
          <string>Futomaki</string>
          <key>Inject</key>
          <dict>
                     <key>ATI</key>
                     <true/>
          </dict>
          <key>LoadVBios</key>
          <true/>
          <key>VRAM</key>
          <integer>4096</integer>
          <key>VideoPorts</key>
          <integer>4</integer>
</dict>

The card is a MSI R9 290 Gaming 4G (1002:67b1)
Maybe that helps someone else.





Hi verleihnix, thanks for sharing these flags!

Do you happen to use the displayport with this setup, or are you using a different one?

Link to comment
Share on other sites



If those don't work for you, You'll have to determine your own connectors data and patch using this guide. <- This is probably what you need to do if you have a black screen. If you have flashing, try this, but other things might fix it. I get flashing with Frame Buffer set to anything except Baladi.



This removed the flickering and black screen issues I had when using the ID 0x67B11002 with any framebuffer (black screen with Baladi, flashing with Hawaii and Exmoor). Also got rid of artifacts!

For some reason I can't run Unigine Heaven (EDIT: disabling tessellation makes it run. Enabling locks up entire system), but Unigine Valley works flawlessly with no artifacting and I get a score averaging 2800. Cinebench runs at 108 FPS. LuxMark 2.1 gets a score of 2324 in the Sala, and 1255 in the "Room"



Best of all, I don't need to unplug my screen! :D



Please note that some steps may be unnecessary, but I'm still trying to narrow things down. I'll edit with what is needed or unneeded.



EDIT: Just tried booting without the VBios and it worked fine... I'm losing hope in finding method to this madness. My card's working perfectly (minus temperature readings) and I wish I could help you guys. Bleh.  :(  Here's my config.plist maybe it'll help someone. can't upload .plist so changed it to .txt

So I'm going to try and find my own connectors data (thanks for posting that guide, very handy!). You mention other things might fix it... can you elaborate on that?  I've got a powercolor turboduo r9 290 that gets identified in about this mac as "Radeon 8xxx", flashes at startup, but otherwise works great once i unplug / replug the monitor - just by inserting FakeID 0x67B11002 and setting the framebuffer to Baladi, No modification of the kext needed.



Do I need to edit the AMDcontroller8000 kext? or would just continuing to use FakeID in clover work the same (would prefer this way in case apple updates those kexts in the future)

Link to comment
Share on other sites

So I'm going to try and find my own connectors data (thanks for posting that guide, very handy!). You mention other things might fix it... can you elaborate on that?  I've got a powercolor turboduo r9 290 that gets identified in about this mac as "Radeon 8xxx", flashes at startup, but otherwise works great once i unplug / replug the monitor - just by inserting FakeID 0x67B11002 and setting the framebuffer to Baladi, No modification of the kext needed.



Do I need to edit the AMDcontroller8000 kext? or would just continuing to use FakeID in clover work the same (would prefer this way in case apple updates those kexts in the future)

I have both kexts edited right now, so my guess is yes. This could be because clover injects your device ID, but placing the ID in those kexts allows it to correctly identify and use those kexts (that's my rough guess, not sure by any means). I could be wrong and you might not need to edit the kext (mine works, so I'm afraid to touch it again).

As for "other things," I was mostly referring to trying that one as a last resort, as the other things I mentioned (different frambuffers, exiting kexts, etc) could potentially solve your problem. Also, feel free to try other people's connector data patches (I got lucky and one of the ones from before worked with mine). Once you find one that works with yours, please post which card you have and what fixed it. That'll save some other people a lot of time. :)



I'll be updating to 10.10.3 soon, so I hope nothing goes haywire... fingers crossed!



EDIT:

Just finished updating to 10.10.3, and my graphics kexts WERE overwritten, so I had the 5mb of video RAM issue until I added the ID to the two kexts and rebooted. Back up and running without any other problems, yay! I guess that means you have to have the kext edits (make sure you put the ID under the right framebuffer!)

  • Like 1
Link to comment
Share on other sites

EDIT:

Just finished updating to 10.10.3, and my graphics kexts WERE overwritten, so I had the 5mb of video RAM issue until I added the ID to the two kexts and rebooted. Back up and running without any other problems, yay! I guess that means you have to have the kext edits (make sure you put the ID under the right framebuffer!)

Thanks for that info, and verifying everything still works on 10.10.3!  You've probably saved me several hours of trial and error!



The only other thing i'm wondering - can you have HDMI plugged in?  And, does your card's fan control work in OSX?



I Ask because my main issue is now that I can ONLY have one monitor plugged into DVI; the second I plug in my tv via HDMI, I get 2 black screens that requires a reboot.  I don't really need the HDMI display for mac osx as I mainly use that for gaming in windows; however I really don't want to have to plug and unplug something everytime i want to play a game (the way my desk is set up makes this a pain).



Thanks again, any further info is greatly appreciated. I'll make sure and post the results of my experimenting!

Link to comment
Share on other sites

Not sure if this will be helpful, but the new Retina iMacs use R9 M290 chips instead of the M290x chips. This may bold well for R9 290 cards assuming the mobile nature of these chips isn't too different from the desktop variety. :)



http://blog.macsales.com/30510-unboxing-and-teardown-of-the-2015-27-inch-imac-with-retina-5k-display?APC=XLR8YourMac13



This will probably be rolled up in the next Yosemite update. Can someone with access to the new iMacs peek at the driver version?

Link to comment
Share on other sites

Thanks for that info, and verifying everything still works on 10.10.3!  You've probably saved me several hours of trial and error!



The only other thing i'm wondering - can you have HDMI plugged in?  And, does your card's fan control work in OSX?



I Ask because my main issue is now that I can ONLY have one monitor plugged into DVI; the second I plug in my tv via HDMI, I get 2 black screens that requires a reboot.  I don't really need the HDMI display for mac osx as I mainly use that for gaming in windows; however I really don't want to have to plug and unplug something everytime i want to play a game (the way my desk is set up makes this a pain).



Thanks again, any further info is greatly appreciated. I'll make sure and post the results of my experimenting!

As far as I know, there's no manual fan control in OS X, but the fans do rev up when I run benchmarking (have yet to try actual games, that's what windows is for :P ). Unfortunately, the only HDMI device I have is a 37" really-heavy TV, and it's just out of range of my desktop. Maybe I'll lug the two together and have a little experiment later, we'll see. I do also have a DisplayPort to HDMI cable, so that should theoretically also check the compatibility of my card's DisplayPort when I do the test.

Alternatively, anybody want to buy me a new monitor? :P

Link to comment
Share on other sites

Just want to contribute cuz this thread help me a lot.

Using Yosemite thru #####.

But able to use clover by using usb.

Ok,so my Asus 290 ref card is working Ok using the previous post without editing the 2 kext.

First I encountered blank screen,I don't know if this is the solution(i change baladi to hawaii,then thick the Inject Nvidia along with ATI)

So Im happy now.






Link to comment
Share on other sites

Just want to contribute cuz this thread help me a lot.

Using Yosemite thru #####.

But able to use clover by using usb.

Ok,so my Asus 290 ref card is working Ok using the previous post without editing the 2 kext.

First I encountered blank screen,I don't know if this is the solution(i change baladi to hawaii,then thick the Inject Nvidia along with ATI)

So Im happy now.

FYI there is no Hawaii FB in any version of OS X and second if you are using fakeid of 0X67B01002 thats is the device id for a 290X which matches the only AMD8000Controller.kext and you must use Baladi FB for.

Here is a list of all the framebuffers for every kext using 10.10.4:

Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller
Personality: Iago
ConnectorInfo count in decimal: 2
Disk offset in decimal 674640
0000000    02  00  00  00  40  00  00  00  09  00  00  00  00  01  00  12
0000010    00  10  00  00  16  00  00  00  c4  00  00  00  10  00  01  11
0000020
Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller
Personality: Hypoprion
ConnectorInfo count in decimal: 2
Disk offset in decimal 674608
0000000    02  00  00  00  40  00  00  00  09  00  00  00  00  01  00  12
0000010    00  10  00  00  16  00  00  00  c4  00  00  00  10  00  01  11
0000020
Personality: Lamna
ConnectorInfo count in decimal: 2
Disk offset in decimal 674640
0000000    00  02  00  00  14  00  00  00  80  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  80  00  00  00  00  10  01  12
0000020
Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller
Personality: Megalodon
ConnectorInfo count in decimal: 3
Disk offset in decimal 678688
0000000    00  02  00  00  14  00  00  00  00  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  12
0000020    80  00  00  00  02  00  00  00  04  00  00  00  00  10  00  00
0000030
Personality: Triakis
ConnectorInfo count in decimal: 2
Disk offset in decimal 678736
0000000    00  02  00  00  14  00  00  00  00  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  12
0000020
Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller
Personality: Flicker
ConnectorInfo count in decimal: 3
Disk offset in decimal 662240
0000000    00  04  00  00  00  04  00  00  00  01  00  00  02  01  03  05
0000010    00  04  00  00  00  04  00  00  00  01  00  00  01  00  02  02
0000020    00  02  00  00  14  02  00  00  00  01  00  00  00  10  01  04
0000030
Personality: Gliff
ConnectorInfo count in decimal: 3
Disk offset in decimal 662288
0000000    02  00  00  00  40  00  00  00  09  01  00  00  02  01  00  03
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  02  02
0000020    00  04  00  00  04  06  00  00  00  01  00  00  10  00  01  01
0000030
Personality: Shrike
ConnectorInfo count in decimal: 3
Disk offset in decimal 662336
0000000    02  00  00  00  40  00  00  00  09  01  00  00  02  01  00  03
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  02  02
0000020    00  04  00  00  04  03  00  00  00  01  00  00  10  00  01  01
0000030
Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller
Personality: Cardinal
ConnectorInfo count in decimal: 2
Disk offset in decimal 658160
0000000    00  02  00  00  14  02  00  00  00  01  00  00  01  01  01  04
0000010    04  00  00  00  14  02  00  00  00  01  00  00  00  10  02  03
0000020
Personality: MotMot
ConnectorInfo count in decimal: 2
Disk offset in decimal 658192
0000000    00  04  00  00  04  01  00  00  00  01  00  00  10  00  02  03
0000010    04  00  00  00  14  02  00  00  00  01  00  00  01  11  01  04
0000020
Personality: Quail
ConnectorInfo count in decimal: 3
Disk offset in decimal 658224
0000000    02  00  00  00  40  00  00  00  09  01  00  00  22  01  00  07
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  03  04
0000020    00  04  00  00  04  03  00  00  00  01  00  00  10  00  02  03
0000030
Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller
Personality: Douc
ConnectorInfo count in decimal: 2
Disk offset in decimal 1659616
0000000    02  00  00  00  00  05  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  02  00  00  00  03  00  00  11  02  01  01
0000020
Personality: Langur
ConnectorInfo count in decimal: 3
Disk offset in decimal 1659664
0000000    00  04  00  00  04  06  00  00  00  01  00  00  21  03  04  02
0000010    00  04  00  00  04  06  00  00  00  01  00  00  11  02  01  01
0000020    04  00  00  00  14  02  00  00  00  01  00  00  02  04  05  03
0000030
Personality: Uakari
ConnectorInfo count in decimal: 4
Disk offset in decimal 1659712
0000000    00  04  00  00  00  04  00  00  00  71  00  00  12  04  04  01
0000010    04  00  00  00  14  00  00  00  00  71  00  00  01  12  01  03
0000020    00  02  00  00  14  00  00  00  00  71  00  00  00  00  06  05
0000030    00  08  00  00  00  02  00  00  00  71  00  00  22  05  05  04
0000040
Personality: Zonalis
ConnectorInfo count in decimal: 6
Disk offset in decimal 1659776
0000000    00  04  00  00  04  06  00  00  00  71  00  00  20  01  06  06
0000010    00  04  00  00  04  06  00  00  00  71  00  00  10  00  05  05
0000020    00  04  00  00  04  06  00  00  00  71  00  00  21  03  02  04
0000030    00  04  00  00  04  06  00  00  00  71  00  00  11  02  01  03
0000040    00  04  00  00  04  06  00  00  00  71  00  00  22  05  04  02
0000050    00  04  00  00  04  06  00  00  00  71  00  00  12  04  03  01
0000060
Personality: Alouatta
ConnectorInfo count in decimal: 4
Disk offset in decimal 1659872
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  06  00  00  00  71  00  00  11  02  01  01
0000020    00  04  00  00  04  06  00  00  00  71  00  00  21  03  02  02
0000030    00  04  00  00  04  06  00  00  00  71  00  00  22  05  04  04
0000040
Personality: Hoolock
ConnectorInfo count in decimal: 3
Disk offset in decimal 1659936
0000000    00  04  00  00  04  06  00  00  00  01  00  00  21  03  05  01
0000010    00  04  00  00  04  06  00  00  00  01  00  00  11  02  04  02
0000020    04  00  00  00  14  02  00  00  00  01  00  00  02  04  01  03
0000030
Personality: Vervet
ConnectorInfo count in decimal: 4
Disk offset in decimal 1659984
0000000    00  04  00  00  00  04  00  00  00  71  00  00  12  04  04  02
0000010    04  00  00  00  14  00  00  00  00  71  00  00  01  12  01  04
0000020    00  02  00  00  14  00  00  00  00  71  00  00  00  00  06  03
0000030    00  08  00  00  00  02  00  00  00  71  00  00  22  05  05  01
0000040
Personality: Baboon
ConnectorInfo count in decimal: 3
Disk offset in decimal 1660048
0000000    04  00  00  00  14  00  00  00  00  01  00  00  01  02  01  03
0000010    00  08  00  00  00  02  00  00  00  71  00  00  22  05  02  01
0000020    10  00  00  00  10  00  00  00  00  01  00  00  00  10  00  02
0000030
Personality: Eulemur
ConnectorInfo count in decimal: 3
Disk offset in decimal 1660096
0000000    04  00  00  00  14  00  00  00  00  01  00  00  01  02  01  04
0000010    00  08  00  00  00  02  00  00  00  71  00  00  12  04  04  02
0000020    10  00  00  00  10  00  00  00  00  00  00  00  00  10  00  01
0000030
Personality: Galago
ConnectorInfo count in decimal: 2
Disk offset in decimal 1660144
0000000    02  00  00  00  00  01  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Personality: Colobus
ConnectorInfo count in decimal: 2
Disk offset in decimal 1660192
0000000    02  00  00  00  00  01  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Personality: Mangabey
ConnectorInfo count in decimal: 2
Disk offset in decimal 1660240
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  03
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Personality: Nomascus
ConnectorInfo count in decimal: 4
Disk offset in decimal 1660288
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  05
0000010    02  00  00  00  00  01  00  00  09  03  00  00  12  04  03  03
0000020    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000030    00  04  00  00  04  07  00  00  00  73  00  00  21  03  02  02
0000040
Personality: Orangutan
ConnectorInfo count in decimal: 2
Disk offset in decimal 1660368
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  05
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller
Personality: Pithecia
ConnectorInfo count in decimal: 2
Disk offset in decimal 1685504
0000000    00  04  00  00  04  03  00  00  00  01  00  00  21  03  02  04
0000010    04  00  00  00  14  02  00  00  00  01  00  00  00  00  04  03
0000020
Personality: Bulrushes
ConnectorInfo count in decimal: 6
Disk offset in decimal 1685536
0000000    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  21  03  02  02
0000020    00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03
0000030    00  04  00  00  04  03  00  00  00  01  00  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  00  00  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  00  00  20  01  06  06
0000060
Personality: Cattail
ConnectorInfo count in decimal: 4
Disk offset in decimal 1685632
0000000    02  00  00  00  40  00  00  00  29  05  00  00  00  00  00  05
0000010    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  10  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  10  00  12  04  03  03
0000040
Personality: Hydrilla
ConnectorInfo count in decimal: 5
Disk offset in decimal 1685696
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  10  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  10  00  22  05  05  04
0000040    00  04  00  00  04  03  00  00  00  01  00  00  10  00  04  05
0000050
Personality: Duckweed
ConnectorInfo count in decimal: 4
Disk offset in decimal 1685776
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  04  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  22  05  05  02
0000020    00  08  00  00  04  02  00  00  00  01  00  00  11  02  03  04
0000030    00  02  00  00  14  02  00  00  00  01  00  00  00  00  06  05
0000040
Personality: Fanwort
ConnectorInfo count in decimal: 4
Disk offset in decimal 1685840
0000000    02  00  00  00  40  00  00  00  29  05  00  00  00  00  00  04
0000010    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  10  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  10  00  12  04  03  03
0000040
Personality: Elodea
ConnectorInfo count in decimal: 5
Disk offset in decimal 1685904
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  00  00  10  00  05  05
0000020    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000030    00  04  00  00  00  01  00  00  00  09  10  00  21  03  02  02
0000040    00  04  00  00  00  01  00  00  00  09  10  00  22  05  04  04
0000050
Personality: Kudzu
ConnectorInfo count in decimal: 2
Disk offset in decimal 1685984
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03
0000010    00  08  00  00  04  02  00  00  00  01  00  00  11  02  01  01
0000020
Personality: Gibba
ConnectorInfo count in decimal: 5
Disk offset in decimal 1686016
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  05  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  22  05  04  02
0000020    00  08  00  00  04  02  00  00  00  01  00  00  11  02  06  04
0000030    00  02  00  00  14  02  00  00  00  01  00  00  00  00  03  05
0000040    04  00  00  00  04  02  00  00  00  01  00  00  11  02  01  03
0000050
Personality: Lotus
ConnectorInfo count in decimal: 3
Disk offset in decimal 1686096
0000000    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000010    00  08  00  00  04  02  00  00  00  01  00  00  22  05  04  04
0000020    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000030
Personality: Ipomoea
ConnectorInfo count in decimal: 3
Disk offset in decimal 1686144
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  01  05
0000010    00  08  00  00  04  02  00  00  00  01  00  00  11  02  04  03
0000020    10  00  00  00  10  00  00  00  00  01  00  00  00  00  00  02
0000030
Personality: Muskgrass
ConnectorInfo count in decimal: 4
Disk offset in decimal 1686192
0000000    00  04  00  00  04  03  00  00  00  01  01  00  11  02  01  01
0000010    00  04  00  00  00  01  00  00  00  09  12  00  21  03  02  02
0000020    00  04  00  00  00  01  00  00  00  09  13  00  22  05  04  04
0000030    00  08  00  00  04  02  00  00  00  01  04  00  12  04  03  03
0000040
Personality: Juncus
ConnectorInfo count in decimal: 4
Disk offset in decimal 1686256
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  00  00  10  00  04  05
0000020    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000030    00  04  00  00  04  03  00  00  00  01  00  00  21  03  02  02
0000040
Personality: Osmunda
ConnectorInfo count in decimal: 4
Disk offset in decimal 1686320
0000000    02  00  00  00  00  01  00  00  29  05  01  00  10  00  05  05
0000010    00  04  00  00  04  03  00  00  00  09  02  00  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  09  03  00  21  03  02  02
0000030    00  08  00  00  04  02  00  00  00  01  04  00  12  04  03  03
0000040
Personality: Pondweed
ConnectorInfo count in decimal: 3
Disk offset in decimal 1686384
0000000    02  00  00  00  00  01  00  00  09  01  01  00  10  00  05  05
0000010    00  04  00  00  04  03  00  00  00  01  02  00  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  01  03  00  21  03  02  02
0000030
Personality: Spikerush
ConnectorInfo count in decimal: 4
Disk offset in decimal 1686432
0000000    02  00  00  00  40  00  00  00  29  05  01  00  00  00  00  05
0000010    00  04  00  00  04  03  00  00  00  01  02  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  02  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  03  00  12  04  03  03
0000040
Personality: Typha
ConnectorInfo count in decimal: 5
Disk offset in decimal 1686496
0000000    00  04  00  00  04  03  00  00  00  01  01  00  11  02  04  01
0000010    00  04  00  00  04  03  00  00  00  01  02  00  21  03  05  02
0000020    00  04  00  00  00  01  00  00  00  09  03  00  10  00  02  05
0000030    00  04  00  00  00  01  00  00  00  09  04  00  20  01  03  06
0000040    04  00  00  00  14  02  00  00  00  01  05  00  02  04  01  03
0000050
Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller
Personality: Ramen
ConnectorInfo count in decimal: 6
Disk offset in decimal 1715280
0000000    02  00  00  00  00  01  00  00  29  04  01  00  20  01  05  06
0000010    00  08  00  00  04  02  00  00  00  01  02  00  10  00  03  05
0000020    00  04  00  00  04  03  00  00  00  01  03  07  11  02  01  01
0000030    00  04  00  00  00  01  00  00  00  01  04  03  21  03  04  03
0000040    00  04  00  00  04  03  00  00  00  01  05  07  12  04  02  02
0000050    00  04  00  00  00  01  00  00  00  01  06  03  22  05  04  03
0000060
Personality: Namako
ConnectorInfo count in decimal: 4
Disk offset in decimal 1715488
0000000    02  00  00  00  00  01  00  00  00  01  01  03  22  05  02  02
0000010    02  00  00  00  00  01  00  00  00  01  02  03  12  04  01  01
0000020    00  04  00  00  04  03  00  00  00  01  03  07  11  02  03  03
0000030    00  04  00  00  04  03  00  00  00  01  04  07  21  03  04  04
0000040
Personality: Aji
ConnectorInfo count in decimal: 4
Disk offset in decimal 1715648
0000000    00  04  00  00  04  03  00  00  00  01  01  01  12  04  05  01
0000010    00  04  00  00  04  03  00  00  00  01  02  01  22  05  04  02
0000020    04  00  00  00  14  02  00  00  00  01  03  00  00  00  03  06
0000030    00  08  00  00  04  02  00  00  00  01  04  00  11  02  01  04
0000040
Personality: Buri
ConnectorInfo count in decimal: 4
Disk offset in decimal 1715712
0000000    02  00  00  00  00  01  00  00  29  05  01  00  10  00  05  05
0000010    00  04  00  00  04  03  00  00  00  09  02  00  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  09  03  00  21  03  02  02
0000030    00  08  00  00  04  02  00  00  00  01  04  00  12  04  03  03
0000040
Personality: Chutoro
ConnectorInfo count in decimal: 5
Disk offset in decimal 1715776
0000000    02  00  00  00  00  01  00  00  09  01  01  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  02  01  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  03  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  04  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  05  00  10  00  05  05
0000050
Personality: Dashimaki
ConnectorInfo count in decimal: 4
Disk offset in decimal 1715856
0000000    00  04  00  00  04  03  00  00  00  01  01  01  12  04  02  02
0000010    00  04  00  00  04  03  00  00  00  01  02  00  22  05  03  05
0000020    04  00  00  00  14  02  00  00  00  01  03  01  00  00  04  04
0000030    00  08  00  00  04  02  00  00  00  01  04  00  11  02  01  01
0000040
Personality: Ebi
ConnectorInfo count in decimal: 5
Disk offset in decimal 1715920
0000000    02  00  00  00  00  01  00  00  09  01  01  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  02  01  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  03  01  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  04  01  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  05  01  10  00  05  05
0000050
Personality: Gari
ConnectorInfo count in decimal: 5
Disk offset in decimal 1716000
0000000    02  00  00  00  00  01  00  00  09  01  01  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  02  01  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  09  03  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  09  04  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  05  00  10  00  05  05
0000050
Personality: Futomaki
ConnectorInfo count in decimal: 4
Disk offset in decimal 1716128
0000000    00  04  00  00  04  03  00  00  00  01  01  01  12  04  04  01
0000010    00  04  00  00  04  03  00  00  00  01  02  01  22  05  05  02
0000020    04  00  00  00  14  02  00  00  00  01  03  00  00  00  06  06
0000030    00  08  00  00  04  02  00  00  00  01  04  00  11  02  01  03
0000040
Personality: Hamachi
ConnectorInfo count in decimal: 4
Disk offset in decimal 1716192
0000000    00  04  00  00  04  03  00  00  00  01  01  01  12  04  05  01
0000010    00  04  00  00  04  03  00  00  00  01  02  01  22  05  04  02
0000020    04  00  00  00  14  02  00  00  00  01  03  00  00  00  03  06
0000030    00  08  00  00  04  02  00  00  00  01  04  00  11  02  01  04
0000040
Personality: OPM
ConnectorInfo count in decimal: 6
Disk offset in decimal 1716320
0000000    00  04  00  00  04  03  00  00  00  01  00  01  11  02  01  01
0000010    00  04  00  00  04  03  00  00  00  01  00  01  21  03  02  02
0000020    00  04  00  00  04  03  00  00  00  01  00  01  12  04  03  03
0000030    00  04  00  00  04  03  00  00  00  01  00  01  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  00  01  10  00  05  05
0000050    00  04  00  00  14  03  00  00  00  01  00  01  20  01  06  06
0000060
Personality: Ikura
ConnectorInfo count in decimal: 1
Disk offset in decimal 1716416
0000000    00  08  00  00  04  02  00  00  00  01  01  00  12  04  03  01
0000010
Personality: IkuraS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1716432
0000000    00  04  00  00  04  03  00  00  00  01  01  07  11  02  01  03
0000010    00  04  00  00  04  03  00  00  00  01  02  07  21  03  02  04
0000020    00  04  00  00  04  03  00  00  00  01  03  07  12  04  03  01
0000030    00  04  00  00  04  03  00  00  00  01  04  07  22  05  04  02
0000040    00  04  00  00  04  03  00  00  00  01  05  07  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  07  20  01  06  06
0000060
Personality: Junsai
ConnectorInfo count in decimal: 6
Disk offset in decimal 1716528
0000000    00  04  00  00  04  03  00  00  00  01  00  01  12  04  03  01
0000010    00  04  00  00  04  03  00  00  00  01  00  01  22  05  04  02
0000020    00  04  00  00  04  03  00  00  00  01  00  01  11  02  01  03
0000030    00  04  00  00  04  03  00  00  00  01  00  01  21  03  02  04
0000040    00  04  00  00  04  03  00  00  00  01  00  01  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  00  01  20  01  06  06
0000060
Personality: Kani
ConnectorInfo count in decimal: 1
Disk offset in decimal 1716624
0000000    00  08  00  00  04  02  00  00  00  01  01  00  12  04  03  01
0000010
Personality: KaniS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1716640
0000000    00  04  00  00  04  03  00  00  00  01  01  07  11  02  01  03
0000010    00  04  00  00  04  03  00  00  00  01  02  07  21  03  02  04
0000020    00  04  00  00  04  03  00  00  00  01  03  07  12  04  03  01
0000030    00  04  00  00  04  03  00  00  00  01  04  07  22  05  04  02
0000040    00  04  00  00  04  03  00  00  00  01  05  07  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  07  20  01  06  06
0000060
Personality: DashimakiS
ConnectorInfo count in decimal: 4
Disk offset in decimal 1716736
0000000    00  04  00  00  04  03  00  00  00  01  01  01  12  04  02  02
0000010    00  04  00  00  04  03  00  00  00  01  02  01  22  05  03  05
0000020    04  00  00  00  14  02  00  00  00  01  03  00  00  00  04  04
0000030    00  08  00  00  04  02  00  00  00  01  04  00  11  02  01  01
0000040
Personality: Maguro
ConnectorInfo count in decimal: 1
Disk offset in decimal 1716800
0000000    00  08  00  00  04  02  00  00  00  01  01  00  12  04  03  01
0000010
Personality: MaguroS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1716816
0000000    00  04  00  00  04  03  00  00  00  01  01  07  11  02  01  03
0000010    00  04  00  00  04  03  00  00  00  01  02  07  21  03  02  04
0000020    00  04  00  00  04  03  00  00  00  01  03  07  12  04  03  01
0000030    00  04  00  00  04  03  00  00  00  01  04  07  22  05  04  02
0000040    00  04  00  00  04  03  00  00  00  01  05  07  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  07  20  01  06  06
0000060
Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller
Personality: Exmoor
ConnectorInfo count in decimal: 4
Disk offset in decimal 1689936
0000000    02  00  00  00  00  01  00  00  00  01  01  03  22  05  02  02
0000010    02  00  00  00  00  01  00  00  00  01  02  03  12  04  01  01
0000020    00  04  00  00  04  03  00  00  00  01  03  07  11  02  03  03
0000030    00  04  00  00  04  03  00  00  00  01  04  07  21  03  04  04
0000040
Personality: Baladi
ConnectorInfo count in decimal: 6
Disk offset in decimal 1690256
0000000    00  04  00  00  04  03  00  00  00  01  03  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  01  00  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  01  02  00  21  03  02  02
0000030    00  04  00  00  04  03  00  00  00  01  04  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  05  00  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  00  20  01  06  06
0000060
Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller
Personality: Exmoor
ConnectorInfo count in decimal: 4
Disk offset in decimal 1681008
0000000    02  00  00  00  00  01  00  00  00  01  01  03  22  05  02  02
0000010    02  00  00  00  00  01  00  00  00  01  02  03  12  04  01  01
0000020    00  04  00  00  04  03  00  00  00  01  03  07  11  02  03  03
0000030    00  04  00  00  04  03  00  00  00  01  04  07  21  03  04  04
0000040
Personality: OPM
ConnectorInfo count in decimal: 6
Disk offset in decimal 1681072
0000000    00  04  00  00  04  03  00  00  00  00  00  01  10  00  01  01
0000010    00  04  00  00  04  03  00  00  00  00  00  01  20  01  02  02
0000020    00  04  00  00  04  03  00  00  00  00  00  01  11  02  03  03
0000030    00  04  00  00  04  03  00  00  00  00  00  01  21  03  04  04
0000040    00  04  00  00  04  03  00  00  00  00  00  01  12  04  05  05
0000050    00  04  00  00  04  03  00  00  00  00  00  01  22  05  06  06
0000060
Personality: GreyhoundS
ConnectorInfo count in decimal: 1
Disk offset in decimal 1681168
0000000    00  08  00  00  04  02  00  00  00  01  01  00  12  04  03  01
0000010
Personality: Basset
ConnectorInfo count in decimal: 4
Disk offset in decimal 1681328
0000000    02  00  00  00  00  01  00  00  00  01  01  03  21  03  02  02
0000010    02  00  00  00  00  01  00  00  00  01  02  03  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  01  03  07  10  00  03  03
0000030    00  04  00  00  04  03  00  00  00  01  04  07  20  01  04  04
0000040
Personality: Greyhound
ConnectorInfo count in decimal: 6
Disk offset in decimal 1681520
0000000    00  04  00  00  04  03  00  00  00  01  01  07  10  00  01  03
0000010    00  04  00  00  04  03  00  00  00  01  02  07  20  01  02  04
0000020    00  04  00  00  04  03  00  00  00  01  03  07  11  02  03  01
0000030    00  04  00  00  04  03  00  00  00  01  04  07  21  03  04  02
0000040    00  04  00  00  04  03  00  00  00  01  05  07  12  04  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  07  22  05  06  06
0000060
Personality: Baladi
ConnectorInfo count in decimal: 6
Disk offset in decimal 1681648
0000000    00  04  00  00  04  03  00  00  00  01  03  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  01  00  11  02  01  01
0000020    00  04  00  00  04  03  00  00  00  01  02  00  21  03  02  02
0000030    00  04  00  00  04  03  00  00  00  01  04  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  05  00  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  06  00  20  01  06  06
Link to comment
Share on other sites

@Pavo.

Ok,but this setting I'm using is the only setting that works on my 290.

I tried all the previous setting but none works to me.

Maybe ill try to change the Hawaii,but i don't have info list for AMD8000Controller.kext





ok...that didn't work.

So i returned to my old setting even its odd.


Edited by xdeath010
Link to comment
Share on other sites

  • 3 weeks later...

Hey,



I'm following this: https://www.youtube.com/watch?v=bWeABF7sTB8



 I just installed the kexts through kext wizard and rebuilt my cache etc. I now want to use clover for the injection, but when I start it up I get



 I can't find a config file. Do you want mount EFI partition?



If I try using the Generate Config I get an error: clover-genconfig not found!!!!



What am I meant to do?



Does clover only work if you use it as your boot loader? I used TinyBeast to install OSX.



Ideas?

Link to comment
Share on other sites

Hey,



I'm following this: https://www.youtube.com/watch?v=bWeABF7sTB8



 I just installed the kexts through kext wizard and rebuilt my cache etc. I now want to use clover for the injection, but when I start it up I get



 I can't find a config file. Do you want mount EFI partition?



If I try using the Generate Config I get an error: clover-genconfig not found!!!!



What am I meant to do?



Does clover only work if you use it as your boot loader? I used TinyBeast to install OSX.



Ideas?

Yeah how about read the post right above yours

Link to comment
Share on other sites

 Share

×
×
  • Create New...
