pico joe Posted March 9, 2014 Share Posted March 9, 2014 ok, it may possibly be that you have installed two times the kext. the one in the FakeSMC.kext under plugins and secondly, in Extra/Extensions or S/L/E? no spakk I used clover and all "non apple kext" in ..... kexts/10.9 .. S/L/E pure with apple kext and I always deleted "kernelcache" then rebuild again (touch S/L/E) for make sure Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2002322 Share on other sites More sharing options...
spakk Posted March 9, 2014 Share Posted March 9, 2014 you have to try to find the cause of your problem.The problem you recognize the details of the kernel panic message.It is clear that it is caused by W836x.kext in connection with the FakeSMC. That with the kernel cache, I wanted to mention, Ok you've already taken, unfortunately without success. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2002326 Share on other sites More sharing options...
RobertX Posted March 11, 2014 Share Posted March 11, 2014 Intel® Pentium® D CPU 3.20GHz Did you see any messages from andigilog kext? It should be there as I see (SMBus 2Eh) Or may be DSDT contains something about 0x2E? EDITED. We have no chance to do IntelCPUMonitor working for you CPUID 00000006 00000000-00000000-00000000-00000000 We still have a change to add ACPImonitor or Andigilog. Intel® Pentium® D CPU 3.20GHz Did you see any messages from andigilog kext? It should be there as I see (SMBus 2Eh) Or may be DSDT contains something about 0x2E? EDITED. We have no chance to do IntelCPUMonitor working for you CPUID 00000006 00000000-00000000-00000000-00000000 We still have a change to add ACPImonitor or Andigilog. ...well, just testing...get this message in console 2014-03-11 6:17:19.000 PM kernel[0]: [Andigilog] Device matching failed. and this 2014-03-11 6:06:00.000 PM kernel[0]: [iCHSMBus] IRQ: 19 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2003145 Share on other sites More sharing options...
Slice Posted March 12, 2014 Author Share Posted March 12, 2014 ...well, just testing...get this message in console 2014-03-11 6:17:19.000 PM kernel[0]: [Andigilog] Device matching failed. and this 2014-03-11 6:06:00.000 PM kernel[0]: [iCHSMBus] IRQ: 19 Test please the kext with more debug outputs Andigilog.kext.zip I want to see kernel.log with information what is the sensor. 1 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2003248 Share on other sites More sharing options...
RobertX Posted March 12, 2014 Share Posted March 12, 2014 I want to see kernel.log with information what is the sensor. ...this is what i have from the kext: 2014-03-12 8:55:30.000 AM kernel[0]: [Andigilog] found chip VID 5c 2014-03-12 8:55:30.000 AM kernel[0]: [Andigilog] Device matching failed. edit:...on next boot, 2014-03-12 11:28:01.000 AM kernel[0]: [Andigilog] found chip VID ff 2014-03-12 11:28:01.000 AM kernel[0]: [Andigilog] Device matching failed. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2003292 Share on other sites More sharing options...
Slice Posted March 12, 2014 Author Share Posted March 12, 2014 ...this is what i have from the kext: 2014-03-12 8:55:30.000 AM kernel[0]: [Andigilog] found chip VID 5c 2014-03-12 8:55:30.000 AM kernel[0]: [Andigilog] Device matching failed. edit:...on next boot, 2014-03-12 11:28:01.000 AM kernel[0]: [Andigilog] found chip VID ff 2014-03-12 11:28:01.000 AM kernel[0]: [Andigilog] Device matching failed. This is an answer. The kext is designed for PID=0x6c while you have older one with PID=0x5c. If you can find the chip inside and make a photo then we can find a datasheet and correct the kext. 2 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2003415 Share on other sites More sharing options...
RobertX Posted March 14, 2014 Share Posted March 14, 2014 I totally forgot this little program in windows...from SpeedFan: Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YESI/O properly initializedLinked ISA BUS at $0290Linked Intel 82801GB ICH7 SMBUS at $3000Found nVidia GeForce GTX 550 TiLinked nVidiaI2C0 SMBUS at $3D403E3FLinked nVidiaI2C1 SMBUS at $3D403637Linked nVidiaI2C2 SMBUS at $3D405051Scanning ISA BUS at $0290...SuperIO Chip=NS PC8374LScanning Intel SMBus at $3000...EMC6D103 (ID=$68) found on SMBus at $2EScanning I2CNVidia SMBus at $3D403E3F...Scanning I2CNVidia SMBus at $3D403637...Scanning I2CNVidia SMBus at $3D405051...Found WDC WD2000BB-22GUA0 on AdvSMARTEnd of detectionLoaded 0 events ...and the datasheet is here http://edulibs.org/get_paper.php?id=4660785 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2004009 Share on other sites More sharing options...
Slice Posted March 15, 2014 Author Share Posted March 15, 2014 Why 68 if 5C? And your link is broken. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2004261 Share on other sites More sharing options...
RobertX Posted March 15, 2014 Share Posted March 15, 2014 And your link is broken. ...hi slice, unsure of Why 68 if 5C? from the datasheet: Registers 5C-5Eh: PWM Configuration ...the link works for me...but here is the datasheet as a pdf... 6d103.pdf Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2004323 Share on other sites More sharing options...
RobertX Posted March 18, 2014 Share Posted March 18, 2014 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2005428 Share on other sites More sharing options...
Slice Posted March 19, 2014 Author Share Posted March 19, 2014 Test, please, this version and show me kernel.log with related messages Andigilog.kext.zip Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2005566 Share on other sites More sharing options...

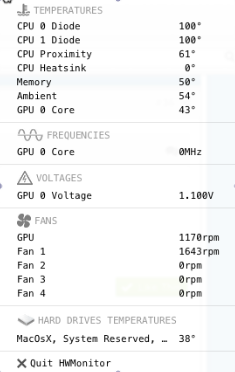

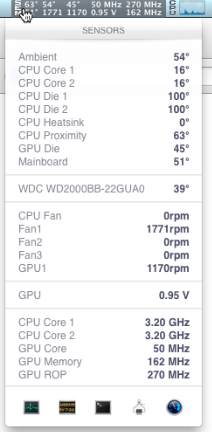

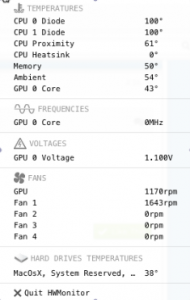

RobertX Posted March 19, 2014 Share Posted March 19, 2014 ... hi Slice, from console: 2014-03-19 11:15:32.000 AM kernel[0]: [Andigilog] aSC PID=0x68 attached at 0x2e. ...now we are getting somewhere...a look at HWMonitor with kext loaded: ...this is with kext loaded manually after boot....i'll do a restart now and see how it goes... edit: 2014-03-19 12:32:01.000 PM kernel[0]: [Andigilog] aSC PID=0x68 attached at 0x2e. ICHSMBus: Version: 1.1 Last Modified: 2014-03-12 8:53 AM Kind: Intel Architectures: i386, x86_64 64-Bit (Intel): Yes Location: /System/Library/Extensions/ICHSMBus.kext Kext Version: 1.1 Load Address: 0xffffff7f818a1000 Valid: Yes Authentic: Yes Dependencies: Satisfied Andigilog: Version: 1.0 Last Modified: 2014-03-19 12:12 PM Kind: Intel Architectures: i386, x86_64 64-Bit (Intel): Yes Location: /System/Library/Extensions/Andigilog.kext Kext Version: 1 Load Address: 0xffffff7f821c1000 Valid: Yes Authentic: Yes Dependencies: Satisfied ...very good... ...Slice, 2 times you have helped me recently...I am humbled... Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2005670 Share on other sites More sharing options...
RobertX Posted March 22, 2014 Share Posted March 22, 2014 ...now if only our Radeon cards monitored more ... Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2006480 Share on other sites More sharing options...
Slice Posted March 22, 2014 Author Share Posted March 22, 2014 ...now if only our Radeon cards monitored more ... Any datasheet/sources? Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2006497 Share on other sites More sharing options...
RobertX Posted March 22, 2014 Share Posted March 22, 2014 ...looking, here is one...i'll keep digging EM5103QP.pdf Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2006566 Share on other sites More sharing options...

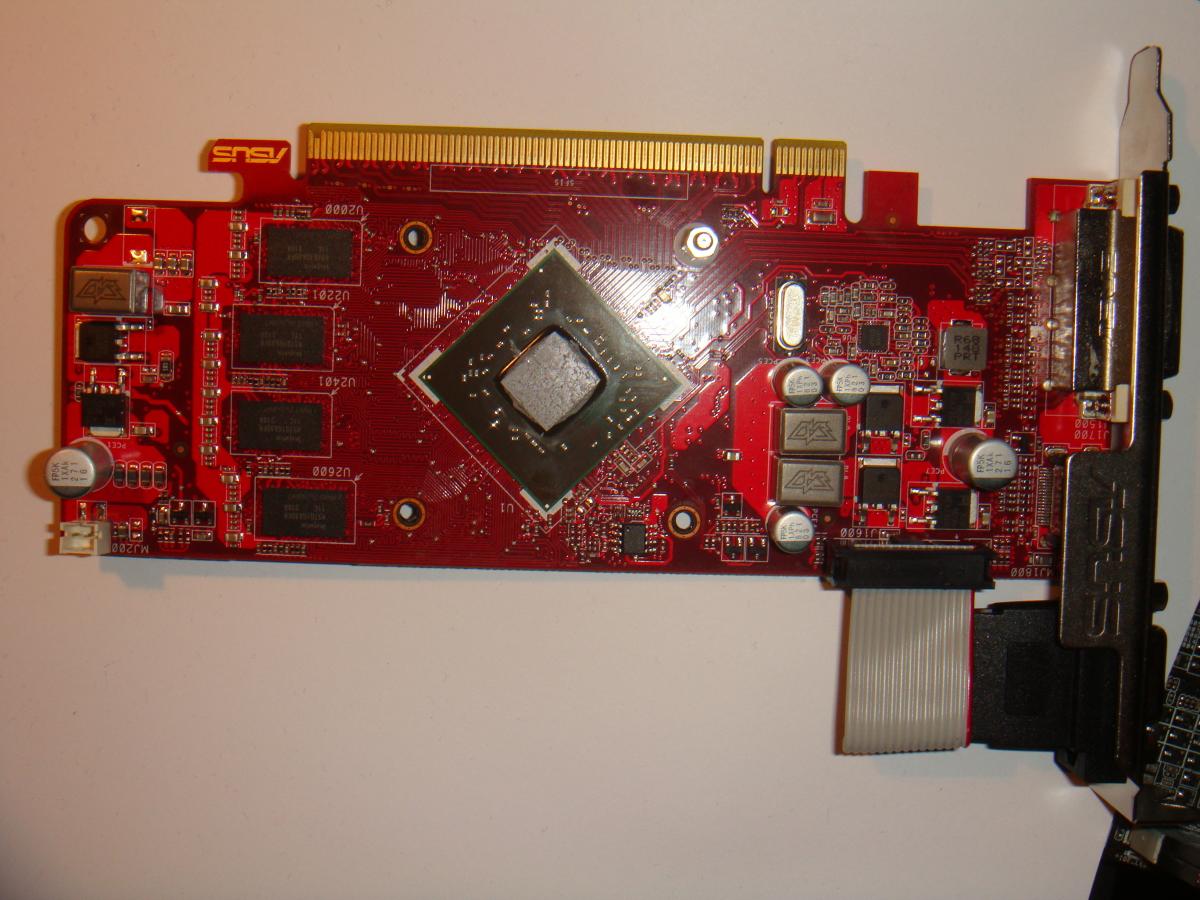

RobertX Posted March 22, 2014 Share Posted March 22, 2014 just to see... Asus Radeon HD 6570 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2006596 Share on other sites More sharing options...
RobertX Posted March 25, 2014 Share Posted March 25, 2014 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2007506 Share on other sites More sharing options...
Slice Posted March 26, 2014 Author Share Posted March 26, 2014 ...looking, here is one...i'll keep digging EM5103QP.pdf Did you read it? It is not hardware monitor. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2007555 Share on other sites More sharing options...

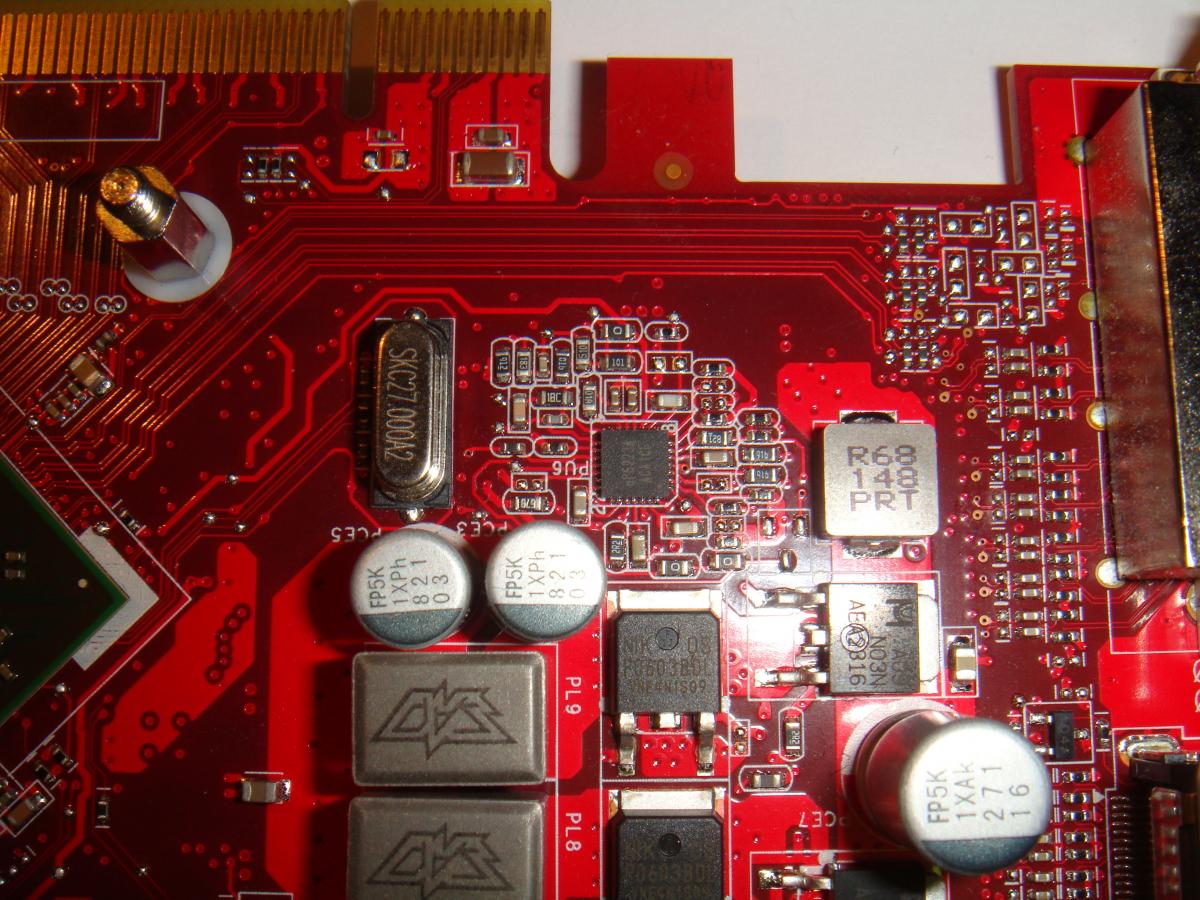

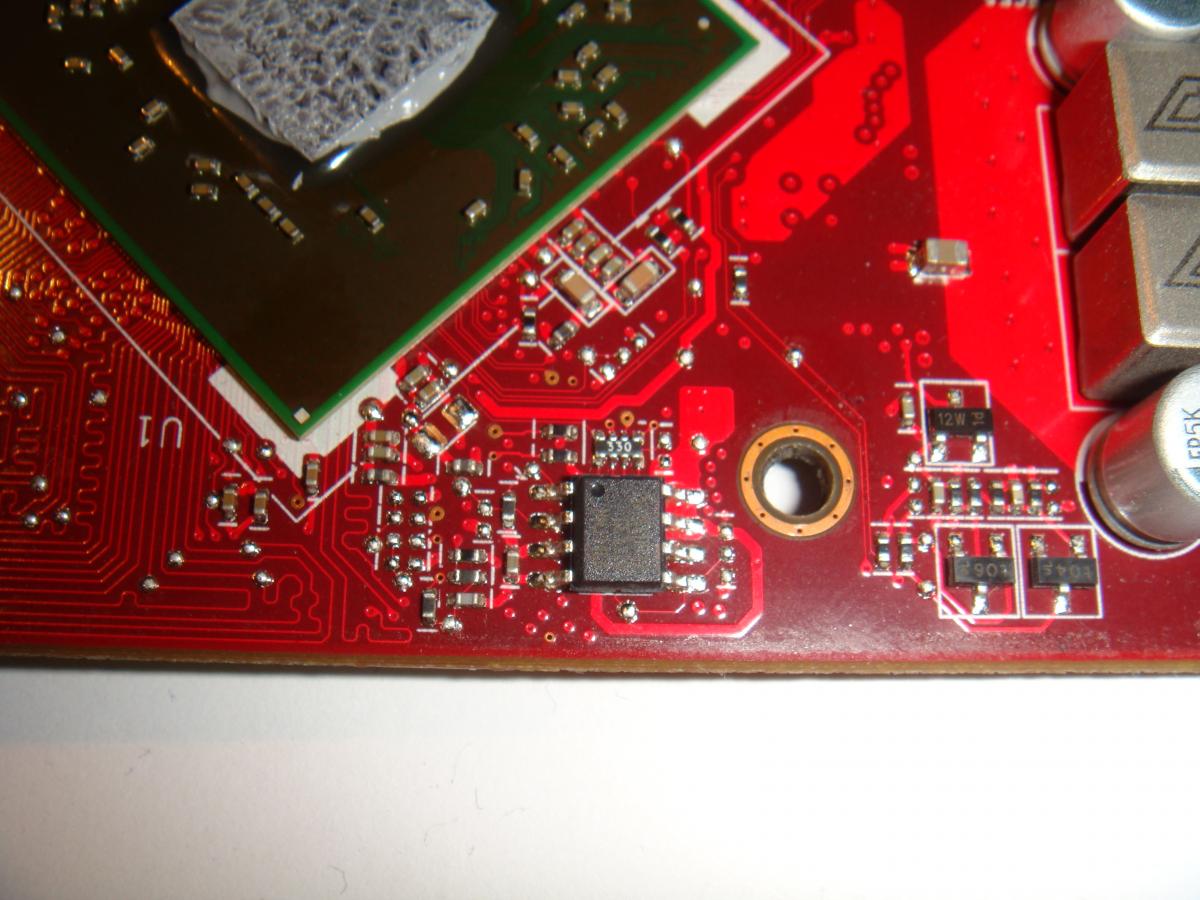

RobertX Posted March 26, 2014 Share Posted March 26, 2014 ...my bad...that is some kind of step down regulator...two on this card ...uP6223a, pwm controller chip...this is it...now for that datasheet ...emailed 2 suppliers...asking for datasheet... Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2007583 Share on other sites More sharing options...
Slice Posted March 26, 2014 Author Share Posted March 26, 2014 AFAIK some Radeon card have analog regulator for the fan. More temperature - more power to fan. And this have no digital control. It is cheep solution and works good enough. Other question about GPU frequency. It is written into VideoBios and we can read it. But there is a constant. I see no sense to show constants and I don't know if this is not a constant. Can Apple's drivers to change AMD GPU frequency? Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2007600 Share on other sites More sharing options...
RobertX Posted March 26, 2014 Share Posted March 26, 2014 Other question about GPU frequency. It is written into VideoBios and we can read it. But there is a constant. I see no sense to show constants and I don't know if this is not a constant. Can Apple's drivers to change AMD GPU frequency? ...food for thought, I'll do more research thanks for your time Slice. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2007605 Share on other sites More sharing options...
RobertX Posted March 28, 2014 Share Posted March 28, 2014 ...now, I'm working on 2 machines...so bear with me....on the lenovo, the LPC(SuperIO) chip is not supported(yet) ...could it be added? the chipset is this: SMSC SCH5617 LPC Super IO ...and some relevant info: http://www.datasheetlib.com/datasheet/552279/sch5617-ns_smsc-standard-microsystems-corporation.html#specs this is from last boot with LPCSensor.kext: 3/27/14 11:52:04.000 PM kernel[0]: SuperIODevice: [Fatal] found unsupported chip! ITE sequence ID=0x8b00, Winbond sequence ID=0xffff 1 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2008051 Share on other sites More sharing options...
RobertX Posted April 1, 2014 Share Posted April 1, 2014 Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2009076 Share on other sites More sharing options...
Slice Posted April 2, 2014 Author Share Posted April 2, 2014 ...now, I'm working on 2 machines...so bear with me....on the lenovo, the LPC(SuperIO) chip is not supported(yet) ...could it be added? the chipset is this: SMSC SCH5617 LPC Super IO ...and some relevant info: http://www.datasheetlib.com/datasheet/552279/sch5617-ns_smsc-standard-microsystems-corporation.html#specs this is from last boot with LPCSensor.kext: 3/27/14 11:52:04.000 PM kernel[0]: SuperIODevice: [Fatal] found unsupported chip! ITE sequence ID=0x8b00, Winbond sequence ID=0xffff No go. I found no datasheet and I don't know if this is a chip with monitoring or there is a SMBUS device like Andigilog. Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2009297 Share on other sites More sharing options...
RobertX Posted April 2, 2014 Share Posted April 2, 2014 ... No go. I found no datasheet and I don't know if this is a chip with monitoring or there is a SMBUS device like Andigilog. ...no problem Slice... i have a datasheet for SMSC SCH5617...not sure if it delivers info...but here it is... sch5617-ns_f8854820f6.pdf from openhardware monitor: LPCIOChip ID: Unknown ITE with ID 0x8B00 at 0x2E/0x2FChip ID: Unknown SMSC with ID 0x8B00 at 0x2E/0x2F Link to comment https://www.insanelymac.com/forum/topic/296460-amdcpumonitor-and-hwsensors-331/page/2/#findComment-2009357 Share on other sites More sharing options...
