JahStories Posted November 13, 2013 Author Share Posted November 13, 2013 ok i've tried your dsdt and a vanilla acpi kext, but it seems effectless on sleep and without nullcpu i still get the lowest frequency Link to comment Share on other sites More sharing options...
JahStories Posted November 13, 2013 Author Share Posted November 13, 2013 ok i've created an ssdt and now i get all the frequencies without NullCpu, still no luck with sleep. Link to comment Share on other sites More sharing options...
SonicRaT Posted November 13, 2013 Share Posted November 13, 2013 OK. I'll look into the DSDT some more and see if I can figure some things out. Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 Thx Link to comment Share on other sites More sharing options...

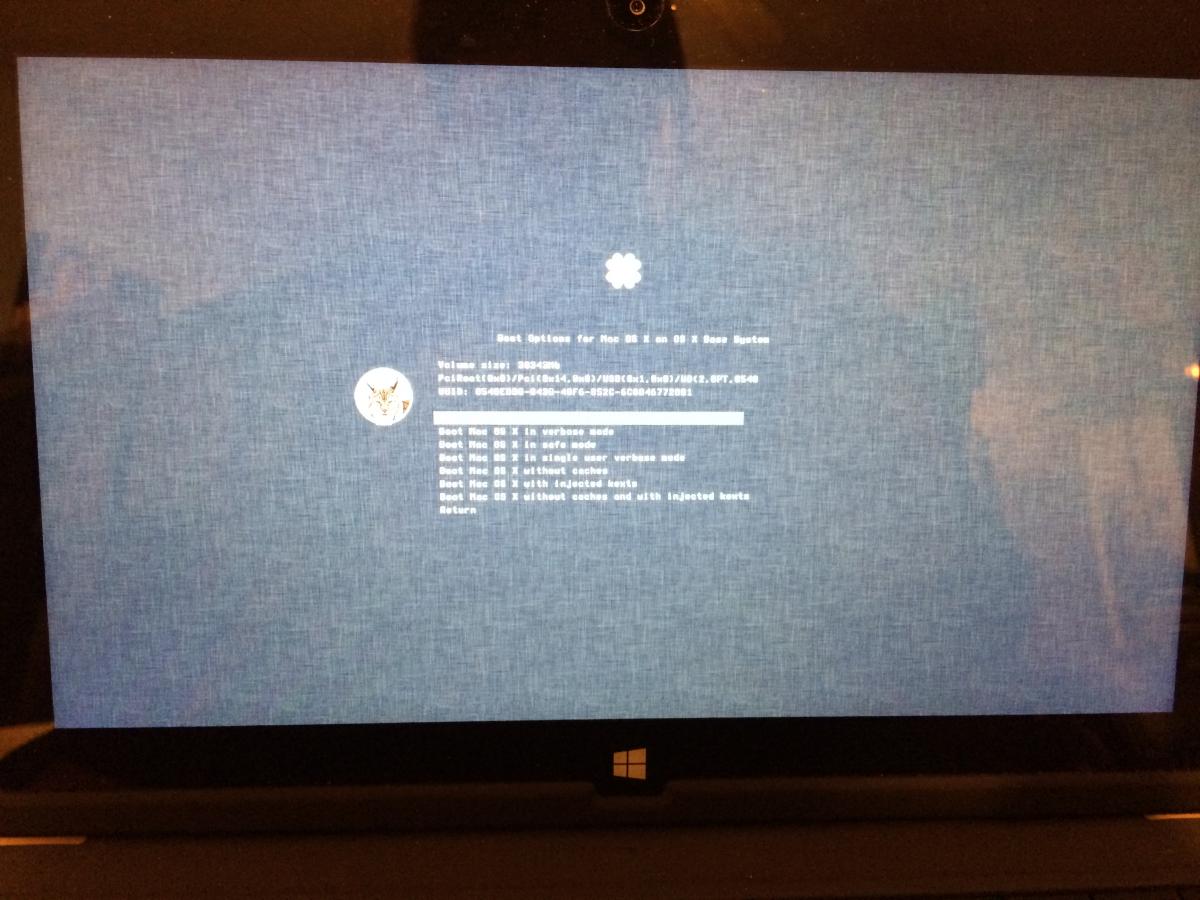

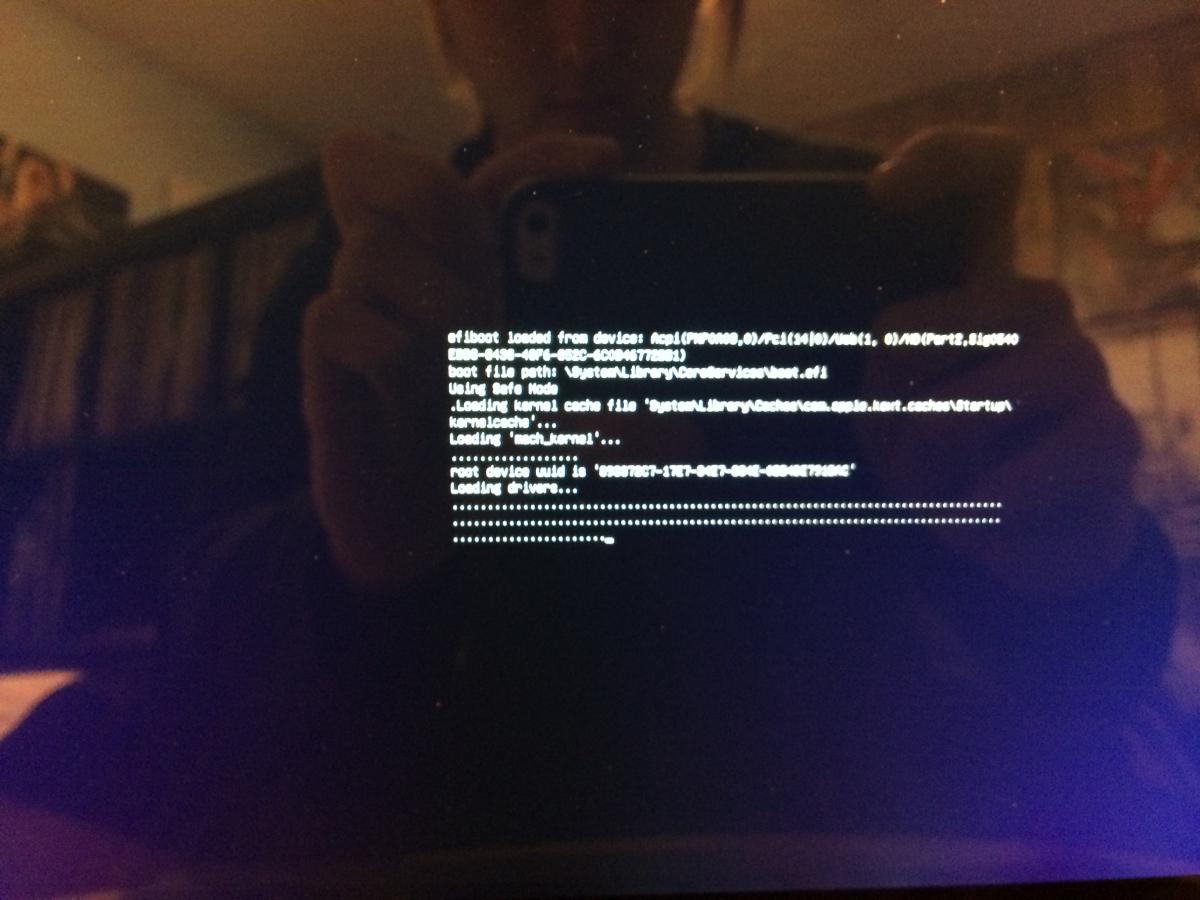

Notorious0830 Posted November 14, 2013 Share Posted November 14, 2013 (surface2osx) Thanks for all the help and knowledge provided by everybody in this forum! Having done a few hackintosh builds this one seems to be the hardest for me. Is it possible anybody can help me with the install? Keep on getting to the clover boot screen and the screen goes black whenever clicking on the Mavericks installer. Have tried booting in verbose mode and safe mode neither go anywhere! Here are the prompts when the installer is launching. Have to do this dual boot install and enjoy the challenge please help! One thing I can't seem to do is get rid of the graphics Ktext's pretty sure I did by deleting them in the EFI partition but when in the System/Installation/Packages folder many more are inside. Do those have to go also? Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 Hi Notorious, i suggest you to wait for the SonicRat's updated surface 2 steps, because without it you won't have the needed files and dsdt... (and i cannot help on the surface 2 issues since i i've the first one). btw if you have not followed the vanilla installation guide to make the usb pen drive, follow that and try again. btw use injected kext no caches on boot. Link to comment Share on other sites More sharing options...
Notorious0830 Posted November 14, 2013 Share Posted November 14, 2013 (surfacepro2osx) Okay thanks for the help anyway. Anxiously awaiting the new guide on surface pro 2 and going to continue trying the install. The vanilla install of pen drive works because clover comes up properly and can see the OSX Mavericks image but no installation starts after clicking on the image. Link to comment Share on other sites More sharing options...
SonicRaT Posted November 14, 2013 Share Posted November 14, 2013 That looks like the error that happens if you're still using the original kernel. You have to replace it with a custom built kernel (linked on the first page). If you have done that, it's likely a result of your DSDT settings then in Clover. Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 (surfaceosx) updated kext and utilities files package on the first post in the guide (now with full battery controller support and with proper power managment with turbo up to 1.8ghz) Link to comment Share on other sites More sharing options...

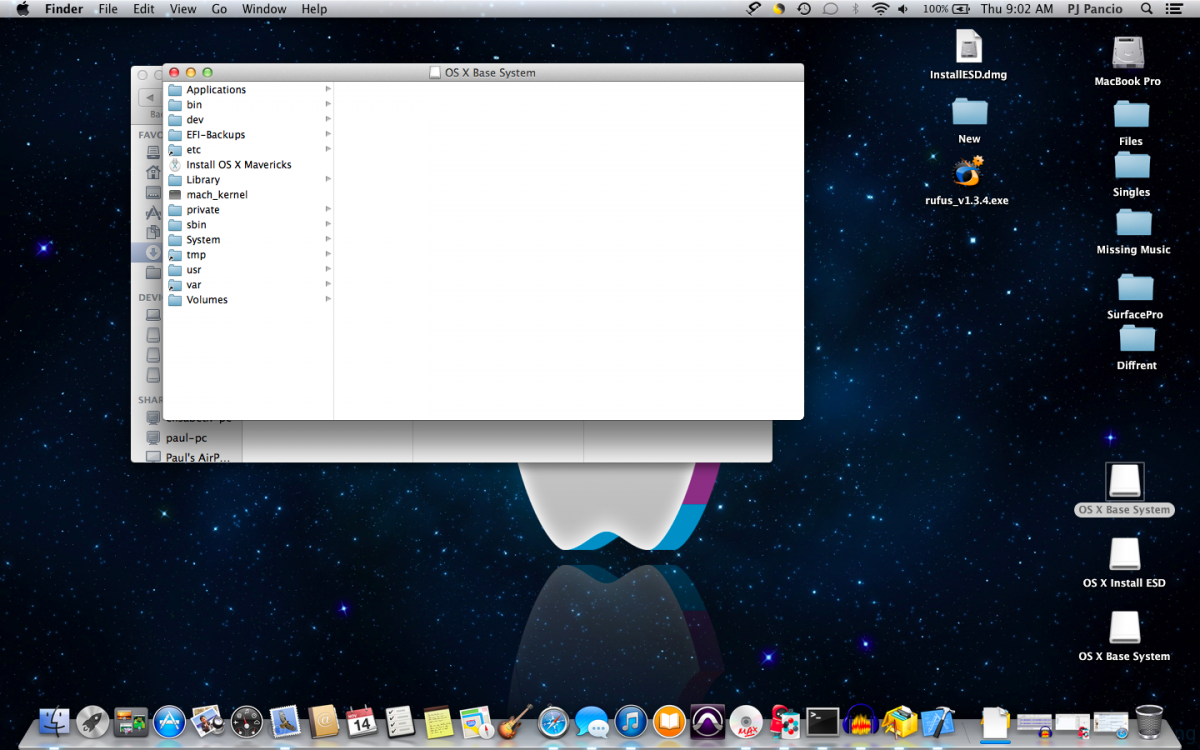

Notorious0830 Posted November 14, 2013 Share Posted November 14, 2013 (Surface2osx) The original kernel was replaced with the Mach_Kernel from the link provided on the first page. Below is a picture of the new kernel in the root folder, hopefully in the right place. The DDST settings were changed in the EFI/Clover/ACPI/Patched folder to the newest found in this thread. Do you know how to load the installer from here and thanks so much for the help so far. Link to comment Share on other sites More sharing options...
SonicRaT Posted November 14, 2013 Share Posted November 14, 2013 That should be right then. I did notice that your clover doesn't appear to be loading OsxAptioFixDrv-64.efi. Check the EFI/CLOVER/driversuefi64/ folder and make sure that is there. There should also be the hfs driver too. EDIT: Oh, don't use the DSDT found here! That's for the Surface Pro 1 only! I meant the DSDT patches found in config.plist for clover. However, check that you have the appropriate clover drivers first. Link to comment Share on other sites More sharing options...
Notorious0830 Posted November 14, 2013 Share Posted November 14, 2013 Thanks so much with the drivers loaded in everything seems to be functioning and the installer is up. Now onto partitioning with the windows setup earlier in the thread and look forward to getting this going. Thanks again and will update progress. Link to comment Share on other sites More sharing options...
oOo Posted November 14, 2013 Share Posted November 14, 2013 I've been keeping an eye on this thread for a while now, so when the surface pro 2 instructions gets updated, I'd be more than glad to give it a try and contribute any problems if any I run into. Link to comment Share on other sites More sharing options...
macspike Posted November 14, 2013 Share Posted November 14, 2013 Surface2 Hey Notorious, I would wait until SonicRat will bring a detailed guide, because of the clock issue. Keep us updated :-) Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 WARN: by now, the provided files are compatible only with the first surface pro i'll edit this post when they will be published. Files for the surface pro 2 are down here Link to comment Share on other sites More sharing options...

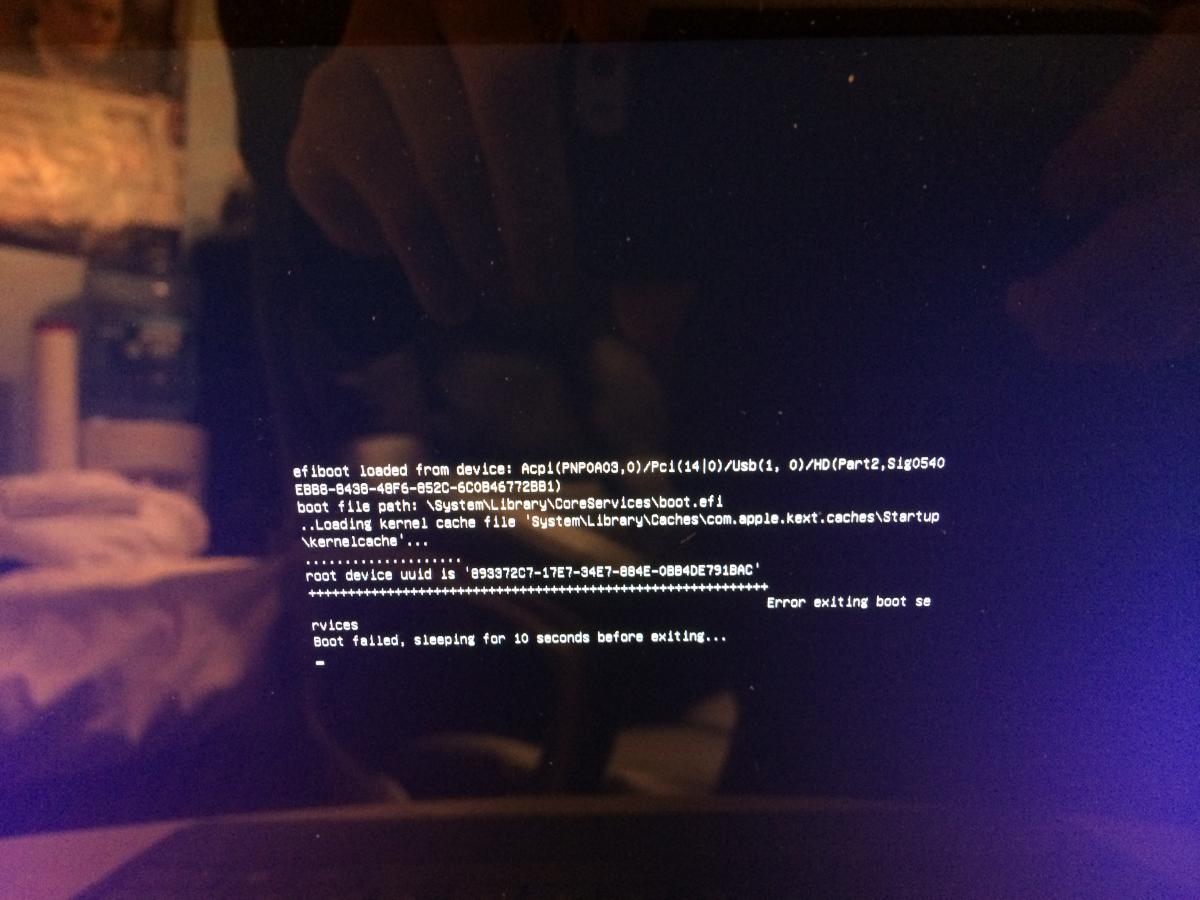

Notorious0830 Posted November 14, 2013 Share Posted November 14, 2013 (Surface2osx) Well the install finished and can see the space taken up on the new drive created. When going into clover the new partition for Mac OSX is on the list of selectable drives, but still getting the screen from earlier when clicking on the OSX comes up black like loading and shoots me back to the surface screen loading into windows 8.1. This was done multiple times in verbose mode, safe mode and without caches and with injected kexts. If you can help me from here please. A new guide would be awesome for this, although feel like this is pretty close to functioning so helping other people is possible. Link to comment Share on other sites More sharing options...
SonicRaT Posted November 14, 2013 Share Posted November 14, 2013 (surfaceosx) Jah, I'll need to look at the SSDT files to fix the sleep problem. Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 (surfaceosx) the ssdt is attached ssdt.aml.zip Link to comment Share on other sites More sharing options...
SonicRaT Posted November 14, 2013 Share Posted November 14, 2013 (surfaceosx) the ssdt is attached Was there only the one? On the SP2, there's 8 or so. Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 gasp! dunno, i extracted just that, do you need other tables to fix sleep? if yes which software can extract them? Link to comment Share on other sites More sharing options...
SonicRaT Posted November 14, 2013 Share Posted November 14, 2013 If you dump the tables with Clover, it'll have them all in the EFI/CLOVER/ACPI/origin/ folder. Link to comment Share on other sites More sharing options...
JahStories Posted November 14, 2013 Author Share Posted November 14, 2013 this is a full dump origin.zip Link to comment Share on other sites More sharing options...
SonicRaT Posted November 15, 2013 Share Posted November 15, 2013 (surfaceosx) See if this helps with the sleep issue. Just replace your old dsdt.aml with this. NOTE: This is only for the Surface Pro, not the Pro 2. dsdt.aml.zip Link to comment Share on other sites More sharing options...
SonicRaT Posted November 15, 2013 Share Posted November 15, 2013 Surface Pro 2: Installation Guide Follow this guide to create a bootable USB Mavericks: Mavericks Vanilla installation NOTE: DO NOT INSTALL CHAMELEON Download and install Clover (http://sourceforge.net/projects/cloverefiboot/)Select Custom Install Select UEFI Install Select OsxAptioFixDrv-64.efi and VBoxHfs-64.efi under Drivers Copy the included mach_kernel to the root of the USB device Copy the included kexts to USB:/System/Library/Extensions Copy the included ACPI patches to EFI/CLOVER/ACPI/patched/ Copy the included config.plist to EFI/CLOVER/ If you wish to repartition your drive, skip the following steps: Start Windows 8.1 Go to the desktop, right click on the "Start" button, and open Disk Management Select the C:\ partition, right click, and go to "Shrink Volume" Enter the new size for the volume and click OK Afterwards, right click on the empty space and select format Format the new partition as NTFS Shutdown the device, then power on holding the volume down key with the USB stick installed Open Disk Utility once the installer has come up Locate the newly created NTFS partition and select "erase" Change the file system to HFS+ (MacOS Extended Journaled) Exit Disk Utility Install Mavericks Prior to restarting, open Terminal Copy the required kexts to /S/L/E: cp -R /System/Library/Extensions/FakeSMC.kext /Volumes/"NEW OSX PARTITION"/System/Library/Extensions/ cp -R /System/Library/Extensions/AppleIntelCPUPowerManagement.kext /Volumes/"NEW OSX PARTITION"/System/Library/Extensions/ cp -R /System/Library/Extensions/ACPIBatteryManager.kext /Volumes/"NEW OSX PARTITION"/System/Library/Extensions/ cp -R /System/Library/Extensions/VoodooHDA.kext /Volumes/"NEW OSX PARTITION"/System/Library/Extensions/ Reboot back into Clover (you will need to hold the volume button again) Select the newly installed Mavericks drive and boot Post-Install Steps: Install HWSensors: http://sourceforge.net/projects/hwsensors/ Install Touch-Base drivers: http://touch-base.com/documentation/SurfacePro.htm (may not yet support Surface Pro 2, but touch works) 11/15/13: v1.0 files removed due to DSDT/SSDT issues. 2 Link to comment Share on other sites More sharing options...
macspike Posted November 15, 2013 Share Posted November 15, 2013 SonicRat ...Tx you very much ... I think you forgot to upload the files ... Link to comment Share on other sites More sharing options...
