pokenguyen Posted June 17, 2015 Share Posted June 17, 2015 Hi, I tried to make changes in HEX for my BCM943224 (0x4353) but doesn't. I did the patch for macbookpro6,1 (Mac-F22589C8, need because of the Intel HD Graphics) using Clover. I tried to use in Fake ID Wi-Fi 0x43a014E4 and 0x435314E4, but no results. Can anyone help me? OS X 10.10.3. Captura de Tela 2015-06-16 às 18.52.09.png Your AirPortBrcm4360 is incorrectly, the length of Find and Replace must be the same. You can try adding some 0 to make the hex equal. 1 Link to comment Share on other sites More sharing options...
oliveira131 Posted June 18, 2015 Share Posted June 18, 2015 Your AirPortBrcm4360 is incorrectly, the length of Find and Replace must be the same. You can try adding some 0 to make the hex equal. Thanks pokenguyen!!! I completed with 0 and works fine! Link to comment Share on other sites More sharing options...
mnfesq Posted June 20, 2015 Share Posted June 20, 2015 mnfesq, on 13 Jun 2015 - 9:56 PM, said: I am having real trouble with 10.11 as far as continuity and handoff go. I cannot get Bluetooth working with the vanilla IOBluetoothFamily.kext and I cannot get my wifi to use Brcm4360 despite my DSDT patch. It will only work with Brcm4331. Is this a whitelist issue? What's going on? BTW, I have continuity and handoff working perfectly in Yosemite. Read here for bluetooth http://www.insanelymac.com/forum/topic/306632-broadcom-bluetooth-20702a/?do=findComment&comment=2144734 Call it a cop-out but I just decided to buy a new wifi card. I got the Azurewave AW-CE123H and now Handoff and Continuity are working perfectly. I figured the hours I put into the problem so far and the hours more I would spend trying to solve my problem weren't worth it when I could buy the new card for $28 USD. Link to comment Share on other sites More sharing options...
mnfesq Posted June 23, 2015 Share Posted June 23, 2015 Ok, I figured out the new handoff binary patch for 10.11 beta1. Thanks for previous work done by Skvo and others. IOBluetoothFamily Find: 4885FF7447488B07 Replace: 41BE0F000000EB44 I'm not getting this to work with Beta 2. Is it working for you? Link to comment Share on other sites More sharing options...
lisai9093 Posted June 24, 2015 Share Posted June 24, 2015 I'm not getting this to work with Beta 2. Is it working for you? Yes, working for me. Link to comment Share on other sites More sharing options...
VACAS Posted June 24, 2015 Share Posted June 24, 2015 Great !!!!!! Toleda ! my wifi Broadcom 4325 B/G/N found in my system 10.8.5 perfect ! Link to comment Share on other sites More sharing options...
toleda Posted June 25, 2015 Author Share Posted June 25, 2015 10.11 Broadloom Bluetooth, see Post #32, RehabMan, Broadcom Bluetooth 20702A Link to comment Share on other sites More sharing options...
jsl Posted June 25, 2015 Share Posted June 25, 2015 (edited) Handoff patch failed to work under 10.11.... 5GHz patch is fine. Which 5GHz patch was working for 10.11 beta ? I have tried those at Post #1 all in vain for 10.11 beta. No such a problem for 10.10.3 or 10.10.4 in my BCM4360 at Asus Z87 & Z97 MBs. [solved] Those patch for BCM4360 at Post #1 are still working in 10.11 DP1 or DP2. My mistake was due to abnormal behavior of 0xED (hex editor) in 10.11. However I can fix it in 10.10.x and working now. Edited June 26, 2015 by jsl Link to comment Share on other sites More sharing options...
macgihan Posted June 25, 2015 Share Posted June 25, 2015 hi i have Broadcom BCM4352 Azurewave AW-CE123H WiF i+ BT 867Mbps Bluetooth 4.0 but i have no bluetooth any help? Dell 7537 laptop+clover+intel 4500U+16GB+1TB+ Link to comment Share on other sites More sharing options...
toleda Posted June 25, 2015 Author Share Posted June 25, 2015 I have tried those at Post #1 all in vain for 10.11 beta. Post #1/BCM94352 5 GHz/BT Handoff Patch (10.10 and newer)/1. 10.10 and newer, 5GHz; working in 10.11 hi i have Broadcom BCM4352 Azurewave AW-CE123H WiF i+ BT 867Mbps Bluetooth 4.0 but i have no bluetooth 10.10/Post #1/BCM94352 BT/1. BrcmPatchRAM.kext 10.11/Post #358 See Post #1, Problem Reporting for further support. 1 Link to comment Share on other sites More sharing options...
macgihan Posted June 25, 2015 Share Posted June 25, 2015 Post #1/BCM94352 5 GHz/BT Handoff Patch (10.10 and newer)/1. 10.10 and newer, 5GHz; working in 10.11 10.10/BCM94352 BT/1. BrcmPatchRAM.kext 10.11/Post #358 See Post #1, Problem Reporting for further support. thanks got fixed now thanks but on windows it doesn't discovery any bluetooth devices !!! need any bluetooth divers? thanks got fixed now thanks but on windows it doesn't discovery any bluetooth devices !!! need any bluetooth divers? but now i have random freezes (on os x 10.10.3 dell 7537 laptop intel 4400+16GB+1TB+nvidia GT750m disabled) idon't know why this happens help!!!! Link to comment Share on other sites More sharing options...
jsl Posted June 26, 2015 Share Posted June 26, 2015 Post #1/BCM94352 5 GHz/BT Handoff Patch (10.10 and newer)/1. 10.10 and newer, 5GHz; working in 10.11 Thanks and it really working in 10.11 DP2. My mistake was due to abnormal behavior of 0xED (hex editor) in 10.11. However I can fix it in 10.10.x and working now. Link to comment Share on other sites More sharing options...

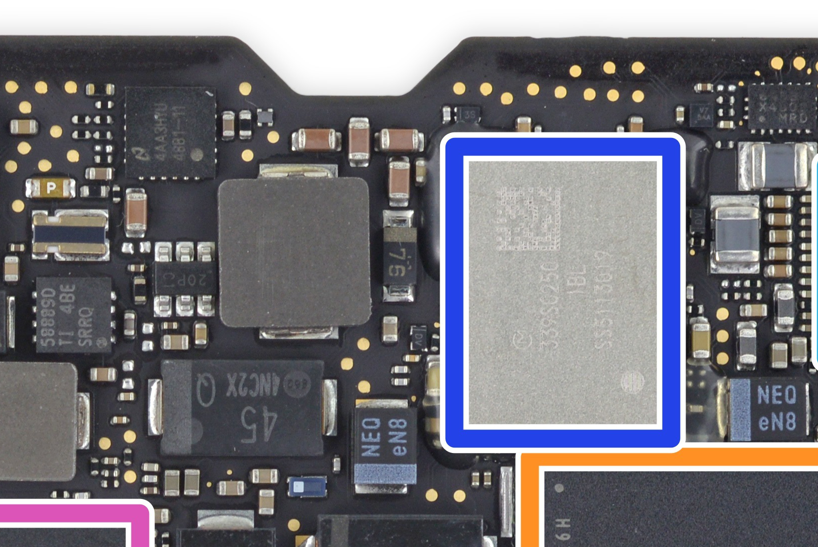

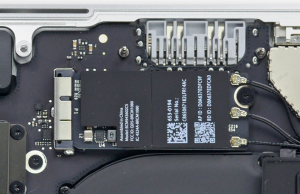

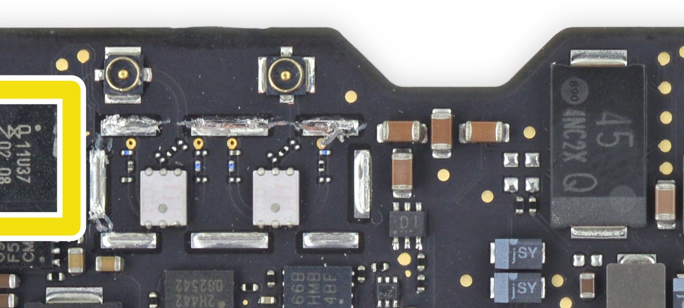

Skvo Posted June 26, 2015 Share Posted June 26, 2015 Information on the latest modules from Apple: 1. MacBook Pro 13", Retina, Early 2015Teardown: https://www.ifixit.com/Teardown/MacBook+Pro+13-Inch+Retina+Display+Early+2015+Teardown/38300 Photo from teardown (сlick to enlarge): Module: Broadcom BCM943602CS Wi-Fi chipset: Broadcom BCM43602. Vendor ID 0x14e4, DeviceID: 0x43ba Broadcom News Release for BCM43602 - http://www.broadcom.com/press/release.php?id=s817141 Bluetooth chipset: Broadcom BCM20703 (chipset support BT 4.1). Vendor ID: 0x05ac (Apple Inc.), Product ID: 0x8290. 2. Macbook 12", Retina, Early 2015 Teardown: https://www.ifixit.com/Teardown/Retina+Macbook+2015+Teardown/39841 Photo from teardown. Integrated module: two antenna connectors on the other side of the motherboard: Module: Murata 339S0250 Based on a single-chip solution: Broadcom BCM4350 (Wi-Fi 802.11ac, up to 866Mbps + Bluetooth 4) Product Info for BCM4350: https://www.broadcom.com/products/wireless-connectivity/wireless-lan/bcm4350 Wi-Fi used PCIe bus: Vendor ID 0x14e4, DeviceID: 0x43a3 Bluetooth used UART bus (not USB). All new modules support in OS X Yosemite and El Capitan. AirPortBrcm4360.kext from 10.10.0 and newer contains DeviceID: pci14e4,43ba and pci14e4,43a3. USB Bluetooth BCM20703 - used IOBluetoothHostControllerUSBTransport.kext UART Bluetooth BCM4350 - used IOBluetoothHostControllerUARTTransport.kext note: no drivers UART Bluetooth BCM4350 for Windows: https://support.apple.com/en-us/HT204432 1 Link to comment Share on other sites More sharing options...
macgihan Posted June 26, 2015 Share Posted June 26, 2015 if anyone know how to fix this (Broadcom BCM4352 Azurewave AW-CE123H WiF i+ BT 867Mbps Bluetooth 4.0) Link to comment Share on other sites More sharing options...
toleda Posted June 27, 2015 Author Share Posted June 27, 2015 if anyone know how to fix this 2nd request, see Post #1. Information on the latest modules from Apple: New choices, thanks. Link to comment Share on other sites More sharing options...
macgihan Posted June 28, 2015 Share Posted June 28, 2015 i don't get it bro i flowed exactly same to config this card but i have no location serives Link to comment Share on other sites More sharing options...
toleda Posted June 28, 2015 Author Share Posted June 28, 2015 i don't get it bro i flowed exactly same to config this card but i have no location serives bro, internet; yes or no? Link to comment Share on other sites More sharing options...
macgihan Posted June 28, 2015 Share Posted June 28, 2015 definitely i have but not location Link to comment Share on other sites More sharing options...
toleda Posted June 28, 2015 Author Share Posted June 28, 2015 definitely i have but not location To be clear; no files attached, no idea. Ignored Post #361; see Post #1, Problem Reporting for further support. Link to comment Share on other sites More sharing options...
macgihan Posted June 28, 2015 Share Posted June 28, 2015 i'm clover user on dell 7537 LAPTOP(UEFI)+ intel 4400(nvidia gt750M disabled with DSDT)+i7(4500U)+1920x1080 (touch display) Dell bios A12 guid used http://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/ card that i have Broadcom BCM4352 Azurewave AW-CE123H WiF i+ BT 867Mbps Bluetooth 4.0 from http://www.ebay.co.uk/itm/Broadcom-BCM4352-Azurewave-AW-CE123H-WiF-i-BT-867Mbps-Bluetooth-4-0-Hackintosh-/281300566338?pt=LH_DefaultDomain_0&hash=item417ed20142 Link to comment Share on other sites More sharing options...
toleda Posted June 29, 2015 Author Share Posted June 29, 2015 i'm clover user on dell 7537 LAPTOP(UEFI) WiFi is working. Is your router US/FCC? Link to comment Share on other sites More sharing options...
macgihan Posted June 30, 2015 Share Posted June 30, 2015 this is my router but even if i create a hotspot using my nexus no location http://www.tp-link.in/products/details/?categoryid=242&model=TL-WA701ND#spec Link to comment Share on other sites More sharing options...
vanquybn Posted July 1, 2015 Share Posted July 1, 2015 I have just updated to 10.10.4, Bluetooth still work fine with Apple magic mouse. but wifi 5GHz need to patch again Link to comment Share on other sites More sharing options...
toleda Posted July 1, 2015 Author Share Posted July 1, 2015 if i create a hotspot using my nexus no location Router problem. Are you located in the US? Link to comment Share on other sites More sharing options...
macgihan Posted July 2, 2015 Share Posted July 2, 2015 na bro Sri lanka is it ok to use country code as US since i'm in outside of us? Link to comment Share on other sites More sharing options...
