Vanguard Posted March 18, 2016 Share Posted March 18, 2016 Good. I see you choose framebuffer Pondweed. This is wrong. It is a framebuffer for AMD7000 while you have AMD6000. You should choose Hydrilla for example. Hi Slice Perhaps I'm using a bad dump of the Frame Buffer Personalities, but the list I have shows Pondweed in the 6000 family Script version 0.15 Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller Personality: Iago ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 0000010 00 10 00 00 16 00 00 00 c4 00 00 00 10 00 01 11 0000020 Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller Personality: Hypoprion ConnectorInfo count in decimal: 2 Disk offset in decimal 674608 0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 0000010 00 10 00 00 16 00 00 00 c4 00 00 00 10 00 01 11 0000020 Personality: Lamna ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 00 02 00 00 14 00 00 00 80 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 80 00 00 00 00 10 01 12 0000020 Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller Personality: Megalodon ConnectorInfo count in decimal: 3 Disk offset in decimal 674592 0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 00 00 00 00 00 10 01 12 0000020 80 00 00 00 02 00 00 00 04 00 00 00 00 10 00 00 0000030 Personality: Triakis ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 00 00 00 00 00 10 01 12 0000020 Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller Personality: Flicker ConnectorInfo count in decimal: 3 Disk offset in decimal 662240 0000000 00 04 00 00 00 04 00 00 00 01 00 00 02 01 03 05 0000010 00 04 00 00 00 04 00 00 00 01 00 00 01 00 02 02 0000020 00 02 00 00 14 02 00 00 00 01 00 00 00 10 01 04 0000030 Personality: Gliff ConnectorInfo count in decimal: 3 Disk offset in decimal 662288 0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 02 02 0000020 00 04 00 00 04 06 00 00 00 01 00 00 10 00 01 01 0000030 Personality: Shrike ConnectorInfo count in decimal: 3 Disk offset in decimal 662336 0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 00 10 00 01 01 0000030 Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller Personality: Cardinal ConnectorInfo count in decimal: 2 Disk offset in decimal 654064 0000000 00 02 00 00 14 02 00 00 00 01 00 00 01 01 01 04 0000010 04 00 00 00 14 02 00 00 00 01 00 00 00 10 02 03 0000020 Personality: MotMot ConnectorInfo count in decimal: 2 Disk offset in decimal 654096 0000000 00 04 00 00 04 01 00 00 00 01 00 00 10 00 02 03 0000010 04 00 00 00 14 02 00 00 00 01 00 00 01 11 01 04 0000020 Personality: Quail ConnectorInfo count in decimal: 3 Disk offset in decimal 654128 0000000 02 00 00 00 40 00 00 00 09 01 00 00 22 01 00 07 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 03 04 0000020 00 04 00 00 04 03 00 00 00 01 00 00 10 00 02 03 0000030 Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller Personality: Douc ConnectorInfo count in decimal: 2 Disk offset in decimal 1642144 0000000 02 00 00 00 00 05 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 02 00 00 00 03 00 00 11 02 01 01 0000020 Personality: Langur ConnectorInfo count in decimal: 3 Disk offset in decimal 1642192 0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 04 02 0000010 00 04 00 00 04 06 00 00 00 01 00 00 11 02 01 01 0000020 04 00 00 00 14 02 00 00 00 01 00 00 02 04 05 03 0000030 Personality: Uakari ConnectorInfo count in decimal: 4 Disk offset in decimal 1642240 0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 01 0000010 04 00 00 00 14 00 00 00 00 71 00 00 01 12 01 03 0000020 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 05 0000030 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 04 0000040 Personality: Zonalis ConnectorInfo count in decimal: 6 Disk offset in decimal 1642304 0000000 00 04 00 00 04 06 00 00 00 71 00 00 20 01 06 06 0000010 00 04 00 00 04 06 00 00 00 71 00 00 10 00 05 05 0000020 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 04 0000030 00 04 00 00 04 06 00 00 00 71 00 00 11 02 01 03 0000040 00 04 00 00 04 06 00 00 00 71 00 00 22 05 04 02 0000050 00 04 00 00 04 06 00 00 00 71 00 00 12 04 03 01 0000060 Personality: Alouatta ConnectorInfo count in decimal: 4 Disk offset in decimal 1642400 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 06 00 00 00 71 00 00 11 02 01 01 0000020 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 02 0000030 00 04 00 00 04 06 00 00 00 71 00 00 22 05 04 04 0000040 Personality: Hoolock ConnectorInfo count in decimal: 3 Disk offset in decimal 1642464 0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 05 01 0000010 00 04 00 00 04 06 00 00 00 01 00 00 11 02 04 02 0000020 04 00 00 00 14 02 00 00 00 01 00 00 02 04 01 03 0000030 Personality: Vervet ConnectorInfo count in decimal: 4 Disk offset in decimal 1642512 0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 02 0000010 04 00 00 00 14 00 00 00 00 71 00 00 01 12 01 04 0000020 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 03 0000030 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 01 0000040 Personality: Baboon ConnectorInfo count in decimal: 3 Disk offset in decimal 1642576 0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 03 0000010 00 08 00 00 00 02 00 00 00 71 00 00 22 05 02 01 0000020 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 02 0000030 Personality: Eulemur ConnectorInfo count in decimal: 3 Disk offset in decimal 1642624 0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 04 0000010 00 08 00 00 00 02 00 00 00 71 00 00 12 04 04 02 0000020 10 00 00 00 10 00 00 00 00 00 00 00 00 10 00 01 0000030 Personality: Galago ConnectorInfo count in decimal: 2 Disk offset in decimal 1642672 0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Colobus ConnectorInfo count in decimal: 2 Disk offset in decimal 1642720 0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Mangabey ConnectorInfo count in decimal: 2 Disk offset in decimal 1642768 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 03 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Nomascus ConnectorInfo count in decimal: 4 Disk offset in decimal 1642816 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 0000010 02 00 00 00 00 01 00 00 09 03 00 00 12 04 03 03 0000020 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000030 00 04 00 00 04 07 00 00 00 73 00 00 21 03 02 02 0000040 Personality: Orangutan ConnectorInfo count in decimal: 2 Disk offset in decimal 1642896 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller Personality: Pithecia ConnectorInfo count in decimal: 2 Disk offset in decimal 1663904 0000000 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 04 0000010 04 00 00 00 14 02 00 00 00 01 00 00 00 00 04 03 0000020 Personality: Bulrushes ConnectorInfo count in decimal: 6 Disk offset in decimal 1663936 0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000030 00 04 00 00 04 03 00 00 00 01 00 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 00 00 20 01 06 06 0000060 Personality: Cattail ConnectorInfo count in decimal: 4 Disk offset in decimal 1664032 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 Personality: Hydrilla ConnectorInfo count in decimal: 5 Disk offset in decimal 1664096 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 22 05 05 04 0000040 00 04 00 00 04 03 00 00 00 01 00 00 10 00 04 05 0000050 Personality: Duckweed ConnectorInfo count in decimal: 4 Disk offset in decimal 1664176 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02 0000020 00 08 00 00 04 02 00 00 00 01 00 00 11 02 03 04 0000030 00 02 00 00 14 02 00 00 00 01 00 00 00 00 06 05 0000040 Personality: Fanwort ConnectorInfo count in decimal: 4 Disk offset in decimal 1664240 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 04 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 Personality: Elodea ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05 0000020 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000030 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000040 00 04 00 00 00 01 00 00 00 09 10 00 22 05 04 04 0000050 Personality: Kudzu ConnectorInfo count in decimal: 2 Disk offset in decimal 1664384 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000010 00 08 00 00 04 02 00 00 00 01 00 00 11 02 01 01 0000020 Personality: Gibba ConnectorInfo count in decimal: 5 Disk offset in decimal 1664416 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 22 05 04 02 0000020 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04 0000030 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05 0000040 04 00 00 00 04 02 00 00 00 01 00 00 11 02 01 03 0000050 Personality: Lotus ConnectorInfo count in decimal: 3 Disk offset in decimal 1664496 0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000010 00 08 00 00 04 02 00 00 00 01 00 00 22 05 04 04 0000020 00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02 0000030 Personality: Ipomoea ConnectorInfo count in decimal: 3 Disk offset in decimal 1664544 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 01 05 0000010 00 08 00 00 04 02 00 00 00 01 00 00 11 02 04 03 0000020 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 02 0000030 Personality: Muskgrass ConnectorInfo count in decimal: 4 Disk offset in decimal 1664592 0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000010 00 04 00 00 00 01 00 00 00 09 12 00 21 03 02 02 0000020 00 04 00 00 00 01 00 00 00 09 13 00 22 05 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Juncus ConnectorInfo count in decimal: 4 Disk offset in decimal 1664656 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 10 00 04 05 0000020 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000030 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000040 Personality: Osmunda ConnectorInfo count in decimal: 4 Disk offset in decimal 1664720 0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Pondweed ConnectorInfo count in decimal: 3 Disk offset in decimal 1664784 0000000 02 00 00 00 00 01 00 00 09 01 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 00 21 03 02 02 0000030 Personality: Spikerush ConnectorInfo count in decimal: 4 Disk offset in decimal 1664832 0000000 02 00 00 00 40 00 00 00 29 05 01 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 02 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 03 00 12 04 03 03 0000040 Personality: Typha ConnectorInfo count in decimal: 5 Disk offset in decimal 1664896 0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 04 01 0000010 00 04 00 00 04 03 00 00 00 01 02 00 21 03 05 02 0000020 00 04 00 00 00 01 00 00 00 09 03 00 10 00 02 05 0000030 00 04 00 00 00 01 00 00 00 09 04 00 20 01 03 06 0000040 04 00 00 00 14 02 00 00 00 01 05 00 02 04 01 03 0000050 Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller Personality: Namako ConnectorInfo count in decimal: 4 Disk offset in decimal 1689680 0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 02 0000010 02 00 00 00 00 01 00 00 00 01 02 03 12 04 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 03 0000030 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 04 0000040 Personality: Aji ConnectorInfo count in decimal: 4 Disk offset in decimal 1689840 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 04 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 0000040 Personality: Buri ConnectorInfo count in decimal: 4 Disk offset in decimal 1689904 0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Chutoro ConnectorInfo count in decimal: 5 Disk offset in decimal 1689968 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 Personality: Dashimaki ConnectorInfo count in decimal: 4 Disk offset in decimal 1690048 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 0000010 00 04 00 00 04 03 00 00 00 01 02 00 22 05 03 05 0000020 04 00 00 00 14 02 00 00 00 01 03 01 00 00 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 0000040 Personality: Ebi ConnectorInfo count in decimal: 5 Disk offset in decimal 1690112 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 01 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 01 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 01 10 00 05 05 0000050 Personality: Gari ConnectorInfo count in decimal: 5 Disk offset in decimal 1690192 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 Personality: Futomaki ConnectorInfo count in decimal: 4 Disk offset in decimal 1690320 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 04 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 05 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 06 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 03 0000040 Personality: Hamachi ConnectorInfo count in decimal: 4 Disk offset in decimal 1690384 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 04 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 0000040 Personality: OPM ConnectorInfo count in decimal: 6 Disk offset in decimal 1690512 0000000 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 01 0000010 00 04 00 00 04 03 00 00 00 01 00 01 21 03 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 03 0000030 00 04 00 00 04 03 00 00 00 01 00 01 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 00 01 10 00 05 05 0000050 00 04 00 00 14 03 00 00 00 01 00 01 20 01 06 06 0000060 Personality: Ikura ConnectorInfo count in decimal: 1 Disk offset in decimal 1690608 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: IkuraS ConnectorInfo count in decimal: 6 Disk offset in decimal 1690624 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Personality: Junsai ConnectorInfo count in decimal: 6 Disk offset in decimal 1690720 0000000 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 01 0000010 00 04 00 00 04 03 00 00 00 01 00 01 22 05 04 02 0000020 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 03 0000030 00 04 00 00 04 03 00 00 00 01 00 01 21 03 02 04 0000040 00 04 00 00 04 03 00 00 00 01 00 01 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 00 01 20 01 06 06 0000060 Personality: Kani ConnectorInfo count in decimal: 1 Disk offset in decimal 1690816 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: KaniS ConnectorInfo count in decimal: 6 Disk offset in decimal 1690832 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Personality: DashimakiS ConnectorInfo count in decimal: 4 Disk offset in decimal 1690928 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 03 05 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 0000040 Personality: Maguro ConnectorInfo count in decimal: 1 Disk offset in decimal 1690992 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: MaguroS ConnectorInfo count in decimal: 6 Disk offset in decimal 1691008 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller Personality: Baladi ConnectorInfo count in decimal: 6 Disk offset in decimal 1659616 0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02 0000030 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06 0000060 Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller Personality: OPM ConnectorInfo count in decimal: 6 Disk offset in decimal 1659392 0000000 00 04 00 00 04 03 00 00 00 00 00 01 10 00 01 01 0000010 00 04 00 00 04 03 00 00 00 00 00 01 20 01 02 02 0000020 00 04 00 00 04 03 00 00 00 00 00 01 11 02 03 03 0000030 00 04 00 00 04 03 00 00 00 00 00 01 21 03 04 04 0000040 00 04 00 00 04 03 00 00 00 00 00 01 12 04 05 05 0000050 00 04 00 00 04 03 00 00 00 00 00 01 22 05 06 06 0000060 Personality: Basset ConnectorInfo count in decimal: 4 Disk offset in decimal 1659632 0000000 02 00 00 00 00 01 00 00 00 01 01 03 21 03 02 02 0000010 02 00 00 00 00 01 00 00 00 01 02 03 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 07 10 00 03 03 0000030 00 04 00 00 04 03 00 00 00 01 04 07 20 01 04 04 0000040 Personality: Greyhound ConnectorInfo count in decimal: 6 Disk offset in decimal 1659824 0000000 00 04 00 00 04 03 00 00 00 01 01 07 10 00 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 20 01 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 12 04 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 22 05 06 06 0000060 Personality: Baladi ConnectorInfo count in decimal: 6 Disk offset in decimal 1659952 0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02 0000030 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06 0000060 I've tried multiple different framebuffers from the 6000 family, including Elodea (default with PBI), Osmunda, Cattail, Hydrilla, Lotus, and Pithecia. So far, none have worked with their native nor my edited framebuffer values. Link to comment Share on other sites More sharing options...
vusun123 Posted March 18, 2016 Share Posted March 18, 2016 Good. I see you choose framebuffer Pondweed. This is wrong. It is a framebuffer for AMD7000 while you have AMD6000. You should choose Hydrilla for example. You are wrong Slice, Pondweed is for 6000, 7000 series have Japanese-esque names like Ebi, Maguro, etc. So if indeed that is the case, (1) why isn't EDID being injected..I have that option enabled in config.plist, and (2) how do I fix it? Because the device property of discrete GPU HP laptop often is PEGP.DGFX which is abnormal, Clover tends to not inject it properly Link to comment Share on other sites More sharing options...
Vanguard Posted March 18, 2016 Share Posted March 18, 2016 You are wrong Slice, Pondweed is for 6000, 7000 series have Japanese-esque names like Ebi, Maguro, etc. Because the device property of discrete GPU HP laptop often is PEGP.DGFX which is abnormal, Clover tends to not inject it properly Is there a fix for when Clover doesn't inject it? Link to comment Share on other sites More sharing options...
Slice Posted March 18, 2016 Author Share Posted March 18, 2016 You are wrong Slice, Pondweed is for 6000, 7000 series have Japanese-esque names like Ebi, Maguro, etc. Because the device property of discrete GPU HP laptop often is PEGP.DGFX which is abnormal, Clover tends to not inject it properly Sorry, my mistake. I think the DSDT should be patched manually, because DGFX is not good, although.... Clover didn't look the name. It works with PCI class. Hi Slice Perhaps I'm using a bad dump of the Frame Buffer Personalities, but the list I have shows Pondweed in the 6000 family Script version 0.15 Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller Personality: Iago ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 0000010 00 10 00 00 16 00 00 00 c4 00 00 00 10 00 01 11 0000020 Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller Personality: Hypoprion ConnectorInfo count in decimal: 2 Disk offset in decimal 674608 0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 0000010 00 10 00 00 16 00 00 00 c4 00 00 00 10 00 01 11 0000020 Personality: Lamna ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 00 02 00 00 14 00 00 00 80 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 80 00 00 00 00 10 01 12 0000020 Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller Personality: Megalodon ConnectorInfo count in decimal: 3 Disk offset in decimal 674592 0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 00 00 00 00 00 10 01 12 0000020 80 00 00 00 02 00 00 00 04 00 00 00 00 10 00 00 0000030 Personality: Triakis ConnectorInfo count in decimal: 2 Disk offset in decimal 674640 0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 0000010 04 00 00 00 16 00 00 00 00 00 00 00 00 10 01 12 0000020 Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller Personality: Flicker ConnectorInfo count in decimal: 3 Disk offset in decimal 662240 0000000 00 04 00 00 00 04 00 00 00 01 00 00 02 01 03 05 0000010 00 04 00 00 00 04 00 00 00 01 00 00 01 00 02 02 0000020 00 02 00 00 14 02 00 00 00 01 00 00 00 10 01 04 0000030 Personality: Gliff ConnectorInfo count in decimal: 3 Disk offset in decimal 662288 0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 02 02 0000020 00 04 00 00 04 06 00 00 00 01 00 00 10 00 01 01 0000030 Personality: Shrike ConnectorInfo count in decimal: 3 Disk offset in decimal 662336 0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 00 10 00 01 01 0000030 Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller Personality: Cardinal ConnectorInfo count in decimal: 2 Disk offset in decimal 654064 0000000 00 02 00 00 14 02 00 00 00 01 00 00 01 01 01 04 0000010 04 00 00 00 14 02 00 00 00 01 00 00 00 10 02 03 0000020 Personality: MotMot ConnectorInfo count in decimal: 2 Disk offset in decimal 654096 0000000 00 04 00 00 04 01 00 00 00 01 00 00 10 00 02 03 0000010 04 00 00 00 14 02 00 00 00 01 00 00 01 11 01 04 0000020 Personality: Quail ConnectorInfo count in decimal: 3 Disk offset in decimal 654128 0000000 02 00 00 00 40 00 00 00 09 01 00 00 22 01 00 07 0000010 02 00 00 00 00 01 00 00 09 01 00 00 20 01 03 04 0000020 00 04 00 00 04 03 00 00 00 01 00 00 10 00 02 03 0000030 Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller Personality: Douc ConnectorInfo count in decimal: 2 Disk offset in decimal 1642144 0000000 02 00 00 00 00 05 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 02 00 00 00 03 00 00 11 02 01 01 0000020 Personality: Langur ConnectorInfo count in decimal: 3 Disk offset in decimal 1642192 0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 04 02 0000010 00 04 00 00 04 06 00 00 00 01 00 00 11 02 01 01 0000020 04 00 00 00 14 02 00 00 00 01 00 00 02 04 05 03 0000030 Personality: Uakari ConnectorInfo count in decimal: 4 Disk offset in decimal 1642240 0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 01 0000010 04 00 00 00 14 00 00 00 00 71 00 00 01 12 01 03 0000020 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 05 0000030 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 04 0000040 Personality: Zonalis ConnectorInfo count in decimal: 6 Disk offset in decimal 1642304 0000000 00 04 00 00 04 06 00 00 00 71 00 00 20 01 06 06 0000010 00 04 00 00 04 06 00 00 00 71 00 00 10 00 05 05 0000020 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 04 0000030 00 04 00 00 04 06 00 00 00 71 00 00 11 02 01 03 0000040 00 04 00 00 04 06 00 00 00 71 00 00 22 05 04 02 0000050 00 04 00 00 04 06 00 00 00 71 00 00 12 04 03 01 0000060 Personality: Alouatta ConnectorInfo count in decimal: 4 Disk offset in decimal 1642400 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 06 00 00 00 71 00 00 11 02 01 01 0000020 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 02 0000030 00 04 00 00 04 06 00 00 00 71 00 00 22 05 04 04 0000040 Personality: Hoolock ConnectorInfo count in decimal: 3 Disk offset in decimal 1642464 0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 05 01 0000010 00 04 00 00 04 06 00 00 00 01 00 00 11 02 04 02 0000020 04 00 00 00 14 02 00 00 00 01 00 00 02 04 01 03 0000030 Personality: Vervet ConnectorInfo count in decimal: 4 Disk offset in decimal 1642512 0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 02 0000010 04 00 00 00 14 00 00 00 00 71 00 00 01 12 01 04 0000020 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 03 0000030 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 01 0000040 Personality: Baboon ConnectorInfo count in decimal: 3 Disk offset in decimal 1642576 0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 03 0000010 00 08 00 00 00 02 00 00 00 71 00 00 22 05 02 01 0000020 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 02 0000030 Personality: Eulemur ConnectorInfo count in decimal: 3 Disk offset in decimal 1642624 0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 04 0000010 00 08 00 00 00 02 00 00 00 71 00 00 12 04 04 02 0000020 10 00 00 00 10 00 00 00 00 00 00 00 00 10 00 01 0000030 Personality: Galago ConnectorInfo count in decimal: 2 Disk offset in decimal 1642672 0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Colobus ConnectorInfo count in decimal: 2 Disk offset in decimal 1642720 0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Mangabey ConnectorInfo count in decimal: 2 Disk offset in decimal 1642768 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 03 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Personality: Nomascus ConnectorInfo count in decimal: 4 Disk offset in decimal 1642816 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 0000010 02 00 00 00 00 01 00 00 09 03 00 00 12 04 03 03 0000020 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000030 00 04 00 00 04 07 00 00 00 73 00 00 21 03 02 02 0000040 Personality: Orangutan ConnectorInfo count in decimal: 2 Disk offset in decimal 1642896 0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 0000010 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01 0000020 Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller Personality: Pithecia ConnectorInfo count in decimal: 2 Disk offset in decimal 1663904 0000000 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 04 0000010 04 00 00 00 14 02 00 00 00 01 00 00 00 00 04 03 0000020 Personality: Bulrushes ConnectorInfo count in decimal: 6 Disk offset in decimal 1663936 0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000030 00 04 00 00 04 03 00 00 00 01 00 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 00 00 20 01 06 06 0000060 Personality: Cattail ConnectorInfo count in decimal: 4 Disk offset in decimal 1664032 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 Personality: Hydrilla ConnectorInfo count in decimal: 5 Disk offset in decimal 1664096 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 22 05 05 04 0000040 00 04 00 00 04 03 00 00 00 01 00 00 10 00 04 05 0000050 Personality: Duckweed ConnectorInfo count in decimal: 4 Disk offset in decimal 1664176 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02 0000020 00 08 00 00 04 02 00 00 00 01 00 00 11 02 03 04 0000030 00 02 00 00 14 02 00 00 00 01 00 00 00 00 06 05 0000040 Personality: Fanwort ConnectorInfo count in decimal: 4 Disk offset in decimal 1664240 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 04 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 Personality: Elodea ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05 0000020 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000030 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000040 00 04 00 00 00 01 00 00 00 09 10 00 22 05 04 04 0000050 Personality: Kudzu ConnectorInfo count in decimal: 2 Disk offset in decimal 1664384 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000010 00 08 00 00 04 02 00 00 00 01 00 00 11 02 01 01 0000020 Personality: Gibba ConnectorInfo count in decimal: 5 Disk offset in decimal 1664416 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 22 05 04 02 0000020 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04 0000030 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05 0000040 04 00 00 00 04 02 00 00 00 01 00 00 11 02 01 03 0000050 Personality: Lotus ConnectorInfo count in decimal: 3 Disk offset in decimal 1664496 0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000010 00 08 00 00 04 02 00 00 00 01 00 00 22 05 04 04 0000020 00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02 0000030 Personality: Ipomoea ConnectorInfo count in decimal: 3 Disk offset in decimal 1664544 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 01 05 0000010 00 08 00 00 04 02 00 00 00 01 00 00 11 02 04 03 0000020 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 02 0000030 Personality: Muskgrass ConnectorInfo count in decimal: 4 Disk offset in decimal 1664592 0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000010 00 04 00 00 00 01 00 00 00 09 12 00 21 03 02 02 0000020 00 04 00 00 00 01 00 00 00 09 13 00 22 05 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Juncus ConnectorInfo count in decimal: 4 Disk offset in decimal 1664656 0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 10 00 04 05 0000020 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000030 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000040 Personality: Osmunda ConnectorInfo count in decimal: 4 Disk offset in decimal 1664720 0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Pondweed ConnectorInfo count in decimal: 3 Disk offset in decimal 1664784 0000000 02 00 00 00 00 01 00 00 09 01 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 00 21 03 02 02 0000030 Personality: Spikerush ConnectorInfo count in decimal: 4 Disk offset in decimal 1664832 0000000 02 00 00 00 40 00 00 00 29 05 01 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 02 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 03 00 12 04 03 03 0000040 Personality: Typha ConnectorInfo count in decimal: 5 Disk offset in decimal 1664896 0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 04 01 0000010 00 04 00 00 04 03 00 00 00 01 02 00 21 03 05 02 0000020 00 04 00 00 00 01 00 00 00 09 03 00 10 00 02 05 0000030 00 04 00 00 00 01 00 00 00 09 04 00 20 01 03 06 0000040 04 00 00 00 14 02 00 00 00 01 05 00 02 04 01 03 0000050 Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller Personality: Namako ConnectorInfo count in decimal: 4 Disk offset in decimal 1689680 0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 02 0000010 02 00 00 00 00 01 00 00 00 01 02 03 12 04 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 03 0000030 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 04 0000040 Personality: Aji ConnectorInfo count in decimal: 4 Disk offset in decimal 1689840 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 04 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 0000040 Personality: Buri ConnectorInfo count in decimal: 4 Disk offset in decimal 1689904 0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 0000010 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02 0000030 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 0000040 Personality: Chutoro ConnectorInfo count in decimal: 5 Disk offset in decimal 1689968 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 Personality: Dashimaki ConnectorInfo count in decimal: 4 Disk offset in decimal 1690048 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 0000010 00 04 00 00 04 03 00 00 00 01 02 00 22 05 03 05 0000020 04 00 00 00 14 02 00 00 00 01 03 01 00 00 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 0000040 Personality: Ebi ConnectorInfo count in decimal: 5 Disk offset in decimal 1690112 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 01 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 01 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 01 10 00 05 05 0000050 Personality: Gari ConnectorInfo count in decimal: 5 Disk offset in decimal 1690192 0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 Personality: Futomaki ConnectorInfo count in decimal: 4 Disk offset in decimal 1690320 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 04 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 05 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 06 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 03 0000040 Personality: Hamachi ConnectorInfo count in decimal: 4 Disk offset in decimal 1690384 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 04 02 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 0000040 Personality: OPM ConnectorInfo count in decimal: 6 Disk offset in decimal 1690512 0000000 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 01 0000010 00 04 00 00 04 03 00 00 00 01 00 01 21 03 02 02 0000020 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 03 0000030 00 04 00 00 04 03 00 00 00 01 00 01 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 00 01 10 00 05 05 0000050 00 04 00 00 14 03 00 00 00 01 00 01 20 01 06 06 0000060 Personality: Ikura ConnectorInfo count in decimal: 1 Disk offset in decimal 1690608 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: IkuraS ConnectorInfo count in decimal: 6 Disk offset in decimal 1690624 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Personality: Junsai ConnectorInfo count in decimal: 6 Disk offset in decimal 1690720 0000000 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 01 0000010 00 04 00 00 04 03 00 00 00 01 00 01 22 05 04 02 0000020 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 03 0000030 00 04 00 00 04 03 00 00 00 01 00 01 21 03 02 04 0000040 00 04 00 00 04 03 00 00 00 01 00 01 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 00 01 20 01 06 06 0000060 Personality: Kani ConnectorInfo count in decimal: 1 Disk offset in decimal 1690816 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: KaniS ConnectorInfo count in decimal: 6 Disk offset in decimal 1690832 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Personality: DashimakiS ConnectorInfo count in decimal: 4 Disk offset in decimal 1690928 0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 0000010 00 04 00 00 04 03 00 00 00 01 02 01 22 05 03 05 0000020 04 00 00 00 14 02 00 00 00 01 03 00 00 00 04 04 0000030 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 0000040 Personality: Maguro ConnectorInfo count in decimal: 1 Disk offset in decimal 1690992 0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 0000010 Personality: MaguroS ConnectorInfo count in decimal: 6 Disk offset in decimal 1691008 0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06 0000060 Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller Personality: Baladi ConnectorInfo count in decimal: 6 Disk offset in decimal 1659616 0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02 0000030 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06 0000060 Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller Personality: OPM ConnectorInfo count in decimal: 6 Disk offset in decimal 1659392 0000000 00 04 00 00 04 03 00 00 00 00 00 01 10 00 01 01 0000010 00 04 00 00 04 03 00 00 00 00 00 01 20 01 02 02 0000020 00 04 00 00 04 03 00 00 00 00 00 01 11 02 03 03 0000030 00 04 00 00 04 03 00 00 00 00 00 01 21 03 04 04 0000040 00 04 00 00 04 03 00 00 00 00 00 01 12 04 05 05 0000050 00 04 00 00 04 03 00 00 00 00 00 01 22 05 06 06 0000060 Personality: Basset ConnectorInfo count in decimal: 4 Disk offset in decimal 1659632 0000000 02 00 00 00 00 01 00 00 00 01 01 03 21 03 02 02 0000010 02 00 00 00 00 01 00 00 00 01 02 03 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 03 07 10 00 03 03 0000030 00 04 00 00 04 03 00 00 00 01 04 07 20 01 04 04 0000040 Personality: Greyhound ConnectorInfo count in decimal: 6 Disk offset in decimal 1659824 0000000 00 04 00 00 04 03 00 00 00 01 01 07 10 00 01 03 0000010 00 04 00 00 04 03 00 00 00 01 02 07 20 01 02 04 0000020 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01 0000030 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 02 0000040 00 04 00 00 04 03 00 00 00 01 05 07 12 04 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 07 22 05 06 06 0000060 Personality: Baladi ConnectorInfo count in decimal: 6 Disk offset in decimal 1659952 0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 0000020 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02 0000030 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 0000040 00 04 00 00 04 03 00 00 00 01 05 00 10 00 05 05 0000050 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06 0000060 I've tried multiple different framebuffers from the 6000 family, including Elodea (default with PBI), Osmunda, Cattail, Hydrilla, Lotus, and Pithecia. So far, none have worked with their native nor my edited framebuffer values. No native framebuffer has SenseID=1 for LVDS as your card. You must do connector patch. Link to comment Share on other sites More sharing options...
vusun123 Posted March 18, 2016 Share Posted March 18, 2016 Is there a fix for when Clover doesn't inject it? Yes there is, Rehabman has a patch to inject EDID into PEG0.GFX0, but you must edit it to inject into PEGP.DGFX Link to comment Share on other sites More sharing options...
Slice Posted March 18, 2016 Author Share Posted March 18, 2016 Let me propose once more attempt with Elodia Original connectors Personality: Elodea ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 0000010 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05 0000020 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000030 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000040 00 04 00 00 00 01 00 00 00 09 10 00 22 05 04 04 Patched Personality: Elodea Patched ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 10 00 00 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 04 0000020 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 00 02 00 00 00 01 00 00 00 09 10 00 00 10 04 08 Link to comment Share on other sites More sharing options...
Vanguard Posted March 18, 2016 Share Posted March 18, 2016 What DSDT patch(es) do you suggest to fix this? I'm attached my original and my own patched copies here. [i'll admit that DSDT patching is a black art to me, so any guidance is welcome] Do the values I've computed for the Pondweed framebuffer appear correct for the Connector Patch? Pondweed Original 02 00 00 00 00 01 00 00 09 01 01 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 00 04 00 00 04 03 00 00 00 01 03 00 21 03 02 02 ========================================= Pondweed New 02 00 00 00 00 01 00 00 09 01 01 00 10 00 01 01 00 04 00 00 04 03 00 00 00 01 02 00 11 02 02 04 10 00 00 00 10 00 00 00 00 01 00 00 00 10 05 08 origin_DSDT.aml.7z mypatched_DSDT.aml.7z Link to comment Share on other sites More sharing options...
Vanguard Posted March 18, 2016 Share Posted March 18, 2016 Thank you both for the suggestions. Slice, I will test Elodea again using your recommended connector patches in my config.plist as shown below and report the results. <key>Graphics</key> <dict> <key>DualLink</key> <integer>1</integer> <key>FBName</key> <string>Elodea</string> <key>Inject</key> <dict> <key>ATI</key> <true/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> <key>InjectEDID</key> <true/> <key>LoadVBios</key> <true/> <key>NvidiaSingle</key> <false/> <key>VRAM</key> <integer>1024</integer> <key>VideoPorts</key> <integer>5</integer> </dict> <key>KernelAndKextPatches</key> <dict> <key>ATIConnectorsController</key> <string>6000</string> <key>ATIConnectorsData</key> <string>0200000000010000090100001204030300040000040300000001000010000505000400000403000000010000110201010004000000010000000910002103020200040000000100000009100022050404</string> <key>ATIConnectorsPatch</key> <string>0200000000010000090100001000000100040000040300000001000011020104000400000403000000010000210302020004000000010000000910001204030300020000000100000009100000100408</string> vusun123, I will investigate the recommended DSDT patch from RehabMan and see if I can edit and apply it successfully. As I mentioned before, DSDT patching is a black art to me. I seem to end up with dozens of errors and no luck compiling. Link to comment Share on other sites More sharing options...
Slice Posted March 19, 2016 Author Share Posted March 19, 2016 What DSDT patch(es) do you suggest to fix this? I'm attached my original and my own patched copies here. [i'll admit that DSDT patching is a black art to me, so any guidance is welcome] You have to upload also all of your native SSDT.aml tables because such mistakes may be related to its linking ^ Object does not exist (\_SB.ODGW) Link to comment Share on other sites More sharing options...
Vanguard Posted March 19, 2016 Share Posted March 19, 2016 (edited) You have to upload also all of your native SSDT.aml tables because such mistakes may be related to its linking ^ Object does not exist (\_SB.ODGW) Hello Attached is everything from my EFI\Clover\ACPI\origin folder I had a Kernel Panic on my first attempt with the Elodea patch you suggested but I'm double-checking my work to confirm I didn't make a mistake somewhere. EDIT: My Kernel Panic is the result of using 00 as the HotPlug ID. Personality: Elodea Patched ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 10 00 00 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 04 0000020 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 00 02 00 00 00 01 00 00 00 09 10 00 00 10 04 08 I have attempted to use 00 in previous testing and it always resulted in a KP for me. origin-upload.7z Edited March 19, 2016 by Vanguard Link to comment Share on other sites More sharing options...
vusun123 Posted March 20, 2016 Share Posted March 20, 2016 Hello Attached is everything from my EFI\Clover\ACPI\origin folder I had a Kernel Panic on my first attempt with the Elodea patch you suggested but I'm double-checking my work to confirm I didn't make a mistake somewhere. EDIT: My Kernel Panic is the result of using 00 as the HotPlug ID. Personality: Elodea Patched ConnectorInfo count in decimal: 5 Disk offset in decimal 1664304 0000000 02 00 00 00 00 01 00 00 09 01 00 00 10 00 00 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 04 0000020 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 0000040 00 02 00 00 00 01 00 00 00 09 10 00 00 10 04 08 I have attempted to use 00 in previous testing and it always resulted in a KP for me. I don't have access to my Mac right now ( currently being sent to Apple to replace the screen, it got some artifacts ) so can't look into your VBios, can you post the full output of both Radeon Bios Decode and Redsock Bios Decode here ? Try to use 01 as the beginning Hotplug ID Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted March 20, 2016 Share Posted March 20, 2016 Hi SliceI upload my Preboot.log and IOREG.Why my R5-M330 is not detected by CLover in Clover Menu??? I can see Intel HD Graphics 5500 only, but no R5-M330. So i only can TICK Inject Intel, no options for Inject ATI since it's not detected by CLover. This is my specifications http://www.insanelymac.com/forum/topic/310408-success-hackintosh-os-x-el-capitan-10114-beta-build-15e27e-at-hp-pavilion-15-ac169tx/ Andres’s MacBook Pro.ioreg.zip preboot.log.zip Link to comment Share on other sites More sharing options...
Slice Posted March 20, 2016 Author Share Posted March 20, 2016 Hi Slice I upload my Preboot.log and IOREG. Why my R5-M330 is not detected by CLover in Clover Menu??? I can see Intel HD Graphics 5500 only, but no R5-M330. So i only can TICK Inject Intel, no options for Inject ATI since it's not detected by CLover. This is my specifications http://www.insanelymac.com/forum/topic/310408-success-hackintosh-os-x-el-capitan-10114-beta-build-15e27e-at-hp-pavilion-15-ac169tx/ Because it has a PCI class 038000 which is "Other Video device". Must be 030000. 0:100 0:000 PCI (00|0D:00.00) : 1002 6660 class=038000 See your BIOS if there is a setting for this card. Link to comment Share on other sites More sharing options...
cecekpawon Posted March 20, 2016 Share Posted March 20, 2016 This kind of patch didnt help slice? Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted March 20, 2016 Share Posted March 20, 2016 Device (PXSX) { Name (_ADR, Zero) // _ADR: Address Method (_PRW, 0, NotSerialized) // _PRW: Power Resources for Wake { Return (GPRW (0x69, 0x04)) } Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { Store (Package (0x0A) { "class-code", Buffer (0x04) { 0x00, 0x00, 0x03, 0x00 /* .... */ }, "AAPL,slot-name", Buffer (0x09) { "Built-In" }, "model", Buffer (0x1C) { "AMD Mobility Radeon R5-M330" }, "device-id", Buffer (0x04) { 0x5C, 0x66, 0x00, 0x00 /* \f.. */ }, "compatible", Buffer (0x10) { "pciclass,030000" } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } } I try to inject DSM method to RP05.PXSX and now at About This Mac - > System Reports -> Graphics/Displays show my AMD Graphics. But at DPCIManager i can't see AMD Radeon Card attach to GPU list Link to comment Share on other sites More sharing options...
Vanguard Posted March 20, 2016 Share Posted March 20, 2016 I don't have access to my Mac right now ( currently being sent to Apple to replace the screen, it got some artifacts ) so can't look into your VBios, can you post the full output of both Radeon Bios Decode and Redsock Bios Decode here ? Try to use 01 as the beginning Hotplug ID Hi Vusun123 Below are the output results of each script. I should mention that I am not having any success with the DSDT editing you suggested. Radeon {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ PCI ID: 1002:6760\ Connector at index 0\ Type [@offset 45046]: LVDS (7)\ Encoder [@offset 45050]: INTERNAL_UNIPHY (0x1e)\ i2cid [@offset 45156]: 0x90, OSX senseid: 0x1\ Connector at index 1\ Type [@offset 45056]: DisplayPort (10)\ Encoder [@offset 45060]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45179]: 0x93, OSX senseid: 0x4\ Connector at index 2\ Type [@offset 45066]: DisplayPort (10)\ Encoder [@offset 45070]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45206]: 0x91, OSX senseid: 0x2\ Connector at index 3\ Type [@offset 45076]: DisplayPort (10)\ Encoder [@offset 45080]: INTERNAL_UNIPHY2 (0x21)\ i2cid [@offset 45233]: 0x92, OSX senseid: 0x3\ Connector at index 4\ Type [@offset 45086]: VGA (1)\ Encoder [@offset 45090]: INTERNAL_KLDSCP_DAC1 (0x15)\ i2cid [@offset 45260]: 0x97, OSX senseid: 0x8} and Redsock {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ Subsystem Vendor ID: 103c\ Subsystem ID: 161e\ Object Header Structure Size: 332\ Connector Object Table Offset: 48\ Router Object Table Offset: 0\ Encoder Object Table Offset: f3\ Display Path Table Offset: 12\ Connector Object Id [14] which is [LVDS]\ encoder obj id [0x1e] which is [INTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x21 [duallink 0x1] enc 0x3)] linkb: true\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false\ Connector Object Id [5] which is [VGA]\ encoder obj id [0x15] which is [INTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false\ } Link to comment Share on other sites More sharing options...

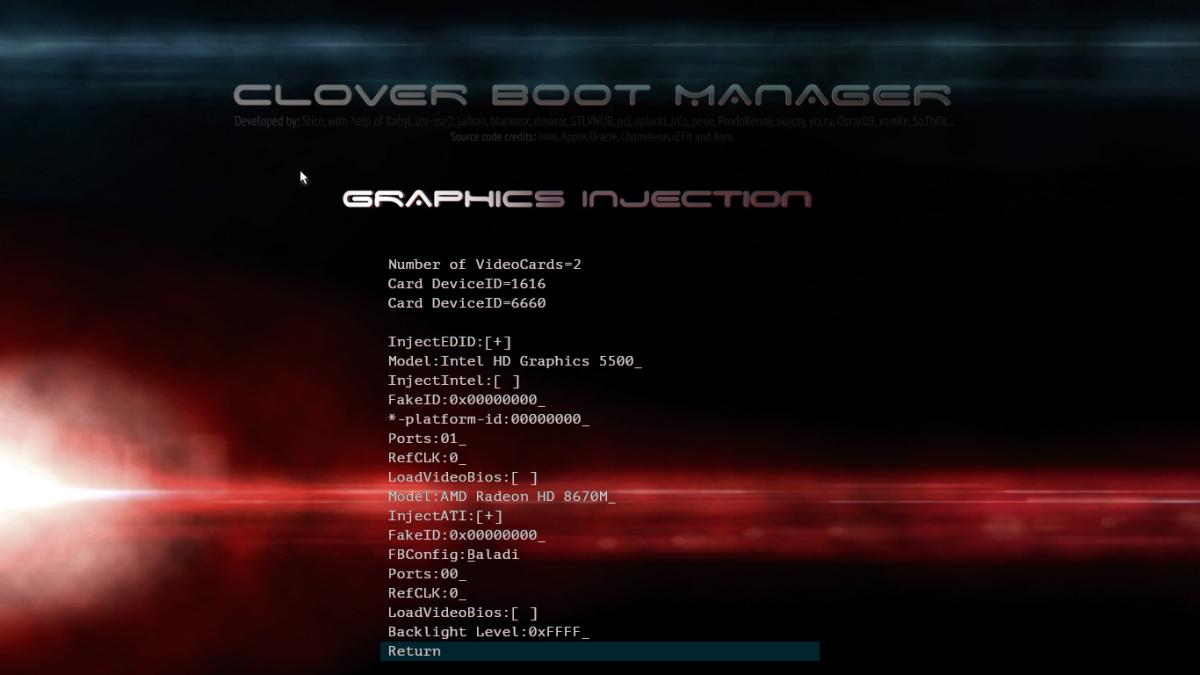

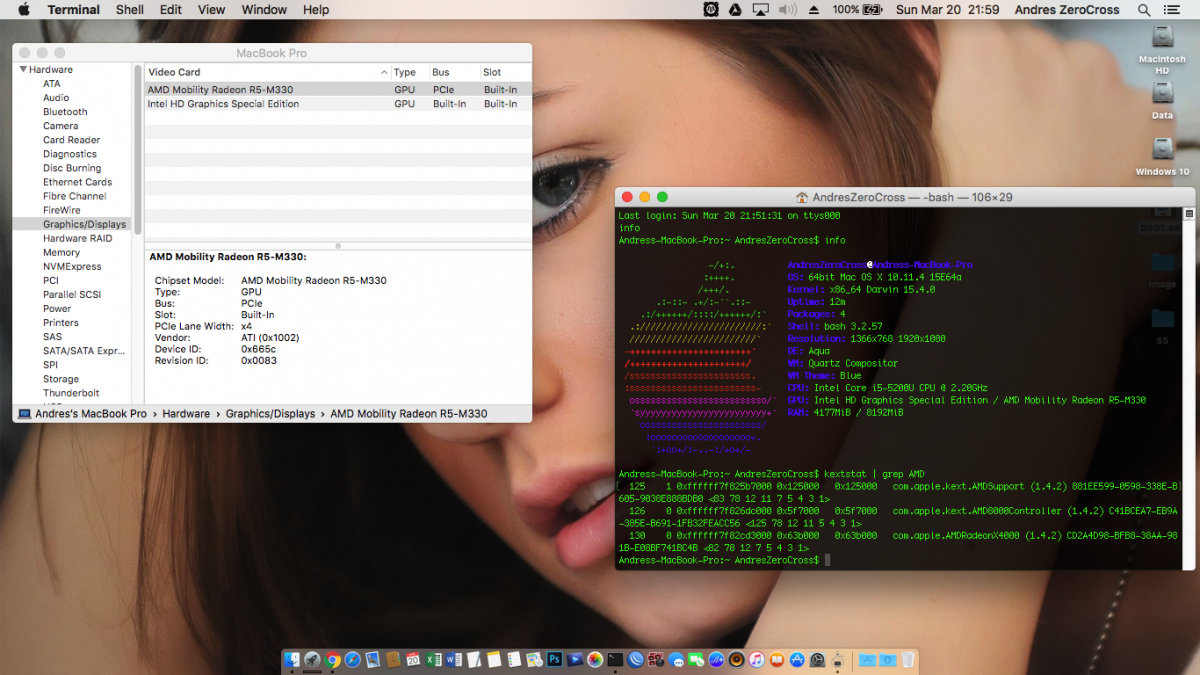

Andres ZeroCross Posted March 20, 2016 Share Posted March 20, 2016 Yeah, with Mr. CecekPawon's helps, i can see my radeon mobility at Clover Link to comment Share on other sites More sharing options...
Slice Posted March 21, 2016 Author Share Posted March 21, 2016 This kind of patch didnt help slice? 1. It should be conditional to avoid wrong detection. 2. It will not help to make the graphics working in OSX. 1 Link to comment Share on other sites More sharing options...
vusun123 Posted March 21, 2016 Share Posted March 21, 2016 Hi Vusun123 Below are the output results of each script. I should mention that I am not having any success with the DSDT editing you suggested. Radeon {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ PCI ID: 1002:6760\ Connector at index 0\ Type [@offset 45046]: LVDS (7)\ Encoder [@offset 45050]: INTERNAL_UNIPHY (0x1e)\ i2cid [@offset 45156]: 0x90, OSX senseid: 0x1\ Connector at index 1\ Type [@offset 45056]: DisplayPort (10)\ Encoder [@offset 45060]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45179]: 0x93, OSX senseid: 0x4\ Connector at index 2\ Type [@offset 45066]: DisplayPort (10)\ Encoder [@offset 45070]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45206]: 0x91, OSX senseid: 0x2\ Connector at index 3\ Type [@offset 45076]: DisplayPort (10)\ Encoder [@offset 45080]: INTERNAL_UNIPHY2 (0x21)\ i2cid [@offset 45233]: 0x92, OSX senseid: 0x3\ Connector at index 4\ Type [@offset 45086]: VGA (1)\ Encoder [@offset 45090]: INTERNAL_KLDSCP_DAC1 (0x15)\ i2cid [@offset 45260]: 0x97, OSX senseid: 0x8} and Redsock {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ Subsystem Vendor ID: 103c\ Subsystem ID: 161e\ Object Header Structure Size: 332\ Connector Object Table Offset: 48\ Router Object Table Offset: 0\ Encoder Object Table Offset: f3\ Display Path Table Offset: 12\ Connector Object Id [14] which is [LVDS]\ encoder obj id [0x1e] which is [INTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x21 [duallink 0x1] enc 0x3)] linkb: true\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false\ Connector Object Id [5] which is [VGA]\ encoder obj id [0x15] which is [INTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false\ } I propose this patch to use with Elodea: 02000000 00010000 0901 0000 10 00 01 01 //LVDS 00040000 04030000 0001 0000 11 02 02 04 //DP 00040000 04030000 0001 0000 21 03 03 02 //DP 00040000 04030000 0001 0000 12 04 04 03 //DP 10000000 10000000 0001 0000 00 10 05 08 //VGA I suggest hex patching directly into the AMD6000Controller.kext to avoid Clover not patching it properly, if it fails you can always boot with InjectAti=False Link to comment Share on other sites More sharing options...
Slice Posted March 21, 2016 Author Share Posted March 21, 2016 Hi Vusun123 Below are the output results of each script. I should mention that I am not having any success with the DSDT editing you suggested. Radeon {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ PCI ID: 1002:6760\ Connector at index 0\ Type [@offset 45046]: LVDS (7)\ Encoder [@offset 45050]: INTERNAL_UNIPHY (0x1e)\ i2cid [@offset 45156]: 0x90, OSX senseid: 0x1\ Connector at index 1\ Type [@offset 45056]: DisplayPort (10)\ Encoder [@offset 45060]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45179]: 0x93, OSX senseid: 0x4\ Connector at index 2\ Type [@offset 45066]: DisplayPort (10)\ Encoder [@offset 45070]: INTERNAL_UNIPHY1 (0x20)\ i2cid [@offset 45206]: 0x91, OSX senseid: 0x2\ Connector at index 3\ Type [@offset 45076]: DisplayPort (10)\ Encoder [@offset 45080]: INTERNAL_UNIPHY2 (0x21)\ i2cid [@offset 45233]: 0x92, OSX senseid: 0x3\ Connector at index 4\ Type [@offset 45086]: VGA (1)\ Encoder [@offset 45090]: INTERNAL_KLDSCP_DAC1 (0x15)\ i2cid [@offset 45260]: 0x97, OSX senseid: 0x8} and Redsock {\rtf1\ansi\ansicpg1252\cocoartf1343\cocoasubrtf140 {\fonttbl\f0\fnil\fcharset0 Menlo-Regular;} {\colortbl;\red255\green255\blue255;} \margl1440\margr1440\vieww10800\viewh8400\viewkind0 \pard\tx560\tx1120\tx1680\tx2240\tx2800\tx3360\tx3920\tx4480\tx5040\tx5600\tx6160\tx6720\pardirnatural \f0\fs22 \cf0 \CocoaLigature0 HP / IEC Clash SEYMOUR XT DDR3 64Mx16 512MB \ \ Subsystem Vendor ID: 103c\ Subsystem ID: 161e\ Object Header Structure Size: 332\ Connector Object Table Offset: 48\ Router Object Table Offset: 0\ Encoder Object Table Offset: f3\ Display Path Table Offset: 12\ Connector Object Id [14] which is [LVDS]\ encoder obj id [0x1e] which is [INTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x21 [duallink 0x1] enc 0x3)] linkb: true\ Connector Object Id [19] which is [DISPLAY_PORT]\ encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false\ Connector Object Id [5] which is [VGA]\ encoder obj id [0x15] which is [INTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false\ } I made you DSDT based on your origin tables. You should also set Clover DSDT fixes additionally over my patches. Obligatory patches are: NewWay and FixRegions. As well you need FixDisplay for this AMD graphics. DSDT.aml.zip Link to comment Share on other sites More sharing options...
Vanguard Posted March 21, 2016 Share Posted March 21, 2016 I made you DSDT based on your origin tables. You should also set Clover DSDT fixes additionally over my patches. Obligatory patches are: NewWay and FixRegions. As well you need FixDisplay for this AMD graphics. DSDT.aml.zip Thank you very much Slice for taking the time to create this DSDT for me. I had to read up on these Clover DSDT fixes you suggested, but think I found all the information I need at this link: https://clover-wiki.zetam.org/Fixing-DSDT I will test this evening and report back my results. Thank you again! I propose this patch to use with Elodea: 02000000 00010000 0901 0000 10 00 01 01 //LVDS 00040000 04030000 0001 0000 11 02 02 04 //DP 00040000 04030000 0001 0000 21 03 03 02 //DP 00040000 04030000 0001 0000 12 04 04 03 //DP 10000000 10000000 0001 0000 00 10 05 08 //VGA I suggest hex patching directly into the AMD6000Controller.kext to avoid Clover not patching it properly, if it fails you can always boot with InjectAti=False Hi Vusun123 Thank you for this suggested patch. I had considered attempting to edit the AMD6000Controller.kext myself as a part of my testing, but kept reading comments that said it wasn't necessary when using Clover. However, given my lack of success thus far, I will heed your advice and perform the Kext edit with the Elodea framebuffer patch you provided. I will provide you with the results as soon as possible. Thank you again for your kind assistance. Link to comment Share on other sites More sharing options...

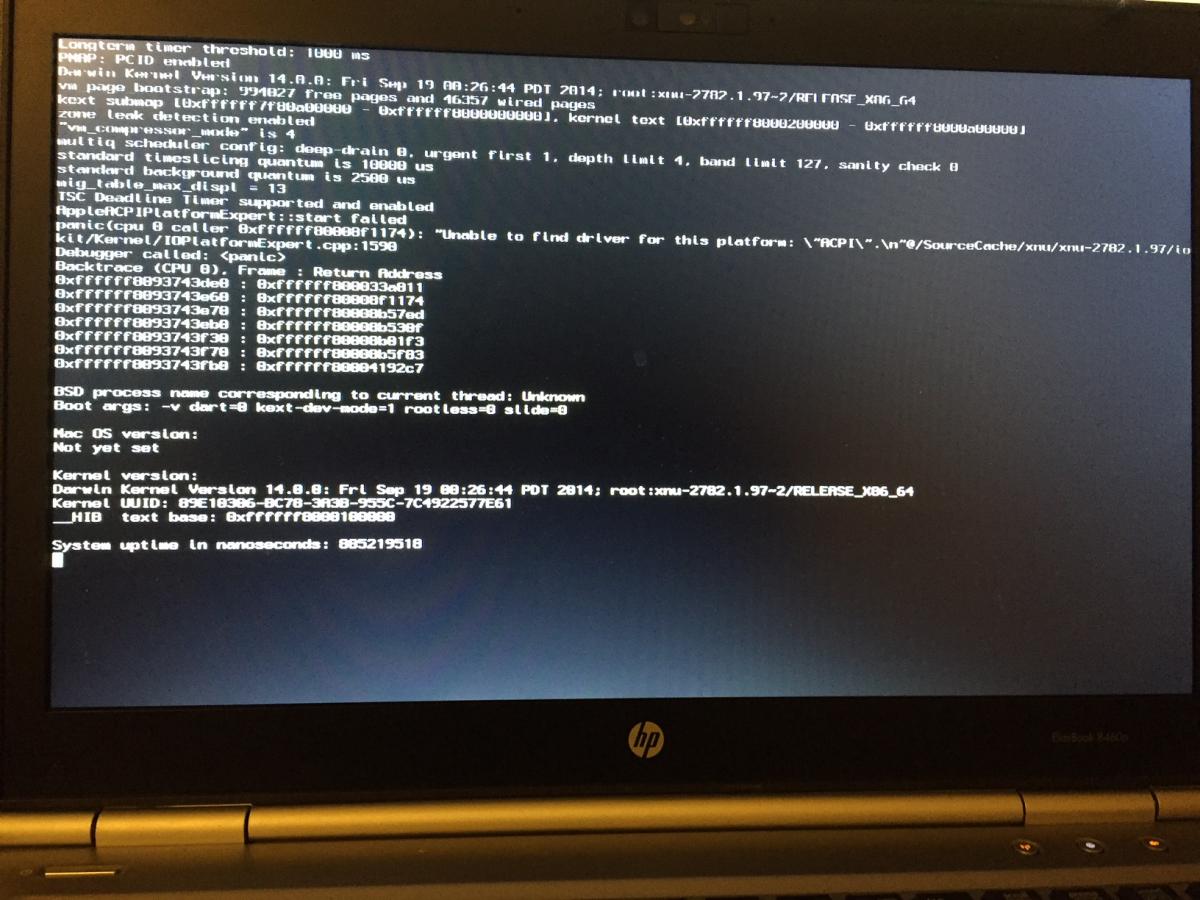

Vanguard Posted March 22, 2016 Share Posted March 22, 2016 Hi Slice I replaced my existing DSDT.aml with the one you provided and edited my config.plist to enable NewWay, FixRegions and FixDisplay. I left everything else unchanged. The result was the Kernel Panic shown in the attached JPG. Was there something additional I needed to do? Link to comment Share on other sites More sharing options...
Slice Posted March 22, 2016 Author Share Posted March 22, 2016 The screenshot correspond to wrong DSDT or SSDT. Do not drop all OEM SSDT, they are needed for dependency with DSDT. Drop only those SSDT that you have replaced by custom one. Try to set more fixes. For example FixDisplay requires AddDTGP. Link to comment Share on other sites More sharing options...
vusun123 Posted March 22, 2016 Share Posted March 22, 2016 The screenshot correspond to wrong DSDT or SSDT. Do not drop all OEM SSDT, they are needed for dependency with DSDT. Drop only those SSDT that you have replaced by custom one. Try to set more fixes. For example FixDisplay requires AddDTGP. Why not try without DSDT ? I remembered this laptop only has EDID problem ( the yellowish gradient ), we have to make sure the patch work first, then consider EDID and DSDT patching Link to comment Share on other sites More sharing options...
Vanguard Posted March 22, 2016 Share Posted March 22, 2016 Forgive me. I didn't have much time Monday night to work on this, so my testing was limited. I simply replaced my existing \patched\DSDT.aml with the one you provided, Slice. My first attempt left the existing \patched\SSDT.aml in the folder, but after getting the KP, I also tried removing the SSDT. That also resulted in the same KP shown in my screenshot. Time permitting, tonight I will try HEXediting the AMD6000Controller.kext and test with & without the DSDT. For my own knowledge, do I need to do anything with the SSDT's in my \origin folder? Should I copy them into the \patched folder with the new DSDT? Link to comment Share on other sites More sharing options...
