nrjmadan Posted August 17, 2014 Share Posted August 17, 2014 You might try re-ordering the files (or... if you changed the order from original, follow the original order). Yes this works too. I think its better, since I don't need to worry about couple of tweaks I made while merging... Wish I knew this earlier. Thanks. Link to comment Share on other sites More sharing options...
nrjmadan Posted August 23, 2014 Share Posted August 23, 2014 @gygabyte: I got my top speakers working too. I thought I had a low sound level because the sub-woofer wasn't working, but while experimenting with "hda-jack-retask" on Ubuntu, I discovered that the top 2 speakers weren't working as well. Even Ubuntu doesn't recognise them by default (May be because they appear disabled in default PinConfig, just like the sub-woofer.) Now the sound is way louder, than it was with the bottom speakers. It was on node 0x0F for me. Though I'm still looking for a way to get all 4 speakers to work together, without creating an aggregate device. Link to comment Share on other sites More sharing options...
gygabyte666 Posted August 26, 2014 Author Share Posted August 26, 2014 @gygabyte: I got my top speakers working too. I thought I had a low sound level because the sub-woofer wasn't working, but while experimenting with "hda-jack-retask" on Ubuntu, I discovered that the top 2 speakers weren't working as well. Even Ubuntu doesn't recognise them by default (May be because they appear disabled in default PinConfig, just like the sub-woofer.) Now the sound is way louder, than it was with the bottom speakers. It was on node 0x0F for me. Though I'm still looking for a way to get all 4 speakers to work together, without creating an aggregate device. Interesting. After checking, I too have a node listed @ 0x0F. Now i'm curious. Could I trouble you for your HDA again? Link to comment Share on other sites More sharing options...
angelosp Posted August 27, 2014 Share Posted August 27, 2014 Hi guys. I need assistance please!!!!! I have been able to install Mavericks 10.9.4 on the second drive of my laptop (a 64GB SSD). I installed Clover in EFI parttiion of the SSD, but I can't boot without using the pendrive where is clover bootloader. I still have to use graphics enabler to be able to boot. I have uninstalled Mavericks so many times, but no luck, If someone could give me some tip about what is happening, I really appreciate your support. Thanks to everyone. My laptops's signature is very similar to the one of this topic. Link to comment Share on other sites More sharing options...
nrjmadan Posted August 28, 2014 Share Posted August 28, 2014 Interesting. After checking, I too have a node listed @ 0x0F. Now i'm curious. Could I trouble you for your HDA again? For the time being, I just replaced node 13 with 15 in platforms.xml and fixed the verb. So only top speakers work. But you could try the attached kext. It has definitions for just the speakers (both top & bottom). Both appear to be working simultaneously, without creating an aggregate device. Although, the level of bottom speakers is low as compared to top ones. So you'll have to observe closely. I installed Clover in EFI parttiion of the SSD, but I can't boot without using the pendrive where is clover bootloader. You could take a look at this link: http://www.insanelymac.com/forum/topic/298027-guide-aio-guides-for-hackintosh/?do=findComment&comment=2019601 I press F9 at time of boot and select Boot from EFI > Volume > EFI > Clover > CloverX64.efi DummyHDA 111d76e0.zip 2 Link to comment Share on other sites More sharing options...
gygabyte666 Posted August 28, 2014 Author Share Posted August 28, 2014 For the time being, I just replaced node 13 with 15 in platforms.xml and fixed the verb. So only top speakers work. But you could try the attached kext. It has definitions for just the speakers (both top & bottom). Both appear to be working simultaneously, without creating an aggregate device. Although, the level of bottom speakers is low as compared to top ones. So you'll have to observe closely. You could take a look at this link: http://www.insanelymac.com/forum/topic/298027-guide-aio-guides-for-hackintosh/?do=findComment&comment=2019601 I press F9 at time of boot and select Boot from EFI > Volume > EFI > Clover > CloverX64.efi Thank you for providing this again. I credited you on the first post along with adopting the enhancements you added into the previous HDA you provided. It is included with... wait for it... ... ... Updated ENVY 10.9.4 and 10.8.5 files on the first post! *whew* Now that's out of the way, I tested out this recent HDA and I decided not to merge it with the updated ENVY files set on the first post. The reasoning is simple. The new one, although impressive, isn't quite ready for prime time yet. You managed to get both speaker sets working and I can confirm that it works with my machine too! Too bad all the other nodes don't seem to play nicely with it, so no headphones/mic support atm. So, I felt it best to stick with the older one for now and include that in the new set for the first post. That said, awesome work so far and I hope the best of both HDAs is soon to follow. 1 Link to comment Share on other sites More sharing options...
nrjmadan Posted August 28, 2014 Share Posted August 28, 2014 Thanks a lot for that. But to tell you the truth, I've been following this post since before I thought about buying my laptop. And this (and also RehabMan's help) is what has brought me so far... so thank you Too bad all the other nodes don't seem to play nicely with it, so no headphones/mic support atm. This was just an experimental kext. I didn't add other devices before coz I was trying to get to the sub-woofer. No luck with that so far. But yeah, here, I added other devices to the kext and things appear to be working fine. DummyHDA.zip 1 Link to comment Share on other sites More sharing options...
angelosp Posted August 28, 2014 Share Posted August 28, 2014 For the time being, I just replaced node 13 with 15 in platforms.xml and fixed the verb. So only top speakers work. But you could try the attached kext. It has definitions for just the speakers (both top & bottom). Both appear to be working simultaneously, without creating an aggregate device. Although, the level of bottom speakers is low as compared to top ones. So you'll have to observe closely. You could take a look at this link: http://www.insanelymac.com/forum/topic/298027-guide-aio-guides-for-hackintosh/?do=findComment&comment=2019601 I press F9 at time of boot and select Boot from EFI > Volume > EFI > Clover > CloverX64.efi Thank you!!! Now I'm able to boot from my internal SSD, but only using Boot from EFI > Volume > EFI > Clover > CloverX64.efi as you told me. There's another easy way to boot? I still have a problem. I just can boot when using clover, option, graphic's injector menu (enabling first and last option). If I try to boot without this it stucks here: What kext to install to have sound working properly? Apple HDA? What is the best app to install kexts? What's wrong? Thank you very much. Link to comment Share on other sites More sharing options...
nrjmadan Posted August 28, 2014 Share Posted August 28, 2014 There's another easy way to boot? You could try 4th method on the link I posted earlier. Mount your EFI partition using Clover Configurator. Go to <EFI partition>/EFI/Microsoft/Boot/ and rename "bootmgfw.efi" to "bootmgfw_original.efi". (don't delete this file. better keep a copy secure.) Copy CloverX64.efi to this folder and rename it "bootmgfw.efi". I just can boot when using clover, option, graphic's injector menu (enabling first and last option). If I try to boot without this it stucks here: I'm sorry, I won't be able to tell whats wrong here. May be someone else might. But nvidia optimus isn't supported, so you'll have to use intel HD. You could do this by either InjectIntel=Yes and adding your ig-platform-id to clover options, or by dsdt patch. 1 Link to comment Share on other sites More sharing options...
gygabyte666 Posted August 29, 2014 Author Share Posted August 29, 2014 Thank you!!! Now I'm able to boot from my internal SSD, but only using Boot from EFI > Volume > EFI > Clover > CloverX64.efi as you told me. There's another easy way to boot? I still have a problem. I just can boot when using clover, option, graphic's injector menu (enabling first and last option). If I try to boot without this it stucks here: What kext to install to have sound working properly? Apple HDA? What is the best app to install kexts? What's wrong? Thank you very much. I see a few issues here: 1) The Nvidia drivers are loaded. Typically, on Mountain Lion this was a major issue since it would try to load the card and since optimus isn't supported. Having this happen will ALWAYS cause a boot hang before login. Mavericks on the other hand usually won't load the card, even though the driver loads. To be safe, boot using nv_disable=1 to disable the driver loading. 2) More than likely, your IntelAzul value is wrong and needs to be changed to support your connection types. Changing ig-platform-id to another value should eventually fix this, once you find the right one. Even then, the framebuffer may still require additional fixes to get graphics working as it should. Incorrect values here will SOMETIMES cause a boot hang that prevents the login window from starting. Other times an incorrect value will lead to minor (sometimes major) graphic corruption in the form of lagging, glitching, flickering and in the worse case, a black screen (disabled backlight). Long story short. You need to dump your dsdt/ssdts and patch them so that you experience less errors. You will also need to dedicate some testing time to work out these issues as trial and error will no doubt be a big part of this for you. In the meantime, you might be able to avoid further annoyances by making Clover drop your OEM ssdts. Booting with OEM ssdts enabled can cause device loading interference by providing OSX with useless or incomplete data used by Windows/Linux OSs. 1 Link to comment Share on other sites More sharing options...
angelosp Posted August 29, 2014 Share Posted August 29, 2014 I see a few issues here: 1) The Nvidia drivers are loaded. Typically, on Mountain Lion this was a major issue since it would try to load the card and since optimus isn't supported. Having this happen will ALWAYS cause a boot hang before login. Mavericks on the other hand usually won't load the card, even though the driver loads. To be safe, boot using nv_disable=1 to disable the driver loading. 2) More than likely, your IntelAzul value is wrong and needs to be changed to support your connection types. Changing ig-platform-id to another value should eventually fix this, once you find the right one. Even then, the framebuffer may still require additional fixes to get graphics working as it should. Incorrect values here will SOMETIMES cause a boot hang that prevents the login window from starting. Other times an incorrect value will lead to minor (sometimes major) graphic corruption in the form of lagging, glitching, flickering and in the worse case, a black screen (disabled backlight). Long story short. You need to dump your dsdt/ssdts and patch them so that you experience less errors. You will also need to dedicate some testing time to work out these issues as trial and error will no doubt be a big part of this for you. In the meantime, you might be able to avoid further annoyances by making Clover drop your OEM ssdts. Booting with OEM ssdts enabled can cause device loading interference by providing OSX with useless or incomplete data used by Windows/Linux OSs. Thank you very much for the information! I assume I'm a noob and I need to know how can I change ig-platform-id to another value? And the framebuffer? I appreciate your support. Link to comment Share on other sites More sharing options...
Demonbane Posted August 29, 2014 Share Posted August 29, 2014 hi gygabyte666, how did you make Turbo work? i generated a SSDT.aml with ssdtprgen.sh and also set the Turbo frequency, but Turbo still doesn't work. how did you make that work? Link to comment Share on other sites More sharing options...
nrjmadan Posted August 30, 2014 Share Posted August 30, 2014 Test with AppleIntelCPUPowerManagementInfo.kext. You need to update your OS X. I upgraded to 10.9.2 and now I can use Macbook pro 11,1 smbios. It gave me an additional P-state (16). 30/08/14 9:45:02.000 pm kernel[0]: AICPUPMI: CPU P-States [ 8 16 25 26 27 28 29 30 ] Battery backup has improved since I added AppleBacklightInjector.kext & I also get a much dimmer screen (how i prefer it). I was wondering could the patching of AppleBacklight.kext > info.plist be done using clover? I tried it, but didn't succeed yet. Thank you Link to comment Share on other sites More sharing options...
RehabMan Posted August 30, 2014 Share Posted August 30, 2014 I upgraded to 10.9.2 and now I can use Macbook pro 11,1 smbios. It gave me an additional P-state (16). 30/08/14 9:45:02.000 pm kernel[0]: AICPUPMI: CPU P-States [ 8 16 25 26 27 28 29 30 ] Battery backup has improved since I added AppleBacklightInjector.kext & I also get a much dimmer screen (how i prefer it). I was wondering could the patching of AppleBacklight.kext > info.plist be done using clover? I tried it, but didn't succeed yet. Thank you If you're using an injector for backlight data, then there is no need to patch AppleBacklight.kext. Link to comment Share on other sites More sharing options...
warlikewings Posted August 30, 2014 Share Posted August 30, 2014 I use DummyHDA.kext with modified layout and platform xml, and patch AppleHDA with clover. Though I must tell you, it has problems. 1. Sometimes (rarely) after wake, headphone doesn't get recognised when plugged in. Have to make the system wake with headphone plugged in, then it works fine. 2. Changing sound level with Fn keys and volume slider are not synchronised. Set slider to half, increase volume by one unit using the Fn keys, it goes to max directly. But it works fine with headphone plugged in. 3. The volume icon in menu bar shows either max volume icon or mute icon, when changing volume with Fn keys (for internal speakers). Changing with slider shows proper icons. 4. Occasionally the line-in mic stops working after few seconds. Have to replug it. (not sure why. could be due to power saving.) 5. The volume level on microphone in Dictation & Speech, seems to be unaffected by internal mic volume slider. However it works fine with skype. If you find a cure, please let me know. Thanks. Just out of curiosity, while I haven't touched my OS X install very much in the last few months, aside from updating to 10.9.4 and keeping the "boot pack" files that gigabyte provides on the first page somewhat up to date... I tried to use your Dummy HDA kext shared a few days ago, and can't seem to figure out how to make it work. I know you say you patch AppleHDA with clover, and maybe my brain has taken too much time away from hackintosh stuff, but could you tell me what the patch is specifically? Is it a selection in options, or is it an actual patch that needs to manually be inserted into config.plist? I haven't really done much with mine since moving the install over to an external hard drive and expanding my windows partition back to the full drive size, but it's still going to be another month or two until I get my rMBP, and it would be nice to start using OS X more on my HP until my school sends the MacBook. Thanks for any help you can give. (I hate sounding like a noob, but sometimes... When I step away for too long, I forget some of what I learned.) Link to comment Share on other sites More sharing options...
nrjmadan Posted August 30, 2014 Share Posted August 30, 2014 Is it a selection in options, or is it an actual patch that needs to manually be inserted into config.plist? Take a look at this: http://www.insanelymac.com/forum/topic/298027-guide-aio-guides-for-hackintosh/page-2?do=findComment&comment=2030060 Link to comment Share on other sites More sharing options...
warlikewings Posted August 30, 2014 Share Posted August 30, 2014 Take a look at this: http://www.insanelymac.com/forum/topic/298027-guide-aio-guides-for-hackintosh/page-2?do=findComment&comment=2030060Thanks! Will do! Link to comment Share on other sites More sharing options...
Chrono V Posted September 3, 2014 Share Posted September 3, 2014 Hello everyone! I'm new to this forum and to hackinstosh, and I want to install OSX in my HP Envy 15"... I've never installed hackintosh before and I'm quite new to Mac, I've played with Linux before and with all Windows, but never Mac. I want to do this as soon as possible, and I would like to ask for help, If anyone has some time to explain some things to me or to guide me in the basics I would really apreciate it My skype is "cbernerreal" and I'm online every night, so if anyone has some time and wants to help, just add me Thanks ! Link to comment Share on other sites More sharing options...
gygabyte666 Posted September 4, 2014 Author Share Posted September 4, 2014 Thank you very much for the information! I assume I'm a noob and I need to know how can I change ig-platform-id to another value? And the framebuffer? I appreciate your support. A little research goes a long way. ;p hi gygabyte666, how did you make Turbo work? i generated a SSDT.aml with ssdtprgen.sh and also set the Turbo frequency, but Turbo still doesn't work. how did you make that work? You know come to think of it, I never actually tested it myself. I don't even remember writing the word Turbo on the first page but it's clearly there. If I can test it soon then I will try and get back to you on that. For now though, just ignore it since I can't say one way or another about it with any bit of confidence. Worst case, i'll remove it from the post as I never intended to write it on there anyway. Sorry for the confusion but I recall being pretty tired when I wrote most of that. >_< Hello everyone! I'm new to this forum and to hackinstosh, and I want to install OSX in my HP Envy 15"... I've never installed hackintosh before and I'm quite new to Mac, I've played with Linux before and with all Windows, but never Mac. I want to do this as soon as possible, and I would like to ask for help, If anyone has some time to explain some things to me or to guide me in the basics I would really apreciate it My skype is "cbernerreal" and I'm online every night, so if anyone has some time and wants to help, just add me Thanks ! Might wanna give this a look: http://goo.gl/MIoZIN Link to comment Share on other sites More sharing options...
maly70 Posted September 6, 2014 Share Posted September 6, 2014 did someone Patch MSR locked in haswell with Chameleon for yosemite yet? when does Chameleon team will add this modules ????? i installed yosemite in my haswell HD4600 with Clover but it is not working well as Chameleon(did not like it at all) i have no QE/CI with device HD4600 too i think Apple is doing something to unsupport it (hope not) Thank you in advance Link to comment Share on other sites More sharing options...
gygabyte666 Posted September 7, 2014 Author Share Posted September 7, 2014 Thanks a lot for that. But to tell you the truth, I've been following this post since before I thought about buying my laptop. And this (and also RehabMan's help) is what has brought me so far... so thank you This was just an experimental kext. I didn't add other devices before coz I was trying to get to the sub-woofer. No luck with that so far. But yeah, here, I added other devices to the kext and things appear to be working fine. Sorry for the late reply but thanks for the kext upgrade. I tested it out and it works pretty great! I'll add it to the first post files when I get around to updating them again. I'm also glad you found the info on this page useful. That's why it's here after all. Well that and to help me keep track of my tests. Link to comment Share on other sites More sharing options...

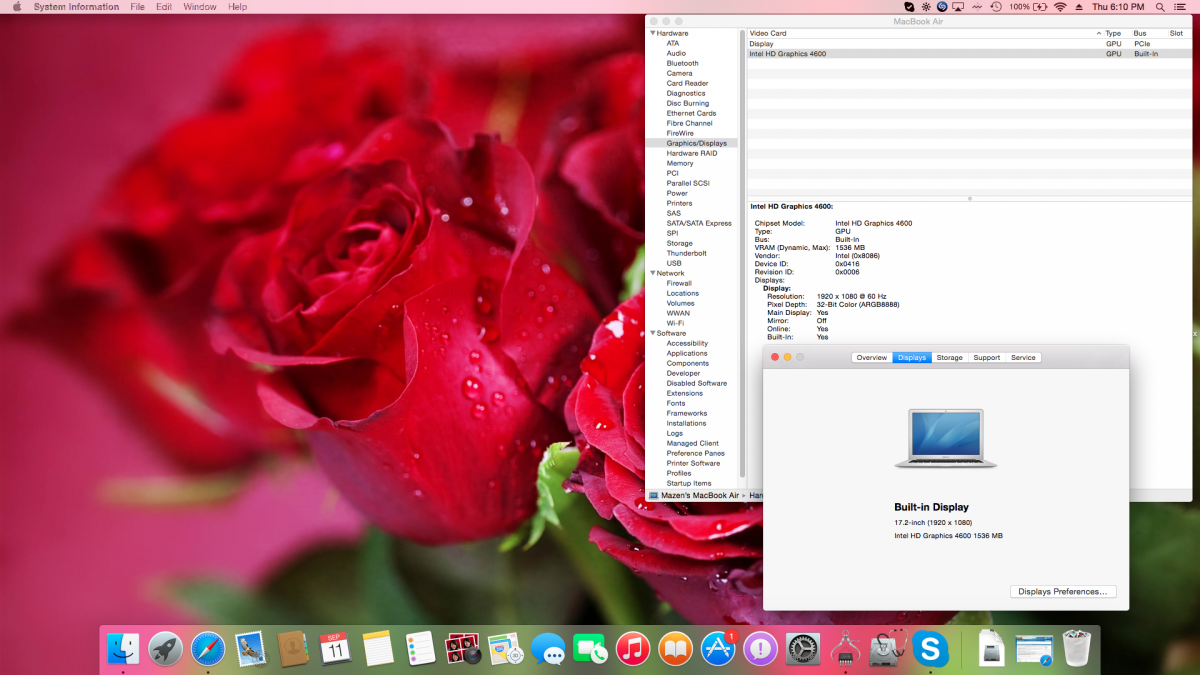

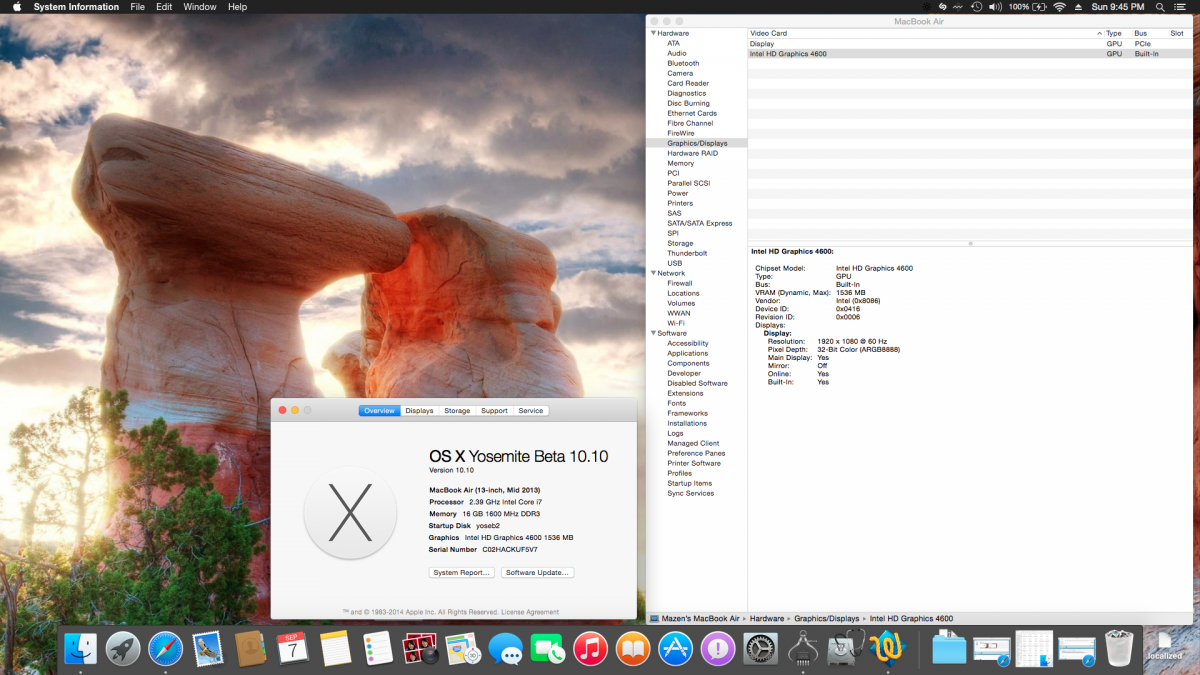

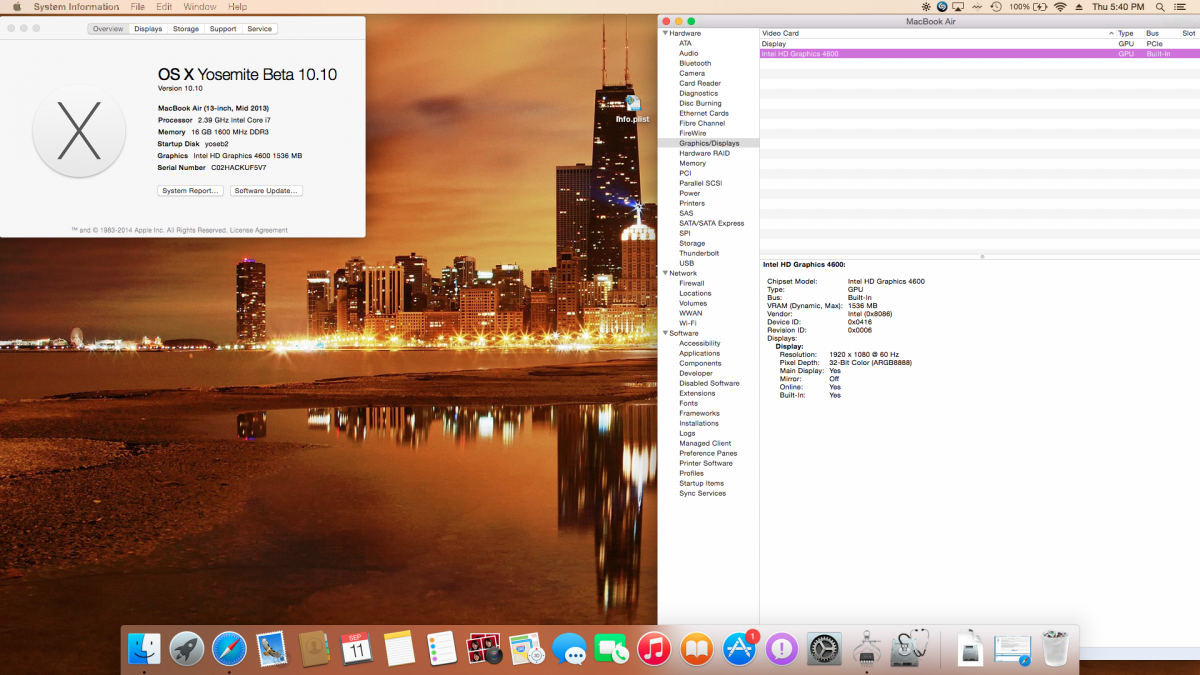

maly70 Posted September 8, 2014 Share Posted September 8, 2014 Hi gigabyte666, I used your files for yosemite DP7 (AIHD4600Inject.kext, AzulHD4600Inject.kext and IDT92HD91BXXInject.kext) I installed it and got Audio working with vanella AppleHDA.kext, Azul and 4600 kexts are loading and i got 1536mb Vram and fully working except QE/CI.with no FakeID in clover I noticed that some of AppleIntel Graphics files not loading, maybe this is why i am not getting QE/CI with HD4600 0x0a260000 i see that Clover has a force loading kext Option, i will try to force loading what is not loading and see what will happen and report back Link to comment Share on other sites More sharing options...
RehabMan Posted September 8, 2014 Share Posted September 8, 2014 Hi gigabyte666, I used your files for yosemite DP7 (AIHD4600Inject.kext, AzulHD4600Inject.kext and IDT92HD91BXXInject.kext) I installed it and got Audio working with vanella AppleHDA.kext, Azul and 4600 kexts are loading and i got 1536mb Vram and fully working except QE/CI.with no FakeID in clover I noticed that some of AppleIntel Graphics files not loading, maybe this is why i am not getting QE/CI with HD4600 0x0a260000 i see that Clover has a force loading kext Option, i will try to force loading what is not loading and see what will happen and report back To be technically correct, you have CI (AppleIntelFramebufferAzul.kext), but not QE (not AppleIntelHD5000Graphics.kext). Making it work, if even possible, will require patching the kext or for Apple to re-enable the code that was present in Mavericks. Link to comment Share on other sites More sharing options...
gygabyte666 Posted September 8, 2014 Author Share Posted September 8, 2014 Hi gigabyte666, I used your files for yosemite DP7 (AIHD4600Inject.kext, AzulHD4600Inject.kext and IDT92HD91BXXInject.kext) I installed it and got Audio working with vanella AppleHDA.kext, Azul and 4600 kexts are loading and i got 1536mb Vram and fully working except QE/CI.with no FakeID in clover I noticed that some of AppleIntel Graphics files not loading, maybe this is why i am not getting QE/CI with HD4600 0x0a260000 i see that Clover has a force loading kext Option, i will try to force loading what is not loading and see what will happen and report back Going off what RehabMan mentioned, you're out of luck for now. AFAIK, no one has managed to get QE working with the mobile HD 4600 yet. Your best bet is to wait for future updates. Link to comment Share on other sites More sharing options...
maly70 Posted September 8, 2014 Share Posted September 8, 2014 Going off what RehabMan mentioned, you're out of luck for now. AFAIK, no one has managed to get QE working with the mobile HD 4600 yet. Your best bet is to wait for future updates. Im just trying now, i will keep trying but, if not i hope next update will fix it thou To be technically correct, you have CI (AppleIntelFramebufferAzul.kext), but not QE (not AppleIntelHD5000Graphics.kext). Making it work, if even possible, will require patching the kext or for Apple to re-enable the code that was present in Mavericks. I noticed that dsdt and ssdtxx are not working as it was with Mavericks, i think to make work in Yosemite they need new codes, cos as u can see in the above attach Nvidia is still showing and Nvidia files still loading even tho Nvidia is disabled from ssdt. i was trying to re-patch it again with a new raw ssdt but still not loading. BTW: CMOS is resetting a lot in yosemite!! and Audio is not working as it should be, the top speakers are not working only the bottom one with low low audio EDIT: i got now QE/CI with HD4600 mobile version and now i have it like this: Link to comment Share on other sites More sharing options...
