Pandora's Box (Beta1 Testing)

[Micky1979]

13/06/2013



This Topic is Closed!



And we thank everyone for the collaboration.



Pandora Beta 1 is obsolete, OSX 10.9 is among us, and so news with it.



The new Pandora release, Beta 2, was supposed to come out yesterday or today, but the premature appearance of OSx Mavericks, has forced us to make some changes:

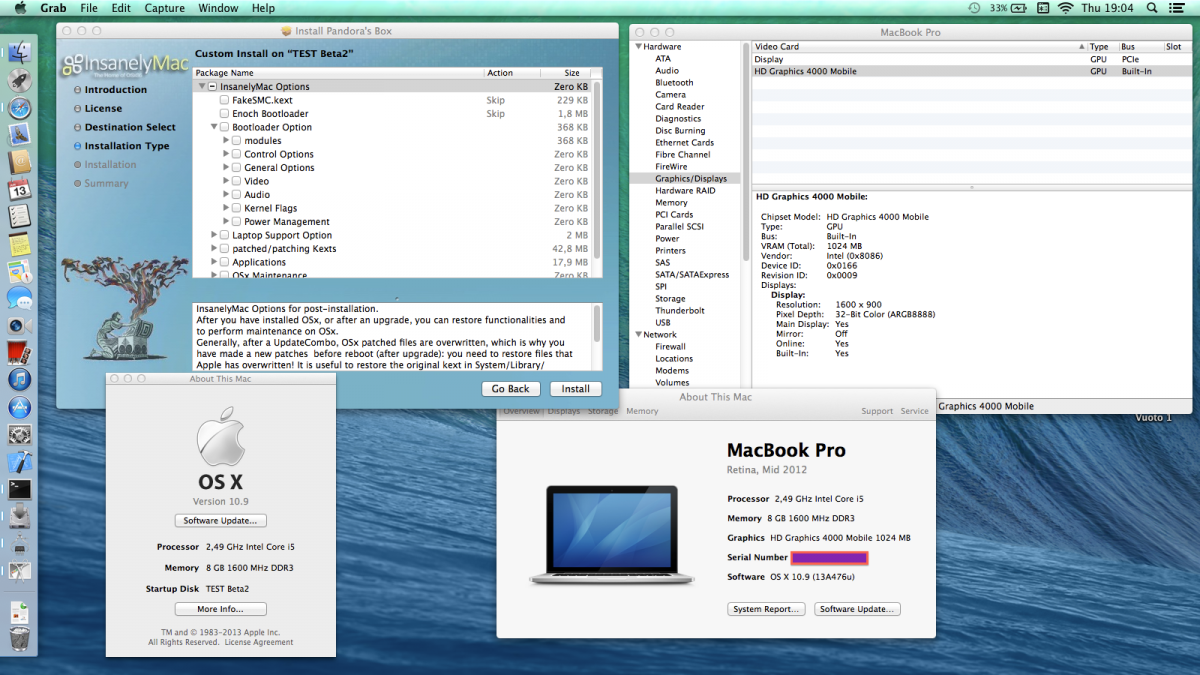

Next Pandora Beta 2 can install Mavericks, and this is my Lappy, with new OS just installed:



• Wifi Working
• QE / CI working with Intel HD4000 (no dsdt in my Extra folder, using Enoch injection).
• Built-in Intel USB 3.0 work out of Box with USB mouse (to be checked with USB HD ...)
• Battery management work with kexts roll back
• AppleHDA.kext not working at moment (though the binary was patched, and it is a problem of other files.. to be checked ..) Working with Pandora's patches! (need only iRQ patch)
• AppleIntelCPUPowerManagement.kext patched correctly during installation
• Sleep Working!

see the log: Pandora Installer 06-13-13_0848.html.zip







Pandora Beta2 coming soon, stay tuned!





Micky1979



Pandora's Box Beta Testing

Pandora's Box is currently a Beta release, so there's a good chance you may encounter a few bugs.
The purpose of this Beta release is to help identify and correct these errors.
So expect frequent changes and updates to the application during the Beta stage.

Please keep this in mind while using it.

Once the application gets a chance to mature, we will then begin adding additional language translations and hope to be able to include every different language that is supported by OSx.

Usage of Pandora's Box for the installation and maintenance of OSx on the x86 platform is purely for educational purposes. This is a free application, made by the community for the community. With that OSx86 spirit in mind, all are welcome to participate in it's further development. Just keep in mind that since the application is in Beta, so are the methods being used distribute it, apply updates and handle bug reports.

The Beta can be downloaded at our new Downloads Section here

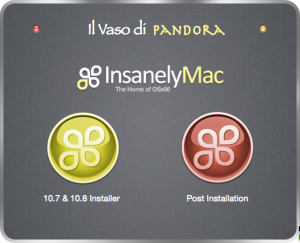

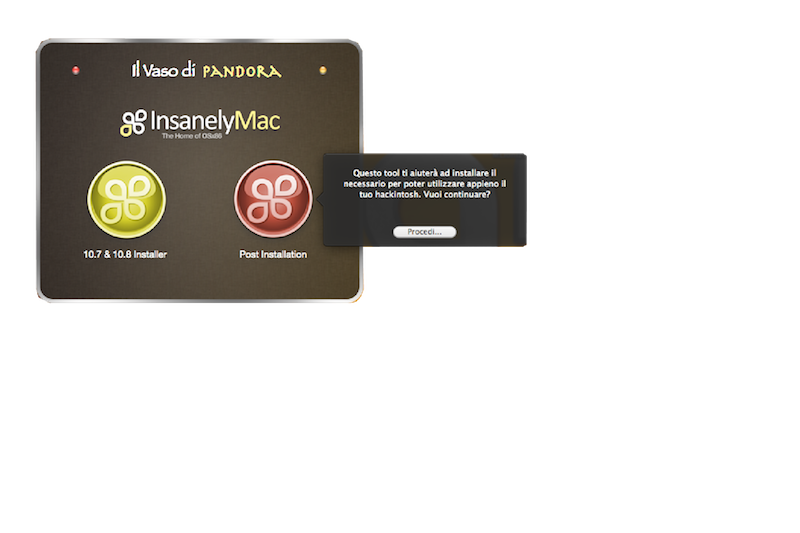

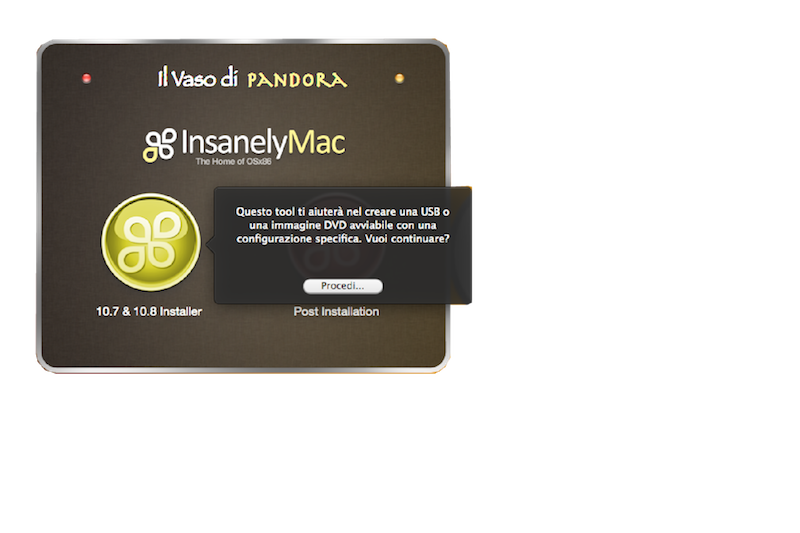

When you first launch the application, the Pandora's Box GUI will present you with two simple options:

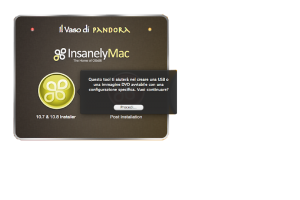

The first option on the left is the Installer tool, used to create a bootable OSx installer on a USB thumb drive, DVD or other HDD partition,

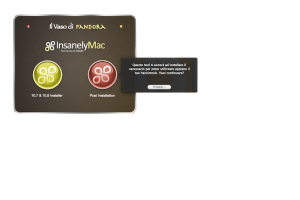

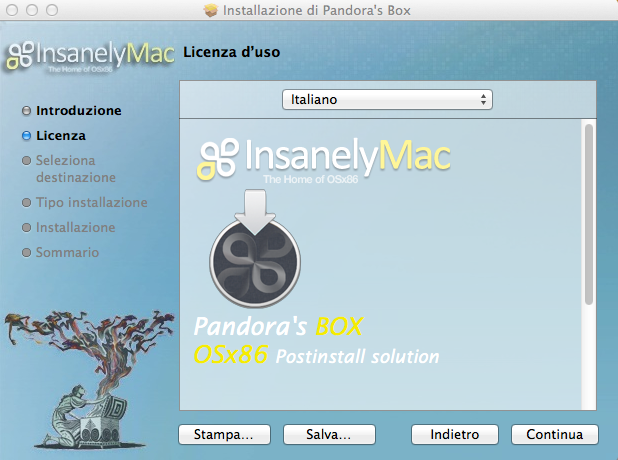

On the right side, is the Pandora's Box "Post-Installation" utility that can be used to modify your OSx installation, install various hardware fixes and kernel extensions, along with other maintenece such as after applying a OSx software update. Extension files that are patched by Pandora's Box will be saved to a folder called "BackupExtensions" or "Backup_Video" (if you decide to work on the video kexts)

Pandora's Box post-installation:

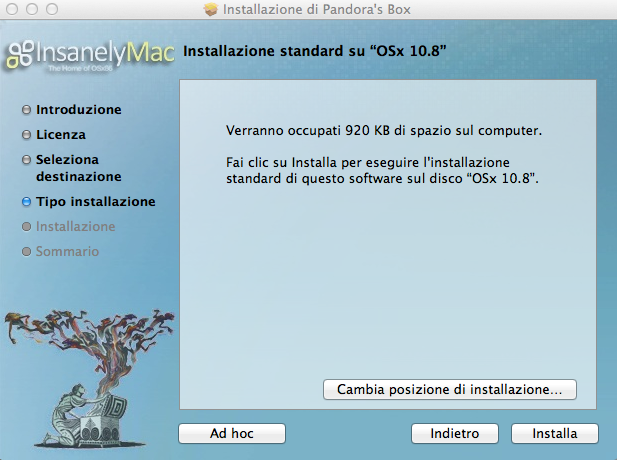

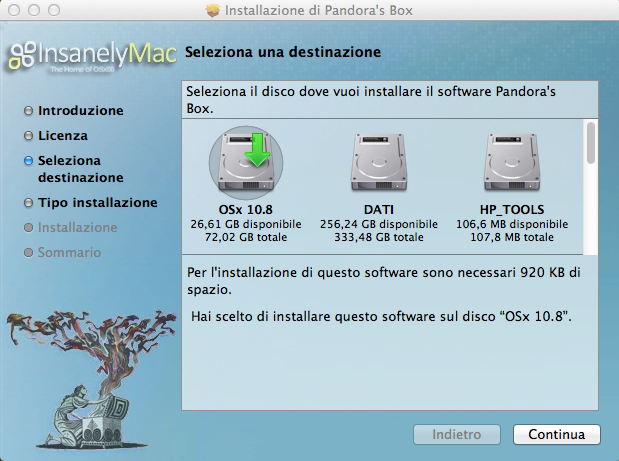

If you click "Change install location" you can change the target volume if you want to apply changes to an OSx install other than your current boot volume (not all options are able to do so)


Post-Installation Options:





Well, back to the creation of our new Installation. From the main GUI, choosing the "10.7 & 10.8 Installer" option will start the Wizard, and the first thing requested will be to enter the password of your account (which will be invisible as you type)

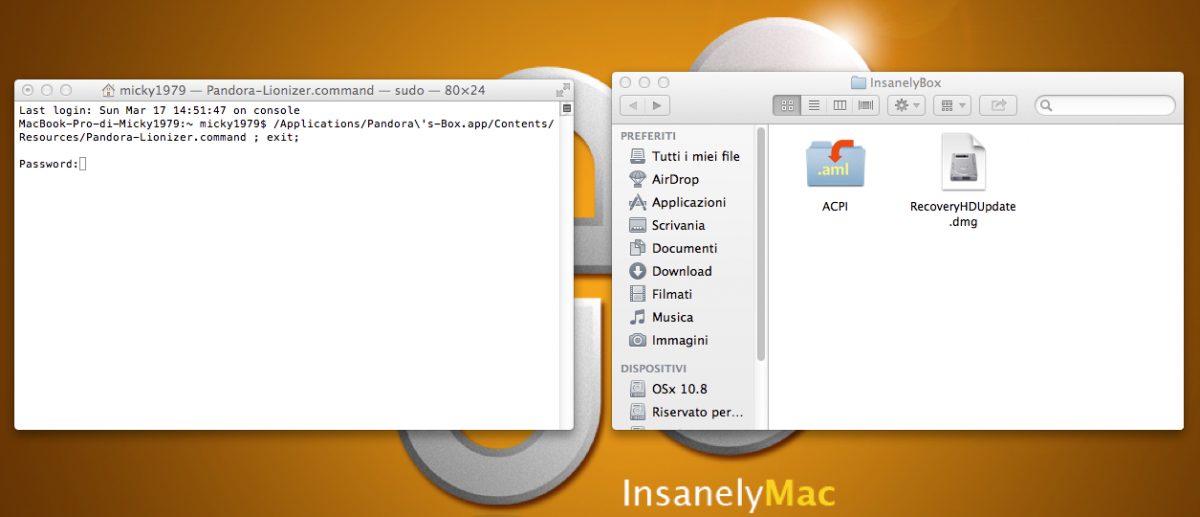

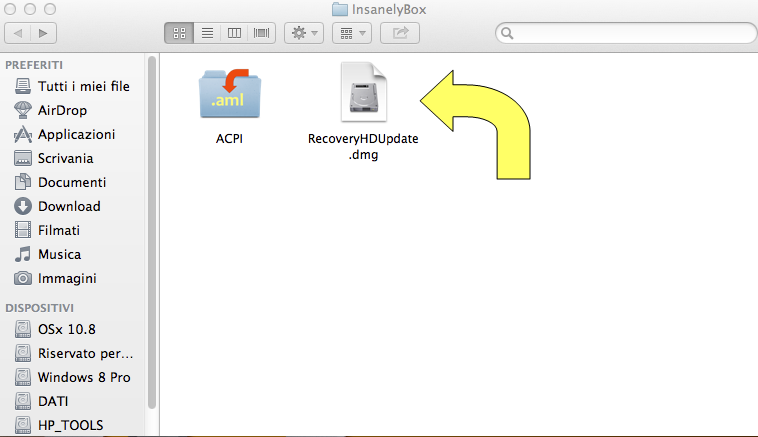

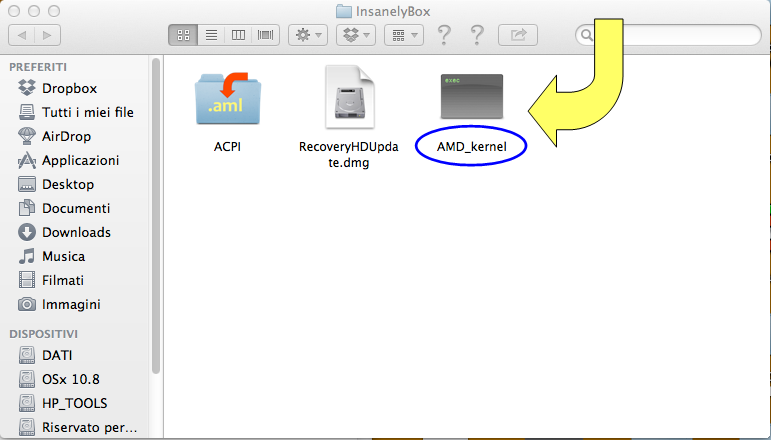

As you can see Pandora's Box opened a folder called "InsanelyBox", (which will be closed automatically as soon as you enter the passoword of your User Account ...)



What can I put inside InsanelyBox folder?

1) If you already have the RecoveryUpdate.dmg from Apple, Pandora will give you the opportunity to create a Recovery partition on your Hack, as a real Mac!
Warning: If you don't have it already but want to create the recovery partition, you do not need to download it! In fact, Pandora will offer, while creating the USB / DVD Installation, to create the RecoveryHD and if the RecoveryUpdate.dmg is not present in the "InsanelyBox" folder, Pandora's Box will download it for you automatically.

2) If you have AMD CPU Hardware, or a netbook, you can put here the patched kernel, making sure to rename it as the original: "match_kernel"

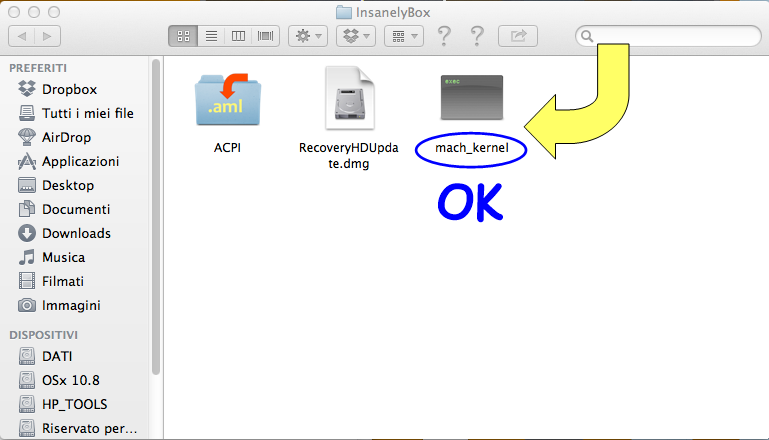

rename the XXX_ kernel to "mach_kernel", as shown below:

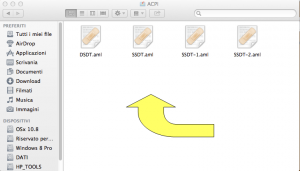

The ACPI folder handles all your patched ACPI tables (if you have them) such as the DSDT.aml, SSDT.aml, SSDT-1.aml etc.. If placed here, they will be transferred onto the installer USB stick/DVD, but also onto the Final installation as well, so you do not need to manually copy them again post-install once they have been placed here:



So, after the password has been entered, all Finder windows will close automatically and Pandora's Box will ask if your want to create the system installation on a USB or burn to a blank DVD-R.

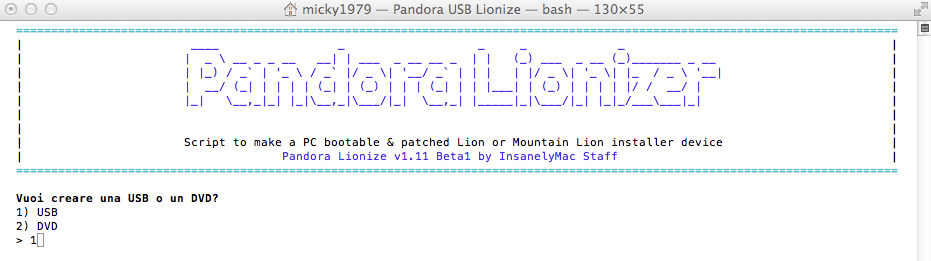

type 1 for USB and 2 for DVD and press enter.

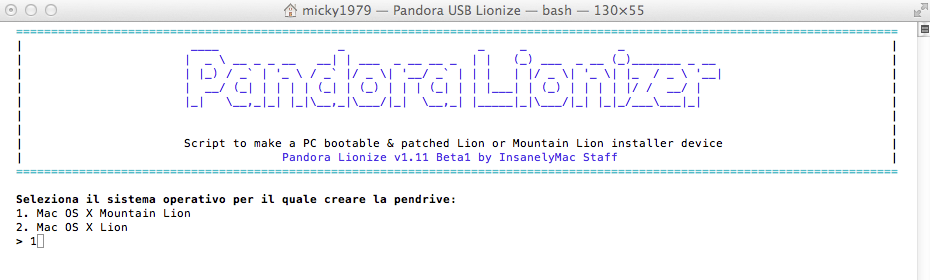

At this point, Pandora will ask you which OSx version you are going to install:

type 1 for Mountain Lion, and 2 if you use Lion

What should I do now?

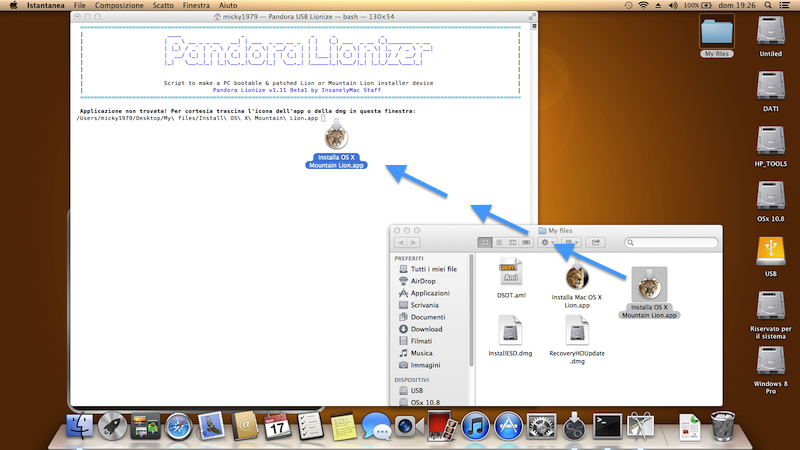

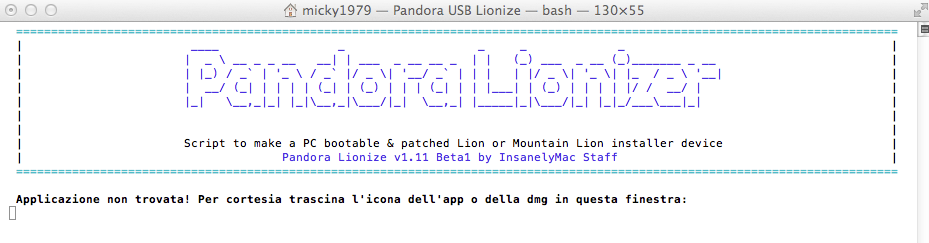

Simple! if Pandora's Box can not find an original OSx application in /Applications, it will prompt you to drag and drop it inside of it's window, this can be the classic app downloaded from AppStore, or the InstallESD.dmg image for Developers (if you are).


as in the photo below, all you have to do is "drag & drop", wherever it is, the app or the image, inside the window and press enter:

(testo)

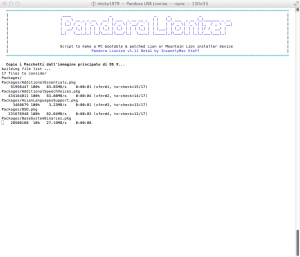

Now begins the "restore" that will last 15-20 minutes depending on the speed of your USB flash drive:

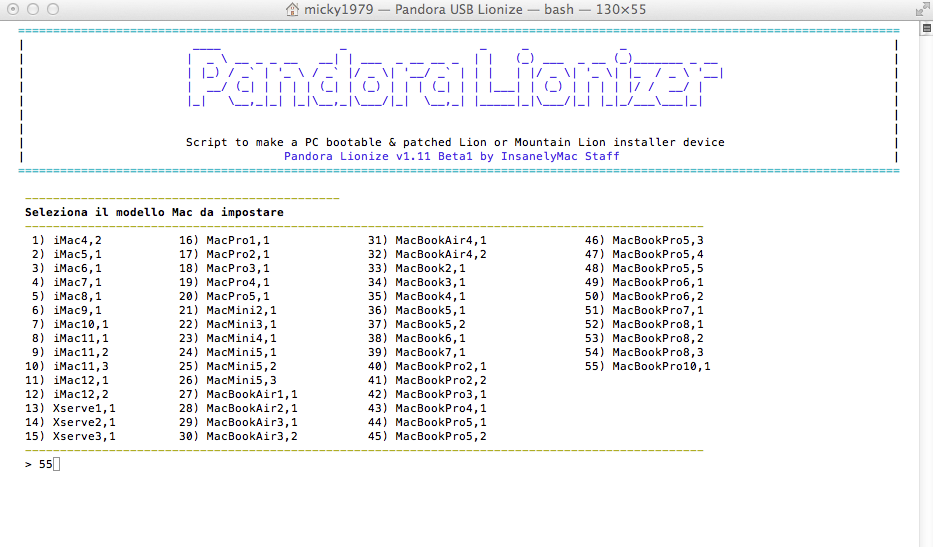

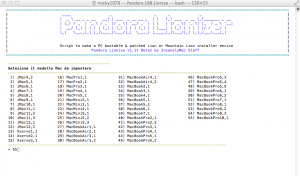

After the restore, Pandora asks you what smbios.plist you want to choose.
Warning:
the SMBIOS is very important, is the file that tells OSx what type of hardware to expect (CPU, GPU, CPU, Desktop or Laptop), you must choose the one with characteristics closest to your hardware!

The smbios.plist will be transferred in both USB/DVD but also to your final installation:

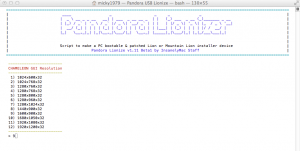

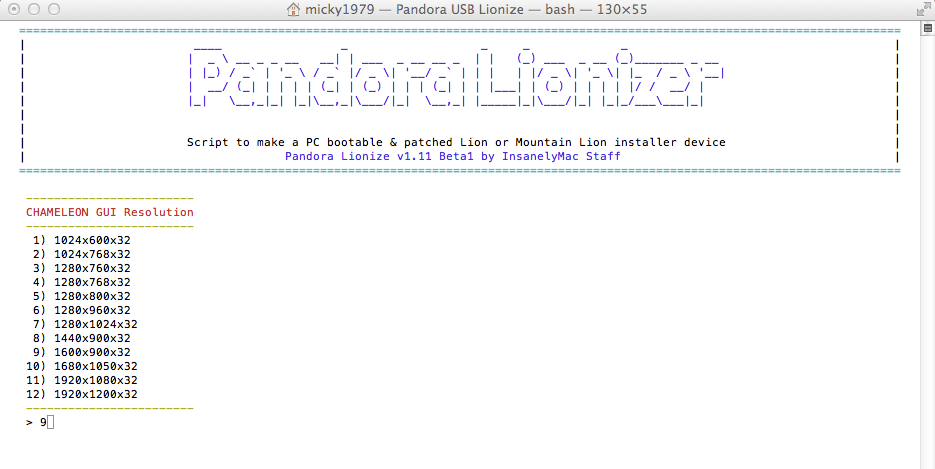

Choose the screen resolution (in pixels) of your system Desktop or Laptop:



Pandora System

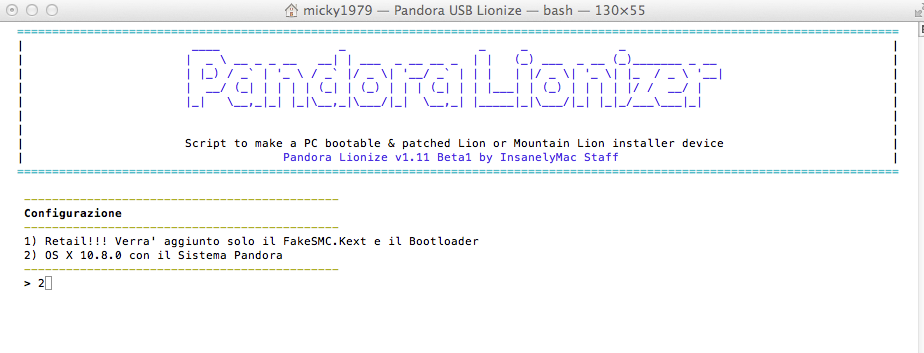

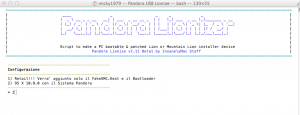

Now you have to choose if you want a totally Vanilla installation or transform your USB/DVD adopting the "InsanelyMac Pandora System"



type 1 to make a Retail installation, with the addition of the FakeSMC.kext (only required kext) and the bootloader to make it bootable on any PC. Now press enter and wait for the end.
or type 2, creating the Pandora system on USB/DVD:

Next Pandora's Box will create a system of choices to for you customize your hardware during the installation of OSx, which will allow you to start the first time after the installation!

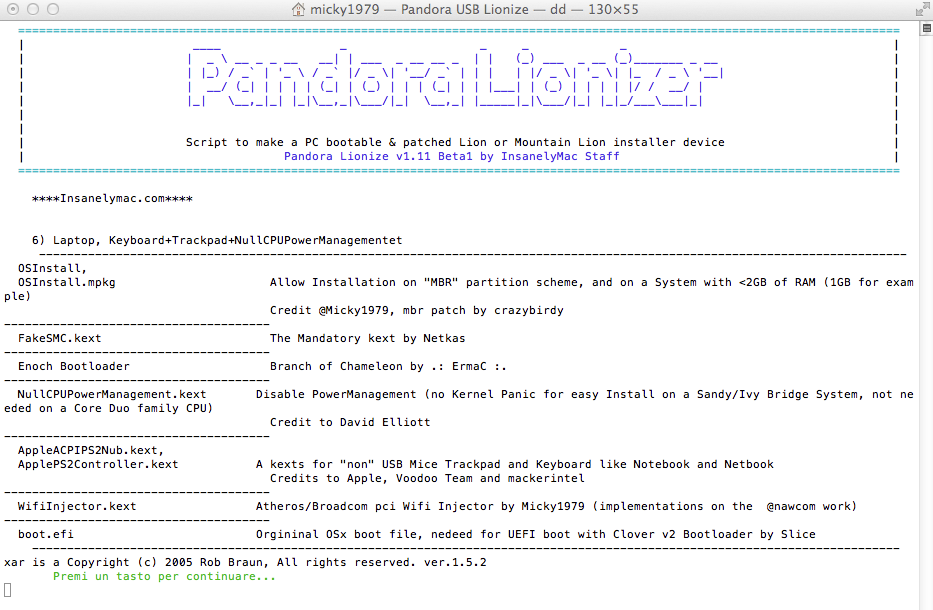

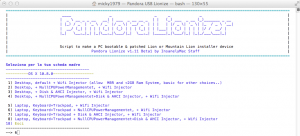

Options for Desktop and Laptop systems

Pandora offers some options that will allow your USB stick to boot on most of the hardware in circulation:

all the default options install FakeSMC.kext, the Wifi Injector, the patch to install on MBR partition table type (which allows you to install alongside Microsoft Windows without formatting the entire hard disk), also enables the installation on systems with less than 2GB of RAM (1GB for example), which otherwise would not be possible on Lion and Mountain Lion.

AMD users have to choose an option that contains the NullCPUPowerManagemet.kext to disable the native Power Management for Intel processors, to avoid Kernel Panic. Same thing for those who have a Sandy or Ivy Bridge processor (with the Post-Installation tool of Pandora's Box, you can patch AppleIntelCPUPowerManagement.kext, to activate the power saving features and most likely sleep as well.

The injector for Disk & AHCI, allows you to start from USB or DVD without the "Still waiting for root device" error, caused by non-activation of the SATA controller driver, and to avoid the timeout of IOAHCIBlockstorage.

Options for Laptop behave in the same way as the Desktop options, with the difference being additional drivers for the keyboard and trackpad.



Note: Options 1 for a Desktop, and 5 for a Laptop, are the options to choose if you're not sure how your hardware behaves in OSx, choose them if you want an "Easy way".

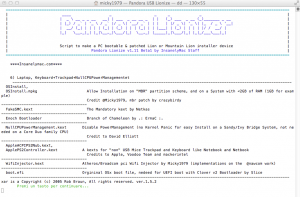

Small summary of what you are installing on USB Key/DVD ..


RecoveryHD

Finished doing the patch, Pandora will propose the creation of the Recovery partition, and if you choose to do it, but you did not put the RecoveryHDUpdate.dmg inside the InsanelyBox folder , Pandora will do the donwnload automatically if a connection to the Internet is present.

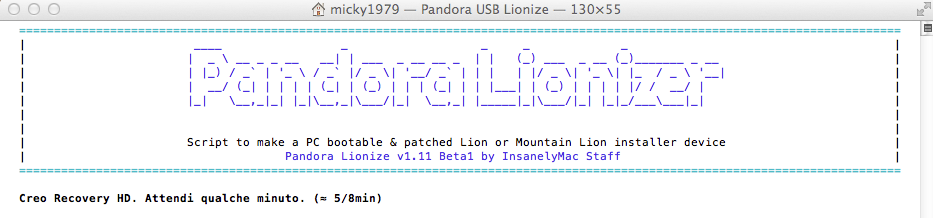

Wait a few minutes ... if you chose to create the RecoveryHD ...

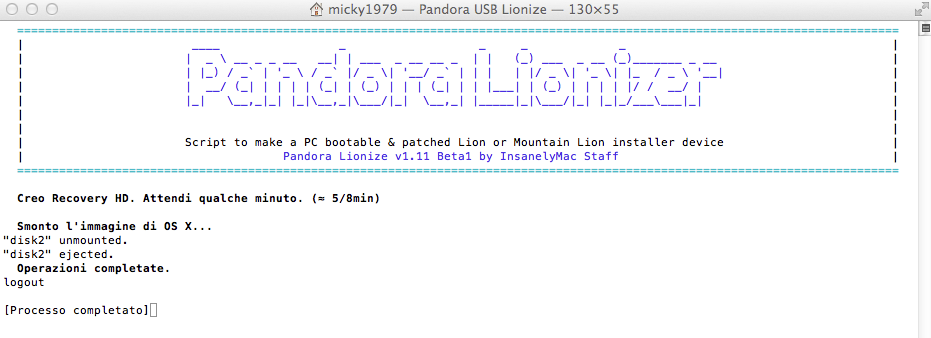

Well, the process is completed, as confirmed by Pandora:

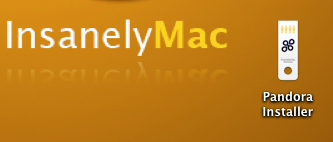

now you can see the Pandora Installer icon on your Desktop:



You just have to restart on your Hack and begin the installation!

Credits

Main Script:
Micky1979, ErmaC, Marchrius

Functionality:
eep357, Micky1979, ErmaC, Marchrius, Lejenk, TH3L4UGH1NGM4N, Ed_Saxman

App Design:
TH3L4UGH1NGM4N, ErmaC, Marchrius, Alex//3001, onehalfkiller

Testing:
TH3L4UGH1NGM4N, eep357, ErmaC, Micky1979, Fabio71, iFIRE, Lejenk, Artur-pt


InsanelyMac.com ©

[Fabio1971]

Under costruction



Lo Staff di InsanelyMac è lieto di presentare Pandora's-Box.app



Pandora è un nuovo Tool che permette di creare il tuo sistema di istallazione partendo dall'immagine di Lion o Mountain Lion per sviluppatori e con le rispettive app (Installa OS X Mountain Lion.app oppure Installa Mac OS X Lion.app, non importa quale versione Retail o GM avete al momento), in più ha già con sè la soluzione di Post-Installazione che Vi permetterà di mantere le modifiche apportate anche dopo un ComboUpdate.



Fino a qui nulla di speciale, ma capirete subito che Pandorà offre molto di più, in quanto vi permetterà di personalizzare da subito le minime cose che vi permetteranno di avviare facilmente su quello che sarà il vostro Hack:



Alla prima apertura dell'applicazione l'interfaccia di Pandora, vi mostrerà la due semplici opzioni:







Installer per le due versioni di OS X Lion e Mountain Lion serve per creare una USB o un immagine DVD.



Cliccando sull'icona dell'Installer si aprirà in automatico sia il Terminale che la cartella ACPI per copiare DSDT-SSDT, fatta questa operazione inserite la Password nel Terminale quindi clic su Invio.



Fabio

[ErmaC]

Reserved

[Marchrius]

Create DVD and/or RecoveryHD-ready image (both USB and DVD compatible)



Create DVD image



The steps for creating the iso are similar if not identical to those of the creation of the pendrive (USB).



You just have to choose option 2 from the menu pictured below:

http://www.insanelym...ttach_id=121303



Once this is done you can continue the development of your image with the instructions from the first post Micky1979.





Create RecoveryHD

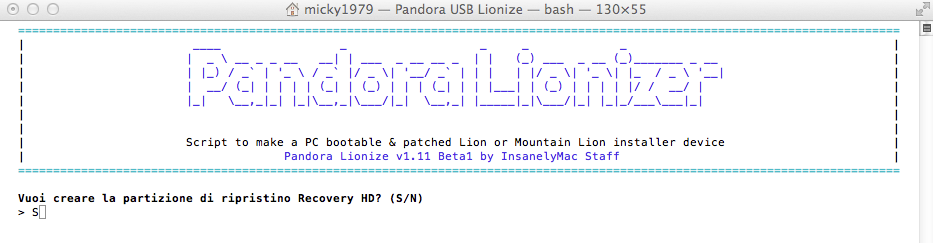

In order to create the Recovery partition you choose "Y" when you are asked (see image below):

http://www.insanelym...ttach_id=121328



Be careful though, you can create the Recovery partition on only one disk partitioned as GUID Partition Table (GPT). This does not depend on us but on the tools made ​​available by Apple.



It should be noted that the script file download from internet RecoveryHDUpdate.dmg (for a total of about 452 MB) to retrieve needed files. If you already have the file you can copy it in the folder mentioned above and follow the instructions on the first post. This will create everything you need to create the RecoveryHD with the version file used to create the USB/DVD.

[eep357]

OSX INSTALL: RUNNING AND USING YOUR PANDORA BUILT INSTALLER





Set your PC's BIOS to boot from USB or DVD, depending on what type of installer you created. Once your installer boots, you will see this screen. This GUI screen is the Enoch branch of the Chameleon bootloader. From here, choose the Pandora installer and press enter on your keyboard to boot.

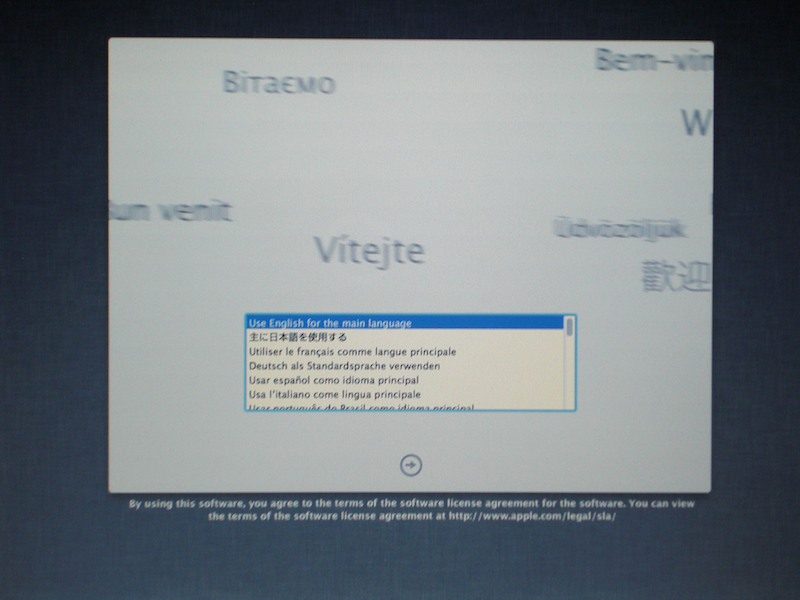

Wait for the OSx installer to load. Once it has finished booting you should arrive at the first OSx screen. Here choose your language to continue:

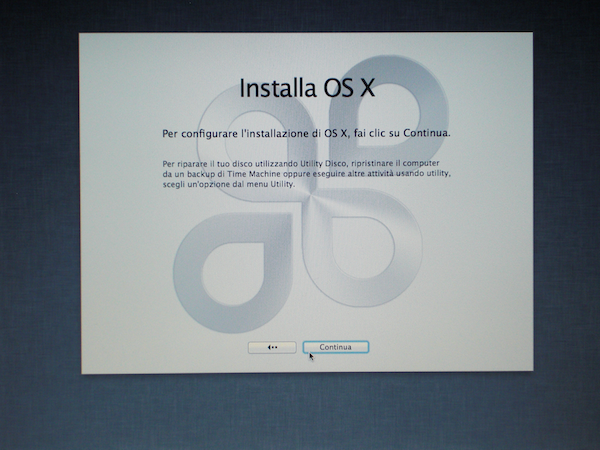

You should now see an Install confirmation screen with the InsanelyMac logo. At his time, if you already have a properly formatted partition ready to install onto, you can click yes and continue on to the next screen.



If you still need to create a partition to install to, from the menu bar above, click on "utilities" and choose "Disk Utility" from the drop down list to launch OSx's hard drive utility and format a new partition or entire hard drive to install onto. You can install onto a drive with either a GUID orMBR partitioning scheme, but the file system you choose for your OSx partition needs to be "Mac OS Extended Journaled" also known as NFS+. Another important note, while you can install to a drive with an MBR partition scheme, which means is you have a Windows installation on the same disk you can still combine an OSx installation partition onto the same hard drive, you will need to have created these partitions ahead of time as OSx's Disk Utility.app is not capable of making changes to a hard drive that already contain a Windows file formatted (NTFS) partition, without completely reformatting and erasing it first. Once you have your new partition ready, quit Disk Utility and continue past the install confirmation screen.

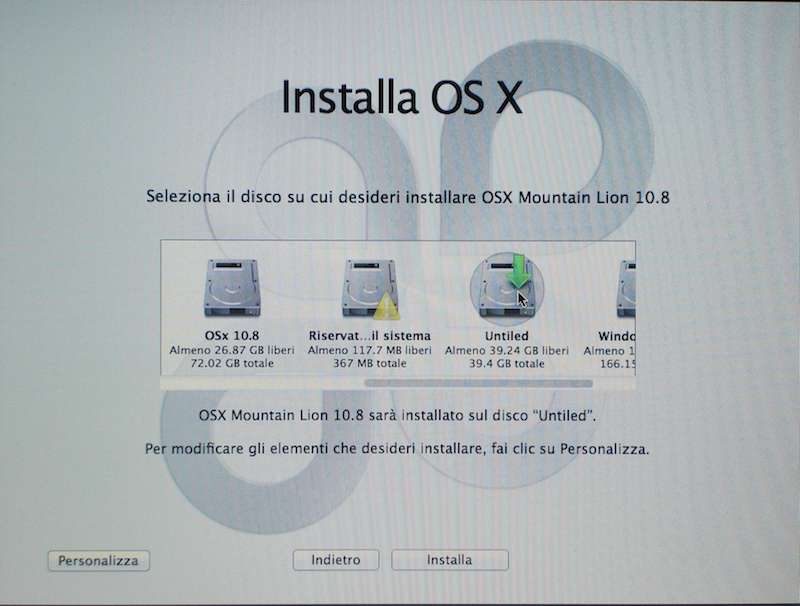

Here you will see a list of available partitions, chose the once you want to install OSx to, and you can now also choose to further customize you installation

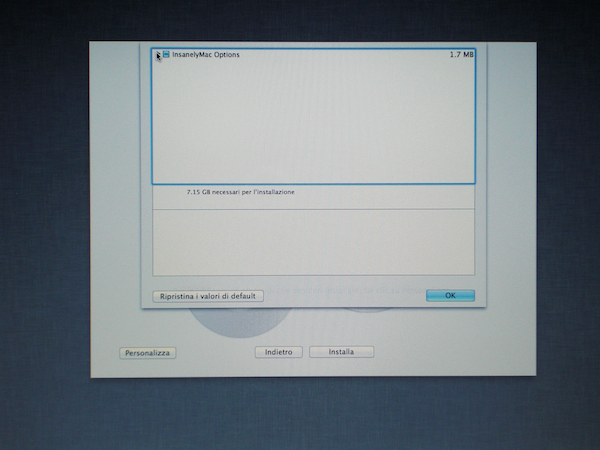

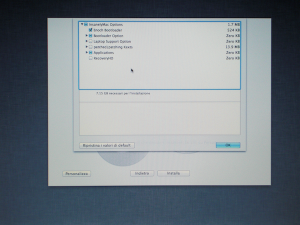

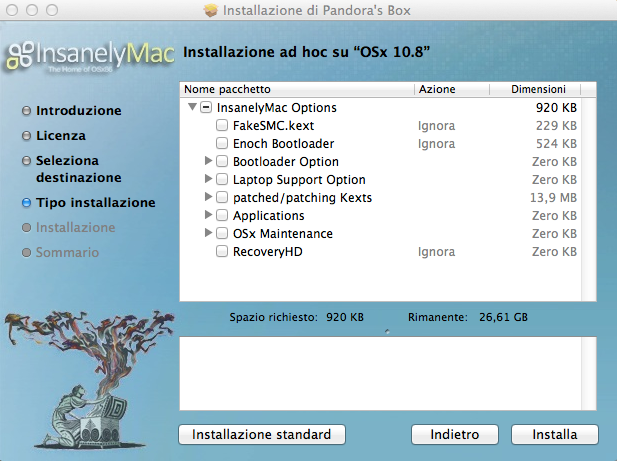

Insanely Options .... here you'll find a number of different options that can be used to enable hardware found on most PC's or Notebook computers





The categories that contain further options are: Bootloader, Audio, Network, USB, Laptop Support, CMOS, Disk, Video and Applications for your Hack



Now moving onto the actual installation, you have the opportunity to open the Installation Summary log. At the end of the installation process you can then save a "log" of the installation you just made. If you think possible problems may have occurred, this log file can be given to us for review and can help assess if something went wrong during the installation!

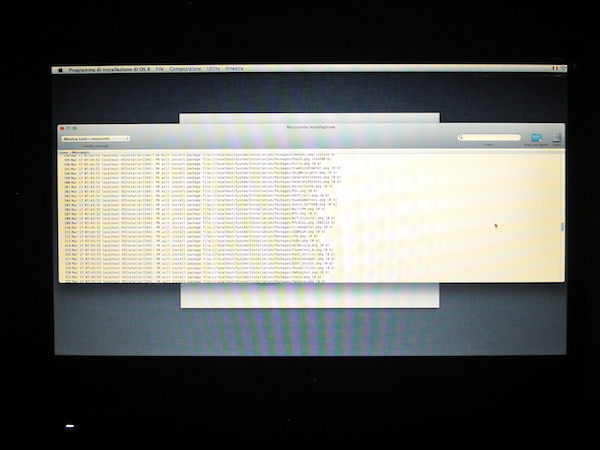

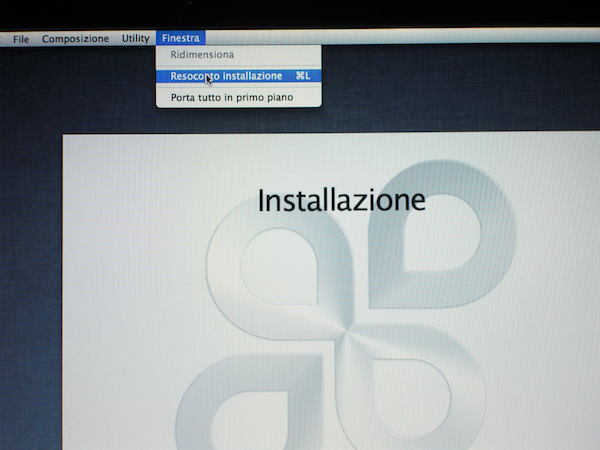

Note: The Summary of Installation will be saved within 10 seconds





otherwise ... it will restart automatically!

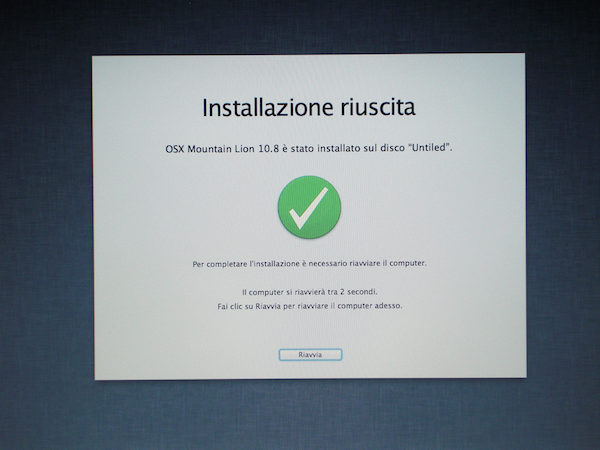

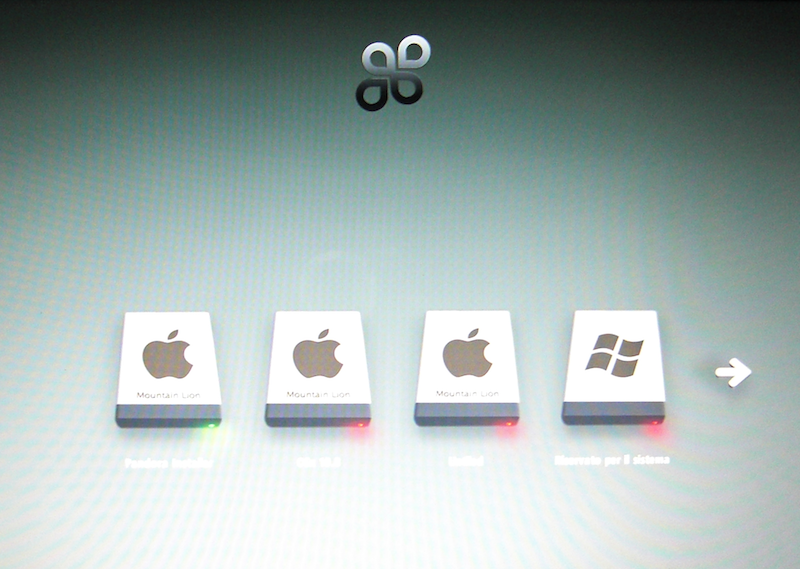

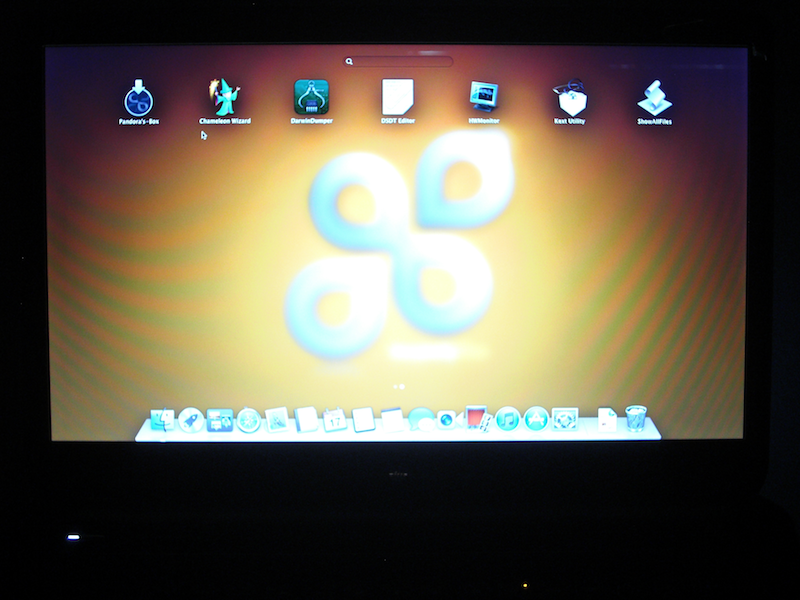

Now you should be able to boot into your new OSx installation! When you boot for the first time, you'll see a copy of the Pandora's Box application already available in your Applications folder or accessible via LaunchPad, along with optional applications you may have chosen to include from the "Insanely Options" choices made earlier



[Micky1979]

Hi all,



before we begin, I want to thank InsanelyMac and my colleagues and all participants in the Project!

This project may have a great development, and was born developing the initial work of ErmaC in Lionize. My only idea was to create on the fly the "Pandora System", and through the contributions of Ermac and Marchrius that are an essential part of the Pandora's engine. Together we have laid the foundation for a fascinating Tool integrated into the app you see now, thought by eep357 and TH3L4UGH1NGM4N.



But now, I want to thank as "Men", Alessandro17 and Ermac for allowing me to work on a project like this, which I feel a friend of them.



Micky1979

[blackosx]

Hi Micky1979



Looking through the package contents I see there's been a large amount of work gone in to this. Is it going to be possible to provide a list of credits for everyone responsible for each patch, kext, tool etc?



With regards to Pandora.app/Contents/Resources/Base/Insanelymac/PKG/Applications/DarwinDumper.app.zip

Can you include the latest version?



Thanks

[Micky1979]

Hi Micky1979



Looking through the package contents I see there's been a large amount of work gone in to this. Is it going to be possible to provide a list of credits for everyone responsible for each patch, kext, tool etc?



With regards to Pandora.app/Contents/Resources/Base/Insanelymac/PKG/Applications/DarwinDumper.app.zip

Can you include the latest version?



Thanks

Of course, I hope that we can agree to this.

After a short break, and collected some feedback, Pandora.app will be updated regularly, and we will focus in doing this.



It 's Pandora Team intention, give all the necessary credits, if someone lacks safe will be added! In Pandora.app any packages inside was created by the Pandora Team, including scripts.



Please wait for the next upcoming release

[eep357]

Hi Micky1979



Looking through the package contents I see there's been a large amount of work gone in to this. Is it going to be possible to provide a list of credits for everyone responsible for each patch, kext, tool etc?



With regards to Pandora.app/Contents/Resources/Base/Insanelymac/PKG/Applications/DarwinDumper.app.zip

Can you include the latest version?



Thanks

Yes, and no. For any included files, kexts, tools that is the intent. Adding and adjusting all the descriptions is still ongoing...Then comes doing it all again in every other language. Since I'd expect there will be many contributions made by users in bug fixes, and numerous other improvements to the app itself as time goes on, which could number in hundreds maybe, it may be difficult to include everyone in that credit list. We'll see, I too have to remind myself: beta, beta, beta. So many things I think now may change or be wrong.

[magnifico]

Great ...

[Lordadmiral Drake]

Nice =)

I've already installed 10.8.3, otherwise I'd try it out



So, basically, Pandora is InsanelyMac's *Beast, only better and all legit?

[Micky1979]

Equation does not like.... But why not?



Micky

[magnifico]

in the future we can also implement clover?

Ahh...you are a great Mikeligno..now magnifico is very happy...Clover inside...thanks...

[blackosx]

Of course, I hope that we can agree to this.

After a short break, and collected some feedback, Pandora.app will be updated regularly, and we will focus in doing this.



It 's Pandora Team intention, give all the necessary credits, if someone lacks safe will be added! In Pandora.app any packages inside was created by the Pandora Team, including scripts.



Please wait for the next upcoming release

Yes, and no. For any included files, kexts, tools that is the intent. Adding and adjusting all the descriptions is still ongoing...Then comes doing it all again in every other language. Since I'd expect there will be many contributions made by users in bug fixes, and numerous other improvements to the app itself as time goes on, which could number in hundreds maybe, it may be difficult to include everyone in that credit list. We'll see, I too have to remind myself: beta, beta, beta. So many things I think now may change or be wrong.

Hi Micky1979 & eep357



Thanks for your replies.



I have no problem with DarwinDumper being included in your project, in fact I think it's a good idea that it is included, I just wanted to suggest you used the most recent version.



I understand this is an early release and things will undoubtedly change as this matures. I was only pointing out my initial thoughts when I saw this. Don't get me wrong, I think what you guys are doing is great and anything that gives users an alternative to the "beast" tools is a good thing. I just remember one of the issues with tony mac was he never gave credit for anything so I just didn't want to see this get tarnished in the same way before it's even got off the ground. eep357's reply to 3.14r2's question about the downloads section is spot on and should apply here too.



So keep up the good work and I look forward to watching this evolve.



I still haven't actually run this yet as I have my system all up an running so I don't have a need to, but I was familiar with Erma C's previous lionize script so I get an idea of what it does. Maybe when I come to do a re-install I may try it.



Regards

blackosx

[magnifico]

OSX INSTALL: RUNNING AND USING YOUR PANDORA BUILT INSTALLER





Set your PC's BIOS to boot from USB or DVD, depending on what type of installer you created. Once your installer boots, you will see this screen. This GUI screen is the Enoch branch of the Chameleon bootloader. From here, choose the Pandora installer and press enter on your keyboard to boot.





Wait for the OSx installer to load. Once it has finished booting you should arrive at the first OSx screen. Here choose your language to continue:





You should now see an Install confirmation screen with the InsanelyMac logo. At his time, if you already have a properly formatted partition ready to install onto, you can click yes and continue on to the next screen.



If you still need to create a partition to install to, from the menu bar above, click on "utilities" and choose "Disk Utility" from the drop down list to launch OSx's hard drive utility and format a new partition or entire hard drive to install onto. You can install onto a drive with either a GUID orMBR partitioning scheme, but the file system you choose for your OSx partition needs to be "Mac OS Extended Journaled" also known as NFS+. Another important note, while you can install to a drive with an MBR partition scheme, which means is you have a Windows installation on the same disk you can still combine an OSx installation partition onto the same hard drive, you will need to have created these partitions ahead of time as OSx's Disk Utility.app is not capable of making changes to a hard drive that already contain a Windows file formatted (NTFS) partition, without completely reformatting and erasing it first. Once you have your new partition ready, quit Disk Utility and continue past the install confirmation screen.





Here you will see a list of available partitions, chose the once you want to install OSx to, and you can now also choose to further customize you installation





Insanely Options .... here you'll find a number of different options that can be used to enable hardware found on most PC's or Notebook computers





The categories that contain further options are: Bootloader, Audio, Network, USB, Laptop Support, CMOS, Disk, Video and Applications for your Hack



Now moving onto the actual installation, you have the opportunity to open the Installation Summary log. At the end of the installation process you can then save a "log" of the installation you just made. If you think possible problems may have occurred, this log file can be given to us for review and can help assess if something went wrong during the installation!





Note: The Summary of Installation will be saved within 10 seconds





otherwise ... it will restart automatically!



Now you should be able to boot into your new OSx installation! When you boot for the first time, you'll see a copy of the Pandora's Box application already available in your Applications folder or accessible via LaunchPad, along with optional applications you may have chosen to include from the "Insanely Options" choices made earlier





Epp ...why if click on your image thumb...i see

Sorry, you don't have permission for that!

[carbo178]

Epp ...why if click on your image thumb...i see

Sorry, you don't have permission for that!

Same problem...

[magnifico]

Attention for all user ..if have problem your pc restart when start with pen drive , edited your org.plist



<key>GraphicsEnabler</key>
<string>Yes</string>
<key>Kernel Flags</key>
<string>-v npci=0x2000</string>

If dont have permission for edited it , put on destktop and edited, of course after copy and paste in Extra folder

[eep357]

Epp ...why if click on your image thumb...i see

Sorry, you don't have permission for that!

Sorry! That video is from Italian version, updated images will be coming.

[Micky1979]

Attention for all user ..if have problem your pc restart when start with pen drive , edited your org.plist



<key>GraphicsEnabler</key>
<string>Yes</string>
<key>Kernel Flags</key>
<string>-v npci=0x2000</string>

If dont have permission for edited it , put on destktop and edited, of course after copy and paste in Extra folder

Same problem...

Thanks Magnifico, to notice this.

In the first installation made with Pandora, OSx installer that assigns permissions to the Extra folder located in the root, as other files that are in there!

However, you can try running Kext Utility, included with every installation, and I think this problem will go away. You can do this test?



Micky



Hi Micky1979 & eep357



Thanks for your replies.



I have no problem with DarwinDumper being included in your project, in fact I think it's a good idea that it is included, I just wanted to suggest you used the most recent version.



I understand this is an early release and things will undoubtedly change as this matures. I was only pointing out my initial thoughts when I saw this. Don't get me wrong, I think what you guys are doing is great and anything that gives users an alternative to the "beast" tools is a good thing. I just remember one of the issues with tony mac was he never gave credit for anything so I just didn't want to see this get tarnished in the same way before it's even got off the ground. eep357's reply to 3.14r2's question about the downloads section is spot on and should apply here too.



So keep up the good work and I look forward to watching this evolve.



I still haven't actually run this yet as I have my system all up an running so I don't have a need to, but I was familiar with Erma C's previous lionize script so I get an idea of what it does. Maybe when I come to do a re-install I may try it.



Regards

blackosx

Thanks for that.

You are absolutely right, and what you suggest be done, just a little bit of time (a little).

I agree that OSx86 scene (the real one), should work together, but to do this I never thought how to accomplish this. Unfortunately I do not do politics in this sense, because my personally thought, is usually free from malice. Although my feelings recognize when something is wrong



Micky

[magnifico]

Mikeligno's , Magnifico can do everything it is a 'born to do this...now try ...ok?

[eep357]

Hi Micky1979 & eep357



Thanks for your replies.



I have no problem with DarwinDumper being included in your project, in fact I think it's a good idea that it is included, I just wanted to suggest you used the most recent version.



I understand this is an early release and things will undoubtedly change as this matures. I was only pointing out my initial thoughts when I saw this. Don't get me wrong, I think what you guys are doing is great and anything that gives users an alternative to the "beast" tools is a good thing. I just remember one of the issues with tony mac was he never gave credit for anything so I just didn't want to see this get tarnished in the same way before it's even got off the ground. eep357's reply to 3.14r2's question about the downloads section is spot on and should apply here too.



So keep up the good work and I look forward to watching this evolve.



I still haven't actually run this yet as I have my system all up an running so I don't have a need to, but I was familiar with Erma C's previous lionize script so I get an idea of what it does. Maybe when I come to do a re-install I may try it.



Regards

blackosx

To me, making sure credits are included on these things is a very top priority. Even understanding it's very early beta, this was a mistake for them not to all be updated even in this is early first release version. My apologies, is my fault as I should have double checked on this very thing first. Your understanding and updated version are both much appreciated!

[magnifico]

Ok Mikeligno , work now have permission



I love this man marry his brain....

[magnifico]

Sorry! That video is from Italian version, updated images will be coming.



well ... :wink2:



Mhmmmm strange ...i have this problem



I installed the vodoohda first, then I tried to patch Hda and the voodoo and 'disappeared from SLE, but I noticed that the application VoodooHdaSettingsLoader.app not' disappeared from general use, why?





Hei Miscel , sorry for my bad english

[Micky1979]

well ... :wink2:



Mhmmmm strange ...i have this problem



I installed the vodoohda first, then I tried to patch Hda and the voodoo and 'disappeared from SLE, but I noticed that the application VoodooHdaSettingsLoader.app not' disappeared from general use, why?





Hei Miscel , sorry for my bad english

Thanks again Magnifico, check the script, and let you know in a short time



Micky

[magnifico]

Dont worry Mik....i am here
