[GUIDE] 1st Generation Intel HD Graphics QE/CI

nijhawank · November 1, 2018

On 10/28/2018 at 11:27 PM, RiskyRis said:

@MacPeet i found workaround for the brightness problem on This graphics.

1. Patch dsdt for brightness using this guide or @mnorthern guide.

2. After that use IntelBacklit driver from rehabman, delete ACPIBacklit

3. Download Brightness By bergdesign

4. Voila you have working brightness on High Sierra

Notes :

The slider that shown on Syspref became only cosmetic, fn brightness keys works but not affecting the display

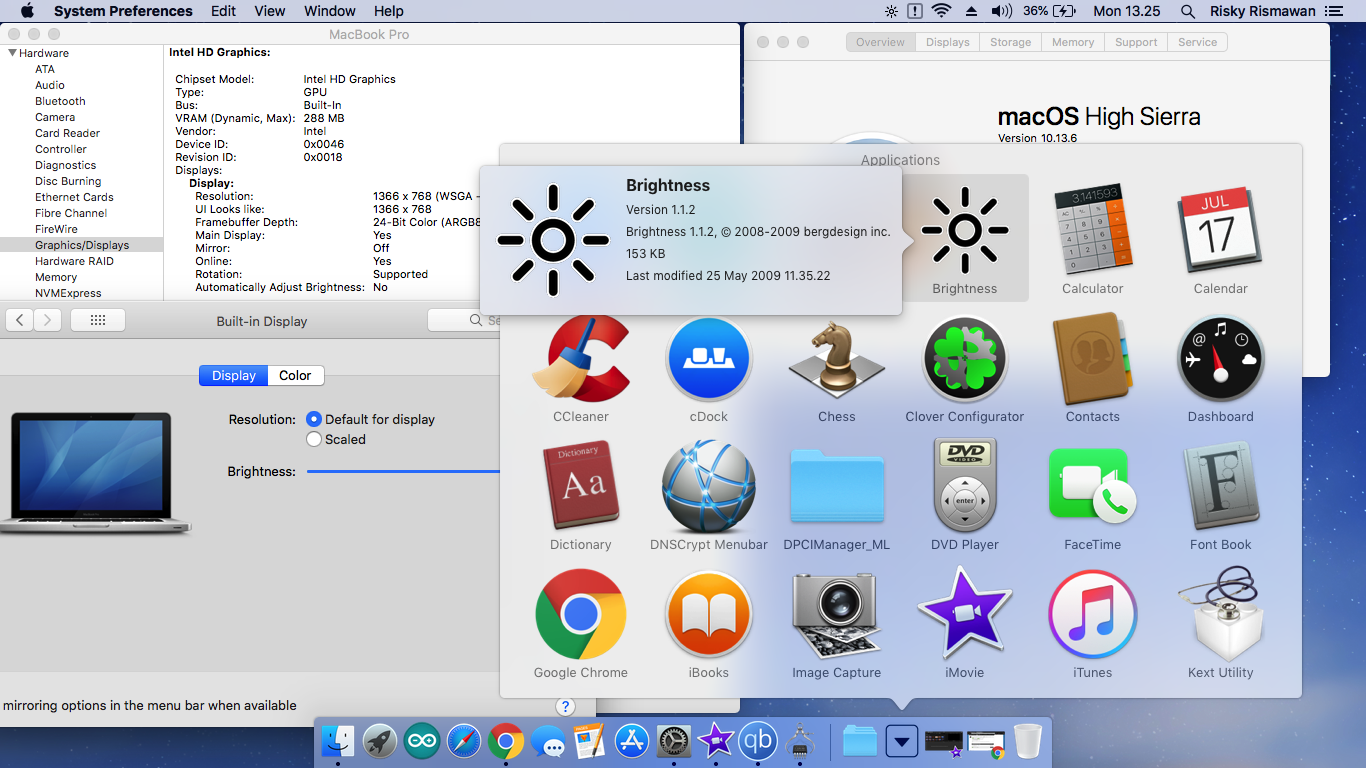

Proof :

Proof brightness control working

I confirm it to be working in Mojave on T410i with Intel HD Graphics. Now only thing that is remaining is sleep/hibernate.

styrian · November 1, 2018

Hello!

What you guys are using, is only a dimmer, that shades graphically the backlight of the screen and does not any powersaving. You should better try this one, if it is working for you. https://github.com/Bensge/NativeDisplayBrightness/releases

Have fun.

nijhawank · November 1, 2018

6 hours ago, styrian said:

Hello!

What you guys are using, is only a dimmer, that shades graphically the backlight of the screen and does not any powersaving. You should better try this one, if it is working for you. https://github.com/Bensge/NativeDisplayBrightness/releases

Have fun.

Nope it's certainly changing brightness because when I installed it I can see / change to increased brightness. Prior to that the brightness was sitting at 50% level.

styrian · November 1, 2018

Hello!

It is only shading brightness and no real energy safer. On ac it does not matter so much. On battery it has no effect except the LVDS is shaded. Brightnes is battery draining as fast as without this gadet.

But when you write, that it is working as native brigthness without changing the level in screen preferences (moving slider), then it should be. :rolleyes:

And now I am out of this. :blink:

Have fun.

nijhawank · November 1, 2018

1 hour ago, styrian said:

Hello!

It is only shading brightness and no real energy safer. On ac it does not matter so much. On battery it has no effect except the LVDS is shaded. Brightnes is battery draining as fast as without this gadet.

But when you write, that it is working as native brigthness without changing the level in screen preferences (moving slider), then it should be.

And now I am out of this.

Have fun.

Hi, I totally understand what you are saying and I appreciate you trying to correct or any misunderstandings. But I feel that if it's only shading the graphics then (don't you think that) I'd have no way to have the perceived brightness going higher. With shading the graphics, I can only have my perceived brightness between 0 (with graphics shaded to all black) to whatever I had prior to this hack (no shading).

But when I applied this hack, I can set my screen to brightness level which wasn't possible prior to hack. That can only be possible if the default graphics are already shaded and increasing brightness removes or further reduce those shadings.

Anyways please don't be out of this. Continue your views and suggestions. I will also try your other suggested application and will provide my comments.

nijhawank · November 2, 2018

On 11/1/2018 at 8:26 AM, styrian said:

Hello!

It is only shading brightness and no real energy safer. On ac it does not matter so much. On battery it has no effect except the LVDS is shaded. Brightnes is battery draining as fast as without this gadet.

But when you write, that it is working as native brigthness without changing the level in screen preferences (moving slider), then it should be.

And now I am out of this.

Have fun.

I confirm that you are absolutely correct and the brightness application that seems to be working is simply shading the graphics. But here's what made the difference in my case and the reason for thinking that it worked actually in my case.

Before I tried to apply this hack, I didn't have intelbacklight kext. Yesterday I noticed that just when the apple progress bar at boot was about 10% I see an increase in backlight. I never saw this prior to this hack so basically it's intelbacklight kext that made the difference and actually increased the backlight. And from here the brightness application only shaded the graphics.

So finally conclusion is that intelbacklight kext did increase the brightness (probably to the max) but then she to whatever reasons, we are not able to adjust it with the slider available in display preferences or the keys. I do see the brightness icon pop on the screen when I use the keys but no change in brightness.

So what could be the reasons, does the dsdt not declaring all the brightness levels to the OS?

Any comments would be appreciated.

nijhawank · November 20, 2018

Can someone please help me solve the flickering at around 60-70% apple logo progress bar (before the login screen appears) or even any pointers what it is? I have tried the second stage boot graphics glitch patch but it didn't help, probably not the same thing.

It's i3-370m with Mojava 10.14.1 with patched fb kext from El Capitan for DualLink and Normal FB.

I have QE/CI working but this flickering before login screen appears is really annoying. Scroll the video to 0:08. After the flicker, it returns to apple logo/progress bar and continues to login as normal.

Edited November 20, 2018 by nijhawank

nijhawank · November 20, 2018

10 hours ago, Hervé said:

You do realise that run run Mojave on unsupported graphics, right? And that the tricks to get graphics acceleration on 1st gen Intel HD are just that: tricks.

My D630 with unsupported nVidia Quadro NVS 135M does just about the same in 10.14.1, except that the screen goes black as opposed to grey/white. Can't remember if I had the same with unsupported HD3000...

2

Totally. I'm just trying to identify the problem and understand if a fix exists or is *known not-fixable* due to the way things are.

Thanks for confirming a similar problem with your nVidia based system. Appreciate it.

PotatoBoyInUk · December 1, 2018

Hi, which Clover should I download in order to install Sierra/High Sierra/Mojave? I am trying to install one of these on my Acer 4820T (i3 350m, 8gb ram, 250hhd).

I don t have the choise "Install X Installer"

Edited December 3, 2018 by PotatoBoyInUk

PotatoBoyInUk · December 10, 2018

Hi!
I managed to install Sierra on my laptop (Acer 4820T) and I am now trying to enable QE/CI Graphics.
I have proceeded in this way:
- Delete all IntelHDGraphics kexts from S/L/E
- Rebuilt cache and rebooted
- Used Kext Utility and installed the kexts for 10.12 (Tried different buffers)
- Modify clover config file to : Delete the fake intel id, uncheck inject intel and check patch vbios

When I reboot however the screen gets stuck during the loading and I cannot proceed further.

Here I am attaching the files:

EFI folder - https://www.dropbox.com/s/70bcrla46zx4mzs/EFI.zip?dl=0
DSDT - https://www.dropbox.com/s/tkm0u2nlnxi4h9f/DSDT.zip?dl=0
https://imgur.com/a/SoMgU7W
https://imgur.com/a/w0qxR1n

Hardware Specs: https://pastebin.com/FJPupeVn
Graphics analysis: https://pastebin.com/xN1i3St1

Badruzeus · February 7, 2019

On 9/15/2018 at 3:46 AM, jgil00 said:

That is if there is hope for snow leopard, full QE / CI, Toshiba L500-sp6018m, i3 330M, Linkwidht 1 LVDS, I currently have High Sierra but I need to experiment, I really want to use Intel HD in Snow Leopard, Thanks , Thanks , Thanks.

can extract FB of Snow leopard iatkos s3 v2 and patch Giofrida old version

This method was still working long time ago under Snow Leopard (10.6.8) on my laptop with IntelHD 1st Gen graphics.

I attached my worked FB kext if you wanna give a try (also provided on above link, actually. Not sure if mine will give diff. result).

On 11/20/2018 at 1:30 PM, nijhawank said:

Can someone please help me solve the flickering at around 60-70% apple logo progress bar (before the login screen appears) or even any pointers what it is? I have tried the second stage boot graphics glitch patch but it didn't help, probably not the same thing.

It's i3-370m with Mojava 10.14.1 with patched fb kext from El Capitan for DualLink and Normal FB.

I have QE/CI working but this flickering before login screen appears is really annoying. Scroll the video to 0:08. After the flicker, it returns to apple logo/progress bar and continues to login as normal.

It was "2nd Stage Boot Glitch" WhateverGreen already solved this issue, tested upto 10.14.3 (18D43) and it works. Another method is using KextToPatch via Clover. Below is for 10.13.x - 10.14.x:

<key>KextsToPatch</key>
       <array>
           <dict>
               <key>Comment</key>
               <string>Fix Second Stage Boot Glitch</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               AQAAdSI=
               </data>
               <key>InfoPlistPatch</key>
               <false/>
               <key>MatchOS</key>
               <string>10.13.x,10.14.x</string>
               <key>Name</key>
               <string>com.apple.iokit.IOGraphicsFamily</string>
               <key>Replace</key>
               <data>
               AQAA6yI=
               </data>
           </dict>
       </array>

Choose only one, between WEG or KextToPatch and don't use altogether.

AppleIntelHDGraphicsFB.kext_10.6.8.zip

Edited February 7, 2019 by Badruzeus

nijhawank · February 7, 2019

1 hour ago, Badruzeus said:

It was "2nd Stage Boot Glitch" WhateverGreen already solved this issue, tested upto 10.14.3 (18D43) and it works. Another method is using KextToPatch via Clover. Below is for 10.13.x - 10.14.x:

Hide contents

<key>KextsToPatch</key>
       <array>
           <dict>
               <key>Comment</key>
               <string>Fix Second Stage Boot Glitch</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               AQAAdSI=
               </data>
               <key>InfoPlistPatch</key>
               <false/>
               <key>MatchOS</key>
               <string>10.13.x,10.14.x</string>
               <key>Name</key>
               <string>com.apple.iokit.IOGraphicsFamily</string>
               <key>Replace</key>
               <data>
               AQAA6yI=
               </data>
           </dict>
       </array>

Choose only one, between WEG or KextToPatch and don't use altogether.

AppleIntelHDGraphicsFB.kext_10.6.8.zip

Are you saying that you fixed this flicker in 10.14.3 with Intel 1st Gen Graphics? Because I did try using WEG and the kext patch separately and neither helped. It's quite a strong / heavy flicker (look at the video) and not like a slight glitch that I believe the second stage boot glitch fix fixes. Let me know your thoughts.

Badruzeus · February 7, 2019

2 hours ago, nijhawank said:

Are you saying that you fixed this flicker in 10.14.3 with Intel 1st Gen Graphics? Because I did try using WEG and the kext patch separately and neither helped. It's quite a strong / heavy flicker (look at the video) and not like a slight glitch that I believe the second stage boot glitch fix fixes. Let me know your thoughts.

I think you're using AppleIntelHDGraphics* from 10.12.x., I remember got those WhiteScreen for secs on boot (though, should be fixed with WEG or KTP above, tested all of them). Sometimes It's better installing Lilu + PlugIns on LE as @Herve has said. Or if you're playing with Clover, (and kexts located on \efi\clover\kexts\other) use config.plist - System Parameters - InjectKexts=Yes. I attached Lilu, WEG, and patched IOGraphicsFamily.kext (10.14.3) + AppleIntelHDGraphicsFB.kext (from old 10.13) below. You've to uncheck / Disable KTP related to IntelHD 1st Gen & IOGraphicsFamily if using these patched versions.

AppleIntelHDGraphicsFB.kext_10.13.x.zip

IOGraphicsFamily.kext_10.14.3.zip

Lilu_v1.3.3_20190128.zip

WhateverGreen__v1.2.7_20190103.zip

#EDIT: You also need using other AppleIntelHD* (kext + bundle) from 10.13.x, not only ~FB.kext above.

Edited February 7, 2019 by Badruzeus

nijhawank · February 7, 2019

14 hours ago, Badruzeus said:

I think you're using AppleIntelHDGraphics* from 10.12.x., I remember got those WhiteScreen for secs on boot (though, should be fixed with WEG or KTP above, tested all of them). Sometimes It's better installing Lilu + PlugIns on LE as @Herve has said. Or if you're playing with Clover, (and kexts located on \efi\clover\kexts\other) use config.plist - System Parameters - InjectKexts=Yes. I attached Lilu, WEG, and patched IOGraphicsFamily.kext (10.14.3) + AppleIntelHDGraphicsFB.kext (from old 10.13) below. You've to uncheck / Disable KTP related to IntelHD 1st Gen & IOGraphicsFamily if using these patched versions.

AppleIntelHDGraphicsFB.kext_10.13.x.zip

IOGraphicsFamily.kext_10.14.3.zip

Lilu_v1.3.3_20190128.zip

WhateverGreen__v1.2.7_20190103.zip

#EDIT: You also need using other AppleIntelHD* (kext + bundle) from 10.13.x, not only ~FB.kext above.

Hello Badruzeus,

Are you using AppleIntelHDGraphicsFB (and related) kexts from High Sierra? How did you patch them, because there's no documentation on how to patch them for Sierra and above.

I followed the guide in the below thread

https://www.insanelymac.com/forum/topic/286092-guide-1st-generation-intel-hd-graphics-qeci/

and used Giofrida's Intel® HD Graphics Patcher with the "Intel HD Graphics QECI Legacy 10.12.zip". I believe the Legacy FB Kext is from the El Capitan. I used "Normal", Linkwidth X1 and DualLink options to patch for my laptop which is a Lenovo T410. If you know how to patch these for High Sierra, can you tell me the instructions for Normal, Linkwidth X1 and DualLink or send me the appropriately patched kext and I will do the testing.

Thanks for any help in advance.

nijhawank · February 8, 2019

@Badruzeus do you have any comments on my previous post?

Badruzeus · February 8, 2019

9 hours ago, nijhawank said:

@Badruzeus do you have any comments on my previous post?

Oh, I just realized that my last reply isn't posted on this thread.. was on Phone previously and bit bz; sorry.

16 hours ago, nijhawank said:

Are you using AppleIntelHDGraphicsFB (and related) kexts from High Sierra? How did you patch them, because there's no documentation on how to patch them for Sierra and above.

Yes, my last attempt was using AppleIntelHDGraphics* from 10.13.6 (17G5019) and confirmed it' s working fine on 10.14.3 (SingleLink, LVDS, LW1).

16 hours ago, nijhawank said:

If you know how to patch these for High Sierra, can you tell me the instructions for Normal, Linkwidth X1 and DualLink or send me the appropriately patched kext and I will do the testing.

My KextToPatch method is following Goldfish64's ArrandaleGraphicsHackintosh repo (which actually is also based on vertex & GhostRaider guides for IntelHD 1st Gen).

For DualLink, test & report are needed. Plz give it a try:

# DualLink Patch 1 (MatchOS: 10.11.x,10.12.x,10.13.x,10.14.x)
Find	:	0F 45 C8 42
Replace	:	90 90 90 42

# DualLink Patch 2 (MatchOS: 10.11.x)
Find	:	498B8424 98060000 0FB64018 C1E01341 0B466C41 89466C49 8B8C2498 00000089 810C000F 00498B84 24980600 000FB640 18C1E013 410B4668
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

# DualLink Patch 3 (MatchOS: 10.12.x,10.13.x,10.14.x)
Find	:	498B8424 98000000 8B880C00 0F004189 4E6C8B90 00010600 41895668 81C90020 00004189 4E6C8988 0C000F00 BF190000 00E80000 0000418B
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

# DualLink Patch 4 (MatchOS: 10.12.x,10.13.x,10.14.x)
Find	:	498B8424 98000000 89880C00 0F00498B 8C249806 00000FB6 5118C1E2 13418B76 6C09D641 89766C89 B00C000F 00410B56 68418956 68899000
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

=============================================================

I Attached AppleIntelHDGraphics* (Vanilla 10.13.6 Build 17G5019) below; also dosdude1's "PlatformSupport.plist" for using with SMBios version higher than MBP6,2 (on my case is using MBP10,1 for NightShift support) located on "/System/Library/CoreServices". Thanks.

AppleIntelHDGraphics_10.13.6.7z

#EDIT: ..and plz note that for KextToPatch to works, make sure prelinkedkernel && kernelcache are properly rebuilt. Also on my case, there's difference if using "BundleIdentifier" compared to "BundleExecutable" for KTP Name. The 2nd is not working on my case, so..

Use: com.apple.driver.AppleIntelHDGraphicsFB // BundleIdentifier

Not: AppleIntelHDGraphicsFB // BundleExecutable

(If you ask me why, I got no clear answer either).

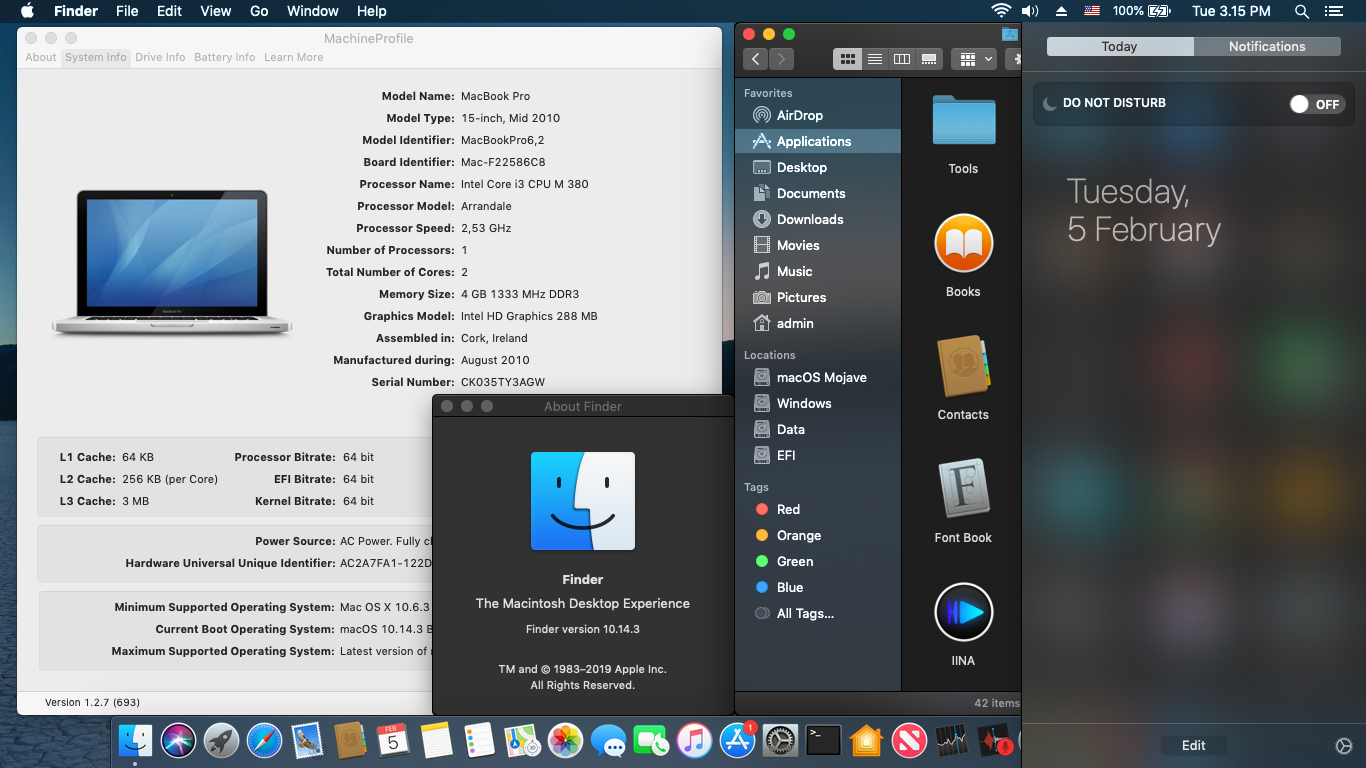

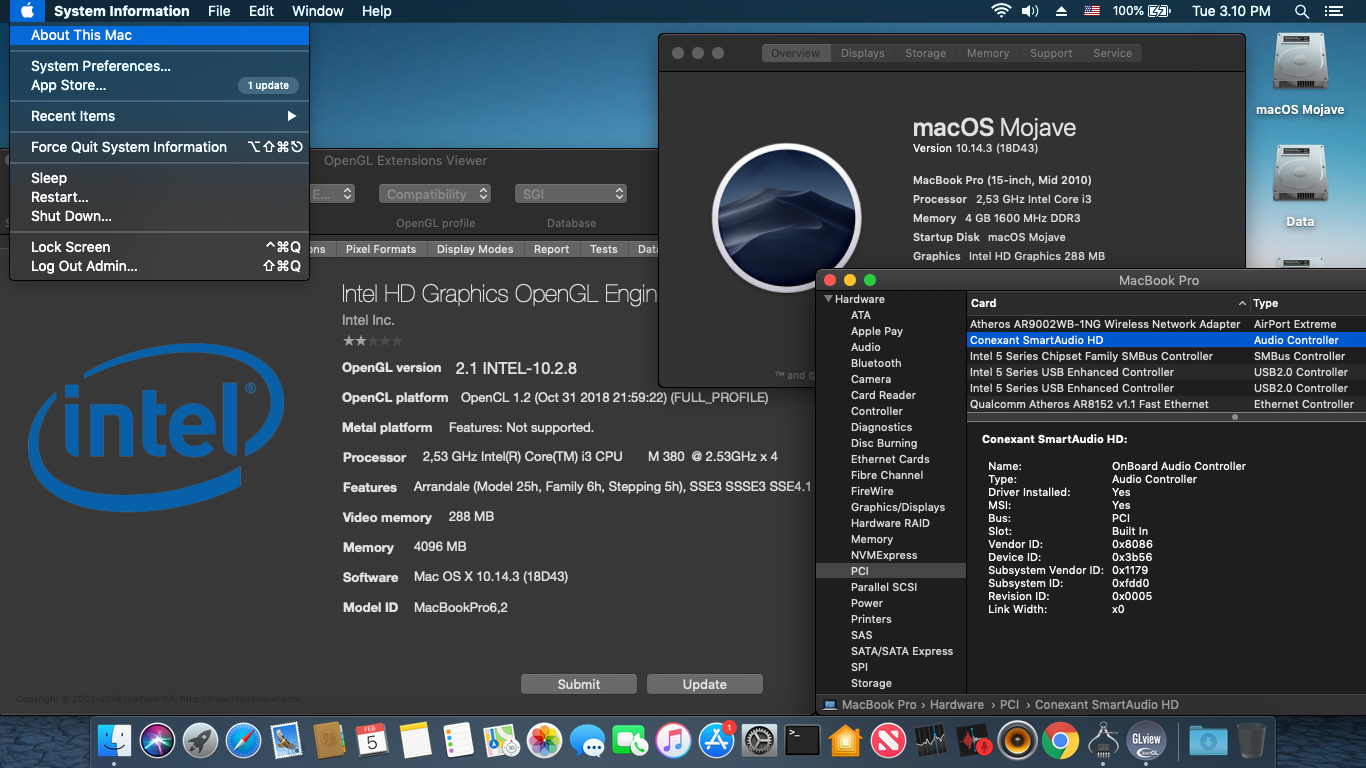

Screenshots:

Edited February 8, 2019 by Badruzeus

MacPeet · February 8, 2019

Hello friends with IntelHD 1 st Gen.,
... with 10.14.4 is game over with old graphics without Metal.
WindowServer no longer starts if there is no metal graphic in the system.

With 10.14.3 my laptop is still working fine.
R.I.P. with 10.14.3 :bye:

Badruzeus · February 8, 2019

10 minutes ago, MacPeet said:

Hello friends with IntelHD 1 st Gen.,
... with 10.14.4 is game over with old graphics without Metal.
WindowServer no longer starts if there is no metal graphic in the system.

With 10.14.3 my laptop is still working fine.
R.I.P. with 10.14.3

Yes, currently testing 10.14.4 Beta 2 on my L645 laptop (Arrandale).

As far as can tell, not only IntelHD 1st Gen but also HD3000, Nvidia Tesla, etc.. that are not-Metal capable.

(Guessing, my Fermi GT 520M with OpenGL is the only that' s working under 10.14.4 Beta 1-2 #atm LoL).

Edited February 8, 2019 by Badruzeus

MacPeet · February 8, 2019

Yes. IntelHD 1 st Gen., HD3000, all older Nvidia, my GT330M only with nv_disable=1 with 10.14.4 DP1 or 2 ...all, game over.

My Optiplex with GT710 Metal graphics works OOB with 10.14.4. :thumbsup_anim:

Edited February 8, 2019 by MacPeet

Badruzeus · February 8, 2019

7 minutes ago, MacPeet said:

Yes. IntelHD 1 st Gen., HD3000, all older Nvidia, my GT330M only with nv_disable=1 mit 10.14.4 DP1 or 2 ...all, game over.

My Optiplex with GT710 Metal graphics works OOB with 10.14.4.

Actually, it' s working.. but only, has no Display :hysterical: LoL

MacPeet · February 8, 2019

Yes, but I think, we are here slowly at the end with the old devices.

MacPeet · February 8, 2019

No, the way for IntelHD 1 st gen was very long. I am satisfied with it. At some point, everything comes to an end. No problem.

nijhawank · February 8, 2019

2 hours ago, Badruzeus said:
Oh, I just realized that my last reply isn't posted on this thread.. was on Phone previously and bit bz; sorry.

Yes, my last attempt was using AppleIntelHDGraphics* from 10.13.6 (17G5019) and confirmed it' s working fine on 10.14.3 (SingleLink, LVDS, LW1).

My KextToPatch method is following Goldfish64's ArrandaleGraphicsHackintosh repo (which actually is also based on vertex & GhostRaider guides for IntelHD 1st Gen).

For DualLink, test & report are needed. Plz give it a try:
# DualLink Patch 1 (MatchOS: 10.11.x,10.12.x,10.13.x,10.14.x)
Find	:	0F 45 C8 42
Replace	:	90 90 90 42

# DualLink Patch 2 (MatchOS: 10.11.x)
Find	:	498B8424 98060000 0FB64018 C1E01341 0B466C41 89466C49 8B8C2498 00000089 810C000F 00498B84 24980600 000FB640 18C1E013 410B4668
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

# DualLink Patch 3 (MatchOS: 10.12.x,10.13.x,10.14.x)
Find	:	498B8424 98000000 8B880C00 0F004189 4E6C8B90 00010600 41895668 81C90020 00004189 4E6C8988 0C000F00 BF190000 00E80000 0000418B
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

# DualLink Patch 4 (MatchOS: 10.12.x,10.13.x,10.14.x)
Find	:	498B8424 98000000 89880C00 0F00498B 8C249806 00000FB6 5118C1E2 13418B76 6C09D641 89766C89 B00C000F 00410B56 68418956 68899000
Replace	:	418B466C 25FFFFC7 FF0D0000 00009090 90909041 89466C49 8B8C2498 00000089 810C000F 00418B46 6825FFFF C7FF0D00 00000090 90909090

=============================================================
I Attached AppleIntelHDGraphics* (Vanilla 10.13.6 Build 17G5019) below; also dosdude1's "PlatformSupport.plist" for using with SMBios version higher than MBP6,2 (on my case is using MBP10,1 for NightShift support) located on "/System/Library/CoreServices". Thanks.

AppleIntelHDGraphics_10.13.6.7z

#EDIT: ..and plz note that for KextToPatch to works, make sure prelinkedkernel && kernelcache are properly rebuilt. Also on my case, there's difference if using "BundleIdentifier" compared to "BundleExecutable" for KTP Name. The 2nd is not working on my case, so..

Use: com.apple.driver.AppleIntelHDGraphicsFB // BundleIdentifier

Not: AppleIntelHDGraphicsFB // BundleExecutable

(If you ask me why, I got no clear answer either).

Screenshots:

Reveal hidden contents

Hi Badruzeus,

Apologies if I'm asking too many questione. Can you please share your clover config.plist?

Where did you find those Dual Link patches because I found no Dual Link patches in the repository you mentioned.

Also do I have to try one of those Dual Link patches or just try one by one all and find which one works?

Also, are you using MacBookPro10,1 for your computer with Intel 1st Generation Graphics? Because per this thread, the appropriate SMBIOS is off MacBookPro6,1 which is what I'm using.

Many thanks in advance.

Badruzeus · February 8, 2019

31 minutes ago, nijhawank said:

Apologies if I'm asking too many questione. Can you please share your clover config.plist?

Goldfish64 provides sample config.plist on his repo, mine has (almost) empty options checked bcoz using patched DSDT (guided by this thread). Will be useless on your mach, but I could attach it for reference only.

31 minutes ago, nijhawank said:

Where did you find those Dual Link patches because I found no Dual Link patches in the repository you mentioned.

I made binaries comparison my self, for testing purpose. There's no guarantee it will work, that's why report is needed.

31 minutes ago, nijhawank said:

Also do I have to try one of those Dual Link patches or just try one by one all and find which one works?

Take a look for "MatchOS"; if using HighSierra, then Enable (select) all patches which contain "10.13.x".

31 minutes ago, nijhawank said:

Also, are you using MacBookPro10,1 for your computer with Intel 1st Generation Graphics? Because per this thread, the appropriate SMBIOS is off MacBookPro6,1 which is what I'm using.

Platforms with SMBios lower than MBP10,1 have been dropped by Apple since Mojave, using MBP6,2 w/o modified PlatformSupport.plist on "/System/Library/CoreServices" will prevent your mach for booting:

MacOS is not supported on this Platform

#CMIIW. Definitely, even using MBP15,1 as SMBios is also possible.. but consider about PowerManagement, non-Functional USB Ports, etc. On my case is safe with MBP10,1 (also safe for update with APFS, getting no "This software is not supported by your system" error on progress). Yeah, updating Mojave on unsupported macs will be different topics (eg. with the help of Gengik84 & PMHeart's MacOS_Updater script).

config_10.14.3_KTP.zip

Edited February 8, 2019 by Badruzeus

nijhawank · February 9, 2019

@Badruzeus

I tried AppleIntelHDGraphics kexts from 10.13.6 (what you provided, also did a "kextcache -i /" afterwards) and the KextsToPatch entries from GoldFish64 repository. I removed all the SingleLink patches (as my screen has a resolution of 1440x900 hence requires Dual Link) and created Dual Link patches using Clover and Find/Replace entries that you provided. However, the macOS resets at the around 70% when the FB initializes.

Here are the KextsToPatch entries that I'm using...

			<dict>
				<key>Comment</key>
				<string>Stride patch 10.7+ x64</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				D0XIQomM
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.7.x,10.8.x,10.9.x,10.10.x,10.11.x,10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				kJCQQomM
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>DualLink Patch 1 (MatchOS: 10.11.x,10.12.x,10.13.x,10.14.x)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				D0XIQg==
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.11.x,10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				kJCQQg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>DualLink Patch 2 (MatchOS: 10.11.x)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SYuEJJgGAAAPtkAYweATQQtGbEGJRmxJi4wkmAAAAImB
				DAAPAEmLhCSYBgAAD7ZAGMHgE0ELRmg=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.11.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				QYtGbCX//8f/DQAAAACQkJCQkEGJRmxJi4wkmAAAAImB
				DAAPAEGLRmgl///H/w0AAAAAkJCQkJA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>DualLink Patch 3 (MatchOS: 10.12.x,10.13.x,10.14.x)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SYuEJJgAAACLiAwADwBBiU5si5AAAQYAQYlWaIHJACAA
				AEGJTmyJiAwADwC/GQAAAOgAAAAAQYs=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				QYtGbCX//8f/DQAAAACQkJCQkEGJRmxJi4wkmAAAAImB
				DAAPAEGLRmgl///H/w0AAAAAkJCQkJA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>DualLink Patch 4 (MatchOS: 10.12.x,10.13.x,10.14.x)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SYuEJJgAAACJiAwADwBJi4wkmAYAAA+2URjB4hNBi3Zs
				CdZBiXZsibAMAA8AQQtWaEGJVmiJkAA=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				QYtGbCX//8f/DQAAAACQkJCQkEGJRmxJi4wkmAAAAImB
				DAAPAEGLRmgl///H/w0AAAAAkJCQkJA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Link width 1 patch 10.12-10.13</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QYlObEmLhCSYAAAAiYgMAA8ASYuMJJgGAAAPtlEYweIT
				QYt2bAnWQYl2bImwDAAPAEELVmg=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				u///x/+6AAAAACHZCdFBiU5sSYuEJJgAAACJiAwADwBB
				i05oIdkJ0YnKkJCQSYuMJJgGAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Link width 2 patch 10.12-10.13</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				QYlObEmLhCSYAAAAiYgMAA8ASYuMJJgGAAAPtlEYweIT
				QYt2bAnWQYl2bImwDAAPAEELVmg=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				u///x/+6AAAIACHZCdFBiU5sSYuEJJgAAACJiAwADwBB
				i05oIdkJ0YnKkJCQSYuMJJgGAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Link width 3 patch 10.12-10.13</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				QYlObEmLhCSYAAAAiYgMAA8ASYuMJJgGAAAPtlEYweIT
				QYt2bAnWQYl2bImwDAAPAEELVmg=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				u///x/+6AAAQACHZCdFBiU5sSYuEJJgAAACJiAwADwBB
				i05oIdkJ0YnKkJCQSYuMJJgGAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Link width 4 patch 10.12-10.13</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				QYlObEmLhCSYAAAAiYgMAA8ASYuMJJgGAAAPtlEYweIT
				QYt2bAnWQYl2bImwDAAPAEELVmg=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.12.x,10.13.x,10.14.x</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				u///x/+6AAAYACHZCdFBiU5sSYuEJJgAAACJiAwADwBB
				i05oIdkJ0YnKkJCQSYuMJJgGAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Disable FBCControl patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RkJDQ29udHJvbAA=
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				WFhYQ29udHJvbAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Disable FeatureControl patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RmVhdHVyZUNvbnRyb2wA
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelHDGraphicsFB</string>
				<key>Replace</key>
				<data>
				WFhYdHVyZUNvbnRyb2wA
				</data>
			</dict>

[GUIDE] 1st Generation Intel HD Graphics QE/CI

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
