rage75 Posted April 13, 2017 Share Posted April 13, 2017 System/Library/Extensions 1 Link to comment Share on other sites More sharing options...
trupetiago Posted April 13, 2017 Share Posted April 13, 2017 System/Library/Extensions i created a Sierra installer disk using this command: "sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled --applicationpath /Applications/Install\ macOS\ Sierra.app --nointeraction &&say Done But, in the /System/Library/ there is only CoreServices - folder PrelinkedKernels - folder .DS_Store - hidden file The Finder is showing hidden files. Link to comment Share on other sites More sharing options...

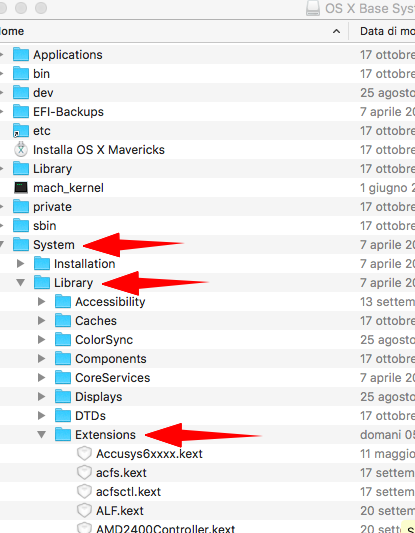

rage75 Posted April 13, 2017 Share Posted April 13, 2017 i created a Sierra installer disk using this command: "sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled --applicationpath /Applications/Install\ macOS\ Sierra.app --nointeraction &&say Done But, in the /System/Library/ there is only CoreServices - folder PrelinkedKernels - folder .DS_Store - hidden file The Finder is showing hidden files. This is my Install usb root, as you can see. Link to comment Share on other sites More sharing options...

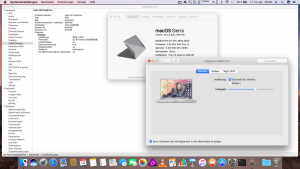

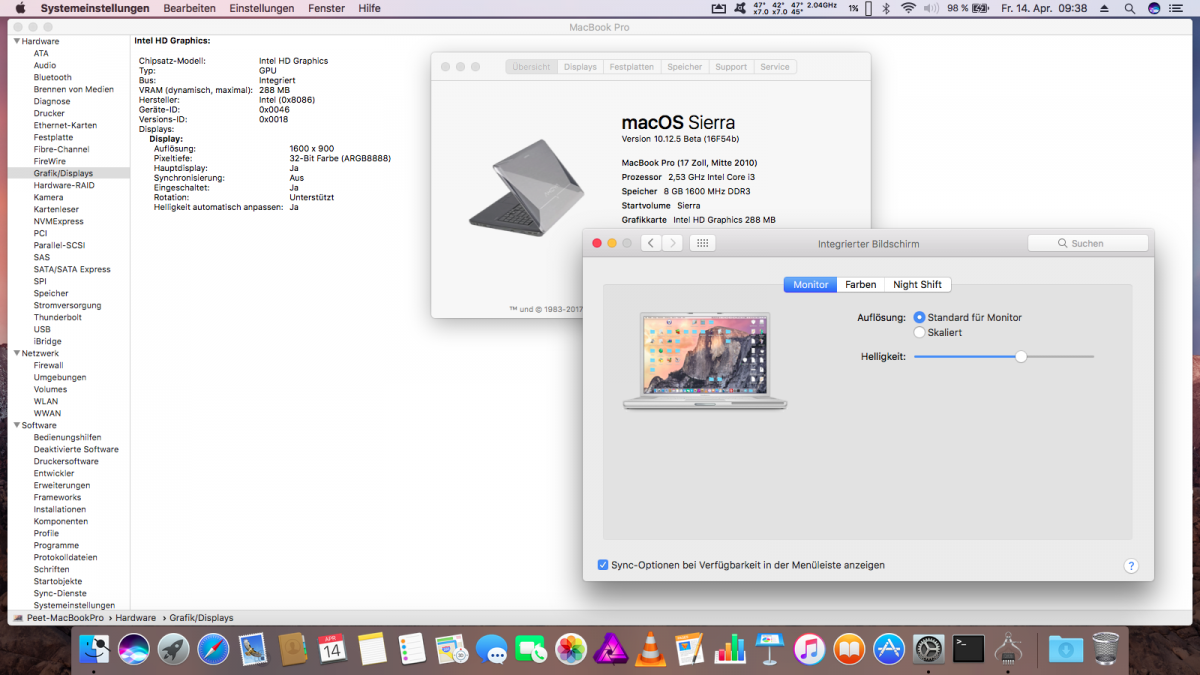

MacPeet Posted April 14, 2017 Share Posted April 14, 2017 Hello friends, my laptop medion E7216 works very well with Sierra. works good: PM, QE/CI duallink 1600x900, USB2, USB3, battery, SD card cosmetics, LAN, WLAN ... not working: Since 10.12.4 the IntelBacklight.kext no longer works. The slider is present but no brightness changes. Does anyone have a solution for this problem? My configuration: Clover in LegacyMode (non ESP) with DSDT SMBIOS MacBookPro6.1 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted April 16, 2017 Share Posted April 16, 2017 Hello Intel graphic 1st users. Im coding to improve detection intel graphic series. I made all. Remain test now Can someone help me? Just copy and paste. Check Boot or not and report with clover log. I will record your nick name arrandale in reply Thanks in advance Link http://www.insanelymac.com/forum/topic/284656-clover-general-discussion/?p=2405504 나의 LG-F410S 의 Tapatalk에서 보냄 3 Link to comment Share on other sites More sharing options...
trupetiago Posted April 26, 2017 Share Posted April 26, 2017 I used this guide for Yosemite and everything worked perfectly. I have a LVDS display conection. I've been using Yosemite for 1 year with QE CI enabled. Now i installed Sierra. I can't manage to put the graphics to work. I installed the Kexts with the framebuffer and i'm getting stuck in the follow message in verbose mode: * Kextd wait on 'GFX0' - i guess the kexts are not loading. How to fix this problem? Is there any flag, fix or something similar? I'm using the last version of Clover. Thanks in advanced Link to comment Share on other sites More sharing options...
trupetiago Posted April 27, 2017 Share Posted April 27, 2017 Dear Friends: I managed to install 1st Generation Intel HD Graphics very well on Sierra 10.12.4. Firstly I got laggy transitions and no transparency. When I clicked on Download on the Dock, the pile os files was rising very slided/laggy. When clicking LaunchPad and holding control, the icons started to shake laggy and the mouse stopped. When I was in Yosemite 10.10.3, everything worked fine. HERE IS THE GREAT BIGGEST SECRET EVER: >>>>> I just installed the ORIGINAL kexts from Sierra, and replaced just the framebuffer from my old Yosemite. Now I got transparency. Smooth transitions. Nice shaking icons on LaunchPad, Mission Smooth. I can play Chess at 6 FPS (very heavy game), record my screen in Quick Time and so on. Thanks for everybody that support mackintosh community. The only left issue in Sierra now is: no USB. If someone know how to fix it I'll be thankful. HP dv4-2160us - Intel i5 430m 2.27 GHz - Arrandale, 1st Generations Intel Graphics, 5 Series/3400 Series board. 4 GB ram, 250 HD. Let's spread how to fix 'laggy' on 1st Gen Intel Graphics HD!!! Link to comment Share on other sites More sharing options...
MacPeet Posted April 28, 2017 Share Posted April 28, 2017 No, no my friend, that does not work! Try patched Kext from here and your FB-Kext from Yosemite !!! http://www.insanelymac.com/forum/files/file/208-1st-gen-intel-hd-graphics-kexts/ USB, try USBInjectAll.kext from rehabman Link to comment Share on other sites More sharing options...
trupetiago Posted April 30, 2017 Share Posted April 30, 2017 Yes, and No, it worked buy doesn't. Everything is running super smooth. But. I openned OpenGL Viewer and the Intel HD Graphics do not show up. Only Apple Render. I installed the kexts provided by insanelymac 10.12 and the patched framebuffer from 10.12. Same thing. Intel HD Graphics do not show up, maps doesn't work and the speed of Cube test is 7 FPS. What i need to do in order to make it works? Thanks in advanced Link to comment Share on other sites More sharing options...
kikohernandez92 Posted May 17, 2017 Share Posted May 17, 2017 Which framebuffer did you use? Can you give config.plist? I used Legacy-Mac, SingleLink Alternate Framebuffer Link to comment Share on other sites More sharing options...
GuneetAtwal Posted June 15, 2017 Share Posted June 15, 2017 Hello friends, my laptop medion E7216 works very well with Sierra. works good: PM, QE/CI duallink 1600x900, USB2, USB3, battery, SD card cosmetics, LAN, WLAN ... not working: Since 10.12.4 the IntelBacklight.kext no longer works. The slider is present but no brightness changes. Does anyone have a solution for this problem? My configuration: Clover in LegacyMode (non ESP) with DSDT SMBIOS MacBookPro6.1 medion_E7216_sierra.png any guide how to make brightness and power management work on first gen intel processor and graphics in 10.12 sierra ?? Link to comment Share on other sites More sharing options...
arcade33 Posted June 15, 2017 Share Posted June 15, 2017 Happy to say that HIGHSIERRA IS running on my ASPIRE 5733 :thumbsup_anim: Link to comment Share on other sites More sharing options...
MacPeet Posted June 15, 2017 Share Posted June 15, 2017 Yes, here also with Medion E7216. Brightness does not work here any more. Slider is there, but no change in brightness. Link to comment Share on other sites More sharing options...

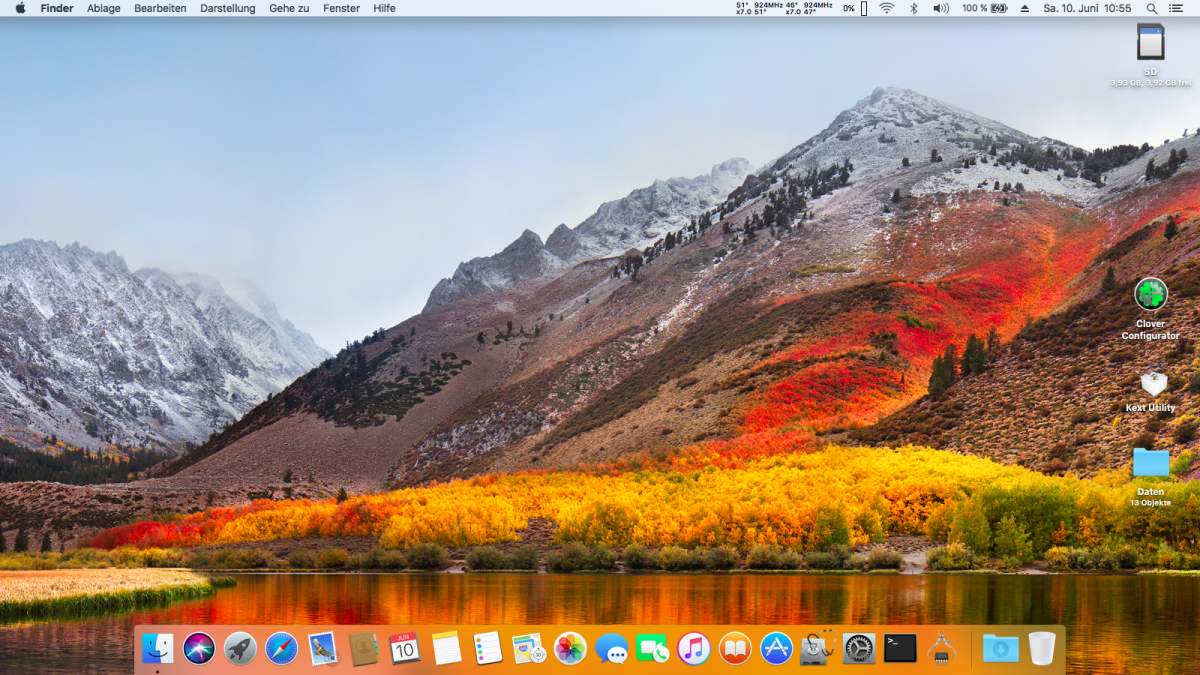

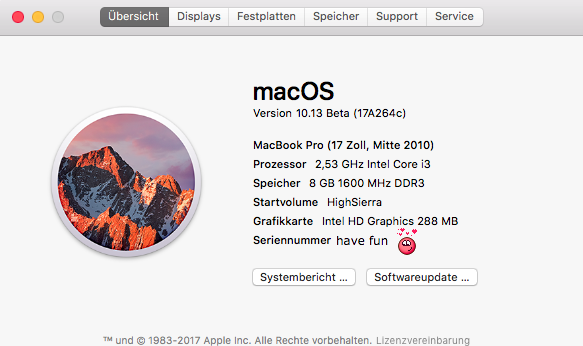

HandaTakuya Posted June 15, 2017 Share Posted June 15, 2017 Yes, here also with Medion E7216. Brightness does not work here any more. Slider is there, but no change in brightness. HighSierra.png lappi_high_sierra.png Intel HD Graphic work with kext or clover patch ? Link to comment Share on other sites More sharing options...
MacPeet Posted June 15, 2017 Share Posted June 15, 2017 with kext here Link to comment Share on other sites More sharing options...
arcade33 Posted June 15, 2017 Share Posted June 15, 2017 with kext here me too , with kexts 10.12 Link to comment Share on other sites More sharing options...
GuneetAtwal Posted June 15, 2017 Share Posted June 15, 2017 me too , with kexts 10.12 can you tell me how to make brightness work and power management work in Sierra 10.2.3 ? I am having Dell inspiron n5010 : i3 370m and i have full QE/CI support Also i can't see battery percentage. Link to comment Share on other sites More sharing options...
my03 Posted June 16, 2017 Share Posted June 16, 2017 Thats awesome (high sierra). I take it that i can take my current kexts (from 10.12.4) and use them om 10.13 (running 1440x900 dual link)? I will try it tonight Link to comment Share on other sites More sharing options...
Blaggah Posted June 16, 2017 Share Posted June 16, 2017 Wow, I just say that I'm a bit jealous because the fact that I see a lot of people are getting success with Yosemite and even high sierra in their arandale based laptops and I can't seem to get mines to work for the life of me. Someone please help me Mac peer, what's up bro? #1 Laptops: Toshiba Portegé R705-P35 Intel HD Graphics M370 4GB of Ram 500GB HDD #2 Toshiba Satelite A505 Intel HD Graphics 330M 4GB of Ram 500 GB HDD Link to comment Share on other sites More sharing options...
GuneetAtwal Posted June 17, 2017 Share Posted June 17, 2017 can anyone please help me and reply to make the following things work - Powermanagement ( i3 370m) + sleep - Brightness Control (Was a working with generic brightness kext in yosemite but not in sierra) - Battery Percentage i have tried and searched a lot but there is nothing for powermanagement for arrandle first gen processors. Also battery percentage was working in yosemite but not in sierra. Please can anyone help me ? Link to comment Share on other sites More sharing options...
HandaTakuya Posted June 19, 2017 Share Posted June 19, 2017 can anyone please help me and reply to make the following things work - Powermanagement ( i3 370m) + sleep - Brightness Control (Was a working with generic brightness kext in yosemite but not in sierra) - Battery Percentage i have tried and searched a lot but there is nothing for powermanagement for arrandle first gen processors. Also battery percentage was working in yosemite but not in sierra. Please can anyone help me ? sleep not work for Intel gen 1 Brightness Control and Battery patch DSDT Link to comment Share on other sites More sharing options...
GuneetAtwal Posted June 19, 2017 Share Posted June 19, 2017 sleep not work for Intel gen 1 Brightness Control and Battery patch DSDT i was able to patch brightness but the controls for brightness are still kind of broken. When on fresh start if i press brightness low key then screen dims completely to dark and it stays like that as i can't increase brightness :/ Link to comment Share on other sites More sharing options...
iWin32 Posted June 21, 2017 Share Posted June 21, 2017 I'm coming out of "retirement" to throw this idea out there: Is it possible to consider creating a kext based on Lilu to automatically patch the kexts and other issues related to first-gen Intel HD Graphics? I would try myself, but I'm not a programmer and all the plugin reading is going over my head. More info: http://www.insanelymac.com/forum/topic/321371-lilu-%E2%80%94-kext-and-process-patcher/ Link to comment Share on other sites More sharing options...
vusun123 Posted June 22, 2017 Share Posted June 22, 2017 I'm coming out of "retirement" to throw this idea out there: Is it possible to consider creating a kext based on Lilu to automatically patch the kexts and other issues related to first-gen Intel HD Graphics? I would try myself, but I'm not a programmer and all the plugin reading is going over my head. More info: http://www.insanelymac.com/forum/topic/321371-lilu-%E2%80%94-kext-and-process-patcher/ If there are no hacks to the info.plist, sure you can, but since there are Single Link and Dual Link display, you will have to create an additional boot args so that it will change the patching pattern to Dual Link if you input it, for example -1stgfx=dual or something like that Link to comment Share on other sites More sharing options...
Baio77 Posted July 12, 2017 Share Posted July 12, 2017 Good evening, wanting to test the new High Sierra 10.13 on my notebook I turned to Gengik84 and we were able to install it with the bootable usb created with C_I_M. So without the need to erase any kext. That's allowed to get to the desktop and then put the 2 kexts in the clover into the folder created by me 10.13 ........... VGA ON without erasing anything ........... Add fake id 0x12345678 to clover gui or config only x install Grande Gengik84 ........................ CLOVER.zip 4 Link to comment Share on other sites More sharing options...
