medallo Posted November 9, 2014 Share Posted November 9, 2014 hi .. CodeRush. MSI do not need .. ASUS only PB875-M LX Plus and P8Z77-M. The bios .cab of PMPatch When updating the bios ... ASUS EZ Flash 2 utility. Security verification failed. How to patch 2 bios.? Thank you. Any Help ?? .. Link to comment Share on other sites More sharing options...
Net-burst Posted November 10, 2014 Share Posted November 10, 2014 Ok, my BIOS flashed ok. But now I'm facing another problem, which is out of scope of this thread. I replaced WiFi combo-board to new one and my ASM1061 SATA stopped working. Only in OSX. Talk about esoteric problems Link to comment Share on other sites More sharing options...
shokka9 Posted November 10, 2014 Share Posted November 10, 2014 Hi all; I think this is where I need to post this. I have been using osX for a while now, 10.7 to 10.10, and my build consists of a Asus Maximus V Gene mobo (Z77), with 3770K CPU and 32GB of RAM, SSD's. I moved to clover a while back, but never could never get it to boot UEFI. After numerous attempts, I saw an error which sometimes appeared 'VGA card not supported by UEFI' or something similar. I am using an older modded bios, so I am led to believe I probably need a new modded bios to allow this UEFI to work properly for booting clover from the ESP of the Yosemite drive. Do I patch it myself with these tools? Sorry for the noobish type post, but I am not one for messing with bioses (everything else is fine!). Thanks Link to comment Share on other sites More sharing options...
CodeRush Posted November 10, 2014 Author Share Posted November 10, 2014 @medallo, Z77-M can be flashed using USB BIOS Flashback. P8B75 - using AFU /GAN method linked in old FAQ in the first page. @shokka9, your GPU has no UEFI firmware, that is why you can't start your system with CSM mode off, but I doubt that it's required for Clover to be off. Anyway, almost any BIOS mod possible is unrelated to this problem. Link to comment Share on other sites More sharing options...
shokka9 Posted November 10, 2014 Share Posted November 10, 2014 @shokka9, your GPU has no UEFI firmware, that is why you can't start your system with CSM mode off, but I doubt that it's required for Clover to be off. Anyway, almost any BIOS mod possible is unrelated to this problem. OK; that's a new one on me. I'm going to buy a new GPU soon (GTX 760). I don't know what to do then..... thanks for the reply though. Link to comment Share on other sites More sharing options...
amgclk65 Posted November 11, 2014 Share Posted November 11, 2014 Im a totally newbie Im trying to figure out how to use uefitools to patch my z87m-g43 broad. I downloaded the latest tools. I downloaded the latest bios version for my broad. its named E7823IMS.280. Im stuck right there:( Link to comment Share on other sites More sharing options...
CodeRush Posted November 11, 2014 Author Share Posted November 11, 2014 Grab your BIOS file and drop it onto UEFIPatch binary, if .patched file is generated - some patches were applied. On this screenshot you can clearly see "Usage: UEFIPatch image_file", so the only parameter you need is the path to tour BIOS file. Once, not twice or more. Link to comment Share on other sites More sharing options...
amgclk65 Posted November 11, 2014 Share Posted November 11, 2014 Let's see if I get what your saying. Redo what I did, but only put the path to the bios once in cmd? Then check it with UEFIPatch ? Link to comment Share on other sites More sharing options...
Aigors Posted November 11, 2014 Share Posted November 11, 2014 Hi friends, i'm starting to play with synology, ( a nas appliance ) based on X86 hardware, i'v discovered that the firmware it' sum of bios and operating system but bios it's a normal uefi bios, so, i'm start to think, could be possible discover specific modules and add those into normal uefi bios? I think yes, but i dont have needed skills to start investigation. Could someone suggest me how can start the investigation? Many thanks and sorry for my bad English :-) Link to comment Share on other sites More sharing options...
medallo Posted November 12, 2014 Share Posted November 12, 2014 @medallo, Z77-M can be flashed using USB BIOS Flashback. P8B75 - using AFU /GAN method linked in old FAQ in the first page. Thank you .. I can not find the AFU / GAN route ?. No video tutorial.?. how to patch the bios p8b75 from MAC OSX Please. Link to comment Share on other sites More sharing options...
CodeRush Posted November 12, 2014 Author Share Posted November 12, 2014 @amgclk65, just as simple as that: @Aigors, I doubt there are any specific modules there, because all NAS work is done by heavily-modified Linux, and the point of UEFI is just to boot it. You can use UEFITool for your investigations. @medallo, you can't flash anything from OSX on boards newer then Z68 ones, and sorry - no video tutorials here. If you can't find a way to flash your modified BIOS, maybe you just don't need it at all? Use Clover with KernelPatch instead, it's much more safe and can't brick your PC. Link to comment Share on other sites More sharing options...
rhedha67 Posted November 12, 2014 Share Posted November 12, 2014 hi i want to patch the updated bios 2303 for my motherboard asus z87-plus actually in 1707 pmpatched and running osx yosemite. i cant find uefitools ?? links are broken. thanks. Link to comment Share on other sites More sharing options...
Aigors Posted November 12, 2014 Share Posted November 12, 2014 @Coderush thank you Link to comment Share on other sites More sharing options...
CodeRush Posted November 12, 2014 Author Share Posted November 12, 2014 @rhedha67, links are working now, thank you for reporting. Link to comment Share on other sites More sharing options...
medallo Posted November 14, 2014 Share Posted November 14, 2014 @medallo, you can't flash anything from OSX on boards newer then Z68 ones, and sorry - no video tutorials here. If you can't find a way to flash your modified BIOS, maybe you just don't need it at all? Use Clover with KernelPatch instead, it's much more safe and can't brick your PC. ok. I do with windows. I can not find the AFU / GAN route and download links? I will try. Link to comment Share on other sites More sharing options...
Aigors Posted November 15, 2014 Share Posted November 15, 2014 Hi Coderush, this is for you inform that the last version of uefitool doesn't work on osx, at first launch i get a trap, if you want i can send you some report if you can explain me how to Link to comment Share on other sites More sharing options...
CodeRush Posted November 15, 2014 Author Share Posted November 15, 2014 @Aigors, thank you for reporting, I'm aware of this problem, it will be fixed in 0.19.3 release soon. UPD: UEFITool 0.19.2 build for OSX is updated, must be working now. Link to comment Share on other sites More sharing options...

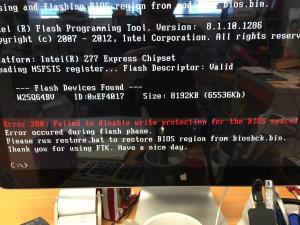

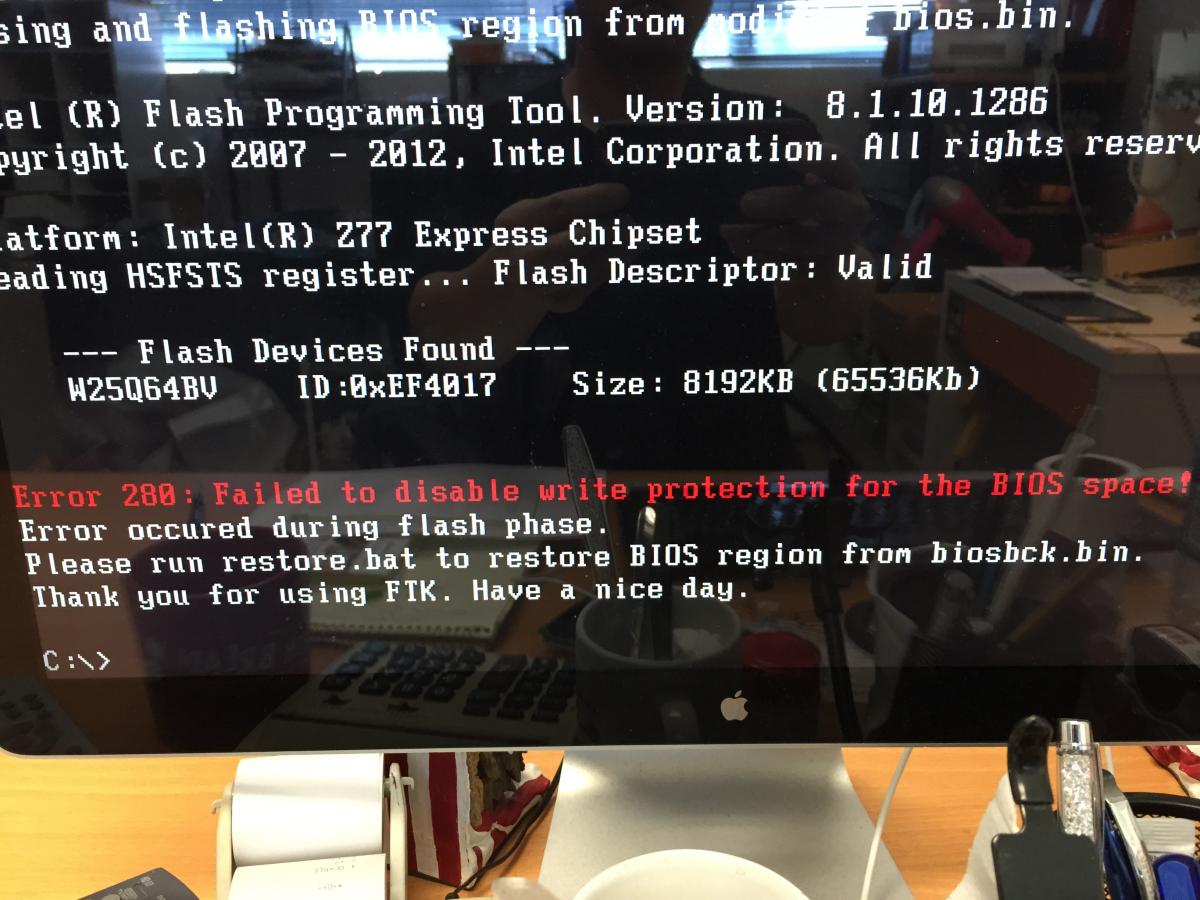

todesto Posted November 17, 2014 Share Posted November 17, 2014 Thank you for your great work, CodeRush. I tried to flash my P8Z77-V LK bios with modded one using FTK tool. (wordpress site no longer has your tools....). Followed your instruction, renaming bios file to bios.bin, flashed using biosrefl, went thru and showed "FTP Operation Passed", then waited little more and got error saying Error 280 : Failed to disable write protection for the BIOS space! as shown in the picture attached. Is my board flashed or not? Link to comment Share on other sites More sharing options...
Mactinos Posted November 19, 2014 Share Posted November 19, 2014 Grab your BIOS file and drop it onto UEFIPatch binary, if .patched file is generated - some patches were applied. On this screenshot you can clearly see "Usage: UEFIPatch image_file", so the only parameter you need is the path to tour BIOS file. Once, not twice or more. Hi CodeRush, I'm using MSI Z87 MPower, and when I grabbed my latest BIOS (7818) to UEFIPatch, nothing happened. So what can i do to patch my BIOS? It seems like I need to patch my BIOS to install OS X. Thanks. Link to comment Share on other sites More sharing options...
ZhuangJW Posted November 19, 2014 Share Posted November 19, 2014 Can it patch the Notebooks' BIOS image-file ? Link to comment Share on other sites More sharing options...
ikkoku Posted November 20, 2014 Share Posted November 20, 2014 @ikkoku, there is no way to check it without trying and I don't know any reliable method to flash modified BIOS on notebooks, so please just use Clover's patching engine, if you don't have a SPI flasher to use dump/patch/reflash approach. Just to report back. I used this guide http://www.win-raid.com/t286f16-Guide-Flashing-modified-AMI-Aptio-UEFI-using-AFU.html used afudos to extract bios patch extracted bios with UEFIPatch used afudos (using /P /B /K flags) to flash bios back rebooted to windows shutdown and used afudos to extract new bios tests 1) tried to use uefipatch and it says something like string not found or nothing to patch 2) searched for the 75 string with UEFITool but not found. EB string found 3) use RWEverything and searched for 0xE2 converted string to binary bit 15 is 0 I'm hoping that the three tests confirms that it was patched correctly and flashed successfully This is for Asus notebook Q301LA (whch is the same as S301LA) with S301LAAS.214 rom version Take the above info with a grain of salt. You can brick your notebook if you try to flash with a modded bios. Link to comment Share on other sites More sharing options...
crusher Posted November 28, 2014 Share Posted November 28, 2014 @CodeRush Please post video or something how to patch bios. I drag my bios file on UEFIPmpatch but always blink CMD windows and nothing. Thanks in advanced!! Link to comment Share on other sites More sharing options...
Hack24 Posted November 28, 2014 Share Posted November 28, 2014 Can you help me with my mobo? I patched it and it gives me the Security Verification Failed and I don't have a button for usb flashback or any info on it in the manual. Mine's the ASUS Z77-A it isn't the sabertooth or nothing.http://support.asus.com/Download.aspx?SLanguage=en&m=Z77-A&p=1&s=39 Link to comment Share on other sites More sharing options...
todesto Posted November 28, 2014 Share Posted November 28, 2014 Can you help me with my mobo? I patched it and it gives me the Security Verification Failed and I don't have a button for usb flashback or any info on it in the manual. Mine's the ASUS Z77-A it isn't the sabertooth or nothing. http://support.asus.com/Download.aspx?SLanguage=en&m=Z77-A&p=1&s=39 You need to flash to older bios which doesn't have MSR lock, then flash with modded bios. Link to comment Share on other sites More sharing options...
Hack24 Posted November 28, 2014 Share Posted November 28, 2014 You need to flash to older bios which doesn't have MSR lock, then flash with modded bios. I couldn't do the oldest 0402 but went to the next one up at 0403 and tried from there with no luck still. Link to comment Share on other sites More sharing options...
