[AMD] Working Builds!

theconnactic

By theconnactic,
in General Discussion

 Share
255 posts in this topic

Recommended Posts

rajkunisetti
rajkunisetti
Posted
Posted

I successfully installed mountain lion 10.8.4 on my amd pc.Here are my specs





CPU     - AMD fx-6300 six core 3.5 ghz (code name VISHERA)

MOBO - Gigabyte GA-78lmt s2pt(rev 4...)

GPU    -AMD Radeon HD 7750 (Gigabyte OC'd) - working with screen rotation trick.

SOUND- ALC887 (voodoo 2.8.2)

LAN     - ATHEROS AR8161 (ALX kext)

PS2     -keyboard and mouse

BOOTLOADER     -chameleon 2.2 svn2256

KERNEL - Sinutek's  fx kernel





             os x 10.8.4 using myhack method.All are fine but lot of graphic glitches

Link to comment
Share on other sites
Ice1602
Ice1602
Posted
Posted

I got my Mountain Lion 10.8.4 working well(except for QE/CI). I tried Lion but my GPU does not work in 32bit(no Kepler drivers afaik)



Here are my specs:



CPU: AMD Phenom II 955BE @ 3.6Ghz
Motherboard: Gigabyte GA-785GMT-USB3
SB/NB: SB:710 & NB:785G
RAM: 8GB DDR3 1333Mhz
SATA: 1. 64GB OCZ Vertex 2 SSD(Windows) , 2. WD 500GB Drive - OK
IDE: Don't care.
USB 2.0: OK
USB 3.0: NEC uPD720200F1 USB 3.0 Host Controller - OK

Firewire: Don't care
GPU: Gigabyte GTX 660 2GB OC (without QE/CI)
LAN: Realtek 8111D OK - with RealtekRTL8111 latest driver

Sound: ALC889 - OK - with VoodooHDA 2.8.4(with a little bit of changes in Info.plist and C1E Disabled in BIOS)

PS2: Don't care.

Power: VoodooPState (cpu is now scaling according to sysctl)

Bootloader: Chameleon 2.2 r2256 with DSDT patches
Kernel:  Bronzovka rc9fix




  • Like 1
Link to comment
Share on other sites
  • 2 weeks later...
BaSsie86
BaSsie86
Posted
Posted

CPU: AMD Phenom II x2 550Be Unlocked to 950 3.1GHZ (2cores unlocked to 4cores)



Motherboard: MSI 790FX-GD80

SB/NB: SB:790

RAM: 8GB DDR3 1333mhz

SATA: 1x 500GB WD Black 1x 1TB WD Black

USB 2.0: Working all front and back

USB 3.0: have not motherboard usb 3.0

Firewire: Working

GPU: 2x MSI 5750 Crossfire working only have BUGS graphics :(:( :(:( <---- nothing fixed.

LAN: Working

Sound: Working

PS2: have not testen



Bootloader: Chameleon

Kernel:  ??? Having ---> this download http://www.osx86.net/view/4091-10.8.4_bootcd_for_amd.html











Link to comment
Share on other sites
  • 4 weeks later...
15killa16
15killa16
Posted
Posted

CPU - AMD FX-8350 8 core 4 ghz

MOBO - ASUS M5A78L - M LX PLUS

GPU - GTX 550 Ti Fermi 1GB

SOUND - Realtek ALC887 (voodoo 2.8.2)

LAN - I know it works but im on tether atm its Realtek

USB - keyboard and mouse

BOOTLOADER -chameleon 2.2

KERNEL - (Idk the kernel) Niresh 10.7.3  :thumbsup_anim:

Link to comment
Share on other sites
rrtn
rrtn
Posted
Posted

my 2¢ :)
first, thank you so much to theconnactic, Andy Vandjick & everyone else that bravely try to get osx working on amd. i have not been keeping up much with mountain lion + amd since i have a intel build but after finding this nice post i gave it a shot and voilà a successful ML install on and old amd nforce to an even older ide drive. so heres what i did. i have a working snow leopard so i used myHack, the InstallESD.dmg from ML 10.8.4, the ML amd kernel (posted here by AnV, im using the one on the 1st page) & AppleNForceATA.imk64bit.kext (cause i installed it to IDE drive) [drumroll] yay! so now i have a bootable ML 10.8.4, cause i have nvidia gpu i have to disable the GeforceGA.plugin and GeforceGLDriver.bundle, ethernet works so i updated the software but i cannot update to 10.8.5 cause it requires reboot and if i try that or to power off the screen goes black and theres a string of "64 bit opemu wrong instruction" ...whats the fix for that?(if any) i have never seen this before. anyway thanks again to all, i like messin with this stuff :) there a list of what works and does not on my dinosaur

Graphics : nVidia GPU, disabled GeforceGA.plugin and GeforceGLDriver.bundle

Chipset   : fixed with AppleNForceATA.imk64bit.kext
Ethernet : fixed with nForceLAN.kext 0.64.0 (0.64.5 & 0.64.6 would not stay connected)
Sound    : fixed with AppleAC97Audio.kext
Wifi        : no card currently installed



boot flags: npci=0x3000



AMD comp:
ASUS A8N-SLI Deluxe
AMD Athlon 64X2 4400+ Toledo
4GB Patriot DDR 400 (PC 3200)
PNY GeForce 8600 GTS 256MB 128-bit GDDR3
40GB IDE (OSx86)
20GB IDE (Windows 7)
NEC 16X Double Layer DVD±RW IDE

Screen-Shot-2013-09-27-at-6_zps684b213c.

  • Like 3
Link to comment
Share on other sites
granik
granik
Posted
Posted

- AMD Athlon 64 X2 3800+ Manchester

- DFI LANParty UT NF4 SLI-DR Expert / No AHCI

- Dual ch OCZ EL PC3200 Platinum Rev2 1024

- HIS ATI X1300 IceQ Turbo 256MB DDR2 PCIe

- ALC850 / AC97 Internal sound



SNOW LEOPARD - Screen + bench



Install ; Hazard 10.6.6i -> 10.6.8

Kernel ; Nawcom 10.8 v2, flags ; arch=i386 -force64

Graphic ; Natit + RadeonHD Framebuffer (QE/CI)

Sound ; AppleAC97Audio



LION - Screen + bench



Install ; Retail 10.7.4. Tested ; Retail 10.7.2 + iAtkos L2, Niresh 10.7.3, 10.7.5 Virgin install image

Kernel ; RAW:86/Sinetek/Connactic (x86), flags ; arch=i386 -legacy. IiTz ShAnE build (x64), flags ; -nossse3bit

* bronzovka latest kernel failed, instant reboot.. too bad

Graphic ; DSDT (QE/CI)

Sound ; AppleAC97Audio (x86)



MOUNTAIN LION - Screen + bench



Install ; iAtkos ML2

Kernel ; Andy Vandijck (md5: 8F8E8B639E2CFB37293EDE5A34458B49), no-flags

Graphic ; DSDT + 10.7.5 ATI kexts (No - QE/CI) :P

Sound ; AppleAC97Audio (x86)



* All need "VoodooTSCSyncAMD" to reduce lag + hang





Thanks to all developers who made this happen

can you provide a link to





Kernel ; Andy Vandijck (md5: 8F8E8B639E2CFB37293EDE5A34458B49), no-flags

?

Link to comment
Share on other sites
bibi
bibi
Posted
Posted

OSX 10.8.5


CPU     - AMD fx-8320 8 core 3.5 ghz


MOBO - ASUS Sabertooth 990FX REV 1.0


RAM - Corsair 1600 2x4GB


GPU    -AMD Radeon HD 7850 2GB (ASUS DIRECT CU II ) - working with screen rotation trick.


USB     -keyboard and mouse


BOOTLOADER     - CLOVER 2184


KERNEL - Sinetek's  fx kernel


some glitches FULL QE/CI


2 systems on 1 sata hdd with EFI CLOVER (WIn 8 + OSX)





Now


OSX 10.9


BOOTLOADER     - CLOVER 2236


Kernel Sinetek


  • Like 1
Link to comment
Share on other sites
LightInDark
LightInDark
Posted
Posted

Here are my working Builds.



CPU: AMD FX 8350 @ 4.0Ghz

Motherboard: Asus CrossHair V Formula-Z

SB/NB: SB:950 & NB:990FX

RAM: 16GB DDR3 1600Mhz

SATA: Tested with 6 HDDs, 60Gb SSD windows 7, 200GB SL, Lion & ML , & others . Blu-Ray drive worked too.

IDE: No.

USB 2.0: All ports work.

USB 3.0: Unknown.

Firewire: Disabled always

GPU: AMD Radeon HD 5970, works after editing 2 kexts, GraphicsEnabler. QE/CI

LAN: Intel 82583V Gigabit

Sound: ALC899 -> no support, but latest VoodooHDA 2.8.0 works on all SL, Lion & ML.

PS2: Not used.



Bootloader: Chameleon 2.1 R2069



Snow Leopard: Installed 10.6 from Nawcom Modcd and then updated to 10.6.8 through software update. After install everything worked correctly with appropriate kexts. Using AnV legacy 10.6.8 V8 R2 kernel in 64-bit UserLand.



Lion: Works in 32-bit with theconnactics 10.7.5 kernel, some fixes were needed (IOPCIFamily.kext etc.) basic stuff. Dodgy Graphics will sometimes not work.



Mountain Lion: ​Booted Installer, manually created install image and replaced AppleACPIPlatform.kext, IOPCIFamily.kext & IOUSBFamily.kext from acpirollback package by andy. No graphics QE/CI, still working on it. Sinetek "AMD Test Kernel 1" will let me install Mountain Lion and create user. But on next boot only shows a light grey screen that is slowly flashing dim then bright.

I have the same CPU but I get no luck doing what you've said :( my chipset is the AMD 970 if that helps.

Link to comment
Share on other sites
jonp1977
jonp1977
Posted
Posted (edited)

OS 10.6.8 Snow Leopard AMD Working build on Dell Studio XPS 7100

Processor:
AMD Phenom II x6 1075t 3.0 Ghz;

Motherboard:
Dell Studio XPS 7100 Motherboard:
 -On Board Audio ALC887/888b does not work, had to buy a USB Audio Adapter for $9 to get 2channel sound.  On Board microphone works with VoodooHDA.kext installed.  (I now have two audio devices.)
 -On-board LAN does not work
 -All USB Ports work without issue

Graphics:
ATI Radeon HD 5450 working when updated to 10.6.8 and then editing the ATI5000.kext plist to include 68f91002 hardware id.

Wifi Card: (PCI-e) works out of box (I think its a broadlcom wifi card,

12GB Ram

1TB Sata Hard drive

Install Method:
Used nawcom boot CD which gave me a compatible kernel (legacy_kernel) and chameleon bootloader necessary to get to the installation screen on my AMD system.  Installed with bootflags -v and -force64 as required by my processor.  After installation, updated to 10.6.8 and applied the ATI5000.Kext.plist edit mentioned above to get working graphics card.  Note:  Currently using arch=i386 maxmem=4096 busratio=19 and -force64 as bootflags.


P.S.  Thanks to Duran Keeley and Spaak and the insanelymac community for the good input and putting up with my dumba#@.  You guys rule.



*Mavericks 10.9 working build nearly complete!  New kernel in downloads section works great!  Thanks and congrats to all involved.  Awesome work.

Edited by jonp1977
Link to comment
Share on other sites
spakk
spakk
Posted
Posted

OS 10.6.8 Snow Leopard AMD Working build on Dell Studio XPS 7100



Processor:

AMD Phenom II x6 1075t 3.0 Ghz;



Motherboard:

Dell Studio XPS 7100 Motherboard:

 -On Board Audio ALC887/888b does not work, had to buy a USB Audio Adapter for $9 to get 2channel sound.  No biggie.

 -On-board LAN does not work

 -All USB Ports work without issue



Graphics:

ATI Radeon HD 5450 working when updated to 10.6.8 and then editing the ATI5000.kext plist to include 68f91002 hardware id among list of other id's.



Wifi Card: (PCI-e) works out of box (I think its a broadlcom wifi card,



12GB Ram



1TB Sata Hard drive



Install Method:

Used nawcom boot CD which gave me a compatible kernel (legacy_kernel) and chameleon bootloader necessary to get to the installation screen on my AMD system.  Installed with bootlegs -v and -force64 as required by my processor.  After installation, updated to 10.6.8 and applied the ATI5000.Kext.plist edit mentioned above to get working graphics card.  Note:  Currently using arch=i386 maxmem=4096 busratio=19 and -force64 as bootflags.



Currently working on getting 64 bit snow leopard up and running so I have access to all 12 GB of RAM on my system.  Any help would be much appreciated.



P.S.  Thanks to Duran Keeley and Spaak and the insanelymac community for the good input and putting up with my dumba#@.  You guys rule.

Install the SystemInfo tool see here---> http://www.insanelymac.com/forum/topic/219584-system-info-an-app-to-get-hardware-and-kexts-info/  and the current java version. then  run the tool, create an imaging your installed hardware with the systemInfo tool and upload it up here as an image, then we can adapt your Ethernet driver.

or read the information and look the video, then you will certainly modify the Ethernet driver in a few minutes, good luck
Link to comment
Share on other sites
spakk
spakk
Posted
Posted (edited)

take this http://www.osx86.net/files/file/1136-bcm57788/


This driver contains your device ID (14e4) and vendor ID (1691) install this driver with kext wizard


more information to BCM 57788, see here ---> http://www.insanelymac.com/forum/topic/247470-bcm5722-bcm5754m-bcm5755m-bcm5787m-and-bcm5906m-nic-driver-3264-bit/

Edited by spakk
Link to comment
Share on other sites
spakk
spakk
Posted
Posted

my graphics card is working normally. I do not understand why so many user have so many problems with ati or nvidia graphics card.

Link to comment
Share on other sites
Chris Etheridge
Chris Etheridge
Posted
Posted

This is my second 'Working Build' post, as my previous one didn't seem to work for me.

This was because I installed Mac, then got rid of it, installed Ubuntu, then got rid of it, then wanted to install Mac. This created trouble with Chameleon (so I think), maybe Grub had something to do with the trouble I was getting. My Mac would install fine, but when booting it would instantly restart at 'Starting Darwin x86', no matter the flags nor kernel.

I basically bombed my boot record (Windows 8 on a separate hard disk thankfully). Fully erased it, wrote over it, destroyed it. Then rebuilt it using Windows 8 and bam Mac worked like a beauty. Here is my build:


CPU: AMD Athlon X2 @ 3.3Ghz

Motherboard: Biostar A780L (probably the most unsupported motherboard ever)
RAM: 4GB DDR2 1333Mhz
SATA: 2 X 160GB
GPU: ATI Radeon HD5770 (full QE/CI)

LAN: Realtek 8102EL with RTG Mac
WiFi: TRENDnet TEW 684-UB with the drivers that came with the disk

Sound: ALC889 with VoodooHDA 2.8.4



Bootloader: Chameleon 2.2
Kernel:  Bronzovka v4

Flags: USBLegacyOff=Yes npci=0x2000 (arch=i386 sometimes, but both 32 and 64bit work)

I installed using iAtkos. It took me about 2 days worth of time to finally get a bootable media device working. Expanding the DMG to my USB didn't work, and all the other methods didn't, and I didn't have a Mac machine available to use. I also have the worst internet in the world (70kb/s downstream), so I could not stand to wait to download Hazard's Snow Leopard for a virtual machine.

I finally wrote it to a DVD by expanding the image, packing in some of my own things (kernel and such), compressing it, and then using PowerISO to burn it to a disk. I used TransMac to do the DMG work. Everything booted up perfectly.

Feel free to ask my for any help, if need be (I have had run in with so many errors its ridiculous). Thank to everyone who helped me! :D


  • Like 3
Link to comment
Share on other sites
rrtn
rrtn
Posted
Posted

I get reboot when loading, I believe that kernel is for FX



apple released sources for 10.9 & 10.8.5...new amd test kernels from Andy Vandjick, Bronzovka and Sinetek :)

http://www.insanelymac.com/forum/topic/281450-mavericks-kernel-testing-on-amd-formerly-mountain-lion-kernel-testing-on-amd/page-167

Link to comment
Share on other sites
aplIIc
aplIIc
Posted
Posted

Here's my rig, GFX is a Genuine AMD OEM ATI Radeon HD 5770

-Motherboard: ASRock 870 Extreme3 R2.0
-CPU: AMD FX 6300 @ 4.0
-RAM: A-Data DDR3 1600 Mhz
-GPU: OEM ATI Radeon HD 5770 1024 Mb Full QE/CI
-Audio: ALC892 - Voodoo HDA 2.8.4 (dsdt edit of (SBAZ) to (HDEF) impossible, though toleda 892enabler loads :wacko: )

-BIOS: AMD Cool n'Quiet: OFF removes crackling sound. Virtualization OFF
-HDs: 1.5Tb, 160Gb, WDC 320.0 Gb

-SnowLeo Retail + 10.6.8 Combo Update+ Legacy Kernel Anv_V8_R2

-kexts: AtherosL1cEther, AppleRTC, ATAPortInjector, AHCIPortInjector, EvilAppleACPIPlatform, EvilIOPCIFamily, FakeSMC 3 r493, NullCPUPowerManagement, VoodooHDA, PXHCD -BootLDR Flags: legacy_kernel, -force64 arch=i386 maxmem=4096 busratio=16

amd_insn patch: dyld - libSystem.B - libSystem.B.profile - CarbonCore - QTComponents - QTh264scalar

Pretty darned stable!

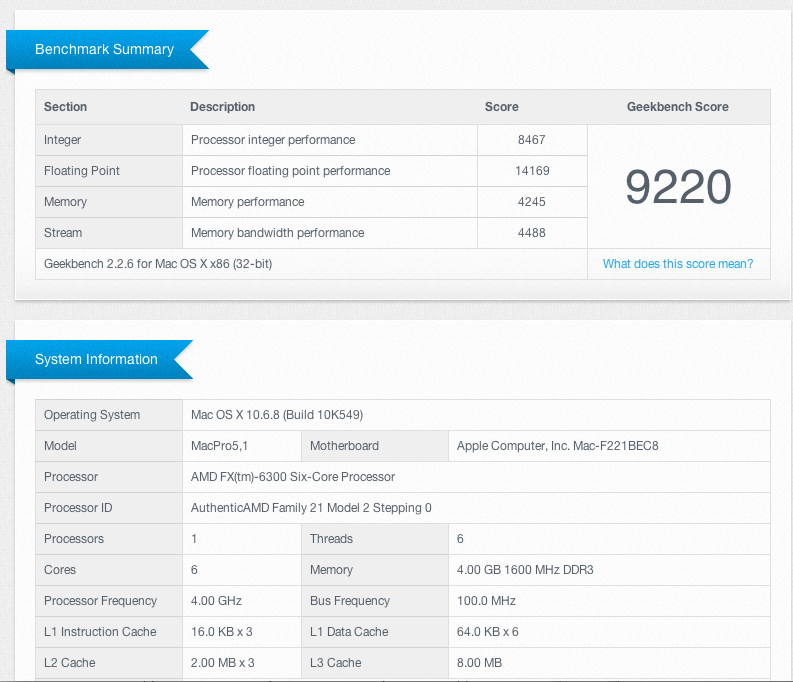

Geekbench Score:

-10.6.8- Score: 9220 (32bit bench); Int. Per.- 8467 FP Per.- 14169 Mem Per.- 4245 MemBW Per. - 4488




10.9.1 Mavericks!! kernel_BSA_FX


R.I.P (2004-2013)

eMachines T6542 (ECS C51-PVGM) - AMD Athlon64 3500+ @ 2.21 Ghz - 1.5 Gb DDR2 -PCIe 2.0 16x Nvidia GeForce 9400 GT 512 MB @ 400Mhz (Full Support)

iPC 10.5.6 Universal Final - 9.5.0 voodoo Kernel - Full Hardware Accel. 9f23installer.pkg GeForce 9400 GT - AppleNForce MeDevil - ALCInject & AppleHDA



New addition: aluminum fruit


  • Like 2
Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

CPU: AMD Phenom II x6 1075T @ 3.675GHz OC
Motherboard: ASUS M4A78LT-M
RAM: 12GB 1066MHz DDR3
SATA: 250GB & 320GB Internal HDD
IDE: 300GB Internal HDD, 80GB External HDD (Enabled via AppleATIATA.kext)
USB: All 6 rear & both front ports
GPU: XFX ATI Radeon HD 5750 1024MB (Enabled via attached kexts below)

LAN: Realtek RTL8168 (Enabled via Lnx2Mac's RTL8XXX driver)
Audio: M-Audio FastTrack USB Interface / HDMI (Enabled via attached DSDT.aml) / Onboard VIA VT1708S (All outputs enabled via attached VoodooHDA.kext)

Sleep: Enabled via patched USB kexts from 10.6 attached below

PS2: N/A



Bootloader: Chameleon 2.2svn r2181
Kernel: Sinetek's v4 Kernel (flags: darkwake=0 npci=0x2000 busratio=15 fsb=245)
OSX: 10.9 via MyHack USB Install Method (Updated safely to 10.9.1 via AppStore)



DSDT: https://db.tt/JizltgVE

Graphics Kexts: https://db.tt/gsVv1DGL

VoodooHDA for Onboard Audio: https://db.tt/qQtbabtN

Patched USB Kexts: https://db.tt/j9yOVuDe

AppleATIATA.kext (IDE) : http://puu.sh/7JG0Y.zip








Notes:



No more graphics corruption thanks to the system.kext patches by Sinetek!!!  The only remaining issues I have are some pink icons in Launchpad, and some corruption around icon labels on the desktop.  Nothing major, perfectly tolerable for me.



One thing I did have to do as kind of a workaround after installing the older patched USB kexts from 10.6, was install official kexts for my M-Audio FastTrack from the website.  It was previously detected OOB with Mavericks, but it stopped working when I installed the old USB kexts, so installing the official kexts from M-Audio fixed that issue for me.  Im assuming this might be an issue for other USB audio interfaces as well.  Just a heads up if you use these kexts.



Also, I have working iCloud services with sync enabled (no iMessage or FaceTime though) via a fix by theconnatic involving merging an iCloud enabled account from an Intel Hackintosh (or real Mac) to the AMD machine using Migration Assistant.  Many, many thanks to everyone involved with getting my Mavericks installation up and running!



***



EDIT:  I've been getting a lot of private messages asking me how I got iCloud working, so I figured I'd link theconnatic's original post about it:



http://www.insanelymac.com/forum/topic/282821-icloud-for-amd-hackintoshes-a-workaround/?p=1852906



***









  • Like 2
Link to comment
Share on other sites
Chris Etheridge
Chris Etheridge
Posted
Posted

CPU - AMD Athlon X2
Motherboard - Biostar A780L
GPU - ATI HD5770 1GB
Kernel - Andy's RC6 Kernel
RAM - 4Gb DDR2
Hard Drive - 2 X 160GB SATA
USB Ports - 4 at the back and 2 in front (all work)
LAN  - Realtek RTL8168 using RTGMac

Wifi - Trendnet TEW 648-UB (works using Snow Leopard drivers from the disc)
Audio - Realtek ALC662 - used Voodoo HDA 2.8.4
Sleep - working OOB


Lion works flawlessly, used Bronzvokas Lion 10.7.5 kernel and iAtkos L2 to install.

Mavericks also works amazingly.



Created a USB installer using Insanelymac's Pandoras Box (thank you!). Booted using Andy's kernel, with the flags "USBLegacyOff=yes npci=0x2000 -v". Installed fine and then booted fine too. First boot was EXTREMELY slow, left my machine on over night to allow Spotlight to index everything. Then replaced the System.kext with Andy's one, and everything worked fine. Graphics works 100%, and everything is very smooth.



Bootloader is Chameleon, using the flags "-v USBLegacyOff=Yes npci=0x2000"



iCloud / AppStore etc. does not work unfortunately. (no biggy though).




  • Like 2
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
