cyrhex
cyrhex
Posted
Posted
10 hours ago, PG7 said:

Samsung NP350V5C-S06FR

intel i3-3110M

intel HD4000 - "Radeon HD7670M Switshable" (Disabled DSDT)

ALC 269

SSD

8Go RAM

Atheros ar9285



Clover r5126

multiboot system !



  Hide contents

772423792_collageatheros.thumb.png.4243816b303c3cb2bdf81b81837b6bc1.png1582739081_collageSamsung.thumb.png.c97b6dc1bea56d20a39460cadb5f09f7.png



would you mind to share your efi? i got ivybridge laptop i cant reach the dsektop since clover 5123

Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted
3 minutes ago, mifjpn said:

Hello naiclub.

Delete the entire Kext from the version-specific folder (10.15,11.0,11..etc)that contains the Kext file.

And put it only in the "Other" folder. (The trick is to put it only in Other)

As with the installer, when you start it several times, the version is not specified, so Kext is not injected there, which is the reason why it stops halfway.

I think this will work.

Thank you.

I then removed the folder from 10.6 to 10.15, leaving only the other folder.

Have you ever told me about the Kext in the Other folder?
I have put
except
Lilu
Weg
FakeSMC / VirtualSMC
that I put in the other folder
Kp apparent result

Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted
1 minute ago, mifjpn said:

Hello naiclub
I wonder why is it KP?
Have you read debug.log?
If it is double injected, it suddenly becomes KP, but in that case, that is recorded in the log.
Thank you.

Thank you very much. I will try again and report to you again.

  • Like 1
Link to comment
Share on other sites
Denisuu
Denisuu
Posted
Posted
On 10/31/2020 at 2:45 PM, Slice said:

Sleep will not work until you repair sound.

Moreover sleep will work just after all devices will be maintained.

I may propose you to use VoodooHDA instead of AppleALC.



AppleALC has always worked, I don't understand why it doesn't with Clover r5125 and above. I reverted back to my working r5122 EFI, changed the SMBIOS and removed the unnecessary kexts.

I won't be updating to Big Sur any time soon and at least everything works on r5122

Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted (edited)
41 minutes ago, Denisuu said:



Sleep will not work until you repair sound.

Moreover sleep will work just after all devices will be maintained.

I may propose you to use VoodooHDA instead of AppleALC.

and from me it continues to work on all clover releases released in all my hacks
maybe if you inject audio from properties solve for you

Edited by iCanaro
  • Like 2
Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted (edited)
4 hours ago, mifjpn said:

Hello naiclub
I wonder why is it KP?
Have you read debug.log?
If it is double injected, it suddenly becomes KP, but in that case, that is recorded in the log.
Thank you.

After checking It causes panic
The result of this file (AirPortAtheros40.kext) is After checking It causes panic
Which is even more surprising The previous version did not have any problem, because it put kext according to different versions.

After 5126, the resulting panic every time.

debug.log

Spoiler

1654695998_ScreenShot2563-11-02at19_59_54.thumb.png.78b902e5087e049d74b71357b73169ff.png

I'll try the full install 11.0.1.20B5012d.

Edited by naiclub
  • Sad 1
Link to comment
Share on other sites
himac59
himac59
Posted
Posted (edited)

Hai mifjpn,



Clover 5126

Your file http://5126efi.2010302226.zip/ worked for me, it installed Big Sur 10.11.1beta and finished installation and booted

not working: intel HD530 Skylake in 10.15.7 it worked with video id-inject and without.



Catalina 10.15.7 - working Clover 5122



i use Intel: 0x193B0005



regards himacc

Edited by himac59
  • Like 1
Link to comment
Share on other sites
Jief_Machak
Jief_Machak
Posted
Posted
On 10/31/2020 at 2:53 AM, MacKonsti said:

Hi @Jief_Machak hope you are well. I ran CloverConfigPlistValidator06 on the config-sample.plist found in the latest Clover releases, and got these errors, can I bother you to check them please and potentially fix your great validator tool?


Error: Expecting <true/> <false/> or <string> tag containing true, false, yes or no tag '/Devices/DisableFunctions:344'
Error: Expecting <true/> <false/> or <string> tag containing true, false, yes or no tag '/Devices/IntelMaxValue:369'
Warning: Unknown key '/Graphics/Connectors:729'. Skipped.
Warning: Unknown key '/KernelAndKextPatches/KextsToPatch[6]/FindMask:1070'. Skipped.
Warning: Unknown key '/RtVariables/Block[0]/UUID:1100'. Skipped.
Warning: Unknown key '/Quirks/DisableRtcChecksum:1264'. Skipped.

The structure for the errors comes from Devices section, not sure if DisableFunctions and IntelMaxValue are allowed values? They are certainly rarely used (to my experience all this time):


	<key>Devices</key>
	<dict>
[...]
		<key>DisableFunctions</key>
		<string>0x18F6</string>
[...]
        <key>ForceHPET</key>
		<false/>
		<key>HDMIInjection</key>
		<false/>
		<key>IntelMaxValue</key>
		<string>0x710</string>
[...]

Thank you!

I fixed DisableFunctions and IntelMaxValue.

Other warnings are right. For FindMask warning, it's because it's MaskFind.

CloverConfigPlistValidator0.7

  • Like 2
  • Thanks 2
Link to comment
Share on other sites
LockDown
LockDown
Posted
Posted (edited)



Quote

	<key>Devices</key>
	<dict>
[...]
		<key>DisableFunctions</key>
		<string>0x18F6</string>
[...]
        <key>ForceHPET</key>
		<false/>
		<key>HDMIInjection</key>
		<false/>
		<key>IntelMaxValue</key>
		<string>0x710</string>
[...]



What is 0x18F6?

Edited by ellaosx
  • Like 1
Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted
47 minutes ago, mifjpn said:

Hello naiclub.

In your log, we can see that Kext is in the following folder and you have applied it.
10.6
10.9
10.10
11
10.14
10.13
10.12
10.15
Remove all of these.
Perhaps the meaning of "Other" wasn't translated properly?
You put Kext only in ..EFI/CLOVER/KEXT/Other.
Well, it's inconvenient for each other to speak English at such times.:|
Good luck.



Oh, that's the record before I fix it
After solving It also causes you to panic because of this.(AirPortAtheros40.kext)
panic, all OS from 10.13, 10.14, 10.15, 10.16 or 11

Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted
52 minutes ago, Jief_Machak said:

I can't find it because there is too much in the last 3 days, but I think I saw a message about someone having something that works in OC but not in Clover. Am I right ?


@Jief_Machak Maybe you are referring to the discussion between @Andres ZeroCross and @Slice about IgnoreInvalidFlexRatio = True. It's page #987 :) the problem is happened in his Lenovo X250 (Broadwell, I suppose).

Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted (edited)

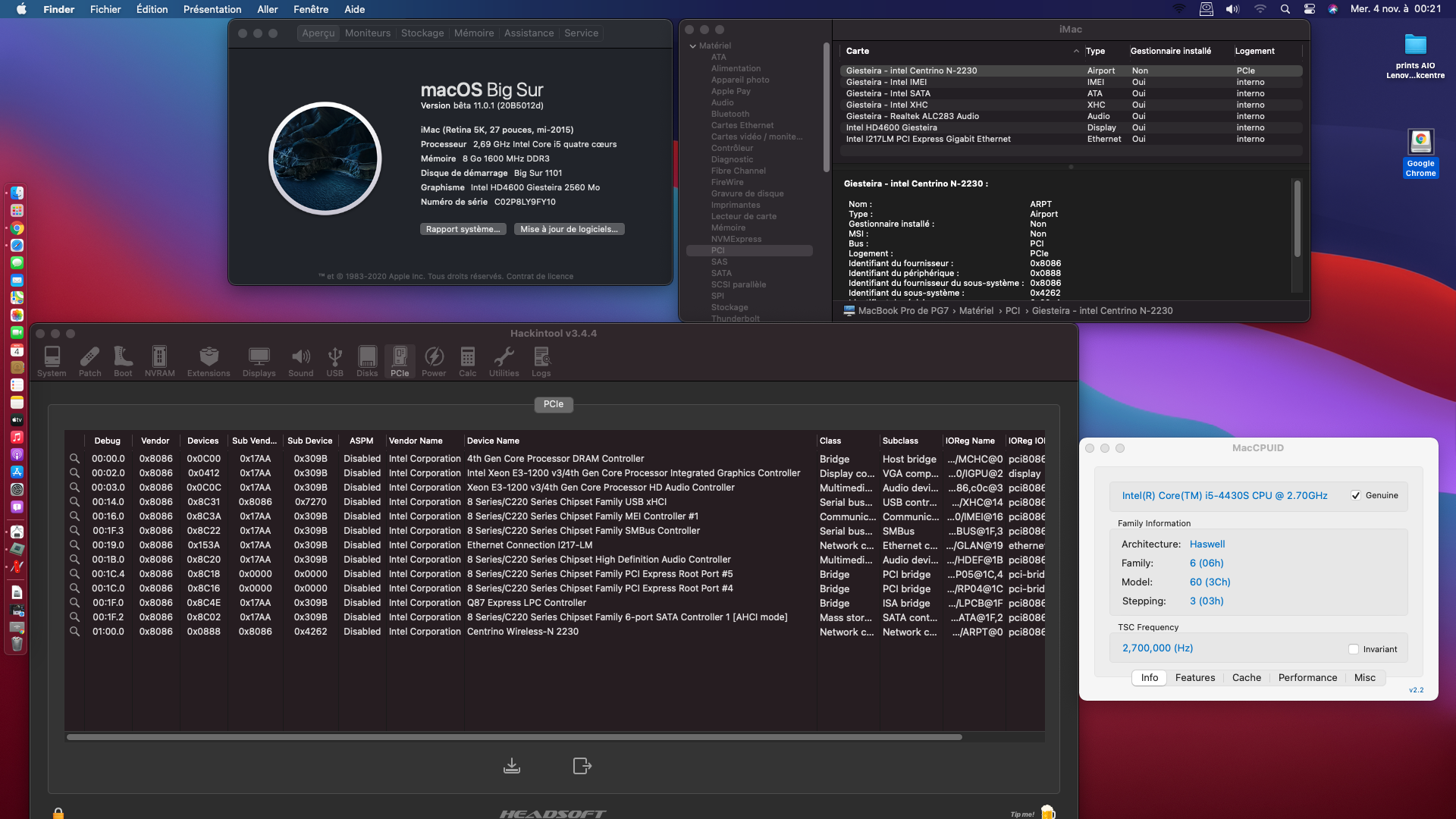

from me Clover now works everywhere, chirao that everyone has to put to point kexts and config on their hack, alone without doing anything, unlikely functions.

1696148948_Schermata2020-11-02alle16_16_06.thumb.png.22353386240ba2c2dfc3b74bb485df0c.png



I only have a few quirks when I update BigSur or as yesterday on the X570 catalina from H2 to H4 (downloaded full installer) on the first restart ... no panic :D

1620839258_Schermata2020-11-01alle23_14_

verified the systemversions of the preboots of catalina and bigsur, but nothing strange detected
finished updating using icon to the right of catalina



755576635_Schermata2020-11-01alle22_56_5


Edited by iCanaro
  • Like 1
  • Thanks 1
  • Haha 2
Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted
1 minute ago, mifjpn said:

You say it was because of AirPortAtheros40.kext,
Did the update or installation work?
Or is it still KP?

Thank you.



This has been removed.(AirPortAtheros40.kext)

Now all versions can be booted.

But when there was a problem, I used OC to complete the update to finish.

I'm not sure after fixing it to get back to work.

Next we will try a full installation to see if it can install the full one.

I'm currently loading the setup file, so it's not done yet.



  • Like 2
Link to comment
Share on other sites
MacKonsti
MacKonsti
Posted
Posted
1 hour ago, Jief_Machak said:

I fixed DisableFunctions and IntelMaxValue.

Other warnings are right. For FindMask warning, it's because it's MaskFind.

CloverConfigPlistValidator0.7

Thank you very much @Jief_Machak for your fixes.
Can we include this incredibly useful tool in future Clover packaged releases?



Also a question: the number next to the invalid key or error, is it line number?

if yes, could we possibly add the word " Line:" before the number so to make it more user-friendly if it doesn't break some logic or code in your validator tool?



Warning: Unknown key '/Quirks/DisableRtcChecksum: Line 1264'. Skipped.

@ellaosx the value was found in the sample-config for DisableFunctions, I have no idea what it represents....

Unknown documentation, only the original developer knows LOL

  • Like 2
Link to comment
Share on other sites
Guest
Guest
Posted
Posted
10 minutes ago, MacKonsti said:

Thank you very much @Jief_Machak for your fixes.
Can we include this incredibly useful tool in future Clover packaged releases?



Also a question: the number next to the invalid key or error, is it line number?

if yes, could we possibly add the word " Line:" before the number so to make it more user-friendly if it doesn't break some logic or code in your validator tool?






Warning: Unknown key '/Quirks/DisableRtcChecksum: Line 1264'. Skipped.

@ellaosx the value was found in the sample-config for DisableFunctions, I have no idea what it represents....

Unknown documentation, only the original developer knows LOL

if you read here you will understand better:



Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted (edited)

not long ago there was the guide.pdf in Russian



1689515523_Schermata2020-11-02alle17_08_02.thumb.png.8b5e20e446bddb78109d1ab202ee1ddf.png



1401979855_Schermata2020-11-02alle17_14_20.thumb.png.3aba061c05c8d0883ad99cfb7307d7e4.png



<key>DisableFunctions</key>
       <string>0x18F6</string>
This mask, which is superimposed in RCBA 0x3418 - exposes additional bits, banning some devices in the Intel chipset. For very serious hackers.

Edited by iCanaro
  • Like 3
Link to comment
Share on other sites
naiclub
naiclub
Posted
Posted
8 minutes ago, mifjpn said:

Hello, Naiclub.
Just yesterday, I did an installation test of Big Sur Beta 11.0.1, so I'll put it's EFI below for reference.

i7-8700-Asus-H370-BS11.0.1-Installer.zip
Thank you.

Strange today, downloading bigsur 11.0.1 is very slow.
Have tried test speednet, no problem.
Is the problem likely to come from the apple server?

  • Confused 1
Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted
5 minutes ago, Matgen84 said:


@iCanaro where we can find this guide in Russian. Please.

it was available on github for a while, then I don't know why it was taken off... but I save everything locally, so if you want it, here it is
https://mega.nz/file/riYFzYAZ#6vPlcaRAAAKInXpFiRGEHOhoZiDJvY4aO3Nb9X6YUic

  • Thanks 3
Link to comment
Share on other sites
Slice
Slice
Posted
Posted
56 minutes ago, iCanaro said:

it was available on github for a while, then I don't know why it was taken off... but I save everything locally, so if you want it, here it is
https://mega.nz/file/riYFzYAZ#6vPlcaRAAAKInXpFiRGEHOhoZiDJvY4aO3Nb9X6YUic

It is still present on github.

Снимок экрана 2020-11-02 в 20.34.34.png



But one man was going to translate it to Italian. We are waiting?

  • Like 2
  • Thanks 2
