Guest Posted October 18, 2020 Share Posted October 18, 2020 4 minutes ago, Jief_Machak said: For people with debug.log not generated (Sorry I'm struggling on this one!), try this : CloverX64-259ebbb-jief.zip Also, I'd like to share a tool I've just made : CloverConfigPlistValidator0.2 A lot of problem happens when you think you change something in config.plist, but you don't know it's silently ignored by Clover. Use a terminal, launch "CloverConfigPlistValidator0.2 {path to a config.plist}". For "{path to a config.plist}", you can just drag and drop from finder. It's brand new. It's possible that an error or warning is wrongly reported. Let me know. fabios-iMac-Pro:~ fabio$ /Users/fabio/Downloads/CloverConfigPlistValidator0.2 /Volumes/EFI/EFI/CLOVER/config.plist -bash: /Users/fabio/Downloads/CloverConfigPlistValidator0.2: Permission denied fabios-iMac-Pro:~ fabio$ sudo /Users/fabio/Downloads/CloverConfigPlistValidator0.2 /Volumes/EFI/EFI/CLOVER/config.plist Password: sudo: /Users/fabio/Downloads/CloverConfigPlistValidator0.2: command not found fabios-iMac-Pro:~ fabio$ Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 Just now, fabiosun said: /Users/fabio/Downloads/CloverConfigPlistValidator0.2: command not found chmod a+x /Users/fabio/Downloads/CloverConfigPlistValidator0.2 2 Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 /Users/fabio/Downloads/CloverConfigPlistValidator0.2 /Volumes/EFI/EFI/CLOVER/config.plist Warning: Unknow key 'main/ACPI/DropTables[3]/DropForAllOS:129'. Skipped. Error: Unexpected char '/' at line 466 col 6 while looking for closing char '>' fabios-iMac-Pro:~ fabio$ 2 minutes ago, Jief_Machak said: chmod a+x /Users/fabio/Downloads/CloverConfigPlistValidator0.2 Link to comment Share on other sites More sharing options...
jsl2000 Posted October 18, 2020 Share Posted October 18, 2020 8 minutes ago, fabiosun said: /Users/fabio/Downloads/CloverConfigPlistValidator0.2 /Volumes/EFI/EFI/CLOVER/config.plist Warning: Unknow key 'main/ACPI/DropTables[3]/DropForAllOS:129'. Skipped. Error: Unexpected char '/' at line 466 col 6 while looking for closing char '>' fabios-iMac-Pro:~ fabio$ I got exactly the same errors as yours. Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 If you think it's an error to say it's an error, send me a config.plist. 1 Link to comment Share on other sites More sharing options...
maclinuxG4 Posted October 18, 2020 Share Posted October 18, 2020 (edited) sudo ./CloveerConfigPlistValidation2.0 /Volumes/EFI/EFI/config.plist if no sudo i get permission denied Warning: Unknow key 'main/ACPI/DropTables[2]/Length:54'. Skipped. ---> SSDT is present in my config, but not in the file config.plist Warning: Unknow key 'main/GUI/Mouse/DoubleClick:299'. Skipped. --> OK Error: Expecting a <string> tag following key 'main/Devices/Properties' at line 635 col 5 --> clover configurator do number then data again OK Warning: Unknow key 'main/KernelAndKextPatches/KextsToPatch[0]/FindMask:743'. Skipped. --> OK Error: Unexpected char 'w' at line 796 col 12 while looking for closing char '>' - not correct because FF 00 00 is in base 64 this: /wAA ->rong error Edited October 18, 2020 by maclinuxG4 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 Just now, maclinuxG4 said: sudo ./CloveerConfigPlistValidation2.0 /Volumes/EFI/EFI/config.plist Why sudo ? No need. 1 Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 @Jief_Machak I would like to understand with you if this tool of yours can help me understand a particular aspect of your version of clover in practice with Opencore I can use a config.plist to start all operating systems With clover, however, no I have to use 2 1 for High sierra, Mojave, Ctalina. and one for Big Sur In practice in the Kernel Patches section there is something that is not working properly. Are you aware of it? Thank you Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 2 minutes ago, fabiosun said: 1 for High sierra, Mojave, Ctalina. and one for Big What's the difference between these config.plist ? But no, this tool just say if your config.plist is syntactically correct or not. It can happen that a big part of your config.plist is ignored because of a wrong key name. And if you keep trying to solve a problem by modifying an ignored section, you can spend a whole lot of time. 2 Link to comment Share on other sites More sharing options...
naiclub Posted October 18, 2020 Share Posted October 18, 2020 4 minutes ago, Jief_Machak said: What's the difference between these config.plist ? But no, this tool just say if your config.plist is syntactically correct or not. It can happen that a big part of your config.plist is ignored because of a wrong key name. And if you keep trying to solve a problem by modifying an ignored section, you can spend a whole lot of time. I couldn't try to get an order. Can you do an example? Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 3 minutes ago, Jief_Machak said: What's the difference between these config.plist ? In BS plist I have the same OC naming convention for min a max kernel/OS other part of my config is the same.. For me it is not clear some naming of clover for that part hs_MO_Cat.plist BS.plist Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 8 minutes ago, maclinuxG4 said: if no sudo i get permission denied Give yourself the reading right on your config.plist ? It it works with sudo for you, that's ok. 9 minutes ago, maclinuxG4 said: Unknow key 'main/ACPI/DropTables[2]/Length:54'. Skipped. Report wrong. Corrected 10 minutes ago, maclinuxG4 said: Unknow key 'main/KernelAndKextPatches/KextsToPatch[0]/FindMask:743'. Skipped. That's a good example of about what this tool could help. You can spend days to try to modify FindMask, not understand why it doesn't work. But it's "MaskFind". 23 minutes ago, fabiosun said: Unknow key 'main/ACPI/DropTables[3]/DropForAllOS:129' Wrong report, corrected. CloverConfigPlistValidator0.3 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted October 18, 2020 Share Posted October 18, 2020 Hi @Jief_Machak CloverConfigPlisValidator 0.2 works as it shall with my IvyBridge config.plist update for new Clover: iMac-de-Mathieu:~ mathieu$ /Users/mathieu/Desktop/CloverConfigPlistValidator0.2 /Users/mathieu/Desktop/IvyBridge_EFI_newClover_5124/CLOVER/config.plist Warning: Unknow key 'main/ACPI/DSDT/DropOEM_DSM:13'. Skipped. Warning: Unknow key 'main/GUI/Mouse/DoubleClick:211'. Skipped. Warning: Unknow key 'main/KernelAndKextPatches/KernelCpu:265'. Skipped. Warning: Unknow key 'main/Quirks/DisableRtcChecksum:571'. Skipped. I've just to remove unnecessary key. or not I don't want because they are skipped. Thanks 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 2 minutes ago, fabiosun said: BS.plist Copy and paste patch from OC to Clover doesn't work. Sorry, but I spend enough time on Clover already, I won't add to my TODO list "Sorting out config.plist of everyone"... So you have to understand it and do it. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted October 18, 2020 Share Posted October 18, 2020 7 minutes ago, fabiosun said: In BS plist I have the same OC naming convention for min a max kernel/OS other part of my config is the same.. For me it is not clear some naming of clover for that part hs_MO_Cat.plist BS.plist Hi @fabiosun Have a look to @Slice explanations in this topic Clover changes to convert patches OC to Clover Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 4 minutes ago, Jief_Machak said: Copy and paste patch from OC to Clover doesn't work. Sorry, but I spend enough time on Clover already, I won't add to my TODO list "Sorting out config.plist of everyone"... So you have to understand it and do it. and who asked you this? : P i know perfectly well how to make my systems work using your clover I'm just asking you what conventions you use for naming patches in kernel patches. Because if you reread what I write to you, I have all system working and naming is different by the way also 0.3 produce an error fabios-iMac-Pro:~ fabio$ /Users/fabio/Downloads/CloverConfigPlistValidator0.3 /Volumes/EFI/EFI/CLOVER/config.plist Error: Unexpected char '/' at line 466 col 6 while looking for closing char '>' fabios-iMac-Pro:~ fabio$ 2 minutes ago, Matgen84 said: Hi @fabiosun Have a look to @Slice explanations in this topic Clover changes to convert patches OC to Clover I have read that slice message and if you see some data are modified in my working plist problem is if you use matchOS on BS plist..BS does not start...but if it is of any interested here I will try to find by my self a solution Link to comment Share on other sites More sharing options...
naiclub Posted October 18, 2020 Share Posted October 18, 2020 baby@babys-iMac-Pro ~ % chmod A + x /Users/baby/Downloads/CloverConfigPlistValidator0.3 chmod: Invalid file mode: A baby@babys-iMac-Pro ~ % /Users/baby/Downloads/CloverConfigPlistValidator0.3 /Volumes/EFI/EFI/CLOVER/config.plist zsh: permission denied: /Users/baby/Downloads/CloverConfigPlistValidator0.3 baby@babys-iMac-Pro ~ % 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted October 18, 2020 Share Posted October 18, 2020 Hi @fabiosun I have a look to your BS.plist: you've mixed OC format and Clover format Only use Clover format for Clover, and Opencore format for Opencore. I think it's best for you. Just my opinion. 1 Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 1 minute ago, Matgen84 said: Hi @fabiosun I have a look to your BS.plist: you've mixed OC format and Clover format Only use Clover format for Clover, and Opencore format for Opencore. I think it's best for you. Just my opinion. don't take it wrong @ matgen84 you know I love you like a brother but you don't read too those are two plists that work separately with jief version 5124 ... I would just like to merge them as I can in opencore ... Link to comment Share on other sites More sharing options...
Matgen84 Posted October 18, 2020 Share Posted October 18, 2020 5 minutes ago, naiclub said: baby@babys-iMac-Pro ~ % chmod A + x /Users/baby/Downloads/CloverConfigPlistValidator0.3 chmod: Invalid file mode: A baby@babys-iMac-Pro ~ % /Users/baby/Downloads/CloverConfigPlistValidator0.3 /Volumes/EFI/EFI/CLOVER/config.plist zsh: permission denied: /Users/baby/Downloads/CloverConfigPlistValidator0.3 baby@babys-iMac-Pro ~ % For make a executable baby@babys-iMac-Pro ~ % chmod +x /Users/baby/Downloads/CloverConfigPlistValidator0.3 No more need sudo 4 minutes ago, fabiosun said: don't take it wrong @ matgen84 you know I love you like a brother but you don't read too those are two plists that work separately with jief version 5124 ... I would just like to merge them as I can in opencore ... Hi Bro Sorry for my poor English. You talk about BS.plist ? And you want to convert to Opencore, if I understand well ! Tell me. 1 Link to comment Share on other sites More sharing options...

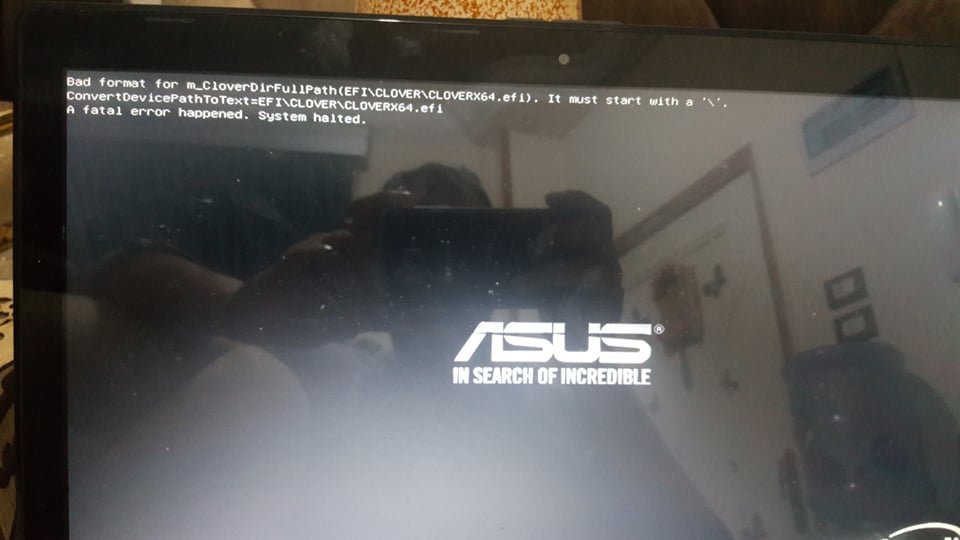

Guest Posted October 18, 2020 Share Posted October 18, 2020 (edited) no @Matgen84 I would like to understand why that mixed BS.plist works and if you see I have put my clover/BS booting image here And why, if I put it correctly with MatchOs parameter it doesn't work then..I would like also to say that clover skip without problems naming conventions it does not know (ie min/max kernel value) so..how to convert in MatchOS min kernel 17.00 max kernel 20.99? MatchOs 10.13.x, 10.14.x, 10.15.x, 11.0.x, 10.16.x.... I have an initial solution..but I hoped devs can show their proper way to do it Edited October 18, 2020 by Guest Link to comment Share on other sites More sharing options...
JorgeMax Posted October 18, 2020 Share Posted October 18, 2020 1 hour ago, Jief_Machak said: For people with debug.log not generated (Sorry I'm struggling on this one!), try this : CloverX64-259ebbb-jief.zip Also, I'd like to share a tool I've just made : CloverConfigPlistValidator0.2 A lot of problem happens when you think you change something in config.plist, but you don't know it's silently ignored by Clover. Use a terminal, launch "CloverConfigPlistValidator0.2 {path to a config.plist}". For "{path to a config.plist}", you can just drag and drop from finder. It's brand new. It's possible that an error or warning is wrongly reported. Let me know. Debug now being generated: debug.log you analyze why my processor appears as "unknown" Grateful for your work Link to comment Share on other sites More sharing options...
Jief_Machak Posted October 18, 2020 Share Posted October 18, 2020 (edited) 32 minutes ago, fabiosun said: and who asked you this? : P i know perfectly well how to make my systems work using your clover I'm sorry, I may have misunderstood something. You said that you need 2 config.plist, which I don't see why, and then you put your config.plist 32 minutes ago, fabiosun said: the way also 0.3 produce an error Fixed in 0.4 : CloverConfigPlistValidator0.4 7 minutes ago, fabiosun said: I would like to understand why that mixed BS.plist works The whole section "KernelToPatch" is just ignored by Clover, as this new validator version will tell you. The ONLY explanation is that you don't need it ! Try to delete it, it'll just work the same. 19 minutes ago, Matgen84 said: chmod A + x Did I wrote that ??? I think I wrote a+x. Generally speaking, capitals and spaces matters. So don't change a+x to A + x... Edited October 18, 2020 by Jief_Machak 2 1 Link to comment Share on other sites More sharing options...
Guest Posted October 18, 2020 Share Posted October 18, 2020 Just now, Jief_Machak said: I'm sorry, I may have misunderstood something. You said that you need 2 config.plist, which I don't see why, and then you put your config.plist Fixed in 0.4 : CloverConfigPlistValidator0.4 The whole section "KernelToPatch" is just ignored by Clover, is this new validator version will tell you. The ONLY explanation is that you don't need it ! Try to delete it, it'll just work the same. ei Jief I really appreciate your job in this task.. but Maybe you do not know so much the trouble TRX40 users have had in the past to have their system working in OSX kernel Patches are mandatory, and if you search on my log I have posted here (ignored by you for other to do list to complete I think) you will see these patches are loaded (when found them in kernel). if Big Sur starts without should be more or less a big miracle without patches early KP or some mem errors... Link to comment Share on other sites More sharing options...

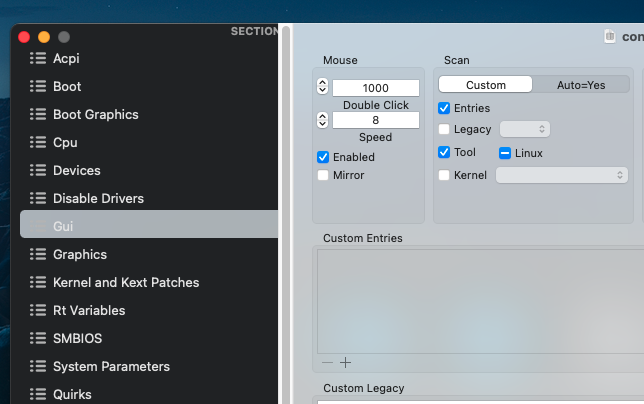

naiclub Posted October 18, 2020 Share Posted October 18, 2020 (edited) baby@babys-iMac-Pro ~ % /Users/baby/Downloads/CloverConfigPlistValidator0.4 /Volumes/EFI/EFI/CLOVER/config.plist Error: Language 'th:0' is unknown at line 332. Ignored. Warning: Expecting an integer or "Min" or "Max" for tag 'main/GUI:343'. Warning: Unknow key 'main/GUI/Mouse/DoubleClick:349'. Skipped. Warning: Unknow key 'main/KernelAndKextPatches/KernelCpu:483'. Skipped. Warning: Unknow key 'main/Quirks/PanicNoKextDump:683'. Skipped. Warning: Unknow key 'main/Quirks/LapicKernelPanic:685'. Skipped. Warning: Unknow key 'main/Quirks/DisableRtcChecksum:711'. Skipped. Warning: Unknow key 'main/Quirks/AppleXcpmCfgLock:725'. Skipped. Warning: Unknow key 'main/Quirks/CustomSMBIOSGuid:733'. Skipped. Warning: Unknow key 'main/Quirks/AppleCpuPmCfgLock:747'. Skipped. baby@babys-iMac-Pro ~ % Edited October 18, 2020 by naiclub Link to comment Share on other sites More sharing options...
