@cloverDevs

is it possible to implement the same memory fix driver used in Opencore (I think inside OpenRuntime.efi)

Maybe this could help to boot in a proper way also trx40 CPU with this modified clover version.

Thank you

@all is there someone trying to use Clover with TRX40 platform?



Link to comment
Share on other sites

1 hour ago, Slice said:

Take release 5123, edit your config.plist by adding Quirks section as a copy of config-sample.plist.

May be it will be enough for you to boot BigSur.


So that’s it?

No OC folder that needs to be put inside Clover folder?

If an OC folder needs to be put inside Clover folder where should it go exactly?



Also, I‘m assuming that my current Quirks values (r23 with plist on a 300series board) still work with Clover r5123, right? Please confirm.

Link to comment
Share on other sites

10 minutes ago, fabiosun said:

@cloverDevs

is it possible to implement the same memory fix driver used in Opencore (I think inside OpenRuntime.efi)

Maybe this could help to boot in a proper way also trx40 CPU with this modified clover version.

Thank you

@all is there someone trying to use Clover with TRX40 platform?



I am not trying TRX40 but OpenRuntime in Clover is the same as in OC. And you may replace one by another.

9 minutes ago, rramon said:


So that’s it?

No OC folder that needs to be put inside Clover folder?

If an OC folder needs to be put inside Clover folder where should it go exactly?



Also, I‘m assuming that my current Quirks values (r23 with plist on a 300series board) still work with Clover r5123, right? Please confirm.

No. OC is already inside Clover. See sizes.

  • Like 1
  • Thanks 1
Link to comment
Share on other sites

39 minutes ago, Jief_Machak said:

11, or 11.0



but NOT 11.00.

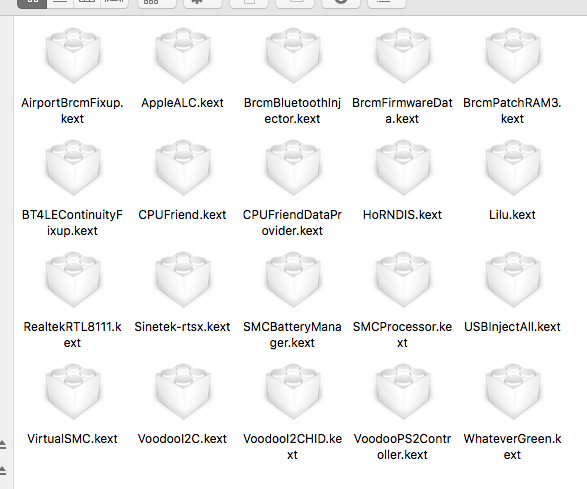

Thanks, to be honest I had forgotten to copy the kexts to a folder for Big Sur!

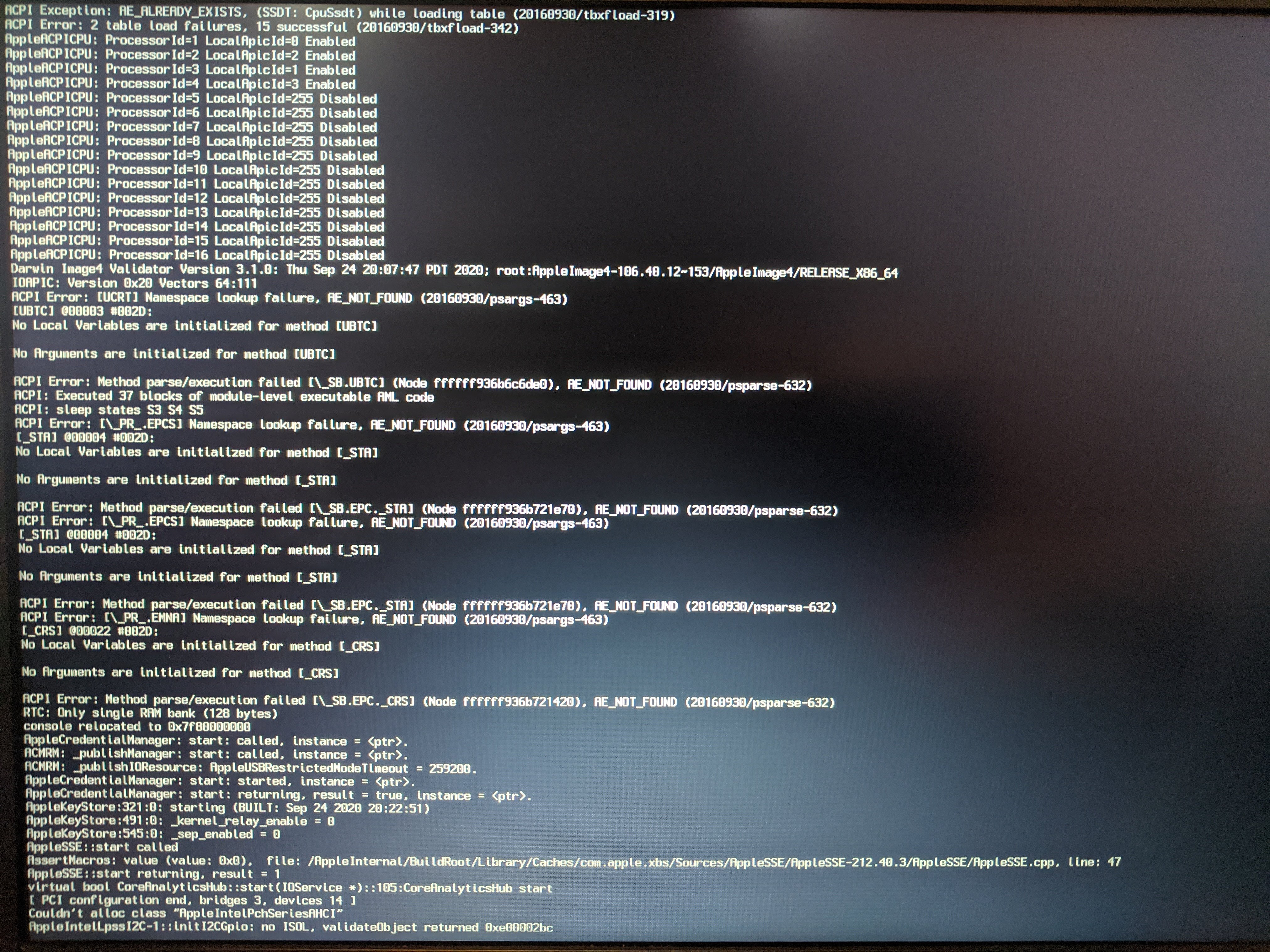

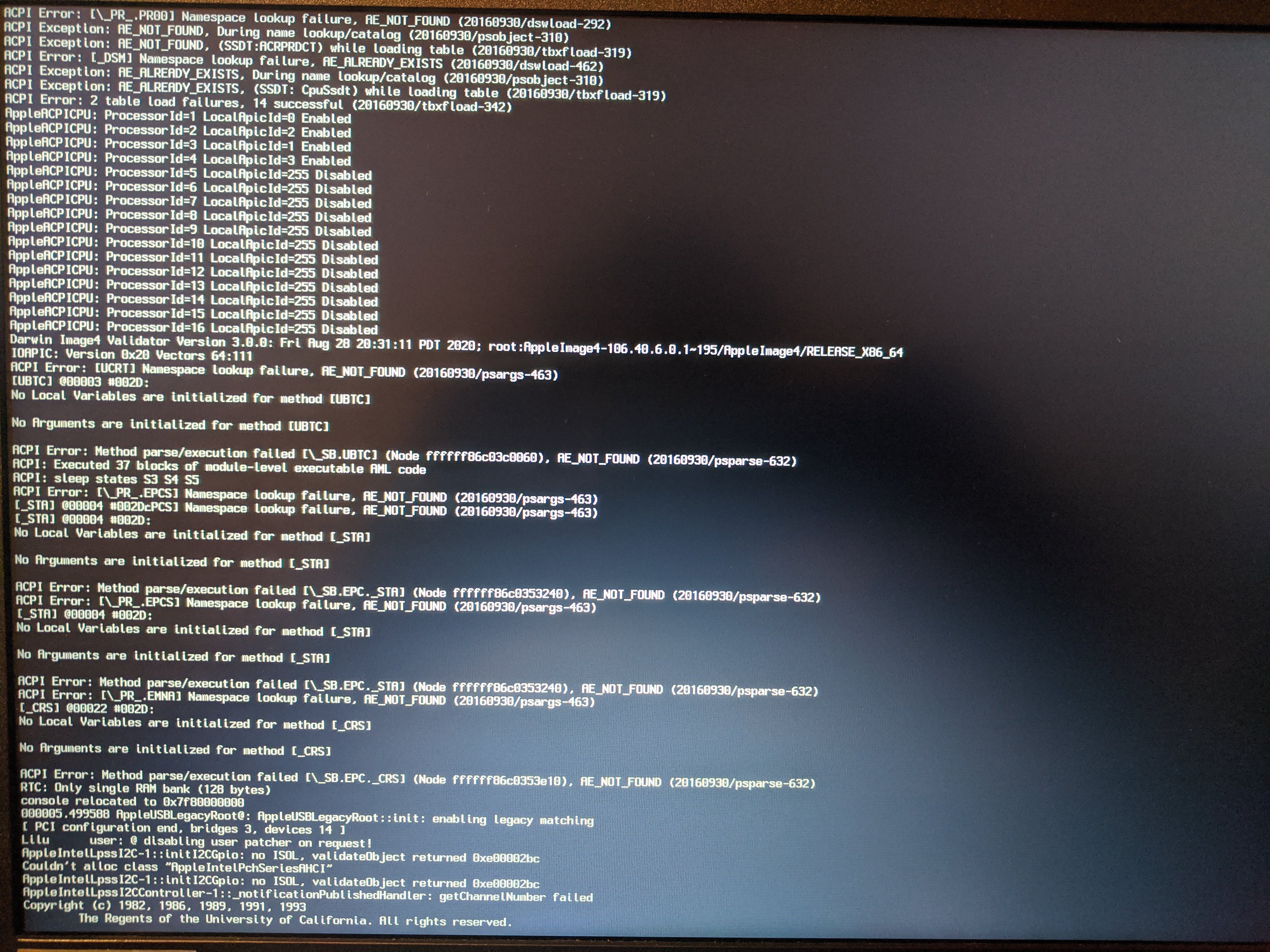

I have now got them in 11.0 as advised but it still hangs in the same place, do I need different kexts for Big Sur (With OpenCore I use VirtualSMC)?



Spoiler




Edited by D-an-W
Link to comment
Share on other sites

19 minutes ago, Jief_Machak said:

Take the habit to get the log, when you have a problem. There is a lot of thing you can understand yourself. Including what kext dir are scanned. And without, we can't do much.



Thanks Jief, fully understand.



Now I need figure out how to compile the debug Clover!

Link to comment
Share on other sites

Got the debug log now...



Spoiler

0:100  0:100  MemLog inited, TSC freq: 3503445706

0:100  0:000  CPU was calibrated with ACPI PM Timer

0:100  0:000  Clover : Image base = 0xD3721000

0:100  0:000

0:100  0:000  Now is 03.10.2020,  17:25:31 (GMT)

0:100  0:000  Starting Clover revision: 5123 (master, commit 648f5c3d3) on American Megatrends EFI

0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t GCC53 | -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 9 | OS: 10.15.7]

0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000) @D590DA98

0:100  0:000  SelfDirPath = \EFI\BOOT

0:100  0:000  SimpleTextEx Status=Success

0:100  0:000  === [ Get Smbios ] ==============================

0:100  0:000  Type 16 Index = 0

0:100  0:000  Total Memory Slots Count = 4

0:100  0:000  Type 17 Index = 0

0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz

0:100  0:000  SmbiosTable.Type17->Size = 8192MB

0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1

0:100  0:000  SmbiosTable.Type17->Vendor = 859B

0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084

0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

0:100  0:000  Type 17 Index = 1

0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz

0:100  0:000  SmbiosTable.Type17->Size = 8192MB

0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1

0:100  0:000  SmbiosTable.Type17->Vendor = 859B

0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86

0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

0:100  0:000  Type 17 Index = 2

0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz

0:100  0:000  SmbiosTable.Type17->Size = 8192MB

0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0

0:100  0:000  SmbiosTable.Type17->Vendor = 859B

0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4

0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

0:100  0:000  Type 17 Index = 3

0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz

0:100  0:000  SmbiosTable.Type17->Size = 8192MB

0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0

0:100  0:000  SmbiosTable.Type17->Vendor = 859B

0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008

0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

0:100  0:000  Boot status=0

0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'

0:100  0:000  === [ GetCPUProperties ] ========================

0:100  0:000  CPU Vendor = 756E6547 Model=306A9

0:100  0:000   The CPU supported SSE4.1

0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz

0:100  0:000   The CPU supported turbo

0:100  0:000  MSR 0x35               40008

0:100  0:000  MSR 0xE2 before patch 1E000403

0:100  0:000  MSR 0xCE              00081010_F0012300

0:100  0:000  corrected FLEX_RATIO = E0000

0:100  0:000  MSR 0x1B0             00000000

0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz

0:100  0:000  MaxDiv/MinDiv: 35.0/16

0:100  0:000  Turbo: 42/42/42/42

0:100  0:000  Features: 0x779AE3BFBFEBFBFF

0:100  0:000  Threads: 8

0:100  0:000  Cores: 4

0:100  0:000  FSB: 100 MHz

0:100  0:000  CPU: 4200 MHz

0:100  0:000  TSC: 4200 MHz

0:100  0:000  PIS: 100 MHz

0:100  0:000  ExternalClock: 25 MHz

0:100  0:000  === [ GetDevices ] ==============================

0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)

0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000

0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000

0:100  0:000   - GOP: Provided by device

0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)

0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330

0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000

0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF

0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000

0:100  0:000   - LAN: 0 Vendor=Intel

0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320

0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300

0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400

0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400

0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601

0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400

0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000

0:100  0:000   - WIFI: Vendor= Broadcom

0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400

0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401

0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010

0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400

0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000

0:100  0:000   - LAN: 1 Vendor=Atheros

0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400

0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601

0:101  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320

0:101  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100

0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601

0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500

0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

0:101  0:000  === [ GetDefaultSettings ] ======================

0:101  0:000  Clover load options size = 0 bytes

0:104  0:002  CheckOEMPathExists tried EFI\CLOVER\OEM\To be filled by O.E.M.--00-00-00-00-00-00. Dir not exists

0:104  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\To be filled by O.E.M.--00-00-00-00-00-00. Dir not exists

0:106  0:002  CheckOEMPathExists: set OEMPath: EFI\CLOVER\OEM\Z77X-UD5H\UEFI

0:107  0:001  Using config.plist at SelfRootDir at path: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist

0:107  0:000  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success

0:126  0:018  === [ GetListOfThemes ] =========================

0:126  0:000  - [00]: Catalina

0:129  0:002  === [ Found config plists ] =====================

0:129  0:000  - Config.plist

0:129  0:000  === [ GetEarlyUserSettings ] ====================

0:129  0:000  timeout set to -1

0:129  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:141  0:012   get BlueValue=1.200000

0:143  0:002  KextsToPatch: 1 requested

0:145  0:002   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9

0:154  0:008  Default theme: Catalina

0:156  0:002  Hiding entries with string 569EA7D53B4F8649B1513E340AB8DD49

0:158  0:002  === [ LoadDrivers ] =============================

0:163  0:004  Loading FSInject.efi  status=Success

0:172  0:009  Loading OpenRuntime.efi  status=Success

0:180  0:008  Loading HFSPlus.efi  status=Success

0:191  0:010   - driver needs connecting

0:193  0:002  Loading SMCHelper.efi  status=Success

0:201  0:008  Loading OcQuirks.efi  status=Success

0:209  0:008  Loading DataHubDxe.efi  status=Success

0:272  0:062  Loading ApfsDriverLoader.efi  status=Success

0:280  0:008   - driver needs connecting

0:282  0:002  Loading AudioDxe.efi  status=Success

0:291  0:008   - driver needs connecting

0:293  0:002  Loading BootChimeDxe.efi  status=Success

0:307  0:014  3 drivers needs connecting ...

0:311  0:003  PlatformDriverOverrideProtocol not found. Installing ... Success

0:315  0:004  HFS+ driver loaded

0:317  0:002  APFS driver loaded

0:319  0:002  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

5:869  5:550  === [ InitScreen ] ==============================

5:871  0:001  Console modes reported: 5, available modes:

5:873  0:002   - [01]: 80x25 (current mode)

5:875  0:002   - [02]: 80x50

5:877  0:002   - [03]: 100x31

5:879  0:002   - [04]: 128x30

5:883  0:003   - [05]: 100x60

5:885  0:002  SetScreenResolution: 1920x1200 - already set

5:889  0:004  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)

5:891  0:002  new SelfHandle=D590DA98

5:893  0:002  === [ GetMacAddress ] ===========================

5:895  0:002  MAC address of LAN #0= 90:2B:34:D6:EF:83:

5:911  0:016  MAC address of LAN #1= 90:2B:34:D7:09:F3:

5:928  0:016  === [ ScanSPD ] =================================

5:932  0:003  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1

5:953  0:021  Found module with XMP version 1.3

5:955  0:002  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A4077008

5:976  0:021  Found module with XMP version 1.3

5:978  0:002  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A8009D86

5:999  0:021  Found module with XMP version 1.3

6:001  0:002  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A90174A4

6:024  0:022  Found module with XMP version 1.3

6:026  0:002  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A407A084

6:028  0:002  === [ GetAcpiTablesList ] =======================

6:049  0:020  Get Acpi Tables List from RSDT:

6:053  0:004   - [00]: FACP  A M I len=132

6:055  0:002   - [01]: APIC  A M I len=146

6:057  0:002   - [02]: MCFG  A M I len=60

6:059  0:002   - [03]: HPET  A M I len=56

6:063  0:003   - [04]: SSDT  SataTabl len=877

6:065  0:002   - [05]: SSDT  Cpu0Ist len=2474

6:067  0:002   - [06]: SSDT  CpuPm len=2706

6:069  0:002   - [07]: BGRT  A M I len=56

6:071  0:002   - [08]: MATS  A M I len=52

6:073  0:002  Calibrated TSC Frequency = 3503445706 = 3503MHz

6:075  0:002  === [ GetUserSettings ] =========================

6:077  0:002  Add 1 devices (kTagTypeDict):

6:079  0:002  Dropping 3 tables:

6:081  0:002   - [00]: Drop table  signature="SSDT" (54445353)

6:087  0:005   table-id="Cpu0Ist" (  74734930757043)

6:088  0:001  ----

6:090  0:002           - set table: 54445353,   74734930757043 to drop: yes

6:095  0:004   - [01]: Drop table  signature="SSDT" (54445353)

6:099  0:004   table-id="CpuPm" (      6D50757043)

6:101  0:002  ----

6:103  0:002           - set table: 54445353,       6d50757043 to drop: yes

6:107  0:004   - [02]: Drop table  signature="MATS" (5354414D)

6:111  0:004  ----

6:113  0:002           - set table: 5354414D,                0 to drop: yes

6:119  0:005   - final DSDT Fix mask=00004000

6:121  0:002  PatchesDSDT: 3 requested

6:123  0:002   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge:

6:133  0:010   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge:

6:143  0:010   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:

6:154  0:010  Using ProductName from config: Macmini7,1

6:156  0:002  Found same BiosVersion in clover and config

6:158  0:002  BiosVersion: MM71.88Z.F000.B00.2004161539

6:161  0:003  BiosReleaseDate: 04/16/2020

6:164  0:002  Using EfiVersion from clover: 248.0.0.0.0

6:166  0:002  Using FirmwareFeatures from config: 0xE00DE137

6:168  0:002  Using FirmwareFeaturesMask from config: 0xFF1FFF3F

6:170  0:002  Board-ID set from config as Mac-35C5E08120C7EEAF

6:172  0:002  BoardType: 0xA

6:174  0:002  ChassisType: 0xA

6:176  0:002  Slots->Devices:

6:178  0:002   - PCIe Slot 1

6:180  0:002  Cannot find smbios.plist at path: 'EFI\CLOVER\smbios.plist' or 'EFI\CLOVER\OEM\Z77X-UD5H\UEFI\smbios.plist'

6:184  0:004  === [ Found DSDT tables ] =======================

6:266  0:081  === [ ScanVolumes ] =============================

6:272  0:005  Found 19 volumes with blockIO

6:274  0:002  - [00]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)

6:278  0:004  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)

6:282  0:004  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)

6:287  0:004  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)

6:294  0:007          Result of bootcode detection: bootable unknown (legacy)

6:297  0:003          This is SelfVolume !!

6:300  0:002  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)

6:304  0:004          Result of bootcode detection: bootable unknown (legacy)

6:306  0:002  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)

6:313  0:006          Result of bootcode detection: bootable unknown (legacy)

6:315  0:002  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)

6:319  0:004          Result of bootcode detection: bootable unknown (legacy)

6:338  0:018  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)

6:344  0:006  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)

6:349  0:005          hiding this volume

6:351  0:002  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)

6:385  0:033  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)

6:390  0:004  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)

6:394  0:004  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)

6:414  0:019  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)

6:420  0:006  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)

6:453  0:032  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)

6:457  0:004  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)

6:463  0:005  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)

6:478  0:015  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)

6:486  0:007  found 2 handles with audio

6:488  0:002  No AudioIoDevice stored

6:491  0:002  no stored audio parameters

6:493  0:002  Found Audio Device Realtek ALC899 (SPDIF) at index 0

6:495  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 1

6:497  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 2

6:499  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 3

6:501  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 4

6:503  0:002  Found Audio Device Realtek ALC899 (Headphones) at index 5

6:507  0:003  Found Audio Device Realtek ALC899 (SPDIF) at index 6

6:509  0:002  Found Audio Device Intel Panther Point HDMI (HDMI) at index 7

6:511  0:002  Found Audio Device Intel Panther Point HDMI (HDMI) at index 8

6:513  0:002  === [ InitXTheme ] ==============================

6:515  0:002  use Daylight theme

6:521  0:006  Using theme 'Catalina' (EFI\CLOVER\themes\Catalina)

6:523  0:002  chosen theme Catalina

6:525  0:002  OS main and drive as badge

6:634  0:109  sound play end with status=Device Error

6:640  0:005  theme inited

6:642  0:002  Chosen theme Catalina

6:645  0:002  found boot-args in NVRAM:keepsyms=1 debug=0x100 alcid=28, size=32

6:647  0:002  ...found arg:keepsyms=1

6:649  0:002  ...adding arg:keepsyms=1

6:651  0:002  ...found arg:debug=0x100

6:653  0:002  ...adding arg:debug=0x100

6:655  0:002  ...found arg:alcid=28

6:658  0:002  ...adding arg:alcid=28

6:660  0:002  after NVRAM boot-args=keepsyms=1 debug=0x100 alcid=28

6:662  0:002  === [ Dump SMC keys from NVRAM ] ================

6:666  0:003  found AppleSMC protocol

6:731  0:065  Registered 16 SMC keys

6:735  0:003  === [ AddCustomEntries ] ========================

6:737  0:002      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match

6:741  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match

6:747  0:005      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match

6:751  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden

6:756  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because path does not exist

6:761  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because path does not exist

6:767  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because path does not exist

6:771  0:004      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... match!

6:790  0:018      hibernated: set as never

6:792  0:002  IconName=cata,mac comma=4 size=8

6:794  0:002    first=os_cata

6:796  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)\System\Library\CoreServices\boot.efi'

6:799  0:003  Custom settings: .plist will  be applied

6:803  0:003      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match

6:807  0:004      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match

6:813  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match

6:817  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match

6:823  0:005      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match

6:827  0:004      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match

6:832  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match

6:836  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match

6:842  0:005      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match

6:846  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden

6:852  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match

6:856  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... match!

6:863  0:007      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)\AABDB4C8-79F1-4283-86BD-C30114710F00\boot.efi'

6:866  0:002  Custom settings: .plist will  be applied

6:869  0:003      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match

6:874  0:005      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match

6:880  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match

6:884  0:004      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match

6:890  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match

6:894  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match

6:900  0:005      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match

6:904  0:004      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match

6:909  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match

6:913  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match

6:919  0:005      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match

6:923  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden

6:929  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match

6:933  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because volume does not match

6:939  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match

6:943  0:004      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match

6:948  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match

6:953  0:004      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match

6:958  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match

6:962  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match

6:968  0:005      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match

6:974  0:005      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match

6:978  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match

6:984  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match

6:988  0:004      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match

6:992  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden

6:997  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match

7:002  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because volume does not match

7:007  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match

7:013  0:005      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match

7:017  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match

7:023  0:005      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match

7:027  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match

7:033  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match

7:037  0:004      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match

7:042  0:005      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match

7:046  0:004  === [ ScanLoader ] ==============================

7:050  0:003  - [03]: 'EFI'

7:055  0:005          AddLoaderEntry for Volume Name=EFI

7:057  0:002       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)\EFI\BOOT\BOOTX64.efi` is self path!

7:059  0:002  - [06]: 'EFI'

7:065  0:005  - [07]: 'Media'

7:069  0:004  - [08]: 'Preboot'

7:074  0:004          AddLoaderEntry for Volume Name=Preboot

7:076  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match

7:089  0:013      hibernated: set as never

7:091  0:002  IconName=cata,mac comma=4 size=8

7:093  0:002    first=os_cata

7:095  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)\AABDB4C8-79F1-4283-86BD-C30114710F00\System\Library\CoreServices\boot.efi'

7:099  0:003  - [09]: 'Macintosh HD - Data'

7:104  0:005  - [10]: 'Recovery'

7:109  0:004          AddLoaderEntry for Volume Name=Recovery

7:111  0:002      Skipped because matching custom entry 1!

7:114  0:003  IconName=cata,mac comma=4 size=8

7:116  0:002    first=os_cata

7:118  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)\AABDB4C8-79F1-4283-86BD-C30114710F00\boot.efi'

7:123  0:005  - [11]: 'VM'

7:127  0:004  - [12]: 'Macintosh HD'

7:138  0:010          AddLoaderEntry for Volume Name=Macintosh HD

7:140  0:002       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)\System\Library\CoreServices\boot.efi` already exists for another entry!

7:142  0:002  - [13]: 'Preboot'

7:149  0:007          AddLoaderEntry for Volume Name=Preboot

7:153  0:003      Not match custom entry 1: Volume: not match, Path: not match, Type: not match

7:164  0:010      hibernated: set as never

7:166  0:002  IconName=bigsur,mac comma=6 size=10

7:168  0:002    first=os_bigsur

7:170  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)\044B5C63-231C-3F20-8905-084A8352512C\System\Library\CoreServices\boot.efi'

7:176  0:006          AddLoaderEntry for Volume Name=Preboot

7:179  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match

7:189  0:010  IconName=mac comma=-1 size=3

7:191  0:002    Full=mac

7:193  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)\044B5C63-231C-3F20-8905-084A8352512C\com.apple.installer\boot.efi'

7:198  0:004  - [14]: 'Big Sur - Data'

7:206  0:007  - [15]: 'Recovery'

7:210  0:004  - [16]: 'VM'

7:214  0:004  - [17]: 'Big Sur'

7:238  0:023          AddLoaderEntry for Volume Name=Big Sur

7:240  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match

7:255  0:015      hibernated: set as never

7:257  0:002  IconName=bigsur,mac comma=6 size=10

7:259  0:002    first=os_bigsur

7:263  0:003      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)\System\Library\CoreServices\boot.efi'

7:267  0:003  - [18]: 'Update'

7:271  0:004  === [ AddCustomTool ] ===========================

7:274  0:003  === [ GetEfiBootDeviceFromNvram ] ===============

7:277  0:003  Default boot entry not found

7:280  0:002  BannerPlace at Clear Screen [928,348]

7:399  0:119  AnimeRun=0

7:436  0:036  GUI ready

21:325  13:888  Boot option Boot0000 not found

21:330  0:005  === [ StartLoader ] =============================

21:333  0:002  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz

21:337  0:004  start loader

21:347  0:010  Loading boot.efi  status=Success

21:393  0:045  GetOSVersion: 11.0 (20A5374i)

21:397  0:004  Filtering KextPatches:

21:399  0:002   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 11.0 | MatchOS: All | MatchBuild: All] ==> allowed

21:405  0:005  Will not patch boot.efi

21:407  0:002  === [ PatchSmbios ] =============================

21:409  0:002  insert table 9 for dev 0:0

21:411  0:002  insert table 9 for dev 0:0

21:413  0:002  insert table 9 for dev 1:0

21:417  0:003  Trusting SMBIOS...

21:419  0:002  Channels: 2

21:421  0:002  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23

21:474  0:053  trusted SMBIOS data:

21:478  0:003  SmbiosTable.Type17->Vendor = 859B

21:480  0:002  SmbiosTable.Type17->SerialNumber = A407A084

21:482  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:484  0:002   partNum=BLS8G3D1609DS1S00.

21:486  0:002  SPD data in use:

21:488  0:002  SmbiosTable.Type17->Vendor = Crucial Technology

21:490  0:002  SmbiosTable.Type17->SerialNumber = A4077008

21:492  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:495  0:002  SMBIOS Type 17 Index = 0 => 0 0:

21:498  0:003  BANK 0 DIMM0 1600MHz 8192MB(Ext:0MB)

21:500  0:002  trusted SMBIOS data:

21:502  0:002  SmbiosTable.Type17->Vendor = 859B

21:504  0:002  SmbiosTable.Type17->SerialNumber = A90174A4

21:506  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:509  0:002   partNum=BLS8G3D1609DS1S00.

21:511  0:002  SPD data in use:

21:513  0:002  SmbiosTable.Type17->Vendor = Crucial Technology

21:515  0:002  SmbiosTable.Type17->SerialNumber = A90174A4

21:517  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:520  0:003  SMBIOS Type 17 Index = 1 => 2 2:

21:522  0:002  BANK 1 DIMM0 1600MHz 8192MB(Ext:0MB)

21:525  0:002  trusted SMBIOS data:

21:527  0:002  SmbiosTable.Type17->Vendor = 859B

21:529  0:002  SmbiosTable.Type17->SerialNumber = A8009D86

21:531  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:533  0:002   partNum=BLS8G3D1609DS1S00.

21:535  0:002  SPD data in use:

21:537  0:002  SmbiosTable.Type17->Vendor = Crucial Technology

21:539  0:002  SmbiosTable.Type17->SerialNumber = A8009D86

21:543  0:003  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:545  0:002  SMBIOS Type 17 Index = 2 => 1 1:

21:547  0:002  BANK 0 DIMM1 1600MHz 8192MB(Ext:0MB)

21:549  0:002  trusted SMBIOS data:

21:551  0:002  SmbiosTable.Type17->Vendor = 859B

21:553  0:002  SmbiosTable.Type17->SerialNumber = A4077008

21:555  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:557  0:002   partNum=BLS8G3D1609DS1S00.

21:559  0:002  SPD data in use:

21:561  0:002  SmbiosTable.Type17->Vendor = Crucial Technology

21:565  0:003  SmbiosTable.Type17->SerialNumber = A407A084

21:567  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.

21:569  0:002  SMBIOS Type 17 Index = 3 => 3 3:

21:571  0:002  BANK 1 DIMM1 1600MHz 8192MB(Ext:0MB)

21:573  0:002  mTotalSystemMemory = 32768

21:575  0:002  NumberOfMemoryDevices = 4

21:577  0:002  Type20[0]->End = 0x1FFFFFF, Type17[3] = 8000

21:579  0:002  Type20[1]->End = 0x17FFFFF, Type17[2] = E000

21:581  0:002  Type20[2]->End = 0xFFFFFF, Type17[1] = 12000

21:585  0:003  Type20[3]->End = 0x7FFFFF, Type17[0] = 14000

21:587  0:002  Table 131 is present, CPUType=31

21:589  0:002  Change to: 704

21:591  0:002  === [ PatchACPI ] ===============================

21:593  0:002  Xsdt reallocation done

21:595  0:002  old FADT length=F4

21:597  0:002   SignatureFixup: 0x0 -> 0x0

21:603  0:005  Apply DsdtFixMask=0x00004000

21:605  0:002  === [ FixBiosDsdt ] =============================

21:607  0:002  Patching DSDT:

21:609  0:002   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]

21:621  0:011   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]

21:631  0:010   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]

21:642  0:010    0 replacements

21:644  0:002  Name PXSX present at 0xA2, renaming to ARPT

21:646  0:002  Name PXSX present at 0xE0, renaming to ARPT

21:649  0:002  PreCleanup XSDT: count=9, length=108

21:651  0:002  PreCleanup XSDT, corrected XSDT: count=9, length=108

21:654  0:003  === [ ACPIDropTables ] ==========================

21:656  0:002  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52

21:658  0:002   Table[8]: MATS  A M I  52 dropped

21:660  0:002  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706

21:663  0:002   Table[6]: SSDT  CpuPm  2706 dropped

21:665  0:002  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474

21:667  0:002   Table[5]: SSDT  Cpu0Ist  2474 dropped

21:669  0:002  Patching SSDTs: 3 patches each

21:671  0:002   pattern 434F5052, bin not found / already patched!

21:676  0:005   pattern 54504D58, bin not found / already patched!

21:681  0:004   pattern 53415430, patched at: [ (B5) ]

21:689  0:008    0 replacements

21:691  0:002  === [ ACPIPatchedAML ] ==========================

21:693  0:002  Unsorted

21:695  0:002  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success

21:702  0:006  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success

21:710  0:008  ApicCPUNum=8

21:712  0:002  Cleanup XSDT: count=11, length=124

21:714  0:002  corrected XSDT count=8, length=100

21:716  0:002  === [ RestSetup macOS ] =========================

21:718  0:002  add device: PciRoot(0x0)/Pci(0x2,0x0)

21:720  0:002     Add key=AAPL,ig-platform-id valuelen=4

21:722  0:002  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)

21:725  0:002    ig-platform-id = 0x0166000b

21:727  0:002    Intel: no default properties

21:729  0:002  Intel GFX revision  = 0x9

21:733  0:003  stringlength = 2180

21:735  0:002  CurrentMode: Width=1920 Height=1200

21:737  0:002  Beginning FSInjection

21:749  0:012  Use origin smbios table type 1 guid.

21:764  0:014  UniOSVersion == 11.0

21:766  0:002  UniShortOSVersion == 11.0

21:768  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other

21:770  0:002  GetOtherKextsDir(FALSE) return NULL

21:772  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10

21:774  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10_normal

21:777  0:003  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0

21:780  0:002  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\WhateverGreen.kext (v.1.4.3)

21:789  0:009  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\VirtualSMC.kext (v.1.1.7)

21:795  0:006  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\Lilu.kext (v.1.4.8)

21:802  0:006  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\IOAHCISerialATAPI_Injector.kext (v.1.0.0)

21:807  0:005  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\IntelMausiEthernet.kext (v.2.5.1d1)

21:814  0:006  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\AtherosE2200Ethernet.kext (v.2.3.0)

21:821  0:007  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\AppleALC.kext (v.1.5.3)

21:853  0:031  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0_normal

21:855  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0.0

21:859  0:004  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0.0_normal

21:863  0:003  SetScreenResolution: 1920x1200 - already set

21:867  0:004  Custom boot is disabled

21:871  0:003  Closing log

21:873  0:002  start image 'boot.efi'

21:875  0:002  Using load options 'boot.efi keepsyms=1 debug=0x100 alcid=28 '

22:359  0:484  OSInfo:OSName called

25:833  3:473  KernelRelocBase = 0

25:840  0:007  os_version=11.0

25:842  0:002  Found 64 bit kernel at 0x2b000000

25:845  0:003   kernel offset at 0x10000

25:848  0:002  segCmd64->segname = __PRELINK_TEXT

25:850  0:002  segCmd64->vmaddr = 0xFFFFFF8000210000

25:852  0:002  segCmd64->vmsize = 0x00000000

25:854  0:002  fileoff = 0x00010000

25:856  0:002  filesize = 0x00000000

25:858  0:002  flags = 0x00000000

25:860  0:002  PrelinkTextLoadCmdAddr = 0x0, PrelinkTextAddr = 0x0, PrelinkTextSize = 0x0

25:862  0:002  cffaedfe07000001030000000200000014000000e0120000010020800000

25:926  0:063  segCmd64->segname = __PRELINK_INFO

25:930  0:003  segCmd64->vmaddr = 0xFFFFFF8000C5C000

25:932  0:002  segCmd64->vmsize = 0x00384000

25:934  0:002  fileoff = 0x00A5C000

25:936  0:002  filesize = 0x00384000

25:938  0:002  flags = 0x00000000

25:940  0:002  __info found at 0x2b000338: addr = 0xa5c000, size = 0x384000

25:942  0:002  PrelinkInfoLoadCmdAddr = 0x338, PrelinkInfoAddr = 0xC5C000, PrelinkInfoSize = 0x384000

25:944  0:002  ncmd = 20

25:946  0:002  cffaedfe07000001030000000200000014000000

25:991  0:044  Kernel: AddrVtable=0x3440000 SizeVtable=0x60c0 NamesTable=0x37e8240

25:993  0:002  kernel at 0x2b000000

26:063  0:070  ctor_used found at 0x3748265

26:065  0:002   NTabble=3748240

26:067  0:002  AddrVtable=33a0000 Size=60c0 AddrNames=3748240 shift=a0000

26:069  0:002  SegVAddr=0x10028

26:071  0:002  isKernelcache: No

26:073  0:002  dump begin of WholePlist:

26:078  0:004

26:078  0:000  PatchLoadedKexts ... dtRoot = 2ed5c000

26:080  0:002

26:080  0:000  InjectKexts:  1 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\WhateverGreen.kext

26:086  0:005   2 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\VirtualSMC.kext

26:088  0:002   3 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\Lilu.kext

26:090  0:002   4 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\IOAHCISerialATAPI_Injector.kext

26:092  0:002   5 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\IntelMausiEthernet.kext

26:094  0:002   6 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\AtherosE2200Ethernet.kext

26:097  0:002   7 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\11.0\AppleALC.kext

26:522  0:425  search name in kernel: readStartupExtensions

26:528  0:005  kernel: procAddr=0x104d6b0

26:530  0:002  ==> readStartupExtensions at 104d6b0

26:532  0:002  load kexts patched

26:534  0:002  search name in kernel: IOTaskHasEntitlement

26:536  0:002  kernel: procAddr=0x869240

26:538  0:002  search name in kernel: loadExecutable

26:541  0:002  kernel: procAddr=0x782690

26:543  0:002  IOTaskHasEntitlement at 0x869240, loadExecutable at 0x782690

26:545  0:002  find3 at 0x4c4b400

26:548  0:003  else search relative at 0x782ac0

26:550  0:002  search name in kernel: removeKextBootstrap

26:553  0:002  kernel: procAddr=0x792d60

26:555  0:002  removeKextBootstrap at 0x4c4b400



The only extra line that a successful Catalina boot seems to have at the end is "15:553  0:002  ==> patched KxldUnmap (10.14 - 10.15)"

Edited by D-an-W
Link to comment
Share on other sites

Here is the Catalina part...

Spoiler



0:100  0:100  MemLog inited, TSC freq: 3503447853
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000  Clover : Image base = 0xD3721000
0:100  0:000
0:100  0:000  Now is 03.10.2020,  17:30:57 (GMT)
0:100  0:000  Starting Clover revision: 5123 (master, commit 648f5c3d3) on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t GCC53 | -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t GCC53 -n 9 | OS: 10.15.7]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000) @D590DA98
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0x779AE3BFBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor= Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:101  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:101  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ======================
0:101  0:000  Clover load options size = 0 bytes
0:104  0:002  CheckOEMPathExists tried EFI\CLOVER\OEM\To be filled by O.E.M.--00-00-00-00-00-00. Dir not exists
0:104  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\To be filled by O.E.M.--00-00-00-00-00-00. Dir not exists
0:106  0:002  CheckOEMPathExists: set OEMPath: EFI\CLOVER\OEM\Z77X-UD5H\UEFI
0:107  0:001  Using config.plist at SelfRootDir at path: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist
0:107  0:000  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:126  0:018  === [ GetListOfThemes ] =========================
0:126  0:000  - [00]: Catalina
0:129  0:002  === [ Found config plists ] =====================
0:129  0:000  - Config.plist
0:129  0:000  === [ GetEarlyUserSettings ] ====================
0:129  0:000  timeout set to -1
0:129  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:143  0:013   get BlueValue=1.200000
0:145  0:002  KextsToPatch: 1 requested
0:147  0:002   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:156  0:008  Default theme: Catalina
0:158  0:002  Hiding entries with string 569EA7D53B4F8649B1513E340AB8DD49

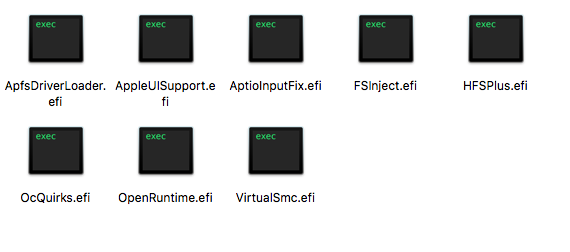

0:162  0:003  === [ LoadDrivers ] =============================
0:166  0:004  Loading FSInject.efi  status=Success
0:175  0:009  Loading OpenRuntime.efi  status=Success
0:184  0:008  Loading HFSPlus.efi  status=Success
0:193  0:009   - driver needs connecting
0:195  0:002  Loading SMCHelper.efi  status=Success
0:203  0:008  Loading OcQuirks.efi  status=Success
0:211  0:008  Loading DataHubDxe.efi  status=Success
0:277  0:066  Loading ApfsDriverLoader.efi  status=Success
0:287  0:010   - driver needs connecting
0:289  0:002  Loading AudioDxe.efi  status=Success
0:298  0:008   - driver needs connecting
0:300  0:002  Loading BootChimeDxe.efi  status=Success
0:315  0:014  3 drivers needs connecting ...
0:317  0:002  PlatformDriverOverrideProtocol not found. Installing ... Success
0:321  0:004  HFS+ driver loaded
0:323  0:002  APFS driver loaded
0:325  0:002  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:877  5:552  === [ InitScreen ] ==============================
5:880  0:003  Console modes reported: 5, available modes:
5:882  0:002   - [01]: 80x25 (current mode)
5:885  0:002   - [02]: 80x50
5:887  0:002   - [03]: 100x31
5:889  0:002   - [04]: 128x30
5:891  0:002   - [05]: 100x60
5:893  0:002  SetScreenResolution: 1920x1200 - already set
5:897  0:004  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)
5:899  0:002  new SelfHandle=D590DA98
5:903  0:003  === [ GetMacAddress ] ===========================
5:905  0:002  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:921  0:016  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:938  0:016  === [ ScanSPD ] =================================
5:940  0:002  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:961  0:021  Found module with XMP version 1.3
5:963  0:002  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A4077008
5:984  0:021  Found module with XMP version 1.3
5:988  0:003  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A8009D86
6:009  0:021  Found module with XMP version 1.3
6:011  0:002  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A90174A4
6:032  0:021  Found module with XMP version 1.3
6:034  0:002  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=A407A084
6:037  0:002  === [ GetAcpiTablesList ] =======================
6:059  0:021  Get Acpi Tables List from RSDT:
6:063  0:004   - [00]: FACP  A M I len=132
6:065  0:002   - [01]: APIC  A M I len=146
6:067  0:002   - [02]: MCFG  A M I len=60
6:069  0:002   - [03]: HPET  A M I len=56
6:071  0:002   - [04]: SSDT  SataTabl len=877
6:073  0:002   - [05]: SSDT  Cpu0Ist len=2474
6:075  0:002   - [06]: SSDT  CpuPm len=2706
6:077  0:002   - [07]: BGRT  A M I len=56
6:080  0:002   - [08]: MATS  A M I len=52
6:082  0:002  Calibrated TSC Frequency = 3503447853 = 3503MHz
6:085  0:003  === [ GetUserSettings ] =========================
6:087  0:002  Add 1 devices (kTagTypeDict):
6:089  0:002  Dropping 3 tables:
6:091  0:002   - [00]: Drop table  signature="SSDT" (54445353)
6:096  0:004   table-id="Cpu0Ist" (  74734930757043)
6:098  0:002  ----
6:100  0:002           - set table: 54445353,   74734930757043 to drop: yes
6:104  0:004   - [01]: Drop table  signature="SSDT" (54445353)
6:108  0:004   table-id="CpuPm" (      6D50757043)
6:110  0:002  ----
6:114  0:003           - set table: 54445353,       6d50757043 to drop: yes
6:118  0:004   - [02]: Drop table  signature="MATS" (5354414D)
6:122  0:004  ----
6:124  0:002           - set table: 5354414D,                0 to drop: yes
6:128  0:004   - final DSDT Fix mask=00004000
6:130  0:002  PatchesDSDT: 3 requested
6:132  0:002   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge:
6:143  0:010   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge:
6:155  0:011   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:
6:165  0:010  Using ProductName from config: Macmini7,1
6:167  0:002  Found same BiosVersion in clover and config
6:169  0:002  BiosVersion: MM71.88Z.F000.B00.2004161539
6:171  0:002  BiosReleaseDate: 04/16/2020
6:173  0:002  Using EfiVersion from clover: 248.0.0.0.0
6:175  0:002  Using FirmwareFeatures from config: 0xE00DE137
6:177  0:002  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
6:179  0:002  Board-ID set from config as Mac-35C5E08120C7EEAF
6:183  0:003  BoardType: 0xA
6:185  0:002  ChassisType: 0xA
6:187  0:002  Slots->Devices:
6:189  0:002   - PCIe Slot 1
6:191  0:002  Cannot find smbios.plist at path: 'EFI\CLOVER\smbios.plist' or 'EFI\CLOVER\OEM\Z77X-UD5H\UEFI\smbios.plist'
6:193  0:002  === [ Found DSDT tables ] =======================
6:275  0:081  === [ ScanVolumes ] =============================
6:282  0:006  Found 19 volumes with blockIO
6:284  0:002  - [00]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
6:290  0:006  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
6:295  0:004  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
6:300  0:004  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)
6:304  0:004          Result of bootcode detection: bootable unknown (legacy)
6:308  0:003          This is SelfVolume !!
6:310  0:002  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)
6:316  0:006          Result of bootcode detection: bootable unknown (legacy)
6:318  0:002  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)
6:323  0:004          Result of bootcode detection: bootable unknown (legacy)
6:325  0:002  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
6:331  0:006          Result of bootcode detection: bootable unknown (legacy)
6:346  0:015  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
6:351  0:004  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)
6:356  0:005          hiding this volume
6:360  0:003  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)
6:392  0:031  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)
6:396  0:004  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)
6:402  0:005  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)
6:420  0:017  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)
6:428  0:007  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)
6:459  0:031  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)
6:465  0:005  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)
6:469  0:004  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)
6:486  0:016  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)
6:492  0:006  found 2 handles with audio
6:495  0:002  No AudioIoDevice stored
6:497  0:002  no stored audio parameters
6:499  0:002  Found Audio Device Realtek ALC899 (SPDIF) at index 0
6:501  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 1
6:503  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 2
6:507  0:003  Found Audio Device Realtek ALC899 (LineOut) at index 3
6:509  0:002  Found Audio Device Realtek ALC899 (LineOut) at index 4
6:511  0:002  Found Audio Device Realtek ALC899 (Headphones) at index 5
6:513  0:002  Found Audio Device Realtek ALC899 (SPDIF) at index 6
6:515  0:002  Found Audio Device Intel Panther Point HDMI (HDMI) at index 7
6:517  0:002  Found Audio Device Intel Panther Point HDMI (HDMI) at index 8
6:520  0:002  === [ InitXTheme ] ==============================
6:524  0:003  use Daylight theme
6:530  0:006  Using theme 'Catalina' (EFI\CLOVER\themes\Catalina)
6:532  0:002  chosen theme Catalina
6:534  0:002  OS main and drive as badge
6:643  0:109  sound play end with status=Device Error
6:647  0:004  theme inited
6:649  0:002  Chosen theme Catalina
6:652  0:002  found boot-args in NVRAM:keepsyms=1 debug=0x100 alcid=28, size=32
6:654  0:002  ...found arg:keepsyms=1
6:656  0:002  ...adding arg:keepsyms=1
6:658  0:002  ...found arg:debug=0x100
6:662  0:003  ...adding arg:debug=0x100
6:664  0:002  ...found arg:alcid=28
6:666  0:002  ...adding arg:alcid=28
6:669  0:002  after NVRAM boot-args=keepsyms=1 debug=0x100 alcid=28
6:671  0:002  === [ Dump SMC keys from NVRAM ] ================
6:673  0:002  found AppleSMC protocol
6:743  0:070  Registered 16 SMC keys
6:747  0:003  === [ AddCustomEntries ] ========================
6:749  0:002      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match
6:754  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match
6:758  0:004      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match
6:763  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden
6:768  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because path does not exist
6:775  0:006      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because path does not exist
6:779  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because path does not exist
6:784  0:005      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... match!
6:802  0:017      hibernated: set as never
6:804  0:002  IconName=cata,mac comma=4 size=8
6:806  0:002    first=os_cata
6:808  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)\System\Library\CoreServices\boot.efi'
6:812  0:003  Custom settings: .plist will  be applied
6:815  0:003      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match
6:821  0:005      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match
6:825  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match
6:831  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match
6:835  0:004      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match
6:841  0:005      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match
6:845  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match
6:850  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match
6:855  0:004      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match
6:860  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden
6:864  0:004      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match
6:870  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... match!
6:876  0:005      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)\AABDB4C8-79F1-4283-86BD-C30114710F00\boot.efi'
6:880  0:003  Custom settings: .plist will  be applied
6:883  0:003      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match
6:887  0:004      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match
6:893  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match
6:898  0:005      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match
6:902  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match
6:908  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match
6:912  0:004      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match
6:918  0:005      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match
6:922  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match
6:928  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match
6:932  0:004      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match
6:936  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden
6:942  0:005      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match
6:948  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because volume does not match
6:952  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match
6:957  0:005      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match
6:962  0:004      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match
6:967  0:005      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match
6:971  0:004      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match
6:977  0:005      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match
6:981  0:004      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match
6:987  0:005      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match
6:993  0:005      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)) ... skipped because volume does not match
6:997  0:004      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped because volume does not match
7:001  0:004      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped because volume does not match
7:007  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)) ... skipped because volume is hidden
7:011  0:004      Checking volume "Macintosh HD - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,73821A57AC11BB4EA6B7C1444661A9CF)) ... skipped because volume does not match
7:017  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)) ... skipped because volume does not match
7:021  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,EE6351E4349A4F46B8DE63E302AB0ED9)) ... skipped because volume does not match
7:026  0:005      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)) ... skipped because volume does not match
7:032  0:005      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)) ... skipped because volume does not match
7:036  0:004      Checking volume "Big Sur - Data" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,635C4B041C23203F8905084A8352512C)) ... skipped because volume does not match
7:042  0:005      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AE3BA96909F4F3408F1A69D41DF3E33A)) ... skipped because volume does not match
7:046  0:004      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7EAE87904A57994BA1E5F2995867276C)) ... skipped because volume does not match
7:052  0:005      Checking volume "Big Sur" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)) ... skipped because volume does not match
7:056  0:004      Checking volume "Update" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,ADF147DD2C39904B9EFB84A5F33A7850)) ... skipped because volume does not match
7:062  0:005  === [ ScanLoader ] ==============================
7:064  0:002  - [03]: 'EFI'
7:069  0:005          AddLoaderEntry for Volume Name=EFI
7:071  0:002       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,C06B6654-5FDE-456F-B2E3-041B3ABDBDC2,0x28,0x64000)\EFI\BOOT\BOOTX64.efi` is self path!
7:075  0:003  - [06]: 'EFI'
7:080  0:005  - [07]: 'Media'
7:084  0:004  - [08]: 'Preboot'
7:089  0:004          AddLoaderEntry for Volume Name=Preboot
7:091  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
7:103  0:011      hibernated: set as never
7:105  0:002  IconName=cata,mac comma=4 size=8
7:107  0:002    first=os_cata
7:109  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,569EA7D53B4F8649B1513E340AB8DD49)\AABDB4C8-79F1-4283-86BD-C30114710F00\System\Library\CoreServices\boot.efi'
7:114  0:005  - [09]: 'Macintosh HD - Data'
7:118  0:004  - [10]: 'Recovery'
7:123  0:004          AddLoaderEntry for Volume Name=Recovery
7:125  0:002      Skipped because matching custom entry 1!
7:128  0:003  IconName=cata,mac comma=4 size=8
7:130  0:002    first=os_cata
7:132  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F50E938373478B47BD285F593001CF70)\AABDB4C8-79F1-4283-86BD-C30114710F00\boot.efi'
7:137  0:005  - [11]: 'VM'
7:142  0:004  - [12]: 'Macintosh HD'
7:152  0:010          AddLoaderEntry for Volume Name=Macintosh HD
7:154  0:002       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,BAC8A5A2-B50E-4012-A1E5-AD68819D2683,0x64028,0x569CB528)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C8B4BDAAF179834286BDC30114710F00)\System\Library\CoreServices\boot.efi` already exists for another entry!
7:158  0:003  - [13]: 'Preboot'
7:165  0:007          AddLoaderEntry for Volume Name=Preboot
7:167  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
7:179  0:011      hibernated: set as never
7:181  0:002  IconName=bigsur,mac comma=6 size=10
7:183  0:002    first=os_bigsur
7:185  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)\044B5C63-231C-3F20-8905-084A8352512C\System\Library\CoreServices\boot.efi'
7:192  0:006          AddLoaderEntry for Volume Name=Preboot
7:194  0:002      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
7:204  0:010  IconName=mac comma=-1 size=3
7:208  0:003    Full=mac
7:210  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E693A4DF86BCE4498A5C3CF088C03C5)\044B5C63-231C-3F20-8905-084A8352512C\com.apple.installer\boot.efi'
7:213  0:003  - [14]: 'Big Sur - Data'
7:221  0:007  - [15]: 'Recovery'
7:226  0:004  - [16]: 'VM'
7:230  0:004  - [17]: 'Big Sur'
7:253  0:023          AddLoaderEntry for Volume Name=Big Sur
7:257  0:003      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
7:272  0:015      hibernated: set as never
7:274  0:002  IconName=bigsur,mac comma=6 size=10
7:276  0:002    first=os_bigsur
7:279  0:002      Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,FA5B2C6E-6143-4239-A237-2AA766926255,0x56A2F550,0x1DC97838)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,008AC747622158419F8A8D8B17472667)\System\Library\CoreServices\boot.efi'
7:284  0:005  - [18]: 'Update'
7:288  0:004  === [ AddCustomTool ] ===========================
7:292  0:003  === [ GetEfiBootDeviceFromNvram ] ===============
7:295  0:003  Default boot entry not found
7:297  0:002  BannerPlace at Clear Screen [928,348]
7:415  0:118  AnimeRun=0
7:452  0:036  GUI ready
10:579  3:127  Boot option Boot0000 not found
10:585  0:005  === [ StartLoader ] =============================
10:587  0:002  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
10:593  0:005  start loader
10:595  0:002  Loading boot.efi  status=Success
10:635  0:040  GetOSVersion: 10.15.7 (19H2)
10:640  0:004  Filtering KextPatches:
10:642  0:002   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.15.7 | MatchOS: All | MatchBuild: All] ==> allowed
10:646  0:004  Will not patch boot.efi
10:648  0:002  === [ PatchSmbios ] =============================
10:650  0:002  insert table 9 for dev 0:0
10:652  0:002  insert table 9 for dev 0:0
10:656  0:003  insert table 9 for dev 1:0
10:659  0:003  Trusting SMBIOS...
10:661  0:002  Channels: 2
10:663  0:002  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
10:717  0:054  trusted SMBIOS data:
10:719  0:002  SmbiosTable.Type17->Vendor = 859B
10:722  0:002  SmbiosTable.Type17->SerialNumber = A407A084
10:724  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:726  0:002   partNum=BLS8G3D1609DS1S00.
10:728  0:002  SPD data in use:
10:730  0:002  SmbiosTable.Type17->Vendor = Crucial Technology
10:732  0:002  SmbiosTable.Type17->SerialNumber = A4077008
10:735  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:737  0:002  SMBIOS Type 17 Index = 0 => 0 0:
10:739  0:002  BANK 0 DIMM0 1600MHz 8192MB(Ext:0MB)
10:741  0:002  trusted SMBIOS data:
10:743  0:002  SmbiosTable.Type17->Vendor = 859B
10:745  0:002  SmbiosTable.Type17->SerialNumber = A90174A4
10:747  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:749  0:002   partNum=BLS8G3D1609DS1S00.
10:753  0:003  SPD data in use:
10:755  0:002  SmbiosTable.Type17->Vendor = Crucial Technology
10:757  0:002  SmbiosTable.Type17->SerialNumber = A90174A4
10:759  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:761  0:002  SMBIOS Type 17 Index = 1 => 2 2:
10:763  0:002  BANK 1 DIMM0 1600MHz 8192MB(Ext:0MB)
10:765  0:002  trusted SMBIOS data:
10:767  0:002  SmbiosTable.Type17->Vendor = 859B
10:769  0:002  SmbiosTable.Type17->SerialNumber = A8009D86
10:773  0:003  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:775  0:002   partNum=BLS8G3D1609DS1S00.
10:777  0:002  SPD data in use:
10:779  0:002  SmbiosTable.Type17->Vendor = Crucial Technology
10:781  0:002  SmbiosTable.Type17->SerialNumber = A8009D86
10:783  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:785  0:002  SMBIOS Type 17 Index = 2 => 1 1:
10:788  0:002  BANK 0 DIMM1 1600MHz 8192MB(Ext:0MB)
10:790  0:002  trusted SMBIOS data:
10:792  0:002  SmbiosTable.Type17->Vendor = 859B
10:795  0:003  SmbiosTable.Type17->SerialNumber = A4077008
10:797  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:799  0:002   partNum=BLS8G3D1609DS1S00.
10:802  0:002  SPD data in use:
10:804  0:002  SmbiosTable.Type17->Vendor = Crucial Technology
10:806  0:002  SmbiosTable.Type17->SerialNumber = A407A084
10:808  0:002  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
10:810  0:002  SMBIOS Type 17 Index = 3 => 3 3:
10:812  0:002  BANK 1 DIMM1 1600MHz 8192MB(Ext:0MB)
10:816  0:003  mTotalSystemMemory = 32768
10:818  0:002  NumberOfMemoryDevices = 4
10:820  0:002  Type20[0]->End = 0x1FFFFFF, Type17[3] = 8000
10:822  0:002  Type20[1]->End = 0x17FFFFF, Type17[2] = E000
10:824  0:002  Type20[2]->End = 0xFFFFFF, Type17[1] = 12000
10:826  0:002  Type20[3]->End = 0x7FFFFF, Type17[0] = 14000
10:828  0:002  Table 131 is present, CPUType=31
10:830  0:002  Change to: 704
10:832  0:002  === [ PatchACPI ] ===============================
10:834  0:002  Xsdt reallocation done
10:838  0:003  old FADT length=F4
10:840  0:002   SignatureFixup: 0x0 -> 0x0
10:845  0:005  Apply DsdtFixMask=0x00004000
10:847  0:002  === [ FixBiosDsdt ] =============================
10:850  0:002  Patching DSDT:
10:852  0:002   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
10:862  0:010   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
10:873  0:010   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
10:883  0:010    0 replacements
10:886  0:002  Name PXSX present at 0xA2, renaming to ARPT
10:889  0:003  Name PXSX present at 0xE0, renaming to ARPT
10:891  0:002  PreCleanup XSDT: count=9, length=108
10:893  0:002  PreCleanup XSDT, corrected XSDT: count=9, length=108
10:895  0:002  === [ ACPIDropTables ] ==========================
10:897  0:002  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
10:899  0:002   Table[8]: MATS  A M I  52 dropped
10:901  0:002  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
10:904  0:002   Table[6]: SSDT  CpuPm  2706 dropped
10:907  0:003  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
10:909  0:002   Table[5]: SSDT  Cpu0Ist  2474 dropped
10:911  0:002  Patching SSDTs: 3 patches each
10:914  0:002   pattern 434F5052, bin not found / already patched!
10:918  0:004   pattern 54504D58, bin not found / already patched!
10:922  0:004   pattern 53415430, patched at: [ (B5) ]
10:930  0:008    0 replacements
10:932  0:002  === [ ACPIPatchedAML ] ==========================
10:936  0:003  Unsorted
10:938  0:002  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
10:945  0:006  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
10:951  0:006  ApicCPUNum=8
10:954  0:002  Cleanup XSDT: count=11, length=124
10:956  0:002  corrected XSDT count=8, length=100
10:958  0:002  === [ RestSetup macOS ] =========================
10:960  0:002  add device: PciRoot(0x0)/Pci(0x2,0x0)
10:962  0:002     Add key=AAPL,ig-platform-id valuelen=4
10:965  0:003  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
10:968  0:002    ig-platform-id = 0x0166000b
10:970  0:002    Intel: no default properties
10:972  0:002  Intel GFX revision  = 0x9
10:974  0:002  stringlength = 2180
10:976  0:002  CurrentMode: Width=1920 Height=1200
10:978  0:002  Beginning FSInjection
10:991  0:012  Use origin smbios table type 1 guid.
11:007  0:015  UniOSVersion == 10.15.7
11:009  0:002  UniShortOSVersion == 10.15
11:012  0:003  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
11:014  0:002  GetOtherKextsDir(FALSE) return NULL
11:017  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10
11:019  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10_normal
11:021  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15
11:023  0:002  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext (v.1464)
11:030  0:007      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
11:040  0:009      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
11:045  0:004      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
11:050  0:005      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
11:056  0:005      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.1d1)
11:062  0:006      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
11:068  0:006      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
11:072  0:003      |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
11:086  0:014  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\WhateverGreen.kext (v.1.4.2)
11:099  0:012  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\AppleALC.kext (v.1.5.2)
11:131  0:031  ->Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\Lilu.kext (v.1.4.7)
11:143  0:011  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15_normal
11:145  0:002  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15.7
11:149  0:004  Preparing kexts injection from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15.7_normal
11:153  0:003  SetScreenResolution: 1920x1200 - already set
11:158  0:004  Custom boot is disabled
11:161  0:003  Closing log
11:163  0:002  start image 'boot.efi'
11:165  0:002  Using load options 'boot.efi keepsyms=1 debug=0x100 alcid=28 '
11:174  0:008  OSInfo:OSName called
14:461  3:287  KernelRelocBase = 0
14:467  0:006  os_version=10.15.7
14:470  0:003  Found 64 bit kernel at 0xe600000
14:473  0:002   kernel offset at 0x0
14:475  0:002  segCmd64->segname = __PRELINK_TEXT
14:477  0:002  segCmd64->vmaddr = 0xFFFFFF800F436000
14:479  0:002  segCmd64->vmsize = 0x03078000
14:481  0:002  fileoff = 0x00F47000
14:483  0:002  filesize = 0x03078000
14:485  0:002  flags = 0x00000004
14:487  0:002  PrelinkTextLoadCmdAddr = 0xC68, PrelinkTextAddr = 0xF436000, PrelinkTextSize = 0x3078000
14:489  0:002  cffaedfe07000001030000000b000000040000008800000002000000fe7f
14:555  0:066  segCmd64->segname = __PRELINK_INFO
14:557  0:002  segCmd64->vmaddr = 0xFFFFFF80124AE000
14:559  0:002  segCmd64->vmsize = 0x002D1000
14:561  0:002  fileoff = 0x03FBF000
14:563  0:002  filesize = 0x002D00A7
14:566  0:002  flags = 0x00000004
14:568  0:002  __info found at 0xe600d48: addr = 0x3fbf000, size = 0x2d00a7
14:570  0:002  PrelinkInfoLoadCmdAddr = 0xD48, PrelinkInfoAddr = 0x124AE000, PrelinkInfoSize = 0x2D00A7
14:572  0:002  ncmd = 18
14:574  0:002  cffaedfe07000001030000000200000012000000
14:619  0:045  Kernel: AddrVtable=0xe2b880 SizeVtable=0x6416 NamesTable=0xe8f9e0
14:621  0:002  kernel at 0xe600000
14:640  0:018  ctor_used found at 0xd7e9e4
14:642  0:002   NTabble=d7e9e0
14:644  0:002  AddrVtable=d1a880 Size=6416 AddrNames=d7e9e0 shift=111000
14:646  0:002  SegVAddr=0x28
14:648  0:002  isKernelcache: Yes
14:650  0:002  dump begin of WholePlist: <dict><key>_PrelinkI
14:860  0:210
14:860  0:000  AnyKextPatch 0: driverAddr = 11aea000, driverSize = 2c000
14:860  0:000    Label = IOAHCIBlockStorage (Enable TRIM Support)
15:062  0:201
15:062  0:000  PatchLoadedKexts ... dtRoot = 12783000
15:064  0:002
15:064  0:000  InjectKexts:  1 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext
15:068  0:004   2 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext
15:070  0:002   3 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext
15:072  0:002   4 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext
15:076  0:003   5 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext
15:078  0:002   6 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext
15:080  0:002   7 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext
15:082  0:002   8 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext
15:086  0:003   9 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext
15:088  0:002   10 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\WhateverGreen.kext
15:091  0:002   11 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\AppleALC.kext
15:093  0:002   12 - EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.15\Lilu.kext
15:517  0:423  search name in kernel: readStartupExtensions
15:523  0:005  kernel: procAddr=0xcaaa30
15:525  0:002  ==> readStartupExtensions at caaa30
15:528  0:003  load kexts patched
15:530  0:002  search name in kernel: IOTaskHasEntitlement
15:533  0:002  kernel: procAddr=0x878940
15:535  0:002  search name in kernel: loadExecutable
15:537  0:002  kernel: procAddr=0x79f4c0
15:539  0:002  IOTaskHasEntitlement at 0x878940, loadExecutable at 0x79f4c0
15:541  0:002  find3 at 0x4c4b400
15:543  0:002  else search relative at 0x79f863
15:545  0:002  search name in kernel: removeKextBootstrap
15:548  0:002  kernel: procAddr=0x7a9f60
15:551  0:003  removeKextBootstrap at 0x2c2
15:553  0:002  ==> patched KxldUnmap (10.14 - 10.15)






Link to comment
Share on other sites

in my case 5123v before scan entries print to screen  5122

also I think devirtualizeMMIO quirk is not working properly



Someone could check?

thanks





Link to comment
Share on other sites

22 minutes ago, Jief_Machak said:

Yep.

Stick to that until 5124.



I get this when using that CLOVERx64.efi (Also copied it to BOOTx64.efi, was that bad?)...





Spoiler

2050411865_Screenshot2020-10-03at19_32_56.thumb.png.1e0bf09aabf551236dbd6682521d3ca2.png





I am using the Quirks section from the r5123 I just compiled but as the message says, there is no DisableIoMapper in there.



Spoiler




Link to comment
Share on other sites

Tried with the Clover you linked to in the new post, Big Sur just reboots soon after choosing it from the GUI and Catalina seems to hang the same way Big Sur does with r5123.



For some reason the debug.log wasn't created so will try again shortly.



I did also test your BootLoaderChooser but forgot to keep the other CLOVERx64.efi in there to boot from!

Link to comment
Share on other sites

ok FYI - success with the new Clover-OC integration on catalina.

I was able to boot the new 5123 (commit b8a188382) on my T420



changes:

    1. only had to add Quirks section to config.list

    2. see problem below

    note: can use either VirtualSMC.kext or FakeSMC.kext



problem:

     it got lost and couldn't find kexts in OEM/<board>/kexts folder - will not inject kexts properly.



workaround:

     worked if I moved everything out of OEM folder to EFI/CLOVER



concern/observation:
     Clover-OC (5123) made a different Hardware UUID and different SystemID - so icloud/iMessages got confused.

      - interestingly, Clover-OC  set systemID to match the same exact value i can see in the BIOS
      - where as with old clover the values are sort of byte swapped.

    SystemID with Clover-OC:  EEFF8C81-5136-yyxx-NNNN-0123456789012 (matches BIOS exactly)

    but OLD clover sets it as:   8C81EEFF-3651-xxyy-NNNN-0123456789012



DEBUG with kexts in OEM:

13:947  0:014  Custom boot screen not used because entry has unset use graphics
13:949  0:001  Closing log
13:950  0:001  OCABC: VMware Mac installed on D6A80718 - Success
13:955  0:004  OCABC: Found first 0 at off 7682
13:957  0:002  OCABC: Found second at off 7693
13:958  0:001  OCABC: Trying next match...
13:959  0:001  OCABC: Found first 0 at off 782A
13:960  0:001  OCABC: Found second at off 783B
13:961  0:001  OCABC: Trying next match...
13:963  0:001  OCABC: Found first 1 at off 10CBB
13:964  0:001  OCABC: Patching new safe mode aslr check...
13:966  0:001  OC: Supported boot capabilities 4
13:968  0:002  OCOS: OS set: <null> Mac OS X 10.15
13:978  0:009  OCOS: OS set: Apple Inc. Mac OS X 10.15
13:980  0:002  OCOS: Should use black background
13:986  0:005  OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Success
13:988  0:001  OC: Opening file \System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found
13:989  0:001  OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Not Found
13:991  0:002  OC: Opening file \System\Library\CoreServices\boot.efi with 1 mode gave - Success
13:995  0:003  Getting file info 09576E92-6D3F-11D2-8E39-00A0C969723B with now BufferSize 98 mode gave - Success
13:997  0:002  Got file size 617016
14:008  0:010  OC: Opening file System\Library\PrelinkedKernels\prelinkedkernel.development with 1 mode gave - Not Found
14:010  0:002  OC: Opening file System\Library\PrelinkedKernels\prelinkedkernel with 1 mode gave - Success
14:011  0:001  OC: Opening file Kexts\Other\Lilu.kext\Contents\Info.plist with 1 mode gave - Not Found
14:012  0:001  OC: Plist Kexts\Other\Lilu.kext\Contents\Info.plist is missing for kext Other\Lilu.kext ()
14:016  0:003  OC: Opening file Kexts\Other\VirtualSMC.kext\Contents\Info.plist with 1 mode gave - Not Found
14:018  0:001  OC: Plist Kexts\Other\VirtualSMC.kext\Contents\Info.plist is missing for kext Other\VirtualSMC.kext ()
14:019  0:001  OC: Opening file Kexts\Other\WhateverGreen.kext\Contents\Info.plist with 1 mode gave - Not Found
14:020  0:001  OC: Plist Kexts\Other\WhateverGreen.kext\Contents\Info.plist is missing for kext Other\WhateverGreen.kext ()
14:024  0:003  OC: Opening file Kexts\Other\AppleALC.kext\Contents\Info.plist with 1 mode gave - Not Found
14:025  0:001  OC: Plist Kexts\Other\AppleALC.kext\Contents\Info.plist is missing for kext Other\AppleALC.kext ()
14:027  0:001  OC: Opening file Kexts\Other\ACPIBatteryManager.kext\Contents\Info.plist with 1 mode gave - Not Found
14:028  0:001  OC: Plist Kexts\Other\ACPIBatteryManager.kext\Contents\Info.plist is missing for kext Other\ACPIBatteryManager.kext ()
14:031  0:003  OC: Opening file Kexts\Other\ACPIPoller.kext\Contents\Info.plist with 1 mode gave - Not Found
14:033  0:001  OC: Plist Kexts\Other\ACPIPoller.kext\Contents\Info.plist is missing for kext Other\ACPIPoller.kext ()
14:034  0:001  OC: Opening file Kexts\Other\AX88179_178A.kext\Contents\Info.plist with 1 mode gave - Not Found
14:035  0:001  OC: Plist Kexts\Other\AX88179_178A.kext\Contents\Info.plist is missing for kext Other\AX88179_178A.kext ()
14:037  0:001  OC: Opening file Kexts\Other\BlueTooth_Injector_T420.kext\Contents\Info.plist with 1 mode gave - Not Found
14:040  0:003  OC: Plist Kexts\Other\BlueTooth_Injector_T420.kext\Contents\Info.plist is missing for kext Other\BlueTooth_Injector_T420.kext ()
14:042  0:001  OC: Opening file Kexts\Other\EFICheckDisabler.kext\Contents\Info.plist with 1 mode gave - Not Found
14:043  0:001  OC: Plist Kexts\Other\EFICheckDisabler.kext\Contents\Info.plist is missing for kext Other\EFICheckDisabler.kext ()
14:044  0:001  OC: Opening file Kexts\Other\IOAHCIBlockStorageInjector.kext\Contents\Info.plist with 1 mode gave - Not Found
14:048  0:003  OC: Plist Kexts\Other\IOAHCIBlockStorageInjector.kext\Contents\Info.plist is missing for kext Other\IOAHCIBlockStorageInjector.kext ()
14:050  0:001  OC: Opening file Kexts\Other\USBInjectAll.kext\Contents\Info.plist with 1 mode gave - Not Found
14:051  0:001  OC: Plist Kexts\Other\USBInjectAll.kext\Contents\Info.plist is missing for kext Other\USBInjectAll.kext ()
14:052  0:001  OC: Opening file Kexts\Other\VoodooPS2Controller.kext\Contents\Info.plist with 1 mode gave - Not Found
14:056  0:003  OC: Plist Kexts\Other\VoodooPS2Controller.kext\Contents\Info.plist is missing for kext Other\VoodooPS2Controller.kext ()
14:058  0:001  OC: Opening file Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext\Contents\Info.plist with 1 mode gave - Not Found
14:059  0:001  OC: Plist Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext\Contents\Info.plist is missing for kext Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext ()
14:063  0:003  OC: Opening file Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext\Contents\Info.plist with 1 mode gave - Not Found
14:065  0:001  OC: Plist Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext\Contents\Info.plist is missing for kext Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext ()
14:066  0:001  OC: Opening file Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext\Contents\Info.plist with 1 mode gave - Not Found
14:070  0:003  OC: Plist Kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext\Contents\Info.plist is missing for kext Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext ()
14:073  0:003  OC: Opening file Kexts\10.15\IntelMausiEthernet.kext\Contents\Info.plist with 1 mode gave - Not Found
14:074  0:001  OC: Plist Kexts\10.15\IntelMausiEthernet.kext\Contents\Info.plist is missing for kext 10.15\IntelMausiEthernet.kext ()
14:078  0:003  OC: Kext reservation size info 500000 exe 0
14:080  0:001  OC: Trying 64-bit XNU hook on System\Library\PrelinkedKernels\prelinkedkernel
14:590  0:510  OCAK: Compressed result has CFC79018 magic
14:594  0:003  OCAK: Found 64-bit Mach-O compressed 1 offset 28 size 58724352
14:596  0:001  OC: Result of 64-bit XNU hook on System\Library\PrelinkedKernels\prelinkedkernel (00000000) is Success





Edited by tluck
Link to comment
Share on other sites

1 minute ago, tluck said:

    SystemID with Clover-OC:  EEFF8C81-5136-yyxx-NNNN-0123456789012 (matches BIOS exactly)

    but OLD clover sets it as:   8C81EEFF-3651-xxyy-NNNN-0123456789012

I tried to fixed something about SystemID that wasn't injected when you have a separate smbios.plist. I probably forgot the big endian/little endian conversion.

What should we keep, the new way ? Or restore the old way, swapped ?





I also reworked all the path to make Clover run from any folder. I forgot to test OEM. I'll restore the feature very soon.

Link to comment
Share on other sites

×
×
  • Create New...
