Jief_Machak Posted September 18, 2020 Share Posted September 18, 2020 Yes, so correct your Quirks config in your config.plist 3 hours ago, Jief_Machak said: In short : - Quirks from section kernel from OC (containing "AppleCpuPmCfgLock"), must be in section KernelAndKextPatches with name OcQuirks OcFuzzyMatch and OcKernelCache beside this (not inside). They can be committed with this last EFI. - Quirks from section booter from OC (containing "AvoidRuntimeDefrag"), must be under root, no section, with name OcQuirks MmioWhitelist, if defined, must be inside this Quirks section. I attached my VM config.plist as an example. Link to comment Share on other sites More sharing options...
iCanaro Posted September 18, 2020 Share Posted September 18, 2020 ah OK I think I understand.. update config and text Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 18, 2020 Share Posted September 18, 2020 The panic are just temporarily there is be sure your quirks are read by Clover. The current problem is that if they are at the wrong place or with the wrong name, you won't see it. No Clover panic or warning. 1 Link to comment Share on other sites More sharing options...
MICKHAEL Posted September 18, 2020 Share Posted September 18, 2020 (edited) Hi @Jief_Machak I got something interesting here Check please Quote Edited September 18, 2020 by MICKHAEL Link to comment Share on other sites More sharing options...
Slice Posted September 18, 2020 Share Posted September 18, 2020 Can't compile /Users/sergey/src/opt/local/cross/lib/gcc/x86_64-clover-linux-gnu/10.2.0/../../../../x86_64-clover-linux-gnu/bin/ld: /var/folders/s5/t5m9ql6s1kd6frthvst4f6_80000gn/T//DumpUefiCalls.dll.C3NDQx.ltrans0.ltrans.o: in function `_ModuleEntryPoint': <artificial>:(.text._ModuleEntryPoint+0x79): undefined reference to `SerialPortWrite' Mmm... no, I can compile. Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 18, 2020 Share Posted September 18, 2020 33 minutes ago, MICKHAEL said: Check please At least it went further... a little. I have no idea. Did you try more than once ? Because I had some random boot failure with strange messages. Link to comment Share on other sites More sharing options...
MICKHAEL Posted September 18, 2020 Share Posted September 18, 2020 (edited) 7 minutes ago, Jief_Machak said: At least it went further... a little. I have no idea. Did you try more than once ? Because I had some random boot failure with strange messages. yes) went further no, actually I checked just once... interesting UPDATE: checked three times.. same Edited September 18, 2020 by MICKHAEL Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 18, 2020 Share Posted September 18, 2020 Do you have a working OpenCore config ? Link to comment Share on other sites More sharing options...
MICKHAEL Posted September 18, 2020 Share Posted September 18, 2020 Just now, Jief_Machak said: Do you have a working OpenCore config ? no. I have a working Clover... Catalina and Big Sur Beta2 maybe you could translate Clover to OC config? Link to comment Share on other sites More sharing options...
Slice Posted September 18, 2020 Share Posted September 18, 2020 This debug.log contains three attempts: 1. Clover-OCI, fresh compilation, boot to BigSur installation. Stop at EXITBS. 2. Clover-OCI boot to Mojave working system. Stop after End Random Seed, so at ExitBootService. 3. Clover-master boot to Mojave, success. All drivers/kexts/config are the same. debug74.log.zip Link to comment Share on other sites More sharing options...
iCanaro Posted September 18, 2020 Share Posted September 18, 2020 although on the Z370 it can start with Clover and OC with the same ssdt and settings... with the tests of this clover are in a dead end.... I don't start anything Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 18, 2020 Share Posted September 18, 2020 2 minutes ago, iCanaro said: I don't start anything Well, there is obviously something needed by your hardware and not by mine. That's why it's hard to find... Link to comment Share on other sites More sharing options...
Slice Posted September 18, 2020 Share Posted September 18, 2020 I inserted lines like gST->ConOut->OutputString (gST->ConOut, L"++++++ +++++\n"); into OpenCore and may see where it stops. Yes, the procedure OcExitBootServicesHandler() finished successfully. The stop after it. After it kernel started. The stop at this place may be caused by 1. Locked 0xE2 - it is not my case. 2. Wrong memory, because of AptioFix, but I am using OpenRuntime and it works successfully with Clover-master + OcQuirks. 3. What else? Link to comment Share on other sites More sharing options...
naiclub Posted September 19, 2020 Share Posted September 19, 2020 Want developers CloverBoot works with all versions. Clover is more flexible than others. And i really like it Link to comment Share on other sites More sharing options...
Slice Posted September 19, 2020 Share Posted September 19, 2020 The compilation error build.py... : error 0004: File read failure /Users/sergey/src/CloverBootloader/OpenCorePkg/Library/OcHashServicesLib/OcHashServicesLib.inf resolved by changing # Author: Joel Höner <athre0z@zyantific.com> to # Author: Joel Hoener <athre0z@zyantific.com> Someone can comment? Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 19, 2020 Share Posted September 19, 2020 6 minutes ago, Slice said: Someone can comment? Does it ever happened to you before ? Which OS and compiler ? Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 19, 2020 Share Posted September 19, 2020 @mifjpn Saw my private message ? Link to comment Share on other sites More sharing options...
Slice Posted September 19, 2020 Share Posted September 19, 2020 38 minutes ago, Jief_Machak said: Does it ever happened to you before ? Which OS and compiler ? It always happened on comp#2 but never with comp#1. It is strange, there are same 10.14.6, same gcc10.1 but comp#2 has xcode 11.3.1 while comp#1 has xcode 11.2.1. But I don't use xcode compilation, I use GCC53 toolset. May be there is a difference with Python, I didn't check. Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 22, 2020 Share Posted September 22, 2020 Hi everyone, after 2 days of intensive testing with @Matgen84 and @mifjpn , we've made some progress. You might to try this CLOVERX64.efi.zip If, in your log, you are stuck at AAPL: [EB|#LOG:EXITBS:START], it could be because you're missing some SSDT, or because you try to boot an USB3 stick without a proper USB config. If you're stopped with an OC fatal error, look in the log (or on screen). OC will stopped if you've made a mistake on a SSDT path name, or kext path name. If you have a working OC config, first adapt your Clover config.plist to use the same SSDT, ACPI pacthes, Kexts, Kexts patches. In this phase of development, I can give some help. Again, only if you have a working OC. For that, create a private repo on your github account and commit your EFI folder. Add me as a committer. My github name is jief666. 6 Link to comment Share on other sites More sharing options...
iCanaro Posted September 22, 2020 Share Posted September 22, 2020 (edited) thank you for your commitment once I started BS and then stop here then normally with BS and cataline I have this Edited July 7, 2021 by iCanaro free up space Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 22, 2020 Share Posted September 22, 2020 (edited) Each I had that, it's because VirtualSMC was injected. Check your log, check the path in OC config plist EDIT : sorry I mean was NOT injected. EDIT : I meant Clover config plist No idea for the lilu error, I never had that. Solve the VirtualSMC, will see then. Edited September 22, 2020 by Jief_Machak 1 Link to comment Share on other sites More sharing options...

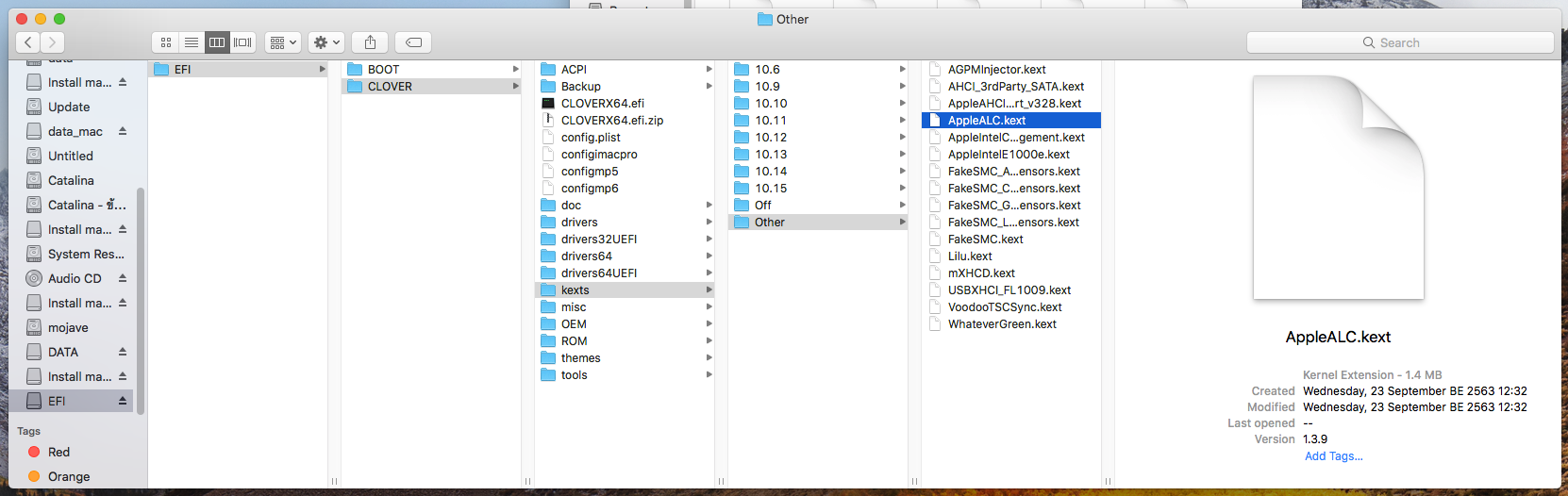

iCanaro Posted September 22, 2020 Share Posted September 22, 2020 (edited) For these tests, the kexts better keep them in other or 11, other or 10.15??? @Jief_Machak Edited September 22, 2020 by iCanaro Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 22, 2020 Share Posted September 22, 2020 I personally don't like very much the name 'Other' that really means "All macOS versions". All the kexts in "Other" should NOT be in 10... or 11... folders. Me, I have 10.13, 10.14 and 11. Sure, there is duplication as some kexts can work for all versions. Check the log to see what is injected. Maybe you have kexts injected twice (one from Other and one from 10 or 11 folder). 1 Link to comment Share on other sites More sharing options...
iCanaro Posted September 22, 2020 Share Posted September 22, 2020 normally I keep each macOS with its specific kexts, so 10.13 for high sierra, 10.14 mojave, 10.15 catalina etc... in these tests or I keep them in 10.15 and 11 or only in others but never in any case at the same time in others and 10.15 and 11 folder 11 shows only 11 or 11.0/11.00??? Link to comment Share on other sites More sharing options...
Jief_Machak Posted September 22, 2020 Share Posted September 22, 2020 "11" for all version 11 (ok, there is only one right now), like 10 for all version 10. Yes, keep them separated and delete folder Other. Less confusing. 2 1 Link to comment Share on other sites More sharing options...
