Clover General discussion

[Matgen84]

8 hours ago, pkdesign said:

Thanks Matgen but I have a fully working OcQuirks.plist. The issue I am having is the incorporation of these quirks into the Clover config.plist and not having them on their own in the drivers folder.



I think Slice is misunderstanding me. What I was asking is, do I have to have both false and true statements for all the quirks. Currently I only have the true statements listed (see above) in the Clover config.plist.



What I will do when I get a minute is literally copy ALL the quirks from my current OcQurks.plist (true AND false) and copy them into the Clover config.plist.



You says that you want to copy the quirks into the Clover config.plist, it's exactly what I told you. Just have a look to Config sample.plist in Clover repo.



What do you means by "I have a fully working OcQuirks.plist" ?

Edited July 25, 2020 by Matgen84

[Matgen84]

23 hours ago, Matgen84 said:



Hi @Slice



I build latest commit c87aabd: it's better I think. Thanks.



• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc"



EDIT: one more time, I double check all my Z390 config settings. After this test.



  Reveal hidden contents





Hi @Slice



I build latest commit fab169d: exactly same issue



Have you see kuckkuck Clover r5119 mod + kexttopatch in Hackintool-forum.de: it's to boot BS Beta 3.

[crazybirdy]

8 minutes ago, Matgen84 said:



Hi @Slice



I build latest commit fab169d: exactly same issue



Have you see kuckkuck Clover r5119 mod + kexttopatch in Hackintool-forum.de: it's to boot BS Beta 3.



Clover r5119 mod load old /System/Library/PrelinkedKernels/prelinkedkernel

But Clover 5120 load new /System/Library/KernelCollections/BootKernelExtensions.kc



Maybe BootKernelExtensions.kc is harder to hack.

[Matgen84]

17 minutes ago, crazybirdy said:



Clover r5119 mod load old /System/Library/PrelinkedKernels/prelinkedkernel

But Clover 5120 load new /System/Library/KernelCollections/BootKernelExtensions.kc



Maybe BootKernelExtensions.kc is harder to hack.



Right @crazybirdy What do you think of his KextToPatch !

[crazybirdy]

10 minutes ago, Matgen84 said:



Right @crazybirdy What do you think of his KextToPatch !



I think KextToPatch is not the issue.



Maybe decode is the problem.

How to decode prelinkedkernel to be kernel and kexts?

How to decode BootKernelExtensions.kc to be kernel and kexts?



After decode BootKernelExtensions.kc, it start to patch kexts and kernel.



But it's not my ability, we need ......Slice

[Matgen84]

2 minutes ago, crazybirdy said:

But it's not my ability, we need ......Slice



Yes, we need @Slice

[chris1111]

6 hours ago, crazybirdy said:

After decode BootKernelExtensions.kc, it start to patch kexts and kernel.



But it's not my ability, we need ......Slice

Maybe also need the genious @Zenith432

[Matgen84]

Hi @Slice



I  build latest commit 32eba04: it's better I think. Thanks.



• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc" messages





debug.log

[ameenjuz]

anyone have Sandy Bridge working config for high sierra



Model: AH512

IntelÆ CoreTM i3 processor 2.2 GHz

2GB DDR3 SDRAM

hard drive 320GB

Graphics Coprocessor     Intel HD Graphics 3000

Screen Resolution     1366 x 768

Edited July 25, 2020 by ameenjuz

[Slice]

9 hours ago, ameenjuz said:

anyone have Sandy Bridge working config for high sierra



Model: AH512

IntelÆ CoreTM i3 processor 2.2 GHz

2GB DDR3 SDRAM

hard drive 320GB

Graphics Coprocessor     Intel HD Graphics 3000

Screen Resolution     1366 x 768

You'd better to ask in specialized subforum Intel



4 minutes ago, mifjpn said:

Hello,Slice.

There was nothing wrong with what you were doing.
You are great! !!

I still can't believe it, but Big Sur Developer Beta 3 was bootable by 32eba04-bulid.

I built Kext myself using "Kexts Update.command" from "Olarila Big Sur Vanilla Image / USB Installation". I updated EFI with that Kext.

The assembly parts of my computer are probably lucky. It's not expensive

i7-8700,ASUS PRIME H370-A/CSM,RAM 16GB(8GB+8GB),MSI RX-570,Pionner BD-209(Pached)

I couldn't believe it, so I took an uncut boot-time movie. And I confirmed the upgrade of the Clover package to another EFI twice.
The web page is below.
surprise! BigSurBeta3 booted with Clover (32eba04-bulid).(include movie and EFI zipfile)

I am moving to BigSur.

[aryaone]

4 hours ago, mifjpn said:

Hello,Slice.

There was nothing wrong with what you were doing.
You are great! !!

I still can't believe it, but Big Sur Developer Beta 3 was bootable by 32eba04-bulid.

I built Kext myself using "Kexts Update.command" from "Olarila Big Sur Vanilla Image / USB Installation". I updated EFI with that Kext.

The assembly parts of my computer are probably lucky. It's not expensive

i7-8700,ASUS PRIME H370-A/CSM,RAM 16GB(8GB+8GB),MSI RX-570,Pionner BD-209(Pached)

I couldn't believe it, so I took an uncut boot-time movie. And I confirmed the upgrade of the Clover package to another EFI twice.
The web page is below.
surprise! BigSurBeta3 booted with Clover (32eba04-bulid).(include movie and EFI zipfile)

i've tried using your EFI, and combine my config.plist with your quirks setting

but unfortunately i am still unable to boot big sur beta 3, many "couldnt load kext" error, just like latest clover 5120 release...

[jsl2000]

20 minutes ago, aryaone said:

i've tried using your EFI, and combine my config.plist with your quirks setting

but unfortunately i am still unable to boot big sur beta 3, many "couldnt load kext" error, just like latest clover 5120 release...

In my Z77 hackintosh only previous modified 5119 can boot Big Sur beta2 & beta3 as well as Catalina, but failed for BS installer. That means old OcQuirks.efi (59KB) worked, but new one (43KB) failed !

Edited July 26, 2020 by jsl2000

[Matgen84]

28 minutes ago, jsl2000 said:

In my Z77 hackintosh only previous modified 5119 can boot Big Sur beta2 & beta3 as well as Catalina, but failed for BS installer. That means old OcQuirks.efi (59KB) worked, but new one (43KB) failed !





@jsl2000 You're using mod Clover r5119  to boot BS Beta 2 or Beta 3. With official Clover, I don't believe that the size of OcQuirks matters: in both cases, impossible to boot from USB Installer or external Hard disk, or internal hard disk on my Z390 system. At this time, of course.

[Matgen84]

Hi @Slice thanks for your efforts.



I  build latest commit 15b65bd95 on Z390 system



Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module:2411



Before, I see "couldn't load" kexts and "couldn't alloc" messages





[crazybirdy]

2 hours ago, Matgen84 said:

Hi @Slice thanks for your efforts.



I  build latest commit 15b65bd95 on Z390 system



Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module:2411



Before, I see "couldn't load" kexts and "couldn't alloc" messages



@Slice

Same issue here, Clover commit 15b65bd, 7/26, FYI.







[Matgen84]

6 hours ago, mifjpn said:

And I try build 15b65bd ... success
BigSurDevBeta3 boot confirmation info on Clover (latest build)

You can boot latest commit 15b65bd from existing installed BS Beta 3 on your Hard Disk or from USB pendrive!

It seems don't work on others mobo, yet.



EDIT: The same issue for commit b291971: couldn't load kext, etc



Edited July 27, 2020 by Matgen84

[Badruzeus]

On 7/16/2020 at 7:00 PM, Slice said:

I use

gcc version 10.1.0 (GCC)

OK, got it works either with GCC 10.2.0 under Ubuntu 20.04.1 LTS after 'cd ~/src/CloverBootloader && rm -R Build && make -C BaseTools clean && make -C BaseTools/Source/C && ./ebuild'.sh -fr'. Thanks.

[Matgen84]

Hi @Slice

Maybe I made a mistake somewhere

I can't boot r5120 commit 0724be9 on Big Sur (works fine for Catalina)


• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module:2411
• Before, I see "couldn't load" kexts and "couldn't alloc" messages

Spoiler



debug.log

[yapan4]

14 minutes ago, Matgen84 said:

Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module:2411

Exactly the same behavior on my hackintosh from signature

[Slice]

47 minutes ago, Matgen84 said:

Hi @Slice

Maybe I made a mistake somewhere

I can't boot r5120 commit 0724be9 on Big Sur (works fine for Catalina)


• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module:2411
• Before, I see "couldn't load" kexts and "couldn't alloc" messages

  Hide contents



debug.log

Delete your debug.log from misc folder. Else it grown unrestricted.

And I see no debug messages in your log.

See kernel_patcher.cpp line 26.

There should be

#define KERNEL_DEBUG 1

if you want to help me to see your problems.

[pkdesign]

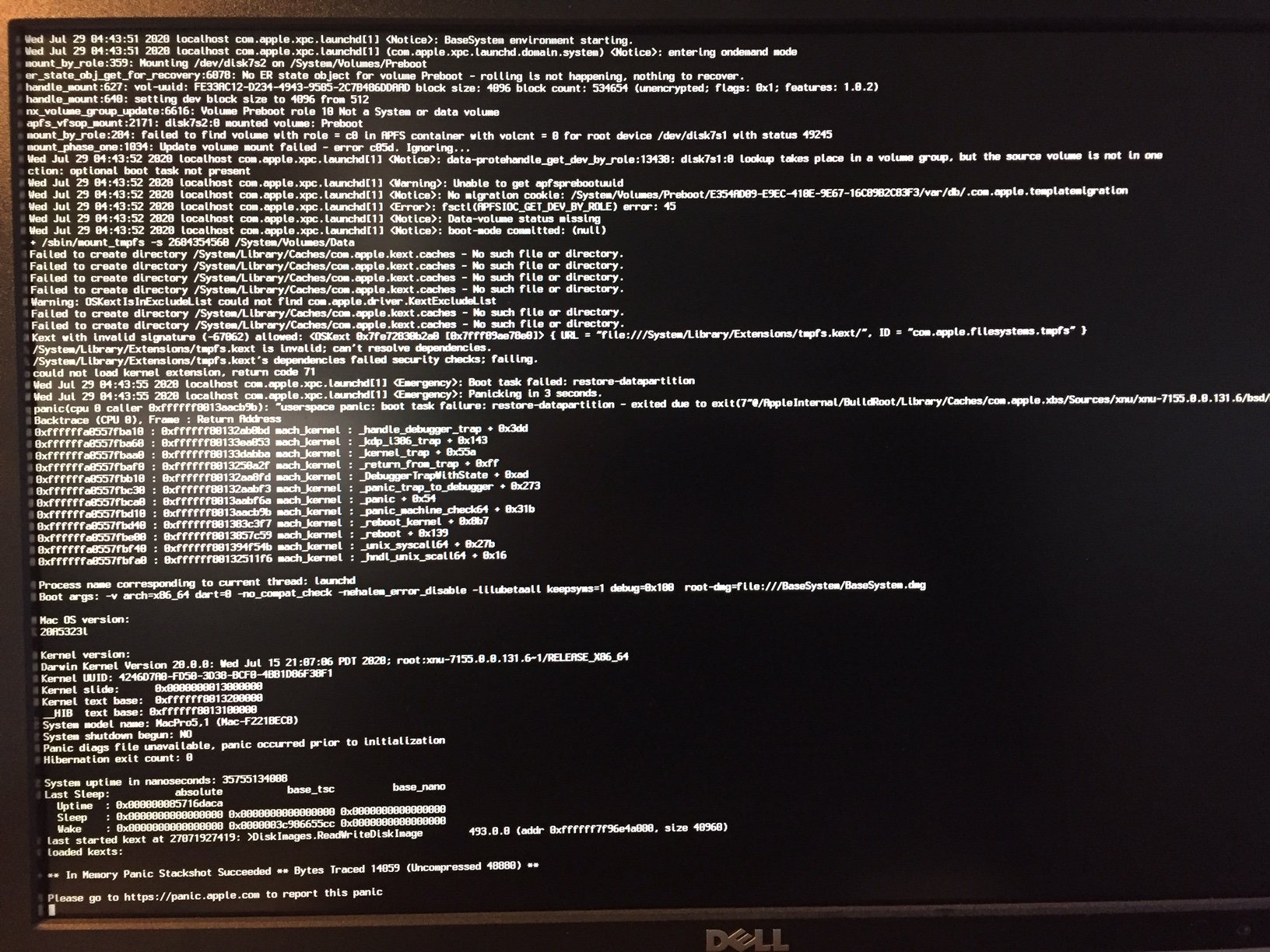

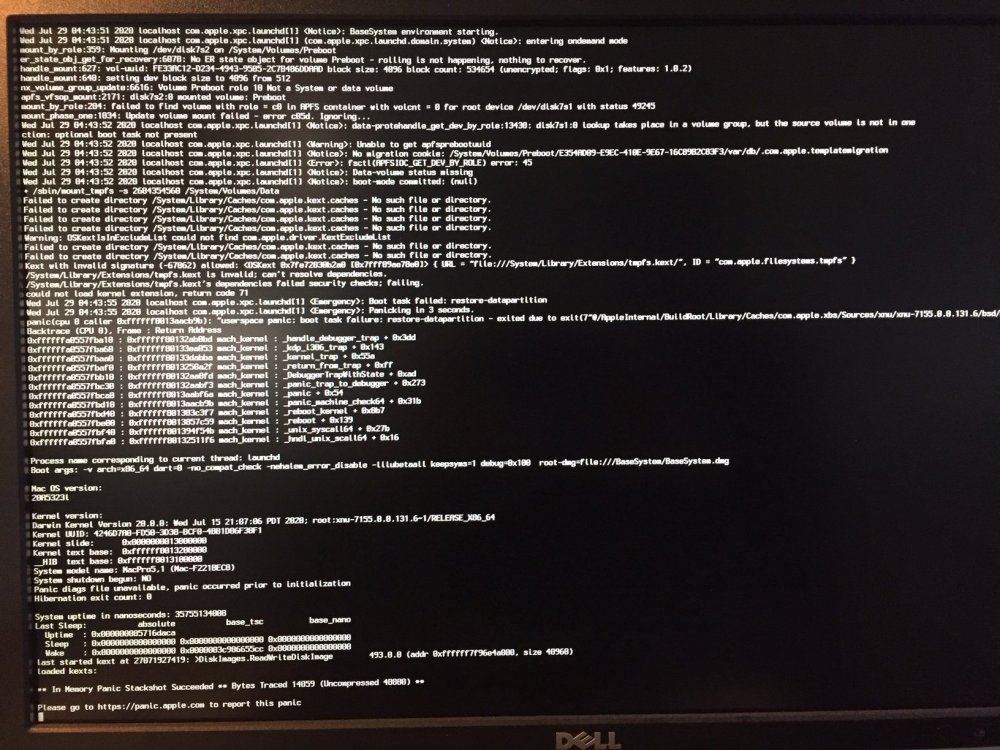

Still not able to use OcQuirks provided by Clover 5120. Always panics at boot. This is what I am currently using in Quirks section of Clover, which is exactly the same as I am using with OcQuirks.plist.

	<key>Quirks</key>
	<dict>
		<key>AvoidRuntimeDefrag</key>
		<true/>
		<key>DevirtualiseMmio</key>
		<true/>
		<key>DisableSingleUser</key>
		<false/>
		<key>DisableVariableWrite</key>
		<false/>
		<key>DiscardHibernateMap</key>
		<false/>
		<key>EnableSafeModeSlide</key>
		<true/>
		<key>EnableWriteUnprotector</key>
		<true/>
		<key>ForceExitBootServices</key>
		<false/>
		<key>MmioWhitelist</key>
		<array/>
		<key>ProtectMemoryRegions</key>
		<false/>
		<key>ProtectSecureBoot</key>
		<false/>
		<key>ProtectUefiServices</key>
		<true/>
		<key>ProvideConsoleGopEnable</key>
		<true/>
		<key>ProvideCustomSlide</key>
		<true/>
		<key>ProvideMaxSlide</key>
		<integer>0</integer>
		<key>RebuildAppleMemoryMap</key>
		<true/>
		<key>SetupVirtualMap</key>
		<false/>
		<key>SignalAppleOS</key>
		<false/>
		<key>SyncRuntimePermissions</key>
		<true/>
	</dict>



On 7/25/2020 at 1:09 AM, Matgen84 said:



You says that you want to copy the quirks into the Clover config.plist, it's exactly what I told you. Just have a look to Config sample.plist in Clover repo.



What do you means by "I have a fully working OcQuirks.plist" ?

I currently use an OcQuirks.plist that is separate from the Clover config.plist and is in the drivers folder along with OcQuirks.efi



What I assume is that you delete that plist because the new way is to include it within the Clover config.plist. Am I wrong.

[Matgen84]

6 hours ago, pkdesign said:

Still not able to use OcQuirks provided by Clover 5120. Always panics at boot. This is what I am currently using in Quirks section of Clover, which is exactly the same as I am using with OcQuirks.plist.



I currently use an OcQuirks.plist that is separate from the Clover config.plist and is in the drivers folder along with OcQuirks.efi



What I assume is that you delete that plist because the new way is to include it within the Clover config.plist. Am I wrong.



You're right. The new way for Clover is to include Quirks parameters in config.plist. Do you update Clover 5120 to latest commit ?



Try to make two changes (Dortania Guide for Coffee Lake):



SetupVirtualMap to YES

EnableWriteUnprotector to FALSE



[yapan4]

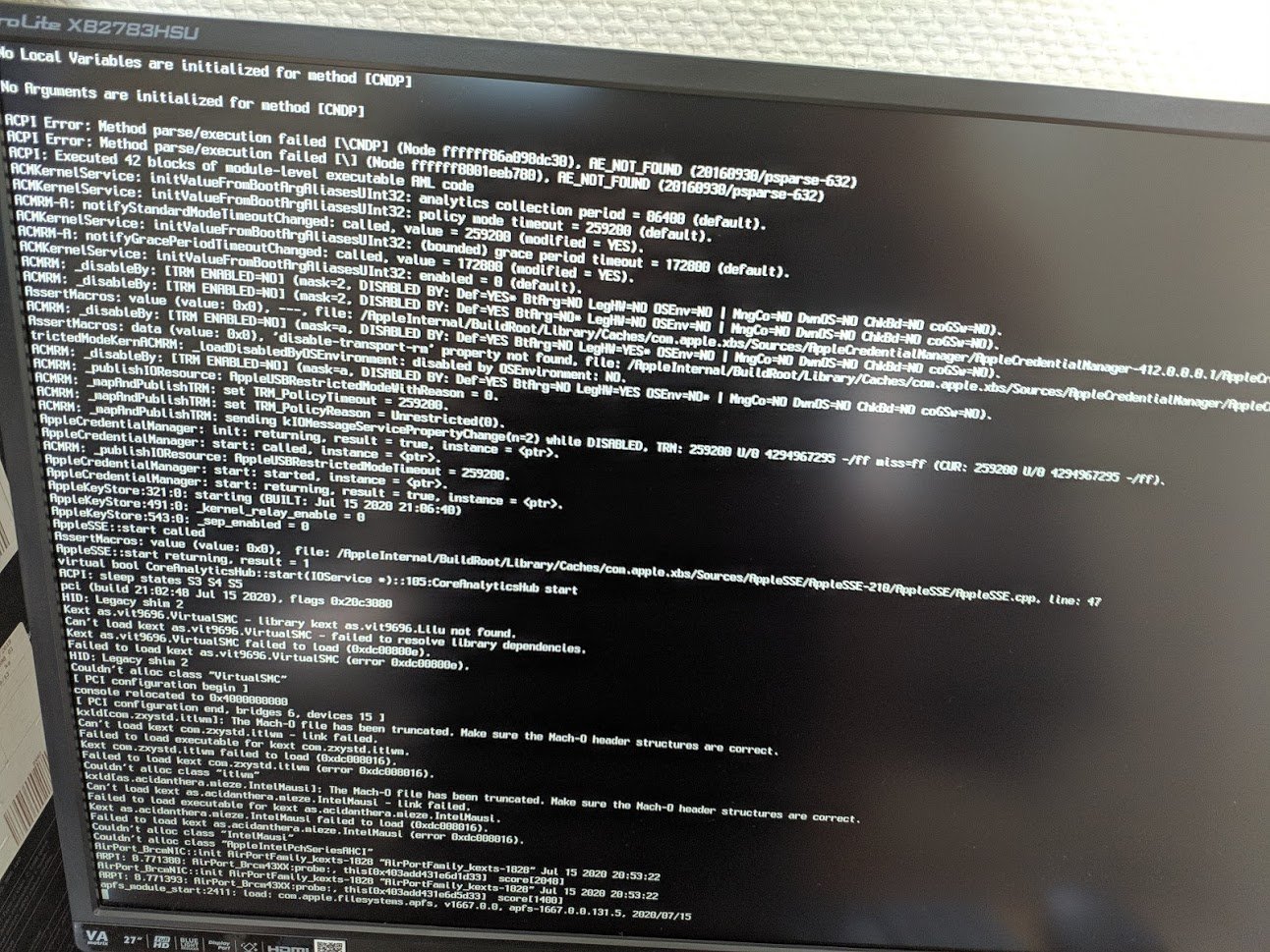

I have little progress after Lilu, WEG, AppleALC kexts removal and re-cleaning NVRAM.
Now no stop on apfs_module_start:2411 but boot process has progressed very little.

Clover - yesterday's

Edited July 28, 2020 by yapan4

[Matgen84]

25 minutes ago, yapan4 said:

I have little progress after Lilu, WEG, AppleALC kexts removal and re-cleaning NVRAM.
Now no stop on apfs_module_start:2411 but boot process has progressed very little.

Clover - yesterday's



Hi @yapan4 What do you mean by "after Lilu, WEG, AppleALC kexts removal"

[yapan4]

4 hours ago, Matgen84 said:



Hi @yapan4 What do you mean by "after Lilu, WEG, AppleALC kexts removal"

As @Slice say, now Clover can inject kexts but can't load acidanthera kexts. So I delete all this kexts from /EFI/Clover/kexts/Others and try boot with FakeSMC only.

Now I have stop on 'still waiting for root device'



debug.log

Edited July 28, 2020 by yapan4
