Slice
Slice
Posted
Posted
8 minutes ago, Matgen84 said:

@Slice



I can't boot on Big Sur installed on HDD from USB Clover 5120.



 I test Big Sur USB Installer (Clover r5120) and report.

Thanks

debug.log

But what is the diagnose? Black screen after... or KP... or not started...

Do you need any kext or kernel patches specific for your hardware?

Is it OK for Catalina?

Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted (edited)
45 minutes ago, Slice said:

But what is the diagnose? Black screen after... or KP... or not started...

Do you need any kext or kernel patches specific for your hardware?



USB3: can't boot

I note also some SSDT error injection. Unfortunately, I can't tell exactly error messages.

Big Sur stuck at IOUSB before KP and crossed out circle



I only use patched DSDT SSDT (MaLdOn)



USB2: can boot (very long to boot) and not boot
I can boot from USB Installer : Choose Language, etc



---> I can't boot on Big Sur installed on HDD from USB Clover 5120.

Big Sur stuck at IOUSB before KP and crossed out circle



Test on Z390 Aorus Master config. SMBIOS IMac19,1

Edited by Matgen84
Link to comment
Share on other sites
Cyberdevs
Cyberdevs
Posted
Posted

Yes I can confirm that it boot into the installer. Thanks to all the Clover team for their efforts, Great work guys! :yes:





Spoiler

Clover 5120 Big Sur.png



But I guess there's something wrong with Kext Injection.

With iMac15,1 SMBIOS I get the black screen, with iMac18,1 I can boot into the installer and my USB header ports don't work either so I had to use a USB 2.0 port I also have these purple lines again.





Spoiler






  • Like 2
Link to comment
Share on other sites
crazybirdy
crazybirdy
Posted
Posted
On 7/13/2020 at 7:24 PM, crazybirdy said:

Hi @Slice



report some issues.



6/19, commit 1072, 109d1f5, kext patcher and kernel patcher work fine on Mojave, Catalina.

can't pass the Big Sur ++++++++++++++++++++++++++++++++++

can't boot to Big Sur.



7/13, commit 1091, b79f643, kext patcher and kernel patcher didn't work on Mojave, Catalina, Big Sur,

and can boot to Big Sur system, and get panic without kext patch after booting logs.



If I replace 109d1f5/kernel_patcher.cpp to b79f643/kernel_patcher.cpp, and modify as diff as below.

The commit 1091, b79f643 kext patcher and kernel patcher work fine on Mojave, Catalina,

and can boot to Big Sur system, but get panic without kext patch after booting logs.


The problem is, can you fix the kext patcher and kernel patcher on Mojave, Catalina, Big Sur?



  Reveal hidden contents


@@ -1126,7 +1126,7 @@
 //
 static inline BOOLEAN IsXCPMOSVersionCompat(UINT64 os_version)
 {
-  return (os_version >= AsciiOSVersionToUint64("10.8.5")) && (os_version < AsciiOSVersionToUint64("10.16"));
+  return (os_version >= AsciiOSVersionToUint64("10.8.5")) && (os_version < AsciiOSVersionToUint64("10.17"));
 }

 //
@@ -2053,7 +2053,7 @@
     // check bootargs for 10.7 and up
     bootArgs2 = (BootArgs2*)ptr;

-    if (bootArgs2->Version==2 && bootArgs2->Revision==0
+    if (bootArgs2->Version==2 && (bootArgs2->Revision==0 || bootArgs2->Revision==1)
         // plus additional checks - some values are not inited by boot.efi yet
         && bootArgs2->efiMode == archMode
         && bootArgs2->kaddr == 0 && bootArgs2->ksize == 0







11 hours ago, Slice said:

Test, please, commit d320eb969

  Reveal hidden contents






Still the same errors here,

Always get AppleIntelCPUPowerManagement panic here on 10.14.6, 10.15.6, 10.16 B2.



It seems kext patcher and kernel patcher didn't work on Mojave, Catalina, Big Sur,

but 6/19, commit 1072, 109d1f5 works fine.







  • Like 1
  • Sad 1
Link to comment
Share on other sites
Guest ricoc90
Guest ricoc90
Posted
Posted
1 hour ago, crazybirdy said:

Always get AppleIntelCPUPowerManagement panic here on 10.14.6, 10.15.6, 10.16 B2.


I'm getting the same panic as well but on Ivy Bridge. However, I only get the panic booting from BS's install media. Catalina boots without issues.

Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted

Clover 5120 test on the Z97
given that I've been using ocquirks for months

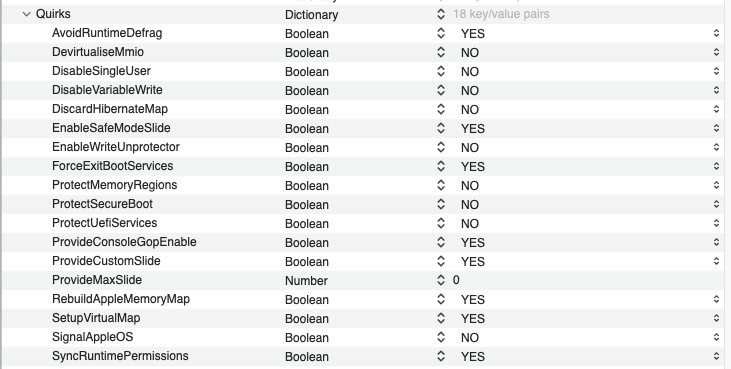

I first inserted with a plist editor the new ocquirks section and configured exactly as ocquirks.plist
taken from the iso and copied to UEFI ocquirks and opernruntime replacing them to those present, eliminated ocquirks.plist

restart but I hang at boot

for scruple remade config of the Z97 starting from the sample included in the iso, but fail, block to boot

Spoiler




  • Sad 1
Link to comment
Share on other sites
autantpourmoi
autantpourmoi
Posted
Posted

I i'm runing catalina 10.15.5 and did update to clover 5120 , my computer stuck on a black screen after having strange purple lines on apple logo and progression bar . Tried to but on a clone system with an older clover version same result . Any ideas of i can do ? Any help will be very well appreciated as i need my computer to work for this week end . Thanks in advance

Link to comment
Share on other sites
eSaF
eSaF
Posted
Posted
3 minutes ago, autantpourmoi said:

I i'm runing catalina 10.15.5 and did update to clover 5120 , my computer stuck on a black screen after having strange purple lines on apple logo and progression bar . Tried to but on a clone system with an older clover version same result . Any ideas of i can do ? Any help will be very well appreciated as i need my computer to work for this week end . Thanks in advance

This won't be much use to you after the event but for future reference do all updates on a test USB Drive to see if it will boot the system before you commit the update to your main drive to avoid the predicament you're in now.

Link to comment
Share on other sites
vector sigma
vector sigma
Posted
Posted (edited)

Guys don't use the pkg at github as it remove OpenRuntime.efi by my mistake:

https://www.insanelymac.com/forum/topic/306156-clover-problems-and-solutions/?do=findComment&comment=2730760

Sorry



EDIT

pkg at github corrected



P.S. Clover.app is ok.



EDIT

fixed pkg attached

Clover_r5120.pkg

Edited by vector sigma
  • Like 1
Link to comment
Share on other sites
iCanaro
iCanaro
Posted
Posted

OT:



The CloverHackyColor team doesn't have to be superstitious, get Clover out today.... in Italy Friday 17th is the day when you can get the greatest misfortunes :shock:

  • Haha 3
Link to comment
Share on other sites
vector sigma
vector sigma
Posted
Posted (edited)
5 minutes ago, iCanaro said:

OT:



The CloverHackyColor team doesn't have to be superstitious, get Clover out today.... in Italy Friday 17th is the day when you can get the greatest misfortunes :shock:

yes and in fact... :hysterical:

---> see

Edited by vector sigma
  • Haha 2
Link to comment
Share on other sites
lucke
lucke
Posted
Posted

Same here (from Italy), issue with 5120, I didn't have KP but always Black Screen and verbose reported: Unsupported CPU and PCH.

On previous versions everything was perfect, I use ocquirks for some time, and I never had any problems.

I noticed that updating to 10.15.6, I no longer have the XCPM while maintaining the build 5119 with KernelXCPM=true, the problem of Unsupported CPU and PCH remains.

Link to comment
Share on other sites
JorgeMax
JorgeMax
Posted
Posted
2 hours ago, vector sigma said:

Guys don't use the pkg at github as it remove OpenRuntime.efi by my mistake:

https://www.insanelymac.com/forum/topic/306156-clover-problems-and-solutions/?do=findComment&comment=2730760

Sorry



EDIT

pkg at github corrected



P.S. Clover.app is ok.



EDIT

fixed pkg attached

Clover_r5120.pkg






Still in the same

Link to comment
Share on other sites
Pene
Pene
Posted
Posted
4 hours ago, Slice said:

I deleted release 5120 until it will work.

Hi Slice,



Was commit bfe7db9 included in the released 5120?

Because for me that's the change that breaks booting. Any commit before that works.

  • Confused 1
Link to comment
Share on other sites
autantpourmoi
autantpourmoi
Posted
Posted (edited)
16 hours ago, eSaF said:

This won't be much use to you after the event but for future reference do all updates on a test USB Drive to see if it will boot the system before you commit the update to your main drive to avoid the predicament you're in now.

was able to install clover 5119 on my clone disc and everything went back to normal ...testing on usb stick meaning you use an catalina installation usb stick with the your usual config.plist? anyway thanks for the advice

Edited by autantpourmoi
Link to comment
Share on other sites
eSaF
eSaF
Posted
Posted

It won't matter what OS is on the test USB drive because it is only the updated EFI folder on you'll be using to boot the main drive to find out if the update boots your system without an issue.

Link to comment
Share on other sites
jmacie
jmacie
Posted
Posted (edited)

Stuck at SIGILL on 5120 bigsur USB installer. I did try to clear nvram, like they did in opencore, but that didn't help. Getting there, thanks all

I know 5120 is not supposed to work just reporting where I was looping.

Edited by jmacie
  • Like 1
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted
10 minutes ago, D-an-W said:

Evening folks, does anyone know if "buildme, Clover r5120 (SHA: 14c254d40)" is ok to install or best to wait to hear from @Slice or @vector sigma?



Wait, seems to be the best solution. 11 hours ago, Slice has removed r5120 Release (14c254d40). Just my opinion.




  • Thanks 1
Link to comment
Share on other sites
