vector sigma Posted April 24, 2020 Share Posted April 24, 2020 4 minutes ago, MacNB said: What do you think I am asking ? if work in 10.15.4 and I answered I'm still in 10.15.3 which works fine but sorry I'm not sure what you miss. Link to comment Share on other sites More sharing options...
MacNB Posted April 24, 2020 Share Posted April 24, 2020 12 minutes ago, vector sigma said: if work in 10.15.4 and I answered I'm still in 10.15.3 which works fine but sorry I'm not sure what you miss. What I missed was that I was looking at the code above (posted back in June 2019) and according to that logic it should not work for 10.15.3. But I just checked the latest patch code and now I understand why it works for you: else if (os_version < AsciiOSVersionToUint64("10.15")) { // 10.13/10.14 STATIC UINT8 find[] = { 0x89, 0xD8, 0x04, 0xC4, 0x3C, 0x22 }; STATIC UINT8 repl[] = { 0x89, 0xD8, 0x04, 0xC6, 0x3C, 0x22 }; applyKernPatch(kern, find, sizeof(find), repl, comment); // PMheart: attempt to add 10.15 compatibility } else if (os_version < AsciiOSVersionToUint64("10.15.4")) { STATIC UINT8 find[] = { 0x8D, 0x43, 0xC4, 0x3C, 0x22 }; STATIC UINT8 repl[] = { 0x8D, 0x43, 0xC6, 0x3C, 0x22 }; applyKernPatch(kern, find, sizeof(find), repl, comment); } else if (os_version < AsciiOSVersionToUint64("10.16")) { STATIC UINT8 find[] = { 0x80, 0xC3, 0xC4, 0x80, 0xFB, 0x42 }; STATIC UINT8 repl[] = { 0x80, 0xC3, 0xC6, 0x80, 0xFB, 0x42 }; applyKernPatch(kern, find, sizeof(find), repl, comment); For 10.15.4+, that patch does not work. I think I need to raise a bug. Thx for bearing with me. Link to comment Share on other sites More sharing options...
vector sigma Posted April 24, 2020 Share Posted April 24, 2020 (edited) You have to look at your kernel for find bytes if still exist else if (os_version < AsciiOSVersionToUint64("10.16")) { STATIC UINT8 find[] = { 0x80, 0xC3, 0xC4, 0x80, 0xFB, 0x42 }; STATIC UINT8 repl[] = { 0x80, 0xC3, 0xC1, 0x80, 0xFB, 0x42 }; applyKernPatch(kern, find, sizeof(find), repl, comment); } Edited April 24, 2020 by vector sigma Link to comment Share on other sites More sharing options...
MacNB Posted April 24, 2020 Share Posted April 24, 2020 20 minutes ago, vector sigma said: You have to look at your kernel for find bytes if still exist else if (os_version < AsciiOSVersionToUint64("10.16")) { STATIC UINT8 find[] = { 0x80, 0xC3, 0xC4, 0x80, 0xFB, 0x42 }; STATIC UINT8 repl[] = { 0x80, 0xC3, 0xC1, 0x80, 0xFB, 0x42 }; applyKernPatch(kern, find, sizeof(find), repl, comment); } Bites 0x80, 0xC3, 0xC4, 0x80, 0xFB, 0x42 exists and gets patched I think but that does not enable XCPM. BTW, in the replace bytes you quoted above ( 0x80, 0xC3, 0xC1, 0x80, 0xFB, 0x42) there's one byte different from the sources. The 0xC1 should be 0xC6 for Ivy Bridge ?. Link to comment Share on other sites More sharing options...
Alpha22 Posted April 24, 2020 Share Posted April 24, 2020 @Slice Quote Check if you have invisible file on EFI partition .VolumeLabel.txt no invisible files on the EFI partition Quote And tell us what is the method to install Clover you used. Clover_r5114.pkg I install on usb and try Link to comment Share on other sites More sharing options...
vector sigma Posted April 24, 2020 Share Posted April 24, 2020 (edited) 3 hours ago, MacNB said: Bites 0x80, 0xC3, 0xC4, 0x80, 0xFB, 0x42 exists and gets patched I think but that does not enable XCPM. BTW, in the replace bytes you quoted above ( 0x80, 0xC3, 0xC1, 0x80, 0xFB, 0x42) there's one byte different from the sources. The 0xC1 should be 0xC6 for Ivy Bridge ?. not for Ivy bridge, yuo mean as 'mov' in assembly?..could be. Tried? edit, yes you're right Edited April 24, 2020 by vector sigma Link to comment Share on other sites More sharing options...
stinga11 Posted April 24, 2020 Share Posted April 24, 2020 Greetings, I spent a while without using clover trying other bootloaders but in the end I decided to go back to clover and noticed that one of the functions I used before now doesn't work. In my drivers folder I have the NTFS.efi driver and in (boot/default Boot Volume) I wrote "System Reserved" and it does not work instead of showing that partition by default the one of Mac continues to appear. Link to comment Share on other sites More sharing options...
vector sigma Posted April 24, 2020 Share Posted April 24, 2020 Just updated to 10.15.5 Beta 2 (19F62f) and the xcpm patch doesn't work 1 Link to comment Share on other sites More sharing options...
MacNB Posted April 24, 2020 Share Posted April 24, 2020 (edited) 2 hours ago, vector sigma said: Just updated to 10.15.5 Beta 2 (19F62f) and the xcpm patch doesn't work Thanks for updating your system and testing. You're probably in a better influencing position than me to report it ? Edited April 24, 2020 by MacNB 1 Link to comment Share on other sites More sharing options...

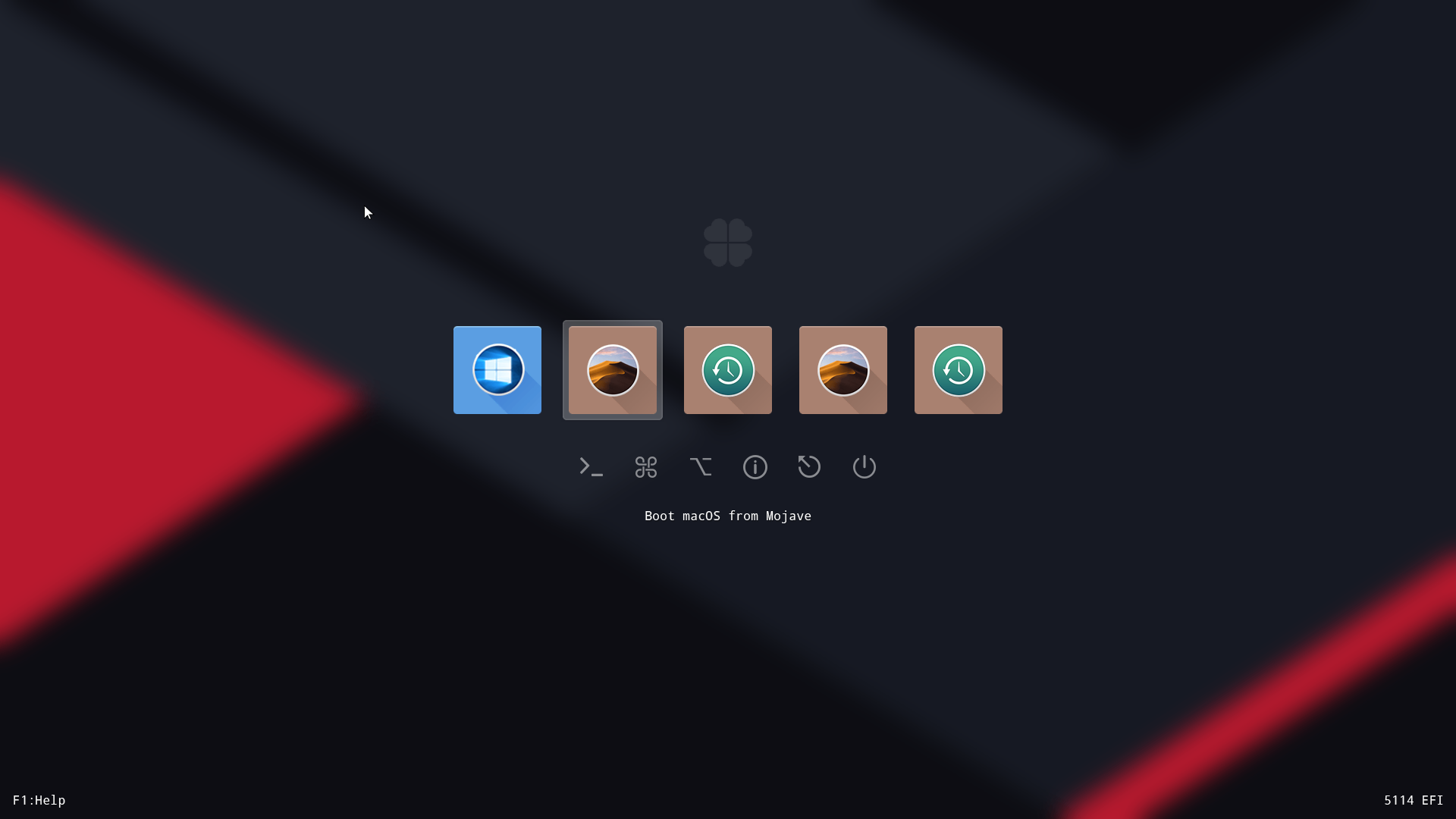

mick3lson Posted April 24, 2020 Share Posted April 24, 2020 I have updated clover to version 5114, my theme work well, I've found two dots near the custom title, It's only cosmetic issue, but up to the version 5107 wasn't there. Link to comment Share on other sites More sharing options...
vector sigma Posted April 25, 2020 Share Posted April 25, 2020 4 hours ago, MacNB said: Thanks for updating your system and testing. You're probably in a better influencing position than me to report it ? For my laptop is a tragedy, so yes I'll start immediately to stalk all devs 1 Link to comment Share on other sites More sharing options...

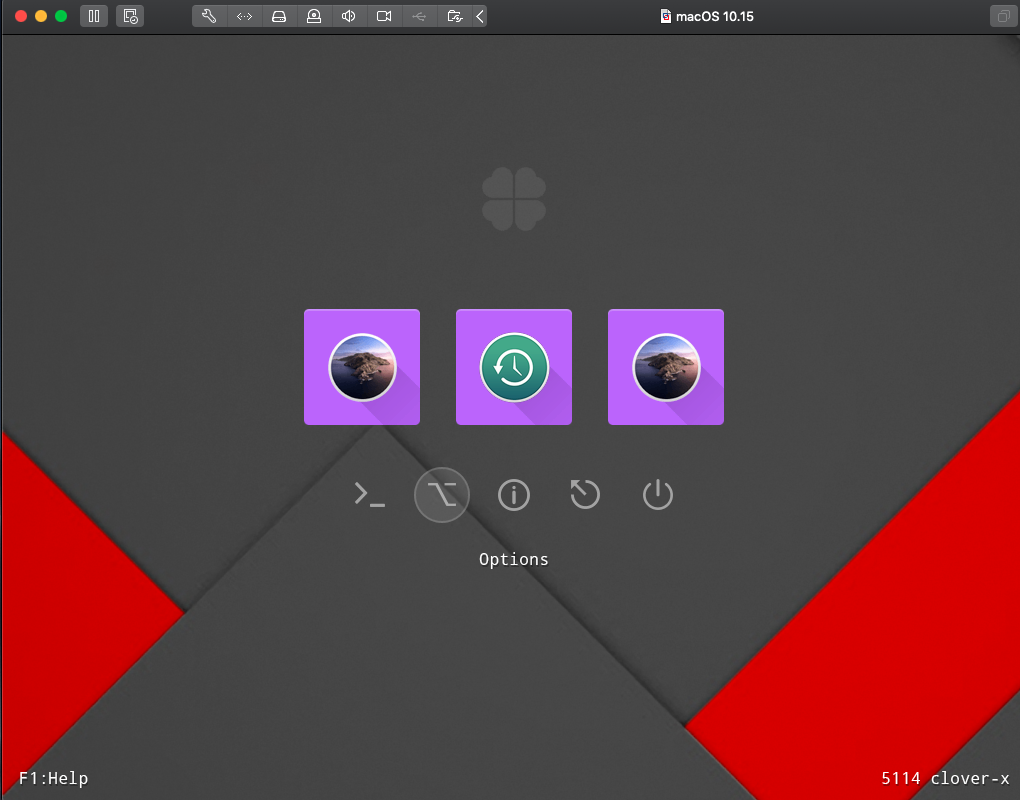

Alpha22 Posted April 25, 2020 Share Posted April 25, 2020 even with these two Themes I have written twice 5114 Link to comment Share on other sites More sharing options...
Slice Posted April 25, 2020 Share Posted April 25, 2020 2 hours ago, Alpha22 said: even with these two Themes I have written twice 5114 It means your USB stick is named "5114" don't know why. 1 Link to comment Share on other sites More sharing options...
vector sigma Posted April 25, 2020 Share Posted April 25, 2020 a 'diskutil list' can show it Link to comment Share on other sites More sharing options...
Alpha22 Posted April 25, 2020 Share Posted April 25, 2020 (edited) 5 hours ago, Slice said: It means your USB stick is named "5114" don't know why. that's right, you have advice on how to name it Edited April 25, 2020 by Alpha22 Link to comment Share on other sites More sharing options...
Slice Posted April 25, 2020 Share Posted April 25, 2020 Finder rename? Link to comment Share on other sites More sharing options...
Pene Posted April 25, 2020 Share Posted April 25, 2020 @Badruzeus Can you confirm if this change produces you a working binary on your Linux? 1 Link to comment Share on other sites More sharing options...
Pene Posted April 25, 2020 Share Posted April 25, 2020 On 4/25/2020 at 2:46 AM, mick3lson said: I have updated clover to version 5114, my theme work well, I've found two dots near the custom title, It's only cosmetic issue, but up to the version 5107 wasn't there. Corrected in master. 2 Link to comment Share on other sites More sharing options...
Pene Posted April 26, 2020 Share Posted April 26, 2020 @Slice Something is wrong in this commit. I am getting into an endless loop in kext_patcher, and it hangs before macOS starts loading. Link to comment Share on other sites More sharing options...
Alpha22 Posted April 26, 2020 Share Posted April 26, 2020 (edited) @Slice I tried installing Clover_r5114 on the hard drive, it should be ok Edited April 26, 2020 by Alpha22 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted April 26, 2020 Share Posted April 26, 2020 (edited) Hi @Slice I've got a problem to build Clover latest commit: [CPP] kext_inject Spoiler [CPP] kext_inject /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/kext_patcher.cpp:1013:53: error: use of undeclared identifier 'i' if (!Entry->KernelAndKextPatches->KextPatches.StartPattern || ^/Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/kext_patcher.cpp:1014:53: error: use of undeclared identifier 'i' !Entry->KernelAndKextPatches->KextPatches.StartPatternLen) { ^2 errors generated.make: *** [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit/OUTPUT/Platform/kext_patcher.obj] Error 1 build.py... : error 7000: Failed to execute command make tbuild [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit] build.py... : error F002: Failed to build module /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/refit.inf [X64, XCODE8, RELEASE] - Failed - Edited April 26, 2020 by Matgen84 Link to comment Share on other sites More sharing options...
Pene Posted April 26, 2020 Share Posted April 26, 2020 29 minutes ago, Matgen84 said: Hi @Slice I've got a problem to build Clover latest commit: [CPP] kext_inject Reveal hidden contents [CPP] kext_inject /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/kext_patcher.cpp:1013:53: error: use of undeclared identifier 'i' if (!Entry->KernelAndKextPatches->KextPatches.StartPattern || ^/Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/Platform/kext_patcher.cpp:1014:53: error: use of undeclared identifier 'i' !Entry->KernelAndKextPatches->KextPatches.StartPatternLen) { ^2 errors generated.make: *** [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit/OUTPUT/Platform/kext_patcher.obj] Error 1 build.py... : error 7000: Failed to execute command make tbuild [/Users/mathieu/src/Cloverbootloader/Build/Clover/RELEASE_XCODE8/X64/rEFIt_UEFI/refit] build.py... : error F002: Failed to build module /Users/mathieu/src/Cloverbootloader/rEFIt_UEFI/refit.inf [X64, XCODE8, RELEASE] - Failed - Corrected. 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 26, 2020 Share Posted April 26, 2020 15 hours ago, Pene said: @Badruzeus Can you confirm if this change produces you a working binary on your Linux? (Really sorry for late reply) I just built r5114 from latest commit under Debian 10 with GCC53, but on my test it still produces similar issue; once I see boot6 / boot7 I get Red Screen of Death immediately. It' s bit weird that last debug.log line printed about "Anime" while I use "Catalina" theme which contains no anime resource. Thanks. CloverBuild-AOH-Deb10-042620.txt.zip debug.log.crash-AOH.zip Link to comment Share on other sites More sharing options...
Jief_Machak Posted April 26, 2020 Share Posted April 26, 2020 I've refactored boot options as a XStringArray, which allow to get rid of AddLoadOption and RemoveLoadOption If someone have the impression that something changed with the boot options, come to me @Badruzeus and linux compiler : compilation under linux doesn't work yet See @Pene posts (https://www.insanelymac.com/forum/topic/341986-c-proposition/?page=29&tab=comments#comment-2719199). There is a unresolved problem with C++ static initialiser section. Will come soon (when I find the time !). 1 1 Link to comment Share on other sites More sharing options...

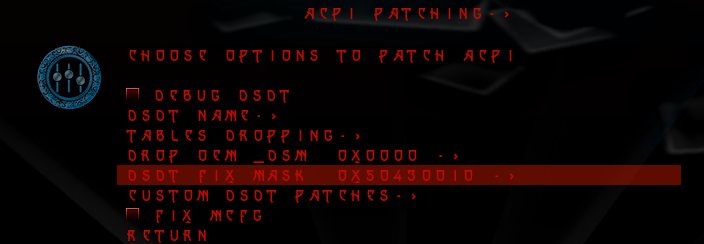

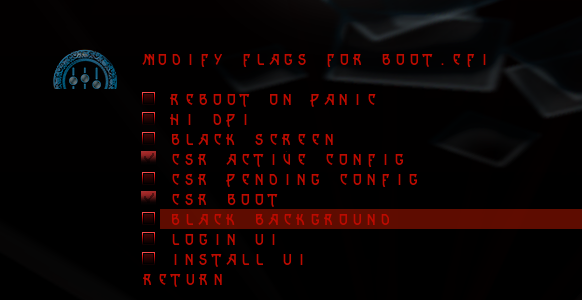

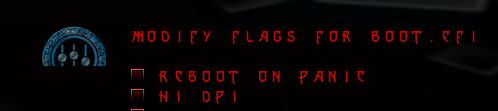

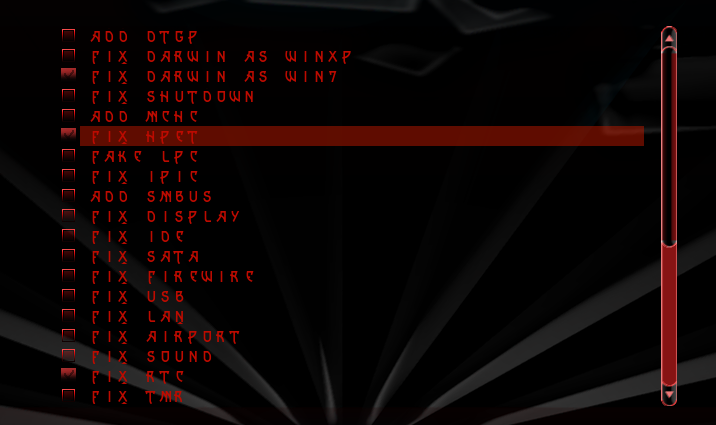

LAbyOne Posted April 26, 2020 Share Posted April 26, 2020 (edited) @Slice Hi sorry to bother you again, i've found a little glitch in graphics when selecting options menu, the first menu item, as per screenshots, shows indeed the icon but when selecting a submenu the icons is gone... and on others its half rendered Sorry can't give you more infos about it as i never noticed before appeared on this release r5114 (2ccc95513)) curious thing is, this behaviour acts only for submeus. Edited April 26, 2020 by LAbyOne Link to comment Share on other sites More sharing options...
