Andres ZeroCross Posted April 13, 2020 Share Posted April 13, 2020 1 hour ago, Andres ZeroCross said: Clover Logo and Background is not dissappeared after i press enter in macOS entry. Apple Logo with loading bar will shown after second stage. Clover version = r5011 Video.mp4 We'are in same boat 34 minutes ago, adrian_dsl said: Anyone else missing apple logo + loading bar in 5111? It happens when booting ubuntu as well. Press enter to boot catalina -> short black screen -> back to clover but without any menus -> loading bar appears at the final stage of the boot just before lockscreen as usual. Works normally in 5110. 5:982 0:001 SetStartupDiskVolume: 5:982 0:000 * Volume: 'Catalina' 5:982 0:000 * LoaderPath: '' 5:982 0:000 * DevPath: Catalina 5:982 0:000 * GUID = A88E067B-F05B-4296-83F8-60D21FEABAA4 5:983 0:000 * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>A88E067B-F05B-4296-83F8-60D21FEABAA4</string></dict></dict></dict></array> 5:983 0:000 SetScreenResolution: 1920x1080 - already set 5:983 0:000 Custom boot is using theme logo 6:074 0:090 Custom boot lock 6:074 0:000 Custom boot framebuffer 0x2FE0000000 0x7E9000 6:074 0:000 Custom boot GOP: 0x52C6AAB0 @0x2FE07E9000 0x300000 1024(1024)x768 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 13, 2020 Share Posted April 13, 2020 (edited) These are what I get from r5111 (SHA: 31079aea3): 1. MainEntries (both Badges and Volumes icons) are shown, thanks 2. Including Linux, but on my case Deepin, MX Linux and PhoenixOS (Android x86) are using \icons\os_linux.icns, NOT os_deepin, os_mx, os_phoenix *.icns compared to r5108. And I've tried batch renamed them from *.icns back to *.png as well, with a similar result. Either using Custom Entries or Scan Auto. I attached debug.log(s) below. debug.log_r5111_ScanAuto.zip debug.log_r5111_CustomEntries.zip #EDIT: What strange is, only Ubuntu shown proper icon hmmmb.. Edited April 13, 2020 by Badruzeus 1 Link to comment Share on other sites More sharing options...
Pene Posted April 13, 2020 Share Posted April 13, 2020 (edited) On 4/13/2020 at 4:23 PM, Badruzeus said: These are what I get from r5111 (SHA: 31079aea3): 1. MainEntries (both Badges and Volumes icons) are shown, thanks 2. Including Linux, but on my case Deepin, MX Linux and PhoenixOS (Android x86) are using \icons\os_linux.icns, NOT os_deepin, os_mx, os_phoenix *.icns compared to r5108. And I've tried batch renamed them from *.icns back to *.png as well, with a similar result. Either using Custom Entries or Scan Auto. #EDIT: What strange is, only Ubuntu shown proper icon hmmmb.. I think I see a problem with Linux Scan. Check again after last commit. Edited April 14, 2020 by Pene 1 Link to comment Share on other sites More sharing options...
Pene Posted April 13, 2020 Share Posted April 13, 2020 5 hours ago, adrian_dsl said: Anyone else missing apple logo + loading bar in 5111? It happens when booting ubuntu as well. Press enter to boot catalina -> short black screen -> back to clover but without any menus -> loading bar appears at the final stage of the boot just before lockscreen as usual. Works normally in 5110. 4 hours ago, Andres ZeroCross said: We'are in same boat Do you guys have CustomLogo anywhere in your config.plist? I have no experience with it, but is it not what it should do? Link to comment Share on other sites More sharing options...
graphine Posted April 13, 2020 Share Posted April 13, 2020 11 minutes ago, Pene said: Do you guys have CustomLogo anywhere in your config.plist? I have no experience with it, but is it not what it should do? Setting custom logo to NO fixed this. Since it appeared in 5111 I didn't think it would come from config.plist. Link to comment Share on other sites More sharing options...
pkdesign Posted April 13, 2020 Share Posted April 13, 2020 20 hours ago, vector sigma said: but 5110 is old.. try latest. CLOVERX64.efi.zip BOOTX64.efi.zip I assume this is included in the 5111 build? Link to comment Share on other sites More sharing options...
vector sigma Posted April 13, 2020 Share Posted April 13, 2020 (edited) 7 minutes ago, pkdesign said: I assume this is included in the 5111 build? no, otherwise I would have linked the link to the releases. But were you talking about the previous prerelease anyway? EDIT files posted are old now, I think this post contains better Clover Edited April 13, 2020 by vector sigma Link to comment Share on other sites More sharing options...
pkdesign Posted April 13, 2020 Share Posted April 13, 2020 I just updated using 5111 release which did the same thing to my boot screen. But when I copied your posted files it now works. 1 Link to comment Share on other sites More sharing options...
vector sigma Posted April 13, 2020 Share Posted April 13, 2020 Just now, pkdesign said: I just updated using 5111 release which did the same thing to my boot screen. But when I copied your posted files it now works. see my edit to my last post Link to comment Share on other sites More sharing options...
pkdesign Posted April 13, 2020 Share Posted April 13, 2020 (edited) Okay got it and replaced your older posted version. Working great now! I assume 5112 release will have this fix? Edited April 13, 2020 by pkdesign Link to comment Share on other sites More sharing options...
vector sigma Posted April 13, 2020 Share Posted April 13, 2020 16 minutes ago, pkdesign said: Okay got it and replaced your older posted version. Working great now! I assume 5112 release will have this fix? of course! Link to comment Share on other sites More sharing options...
fusion71au Posted April 13, 2020 Share Posted April 13, 2020 (edited) On 4/13/2020 at 4:21 PM, Slice said: It is a stopper bug which should be repaired first of all. Make please DarwinDumper report (without HTML report, without BIOS, make private, archive as LZMA). I want to see many parameters that may influence. r5108 Wifi FakeID working: DarwinDumper_3.0.4_14.04_08.30.52_iMac11,3_Clover_X64_5108_(master,_commit_f7254f53e)_Sierra_16G2136_fusion71au.tar.lzma r5111 Wifi FakeID not working: DarwinDumper_3.0.4_14.04_08.21.56_iMac11,3_Clover_X64_5111_(master,_commit_c572e50ec)_Sierra_16G2136_fusion71au.tar.lzma 3 hours ago, Slice said: Thanks, I found the difference. It is how DSDT patch working. Will be corrected soon. Confirm issue now fixed with Clover r5112 . Edited April 14, 2020 by fusion71au Issue fixed with Clover r5112 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted April 14, 2020 Share Posted April 14, 2020 8 hours ago, Pene said: Do you guys have CustomLogo anywhere in your config.plist? I have no experience with it, but is it not what it should do? 8 hours ago, adrian_dsl said: Setting custom logo to NO fixed this. Since it appeared in 5111 I didn't think it would come from config.plist. Thank you,, set custom log to NO to fix the problem Link to comment Share on other sites More sharing options...
Slice Posted April 14, 2020 Share Posted April 14, 2020 5 hours ago, fusion71au said: r5108 Wifi FakeID working: DarwinDumper_3.0.4_14.04_08.30.52_iMac11,3_Clover_X64_5108_(master,_commit_f7254f53e)_Sierra_16G2136_fusion71au.tar.lzma r5111 Wifi FakeID not working: DarwinDumper_3.0.4_14.04_08.21.56_iMac11,3_Clover_X64_5111_(master,_commit_c572e50ec)_Sierra_16G2136_fusion71au.tar.lzma Thanks, I found the difference. It is how DSDT patch working. Will be corrected soon. 2 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 14, 2020 Share Posted April 14, 2020 (edited) 13 hours ago, Pene said: I think I see a problem with Linux Scan. Check again after last commit: CLOVERx64.zip It remains a same result, does Legacy make difference? I don't think so hmmb... I never use CustomIcon on GUI nor Entry #btw. Thanks. Edited April 14, 2020 by Badruzeus Link to comment Share on other sites More sharing options...
Pene Posted April 14, 2020 Share Posted April 14, 2020 (edited) 10 hours ago, Badruzeus said: It remains a same result, does Legacy make difference? I don't think so hmmb... I never use CustomIcon on GUI nor Entry #btw. Thanks. Strange. Give me a log with this debug version please Edited April 14, 2020 by Pene 1 Link to comment Share on other sites More sharing options...

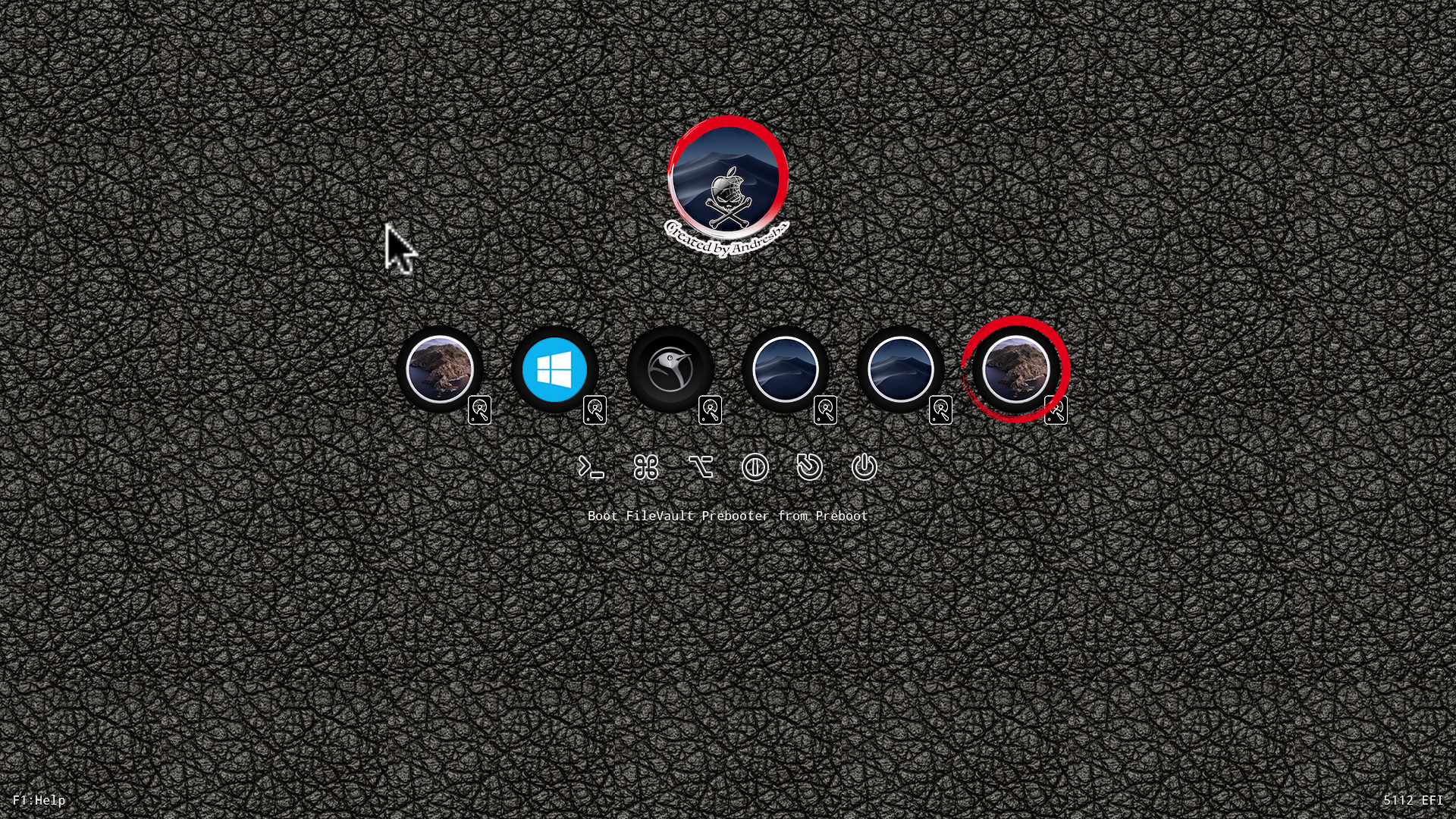

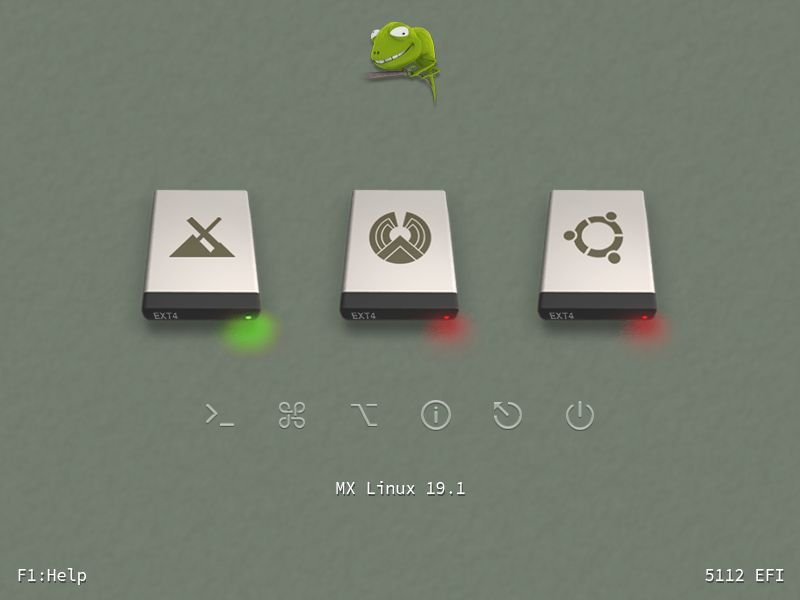

Badruzeus Posted April 14, 2020 Share Posted April 14, 2020 (edited) 2 hours ago, Pene said: Strange. Give me a log with this debug version please CLOVERX64-DEBUG.zip Much better! Now with this r5112 (Debug version) Linux Entries shown proper icons IF using Scan (Auto) as seen on screenshot0 below, but NOT with 'Custom Entries'. (I'm just not sure what logs said that lot of *.icns are not found from current theme: Chamelia, though they're really exist. I don't use Day or Light properties for all my themes #btw). I attached my config.plist as well, thanks and sorry for delay response. debug.log_r5112_CustomEntries.txt.zip debug.log_r5112_ScanAuto.txt.zip config_AOH_ScanAuto.plist.zip Edited April 14, 2020 by Badruzeus Add missing config.plist Link to comment Share on other sites More sharing options...

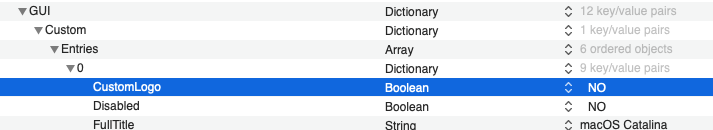

Andres ZeroCross Posted April 14, 2020 Share Posted April 14, 2020 @Slice @Pene I have used Clover r5112 offficial release, with these options in Config.plist. The problem like this videos is back, I need to set custom entry with Custom Logo = No to solve this issue. But without custom entry + custom logo = No, the problem will be shown Link to comment Share on other sites More sharing options...
Pene Posted April 14, 2020 Share Posted April 14, 2020 (edited) 48 minutes ago, Badruzeus said: Much better! Now with this r5112 (Debug version) Linux Entries shown proper icons IF using Scan (Auto) as seen on screenshot0 below, but NOT with 'Custom Entries'. Good. Well that means that you probably did not test with the binary I posted before (with the LinuxScan fix) as it was the same just without the debugs (and a different reported version). Regarding custom entries: I'm quite sure that even before, Clover did not have MX linux and other distros you are mentioning in the standard IconsNames[] array (while ubuntu actually is there, that's why it behaves differently). So when defining a Custom Entry for them, if you want a special icon, you need to add in the relevant custom entry an entry for which icon you wish to be used (which I see are not present in your config.plist). For example: <key>Image</key> <string>mx</string> or alternatively (both forms are accepted): <key>Image</key> <string>os_mx</string> However, when using AutoScan, many more Linux distributions exist in the LinuxEntryData[] array, so that's why it works there. I would like to emphasize again, that as far as I'm aware, this is how it always was with Clover. If you think otherwise, please test again with a version you think behaves differently for Custom items, and let me know the results. Edited April 14, 2020 by Pene 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 14, 2020 Share Posted April 14, 2020 (edited) 32 minutes ago, Pene said: So when defining a Custom Entry for them, if you want a special icon, you need to add in the relevant custom entry an entry for which icon you wish to be used (which I see are not present in your config.plist). For example: <key>Image</key> <string>mx</string> or alternatively (both forms are accepted): <key>Image</key> <string>os_mx</string> Thank you, I think this Properties should be available on 'config-sample.plist - GUI - Custom - Entries' section; since user may be using it for reference. Excuse me @vector sigma: With ./buildme script I mistakenly choosing '13) Update Clover (reset changes)' but to be honest I'm NOT SURE. However, Ctrl+C within Terminal is the only option bcoz it didn't give me another choice. Edited April 14, 2020 by Badruzeus 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 14, 2020 Share Posted April 14, 2020 (edited) @Pene Perfectly works with those 'Image' Properties under 'GUI - Custom - Entries'. Many thanks. And I just realize that what not found on my theme were ~night*.icns, among others such as sound_night*.wav, etc. IDK how to tell Clover that my uploaded themes are all DayLight. debug.log_r5112_CustomEntries_Image.zip #EDIT: ..and it's true that all my themes didn't include ~night stuffs. Edited April 14, 2020 by Badruzeus Link to comment Share on other sites More sharing options...

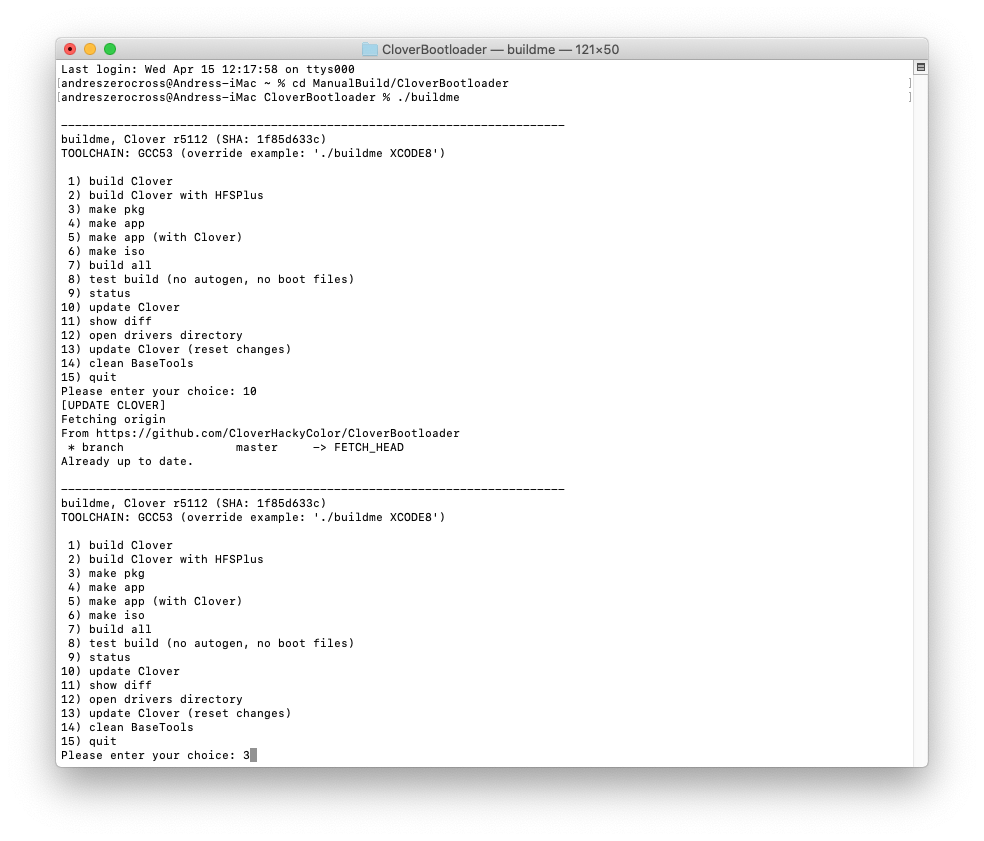

vector sigma Posted April 14, 2020 Share Posted April 14, 2020 (edited) 54 minutes ago, Badruzeus said: Excuse me @vector sigma: With ./buildme script I mistakenly choosing '13) Update Clover (reset changes)' but to be honest I'm NOT SURE. However, Ctrl+C within Terminal is the only option bcoz it didn't give me another choice. Sorry I did not understand the problem and why you press Ctrl+C. y or Y stand for yes/true as a confirmation that you are sure, and any other button pressed skip it. Isn't it? Edited April 14, 2020 by vector sigma typo Link to comment Share on other sites More sharing options...
Slice Posted April 14, 2020 Share Posted April 14, 2020 35 minutes ago, Badruzeus said: @Pene Perfectly works with those 'Image' Properties under 'GUI - Custom - Entries'. Many thanks. And I just realize that what not found on my theme was ~night*.icns, among others such as sound_night*.wav (different naming?). IDK how to tell Clover that my uploaded themes are all DayLight. debug.log_r5112_CustomEntries_Image.zip #EDIT: ..and it's true that all my themes didn't include ~night stuffs. I think it is just log messages? We can exclude messages that night icons are not found. 1 Link to comment Share on other sites More sharing options...
Badruzeus Posted April 14, 2020 Share Posted April 14, 2020 (edited) 20 minutes ago, vector sigma said: Sorry I did not understand the problem and why you press Ctrl+C. y or Y stand for yes/true as a confirmation that you are sure, and any other button pressed skip it. Isn't it? Oh, I see. So any other keys than 'y' stand for 'n' = no/false. Got it, thanks. Edited April 14, 2020 by Badruzeus 1 Link to comment Share on other sites More sharing options...
1Ale1 Posted April 14, 2020 Share Posted April 14, 2020 @Slice when should we expect to have an English translation with all the changes and features in order to keep our config.plist updated with the changes you apply to clover? (for example, provide docs on how to use the new theme engine - but this is one of the most marginal ones to know, actually there are more important aspects to document between changes on clover which affect the config.plist and its adjustments) Thank you in advance Link to comment Share on other sites More sharing options...
