Maniac10 Posted June 29, 2013 Share Posted June 29, 2013 Try using the correct slots for dual channel. At projectosx you said you have blue and white slots, place the modules in the same colour slots, be it white or blue (slots 1-3 are preferred). Your wake issue is very common with Clover UEFI and it wasn't solved yet. There's a huge thread @projectosx about it. Link to comment Share on other sites More sharing options...
kidalive Posted June 29, 2013 Share Posted June 29, 2013 (edited) Try using the correct slots for dual channel. At projectosx you said you have blue and white slots, place the modules in the same colour slots, be it white or blue (slots 1-3 are preferred). Your wake issue is very common with Clover UEFI and it wasn't solved yet. There's a huge thread @projectosx about it. Yes, dude. I placed them all into the white slots now. The sleep failure shows below. Edited June 29, 2013 by Slice too long Link to comment Share on other sites More sharing options...
kidalive Posted June 30, 2013 Share Posted June 30, 2013 FakeSMCDevice: 5 keys exported by Clover EFI SMC: successfully initialized CPUSensors: CPU family 0x6, model 0x3a, stepping 0x9, cores 4, threads 4, TJmax 105 CPUSensors: setting platform to d8 console relocated to 0xf80000000 Sleep failure code 0x00000000 0x21006700 Above is the kernel boot message says Sleep failure code 0x00000000 0x21006700. Below is boot log of Clover on mem and CPU. Mem: 0:100 0:000 Starting rEFIt rev 1902 on American Megatrends EFI 0:100 0:000 SelfDevicePath=PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x8,0x0)/HD(1,MBR,0x00000000,0x1,0x1dc7ff) @D8DE4B18 0:100 0:000 SelfDirPath = \EFI\BOOT 0:101 0:001 Total Memory Slots Count = 4 0:101 0:000 Type 17 Index = 0 0:101 0:000 SmbiosTable.Type17->Speed = 1600 0:101 0:000 SmbiosTable.Type17->Size = 4096 0:101 0:000 Type 17 Index = 1 0:101 0:000 SmbiosTable.Type17->Speed = 1600 0:101 0:000 SmbiosTable.Type17->Size = 4096 0:101 0:000 Type 17 Index = 2 0:101 0:000 Ignoring insane frequency value 0MHz 0:101 0:000 SmbiosTable.Type17->Speed = 0 0:101 0:000 SmbiosTable.Type17->Size = 0 0:101 0:000 Type 17 Index = 3 0:101 0:000 Ignoring insane frequency value 0MHz 0:101 0:000 SmbiosTable.Type17->Speed = 0 0:101 0:000 SmbiosTable.Type17->Size = 0 0:101 0:000 Boot status=0 0:101 0:000 Clover revision: 1902 running on To be filled by O.E.M and 0:295 0:000 ScanSPD() start 0:295 0:000 SMBus CmdReg: 0x1 0:295 0:000 Scanning SMBus [8086:1E22], mmio: 0xF7E15004, ioport: 0xF040, hostc: 0x1 0:316 0:020 SPD[1]: Type 11 @0x51 0:325 0:008 Using XMP Profile2, dropping previous frequency 1600MHz 0:325 0:000 DDR speed 1866MHz 0:325 0:000 Slot: 1 Type 24 4096MB 1866MHz Vendor=Nanya Technology PartNo=M2X4G64CB8HG9N-DG SerialNo=09030005000A0402 0:345 0:020 SPD[3]: Type 11 @0x53 0:354 0:008 Using XMP Profile2, dropping previous frequency 1600MHz 0:354 0:000 DDR speed 1866MHz 0:354 0:000 Slot: 3 Type 24 4096MB 1866MHz Vendor=Nanya Technology PartNo=M2X4G64CB8HG9N-DG SerialNo=0C0B0005000A0405 0:481 0:127 ScanSPD() end 0:481 0:000 Calibrated TSC frequency =3403812520 =3403MHz CPU: 0:295 0:001 CPU Vendor = 756E6547 Model=306A9 0:295 0:000 The CPU supported turbo 0:295 0:000 BrandString = Intel(R) Core(TM) i5-3570K CPU @ 3.40GHz 0:295 0:000 non-usable FLEX_RATIO = F0000 0:295 0:000 corrected FLEX_RATIO = E0000 0:295 0:000 FSBFrequency=105MHz 0:295 0:000 Corrected FSBFrequency=100MHz 0:295 0:000 Vendor/Model/Stepping: 0x756E6547/0x3A/0x9 0:295 0:000 Family/ExtFamily: 0x6/0x0 0:295 0:000 MaxDiv/MinDiv: 34.0/16 0:295 0:000 Turbo: 36/37/38/38 0:295 0:000 Features: 0xBFEBFBFF 0:295 0:000 Threads: 4 0:295 0:000 Cores: 4 0:295 0:000 FSB: 100 MHz 0:295 0:000 CPU: 3600 MHz 0:295 0:000 TSC: 3600 MHz 0:295 0:000 PIS: 400 MHz Slepp and wake not working and the turbo seems partial working. Any fix with the sleep and turbo issue with Clover bootloader? Attached with my DSDTs of original and modified ones. DSDTS.zip Link to comment Share on other sites More sharing options...
Slice Posted July 1, 2013 Share Posted July 1, 2013 Your problem is well known 0:100 0:000 Starting rEFIt rev 1902 on American Megatrends EFI If you started with CloverEFI (legacy boot as well as Chameleon) you will have good working sleep/wake. Did you try? It is not depending on your DSDT or your memory detection. It is a problem of AMI UEFI. Link to comment Share on other sites More sharing options...

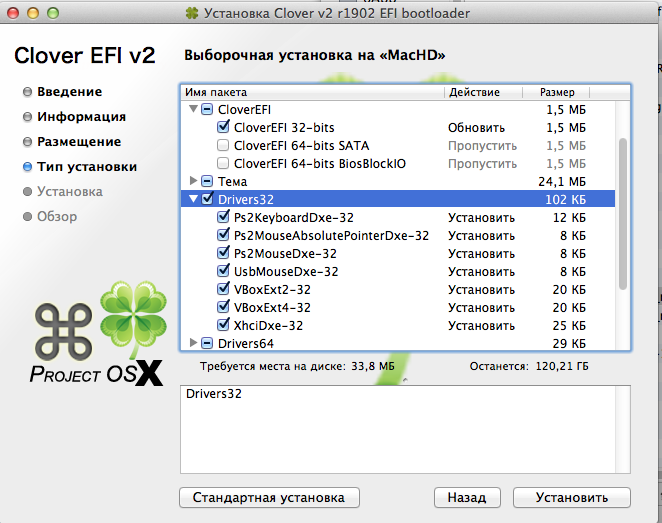

Slice Posted July 4, 2013 Share Posted July 4, 2013 Where i can find a 32 bits version of clover? i need it. Same installer Link to comment Share on other sites More sharing options...
FranticJohny Posted July 5, 2013 Share Posted July 5, 2013 Hello slice, some thoughts about nvram: I 'm using an uefi mainboard (MSI Z77A-G45) but I have some issues with the UEFI booting, so I boot the system with CloverEFI so far. If I understand correctly, in UEFI boot the system can directly read from and write to the native nvram from UEFI bios. In CloverEFI the nvram is emulated and saved with some scripts in a file on shutdown, which is read on the next boot by clover and injected to the OS. This is done because the normal legacy bios doesn't have native nvram. Is it correct so far? Is it possible to use the native uefi nvram while booting CloverEFI? Link to comment Share on other sites More sharing options...
Zulakis Posted July 5, 2013 Share Posted July 5, 2013 I would like to install Clover manually as described in the documentation (http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/?do=findComment&comment=1852922). However, I couldn't find the required files - the download on sourceforge only contains a .pkg file. Link to comment Share on other sites More sharing options...
Maniac10 Posted July 5, 2013 Share Posted July 5, 2013 I would like to install Clover manually as described in the documentation (http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/?do=findComment&comment=1852922). However, I couldn't find the required files - the download on sourceforge only contains a .pkg file. - A more up-to-date wiki is here (just spreading the word) - You may extract the files from the pkg using Pacifist. Link to comment Share on other sites More sharing options...
Zulakis Posted July 5, 2013 Share Posted July 5, 2013 - A more up-to-date wiki is here (just spreading the word) - You may extract the files from the pkg using Pacifist. Hi, unpacking it created a big mess of files: AltBoot.pkg Clover_v2_r1902.pkg FSInject-64.pkg os_one.pkg pt-BR.lproj UsbMouseDxe-64.pkg applestyle.pkg Conclusion.html FSInject-64.UEFI.pkg OsxAptioFixDrv-64.pkg pt.lproj Utils.pkg background.tiff CsmVideoDxe-64.pkg hr.lproj OsxFatBinaryDrv-32.UEFI.pkg rc.scripts.core.pkg VBoxExt2-32.pkg BiosBoot.pkg DataHubDxe-64.pkg iclover.pkg OsxFatBinaryDrv-64.UEFI.pkg rc.scripts.on.all.volumes.pkg VBoxExt2-64.pkg black_green.pkg de.lproj id.lproj OsxLowMemFixDrv-64.pkg rc.scripts.on.target.pkg VBoxExt4-32.pkg bluemac.pkg Description.html it.lproj PackageInfo Resources VBoxExt4-64.pkg Bom disable_sleep_proxy_client.pkg ja.lproj PartitionDxe-64.pkg ru.lproj VboxHfs-32.UEFI.pkg boot0af.pkg Distribution ko.lproj Payload Scripts VboxHfs-64.UEFI.pkg boot0ss.pkg EFIFolder.pkg Localizable.strings pl.lproj Scripts.unp Welcome.html bootcamp.pkg EmuVariableUefi-64.pkg magnifico.pkg Post.pkg Target.ESP.pkg XhciDxe-32.pkg bootNo.pkg en.lproj metal.pkg Pre.pkg thinkpad.pkg XhciDxe-64.pkg cloverEFI.32.pkg es.lproj mrengles.pkg Ps2KeyboardDxe-32.pkg [TOC].xml zh_CN.lproj cloverEFI.64.blockio.pkg fr.lproj nl.lproj Ps2MouseAbsolutePointerDxe-32.pkg UEFI.only.pkg zh_TW.lproj cloverEFI.64.sata.pkg FSInject-32.pkg orange.pkg Ps2MouseDxe-32.pkg uk.lproj CloverPrefpane.pkg FSInject-32.UEFI.pkg os_box.pkg Ps2MouseDxe-64.pkg UsbMouseDxe-32.pkg Not sure how to deal with that... Link to comment Share on other sites More sharing options...
k3nny Posted July 5, 2013 Share Posted July 5, 2013 @Zulakis: The files should be in BiosBoot.pkg. Try extracting it. Link to comment Share on other sites More sharing options...
Zulakis Posted July 5, 2013 Share Posted July 5, 2013 It is a real pain in the ass to unpack these files on any linux OS. - First, you are going to need "xar" which is not available on ubuntu 12.04 and debian squeezy/wheezy anymore. - Second, when unpacking the .pkg using 'xar -x -f Clover.pkg', it creates a bunch of folders which only contain the files "Bom", "PackageInfo" and "Payload" - these files need to be extracted once again. It would be really good if there was a simple .zip archive available. Also, if there was an installation script using /bin/sh and normal POSIX-tools it would be much easier to install it from linux. The current .pkg installation script is completely locked to OS X. After extracting BiosBoot.pkg/Payload I got the following files: ./EFIROOTDIR ./EFIROOTDIR/EFI ./EFIROOTDIR/EFI/CLOVER ./EFIROOTDIR/EFI/CLOVER/doc ./EFIROOTDIR/EFI/CLOVER/doc/Installation.txt ./usr/standalone ./usr/standalone/i386 ./usr/standalone/i386/x64 ./usr/standalone/i386/x64/boot7 ./usr/standalone/i386/x64/boot6 ./usr/standalone/i386/boot1h ./usr/standalone/i386/boot1h2 ./usr/standalone/i386/ia32 ./usr/standalone/i386/ia32/boot3 ./usr/standalone/i386/boot0ss ./usr/standalone/i386/Installation.txt ./usr/standalone/i386/Description.txt ./usr/standalone/i386/boot1f32alt ./usr/standalone/i386/boot1f32 ./usr/standalone/i386/boot0af ./usr/standalone/i386/boot0md however, all the other files which usually are placed inside of /EFI/ are missing. Where can I find these? (Again, a simple .zip would make everything much easier.) Link to comment Share on other sites More sharing options...
Slice Posted July 5, 2013 Share Posted July 5, 2013 Hello slice, some thoughts about nvram: I 'm using an uefi mainboard (MSI Z77A-G45) but I have some issues with the UEFI booting, so I boot the system with CloverEFI so far. If I understand correctly, in UEFI boot the system can directly read from and write to the native nvram from UEFI bios. In CloverEFI the nvram is emulated and saved with some scripts in a file on shutdown, which is read on the next boot by clover and injected to the OS. This is done because the normal legacy bios doesn't have native nvram. Is it correct so far? Is it possible to use the native uefi nvram while booting CloverEFI? It is correct. It seems to be possible to get access to native nvram while booting by CloverEFI. Just some programming effort required. And it is not one-line change. I would like to install Clover manually as described in the documentation (http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/?do=findComment&comment=1852922). However, I couldn't find the required files - the download on sourceforge only contains a .pkg file. You may download BootableISO that contains all you need. https://sourceforge.net/projects/cloverefiboot/files/Bootable_ISO/ Link to comment Share on other sites More sharing options...
Zulakis Posted July 5, 2013 Share Posted July 5, 2013 You may download BootableISO that contains all you need.https://sourceforge.net/projects/cloverefiboot/files/Bootable_ISO/ This is just what I was looking for. Thanks! I would like to start Clover (mbr-version) from grub2. I got the EFI&BOOT folders, boot0af, boot1f32alt and boot on a FAT32 usb stick. Partition is being marked as active. Chainloading 'boot' doesn't work, it gives me a 'invalid signature' error. When chainloading or boot0af or boot1f32alt I just get a blinking prompt. (seems to be stuck, nothing happens for >30 seconds). Multibotting chameleons 'boot' works without any problems, however clover's boot doesn't seem to contain valid multiboot headers so I can't multiboot it. Another good reason to get this working is that it enables users to boot clover with any syslinux derivate (for example pxelinux) using the mboot.c32 module and any other bootloaders implementing multiboot. You can find infos about multiboot here http://www.gnu.org/software/grub/manual/multiboot/multiboot.html As chameleon already has it implemented, you can probably copy most of it, the relevant files probably are multiboot.h, mboot.h and mboot.c. Would be great if you could implement this, or is there another way to chainload/multiload clover? Thanks! Link to comment Share on other sites More sharing options...
ameris_cyning Posted July 6, 2013 Share Posted July 6, 2013 I am having an issue with Haswell and Mavericks. I prefer Clover EFI because I can use my bluetooth keyboard in the EFI setup screen (what is the proper name of EFI BIOS?). However, Mavericks and Mountain Lion cannot boot with Clover. It will just show a black screen as soon as it is done finishing with loading the kernel cache. This does not happen in Chameleon, but it is the only solution to this issue. My specs are in my sig. Link to comment Share on other sites More sharing options...
Zulakis Posted July 6, 2013 Share Posted July 6, 2013 I have also written boot1h to the partition bootsectors of my os x partition and tried to chainload the PBR using `chainloader +1`. This also only generates a blinking prompt. Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2013 Share Posted July 6, 2013 I have also written boot1h to the partition bootsectors of my os x partition and tried to chainload the PBR using `chainloader +1`. This also only generates a blinking prompt. Did you take into account that boot1h from Chameleon can load only 440kb while Clover is 483kb? This is why Clover repo contains own versions of boot* files. Link to comment Share on other sites More sharing options...
Zulakis Posted July 6, 2013 Share Posted July 6, 2013 Did you take into account that boot1h from Chameleon can load only 440kb while Clover is 483kb? This is why Clover repo contains own versions of boot* files. Yes, I used boot1h from Clover r1902. Any ideas why chainloading the pbr doesn't work? Also, did you think about making stage 2 multiboot compatible? Edit: Not sure how much you know about grub. The 'chainloader +1' command I mentioned before does load the first sector of the partition. See http://www.gnu.org/software/grub/manual/grub.html#chainloader Edit2: Did further testing. Chainloading boot1f32alt does work, chainloading boot1h doesn't work though... (Yes, it is on a HFS partition) My Mac OS X partition is a logical one, but that shouldn't matter since the root device is already selected when stage 1 is executed, right? Any ideas? Link to comment Share on other sites More sharing options...
FranticJohny Posted July 6, 2013 Share Posted July 6, 2013 It seems to be possible to get access to native nvram while booting by CloverEFI. Just some programming effort required. And it is not one-line change. Automatic detection of native nvram would be a really nice feature. I hope this idea lands somehow in your list :-) Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2013 Share Posted July 6, 2013 Yes, I used boot1h from Clover r1902. Any ideas why chainloading the pbr doesn't work? Also, did you think about making stage 2 multiboot compatible? Edit: Not sure how much you know about grub. The 'chainloader +1' command I mentioned before does load the first sector of the partition. See http://www.gnu.org/software/grub/manual/grub.html#chainloader Edit2: Did further testing. Chainloading boot1f32alt does work, chainloading boot1h doesn't work though... (Yes, it is on a HFS partition) My Mac OS X partition is a logical one, but that shouldn't matter since the root device is already selected when stage 1 is executed, right? Any ideas? I know nothing about grub but I know all about sequence MBR boot sector -> PBR boot sector -> boot file in the partition. chainloading boot1h must work same way as boot1w32. There are same technologies just different FS drivers. I don't know what is mean "multiboot compatible". It seems to be grub specific and has no relation to boot1h. Automatic detection of native nvram would be a really nice feature. I hope this idea lands somehow in your list :-) Hoping is not hard work. Link to comment Share on other sites More sharing options...
Zulakis Posted July 6, 2013 Share Posted July 6, 2013 Hi, I know nothing about grub but I know all about sequence MBR boot sector -> PBR boot sector -> boot file in the partition. chainloading boot1h must work same way as boot1w32. There are same technologies just different FS drivers. Chainloading boot1f32alt does work, boot1h doesn't. Any ideas on that? Maybe you can install a simple ubuntu or other linux distro which uses grub in a VM and test this? I don't know what is mean "multiboot compatible". It seems to be grub specific and has no relation to boot1h. You can find information about the multiboot specification (including sample code) here: http://en.wikipedia.org/wiki/Multiboot_Specification - http://www.gnu.org/software/grub/manual/multiboot/multiboot.html As it is already implemented in chameleon it shouldn't be too hard to port it to clover I think. Link to comment Share on other sites More sharing options...
Slice Posted July 7, 2013 Share Posted July 7, 2013 But sorry, documentation is very large. What should I read about the problem? Clover uses the same boot0, boot1h, boot as Chameleon. If it is implemented in Chameleon why not in Clover? The real difference is in boot1h Chameleon's kBoot2Sectors EQU (448 * 1024 - 512) / kSectorBytes ; max size of 'boot' file in sectors For Clover I change 448 -> 472 Is it multiboot violation? Link to comment Share on other sites More sharing options...
Stanwell Park Posted July 7, 2013 Share Posted July 7, 2013 I encountered an issue that I cannot save my config.plist after upgrading to later clover build. How many times I saved my config file and restart, the config file doesn't change. I tried install on an USB using my backup but seems clover load the default config file somewhere else. Anyone encounter same issue? Link to comment Share on other sites More sharing options...
Slice Posted July 7, 2013 Share Posted July 7, 2013 I encountered an issue that I cannot save my config.plist after upgrading to later clover build. How many times I saved my config file and restart, the config file doesn't change. I tried install on an USB using my backup but seems clover load the default config file somewhere else. Anyone encounter same issue? The place for config.plist was changed in new revisions. Now the path is /EFI/CLOVER/config.plist or may be OEM folder /EFI/CLOVER/OEM/xxx/config.plist or /EFI/CLOVER/OEM/xxx/UEFI/config.plist Link to comment Share on other sites More sharing options...
Stanwell Park Posted July 7, 2013 Share Posted July 7, 2013 The place for config.plist was changed in new revisions. Now the path is /EFI/CLOVER/config.plist or may be OEM folder /EFI/CLOVER/OEM/xxx/config.plist or /EFI/CLOVER/OEM/xxx/UEFI/config.plist I replaced 3 config.plist from backup as listed but no change. Every time I start up, options remain the same before I replace. However, when I check the 3 files, they were the version from my backup. Link to comment Share on other sites More sharing options...
Slice Posted July 7, 2013 Share Posted July 7, 2013 May be you should read again here #32 ? Link to comment Share on other sites More sharing options...
