Slice
Slice
Posted
Posted

@arsradu

If you have FakeSMC and other critical kexts in SLE then you sure you can boot after OS update broking kext injection.

Anyway you need FakeSMC and LAN in Clover/kext folder to boot into Recovery.

So the logic is follow: let all kext to be in SLE and so in cache to speedup boot and for some troubles. But keep all kexts also in Other folder to boot into recovery or to OS Installer.

Then "Detect" has a sense to not inject kexts from "Other" if we have them in cache but do this in the case of clean cache (Recovery or Installer).



Anyway I see that double injection is not dangerous so we can always set Inject=YES.

10 hours ago, lisai9093 said:

For boot chime, is it possible to add USB speaker support? My desktop use USB speaker as the only output

I don't know how.

10 hours ago, bidero said:

Guys, I'm still having problems with boot chime :cry:  I can only select AMD HDMI and Intel HDMI without freeze. Whenever I want to change my audio output to ALC1150 (any output), whole GUI freezes and no value is written to NVRAM. Since newer Clover revisions use different way of saving NVRAM value, BootChimeCfg is no longer working also. Tested on 4870, 4871 and 4876.

I have no such issue with my ALC1150.

  • Like 3
Link to comment
Share on other sites
smolderas
smolderas
Posted
Posted
1 hour ago, Slice said:

@arsradu

If you have FakeSMC and other critical kexts in SLE then you sure you can boot after OS update broking kext injection.

Anyway you need FakeSMC and LAN in Clover/kext folder to boot into Recovery.

So the logic is follow: let all kext to be in SLE and so in cache to speedup boot and for some troubles. But keep all kexts also in Other folder to boot into recovery or to OS Installer.

Then "Detect" has a sense to not inject kexts from "Other" if we have them in cache but do this in the case of clean cache (Recovery or Installer).



Anyway I see that double injection is not dangerous so we can always set Inject=YES.

I don't know how.

I have no such issue with my ALC1150.

Hi Slice,



can you please separate the boot chime from theme loading, so we can use boot chime while GUI->Fast is set to "true"?

Link to comment
Share on other sites
tmbt
tmbt
Posted
Posted
On 2/11/2019 at 5:02 PM, arsradu said:



To me, this is not efficient. One reason being that you're basically doubling your kexts. :))





Not sure what kind of error checking is kextcache doing in this case. So I'm not gonna say anything on that. Maybe people with more experience and knowledge can comment on that.





Are you a kext developer? If not...I don't see the benefit from your point of view.





True that. But...once again, are you using any of those kexts? Cause...I don't. At least not anymore.





I'm not sure what was the idea behind this implementation, but I can tell you it served me very well over the years, and not just for installer/recovery. Actually, I've had more issues placing kexts in S/L/E than having them in Clover/kexts/Other. It might be (probably is) a very subjective point of view, but...I don't know. To me, it's a lot easier to drag and drop my kexts into Clover/kext/Other than fiddling with S/L/E's permissions and all that. Call me lazy, but I prefer spending my time actually using my computer, than trying to get it to work. So...I do appreciate the simplicity and the convenience that Clover's implementation brings to this. :)





And still, you seem to prefer having two sets of kexts, one updated, one not, instead of having them all in one place, and up to date. How is that gonna bring you less problems? :))





It might be less native, and "non-Mac", but then again, a lot of the hackintoshing is. And, I personally haven't noticed any difference in day-to-day use between having those kexts in S/L/E rather than having them in Clover/kexts. And I think the benefits of this implementation overweigh the lack of realism.



Again, just my opinion. And also, not trying to cause any discussions or so. :)) Just...sharing my opinion on the points you laid out. Simply because I think difference of opinion (done right) can start a very nice and fruitful conversation. And it can lead to progress, on both sides.



I can agree on all your point. I'm using some of the kext that don't work in clover folder so i should kextcache my kernel anyway .

After a while you will be used to install kext in /L/E . I don't use any app to do that. Just the terminal and some command line . So i guess it's very subjective but thanks for the discussion



Mattia

  • Like 1
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted

Minor issue related to Clover GUI; having a weird "tool_shell.png" appearance with UEFI, no problem with Legacy (SS: bottom left). Shell is still functional. Strange, it appears normal if booting from USB (UEFI). I use Scan=true on config.plist - GUI #btw


  • Like 1
Link to comment
Share on other sites
Slice
Slice
Posted
Posted
2 hours ago, Badruzeus said:

Minor issue related to Clover GUI; having a weird "tool_shell.png" appearance with UEFI, no problem with Legacy (SS: bottom left). Shell is still functional. Strange, it appears normal if booting from USB (UEFI). I use Scan=true on config.plist - GUI #btw



It may be a problem of File System of your EFI partition.

UEFI BIOS has quirky FAT32 driver. For this purpose I have Fat-64.efi in the Clover distribution. It works better.

  • Thanks 1
Link to comment
Share on other sites
pepitillo
pepitillo
Posted
Posted (edited)

Hi there,

I'm using the recently added Clover feature of playing sound on boot.

I was wondering if there is a problem with my config or I'm missing something, but when I boot with "Time-out=0" the boot Chime plays twice (the second is a little bit cut off).

Booting with "Time-out=1" plays the sound fine (but it's showing GUI).

I add the sound i'm using.

Thank you in advance.

sound.wav

Edited by pepitillo
Link to comment
Share on other sites
Slice
Slice
Posted
Posted
1 hour ago, pepitillo said:

Hi there,

I'm using the recently added Clover feature of playing sound on boot.

I was wondering if there is a problem with my config or I'm missing something, but when I boot with "Time-out=0" the boot Chime plays twice (the second is a little bit cut off).

Booting with "Time-out=1" plays the sound fine (but it's showing GUI).

I add the sound i'm using.

Thank you in advance.

sound.wav

I know this bug.

  • Like 2
Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted (edited)

r4877, report.

PlayAsync=TRUE, scan drive with play sound, then enter GUI. and i have a timeout 3, 3 -> 2 -> 1. automatically enter macos. there is no loop sound.

PlayAsync=TRUE, scan drive with play sound, then enter GUI. and i have a timeout 3, 3 -> 2 -> "enter key". enter macos. there is loop sound until boot macos.



thanks in advance

Edited by Sherlocks
Link to comment
Share on other sites
Bor
Bor
Posted
Posted
On 2/13/2019 at 1:12 AM, bidero said:

Guys, I'm still having problems with boot chime :cry:  I can only select AMD HDMI and Intel HDMI without freeze. Whenever I want to change my audio output to ALC1150 (any output), whole GUI freezes and no value is written to NVRAM. Since newer Clover revisions use different way of saving NVRAM value, BootChimeCfg is no longer working also. Tested on 4870, 4871 and 4876.

I have same problem on my rig. I got ALC1150 too.

Link to comment
Share on other sites
Teras
Teras
Posted
Posted

Hello people.



During the last days, I experience a strange behavior with boot sequence, and I'd be grateful if you gurus can help me.

First of all, my system:

Gigabyte Z390 Aorus pro, i9 9900K, Samsung 970 Evo, AMD Vega 64

This system installed fine and worked as expected.



*But*, due to some issues with my Windows installation, I had to flash my BIOS to the latest version, and to fiddle around with the system. Then, at some time, when I tried to boot to OSX, although booting started and everything seemed to work fine, just after booting, instead of displaying the login screen, an inner square appears, just like the screenshot. (Actually this was taken when tried to boot in safe mode, when I try to boot regularly, there is either a dark square where this square is, or garbage, or green color). As you can see here, even the mouse pointer is visible (and movable).



The strange thing is, if I boot from my USB stick, using the EXACT files, as from my HD EFI partition, the system boots perfectly! So, if I use the stick to load Clover, it properly initializes visuals, if I use the disk to load Clover, it fails.


This drives me mad, and I can't find any logic in this, or how to debug it.



Please help!



(PS: I hope this is the correct thread!)




Link to comment
Share on other sites
Zenith432
Zenith432
Posted
Posted

@Teras: Are you using UEFI boot from both the HDD and the USB stick?  If using legacy boot on one of them, you get a completely different UEFI bios, which could explain the difference.  Also, note that when booting legacy Clover, it sometimes picks up CloverX64.efi from a different disk (!) if multiple copies exist - because the search algorithm of boot6/boot7 does not know which disk it was loaded from.

Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted (edited)
12 hours ago, Teras said:

Hello people.



During the last days, I experience a strange behavior with boot sequence, and I'd be grateful if you gurus can help me.

First of all, my system:

Gigabyte Z390 Aorus pro, i9 9900K, Samsung 970 Evo, AMD Vega 64

This system installed fine and worked as expected.



*But*, due to some issues with my Windows installation, I had to flash my BIOS to the latest version, and to fiddle around with the system. Then, at some time, when I tried to boot to OSX, although booting started and everything seemed to work fine, just after booting, instead of displaying the login screen, an inner square appears, just like the screenshot. (Actually this was taken when tried to boot in safe mode, when I try to boot regularly, there is either a dark square where this square is, or garbage, or green color). As you can see here, even the mouse pointer is visible (and movable).



The strange thing is, if I boot from my USB stick, using the EXACT files, as from my HD EFI partition, the system boots perfectly! So, if I use the stick to load Clover, it properly initializes visuals, if I use the disk to load Clover, it fails.


This drives me mad, and I can't find any logic in this, or how to debug it.



Please help!



(PS: I hope this is the correct thread!)



That looks like a piece of the default Mojave wallpaper. So that means you're probably reaching Desktop. Now, I've never seen this issue before. My guess is that something has to be different between your Clover USB drive and your HDD/SSD EFI. Something you might have missed. Either Clover is not the same version, not installed the same way (legacy vs UEFI mode), maybe kexts are not the same versions, drivers are not exactly the same... I don't know. But that would be my opinion on this issue so far.



If you want, you can remove sensitive serials from your SMBIOS and upload both the EFI folder on your USB and the one on your SSD/HDD. Also, although I think your BIOS might have already done that after flashing, you can try setting it to Optimised Defaults again and see if that helps. Also, just for testing, you can always put back the old BIOS and see if that changes anything. If not, then it's not the actual BIOS. It's gotta be something else. Personally I'm not sure it's Clover related. Probably not. But as I said, you can upload both so we can take a look.



Also, in case you haven't already done that, you can mount both your USB EFI partition and your HDD/SSD EFI partition and copy-paste everything (make sure you're not merging anything in the process) from one place to the other.



But before that, let's have a look at the current setup. :)

Edited by arsradu
  • Like 1
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted
16 hours ago, Teras said:

Hello people.



During the last days, I experience a strange behavior with boot sequence, and I'd be grateful if you gurus can help me.

First of all, my system:

Gigabyte Z390 Aorus pro, i9 9900K, Samsung 970 Evo, AMD Vega 64

This system installed fine and worked as expected.



*But*, due to some issues with my Windows installation, I had to flash my BIOS to the latest version, and to fiddle around with the system. Then, at some time, when I tried to boot to OSX, although booting started and everything seemed to work fine, just after booting, instead of displaying the login screen, an inner square appears, just like the screenshot. (Actually this was taken when tried to boot in safe mode, when I try to boot regularly, there is either a dark square where this square is, or garbage, or green color). As you can see here, even the mouse pointer is visible (and movable).



The strange thing is, if I boot from my USB stick, using the EXACT files, as from my HD EFI partition, the system boots perfectly! So, if I use the stick to load Clover, it properly initializes visuals, if I use the disk to load Clover, it fails.


This drives me mad, and I can't find any logic in this, or how to debug it.



Please help!



(PS: I hope this is the correct thread!)






As @arsradu copy EFI folder from USB stick to EFI Folder on your HDD. Before that, you can recreate EFI partition on your hard disk, maybe corrupted

  1. Boot on USB
  2. go to Terminal
  3. diskutil list

    newfs_msdos -v EFI -F 32 /dev/rdisk0s1 (for example)

More experienced users may have a better solution than me



Link to comment
Share on other sites
apianti
apianti
Posted
Posted

You should provide a video of the verbose mode output, or just see if it is printing that output and then going to the desktop. Also I would actually recommend that you just run the clover installer again and then put you config, drivers, and kexts from your usb. You may not have been using UEFI mode to boot from the usb. It's hard to tell really you gave very limited information.

  • Like 1
Link to comment
Share on other sites
Zenith432
Zenith432
Posted
Posted

@Badruzeus: I think it's a typo.  Remove the offending line

diff a/rEFIt_UEFI/Platform/HdaCodecDump.c b/rEFIt_UEFI/Platform/HdaCodecDump.c
--- a/rEFIt_UEFI/Platform/HdaCodecDump.c
+++ b/rEFIt_UEFI/Platform/HdaCodecDump.c
@@ -404,7 +404,6 @@ EFI_STATUS SaveHdaDumpBin() {
                        }
                }

-               CodecAddress;
                Status = HdaIo->GetAddress(HdaIo, &CodecAddress);

                CopyMem(HdaCodec.Header, hdcID, 4);



  • Like 1
  • Thanks 2
Link to comment
Share on other sites
Badruzeus
Badruzeus
Posted
Posted
55 minutes ago, Zenith432 said:

@Badruzeus: I think it's a typo.  Remove the offending line



diff a/rEFIt_UEFI/Platform/HdaCodecDump.c b/rEFIt_UEFI/Platform/HdaCodecDump.c --- a/rEFIt_UEFI/Platform/HdaCodecDump.c +++ b/rEFIt_UEFI/Platform/HdaCodecDump.c @@ -404,7 +404,6 @@ EFI_STATUS SaveHdaDumpBin() { } } - CodecAddress; Status = HdaIo->GetAddress(HdaIo, &CodecAddress); CopyMem(HdaCodec.Header, hdcID, 4);

It works, many thanks. Codec Dump'ed successfully either using "F8" > \efi\clover\misc.

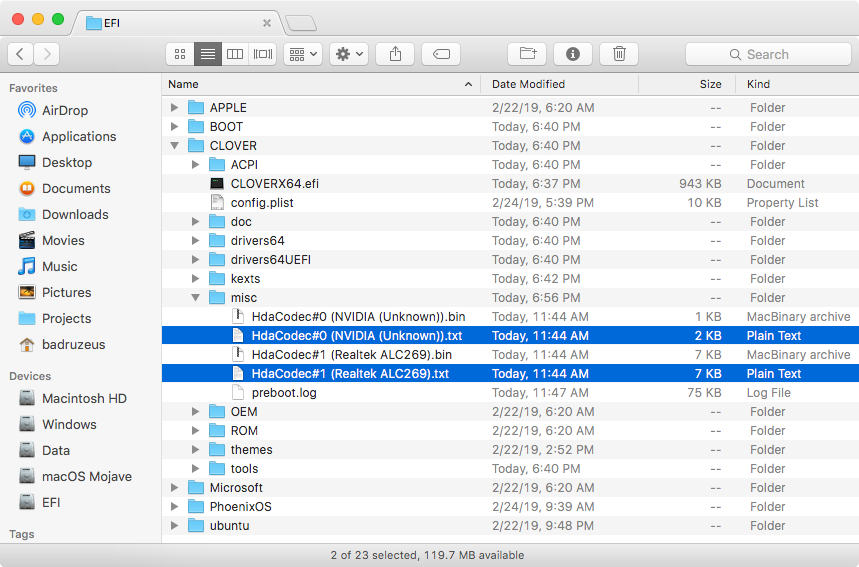

Screenshot 23.png

EFI-r4886.zip

misc_r4886_preboot_CodecDump.zip

  • Like 1
Link to comment
Share on other sites
Slice
Slice
Posted
Posted
2 hours ago, Zenith432 said:

@Badruzeus: I think it's a typo.  Remove the offending line


diff a/rEFIt_UEFI/Platform/HdaCodecDump.c b/rEFIt_UEFI/Platform/HdaCodecDump.c
--- a/rEFIt_UEFI/Platform/HdaCodecDump.c
+++ b/rEFIt_UEFI/Platform/HdaCodecDump.c
@@ -404,7 +404,6 @@ EFI_STATUS SaveHdaDumpBin() {
                        }
                }

-               CodecAddress;
                Status = HdaIo->GetAddress(HdaIo, &CodecAddress);

                CopyMem(HdaCodec.Header, hdcID, 4);



Really!

Before the commit I tested with VS2013 compilation and fix some warnings. This one is not a warning for VS!

  • Like 1
Link to comment
Share on other sites
Slice
Slice
Posted
Posted
5 minutes ago, arsradu said:

Thanks @Slice for the fix on commit 4887. :) All good now building Clover. Also, implementing that functionality right inside Clover was an awesome idea! Well done!

Credits to headkaze as well as explanations from him.

  • Like 3
Link to comment
Share on other sites
