arsradu Posted January 22, 2019 Share Posted January 22, 2019 (edited) 5 minutes ago, Matgen84 said: I believe you my friend the actual sound is not heard after selecting them and restarting. Strange. Hmm, could you please upload your Clover folder? Something has to be different. Edited January 22, 2019 by arsradu Link to comment Share on other sites More sharing options...
Matgen84 Posted January 22, 2019 Share Posted January 22, 2019 12 minutes ago, arsradu said: Hmm, could you please upload your Clover folder? Something has to be different. I can only test sound correctly with bootchimecfg.efi. CLOVER.zip Link to comment Share on other sites More sharing options...
arsradu Posted January 22, 2019 Share Posted January 22, 2019 3 minutes ago, Matgen84 said: I can only test sound correctly with bootchimecfg.efi. CLOVER.zip Which option number did you choose when testing with BootChimeCfg.efi? Link to comment Share on other sites More sharing options...
Matgen84 Posted January 22, 2019 Share Posted January 22, 2019 1 minute ago, arsradu said: Which option number did you choose when testing with BootChimeCfg.efi? I choose 5. Line out. But after restart, no sound again. Link to comment Share on other sites More sharing options...
Badruzeus Posted January 22, 2019 Share Posted January 22, 2019 (edited) Awesome, Audio via r4857 is working fine on my mach with ALC269-VB through Output Speaker or Headphone. It seems a good time for updating all my uploaded Themes on repo with sound*.wav included #LoL (if only it supports *.ogg with smaller size, good quality but.. #NVM, 44100Hz with 1 Channel (Mono) is small enough for WAV, I think. #Question: Any simpler way knowing Native NVRAM is functional? Yeah, on my case CloverThemeManager gives me info about it; not sure though.. NVRAM vars are also saved & loaded upon booting. nvram_dmpstore_preboot_a43sj.zip Edited January 22, 2019 by Badruzeus 1 Link to comment Share on other sites More sharing options...
arsradu Posted January 22, 2019 Share Posted January 22, 2019 (edited) 43 minutes ago, Matgen84 said: I choose 5. Line out. But after restart, no sound again. Hmm... Mat, your sound.wav seems to be 22.3 kHz instead of 44.1 kHz. Not sure that would make a difference....but I'm trying to take them one by one and see where does it fail. Also, make sure you have the latest Clover installed. And update AudioDxe upon installation, just in case there could be something in that that could create issues. Also, I'd say...try to clear NVRAM (F11 on Clover boot selection screen), then try to set everything once again. Could you, please, try the attached sound.wav instead? Your setup looks ok... And if it works from Shell with option 5, that should also be the choice for Clover Startup Sound UI. sound.wav Edited January 22, 2019 by arsradu 2 Link to comment Share on other sites More sharing options...
Badruzeus Posted January 22, 2019 Share Posted January 22, 2019 (edited) 11 minutes ago, arsradu said: Hmm... Mat, your sound.wav seems to be 22.3 kHz instead of 44.1 kHz. Not sure that would make a difference....but I'm trying to take them one by one and see where does it fail. Could be.. On my tests; 8000, 44100 (Hz) are working.. while 11025, 22050 are not. (Not really sure with 48000Hz, my issue with this freq is damn big *.wav size #LoL) 7:290 0:000 === [ InitTheme ] ========================================= 7:290 0:000 use daylight theme 7:367 0:076 Using theme 'Mojave' (EFI\CLOVER\themes\Mojave) 7:367 0:000 theme Mojave defined in NVRAM found and theme.plist parsed 7:367 0:000 OS main and drive as badge 7:385 0:018 Channels: 1 Sample rate: 44100 Hz Bits: 16 7:385 0:000 output to channel 0 with volume 60, len=147584 7:385 0:000 sound channels=1 bits=16 freq=44100 9:873 2:488 Loading font from ThemeDir: Success 9:874 0:000 theme inited 9:874 0:000 Chosen theme Mojave Edited January 22, 2019 by Badruzeus 1 Link to comment Share on other sites More sharing options...
arsradu Posted January 22, 2019 Share Posted January 22, 2019 (edited) 7 minutes ago, Badruzeus said: Could be.. On my tests; 8000, 44100 (Hz) are working.. while 11205, 22050 are not. (Not really sure with 48000Hz, my issue with this freq is damn big *.wav size #LoL) 7:290 0:000 === [ InitTheme ] ========================================= 7:290 0:000 use daylight theme 7:367 0:076 Using theme 'Mojave' (EFI\CLOVER\themes\Mojave) 7:367 0:000 theme Mojave defined in NVRAM found and theme.plist parsed 7:367 0:000 OS main and drive as badge 7:385 0:018 Channels: 1 Sample rate: 44100 Hz Bits: 16 7:385 0:000 output to channel 0 with volume 60, len=147584 7:385 0:000 sound channels=1 bits=16 freq=44100 9:873 2:488 Loading font from ThemeDir: Success 9:874 0:000 theme inited 9:874 0:000 Chosen theme Mojave Well, both 44100 and 8000 are set to work. They're supposed to work. Other values...not sure. I honestly haven't tried that. But better try to work with files that are supposed to work, to minimise the points of failure. But if you did try them, then, as you said, that could be why it doesn't work for him... Only one way to find out. Edited January 22, 2019 by arsradu 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted January 22, 2019 Share Posted January 22, 2019 (edited) 21 minutes ago, Badruzeus said: Could be.. On my tests; 8000, 44100 (Hz) are working.. while 11025, 22050 are not. (Not really sure with 48000Hz, my issue with this freq is damn big *.wav size #LoL) 7:290 0:000 === [ InitTheme ] ========================================= 7:290 0:000 use daylight theme 7:367 0:076 Using theme 'Mojave' (EFI\CLOVER\themes\Mojave) 7:367 0:000 theme Mojave defined in NVRAM found and theme.plist parsed 7:367 0:000 OS main and drive as badge 7:385 0:018 Channels: 1 Sample rate: 44100 Hz Bits: 16 7:385 0:000 output to channel 0 with volume 60, len=147584 7:385 0:000 sound channels=1 bits=16 freq=44100 9:873 2:488 Loading font from ThemeDir: Success 9:874 0:000 theme inited 9:874 0:000 Chosen theme Mojave me too. but 8000hz sound is not good. similar electronic sound. f7 test sound with bootcamp theme, same too(electronic). in my case i can listen good quality with only 44100hz. so, clovy theme sound is not good for me. because it has 8000hz EDIT1. when play clovy theme sound.wav in itunes, sound quality is not bad. it doesn't have electronic sound. i think clover force to change frequency? 8000 hz to 44100hz? in this process, generate electronic sound? i don't know exactly. i didn't see it in detail. Edited January 22, 2019 by Sherlocks 3 Link to comment Share on other sites More sharing options...
Badruzeus Posted January 22, 2019 Share Posted January 22, 2019 (edited) @Sherlocks Thanks for accepting my proposition with r4858 commit. MX Linux, Parrot OS (+Ghost BSD) icons are ready to be pushed to Clover Theme Repository, for all my 60+ themes. Edited January 22, 2019 by Badruzeus 2 Link to comment Share on other sites More sharing options...
Matgen84 Posted January 22, 2019 Share Posted January 22, 2019 1 hour ago, arsradu said: Hmm... Mat, your sound.wav seems to be 22.3 kHz instead of 44.1 kHz. Not sure that would make a difference....but I'm trying to take them one by one and see where does it fail. Also, make sure you have the latest Clover installed. And update AudioDxe upon installation, just in case there could be something in that that could create issues. Also, I'd say...try to clear NVRAM (F11 on Clover boot selection screen), then try to set everything once again. Could you, please, try the attached sound.wav instead? Your setup looks ok... And if it works from Shell with option 5, that should also be the choice for Clover Startup Sound UI. sound.wav I've got the sound, now. Thanks a lot. I did not check my downloaded file on the forum on a previous post The sound come on Clover "scan entries" instead of Clover GUI. Is this normal? 1 1 Link to comment Share on other sites More sharing options...
arsradu Posted January 22, 2019 Share Posted January 22, 2019 20 minutes ago, Matgen84 said: I've got the sound, now. Thanks a lot. I did not check my downloaded file on the forum on a previous post The sound come on Clover "scan entries" instead of Clover GUI. Is this normal? Haha! The sound should be played before the UI shows up. I don't have "scan entries" activated, but yeah, I think that's probably intended. Also, you're welcome. 1 Link to comment Share on other sites More sharing options...
Slice Posted January 22, 2019 Share Posted January 22, 2019 2 hours ago, Matgen84 said: I choose 5. Line out. But after restart, no sound again. You are right, this is a bug will be corrected. 2 Link to comment Share on other sites More sharing options...
Slice Posted January 22, 2019 Share Posted January 22, 2019 20 hours ago, Tobiko said: Same. Awesome! Is there a way to get rid of the metallic sound of the wav? It played clearly testing with BootChimeCfg but when hitting F7 in the Clover options and when it plays automatically it is buzzy. My desktop it plays fine. Stupid laptop. The sound by F7 is not Chime sound it is guitar sound by Roger Glover. 2 hours ago, Badruzeus said: Could be.. On my tests; 8000, 44100 (Hz) are working.. while 11025, 22050 are not. (Not really sure with 48000Hz, my issue with this freq is damn big *.wav size #LoL) If 8000 works then 48000 works too. 2 1 Link to comment Share on other sites More sharing options...
Tobiko Posted January 22, 2019 Share Posted January 22, 2019 (edited) 45 minutes ago, Slice said: The sound by F7 is not Chime sound it is guitar sound by Roger Glover. EDIT: Yes but the sound.wav from Clovy theme was metallic and buzzy when played at boot. "If 8000 works then 48000 works too." Thanks for this. Updating from 4858 to 4859 and converting the wav to 48000 32 bit float fixed it. This is crazy awesome! But here is what it was like before Clovy theme boot.m4a Edited January 22, 2019 by Tobiko tried additional steps and resolved Link to comment Share on other sites More sharing options...
Matgen84 Posted January 22, 2019 Share Posted January 22, 2019 1 hour ago, arsradu said: Haha! The sound should be played before the UI shows up. I don't have "scan entries" activated, but yeah, I think that's probably intended. Also, you're welcome. Do you know how to disable 'scan entries' at startup. Thanks. Link to comment Share on other sites More sharing options...
arsradu Posted January 22, 2019 Share Posted January 22, 2019 1 minute ago, Matgen84 said: Do you know how to disable 'scan entries' at startup. Thanks. Yep. GUI -> Scan -> Entries -> Unchecked. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted January 22, 2019 Share Posted January 22, 2019 Hi I don't understand why Clover shows only 2 devices on my system: Nvidia, Intel Pointer... Where is Realtek ALC892! Is this normal. Thanks. Link to comment Share on other sites More sharing options...
tluck Posted January 22, 2019 Share Posted January 22, 2019 well. i tried this on my Dell but something is not right. It can load BootChime in shell and sound works - sets/plays sound properly when i select Speaker. but i get this with Clover (on latest 4859) 0:297 0:003 === [ LoadDrivers ] ======================================= 0:372 0:074 Loading APFS.EFI status=Success 0:384 0:011 - driver needs connecting 0:386 0:002 Loading VBoxHfs-64.efi status=Success 0:391 0:005 - driver needs connecting 0:393 0:001 Loading FSInject-64.efi status=Success 0:400 0:006 Loading SMCHelper-64.efi status=Success 0:407 0:007 Loading AptioMemoryFix-64.efi status=Success 0:417 0:010 Loading AudioDxe-64.efi status=Success 0:422 0:005 - driver needs connecting 0:424 0:001 3 drivers needs connecting ... 0:427 0:002 PlatformDriverOverrideProtocol not found. Installing ... Success 0:430 0:003 APFS driver loaded 0:431 0:001 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok ... 6:882 0:001 Using PlatformFeature from clover: 0x2 6:884 0:002 found 2 handles with audio 6:885 0:001 got index=3 6:887 0:001 got volume 40 ... 7:240 0:006 Channels: 2 Sample rate: 44100 Hz Bits: 16 7:241 0:001 output to channel 3 with volume 40, len=421120 7:243 0:001 sound channels=2 bits=16 freq=44100 7:244 0:001 StartupSound: Error setting up playback: Invalid Parameter ... 19:467 0:003 got embedded sound 19:472 0:001 sound channels=2 bits=16 freq=8000 19:474 0:001 sound converted to 48kHz 19:475 0:001 StartupSound: Error setting up playback: Invalid Parameter so it tries use embedded sound with same message Note: F7 gets no sound after bootchime works? Link to comment Share on other sites More sharing options...
tluck Posted January 22, 2019 Share Posted January 22, 2019 Question: is there a way to set display Menu ratio X:Y ? my native screen is FHD 1920x1080 (16:9 = 1.778) but i have to boot with 1280x1024 (1.25) or 1024x768 (1.333) so everything looks squashed. I am using Clovy - so it may be adjustable? - I see scale multipliers but not sure for non-uniform x vs y. Link to comment Share on other sites More sharing options...

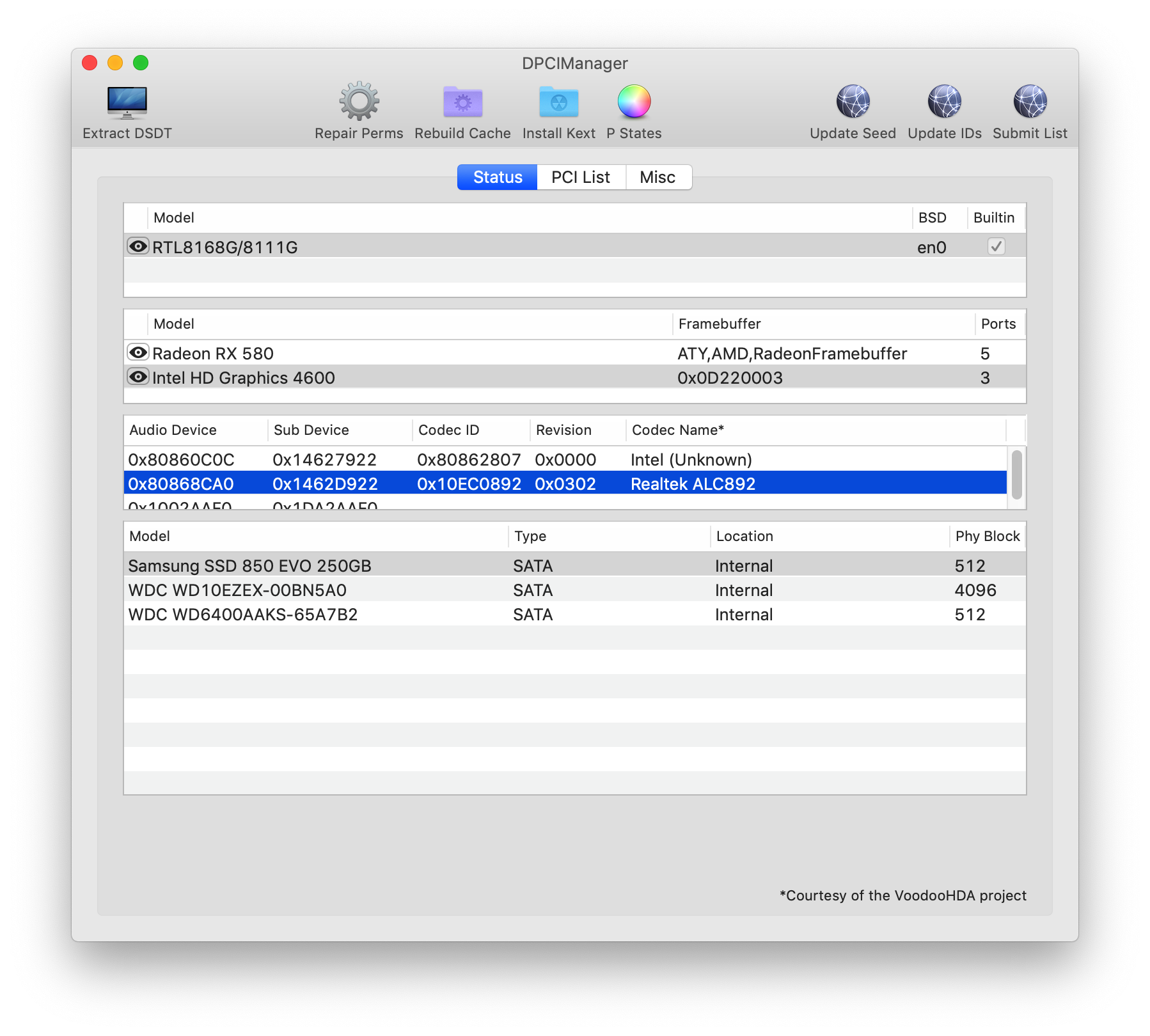

arsradu Posted January 22, 2019 Share Posted January 22, 2019 1 hour ago, Matgen84 said: Hi I don't understand why Clover shows only 2 devices on my system: Nvidia, Intel Pointer... Where is Realtek ALC892! Is this normal. Thanks. No idea... This is what it looks like in my case. And...believe it or not, option nr 3 seems to be Realtek ALC 892 according to DPCIManager. Link to comment Share on other sites More sharing options...
apianti Posted January 22, 2019 Share Posted January 22, 2019 3 hours ago, Matgen84 said: Hi I don't understand why Clover shows only 2 devices on my system: Nvidia, Intel Pointer... Where is Realtek ALC892! Is this normal. Thanks. 1 hour ago, arsradu said: No idea... This is what it looks like in my case. And...believe it or not, option nr 3 seems to be Realtek ALC 892 according to DPCIManager. Don't confuse the high definition audio controller chipset with the high definition audio codec chipset. 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted January 22, 2019 Share Posted January 22, 2019 me too. but 8000hz sound is not good. similar electronic sound. f7 test sound with bootcamp theme, same too(electronic). in my case i can listen good quality with only 44100hz. so, clovy theme sound is not good for me. because it has 8000hz EDIT1. when play clovy theme sound.wav in itunes, sound quality is not bad. it doesn't have electronic sound. i think clover force to change frequency? 8000 hz to 44100hz? in this process, generate electronic sound? i don't know exactly. i didn't see it in detail.I too am experiencing the same electronic sound. But sounds fine in iTunes / preview. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
Riley Freeman Posted January 23, 2019 Share Posted January 23, 2019 I haven't had much success with this boot audio so far but with 4859 it's now playing back the built-in sound fine. However I want it to play back a custom chime. I'm using the embedded theme and put the sound.wav into the theme folder but it defaults to the built-in one. Is it not possible to replace the chime for the embedded theme or is this a bug? 4:788 0:000 use night theme 4:788 0:000 using embedded theme 4:788 0:000 got embedded sound 4:788 0:000 Channels: 2 Sample rate: 8000 Hz Bits: 16 4:788 0:000 output to channel 0 with volume 70, len=25600 4:788 0:000 sound channels=2 bits=16 freq=8000 4:788 0:000 sound converted to 48kHz 6:149 1:360 Using embedded font: Success 6:149 0:000 theme inited 6:149 0:000 Chosen embedded theme Link to comment Share on other sites More sharing options...
SavageAUS Posted January 23, 2019 Share Posted January 23, 2019 I haven't had much success with this boot audio so far but with 4859 it's now playing back the built-in sound fine. However I want it to play back a custom chime. I'm using the embedded theme and put the sound.wav into the theme folder but it defaults to the built-in one. Is it not possible to replace the chime for the embedded theme or is this a bug? 4:788 0:000 use night theme4:788 0:000 using embedded theme4:788 0:000 got embedded sound4:788 0:000 Channels: 2 Sample rate: 8000 Hz Bits: 164:788 0:000 output to channel 0 with volume 70, len=256004:788 0:000 sound channels=2 bits=16 freq=80004:788 0:000 sound converted to 48kHz6:149 1:360 Using embedded font: Success6:149 0:000 theme inited6:149 0:000 Chosen embedded theme Did you name your custom sound....sound.wav and replace the built in one?Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
