Slice Posted January 13, 2019 Share Posted January 13, 2019 12 hours ago, SavageAUS said: Please how to include BootChimeCfg.efi into clover package? Just place the file into this folder before creating the package. 2 Link to comment Share on other sites More sharing options...
LockDown Posted January 14, 2019 Share Posted January 14, 2019 On 1/11/2019 at 2:29 PM, ellaosx said: i got voodohda dump now. voodoohda_dump.txt Note: i am using applealc because voodoohda is only showing headphone & digital out. On 1/11/2019 at 8:05 PM, Slice said: OK, this is very problematic codec. I think BootChime can output to headphone. You have to choose this output in cfg and attach a headphone to hear something. VoodooHDA can be tuned to use internal speaker. It was not happened because headphone has higher priority. Change nid20 config 0x90172110 nid30 config 0x02211020 I also think nid18 should be Microphone. I don't remember what is required config because I am not at home. And nid19 is internal mic. what will be my codec #? <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>???</integer> <key>Config</key> <string>0x90172110</string> <key>Node</key> <integer>20</integer> </dict> </array> Link to comment Share on other sites More sharing options...
Badruzeus Posted January 14, 2019 Share Posted January 14, 2019 On 1/12/2019 at 1:59 PM, Slice said: Clover package contains a shell that will work if launch it from clover. OK, definitely it's possible with: FS0: cd EFI\CLOVER\tools rm Shell64U.efi cp Shell64.efi Shell64U.efi I can run Legacy Shell version via UEFI > edit EFI\CLOVER\config.plist && save it as well but.. OFC "bcfg" is missing.. honestly, I don't really need bcfg since my AMI Bios comes with "Boot Entry" Options. (Ah worse, nv vars are not saved using this.. #LoL) From my test results with some of EFI Shell's, only v2.0 & v2.2 are running under UEFI. Could be, limitation on my laptop with old AMI Aptio v2.01 firmware right? No idea where these commits have gone (or replaced later with a better one), was from more than 5 years ago, I think #LoL Spoiler + // dmazar: AMI Aptio 2.0 returns 0 as MaxVarSize - fix it + if (MaxVarSize <= 0) MaxVarSize = 16384; _Shell2.zip Link to comment Share on other sites More sharing options...
Slice Posted January 14, 2019 Share Posted January 14, 2019 3 hours ago, ellaosx said: what will be my codec #? <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>???</integer> <key>Config</key> <string>0x90172110</string> <key>Node</key> <integer>20</integer> </dict> </array> From your dump I see Probing codec #0... HDA Codec #0: Realtek (Unknown) HDA Codec ID: 0x10ec0256 Your codec # is zero. 39 minutes ago, Badruzeus said: OK, definitely it's possible with: FS0: cd EFI\CLOVER\tools rm Shell64U.efi cp Shell64.efi Shell64U.efi I can run Legacy Shell version via UEFI > edit EFI\CLOVER\config.plist && save it as well but.. OFC "bcfg" is missing.. honestly, I don't really need bcfg since my AMI Bios comes with "Boot Entry" Options. (Ah worse, nv vars are not saved using this.. #LoL) From my test results with some of EFI Shell's, only v2.0 & v2.2 are running under UEFI. Could be, limitation on my laptop with old AMI Aptio v2.01 firmware right? No idea where these commits have gone (or replaced later with a better one), was from more than 5 years ago, I think #LoL Reveal hidden contents + // dmazar: AMI Aptio 2.0 returns 0 as MaxVarSize - fix it + if (MaxVarSize <= 0) MaxVarSize = 16384; _Shell2.zip Because UEFI 2.0 has no UnicodeCollation protocol. 2 Link to comment Share on other sites More sharing options...
Badruzeus Posted January 14, 2019 Share Posted January 14, 2019 2 minutes ago, Slice said: Because UEFI 2.0 has no UnicodeCollation protocol. Ah, OK.. no worry then; I can still use old version of your Shell via Clover UEFI. Also thanks for "> edit config.plist" ability, it's useful feature which is better than I've to boot into Linux for fixing wrong config. Link to comment Share on other sites More sharing options...
LockDown Posted January 15, 2019 Share Posted January 15, 2019 Hi @Slice Goldfish64's set the driver defaults to internal speakers or line out if not configured in shell. is it possible to do the same on your build? 1 Link to comment Share on other sites More sharing options...
pkdesign Posted January 16, 2019 Share Posted January 16, 2019 (edited) On 1/8/2019 at 12:28 PM, Dr. Hurt said: Sorry if this has been asked before, but how do I get the boot chime with Clover legacy? Which files do I need and where do I put them? Also, any changes needed in config? I'm using embedded theme. Edit: Got it to work. A users' guide would still be useful though. I'm guessing us users with BIOS (non UEFI) motherboards are out of luck? I get sound when in Clover Shell but not during boot. Edited January 16, 2019 by pkdesign Link to comment Share on other sites More sharing options...
LockDown Posted January 16, 2019 Share Posted January 16, 2019 1 hour ago, pkdesign said: I'm guessing us users with BIOS (non UEFI) motherboards are out of luck? I get sound when in Clover Shell but not during boot. I get both if i combine slice & Goldfish64 Link to comment Share on other sites More sharing options...
Badruzeus Posted January 16, 2019 Share Posted January 16, 2019 (edited) Are these 2 NVRAM vars created by BootChimeCfg (red rectangles)? Correct me if I'm wrong; can we run eg. this command via Terminal w/o Shell > fs0:\efi\clover\tools\bootchimecfg then? sudo nvram specialbootdevice blah blah blah Thanks. [/spoler] #EDIT: ..and I have this on my preboot logs with r4847: nvram_dmpstore_all_a43sj.txt.zip Edited January 16, 2019 by Badruzeus 1 Link to comment Share on other sites More sharing options...
pkdesign Posted January 16, 2019 Share Posted January 16, 2019 (edited) 14 hours ago, ellaosx said: I get both if i combine slice & Goldfish64 What do you mean both? Could you tell me exactly what you did? EDIT: I added BootChimeDxe and got startup sound but immediately got red screen of death. Edited January 16, 2019 by pkdesign Link to comment Share on other sites More sharing options...

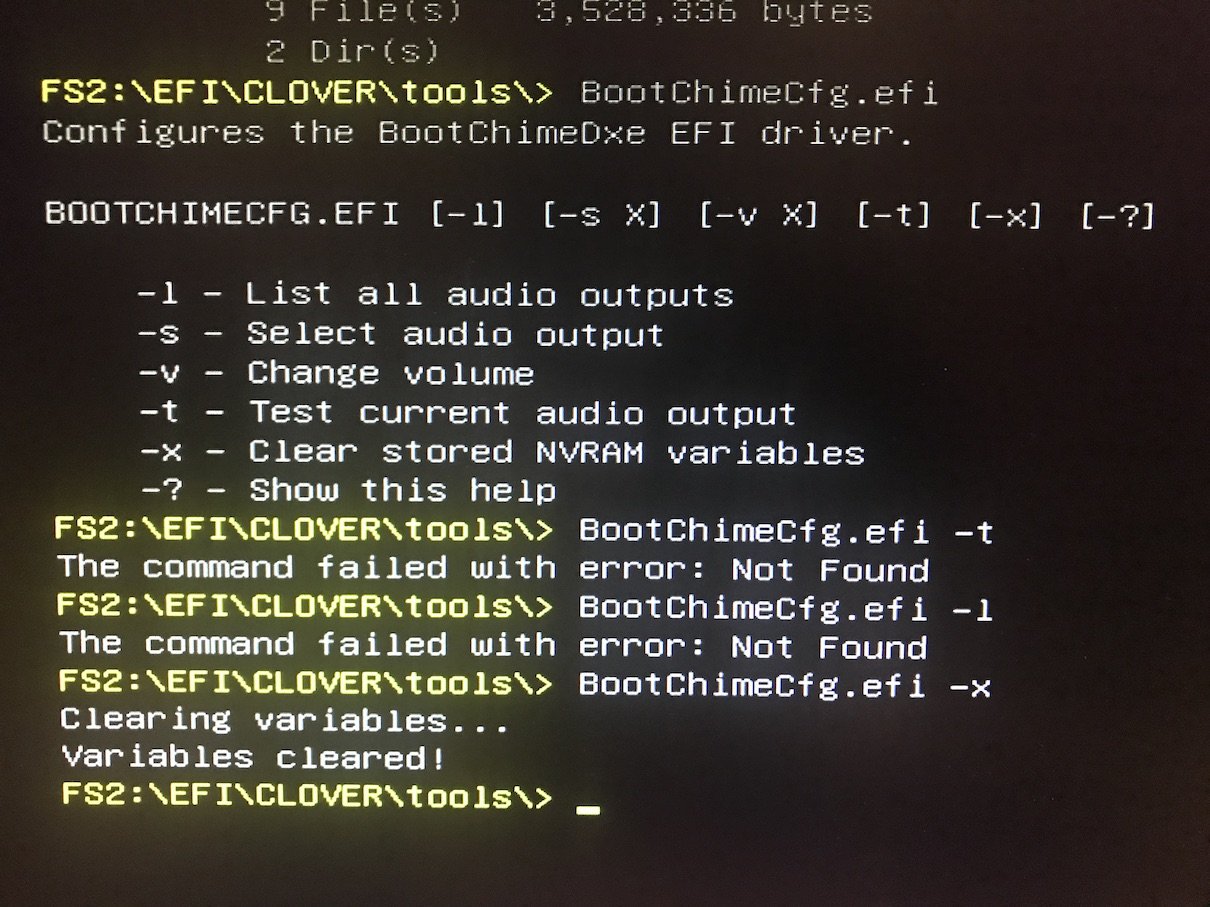

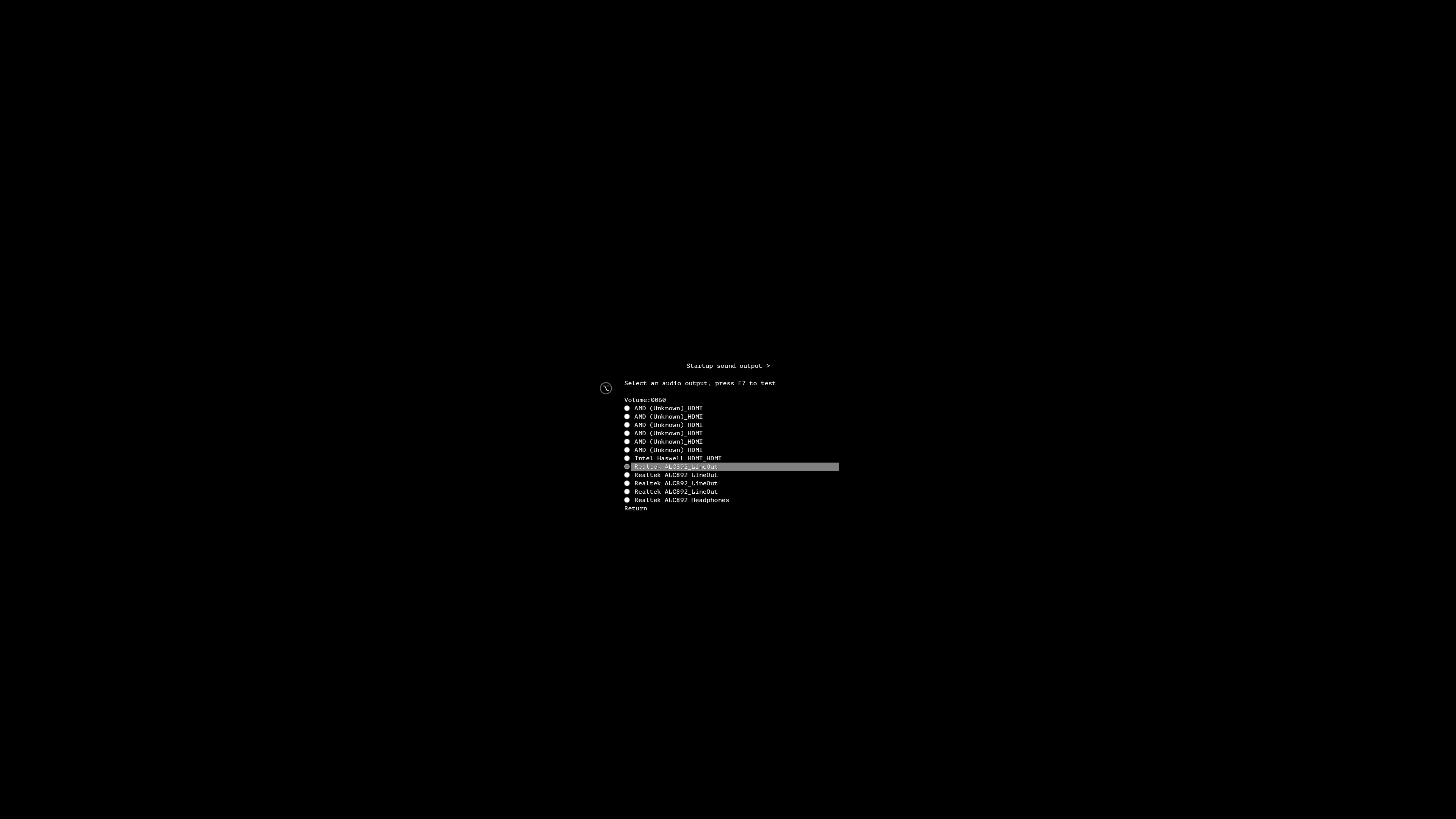

Tobiko Posted January 17, 2019 Share Posted January 17, 2019 I am able to get the test sound from BootChime.Cfg.efi in shell but it doesn't play at boot and it doesn't play under the Startup sound options in Clover. My system is UEFI based. I am using AudioDxe-64.efi from v2.4k_r4848 in drivers64UEFI and BootChime.Cfg.efi and BootChimeDxe.efi from Goldfish64 AudioPKG in tools. How to further trouble-shoot? Link to comment Share on other sites More sharing options...
Matgen84 Posted January 17, 2019 Share Posted January 17, 2019 6 minutes ago, Tobiko said: I am able to get the test sound from BootChime.Cfg.efi in shell but it doesn't play at boot and it doesn't play under the Startup sound options in Clover. My system is UEFI based. I am using AudioDxe-64.efi from v2.4k_r4848 in drivers64UEFI and BootChime.Cfg.efi and BootChimeDxe.efi from Goldfish64 AudioPKG in tools. How to further trouble-shoot? Do you put sound file in your theme folder? I think you do not use BootChimeDxe.efi (it's a driver not a tool). Some others members can help you better than me. Take a look for parameters: Link to comment Share on other sites More sharing options...
Tobiko Posted January 17, 2019 Share Posted January 17, 2019 (edited) Hi, Thanks. I saw that thread. I used this as a guide but using the different file versions I mentioned. I use the Clovy theme which has a sound.wav in it. I also tried adding the sound.wav Slice provided to /EFI. I tried it on my desktop and it worked fine using BootChime.Cfg.efi from GoldFish64, the AudioDXE-64 from Clover and the Clovy theme which has a sound.wav. So on my laptop which is where this all started, I removed BootChimeDxe.efi rebooted, ran BootChime.Cfg.efi again it still worked from there. Cleared the NVRAM, ran BootChime.Cfg.efi and set up the device and volume again, rebooted a couple of times but still no luck. I even wiped clover and started fresh even recompiling the AudioPKG still not working on the Laptop. Just from the shell. Edited January 17, 2019 by Tobiko tried additional steps 1 Link to comment Share on other sites More sharing options...
Slice Posted January 17, 2019 Share Posted January 17, 2019 Wait please... 3 Link to comment Share on other sites More sharing options...
Tobiko Posted January 17, 2019 Share Posted January 17, 2019 1 hour ago, Slice said: Wait please... Ok. Link to comment Share on other sites More sharing options...
Sherlocks Posted January 17, 2019 Share Posted January 17, 2019 @vit9696 thank you for r4846 commit. this is very great fix. i had problem unknown panic on sandy bridge laptop until this commit. there is no more instant reboot issue thanks 2 Link to comment Share on other sites More sharing options...
Badruzeus Posted January 17, 2019 Share Posted January 17, 2019 58 minutes ago, Sherlocks said: @vit9696 thank you for r4846 commit. this is very great fix. i had problem unknown panic on sandy bridge laptop until this commit. there is no more instant reboot issue thanks @Sherlocks Wait, Sandy? Seems no problem here.. but, my Mojave is using HFS+ since 10.14 till 10.14.3 #btw Or could bcoz something else (we have diff. specs but CPU #LoL ) Oh hai, you didn't response my proposition yet since last year? Spoiler --- /Users/badruzeus/udk/UDK2018/Clover/rEFIt_UEFI/entry_scan/loader.c 2018-12-21 20:51:48.000000000 +0700 +++ /Users/badruzeus/src/edk2/Clover/rEFIt_UEFI/entry_scan/loader.c 2019-01-17 22:37:40.000000000 +0700 @@ -102,6 +102,9 @@ { L"\\EFI\\goofiboot\\goofibootx64.efi", L"Solus EFI boot menu", L"solus,linux", "Solus" }, { L"\\EFI\\centos\\grubx64.efi", L"CentOS EFI boot menu", L"centos,linux", "CentOS" }, { L"\\EFI\\pclinuxos\\grubx64.efi", L"PCLinuxOS EFI boot menu", L"pclinux,linux", "PCLinux" }, + { L"\\EFI\\neon\\grubx64.efi", L"KDE Neon EFI boot menu", L"neon,linux", "KDE Neon" }, + { L"\\EFI\\MX18\\grubx64.efi", L"MX Linux EFI boot menu", L"mx,linux", "MX Linux" }, + { L"\\EFI\\parrot\\grubx64.efi", L"Parrot OS EFI boot menu", L"parrot,linux", "Parrot OS" }, #else { L"\\EFI\\grub\\grub.efi", L"Grub EFI boot menu", L"grub,linux" }, { L"\\EFI\\Gentoo\\grub.efi", L"Gentoo EFI boot menu", L"gentoo,linux", "Gentoo" }, @@ -127,6 +130,9 @@ { L"\\EFI\\goofiboot\\goofiboot.efi", L"Solus EFI boot menu", L"solus,linux", "Solus" }, { L"\\EFI\\centos\\grub.efi", L"CentOS EFI boot menu", L"centos,linux", "CentOS" }, { L"\\EFI\\pclinuxos\\grub.efi", L"PCLinuxOS EFI boot menu", L"pclinux,linux", "PCLinux" }, + { L"\\EFI\\neon\\grub.efi", L"KDE Neon EFI boot menu", L"neon,linux", "KDE Neon" }, + { L"\\EFI\\MX18\\grub.efi", L"MX Linux EFI boot menu", L"mx,linux", "MX Linux" }, + { L"\\EFI\\parrot\\grub.efi", L"Parrot OS EFI boot menu", L"parrot,linux", "Parrot OS" }, #endif { L"\\EFI\\SuSe\\elilo.efi", L"OpenSuse EFI boot menu", L"suse,linux" }, }; Thank you before.. (y) loader.c.patch.zip Link to comment Share on other sites More sharing options...
apianti Posted January 17, 2019 Share Posted January 17, 2019 On 1/16/2019 at 4:58 AM, Badruzeus said: Are these 2 NVRAM vars created by BootChimeCfg (red rectangles)? Correct me if I'm wrong; can we run eg. this command via Terminal w/o Shell > fs0:\efi\clover\tools\bootchimecfg then? sudo nvram specialbootdevice blah blah blah Thanks. No, those are the macOS variables. These are the variables: Variable NV+RT+BS '89D4F995-67E3-4895-8F18-454B651D9215:Volume' DataSize = 0x01 00000000: 3C *<* Variable NV+RT+BS '89D4F995-67E3-4895-8F18-454B651D9215:Index' DataSize = 0x08 00000000: 00 00 00 00 00 00 00 00- *........* Variable NV+RT+BS '89D4F995-67E3-4895-8F18-454B651D9215:Device' DataSize = 0x2E 00000000: 02 01 0C 00 D0 41 03 0A-00 00 00 00 01 01 06 00 *.....A..........* 00000010: 00 1B 03 0A 18 00 EB 3F-00 A9 06 D8 DB 41 A4 91 *.......?.....A..* 00000020: 54 05 FE EF 46 C3 00 00-00 00 7F FF 04 00 *T...F.........* 1 Link to comment Share on other sites More sharing options...
STLVNUB Posted January 18, 2019 Share Posted January 18, 2019 Error building 4848 with GCC /Users/stlvnub/src/edk2/Clover/rEFIt_UEFI/Platform/StartupSound.c:36:15: error: type of 'EmbeddedSound' does not match original declaration [-Werror=lto-type-mismatch] extern UINT8 *EmbeddedSound; ^ /Users/stlvnub/src/edk2/Clover/rEFIt_UEFI/Platform/sound.c:1:7: note: 'EmbeddedSound' was previously declared here UINT8 EmbeddedSound[] = { ^ lto1: all warnings being treated as errors lto-wrapper: fatal error: /Users/stlvnub/src/opt/local/cross/bin/x86_64-clover-linux-gnu-gcc returned 1 exit status compilation terminated. /Users/stlvnub/src/opt/local/cross/lib/gcc/x86_64-clover-linux-gnu/8.1.0/../../../../x86_64-clover-linux-gnu/bin/ld: error: lto-wrapper failed collect2: error: ld returned 1 exit status make: *** [/Users/stlvnub/src/edk2/Build/Clover/RELEASE_GCC53/X64/Clover/rEFIt_UEFI/refit/DEBUG/CLOVER.dll] Error 1 build.py... : error 7000: Failed to execute command make tbuild [/Users/stlvnub/src/edk2/Build/Clover/RELEASE_GCC53/X64/Clover/rEFIt_UEFI/refit] build.py... : error F002: Failed to build module /Users/stlvnub/src/edk2/Clover/rEFIt_UEFI/refit.inf [X64, GCC53, RELEASE] - Failed - Build end time: 16:58:25, Jan.18 2019 Build total time: 00:00:43 o_Ops, ./ebuild.sh exited with error(s), aborting.. 1 Link to comment Share on other sites More sharing options...
Slice Posted January 18, 2019 Share Posted January 18, 2019 Correct to extern UINT8 EmbeddedSound[]; Link to comment Share on other sites More sharing options...
Dr. Hurt Posted January 18, 2019 Share Posted January 18, 2019 On 1/16/2019 at 2:53 AM, pkdesign said: I'm guessing us users with BIOS (non UEFI) motherboards are out of luck? I get sound when in Clover Shell but not during boot. The boot chime works perfectly using AudioDXE.efi and BootChimeDXE.efi in the drivers64 folder. Those (and only those) two drivers are enough to get the chime going when the macOS boot entry is selected in Clover. The only annoyance for me is that Clover takes 3 extra seconds to start. Hopefully that will be slightly optimized in the future. PS. My laptop does have UEFI but its disabled. I'm using legacy boot. 1 Link to comment Share on other sites More sharing options...
WanderingAi Posted January 18, 2019 Share Posted January 18, 2019 I'm having a hard time setting my DefaultVolume in my config.plist, could someone please help me take a look at this bootlog and tell me what to put in the DefaultVolume field? I have tried reversing the endianness as someone suggested on another post ("C4B2367B74CD456F9E87FE3696F379E0"), as well as "Macintosh HD" and "7B36B2C4CD746F459E87FE3696F379E0" but it doesn't seem to work. Specifically, I am trying to set volume 09 as the boot default. I am able to set another drive without issue, so I don't think it's my config that is wrong... 1:784 0:002 - [08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,A05A9816-69B8-4A81-A144-A918E58508E1,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,AB2E508E48943E47B77B4294154D845B) 1:784 0:000 hiding this volume 1:784 0:000 - [09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,A05A9816-69B8-4A81-A144-A918E58508E1,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7B36B2C4CD746F459E87FE3696F379E0) 1:784 0:000 - [10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,A05A9816-69B8-4A81-A144-A918E58508E1,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,085E15BDE052F446BB30B7D3714422FC) 1:784 0:000 hiding this volume 1:784 0:000 - [11]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,A05A9816-69B8-4A81-A144-A918E58508E1,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,749023097C268C4D88A57ED372FE4D36) --- SNIP --- 2:076 0:043 - [08]: 'Preboot', hidden 2:076 0:000 - [09]: 'Macintosh HD' 2:223 0:147 AddLoaderEntry for Volume Name=Macintosh HD 2:257 0:033 Check if volume Is Hibernated: 2:257 0:000 Check sleep image 'by signature': 2:297 0:040 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 2:297 0:000 using default sleep image name = \private\var\vm\sleepimage 2:329 0:031 sleepimage not found -> Not Found 2:329 0:000 hibernated: no - sign 2:333 0:004 [!] Icon 18 (icons\vol_internal_apfs.icns) not found (path: EFI\CLOVER\themes\Minimalism) 2:447 0:113 - [10]: 'Recovery', hidden 2:447 0:000 - [11]: 'VM' Thanks! Link to comment Share on other sites More sharing options...
LockDown Posted January 18, 2019 Share Posted January 18, 2019 Juat set it to LastBootedVolume Link to comment Share on other sites More sharing options...
WanderingAi Posted January 18, 2019 Share Posted January 18, 2019 Just now, ellaosx said: Juat set it to LastBootedVolume Unfortunately, I can't since I am using EMUVariableUEFI since my mobo doesn't support native nvram Link to comment Share on other sites More sharing options...
LockDown Posted January 18, 2019 Share Posted January 18, 2019 (edited) install rc script with emuvariable, then LastBootedVolume Edited January 18, 2019 by ellaosx Link to comment Share on other sites More sharing options...
