Cyberdevs Posted August 16, 2018 Share Posted August 16, 2018 8 minutes ago, savvamitrofanov said: Hello guys! I hope I fixed this issue for now, you can try this debug prebuilt binaries AppleSupport-v2.0.1-DEBUG.zip I just booted successfully into High Sierra with 2.0.1 version, although the verbose log is still there but I'm sure that you will fix it in the next release. I'm gonna try to boot into Mojave and report back. Thanks a lot Link to comment Share on other sites More sharing options...
savvas Posted August 16, 2018 Share Posted August 16, 2018 1 minute ago, Cyberdevs said: I just booted successfully into High Sierra with 2.0.1 version, although the verbose log is still there but I'm sure that you will fix it in the next release. I'm gonna try to boot into Mojave and report back. Thanks a lot Nice! With AppleImageLoader loaded? Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 16, 2018 Share Posted August 16, 2018 3 minutes ago, savvamitrofanov said: Nice! With AppleImageLoader loaded? Yes I put those two files in the driversUEFI64 and successfully booted into High Sierra, but on Mojave clover loads but the boot process hangs right after AptioMemoryFix.efi loads. I'm building the latest Clover revision as we speak to update the clover on my Mojave SSD (I'm currently using 4646 on Mojave) and see if that I can boot into Mojave as well. Link to comment Share on other sites More sharing options...
Awesome Donkey Posted August 16, 2018 Share Posted August 16, 2018 Shouldn't AppleImageLoader.efi be added to Clover's installer alongside ApfsDriverLoader.efi when building Clover and installing (automatically if using ApfsDriverLoader.efi)? Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 16, 2018 Share Posted August 16, 2018 @savvamitrofanov Ok it works on Mojave as well. I successfully booted into High Sierra and Mojave DP7 with these drivers: AptioMemoryFix-64.efi AppleImageLoader.efi ApfsDriverLoader.efi VBoxHfs-64.efi Nice job man thanks! 2 Link to comment Share on other sites More sharing options...

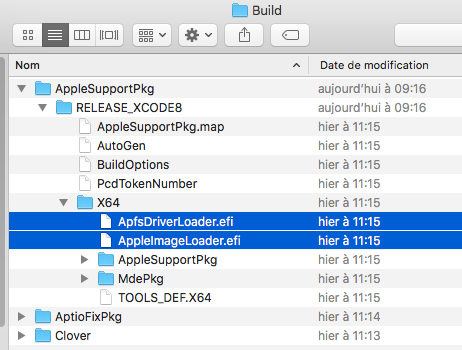

fusion71au Posted August 17, 2018 Share Posted August 17, 2018 (edited) On 8/15/2018 at 10:55 PM, Tetonne said: how can i upgrade my Window 10 on a dual boot (window/HS) same HD? the upgrade always failed ==> easy win 10 upgrade on a dual boot clover HD You can try the following: 1. Before major Windows upgrade, make Windows 10 the default boot option on startup - either make your BIOS boot to the Windows bootloader first (before Clover) or edit Clover's config.plist to make it start Windows first eg if you have Windows installed in UEFI mode (recommended) with Clover, set the default volume and loader in config.plist/boot as below... <key>DefaultLoader</key> <string>bootmgfw.efi</string> <key>DefaultVolume</key> <string>EFI</string> 2. Disable Windows 10 fast startup under Power Options. Good luck . 10 hours ago, Matgen84 said: How to build AppleImageLoader.efi for testing. Please. Have a look inside your edk2 or UDK2018 /Build/AppleSupportPkg/RELEASE_XCODE8/X64 folder... Spoiler 8 hours ago, savvamitrofanov said: Nice! With AppleImageLoader loaded? All loaded and working here on 10.13.6 and 10.14 DB7. Bootlog... Spoiler 0:111 0:000 === [ LoadDrivers ] ======================================= 0:111 0:000 Loading HFSPlus.efi status=Success 0:113 0:001 - driver needs connecting 0:113 0:000 Loading ApfsDriverLoader-64.efi status=Success 0:113 0:000 - driver needs connecting 0:113 0:000 Loading AppleImageCodec-64.efi status=Success 0:114 0:001 Loading AppleKeyAggregator-64.efi status=Success 0:115 0:000 Loading AppleUITheme-64.efi status=Success 0:115 0:000 Loading AptioMemoryFix-64.efi status=Success 0:116 0:000 Loading DataHubDxe-64.efi status=Success 0:120 0:004 Loading FirmwareVolume-64.efi status=Success 0:121 0:000 Loading FSInject-64.efi status=Success 0:123 0:001 Loading SMCHelper-64.efi status=Success 0:123 0:000 Loading VBoxExt4-64.efi status=Success 0:125 0:001 - driver needs connecting 0:125 0:000 Loading AppleImageLoader-64.efi status=Success 0:125 0:000 3 drivers needs connecting ... 0:125 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 0:125 0:000 HFS+ driver loaded 0:125 0:000 APFS driver loaded 0:125 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok Edited August 17, 2018 by fusion71au upload image 2 1 Link to comment Share on other sites More sharing options...
xtddd Posted August 17, 2018 Share Posted August 17, 2018 5 hours ago, savvamitrofanov said: Nice! With AppleImageLoader loaded? test it..can boot into mojave db7 Link to comment Share on other sites More sharing options...
Sherlocks Posted August 17, 2018 Share Posted August 17, 2018 7 hours ago, savvamitrofanov said: Hello guys! I hope I fixed this issue for now, you can try this debug prebuilt binaries AppleSupport-v2.0.1-DEBUG.zip here is debug log AppleImageLoader: Binary isn't AppleEfiFat Starting ApfsDriverLoader ver. 2.0.1 No partition info protocol, using Legacy scan Image 'FS0:\1.efi' loaded at D4DCC000 - Success AppleImageLoader: Binary isn't AppleEfiFat Image 'FS0:\2.efi' loaded at D4DC5000 - Success 1 Link to comment Share on other sites More sharing options...
chris1111 Posted August 17, 2018 Share Posted August 17, 2018 AppleImageLoader.efi status=Success Build UDK2018, Xcode 9.4.1 (9F2000) UEFI Booting Dell Optiplex 790 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 17, 2018 Share Posted August 17, 2018 (edited) HI Here too: AppleImageLoader.efi status=Success. I can boot on Mojave Beta 7. "Now for security reasons you should load AppleLoadImage.efi right before ApfsDriverLoader.efi." Can Clover do it (load its drivers in specific order)? Thanks Edited August 17, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
Slice Posted August 17, 2018 Share Posted August 17, 2018 12 minutes ago, Matgen84 said: HI Here too: AppleImageLoader.efi status=Success. I can boot on Mojave Beta 7. "Now for security reasons you should load AppleLoadImage.efi right before ApfsDriverLoader.efi." Can Clover do it (load its drivers in specific order)? Thanks Good driver should wait for its dependencies. 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted August 17, 2018 Share Posted August 17, 2018 HI Here too: AppleImageLoader.efi status=Success. I can boot on Mojave Beta 7. "Now for security reasons you should load AppleLoadImage.efi right before ApfsDriverLoader.efi." Can Clover do it (load its drivers in specific order)? Thanksdid you add appleloadimage.efi? or appleimageloader and apfsloader?나의 LG-F800S 의 Tapatalk에서 보냄 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 17, 2018 Share Posted August 17, 2018 2 hours ago, Sherlocks said: did you add appleloadimage.efi? or appleimageloader and apfsloader? 나의 LG-F800S 의 Tapatalk에서 보냄 I reproduced an extract from the readme file in my previous post. In fact, I added appleimageloader and apfsdriverloader. Link to comment Share on other sites More sharing options...
Sherlocks Posted August 17, 2018 Share Posted August 17, 2018 I reproduced an extract from the readme file in my previous post. In fact, I added appleimageloader and apfsdriverloader. just both files? without appleloadimage.efi?in my case, strangely not success. hmm..나의 LG-F800S 의 Tapatalk에서 보냄 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 17, 2018 Share Posted August 17, 2018 5 minutes ago, Sherlocks said: just both files? without appleloadimage.efi? in my case, strangely not success. hmm.. 나의 LG-F800S 의 Tapatalk에서 보냄 I think appleloadimage.efi was rename appleimageloader.efi according to the source Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 I think appleloadimage.efi was rename appleimageloader.efi according to the source i knew. i want to know that your appleefifat binary load or not like me in uefi shell.in clover log, my system also shown that appleimageloader.efi success.나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 18, 2018 Share Posted August 18, 2018 4 hours ago, Sherlocks said: i knew. i want to know that your appleefifat binary load or not like me in uefi shell. in clover log, my system also shown that appleimageloader.efi success. 나의 LG-F800S 의 Tapatalk에서 보냄 How to verify appleefifat binary is load or not? I don't know how to do. Thanks Link to comment Share on other sites More sharing options...
Slice Posted August 18, 2018 Share Posted August 18, 2018 44 minutes ago, Matgen84 said: How to verify appleefifat binary is load or not? I don't know how to do. Thanks It is for 10.7 which has fatbinary images. Not needed for 10.13. Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 14 minutes ago, Slice said: It is for 10.7 which has fatbinary images. Not needed for 10.13. therefore is it for OsxFatBinaryDrv replacement? Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 1 hour ago, Matgen84 said: How to verify appleefifat binary is load or not? I don't know how to do. Thanks copy efi files in root on ESP then, go shell option in GUI and type fsX: X is your ESP then load efi filename if you want to save txt file, load efi filename > filename.txt and reboot Link to comment Share on other sites More sharing options...
Matgen84 Posted August 18, 2018 Share Posted August 18, 2018 (edited) 17 minutes ago, Sherlocks said: copy efi files in root on ESP then, go shell option in GUI and type fsX: X is your ESP then load efi filename if you want to save txt file, load efi filename > filename.txt and reboot Ok. One more precision: how to load efi fllename? sorry for my bad english Edited August 18, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
Sherlocks Posted August 18, 2018 Share Posted August 18, 2018 Ok. One more precision: how to load efi fllename? you can rename filename as simple or short.appleimageloader.efi to 1.efithen copy in root on ESPgo shell. type fsX: X is your ESP(need check)type load 1.efi or type load 1.efi > 1.txtthen type rebootreturn GUI. boot macos. then mount ESP. and check txt file나의 LG-F800S 의 Tapatalk에서 보냄 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted August 18, 2018 Share Posted August 18, 2018 (edited) 1 hour ago, Sherlocks said: you can rename filename as simple or short. appleimageloader.efi to 1.efi then copy in root on ESP go shell. type fsX: X is your ESP(need check) type load 1.efi or type load 1.efi > 1.txt then type reboot return GUI. boot macos. then mount ESP. and check txt file 나의 LG-F800S 의 Tapatalk에서 보냄 I type load 1.efi > 1.txt Shell is stuck without going back to FS3: So I can't type reboot. txt file generated is empty of course. I try again EDIT: same issue. I don't understand why Edited August 18, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
WinstonAce Posted August 18, 2018 Share Posted August 18, 2018 (edited) Try drivers command in efi shell drivers > 1.txt Edited August 18, 2018 by WinstonAce Link to comment Share on other sites More sharing options...
savvas Posted August 18, 2018 Share Posted August 18, 2018 3 hours ago, Sherlocks said: therefore is it for OsxFatBinaryDrv replacement? Yes it is. AppleImageLoader not released yet. So boot order not implemented currently 3 Link to comment Share on other sites More sharing options...
