arsradu Posted July 18, 2018 Share Posted July 18, 2018 9 hours ago, Matgen84 said: Same issue here with r4606 using UDK2018 on Mojave. [SOLVED] Remove previous version, Install Xcode 10 Beta 4 and reinstall command lines tools (I'm not sure is necessary) In cvad's script: I comment make pkg (line 502), uncomment ./makepkg (line 501) All work fines Ok... Does it still make a package without that command....? Also, I'm not sure this is really a fix...since I was able to compile it just fine with High Sierra using Xcode 9...and the same commands. Soo....something looks fishy to me. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted July 18, 2018 Share Posted July 18, 2018 (edited) 39 minutes ago, arsradu said: Ok... Does it still make a package without that command....? Also, I'm not sure this is really a fix...since I was able to compile it just fine with High Sierra using Xcode 9...and the same commands. Soo....something looks fishy to me. I thinks too something looks strange. All works fine with High Sierra without any change into v1.1.8 cavd's script. But I can compile a package only with this modified line under Mojave Beta 4 (Xcode 10 Beta 4) Edited July 18, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
arsradu Posted July 18, 2018 Share Posted July 18, 2018 (edited) 58 minutes ago, Matgen84 said: I thinks too something looks strange. All works fine with High Sierra without any change into v1.1.8 cavd's script. But I can compile a package only with this modified line under Mojave Beta 4 (Xcode 10 Beta 4) Right... I think it might do something to compile it.... Still, I was talking about compiling Clover with the default method. No custom scripts. Still weird... Personally, I'm thinking this is probably some outdated methods/files which are no longer compatible with latest Xcode. Update: Quick question: in Mojave, did you build with Dark Mode ON or OFF? Amazingly enough, I can build with Dark Mode OFF (meaning Light Mode ON). Also, looks like the problem is related to Dark Mode... Since Clover Prefpane seems to be white, even in Dark Mode. Edited July 18, 2018 by arsradu 1 Link to comment Share on other sites More sharing options...

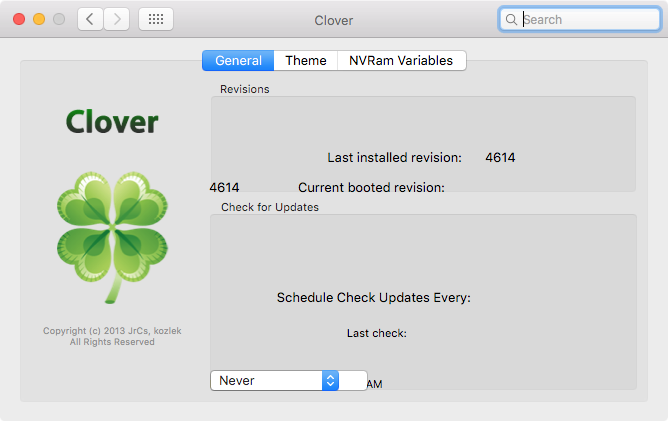

vector sigma Posted July 18, 2018 Share Posted July 18, 2018 I made modifications and now works as expected (dark when dark and viceversa). As soon I have more time Il made a commit, but I need to think a way for retro-compatibility. 3 1 Link to comment Share on other sites More sharing options...
kylon Posted July 18, 2018 Share Posted July 18, 2018 @Sherlocks hi sherlocks, gma.c#1333 this is a duplicate of #13, line 1331 Link to comment Share on other sites More sharing options...
Sherlocks Posted July 19, 2018 Share Posted July 19, 2018 1 hour ago, kylon said: @Sherlocks hi sherlocks, gma.c#1333 this is a duplicate of #13, line 1331 now i'm making up framebuffer info from vit9696' script. soon i will commit clean info. thanks for report 1 Link to comment Share on other sites More sharing options...
newuser Posted July 19, 2018 Share Posted July 19, 2018 Hello everyone! I have recently updated my xps 13 9343 from sierra 10.12.6 to high sierra 10.13.6. I know my all files are converted to apsf format and I need apsf.efi or apsfdriverloader.efi in EFI clover driversUEFI64 folder to load partition. I have dual boot Windows 10 as well. Once I place those files to that folder, clover won't boot as all. Without those files I can only see Windows partition. So now I am stuck half way. What could cause conflict? Is there any way to diagnose this issue? Link to comment Share on other sites More sharing options...
mrjayviper Posted July 19, 2018 Share Posted July 19, 2018 TLDR: (10.13.x) HFSplus can't detect any drives (including the USB stick OSX installer) on UEFI booting when I installed an older firmware on motherboard. VboxHFS+ works on UEFI boot. But I have experienced bootloop issues when I use VboxHFs + 4+TB HFS+ raid array but on legacy boot. No issues with HFSplus when using legacy booting. I can use a legacy boot USB installer to install OSX but the HDD have the same issues when using UEFI boot. --------------------- A month ago I updated the firmware (2018 version) on my Intel board and I got UEFI booting working. Clover+HFSplus.efi can detect my USB and the single HDD. I also have no bootloop issues when it comes to using a 4+TB HFS+ raid array. Because of other weird boot issues which I thought we're due to OSX, I moved back to Windows. But the weird boot issues area still present so I put back an older version (2017) of the firmware and from what I can see, my boot issues on Windows have disappeared. I decided to try OSX again last night. The problem is that when UEFi booting, HFSplus.efi can't detect any drives including the USB stick. I used VboxHFS just several hours ago, no issues with detecting drives. But when I was testing OSX last month and was using VBoxHFS on legacy boot, I get bootloop issues when I have 4+TB HFS+ raid array. I tried smaller raid array like 2x 80GB and I don't get any bootloop with that. My educated guess is that VboxHFS starts to get issues with raid arrays as the size increases. Any ideas on how to: 1. Continue using HFSplus but using UEFI 2. OR use VbosHFS but no bootloop on raid arrays Thanks Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 3 hours ago, newuser said: Hello everyone! I have recently updated my xps 13 9343 from sierra 10.12.6 to high sierra 10.13.6. I know my all files are converted to apsf format and I need apsf.efi or apsfdriverloader.efi in EFI clover driversUEFI64 folder to load partition. I have dual boot Windows 10 as well. Once I place those files to that folder, clover won't boot as all. Without those files I can only see Windows partition. So now I am stuck half way. What could cause conflict? Is there any way to diagnose this issue? Can you remove your serials from SMBIOS and RTvariables and upload your entire EFI folder for analysis? Link to comment Share on other sites More sharing options...
Matgen84 Posted July 19, 2018 Share Posted July 19, 2018 12 hours ago, arsradu said: Right... I think it might do something to compile it.... Still, I was talking about compiling Clover with the default method. No custom scripts. Still weird... Personally, I'm thinking this is probably some outdated methods/files which are no longer compatible with latest Xcode. Update: Quick question: in Mojave, did you build with Dark Mode ON or OFF? Amazingly enough, I can build with Dark Mode OFF (meaning Light Mode ON). Also, looks like the problem is related to Dark Mode... Since Clover Prefpane seems to be white, even in Dark Mode. I don't install CloverPrefpane in System/settings. Yes, I compile in Dark mode in Mojave Beta 4. I test cavd release v1.1.9 1. compile with existing src folder (create with 1.1.8 modified): all works fine 2. compile clean src folder: error 65 make pkg Link to comment Share on other sites More sharing options...

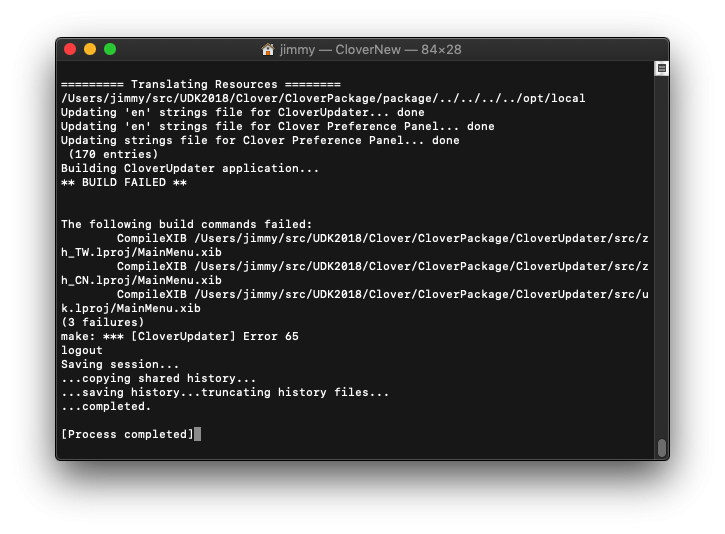

arsradu Posted July 19, 2018 Share Posted July 19, 2018 9 minutes ago, Matgen84 said: I don't install CloverPrefpane in System/settings. Yes, I compile in Dark mode in Mojave Beta 4. I test cavd release v1.1.9 1. compile with existing src folder (create with 1.1.8 modified): all works fine 2. compile clean src folder: error 65 make pkg OK, thank you. Waiting for vector sigma to push the changes up. 1 Link to comment Share on other sites More sharing options...
mrjayviper Posted July 19, 2018 Share Posted July 19, 2018 (edited) Is this the right place to talk about compiling and other developer talk? Seems it's more appropriate to talk about that in the clover development section. And leave the "normal" clover users to this thread? Edited July 19, 2018 by mrjayviper Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 29 minutes ago, mrjayviper said: Is this the right place to talk about compiling and other developer talk? Seems it's more appropriate to talk about that in the clover development section. And leave the "normal" clover users to this thread? Well, you would be right. Except regular users cannot post in the development thread. 1 Link to comment Share on other sites More sharing options...
mrjayviper Posted July 19, 2018 Share Posted July 19, 2018 (edited) edited..... Edited July 19, 2018 by mrjayviper Link to comment Share on other sites More sharing options...
mrjayviper Posted July 19, 2018 Share Posted July 19, 2018 How can I disable scanning of entries during clover boot? I've tried the settings on the screenshot and Auto=Yes (which disables all the checkboxes inside the scan section) but it's still happening. Thanks Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 (edited) 18 minutes ago, mrjayviper said: How can I disable scanning of entries during clover boot? I've tried the settings on the screenshot and Auto=Yes (which disables all the checkboxes inside the scan section) but it's still happening. Thanks Well, unchecking Entries should do the trick. I'm thinking maybe the drive you're booting from is not actually the one using this config? Cause I've got that disabled, and there is no "Scanning entries..." in Clover boot. Or...maybe you have multiple config.plist files? Update: Try Boot -> NoEarlyProgress. Edited July 19, 2018 by arsradu 1 Link to comment Share on other sites More sharing options...
mrjayviper Posted July 19, 2018 Share Posted July 19, 2018 (edited) another question please. If I don't need something to show up (or scanned), I can delete the EFI driver. correct? example: I don't want the Windows OS/data partitions to be shown/scanned so I can delete and NTFS driver. Or in Linux case, I can delete any of the extX drivers. Thanks Edited July 19, 2018 by mrjayviper Link to comment Share on other sites More sharing options...
Slice Posted July 19, 2018 Share Posted July 19, 2018 51 minutes ago, mrjayviper said: another question please. If I don't need something to show up (or scanned), I can delete the EFI driver. correct? example: I don't want the Windows OS/data partitions to be shown/scanned so I can delete and NTFS driver. Or in Linux case, I can delete any of the extX drivers. Thanks Quite correct. 1 Link to comment Share on other sites More sharing options...
newuser Posted July 19, 2018 Share Posted July 19, 2018 (edited) 9 hours ago, arsradu said: Can you remove your serials from SMBIOS and RTvariables and upload your entire EFI folder for analysis? Removed serial like you asked. Here you go. Thank you very much for your input! EFI.7z Edited July 19, 2018 by newuser double quote Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 (edited) 22 minutes ago, newuser said: Removed serial like you asked. Here you go. Thank you very much for your input! EFI.7z You've got drivers in both drivers64 and drivers64UEFI folders. Since this is a UEFI installation, I'm pretty sure you don't need the drivers64 folder. But you might wanna salvage HFSPlus.efi and apfs.efi from there and have them somewhere safe, in case you need them. Or you could just move the entire folder somewhere on your Desktop, for now. Also, you've got quite a lot of patched DSDT/SSDT. Hope they won't interfere with anything. Anyway, this would be my first guess. Try to move/remove the drivers64 folder and see if it makes a difference for you. Edited July 19, 2018 by arsradu Link to comment Share on other sites More sharing options...
newuser Posted July 19, 2018 Share Posted July 19, 2018 (edited) 12 minutes ago, arsradu said: You've got drivers in both drivers64 and drivers64UEFI. Since, this is a UEFI installation, I'm pretty sure you don't need the drivers64 folder. But you might wanna salvage HFSPlus.efi and apfs.efi from there and have them somewhere safe, in case you need them. Or you could just move the entire folder somewhere on your Desktop, for now. I'd say the rest of the files in that folder might already be present in drivers64UEFI. But if you wanna take a second look, that would probably be best. Also, you've got quite a lot of patched DSDT/SSDT. Hope they won't interfere with anything. Anyway, this would be my first guess. Try to move/remove the drivers64 folder and see if it makes a difference for you. Removed drivers64 and no difference. HFSPlus.efi never worked for me from the beginning I am using vboxhfs-64.efi instead. Edited July 19, 2018 by newuser Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 8 minutes ago, newuser said: Removed drivers64 and no difference. HFSPlus.efi never worked for me from the beginning I am using vboxhfs-64.efi instead. Ok, so to resume. With apfs/apfsdriverloader in drivers64UEFI, you can boot MacOS but you can't boot Windows Without them, you can only boot Windows (which I'd say is intended, since MacOS requires APFS). So, the only question here is why can't you boot Windows anymore when you add apfsdriverloader to drivers64UEFI. Did you change anything else? Does it work with older Clover versions...? Not too old, though. Maybe a boot log could help here...? I don't know. I don't use Windows anymore, so can't really tell... Maybe people with more experience in that will have a better idea what's going on in this case. Is Windows installed on a separate partition on the same drive or a separate drive altogether? Link to comment Share on other sites More sharing options...
newuser Posted July 19, 2018 Share Posted July 19, 2018 1 minute ago, arsradu said: Ok, so to resume. With apfs/apfsdriverloader in drivers64UEFI, you can boot MacOS but you can't boot Windows Without them, you can only boot Windows (which I'd say is intended, since MacOS requires APFS). So, the only question here is why can't you boot Windows anymore when you add apfsdriverloader to drivers64UEFI. Did you change anything else? Does it work with older Clover versions...? Not too old, though. Maybe a boot log could help here...? I don't know. I don't use Windows anymore, so can't really tell... Maybe people with more experience in that will have a better idea what's going on in this case. Is Windows installed on a separate partition on the same drive or a separate drive altogether? I can't boot to MacOS at all because clover wont boot at all with apfs/apfsdriverloader in drivers64UEFI. I don't use Windows as well but now that is the only way I can access EFI partition and mac files and do some changes. I've tried older Clover version but no luck. How to access boot.log? Windows is installed on separate partition. Link to comment Share on other sites More sharing options...
arsradu Posted July 19, 2018 Share Posted July 19, 2018 (edited) 14 minutes ago, newuser said: I can't boot to MacOS at all because clover wont boot at all with apfs/apfsdriverloader in drivers64UEFI. I don't use Windows as well but now that is the only way I can access EFI partition and mac files and do some changes. I've tried older Clover version but no luck. How to access boot.log? Windows is installed on separate partition. To generate a preboot.log, on Clover boot UI, press F2. The resulting file should be stored in EFI/CLOVER/misc. Also, do you think it would be possible to boot without patched DSDTs for testing (move them somewhere for now)? I'm afraid that might affect MacOS boot. Not sure about Windows boot though. But...personally I'd start with a clean config with MINIMUM patches, no patched SSDT/DSDT. Kinda hard to debug when you're having so many points of failure. Edited July 19, 2018 by arsradu Link to comment Share on other sites More sharing options...
newuser Posted July 19, 2018 Share Posted July 19, 2018 58 minutes ago, arsradu said: To generate a preboot.log, on Clover boot UI, press F2. The resulting file should be stored in EFI/CLOVER/misc. Also, do you think it would be possible to boot without patched DSDTs for testing (move them somewhere for now)? I'm afraid that might affect MacOS boot. Not sure about Windows boot though. But...personally I'd start with a clean config with MINIMUM patches, no patched SSDT/DSDT. Kinda hard to debug when you're having so many points of failure. To get to Clover UI boot I had to removed apfsdriverloader.efi from drivers64UEFI. This is the only way for me to load Clover now. Boot tested with moved DSDT patched + apfs.efi (from installer) /apfsdriverloader.efi different folder still clover. I can start Windows either through UEFIbios or clover, but only without APF / apfsdriverloader. Please check my proboot.log. Quote 0:100 0:100 MemLog inited, TSC freq: 2194919694 0:100 0:000 CPU was calibrated with ACPI PM Timer 0:100 0:000 0:100 0:000 Now is 19.7.2018, 12:25:52 (GMT) 0:100 0:000 Starting Clover revision: 4586 on American Megatrends EFI 0:100 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.5 | XCODE: 9.4.1] 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) @C7CA5C98 0:100 0:000 SelfDirPath = \EFI\CLOVER 0:100 0:000 === [ Get Smbios ] ======================================== 0:100 0:000 Type 16 Index = 0 0:100 0:000 Total Memory Slots Count = 2 0:100 0:000 Type 17 Index = 0 0:100 0:000 SmbiosTable.Type17->Speed = 1600MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM A 0:100 0:000 SmbiosTable.Type17->Vendor = Elpida 0:100 0:000 SmbiosTable.Type17->SerialNumber = 81808080 0:100 0:000 SmbiosTable.Type17->PartNumber = 8KTS51264HDZ-1G6E1 0:100 0:000 Type 17 Index = 1 0:100 0:000 SmbiosTable.Type17->Speed = 1600MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM B 0:100 0:000 SmbiosTable.Type17->Vendor = Elpida 0:100 0:000 SmbiosTable.Type17->SerialNumber = 82808080 0:100 0:000 SmbiosTable.Type17->PartNumber = 8KTS51264HDZ-1G6E1 0:100 0:000 Boot status=0 0:100 0:000 Running on: 'XPS 13 9343' with board '0TM99H' 0:100 0:000 === [ GetCPUProperties ] ================================== 0:100 0:000 CPU Vendor = 756E6547 Model=306D4 0:100 0:000 The CPU supported SSE4.1 0:100 0:000 BrandString = Intel(R) Core(TM) i5-5200U CPU @ 2.20GHz 0:100 0:000 The CPU supported turbo 0:100 0:000 MSR 0x35 20004 0:100 0:000 MSR 0xE2 before patch 1E008408 0:100 0:000 MSR 0xE2 is locked, PM patches will be turned on 0:100 0:000 MSR 0xCE 0005053B_F3011600 0:100 0:000 corrected FLEX_RATIO = 0 0:100 0:000 MSR 0x1B0 00000000 0:100 0:000 FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz 0:100 0:000 MaxDiv/MinDiv: 22.0/5 0:100 0:000 Turbo: 25/25/25/27 0:100 0:000 Features: 0xBFEBFBFF 0:100 0:000 Threads: 4 0:100 0:000 Cores: 2 0:100 0:000 FSB: 100 MHz 0:100 0:000 CPU: 2200 MHz 0:100 0:000 TSC: 2200 MHz 0:100 0:000 PIS: 100 MHz 0:100 0:000 ExternalClock: 25 MHz 0:100 0:000 === [ GetDevices ] ======================================== 0:100 0:000 PCI (00|00:00.00) : 8086 1604 class=060000 0:100 0:000 PCI (00|00:02.00) : 8086 1616 class=030000 0:100 0:000 - GFX: Model=Intel HD Graphics 5500 (Intel) 0:100 0:000 PCI (00|00:03.00) : 8086 160C class=040300 0:100 0:000 PCI (00|00:04.00) : 8086 1603 class=118000 0:100 0:000 PCI (00|00:14.00) : 8086 9CB1 class=0C0330 0:100 0:000 PCI (00|00:16.00) : 8086 9CBA class=078000 0:100 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:1C.00) : 8086 9C90 class=060400 0:100 0:000 PCI (00|01:00.00) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:1C.03) : 8086 9C96 class=060400 0:100 0:000 PCI (00|02:00.00) : 14E4 43B1 class=028000 0:100 0:000 - WIFI: Vendor=Broadcom 0:100 0:000 PCI (00|00:1F.00) : 8086 9CC3 class=060100 0:100 0:000 PCI (00|00:1F.02) : 8086 9C83 class=010601 0:100 0:000 PCI (00|00:1F.03) : 8086 9CA2 class=0C0500 0:100 0:000 PCI (00|00:1F.06) : 8086 9CA4 class=118000 0:100 0:000 === [ GetDefaultSettings ] ================================ 0:100 0:000 Clover load options size = 186 bytes 0:101 0:000 EFI\CLOVER\.plist not loaded with name from LoadOptions: Invalid Parameter 0:104 0:003 EFI\CLOVER\config.plist loaded: Success 0:104 0:000 === [ GetListOfThemes ] =================================== 0:105 0:001 - [00]: applestyle 0:106 0:000 === [ Found config plists ] =============================== 0:108 0:002 - config.plist 0:108 0:000 === [ GetEarlyUserSettings ] ============================== 0:108 0:000 timeout set to 5 0:108 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 0:108 0:000 KextsToPatch: 7 requested 0:108 0:000 - [00]: com.apple.driver.AirPort.Brcm4360 (AirPortBrcm4360 - fcvo) :: BinPatch :: data len: 8 0:108 0:000 - [01]: AppleIntelBDWGraphicsFramebuffer (NoLabel) - invalid Find/Replace data - skipping! 0:108 0:000 - [02]: AppleIntelBDWGraphicsFramebuffer (Siera Grafika) - invalid Find/Replace data - skipping! 0:108 0:000 - [03]: IOBluetoothFamily (BT 10.11) :: BinPatch :: data len: 8 0:108 0:000 - [04]: IOGraphicsFamily (Boot Graphics Glitch) - invalid Find/Replace data - skipping! 0:108 0:000 - [05]: disabled:IOAHCIBlockStorage (Enable TRIM for SSD) :: BinPatch :: data len: 11 0:108 0:000 - [06]: com.apple.driver.AppleBacklight (change F%uT%04x to F%uTxxxx in AppleBacklightInjector.kext (credit RehabMan)) :: BinPatch :: data len: 9 0:108 0:000 Default theme: applestyle 0:108 0:000 Hiding entries with string 4E87B4A3-A361-4F60-ABED-16402B76870D 0:108 0:000 Hiding entries with string 18EC9078-280E-4F93-9A8F-82B2A593FE0C 0:108 0:000 Hiding entries with string E9C31A5A-16C3-4DF7-9EFB-AAD940997859 0:108 0:000 Hiding entries with string D20D6622-3063-422A-9518-D87945EB045C 0:108 0:000 === [ LoadDrivers ] ======================================= 0:110 0:001 Loading AppleImageCodec-64.efi status=Success 0:114 0:003 Loading AppleKeyAggregator-64.efi status=Success 0:115 0:001 Loading AppleUITheme-64.efi status=Success 0:116 0:001 Loading DataHubDxe-64.efi status=Success 0:127 0:010 Loading FirmwareVolume-64.efi status=Success 0:128 0:001 Loading FSInject-64.efi status=Success 0:130 0:002 Loading OsxAptioFixDrv-64.efi status=Success 0:132 0:001 Loading SMCHelper-64.efi status=Success 0:133 0:001 Loading VBoxHfs-64.efi status=Success 0:135 0:001 - driver needs connecting 0:135 0:000 Loading OsxFatBinaryDrv-64.efi status=Success 0:137 0:002 1 drivers needs connecting ... 0:137 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 0:137 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:460 0:323 === [ InitScreen ] ======================================== 0:460 0:000 SetMaxResolution: found best mode 6: 3200x1800 0:460 0:000 - already set 0:460 0:000 Console modes reported: 4, available modes: 0:460 0:000 - [01]: 80x25 0:460 0:000 - [02]: 80x50 0:460 0:000 - [03]: 100x31 0:460 0:000 - [04]: 400x94 (current mode) 0:460 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 0:461 0:000 Using embedded font: Success 0:462 0:001 === [ GetMacAddress ] ===================================== 0:462 0:000 === [ ScanSPD ] =========================================== 0:462 0:000 SMBus device : 8086 9CA2 class=0C0500 status=Success 0:462 0:000 SMBus CmdReg: 0x3 0:462 0:000 Scanning SMBus [8086:9CA2], mmio: 0xF741D004, ioport: 0xF040, hostc: 0x11 0:462 0:000 Slots to scan [8]... 0:463 0:001 === [ GetAcpiTablesList ] ================================= 0:463 0:000 Get Acpi Tables List from RSDT: 0:463 0:000 - [00]: FACP CBX3 len=132 0:463 0:000 - [01]: APIC CBX3 len=132 0:463 0:000 - [02]: FPDT CBX3 len=68 0:463 0:000 - [03]: FIDT CBX3 len=156 0:463 0:000 - [04]: MCFG CBX3 len=60 0:463 0:000 - [05]: HPET CBX3 len=56 0:463 0:000 - [06]: SSDT SataTabl len=1109 0:463 0:000 - [07]: UEFI len=66 0:463 0:000 - [08]: SSDT Tpm2Tabl len=1191 0:463 0:000 - [09]: SSDT MeSsdt len=75 0:464 0:000 - [10]: TPM2 len=52 0:464 0:000 - [11]: SSDT Ther_Rvp len=3291 0:464 0:000 - [12]: ASF! HCG len=160 0:464 0:000 - [13]: SSDT Cpu0Ist len=1311 0:464 0:000 - [14]: SSDT CpuSsdt len=2932 0:464 0:000 - [15]: SSDT LakeTiny len=455 0:464 0:000 - [16]: SSDT CppcTabl len=933 0:464 0:000 - [17]: PCCT PcctTabl len=110 0:464 0:000 - [18]: SSDT Cpc_Tabl len=2756 0:464 0:000 - [19]: SSDT SaSsdt len=16903 0:464 0:000 - [20]: SSDT DptfTabl len=17990 0:464 0:000 - [21]: SLIC CBX3 len=374 0:464 0:000 - [22]: MSDM CBX3 len=85 0:464 0:000 - [23]: CSRT BDW-ULT len=196 0:464 0:000 - [24]: BGRT len=56 0:464 0:000 Calibrated TSC Frequency = 2194919694 = 2194MHz 0:464 0:000 === [ GetUserSettings ] =================================== 0:464 0:000 USB FixOwnership: no 0:464 0:000 Dropping 7 tables: 0:464 0:000 - [00]: Drop table signature="SSDT" (54445353) table-id="Cpu0Cst" (0074734330757043) 0:464 0:000 - set table: 54445353, 74734330757043 to drop: no 0:464 0:000 - [01]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 0:464 0:000 - set table: 54445353, 6D50757043 to drop: no 0:464 0:000 - [02]: Drop table signature="DMAR" (52414D44) 0:464 0:000 - set table: 52414D44, 0 to drop: no 0:464 0:000 - [03]: Drop table signature="SSDT" (54445353) table-id="ApCst" (0000007473437041) 0:464 0:000 - set table: 54445353, 7473437041 to drop: no 0:464 0:000 - [04]: Drop table signature="SSDT" (54445353) table-id="ApIst" (0000007473497041) 0:464 0:000 - set table: 54445353, 7473497041 to drop: no 0:464 0:000 - [05]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 0:464 0:000 - set table: 54445353, 74734930757043 to drop: yes 0:464 0:000 - [06]: Drop table signature="MATS" (5354414D) 0:464 0:000 - set table: 5354414D, 0 to drop: no 0:464 0:000 - final DSDT Fix mask=00000004 0:464 0:000 PluginType: 1 0:464 0:000 Using ProductName from config: MacBookPro12,1 0:464 0:000 Using latest BiosVersion from clover 0:464 0:000 BiosVersion: MBP121.88Z.0176.B00.1804091715 0:464 0:000 BiosReleaseDate: 04/09/2018 0:464 0:000 Using FirmwareFeatures from config: 0xFC0FE136 0:464 0:000 Using FirmwareFeaturesMask from config: 0xFF1FFF3F 0:464 0:000 Board-ID set from config as Mac-E43C1C25D4880AD6 0:464 0:000 BoardType: 0xA 0:464 0:000 ChassisType: 0x9 0:468 0:003 === [ Found DSDT tables ] ================================= 0:469 0:000 - DSDT.aml 0:514 0:045 === [ ScanVolumes ] ======================================= 0:514 0:000 Found 6 volumes with blockIO 0:514 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 0:515 0:000 Result of bootcode detection: bootable unknown (legacy) 0:515 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 0:515 0:000 Result of bootcode detection: bootable unknown (legacy) 0:515 0:000 This is SelfVolume !! 0:515 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 0:516 0:000 hiding this volume 0:516 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 0:517 0:000 Result of bootcode detection: bootable Windows (vista,win) 0:517 0:000 hiding this volume 0:517 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 0:517 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 0:518 0:000 Result of bootcode detection: bootable unknown (legacy) 0:518 0:000 === [ InitTheme ] ========================================= 0:520 0:002 Using theme 'applestyle' (EFI\CLOVER\themes\applestyle) 0:523 0:002 Loading font from ThemeDir: Success 0:523 0:000 Chosen theme applestyle 0:523 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 0:523 0:000 === [ Dump SMC keys from NVRAM ] ========================== 0:523 0:000 found AppleSMC protocol 0:533 0:010 Registered 17 SMC keys 0:534 0:000 === [ ScanLoader ] ======================================== 0:534 0:000 - [01]: 'EFI' 0:535 0:001 AddLoaderEntry for Volume Name=EFI 0:549 0:013 AddLoaderEntry for Volume Name=EFI 0:549 0:000 skipped because entry is hidden 0:549 0:000 - [03]: 'OS', hidden 0:549 0:000 Scanning legacy ... 0:549 0:000 3: 'OS' (vista,win) hidden 0:549 0:000 === [ AddCustomTool ] ===================================== 0:550 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 0:550 0:000 Checking EFI partition Volume 1 for Clover 0:550 0:000 Found Clover 0:551 0:001 === [ GetEfiBootDeviceFromNvram ] ========================= 0:551 0:000 Default boot entry not found 0:551 0:000 DefaultIndex=-1 and MainMenu.EntryCount=7 1:427 0:875 GUI ready 15:458 14:031 ReinitSelfLib after theme change 15:458 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 15:458 0:000 === [ ScanVolumes ] ======================================= 15:458 0:000 Found 6 volumes with blockIO 15:458 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 15:461 0:003 Result of bootcode detection: bootable unknown (legacy) 15:461 0:000 This is SelfVolume !! 15:461 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 15:462 0:000 Result of bootcode detection: bootable unknown (legacy) 15:462 0:000 This is SelfVolume !! 15:462 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 15:462 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 15:463 0:000 Result of bootcode detection: bootable Windows (vista,win) 15:463 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 15:464 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 15:464 0:000 Result of bootcode detection: bootable unknown (legacy) 15:464 0:000 Chosen theme applestyle 15:464 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 15:464 0:000 === [ ScanLoader ] ======================================== 15:464 0:000 - [01]: 'EFI' 15:465 0:000 AddLoaderEntry for Volume Name=EFI 15:474 0:009 AddLoaderEntry for Volume Name=EFI 15:475 0:001 - [03]: 'OS' 15:484 0:008 Scanning legacy ... 15:484 0:000 3: 'OS' (vista,win) add legacy 15:484 0:000 added 'Boot Windows from OS' OSType=2 Icon=vista,win 15:484 0:000 === [ AddCustomTool ] ===================================== 15:484 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 15:484 0:000 Checking EFI partition Volume 1 for Clover 15:484 0:000 Found Clover 15:484 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 15:485 0:000 Default boot entry not found 15:485 0:000 DefaultIndex=-1 and MainMenu.EntryCount=9 16:305 0:820 ReinitSelfLib after theme change 16:305 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 16:306 0:000 === [ ScanVolumes ] ======================================= 16:306 0:000 Found 6 volumes with blockIO 16:306 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 16:309 0:003 Result of bootcode detection: bootable unknown (legacy) 16:309 0:000 This is SelfVolume !! 16:309 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 16:309 0:000 Result of bootcode detection: bootable unknown (legacy) 16:310 0:000 This is SelfVolume !! 16:310 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 16:310 0:000 hiding this volume 16:310 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 16:311 0:000 Result of bootcode detection: bootable Windows (vista,win) 16:311 0:000 hiding this volume 16:311 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 16:312 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 16:312 0:000 Result of bootcode detection: bootable unknown (legacy) 16:312 0:000 Chosen theme applestyle 16:312 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 16:312 0:000 === [ ScanLoader ] ======================================== 16:312 0:000 - [01]: 'EFI' 16:313 0:000 AddLoaderEntry for Volume Name=EFI 16:322 0:009 AddLoaderEntry for Volume Name=EFI 16:322 0:000 skipped because entry is hidden 16:322 0:000 - [03]: 'OS', hidden 16:322 0:000 Scanning legacy ... 16:322 0:000 3: 'OS' (vista,win) hidden 16:322 0:000 === [ AddCustomTool ] ===================================== 16:322 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 16:322 0:000 Checking EFI partition Volume 1 for Clover 16:322 0:000 Found Clover 16:322 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 16:322 0:000 Default boot entry not found 16:322 0:000 DefaultIndex=-1 and MainMenu.EntryCount=7 17:140 0:818 ReinitSelfLib after theme change 17:140 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 17:140 0:000 === [ ScanVolumes ] ======================================= 17:140 0:000 Found 6 volumes with blockIO 17:140 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 17:143 0:003 Result of bootcode detection: bootable unknown (legacy) 17:143 0:000 This is SelfVolume !! 17:143 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 17:144 0:000 Result of bootcode detection: bootable unknown (legacy) 17:145 0:000 This is SelfVolume !! 17:145 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 17:145 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 17:146 0:000 Result of bootcode detection: bootable Windows (vista,win) 17:146 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 17:146 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 17:147 0:000 Result of bootcode detection: bootable unknown (legacy) 17:147 0:000 Chosen theme applestyle 17:147 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 17:147 0:000 === [ ScanLoader ] ======================================== 17:147 0:000 - [01]: 'EFI' 17:148 0:000 AddLoaderEntry for Volume Name=EFI 17:157 0:009 AddLoaderEntry for Volume Name=EFI 17:157 0:000 - [03]: 'OS' 17:166 0:008 Scanning legacy ... 17:166 0:000 3: 'OS' (vista,win) add legacy 17:166 0:000 added 'Boot Windows from OS' OSType=2 Icon=vista,win 17:166 0:000 === [ AddCustomTool ] ===================================== 17:166 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 17:166 0:000 Checking EFI partition Volume 1 for Clover 17:166 0:000 Found Clover 17:167 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 17:167 0:000 Default boot entry not found 17:167 0:000 DefaultIndex=-1 and MainMenu.EntryCount=9 17:988 0:820 ReinitSelfLib after theme change 17:988 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 17:988 0:000 === [ ScanVolumes ] ======================================= 17:988 0:000 Found 6 volumes with blockIO 17:988 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 17:991 0:003 Result of bootcode detection: bootable unknown (legacy) 17:991 0:000 This is SelfVolume !! 17:991 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 17:991 0:000 Result of bootcode detection: bootable unknown (legacy) 17:992 0:000 This is SelfVolume !! 17:992 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 17:993 0:000 hiding this volume 17:993 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 17:993 0:000 Result of bootcode detection: bootable Windows (vista,win) 17:993 0:000 hiding this volume 17:993 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 17:994 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 17:994 0:000 Result of bootcode detection: bootable unknown (legacy) 17:994 0:000 Chosen theme applestyle 17:995 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 17:995 0:000 === [ ScanLoader ] ======================================== 17:995 0:000 - [01]: 'EFI' 17:995 0:000 AddLoaderEntry for Volume Name=EFI 18:004 0:009 AddLoaderEntry for Volume Name=EFI 18:004 0:000 skipped because entry is hidden 18:004 0:000 - [03]: 'OS', hidden 18:004 0:000 Scanning legacy ... 18:004 0:000 3: 'OS' (vista,win) hidden 18:004 0:000 === [ AddCustomTool ] ===================================== 18:004 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 18:004 0:000 Checking EFI partition Volume 1 for Clover 18:004 0:000 Found Clover 18:005 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 18:005 0:000 Default boot entry not found 18:005 0:000 DefaultIndex=-1 and MainMenu.EntryCount=7 20:549 2:544 ReinitSelfLib after theme change 20:549 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 20:549 0:000 === [ ScanVolumes ] ======================================= 20:549 0:000 Found 6 volumes with blockIO 20:549 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 20:552 0:003 Result of bootcode detection: bootable unknown (legacy) 20:552 0:000 This is SelfVolume !! 20:552 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 20:553 0:000 Result of bootcode detection: bootable unknown (legacy) 20:553 0:000 This is SelfVolume !! 20:553 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 20:554 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 20:554 0:000 Result of bootcode detection: bootable Windows (vista,win) 20:554 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 20:555 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 20:555 0:000 Result of bootcode detection: bootable unknown (legacy) 20:556 0:000 Chosen theme applestyle 20:556 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 20:556 0:000 === [ ScanLoader ] ======================================== 20:556 0:000 - [01]: 'EFI' 20:556 0:000 AddLoaderEntry for Volume Name=EFI 20:565 0:008 AddLoaderEntry for Volume Name=EFI 20:566 0:000 - [03]: 'OS' 20:574 0:008 Scanning legacy ... 20:574 0:000 3: 'OS' (vista,win) add legacy 20:575 0:000 added 'Boot Windows from OS' OSType=2 Icon=vista,win 20:575 0:000 === [ AddCustomTool ] ===================================== 20:575 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 20:575 0:000 Checking EFI partition Volume 1 for Clover 20:575 0:000 Found Clover 20:575 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 20:575 0:000 Default boot entry not found 20:575 0:000 DefaultIndex=-1 and MainMenu.EntryCount=9 37:229 16:653 ReinitSelfLib after theme change 37:229 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 37:229 0:000 === [ ScanVolumes ] ======================================= 37:229 0:000 Found 6 volumes with blockIO 37:229 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 37:232 0:003 Result of bootcode detection: bootable unknown (legacy) 37:232 0:000 This is SelfVolume !! 37:232 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,EEACE0E5-99C9-4BFE-BE5E-6BBB514023B8,0x800,0xF9800) 37:232 0:000 Result of bootcode detection: bootable unknown (legacy) 37:233 0:000 This is SelfVolume !! 37:233 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D20D6622-3063-422A-9518-D87945EB045C,0xFA000,0x40000) 37:234 0:000 hiding this volume 37:234 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E9C31A5A-16C3-4DF7-9EFB-AAD940997859,0x13A000,0x61A8000) 37:234 0:000 Result of bootcode detection: bootable Windows (vista,win) 37:234 0:000 hiding this volume 37:234 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(4,GPT,067EA57B-5D38-428C-9799-ECE7ADA28C13,0x62E2000,0x1388000) 37:235 0:000 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(5,GPT,3BE58E1A-34CF-4D6C-3455-68B2A39AD53C,0x766A000,0x16689288) 37:235 0:000 Result of bootcode detection: bootable unknown (legacy) 37:235 0:000 Chosen theme applestyle 37:235 0:000 after NVRAM boot-args=-v dart=0 nv_disable=1 kext-dev-mode=1 37:236 0:000 === [ ScanLoader ] ======================================== 37:236 0:000 - [01]: 'EFI' 37:236 0:000 AddLoaderEntry for Volume Name=EFI 37:245 0:009 AddLoaderEntry for Volume Name=EFI 37:245 0:000 skipped because entry is hidden 37:245 0:000 - [03]: 'OS', hidden 37:245 0:000 Scanning legacy ... 37:245 0:000 3: 'OS' (vista,win) hidden 37:245 0:000 === [ AddCustomTool ] ===================================== 37:245 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 37:245 0:000 Checking EFI partition Volume 1 for Clover 37:245 0:000 Found Clover 37:245 0:000 === [ GetEfiBootDeviceFromNvram ] ========================= 37:245 0:000 Default boot entry not found 37:245 0:000 DefaultIndex=-1 and MainMenu.EntryCount=7 41:870 4:624 BootVariable of the entry is empty 41:870 0:000 === [ StartLoader ] ======================================= 41:870 0:000 Finally: ExternalClock=25MHz BusSpeed=99770kHz CPUFreq=2195MHz PIS: hw.busfrequency=100000000Hz 41:870 0:000 Loading bootmgfw.efi status=Success 42:126 0:255 Closing events for Windows 42:126 0:000 OtherOS: Found Acpi 2.0 RSDP 0xD6E9B000 42:126 0:000 RSDT at D6E9B028 42:126 0:000 XSDT at D6E9B0B8 42:126 0:000 FADT pointer = D6EAE778 42:133 0:006 Cleanup RSDT: count=25, length=136 42:133 0:000 corrected RSDT: count=25, length=136 42:133 0:000 Cleanup XSDT: count=25, length=236 42:133 0:000 corrected XSDT count=25, length=236 42:133 0:000 Closing log Link to comment Share on other sites More sharing options...
