Clover General discussion


ErmaC
30,171 posts in this topic

Recommended Posts

Apple update FirmwareFeatures & FirmwareFeaturesMask to 10.14

FirmwareFeatures 0xFD0FF536

FirmwareFeaturesMask 0xFF1FFF3F

  • Like 2
Link to comment
Share on other sites

1 hour ago, ccphuc2016 said:

thank and where download nvidia web driver macos 10.14 for VGA MSI GTX 750Ti





nvidia web driver macos 10.14 does not exist, use nvidia web driver for 10.13.5

  • Like 1
Link to comment
Share on other sites

Ouch, so I've to unstage my local commits caused of this issue with SF (or Themes repo only?). Also my prev. changes actually have been committed but it seems not well indexed by CloverThemeManager.app.. though I need more than 15 minutes with a theme only to be updated on remote repo.

Screenshot 13.png

Link to comment
Share on other sites

I probably should have searched this thread before posting this because I bet someone else has already observed this.



I am constantly being told to place all Kexts into /Library/Extensions rather than Clover's Kexts/Other for at least High Sierra.  I do understand how some of these kexts would need to be in L/E because of the order in which some of these kexts are injected with the native kexts.



From my observations this seems to be correct but if I try to boot the rescue partition or run a MacOS Combi update and possibly other scenarios, I can tell you for a fact it will not boot if you do not have minimally FakeSMC and for me using VoodooPS2 for laptops placed into the Clover /kexts/Other.  So which kexts really should not be in Clover /kexts/Other?

Link to comment
Share on other sites

2 hours ago, Badruzeus said:

Is this Clover bug or just my compilation problem with xcode8?

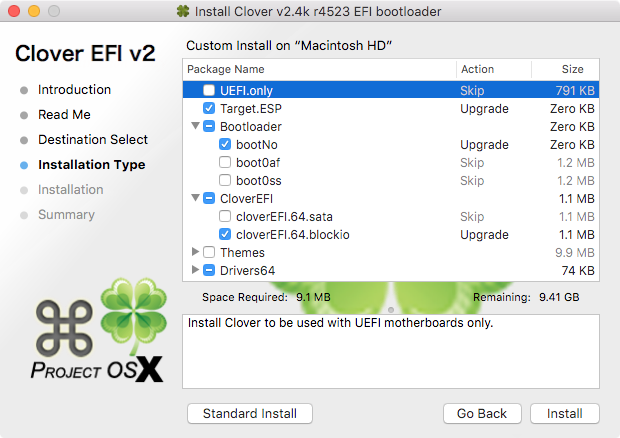

r452x install menu (right one) is not comfortable to read and missed the descriptions. Thanks.


Same here with Xcode 9.4 compilation.

Link to comment
Share on other sites

Hi devs, I've just noticed that since around rev 4516 the CsmVideoDxe driver doesn't work anymore for me.



Rev 4512, working ok:

Spoiler

0:283  0:000  Loading CsmVideoDxe-64.efi  status=Success
0:300  0:016   - driver needs connecting
0:300  0:000  Loading FSInject-64.efi  status=Success
0:301  0:001  Loading FirmwareVolume-64.efi  status=Success
0:302  0:000  Loading SMCHelper-64.efi  status=Success
0:302  0:000  Loading HFSPlus.efi  status=Success
0:304  0:001   - driver needs connecting
0:304  0:000  Loading OsxAptioFixDrv-64.efi  status=Success
0:305  0:000  3 drivers needs connecting ...
0:305  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:305  0:000  HFS+ driver loaded
0:305  0:000  APFS driver loaded
0:305  0:000  Video driver loaded: disconnect Success
0:386  0:081  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:394  0:007  CsmVideoDriverBindingStart
0:394  0:000  mixed support=40010
0:394  0:000  Controller is [030000]
0:394  0:000  Check for VBE
0:496  0:102    0 640x480 attr=3BF - ok, 640x480, working, highest, pref=0
0:498  0:001    1 800x600 attr=3BF - ok, 800x600, working, highest, pref=1
0:500  0:002    2 1024x768 attr=3BF - ok, 1024x768, working, highest, pref=2
0:502  0:001    3 1280x1024 attr=3BF - ok
0:514  0:011    4 1600x1200 attr=3BF - ok
0:518  0:003    5 1280x800 attr=3BF - ok
0:518  0:000  CsmVideo: New mode: 2 1024x768 - set
0:653  0:134   - SetMode pref 2 (2) = Success
0:653  0:000  CsmVideoCheckForVbe - Success
0:653  0:000  CsmVideoDriverBindingStart end Success
0:653  0:000  CsmVideo: New mode: 1 800x600 - blocking that switch
0:653  0:000  CsmVideo: New mode: 1 800x600 - blocking that switch
0:653  0:000  CsmVideo: New mode: 1 800x600 - blocking that switch
1:209  0:556  === [ InitScreen ] ========================================
1:209  0:000  SetScreenResolution: 1280x800 - setting Mode 5
1:209  0:000  CsmVideo: New mode: 5 1280x800 - set
1:353  0:143  Video mode change to mode #5: Success



Rev 4516, fails to detect additional resolutions:

Spoiler

0:302  0:018  Loading CSMVID~1.EFI  status=Success
0:303  0:001   - driver needs connecting
0:303  0:000  Loading FSInject-64.efi  status=Success
0:304  0:000  Loading FirmwareVolume-64.efi  status=Success
0:304  0:000  Loading SMCHelper-64.efi  status=Success
0:306  0:001  Loading OsxAptioFixDrv-64.efi  status=Success
0:306  0:000  Loading HFSPlus.efi  status=Success
0:308  0:001   - driver needs connecting
0:308  0:000  3 drivers needs connecting ...
0:308  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:308  0:000  HFS+ driver loaded
0:308  0:000  APFS driver loaded
0:308  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:753  0:445  === [ InitScreen ] ========================================
0:753  0:000  SetScreenResolution: 1280x800 - not found!
0:753  0:000  SetMaxResolution: found best mode 2: 1024x768
0:882  0:128  Video mode change to mode #2: Success



Compiled Clover with Build_Clover.command with no visible error.

boot-r4516-2018-06-07-18.36.56.zip

Link to comment
Share on other sites

Fellas, can anyone help pls?

Patches are off in the Clover or the OS is screwed? 10.13.5 fresh install, Clover is bare with minimal stuff in it, only patches are USB and XCPM, same issue with 10.13.4, but 10.13.3 works like a charm. Tried many versions of Clover, same results.



HELP!








Edited by Balamut
Link to comment
Share on other sites

6 minutes ago, Balamut said:

Fellas, can anyone help pls?

Patches are off in the Clover or the OS is screwed? 10.13.5 fresh install, Clover is bare with minimal stuff in it, only patches are USB and XCPM, same issue with 10.13.4, but 10.13.3 works like a charm. Tried many versions of Clover, same results.



HELP!








upload your clover log or config

Link to comment
Share on other sites

On 6/7/2018 at 9:55 AM, oSxFr33k said:

I probably should have searched this thread before posting this because I bet someone else has already observed this.



I am constantly being told to place all Kexts into /Library/Extensions rather than Clover's Kexts/Other for at least High Sierra.  I do understand how some of these kexts would need to be in L/E because of the order in which some of these kexts are injected with the native kexts.



From my observations this seems to be correct but if I try to boot the rescue partition or run a MacOS Combi update and possibly other scenarios, I can tell you for a fact it will not boot if you do not have minimally FakeSMC and for me using VoodooPS2 for laptops placed into the Clover /kexts/Other.  So which kexts really should not be in Clover /kexts/Other?

Well,

My limited understanding says all kext and kernel patches/injections that clover can do on the fly go in Clover/Kexts.10.x.x/Others, rest you need to place in S/L/E or L/E as they are  altered kexts.

Link to comment
Share on other sites

50 minutes ago, SavageAUS said:

How do I enable 2560x1440 res in clover gui? I tried setting in config.plist but it didn't work.



You might need CSM disabled in BIOS, no CSMvideo driver in Clover, and an UEFI supported graphics card (WITH the UEFI firmware installed). That's usually the recipe for native resolution in preboot.

I'm also using a 2560x1440 monitor, and I have no issues. So I'm sure it is possible.

Link to comment
Share on other sites

4 minutes ago, arsradu said:



You might need CSM disabled in BIOS, no CSMvideo driver in Clover, and an UEFI supported graphics card (WITH the UEFI firmware installed). That's usually the recipe for native resolution in preboot.

I'm also using a 2560x1440 monitor, and I have no issues. So I'm sure it is possible.

Thanks ill check the bios settings. I will assume my GTX960 has uefi firmware.

Link to comment
Share on other sites

7 minutes ago, SavageAUS said:

Thanks ill check the bios settings. I will assume my GTX960 has uefi firmware.



Well, if disabling CSM in Bios doesn't do the trick, I would also double check the graphics card firmware, as well. Just in case. :) It most likely does have the UEFI firmware installed. But it's worth double checking this, since this is an important part of the whole process (if not the most important part). Otherwise, it won't work.

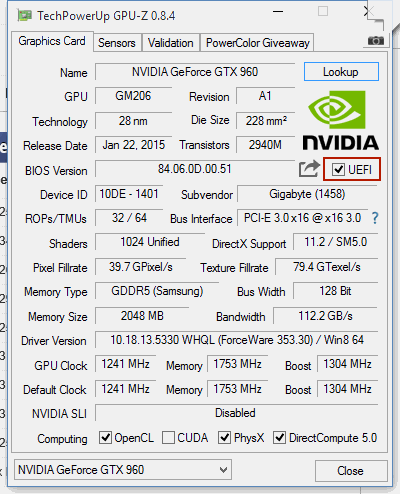

Sadly, the only way I know to check that information is...from Windows, using GPU-Z.

When everything is ok, it should look something like this.




Edited by arsradu
Link to comment
Share on other sites

4 minutes ago, arsradu said:



Well, if disabling CSM in Bios doesn't do the trick, I would also double check the graphics card firmware, as well. Just in case. :) It most likely does have the UEFI firmware installed. But it's worth double checking this, since this is an important part of the whole process (if not the most important part). Otherwise, it won't work.



Sadly, the only way I know to check that information is...from Windows, using GPU-Z.

When everything is ok, it should look something like this.




Yeah it's all good. My uefi firmware has option for other os or Windows, when I switched to Windows option I could disable csm which gave me native resolution. (New monitor today)

  • Like 2
Link to comment
Share on other sites

×
×
