chris1111 Posted May 30, 2018 Share Posted May 30, 2018 (edited) 4 minutes ago, arsradu said: I think the confusion here comes from the word "mandatory" itself. If I got this right, I think the actual question was: is one of them selected by default in the UI, if it wasn't there before? And I think the answer here is: no, it is not. We're talking about that ticket that apianti was talking about on the previous page. Re-quoting for your convenience: So, basically, if it's not a new Clover installation, if you had Clover installed before on that drive, and if you hadn't had that driver checked before (or if you were using HFSPlus.efi instead), it's not gonna be checked now (1. if you're still using HFSPlus, there's no need for VBoxHfs, 2. if you're already using VBoxHFs, it should be already checked, unless you want it removed now, in which case, you can uncheck it upon installation, and it will be removed). If you did have it before, it's gonna be kept like that (checked) when upgrading Clover. Now, the possible problem comes for the new users who don't know what VBoxHfs/HFSPlus are, and whether or not they need any of them for their hackintosh to boot. So, I think the question here is: for this particular case, if it's a new installation, if there's no HFSPlus already in place, will VBoxHfs be checked (and installed) by default so the user can boot? Your not understanding the point EDIT *** This Drivers mandatory should be not visible Edited May 30, 2018 by chris1111 Link to comment Share on other sites More sharing options...
arsradu Posted May 30, 2018 Share Posted May 30, 2018 (edited) 7 minutes ago, chris1111 said: Your not understanding the point EDIT *** This Drivers mandatory should be not visible Visible or not visible, the idea is that it gets installed, on new systems, if there's nothing else already in place. The fact that it's visible or not is not really important. If it's visible and it's also already checked by default so you can see that it's gonna be installed, that's even better, cause you can see exactly what will it install. You can make that checkbox greyed out for this case, if anything... Edited May 30, 2018 by arsradu Link to comment Share on other sites More sharing options...
chris1111 Posted May 30, 2018 Share Posted May 30, 2018 (edited) 23 minutes ago, arsradu said: Visible or not visible, the idea is that it gets installed, on new systems, if there's nothing else already in place. The fact that it's visible or not is not really important. If it's visible and it's also already checked by default so you can see that it's gonna be installed, that's even better, cause you can see exactly what it it installed. You can make that checkbox greyed out for this case, if anything... Sorry but Your completely misunderstanding Clover package ( and why some Drivers is not visible and of course mandatory) Edited May 30, 2018 by chris1111 1 Link to comment Share on other sites More sharing options...
Slice Posted May 30, 2018 Share Posted May 30, 2018 2 hours ago, chris1111 said: I am not confused, I know that for long time so Why in the new change VBoxHfs-64.efi is not mandatory? Because some people have HFSPlus.efi flashed into ROM. 2 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 30, 2018 Share Posted May 30, 2018 8 hours ago, apianti said: Oh, you need to fix you injections. They are no longer injected by default so you need to figure out which ones you need and enable them. Are you able to be a little more specific? Is it the kexts that are not being injected or something else? Sorry I don't understand. Link to comment Share on other sites More sharing options...
arsradu Posted May 31, 2018 Share Posted May 31, 2018 (edited) Speaking of mandatory vs non-mandatory drivers, shouldn't apfs.efi be one of the mandatory ones? I mean, I'm sure there are probably a lot of people still using HFS+. But the tendency seems to be towards switching to APFS. And, if I'm not mistaken, your drive is automatically converted to APFS if you're using an SSD anyway. There are ways around it. But, I mean, from a new user's perspective, that's the normal flow. And...I suppose, just like with HFSPlus.efi, the problem here is the fact that this is not an open-source driver. So...if you have it, good. If not, well, c'est la vie. We can't build it to include it with Clover installer because there is no source for it (or it's under Apple's terms of use). But please, correct me if I'm wrong. I suppose you can't boot an APFS volume with HFSPlus.efi or VBoxHfs.efi, right? So...even if we make VBoxHfs.efi "mandatory", and install it no matter what, if you're using APFS, you're pretty much screwed anyway. Edited May 31, 2018 by arsradu 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted May 31, 2018 Share Posted May 31, 2018 How do we make use of clover-genconfig to reimplement injection? 1 Link to comment Share on other sites More sharing options...
chris1111 Posted May 31, 2018 Share Posted May 31, 2018 (edited) 18 hours ago, Slice said: Because some people have HFSPlus.efi flashed into ROM. Ok your description SF Package ⬇︎ Spoiler change for this ⬇︎ Spoiler thats correct Edited May 31, 2018 by chris1111 1 Link to comment Share on other sites More sharing options...
jerryy2 Posted June 1, 2018 Share Posted June 1, 2018 17 hours ago, arsradu said: Speaking of mandatory vs non-mandatory drivers, ... I suppose you can't boot an APFS volume with HFSPlus.efi or VBoxHfs.efi, right? So...even if we make VBoxHfs.efi "mandatory", and install it no matter what, if you're using APFS, you're pretty much screwed anyway. I ran into this yesterday and not knowing what all of the options did (I am not well versed in what all of the options are, I tried two different installations. Both disks are APFS based. One (10.13.4) with just: AppleImageCodec-64.efi AppleUITheme-64.efi DataHubDxe-64.efi FirmwareVolume-64.efi AppleKeyAggregator-64.efi AptioMemoryFix.efi FSInject-64.efi apfs.efi and one disk (10.13.5) with these same drivers as well as with the VBoxHfs.efi driver. Both drives cold and warm booted after the clover update to version 4509. I updated the 10.13.5 disk to 10.13.6, still with the VBoxHfs.efi as well as the apfs.efi driver. It still worked. I removed the VBoxHFS.efi driver and the 10.13.6 disk still booted. So the mandatory inclusion may not be as much of a problem as long as the apfs driver is installed. (Gigagyte Z370XP SLI and I5-8400). Link to comment Share on other sites More sharing options...
Pavo Posted June 1, 2018 Share Posted June 1, 2018 (edited) VBoxHFS.efi or HFS+.efi is required just for install because macOS installer creates HFS+ partitions as RAM disk in order to continue with the installation of the OS. If you have completed install and only using APFS, APFS.efi is only required to booted the OS that is installed as APFS. but if you are like many hackintoshers in this community that has older versions of macOS installed (that do not have APFS) VBoxHFS.efi or HFS+.efi is required and as stated as (mandatory).Not trying to be offensive here but I don't understand how this is confusing...... Edited June 1, 2018 by Pavo 3 Link to comment Share on other sites More sharing options...
jerryy2 Posted June 1, 2018 Share Posted June 1, 2018 (edited) 1 hour ago, Pavo said: VBoxHFS.efi or HFS+.efi is required just for install because macOS installer creates HFS+ partitions as RAM disk in order to continue with the installation of the OS. If you have completed install and only using APFS, APFS.efi is only required to booted the OS that is installed as APFS. but if you are like many hackintoshers in this community that has older versions of macOS installed (that do not have APFS) VBoxHFS.efi or HFS+.efi is required and as stated as (mandatory).Not trying to be offensive here but I don't understand how this is confusing...... Is the os installer still doing this (creating a hfs+ RAM disk) if you are entirely apfs based? I was not sure, so I that is why I left the vboxhfs.efi driver on the 10.13.5 disk so I would be 'safe' in doing the 10.13.6 upgrade/install. Edited June 1, 2018 by jerryy2 elucidate the comment Link to comment Share on other sites More sharing options...
Pavo Posted June 1, 2018 Share Posted June 1, 2018 13 minutes ago, jerryy2 said: Is the os installer still doing this (creating a hfs+ RAM disk) if you are entirely apfs based? I was not sure, so I that is why I left the vboxhfs.efi driver on the 10.13.5 disk so I would be 'safe' in doing the 10.13.6 upgrade/install. Yes the OS installer still uses HFS+ RAM disk and I would imagine that will not go away any time soon. 1 Link to comment Share on other sites More sharing options...
MICKHAEL Posted June 1, 2018 Share Posted June 1, 2018 Yes the OS installer still uses HFS+ RAM disk and I would imagine that will not go away any time soon.Soon- 10.14 Link to comment Share on other sites More sharing options...
apianti Posted June 1, 2018 Share Posted June 1, 2018 On 5/31/2018 at 7:36 AM, chris1111 said: Ok your description SF Package ⬇︎ Hide contents change for this ⬇︎ Hide contents thats correct Please use the word firmware instead when referring to the bootstrap software. BIOS is not UEFI and vice versa, they are types of firmware. Try "This driver provides support for reading and booting from HFS+ volumes for macOS, do not install if you already have an alternate HFS+ driver or an HFS+ driver is flashed in your firmware." 9 hours ago, Pavo said: Yes the OS installer still uses HFS+ RAM disk and I would imagine that will not go away any time soon. Yeah, I think you are correct the installers wouldn't make sense to change to APFS. But, who really knows what Apple might do................ 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted June 1, 2018 Share Posted June 1, 2018 Hi Anyone have this issue with clover 4512: don't show disk for install. Link to comment Share on other sites More sharing options...
chris1111 Posted June 1, 2018 Share Posted June 1, 2018 6 minutes ago, Matgen84 said: Hi Anyone have this issue with clover 4512: don't show disk for install. No issue here Spoiler Link to comment Share on other sites More sharing options...
Matgen84 Posted June 1, 2018 Share Posted June 1, 2018 (edited) 13 minutes ago, chris1111 said: No issue here Reveal hidden contents I have this issue with EDK2 and UDK2018 using Xcode 9.4. wich solution? Edited June 1, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
chris1111 Posted June 1, 2018 Share Posted June 1, 2018 4 minutes ago, Matgen84 said: I have this issue with EDK2 and UDK2018 using Xcode 9.4. wich solution? I use UDK2018 latest Xcode's 9.4 no issue here 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted June 1, 2018 Share Posted June 1, 2018 30 minutes ago, chris1111 said: I use UDK2018 latest Xcode's 9.4 no issue here I reinstall Xcode additional components. No more issue. 1 Link to comment Share on other sites More sharing options...
D-an-W Posted June 1, 2018 Share Posted June 1, 2018 Am I right in thinking moving from r4464 to r4512 might be better done on USB first as there is a chance I won't be able to boot with the latest release? Link to comment Share on other sites More sharing options...
XLNC Posted June 1, 2018 Share Posted June 1, 2018 Hi @Slice thanks for your great work on clover . but the clover starting from r4380 doesnt work on my AMD FX mobo ( ASUS M5A97 R2.0 ) . The clover doesnt even load at all , it just sits on a black screen . i also tried the latest clover version but it didnt work too but its working fine on Ryzen mobo's . so any suggestions regarding this ? Link to comment Share on other sites More sharing options...

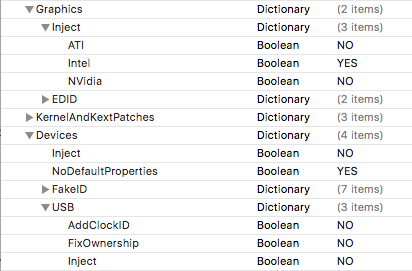

D-an-W Posted June 1, 2018 Share Posted June 1, 2018 (edited) So, r4512 booted without issue with no modifications to my Config.plist (Yeah! thanks Slice!) Checking the guide for moving over to the new methods I think I only have one item to change (Intel)... From my newly created config-imprint.plist I see this... What I am not sure of is how I incorporate that into my current Config.plist... <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <true/> <key>NVidia</key> <false/> </dict> Can anyone please help? Edited June 1, 2018 by D-an-W Link to comment Share on other sites More sharing options...
SavageAUS Posted June 2, 2018 Share Posted June 2, 2018 3 hours ago, D-an-W said: So, r4512 booted without issue with no modifications to my Config.plist (Yeah! thanks Slice!) Checking the guide for moving over to the new methods I think I only have one item to change (Intel)... From my newly created config-imprint.plist I see this... What I am not sure of is how I incorporate that into my current Config.plist... <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <true/> <key>NVidia</key> <false/> </dict> Can anyone please help? I believe you need to remove inject intel from your current config.plist and copy and paste the properties from the imprint to your config in the appropriate section. 1 Link to comment Share on other sites More sharing options...

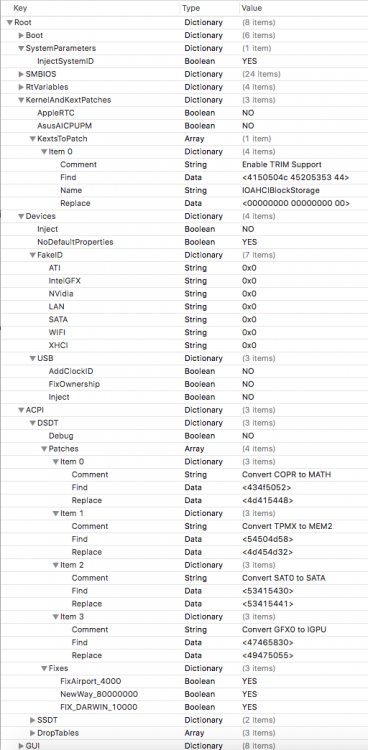

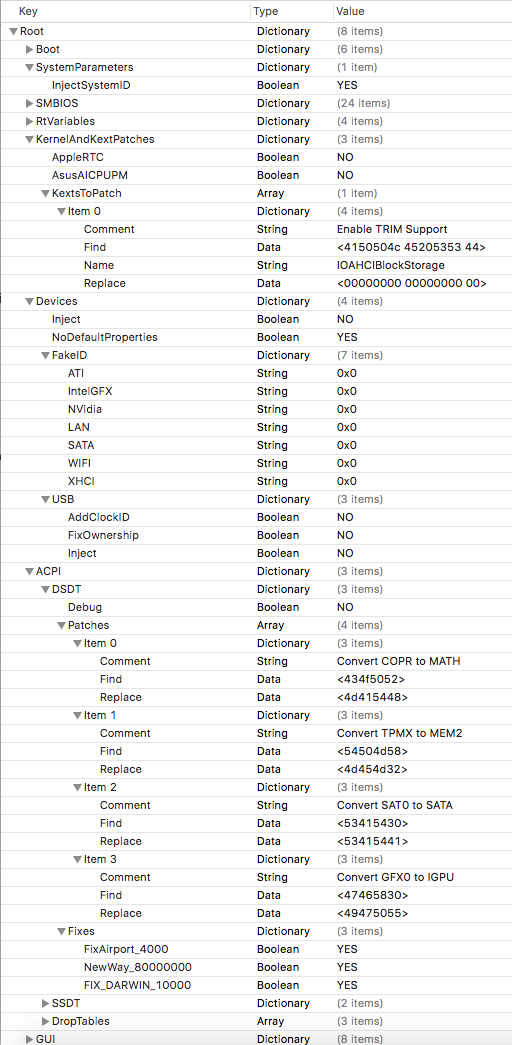

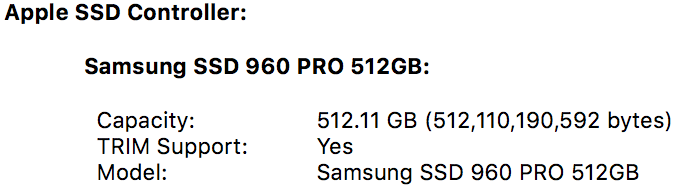

LockDown Posted June 2, 2018 Share Posted June 2, 2018 (edited) How to enable trim in NVME w/o using apple's trim force? Edited June 2, 2018 by ellaosx Link to comment Share on other sites More sharing options...
Slice Posted June 2, 2018 Share Posted June 2, 2018 8 hours ago, XLNC said: Hi @Slice thanks for your great work on clover . but the clover starting from r4380 doesnt work on my AMD FX mobo ( ASUS M5A97 R2.0 ) . The clover doesnt even load at all , it just sits on a black screen . i also tried the latest clover version but it didnt work too but its working fine on Ryzen mobo's . so any suggestions regarding this ? Boot->Debug=YES to see what is happen 1 Link to comment Share on other sites More sharing options...
