MICKHAEL Posted December 8, 2017 Share Posted December 8, 2017 Hm macos 10.13.2 update seems to be a real mess. Different builds on different channels, non working nvidia driver, system log flooding (causing even ssd fails). Nothing really seems to be fixed correctly. What is your experience with it? What gfx card do you use? From what clover version and up 10.13.2 official is supported? os 10.13.2 clover 4330 gtx960 not working DP (but that was not working since highsierra), HDMI dont know, using DVI just OK nvme working DisplayPort not working, and thats from HighSierra !!! (working just well on Sierra) Link to comment Share on other sites More sharing options...
chris1111 Posted December 8, 2017 Share Posted December 8, 2017 Hm macos 10.13.2 update seems to be a real mess. Different builds on different channels, non working nvidia driver, system log flooding (causing even ssd fails). Nothing really seems to be fixed correctly. What is your experience with it? What gfx card do you use? From what clover version and up 10.13.2 official is supported? Dell Optiplex 790 CPU i5 2500k Intel HD 3000 10.13.2 Saphire Radeon HD 5570 Clover r4334 10.13.2 Geforce GT 1030 Clover 4334 10.13.2 ATI Radeon HD 5450 Clover r4334 All Graphics working no issue since HS Beta 1 Link to comment Share on other sites More sharing options...
bronxteck Posted December 8, 2017 Share Posted December 8, 2017 real macbookpro mid 2011 APFS can not boot second loader. stuck in boot loop LOL 10.13.2 1 Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 8, 2017 Share Posted December 8, 2017 @Sherlocks I want to know what was the real ig-platform-id of HD5300 For CoreM Processor. I have a CoreM 5Y10C with HD5300 and Clover changged it with 16260006 but @Rehabman said it maybe 161e0000 or 161e0001. I dont have a real macbook81 so i cant confirm the true id. now i test these 4 choise: 0x16260004 Can boot but when screen going black it cant be wake again. 0x16260006 Works fine and Clover set this id by default. 0x161e0001 Cant boot into macOS. 0x161e0000 Can boot but show only 1024M VRAM.I think it maybe related with my 4GB RAM so it maybe show 1024M. So i think it is well to using 161e0000 than 16260006 if MacBook81 using 161e0000 with HD5300. Thanks. 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted December 8, 2017 Share Posted December 8, 2017 @Sherlocks I want to know what was the real ig-platform-id of HD5300 For CoreM Processor. I have a CoreM 5Y10C with HD5300 and Clover changged it with 16260006 but @Rehabman said it maybe 161e0000 or 161e0001. I dont have a real macbook81 so i cant confirm the true id. now i test these 4 choise: 0x16260004 Can boot but when screen going black it cant be wake again. 0x16260006 Works fine and Clover set this id by default. 0x161e0001 Cant boot into macOS. 0x161e0000 Can boot but show only 1024M VRAM.I think it maybe related with my 4GB RAM so it maybe show 1024M. So i think it is well to using 161e0000 than 16260006 if MacBook81 using 161e0000 with HD5300. Thanks. hi i followed rehabman's broadwell igpu setup. true of hd 5300 is 161e0000, macbook8,1 has 161e0001. because it has 2304x1440 resolution. maybe your device has 1920x1080. so proper value is 161e0000. also i tested dell venu pro 12 long time ago. can boot and use 161e0000 and 16260006. i will change vanilla device id and platformid of broadwell according to realmac. thank you for suggestion. EDIT1. if change default platformid, you have to find hdmi-audio patch and etc by yourself 2 Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 8, 2017 Share Posted December 8, 2017 hi i followed rehabman's broadwell igpu setup. true of hd 5300 is 161e0000, macbook8,1 has 161e0001. because it has 2304x1440 resolution. maybe your device has 1920x1080. so proper value is 161e0000. also i tested dell venu pro 12 long time ago. can boot and use 161e0000 and 16260006. i will change vanilla device id and platformid of broadwell according to realmac. thank you for suggestion. My device is 2048x1536 but when using 0x161e0001 can’t boot. I can only using 0x161e0000 so I think it make be the right ID? 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted December 8, 2017 Share Posted December 8, 2017 My device is 2048x1536 but when using 0x161e0001 can’t boot. I can only using 0x161e0000 so I think it make be the right ID? 从我的 iPhone 发送,使用 Tapatalk okay. did you test all port with audio? no problem without binary patch? Link to comment Share on other sites More sharing options...
apianti Posted December 8, 2017 Share Posted December 8, 2017 So I have been racking my brain for like three or four days trying to figure out why on earth I could get clover3 to allocate memory in virtual machines but my real firmware could not. Rebuild OVMF for qemu as the mixed IA32/X64 architecture and realized that it crashed as well. Made a safety to prevent allocating pages above 4GB, works! There is a huge chunk of memory for the kernel available.... Here's a memory map dump before and after (disregard the insanity of me not freeing anything, lol): Memory map has 102 regions, map size is 0x1320 bytes, region descriptor size is 0x30 bytes # | Region type | Page count | Start address -End address | Virtual address | Attributes 0 | Available | 0x000000000000005f | 0x0000000000000000-0x000000000005efff | 0x0000000000000000 | 0x000000000000000f 1 | BS_Data | 0x0000000000000001 | 0x000000000005f000-0x000000000005ffff | 0x0000000000000000 | 0x000000000000000f 2 | Available | 0x000000000000003e | 0x0000000000060000-0x000000000009dfff | 0x0000000000000000 | 0x000000000000000f 3 | Reserved | 0x0000000000000002 | 0x000000000009e000-0x000000000009ffff | 0x0000000000000000 | 0x000000000000000f 4 | Available | 0x0000000000000f00 | 0x0000000000100000-0x0000000000ffffff | 0x0000000000000000 | 0x000000000000000f 5 | Loader_Data | 0x0000000000000100 | 0x0000000001000000-0x00000000010fffff | 0x0000000000000000 | 0x000000000000000f 6 | Available | 0x000000000001ef00 | 0x0000000001100000-0x000000001fffffff | 0x0000000000000000 | 0x000000000000000f 7 | Reserved | 0x0000000000000200 | 0x0000000020000000-0x00000000201fffff | 0x0000000000000000 | 0x000000000000000f 8 | Available | 0x000000000001fe00 | 0x0000000020200000-0x000000003fffffff | 0x0000000000000000 | 0x000000000000000f 9 | Reserved | 0x0000000000000200 | 0x0000000040000000-0x00000000401fffff | 0x0000000000000000 | 0x000000000000000f 10 | Available | 0x000000000007c6f2 | 0x0000000040200000-0x00000000bc8f1fff | 0x0000000000000000 | 0x000000000000000f 11 | Loader_Code | 0x000000000000001a | 0x00000000bc8f2000-0x00000000bc90bfff | 0x0000000000000000 | 0x000000000000000f 12 | Available | 0x000000000000bb5a | 0x00000000bc90c000-0x00000000c8465fff | 0x0000000000000000 | 0x000000000000000f 13 | BS_Data | 0x0000000000000301 | 0x00000000c8466000-0x00000000c8766fff | 0x0000000000000000 | 0x000000000000000f 14 | Available | 0x0000000000000c04 | 0x00000000c8767000-0x00000000c936afff | 0x0000000000000000 | 0x000000000000000f 15 | BS_Data | 0x0000000000000017 | 0x00000000c936b000-0x00000000c9381fff | 0x0000000000000000 | 0x000000000000000f 16 | Available | 0x0000000000000005 | 0x00000000c9382000-0x00000000c9386fff | 0x0000000000000000 | 0x000000000000000f 17 | BS_Data | 0x0000000000000088 | 0x00000000c9387000-0x00000000c940efff | 0x0000000000000000 | 0x000000000000000f 18 | Available | 0x000000000000002d | 0x00000000c940f000-0x00000000c943bfff | 0x0000000000000000 | 0x000000000000000f 19 | BS_Data | 0x0000000000000017 | 0x00000000c943c000-0x00000000c9452fff | 0x0000000000000000 | 0x000000000000000f 20 | Available | 0x0000000000000005 | 0x00000000c9453000-0x00000000c9457fff | 0x0000000000000000 | 0x000000000000000f 21 | BS_Data | 0x000000000000008f | 0x00000000c9458000-0x00000000c94e6fff | 0x0000000000000000 | 0x000000000000000f 22 | Available | 0x0000000000000028 | 0x00000000c94e7000-0x00000000c950efff | 0x0000000000000000 | 0x000000000000000f 23 | BS_Data | 0x0000000000000017 | 0x00000000c950f000-0x00000000c9525fff | 0x0000000000000000 | 0x000000000000000f 24 | Available | 0x0000000000000005 | 0x00000000c9526000-0x00000000c952afff | 0x0000000000000000 | 0x000000000000000f 25 | BS_Data | 0x0000000000000087 | 0x00000000c952b000-0x00000000c95b1fff | 0x0000000000000000 | 0x000000000000000f 26 | Available | 0x0000000000000030 | 0x00000000c95b2000-0x00000000c95e1fff | 0x0000000000000000 | 0x000000000000000f 27 | BS_Data | 0x0000000000000001 | 0x00000000c95e2000-0x00000000c95e2fff | 0x0000000000000000 | 0x000000000000000f 28 | Available | 0x0000000000000035 | 0x00000000c95e3000-0x00000000c9617fff | 0x0000000000000000 | 0x000000000000000f 29 | BS_Data | 0x000000000000000b | 0x00000000c9618000-0x00000000c9622fff | 0x0000000000000000 | 0x000000000000000f 30 | Available | 0x000000000000000e | 0x00000000c9623000-0x00000000c9630fff | 0x0000000000000000 | 0x000000000000000f 31 | BS_Data | 0x0000000000000002 | 0x00000000c9631000-0x00000000c9632fff | 0x0000000000000000 | 0x000000000000000f 32 | Available | 0x0000000000000001 | 0x00000000c9633000-0x00000000c9633fff | 0x0000000000000000 | 0x000000000000000f 33 | BS_Data | 0x0000000000000001 | 0x00000000c9634000-0x00000000c9634fff | 0x0000000000000000 | 0x000000000000000f 34 | Available | 0x000000000000001f | 0x00000000c9635000-0x00000000c9653fff | 0x0000000000000000 | 0x000000000000000f 35 | BS_Data | 0x0000000000000001 | 0x00000000c9654000-0x00000000c9654fff | 0x0000000000000000 | 0x000000000000000f 36 | Available | 0x0000000000000031 | 0x00000000c9655000-0x00000000c9685fff | 0x0000000000000000 | 0x000000000000000f 37 | BS_Data | 0x000000000000004b | 0x00000000c9686000-0x00000000c96d0fff | 0x0000000000000000 | 0x000000000000000f 38 | Available | 0x0000000000000005 | 0x00000000c96d1000-0x00000000c96d5fff | 0x0000000000000000 | 0x000000000000000f 39 | BS_Data | 0x000000000000008a | 0x00000000c96d6000-0x00000000c975ffff | 0x0000000000000000 | 0x000000000000000f 40 | Available | 0x0000000000000005 | 0x00000000c9760000-0x00000000c9764fff | 0x0000000000000000 | 0x000000000000000f 41 | BS_Data | 0x000000000000002a | 0x00000000c9765000-0x00000000c978efff | 0x0000000000000000 | 0x000000000000000f 42 | Available | 0x0000000000000034 | 0x00000000c978f000-0x00000000c97c2fff | 0x0000000000000000 | 0x000000000000000f 43 | BS_Data | 0x000000000000000b | 0x00000000c97c3000-0x00000000c97cdfff | 0x0000000000000000 | 0x000000000000000f 44 | Available | 0x0000000000000017 | 0x00000000c97ce000-0x00000000c97e4fff | 0x0000000000000000 | 0x000000000000000f 45 | BS_Data | 0x0000000000000001 | 0x00000000c97e5000-0x00000000c97e5fff | 0x0000000000000000 | 0x000000000000000f 46 | Available | 0x000000000000001a | 0x00000000c97e6000-0x00000000c97fffff | 0x0000000000000000 | 0x000000000000000f 47 | BS_Data | 0x0000000000000001 | 0x00000000c9800000-0x00000000c9800fff | 0x0000000000000000 | 0x000000000000000f 48 | Available | 0x0000000000000006 | 0x00000000c9801000-0x00000000c9806fff | 0x0000000000000000 | 0x000000000000000f 49 | BS_Data | 0x000000000000006e | 0x00000000c9807000-0x00000000c9874fff | 0x0000000000000000 | 0x000000000000000f 50 | Available | 0x0000000000000005 | 0x00000000c9875000-0x00000000c9879fff | 0x0000000000000000 | 0x000000000000000f 51 | BS_Data | 0x0000000000000085 | 0x00000000c987a000-0x00000000c98fefff | 0x0000000000000000 | 0x000000000000000f 52 | Available | 0x0000000000000005 | 0x00000000c98ff000-0x00000000c9903fff | 0x0000000000000000 | 0x000000000000000f 53 | BS_Data | 0x000000000000004e | 0x00000000c9904000-0x00000000c9951fff | 0x0000000000000000 | 0x000000000000000f 54 | Available | 0x0000000000000005 | 0x00000000c9952000-0x00000000c9956fff | 0x0000000000000000 | 0x000000000000000f 55 | BS_Data | 0x0000000000000567 | 0x00000000c9957000-0x00000000c9ebdfff | 0x0000000000000000 | 0x000000000000000f 56 | Available | 0x000000000000000f | 0x00000000c9ebe000-0x00000000c9eccfff | 0x0000000000000000 | 0x000000000000000f 57 | BS_Data | 0x0000000000000004 | 0x00000000c9ecd000-0x00000000c9ed0fff | 0x0000000000000000 | 0x000000000000000f 58 | Available | 0x0000000000000015 | 0x00000000c9ed1000-0x00000000c9ee5fff | 0x0000000000000000 | 0x000000000000000f 59 | BS_Data | 0x0000000000000027 | 0x00000000c9ee6000-0x00000000c9f0cfff | 0x0000000000000000 | 0x000000000000000f 60 | Available | 0x0000000000000005 | 0x00000000c9f0d000-0x00000000c9f11fff | 0x0000000000000000 | 0x000000000000000f 61 | BS_Data | 0x0000000000000084 | 0x00000000c9f12000-0x00000000c9f95fff | 0x0000000000000000 | 0x000000000000000f 62 | Available | 0x0000000000000002 | 0x00000000c9f96000-0x00000000c9f97fff | 0x0000000000000000 | 0x000000000000000f 63 | BS_Data | 0x000000000000000a | 0x00000000c9f98000-0x00000000c9fa1fff | 0x0000000000000000 | 0x000000000000000f 64 | Available | 0x0000000000000007 | 0x00000000c9fa2000-0x00000000c9fa8fff | 0x0000000000000000 | 0x000000000000000f 65 | BS_Data | 0x00000000000000c7 | 0x00000000c9fa9000-0x00000000ca06ffff | 0x0000000000000000 | 0x000000000000000f 66 | Available | 0x0000000000000001 | 0x00000000ca070000-0x00000000ca070fff | 0x0000000000000000 | 0x000000000000000f 67 | BS_Data | 0x0000000000000045 | 0x00000000ca071000-0x00000000ca0b5fff | 0x0000000000000000 | 0x000000000000000f 68 | Available | 0x0000000000000007 | 0x00000000ca0b6000-0x00000000ca0bcfff | 0x0000000000000000 | 0x000000000000000f 69 | BS_Data | 0x0000000000001d4c | 0x00000000ca0bd000-0x00000000cbe08fff | 0x0000000000000000 | 0x000000000000000f 70 | Available | 0x000000000000068e | 0x00000000cbe09000-0x00000000cc496fff | 0x0000000000000000 | 0x000000000000000f 71 | BS_Data | 0x00000000000005a8 | 0x00000000cc481000-0x00000000cca28fff | 0x0000000000000000 | 0x000000000000000f 72 | BS_Code | 0x000000000000025c | 0x00000000cca29000-0x00000000ccc84fff | 0x0000000000000000 | 0x000000000000000f 73 | Reserved | 0x00000000000008e6 | 0x00000000ccc85000-0x00000000cd56afff | 0x0000000000000000 | 0x000000000000000f 74 | Reserved | 0x000000000000025a | 0x00000000cd56b000-0x00000000cd7c4fff | 0x0000000000000000 | 0x000000000000000f 75 | Reserved | 0x0000000000000006 | 0x00000000cd7c5000-0x00000000cd7cafff | 0x0000000000000000 | 0x000000000000000f 76 | Reserved | 0x0000000000000065 | 0x00000000cd7cb000-0x00000000cd82ffff | 0x0000000000000000 | 0x000000000000000f 77 | ACPI_Reclaim | 0x0000000000000010 | 0x00000000cd830000-0x00000000cd83ffff | 0x0000000000000000 | 0x000000000000000f 78 | BS_Data | 0x000000000000007d | 0x00000000cd840000-0x00000000cd8bcfff | 0x0000000000000000 | 0x000000000000000f 79 | Loader_Data | 0x0000000000000012 | 0x00000000cd8bd000-0x00000000cd8cefff | 0x0000000000000000 | 0x000000000000000f 80 | ACPI_NVS | 0x000000000000009e | 0x00000000cd8cf000-0x00000000cd96cfff | 0x0000000000000000 | 0x000000000000000f 81 | RT_Data | 0x000000000000057f | 0x00000000cd96d000-0x00000000cdeebfff | 0x0000000000000000 | 0x800000000000000f 82 | RT_Data | 0x000000000000020d | 0x00000000cdeec000-0x00000000ce0f8fff | 0x0000000000000000 | 0x800000000000000f 83 | RT_Code | 0x0000000000000017 | 0x00000000ce0f9000-0x00000000ce10ffff | 0x0000000000000000 | 0x800000000000000f 84 | RT_Code | 0x000000000000005d | 0x00000000ce110000-0x00000000ce16cfff | 0x0000000000000000 | 0x800000000000000f 85 | BS_Data | 0x0000000000000001 | 0x00000000ce16d000-0x00000000ce16dfff | 0x0000000000000000 | 0x000000000000000f 86 | ACPI_NVS | 0x0000000000000043 | 0x00000000ce16e000-0x00000000ce1b0fff | 0x0000000000000000 | 0x000000000000000f 87 | BS_Data | 0x0000000000000151 | 0x00000000ce1b1000-0x00000000ce301fff | 0x0000000000000000 | 0x000000000000000f 88 | BS_Code | 0x00000000000008c4 | 0x00000000ce302000-0x00000000cebc5fff | 0x0000000000000000 | 0x000000000000000f 89 | BS_Data | 0x0000000000000005 | 0x00000000cebc6000-0x00000000cebcafff | 0x0000000000000000 | 0x000000000000000f 90 | BS_Code | 0x0000000000000004 | 0x00000000cebcb000-0x00000000cebcefff | 0x0000000000000000 | 0x000000000000000f 91 | BS_Data | 0x000000000000000d | 0x00000000cebcf000-0x00000000cebdbfff | 0x0000000000000000 | 0x000000000000000f 92 | BS_Code | 0x0000000000000012 | 0x00000000cebdc000-0x00000000cebedfff | 0x0000000000000000 | 0x000000000000000f 93 | BS_Data | 0x0000000000000007 | 0x00000000cebee000-0x00000000cebf4fff | 0x0000000000000000 | 0x000000000000000f 94 | RT_Data | 0x00000000000003fd | 0x00000000cebf5000-0x00000000ceff1fff | 0x0000000000000000 | 0x800000000000000f 95 | BS_Data | 0x000000000000000e | 0x00000000ceff2000-0x00000000ceffffff | 0x0000000000000000 | 0x000000000000000f 96 | Available | 0x000000000031f600 | 0x0000000100000000-0x000000041f5fffff | 0x0000000000000000 | 0x000000000000000f 97 | Reserved | 0x0000000000010200 | 0x00000000cf800000-0x00000000df9fffff | 0x0000000000000000 | 0x8000000000000000 98 | MMIO | 0x0000000000004000 | 0x00000000f8000000-0x00000000fbffffff | 0x0000000000000000 | 0x8000000000000001 99 | MMIO | 0x0000000000000001 | 0x00000000fec00000-0x00000000fec00fff | 0x0000000000000000 | 0x8000000000000001 100 | MMIO | 0x0000000000000004 | 0x00000000fed00000-0x00000000fed03fff | 0x0000000000000000 | 0x8000000000000001 101 | MMIO | 0x0000000000000004 | 0x00000000fed1c000-0x00000000fed1ffff | 0x0000000000000000 | 0x8000000000000001 Memory map has 48 regions, map size is 0x900 bytes, region descriptor size is 0x30 bytes # | Region type | Page count | Start address -End address | Virtual address | Attributes 0 | Available | 0x000000000000005f | 0x0000000000000000-0x000000000005efff | 0x0000000000000000 | 0x000000000000000f 1 | BS_Data | 0x0000000000000001 | 0x000000000005f000-0x000000000005ffff | 0x0000000000000000 | 0x000000000000000f 2 | Available | 0x000000000000003e | 0x0000000000060000-0x000000000009dfff | 0x0000000000000000 | 0x000000000000000f 3 | Reserved | 0x0000000000000002 | 0x000000000009e000-0x000000000009ffff | 0x0000000000000000 | 0x000000000000000f 4 | Available | 0x0000000000000f00 | 0x0000000000100000-0x0000000000ffffff | 0x0000000000000000 | 0x000000000000000f 5 | Loader_Data | 0x0000000000000100 | 0x0000000001000000-0x00000000010fffff | 0x0000000000000000 | 0x000000000000000f *6 | Available | 0x000000000001ef00 | 0x0000000001100000-0x000000001fffffff | 0x0000000000000000 | 0x000000000000000f 7 | Reserved | 0x0000000000000200 | 0x0000000020000000-0x00000000201fffff | 0x0000000000000000 | 0x000000000000000f *8 | Available | 0x000000000001fe00 | 0x0000000020200000-0x000000003fffffff | 0x0000000000000000 | 0x000000000000000f 9 | Reserved | 0x0000000000000200 | 0x0000000040000000-0x00000000401fffff | 0x0000000000000000 | 0x000000000000000f *10 | Available | 0x000000000007c6f2 | 0x0000000040200000-0x00000000bc8f1fff | 0x0000000000000000 | 0x000000000000000f 11 | Loader_Code | 0x000000000000001a | 0x00000000bc8f2000-0x00000000bc90bfff | 0x0000000000000000 | 0x000000000000000f 12 | Available | 0x000000000000bb5a | 0x00000000bc90c000-0x00000000c8465fff | 0x0000000000000000 | 0x000000000000000f 13 | BS_Data | 0x0000000000000301 | 0x00000000c8466000-0x00000000c8766fff | 0x0000000000000000 | 0x000000000000000f 14 | Available | 0x0000000000000636 | 0x00000000c8767000-0x00000000c8d9cfff | 0x0000000000000000 | 0x000000000000000f 15 | BS_Data | 0x0000000000003ca2 | 0x00000000c8d87000-0x00000000cca28fff | 0x0000000000000000 | 0x000000000000000f 16 | BS_Code | 0x000000000000025c | 0x00000000cca29000-0x00000000ccc84fff | 0x0000000000000000 | 0x000000000000000f 17 | Reserved | 0x00000000000008e6 | 0x00000000ccc85000-0x00000000cd56afff | 0x0000000000000000 | 0x000000000000000f 18 | Reserved | 0x000000000000025a | 0x00000000cd56b000-0x00000000cd7c4fff | 0x0000000000000000 | 0x000000000000000f 19 | Reserved | 0x0000000000000006 | 0x00000000cd7c5000-0x00000000cd7cafff | 0x0000000000000000 | 0x000000000000000f 20 | Reserved | 0x0000000000000065 | 0x00000000cd7cb000-0x00000000cd82ffff | 0x0000000000000000 | 0x000000000000000f 21 | ACPI_Reclaim | 0x0000000000000010 | 0x00000000cd830000-0x00000000cd83ffff | 0x0000000000000000 | 0x000000000000000f 22 | BS_Data | 0x000000000000007d | 0x00000000cd840000-0x00000000cd8bcfff | 0x0000000000000000 | 0x000000000000000f 23 | Loader_Data | 0x0000000000000012 | 0x00000000cd8bd000-0x00000000cd8cefff | 0x0000000000000000 | 0x000000000000000f 24 | ACPI_NVS | 0x000000000000009e | 0x00000000cd8cf000-0x00000000cd96cfff | 0x0000000000000000 | 0x000000000000000f 25 | RT_Data | 0x000000000000057f | 0x00000000cd96d000-0x00000000cdeebfff | 0x0000000000000000 | 0x800000000000000f 26 | RT_Data | 0x000000000000020d | 0x00000000cdeec000-0x00000000ce0f8fff | 0x0000000000000000 | 0x800000000000000f 27 | RT_Code | 0x0000000000000017 | 0x00000000ce0f9000-0x00000000ce10ffff | 0x0000000000000000 | 0x800000000000000f 28 | RT_Code | 0x000000000000005d | 0x00000000ce110000-0x00000000ce16cfff | 0x0000000000000000 | 0x800000000000000f 29 | BS_Data | 0x0000000000000001 | 0x00000000ce16d000-0x00000000ce16dfff | 0x0000000000000000 | 0x000000000000000f 30 | ACPI_NVS | 0x0000000000000043 | 0x00000000ce16e000-0x00000000ce1b0fff | 0x0000000000000000 | 0x000000000000000f 31 | BS_Data | 0x0000000000000151 | 0x00000000ce1b1000-0x00000000ce301fff | 0x0000000000000000 | 0x000000000000000f 32 | BS_Code | 0x00000000000008c4 | 0x00000000ce302000-0x00000000cebc5fff | 0x0000000000000000 | 0x000000000000000f 33 | BS_Data | 0x0000000000000005 | 0x00000000cebc6000-0x00000000cebcafff | 0x0000000000000000 | 0x000000000000000f 34 | BS_Code | 0x0000000000000004 | 0x00000000cebcb000-0x00000000cebcefff | 0x0000000000000000 | 0x000000000000000f 35 | BS_Data | 0x000000000000000d | 0x00000000cebcf000-0x00000000cebdbfff | 0x0000000000000000 | 0x000000000000000f 36 | BS_Code | 0x0000000000000012 | 0x00000000cebdc000-0x00000000cebedfff | 0x0000000000000000 | 0x000000000000000f 37 | BS_Data | 0x0000000000000007 | 0x00000000cebee000-0x00000000cebf4fff | 0x0000000000000000 | 0x000000000000000f 38 | RT_Data | 0x00000000000003fd | 0x00000000cebf5000-0x00000000ceff1fff | 0x0000000000000000 | 0x800000000000000f 39 | BS_Data | 0x000000000000000e | 0x00000000ceff2000-0x00000000ceffffff | 0x0000000000000000 | 0x000000000000000f 40 | Available | 0x000000000031f600 | 0x0000000100000000-0x000000041f5fffff | 0x0000000000000000 | 0x000000000000000f 41 | Reserved | 0x0000000000010200 | 0x00000000cf800000-0x00000000df9fffff | 0x0000000000000000 | 0x8000000000000000 42 | MMIO | 0x0000000000004000 | 0x00000000f8000000-0x00000000fbffffff | 0x0000000000000000 | 0x8000000000000001 43 | MMIO | 0x0000000000000001 | 0x00000000fec00000-0x00000000fec00fff | 0x0000000000000000 | 0x8000000000000001 44 | MMIO | 0x0000000000000004 | 0x00000000fed00000-0x00000000fed03fff | 0x0000000000000000 | 0x8000000000000001 45 | MMIO | 0x0000000000000004 | 0x00000000fed1c000-0x00000000fed1ffff | 0x0000000000000000 | 0x8000000000000001 46 | MMIO | 0x0000000000000001 | 0x00000000fee00000-0x00000000fee00fff | 0x0000000000000000 | 0x8000000000000001 47 | MMIO | 0x0000000000001000 | 0x00000000ff000000-0x00000000ffffffff | 0x0000000000000000 | 0x8000000000000001 EDIT: Regions 6, 8, and 10 are the available ones, but region 5 is also the data region for clover3, so it could probably be cleared to give a better region of 5 and 6 combined. There's no way to know that's how every firmware works though so just removing that region may be a bad idea. EDIT2: All allocations, pages and pool, are allocated as high as possible, because the boot services methods for memory management have been overridden. EDIT3: There is a bug in some versions of OVMF where it says it supports CxR console mode but setting the mode hangs the firmware. Most specific, the prebuilt RedHat RPMs, and the repository that EDK2 suggests, both have this bug, I had to build OVMF from newest EDK2 source. Please donate if you are able, I'd like to continue working on this but will only be able to do so if I can somehow not die in the process, haha. 2 Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 8, 2017 Share Posted December 8, 2017 okay. did you test all port with audio? no problem without binary patch? No binary patch. When using 0x161e0001 it shows this. I tried duallink=0 or 1 but still. So I must to use 0x161e0000 or 0x16260006 but I preferred 0x161e0000 because this id more like MacBook81 used. Thanks. 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted December 8, 2017 Share Posted December 8, 2017 No binary patch. When using 0x161e0001 it shows this. I tried duallink=0 or 1 but still. So I must to use 0x161e0000 or 0x16260006 but I preferred 0x161e0000 because this id more like MacBook81 used. Thanks. 从我的 iPhone 发送,使用 Tapatalk i understood it. i want to know whether hdmi with audio works without binary patch? Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 8, 2017 Share Posted December 8, 2017 i understood it. i want to know whether hdmi with audio works without binary patch? HDMI I can’t test it because I’m in dormitory and without hdmi display and the device only have MicroHDMI port so I can’t test yet. I can only test graphic works. PS:I have changed B0D3 to HDAU. 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted December 8, 2017 Share Posted December 8, 2017 HDMI I can’t test it because I’m in dormitory and without hdmi display and the device only have MicroHDMI port so I can’t test yet. I can only test graphic works. PS:I have changed B0D3 to HDAU. 从我的 iPhone 发送,使用 Tapatalk Okay. I checked rehabman's github. He supported 161e0000 hdmi audio patch. You will have to use his patch. I will commit for igpu of broadwell device. 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 8, 2017 Share Posted December 8, 2017 Okay. I checked rehabman's github. He supported 161e0000 hdmi audio patch. You will have to use his patch. I will commit for igpu of broadwell device. 나의 LG-F800S 의 Tapatalk에서 보냄 Ok I will try to tell Rehabman this ID. Moreover I want to know if Clover support vertical screen such as 1536x2048. Because I want to set Clover screen to 768x1024 but Clover can’t recognize this.Clover can only recognize 1024x768 but 768x1024 can’t. So I want To know if Clover have this restrict about resolution set. Thanks. 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...

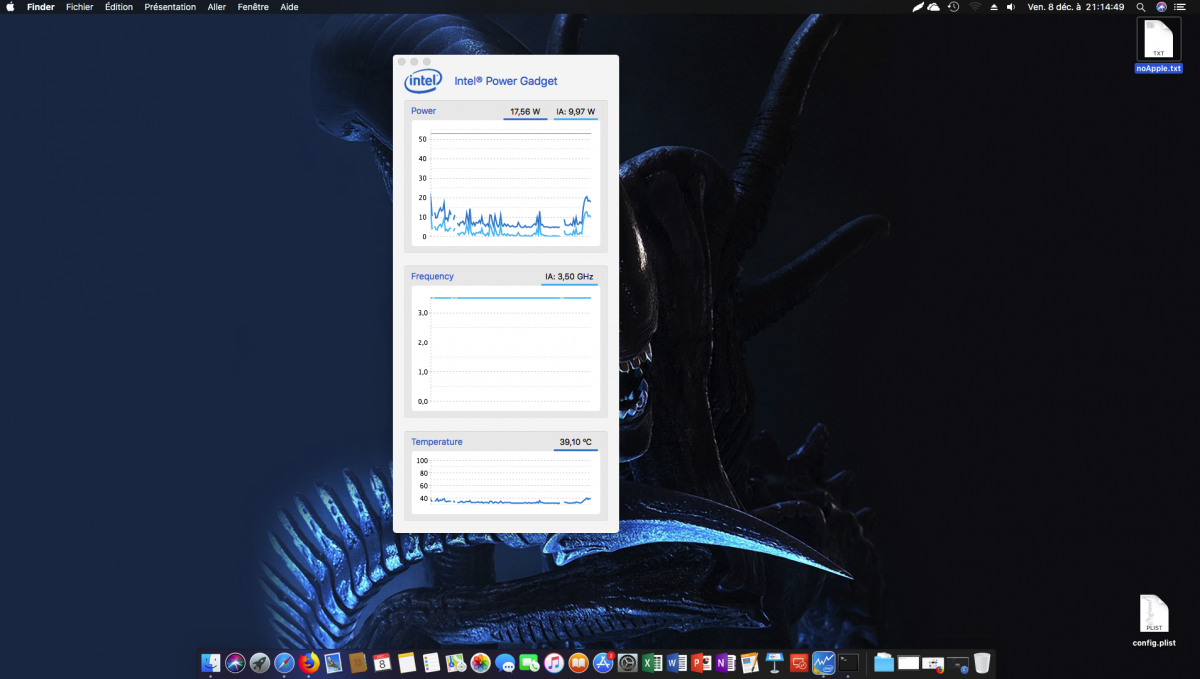

Loloflat6 Posted December 8, 2017 Share Posted December 8, 2017 Where is "OK" screenshot? Thank's : With Clover 4334 : Link to comment Share on other sites More sharing options...
mitch_de Posted December 9, 2017 Share Posted December 9, 2017 Isnt that the NOT OK pic? CPU clk always at max? Other pic (last page) shows clk stepping. And the other questions is if with that Clover version it can be that only the shown clk valuas are wrong (in real OK)? i think clover cant make clk values shown wrong (clk values come from an cpu sensor.kext - together with fakesmc, not Clover) - but of course the clk values (always max) can be real because no Pstates stepping - for my knowledge.. 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted December 9, 2017 Share Posted December 9, 2017 Thank's : With Clover 4334 : Upload your clover log 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Loloflat6 Posted December 9, 2017 Share Posted December 9, 2017 Upload your clover log 나의 LG-F800S 의 Tapatalk에서 보냄 Thank's Clover log : Loloflat6_13.13.2_preboot.log.zip Loloflat6_Clover_Install_Log.txt.zip Link to comment Share on other sites More sharing options...
Sherlocks Posted December 9, 2017 Share Posted December 9, 2017 Thank's Clover log : almost your all setting is very wrong for pm and cpu and etc you have to cleanup your setting and files 2 Link to comment Share on other sites More sharing options...
Loloflat6 Posted December 9, 2017 Share Posted December 9, 2017 almost your all setting is very wrong for pm and cpu and etc you have to cleanup your setting and files Ok would you help me ? Link to comment Share on other sites More sharing options...
oSxFr33k Posted December 10, 2017 Share Posted December 10, 2017 Clover v4334 breaks my wifi. Haswell Laptop Asus G750JX. I had to go back to v4293. I checked the bootlog on both 4293 and 4334 and both of the BT kexts are loading unless I am not seeing something in the log that breaks the Wifi? For BT, Kexts in Other, BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext need to load for BCM94352HMB/AzureWave AW-CB123H. For Wifi, FakePCIID_Broadcom_WiFi.kext and FakePCIID.kext in /Library/Extensions Anyone have a link to a later version of Clover I can try? Bootlogs attached Thanks! Edited: V4297 working fine with WiFi, v4330 and v4334 are not. FakePCIID and FakePCIID_Broadcom must not be loading in Clover v4334 because Ioreg shows missing BCM hardware. I tried placing those files in /System/Library/Extensions and /kexts/Others, wifi still disabled! Is there a site where I can find older and newer versions Clover installers? bootlog.log_Clover_4293.txt bootlog.log_Clover_4334.txt Link to comment Share on other sites More sharing options...
Slice Posted December 10, 2017 Share Posted December 10, 2017 @Sherlocks I want to know what was the real ig-platform-id of HD5300 For CoreM Processor. I have a CoreM 5Y10C with HD5300 and Clover changged it with 16260006 but @Rehabman said it maybe 161e0000 or 161e0001. I dont have a real macbook81 so i cant confirm the true id. now i test these 4 choise: 0x16260004 Can boot but when screen going black it cant be wake again. 0x16260006 Works fine and Clover set this id by default. 0x161e0001 Cant boot into macOS. 0x161e0000 Can boot but show only 1024M VRAM.I think it maybe related with my 4GB RAM so it maybe show 1024M. So i think it is well to using 161e0000 than 16260006 if MacBook81 using 161e0000 with HD5300. Thanks. The question is wrong as it set. For one CPU/GPU there are several ig-platform-id differrent in connectors. We can't say "MacBook has id bla-bla so I must set the same". Mac with the same hardware may have one connector set while your computer has different connectors set. As well there is no sense to overload Clover with thousands possible configurations. Anyway user should set ig-platform-id manually. 3 Link to comment Share on other sites More sharing options...
Sherlocks Posted December 10, 2017 Share Posted December 10, 2017 Clover v4334 breaks my wifi. Haswell Laptop Asus G750JX. I had to go back to v4293. I checked the bootlog on both 4293 and 4334 and both of the BT kexts are loading unless I am not seeing something in the log that breaks the Wifi? For BT, Kexts in Other, BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext need to load for BCM94352HMB/AzureWave AW-CB123H. For Wifi, FakePCIID_Broadcom_WiFi.kext and FakePCIID.kext in /Library/Extensions Anyone have a link to a later version of Clover I can try? Bootlogs attached Thanks! Edited: V4297 working fine with WiFi, v4330 and v4334 are not. FakePCIID and FakePCIID_Broadcom must not be loading in Clover v4334 because Ioreg shows missing BCM hardware. I tried placing those files in /System/Library/Extensions and /kexts/Others, wifi still disabled! Is there a site where I can find older and newer versions Clover installers? Your config is wrong for wifi. 나의 LG-F800S 의 Tapatalk에서 보냄 1 Link to comment Share on other sites More sharing options...
gujiangjiang Posted December 10, 2017 Share Posted December 10, 2017 The question is wrong as it set. For one CPU/GPU there are several ig-platform-id differrent in connectors. We can't say "MacBook has id bla-bla so I must set the same". Mac with the same hardware may have one connector set while your computer has different connectors set. As well there is no sense to overload Clover with thousands possible configurations. Anyway user should set ig-platform-id manually. Very glad for your reply. The one more question is how to set Clover support 768x1024 GUI resolution not 1024x768 GUI resolution? 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
vit9696 Posted December 10, 2017 Share Posted December 10, 2017 Hey, I got a bugreport, which should actually be a bug in Clover kext injection. Here I outlined the relevant details on how to fix it: https://github.com/vit9696/Lilu/issues/35 Could you give it a look please? 3 Link to comment Share on other sites More sharing options...

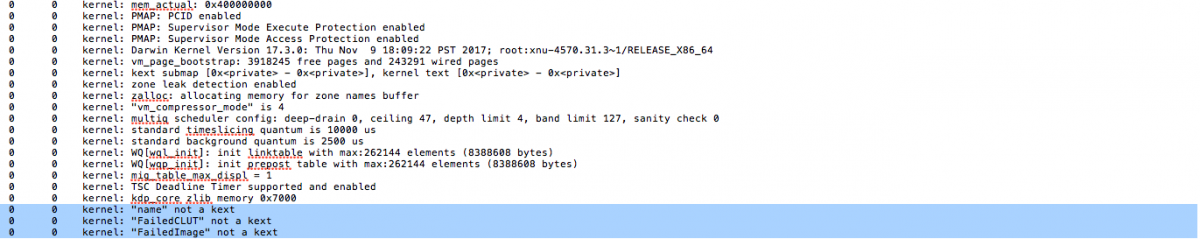

Zenith432 Posted December 10, 2017 Share Posted December 10, 2017 These strings are not found in Clover. Hey, I got a bugreport, which should actually be a bug in Clover kext injection.Here I outlined the relevant details on how to fix it: https://github.com/vit9696/Lilu/issues/35Could you give it a look please? Link to comment Share on other sites More sharing options...
