Clover General discussion

October 4, 2017

I can not put a FakeSMC in Other because = no Boot 10.7/10.6

Yeah I know. I placed mine there to test.

In r4235 and r4236 I'd get stuck on ACPICPU stall too, because then the kexts in either 10.13 or Other wouldn't be injected but that seems to be fixed for me in r4237

fusion71au · October 4, 2017

@fusion71au, @Badruzeus, @chris1111 and others

Make please a preboot.log, if compile Clover 4237 with

#define KEXT_INJECT_DEBUG 2

in kext_inject.c, line 3

Do you have 10.13.1 or 10.13b?

Hi Slice.

Clover kext folders on FAT32 USB shown below, booting 10.7.5, 10.12.6 or 10.13 release.

Only kexts in /Other and /10.12 are visible in Kext Inject Management Submenu. When select to boot into 10.13, Kext Inject Management only shows kexts in /Other, none in 10.13...

135:377  0:000  Loading boot.efi  status=Success
135:738  0:360  GetOSVersion: 10.13 (17A365)
135:785  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD83398
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD83398
135:785  0:000  Use origin smbios table type 1 guid.
135:786  0:000  OSVesion: 10.13, ShortOSVersion=10.13, uni-vers=10.13,
135:786  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
135:786  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
135:786  0:000  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
135:855  0:069  current kext name FakeSMC.kext Match Other, while sysver: 10.13
135:855  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
135:933  0:078    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
135:961  0:028    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
135:962  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
135:962  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13
135:962  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
135:962  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
135:962  0:000  current kext name FakeSMC.kext Match Other, while sysver: 10.13
135:962  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
135:962  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13

Debug/preboot.log attached.

Bootlog_r4237_debug.txt.zip

preboot.log.zip

SavageAUS · October 5, 2017

If I still remember; I got it to works under 10.13 using r4223 with:

1. Kozlek's FakeSMC v6.26.1440 and Rehabman's ACPIBatteryManager v1.81.3 / or 1.81.4 (with patched DSDT for battery)

2. Slice's FakeSMC v3.5 and VoodooBattery.kext (w/o patched DSDT for battery)

"BUT.." for point 1; it just works for a moment after I disassembled my mach. It then disappeared again after I rebooted my mach, IDK why.

Point. 2, it shows the indicator but since my battery device was failed; it spamming me with "Battery 0 empty capacity.. (or similar message)" on verbose logs, and it makes my boot time became longer. Sorry, I should to gave report earlier but on that time; I got trouble accessing the forum. My bad, now I only has 10.13.1 Beta and not testing point 2 yet, but just with point 1 it doesn't work here. Thanks.

Now that I think about it maybe it started happening when I updated fakesmc to 3.5. I'll try older and report back.

shegeloaf · October 5, 2017

I had made a USB install of OS X 10.13 High Sierra. Installed latest cloverv2.4k_r4233. and added below to clover/kexts/other

-78938-NullCPUPowerManagement-1.0.0d2.kext

-FakeSMC v6.21-311-g2958f55.1723

-IntelMausiEthernet-v2.2.0

Also added the apfs.efi to drivers64UEFI

I replaced the config with the one provided on fist page (as instructed).

I have attached my EFI and screen sot of the error during boot "IOUSBHostdevice:: forcepowergated: kpowerstatesuspended"

My Machine pecs:

Cpu Intel 6700k

Asus Z170i Gaming Pro

Samsung NVMe 960 evo M.2 SSD

Intel 530 onboard graphics

Anything I need to add or take away from the EFI? DSDT, SSDT, Config.plist? If someone with similar motherboard setup can help I would really appreciate it.

r4237 works for me.

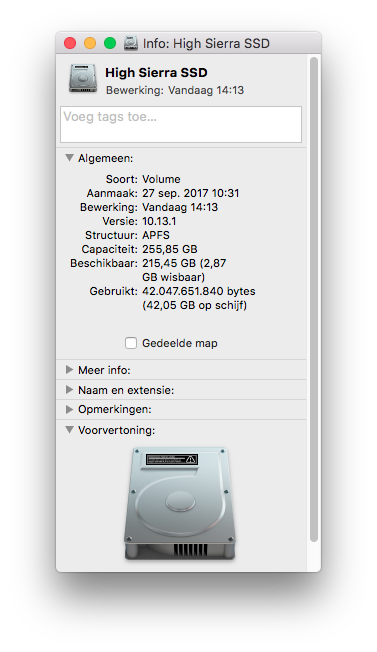

10.13.1 beta as only OS (besides Windows 10 but that's irrelevant)

FakeSMC in 10.13, other kexts in Other.

10:562  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
10:562  0:000  Extra kext: EFI\CLOVER\kexts\Other\USB_Injector.kext
10:564  0:001  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext
10:566  0:002  Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext
10:567  0:001  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
10:571  0:003    |-- PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
10:683  0:112  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
10:683  0:000  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
10:697  0:013  Custom boot screen not used because entry has unset use graphics
10:697  0:000  Closing log

Can i have the link to clover r4237 please

Slice · October 5, 2017

Hi Slice.

Clover kext folders on FAT32 USB shown below, booting 10.7.5, 10.12.6 or 10.13 release.

Clover Kexts folders.png

Only kexts in /Other and /10.12 are visible in Kext Inject Management Submenu. When select to boot into 10.13, Kext Inject Management only shows kexts in /Other, none in 10.13...

135:377  0:000  Loading boot.efi  status=Success
135:738  0:360  GetOSVersion: 10.13 (17A365)
135:785  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD83398
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DCD83398
135:785  0:000  Use origin smbios table type 1 guid.
135:786  0:000  OSVesion: 10.13, ShortOSVersion=10.13, uni-vers=10.13,
135:786  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
135:786  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
135:786  0:000  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
135:855  0:069  current kext name FakeSMC.kext Match Other, while sysver: 10.13
135:855  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
135:933  0:078    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
135:961  0:028    |-- PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
135:962  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
135:962  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13
135:962  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
135:962  0:000  current kext name RealtekRTL8111.kext Match Other, while sysver: 10.13
135:962  0:000  current kext name FakeSMC.kext Match Other, while sysver: 10.13
135:962  0:000  current kext name VoodooHDA.kext Match 10.12, while sysver: 10.13
135:962  0:000  current kext name AppleHDADisabler.kext Match 10.12, while sysver: 10.13

Kext Inject Management.png

Debug/preboot.log attached.

I understand the reason.

The list InjectKextList must be inited before enter menu. Else only first folder will be scanned.

Gigamaxx · October 5, 2017

Slice, Thank you for this incredible boot loader. We now have a few AMD CPU test kernels and because of Clover they're up and running quickly. We have AMD Ryzen working in High Sierra, thanks to all of you in the clover community for including us CPU misfits. You have helped many to step up to modern graphics cards and CPUS on AMD systems.

Clover Configurator generated boot log: bootlog.log.txt

Just noticed a few errors to fix, iMessage 17 chars and DummyUSB.

bronxteck · October 5, 2017

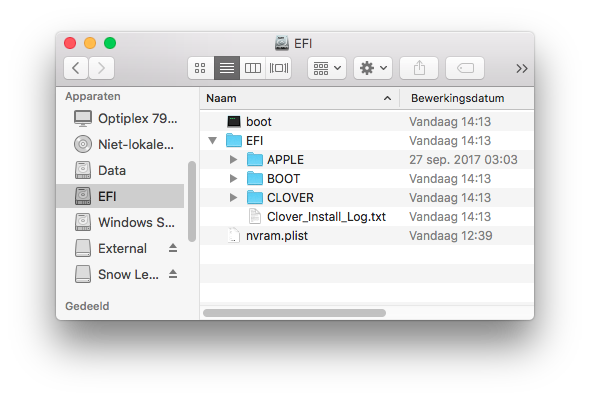

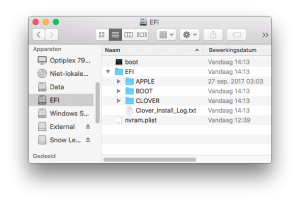

I saw my nvram plist was outdated so I renamed it. it does not seem like the RC scripts are generating a new one. is there an issue with APFS and the scripts?

Badruzeus · October 5, 2017

Hello, just same results after testing r4238 with Legacy.. kext_inject still won't to see any kext in 10.13 folder. Thanks.

preboot_a43sj_r4238_debug.log.zip

Slice · October 5, 2017

Hello, just same results after testing r4238 with Legacy.. kext_inject still won't to see any kext in 10.13 folder. Thanks.

I know. Needed corrections are not applied yet.

chris1111 · October 5, 2017

I know. Needed corrections are not applied yet.

4238

Same here Slice Legacy Inject won't to see any kext in 10.13/10.7/10.6

Badruzeus · October 5, 2017

4238

Same here Slice Legacy Inject won't to see any kext in 10.13/10.7/10.6

Honestly, for my mach with dualboot macOS'es 10.11 & 10.13 by using "Other" folder only for kext injection is enough, since the kexts contents on both folders are exactly same versions... (except, EAPDCodecCommander & BTFirmwareUploader kext that on my case are not working yet under 10.13) << but the last two are not mandatory for me. So, here I'm just glad to test for new clover revisions and hopefully, get more learning from them. Thanks.

October 5, 2017

Again, for me r4238 works fine.

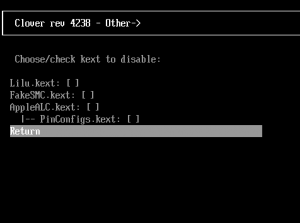

Kext Injection management shows the kexts in 10.13 and Other.
injection seems to go fine too.

48:032  0:000  OSVesion: 10.13.1, ShortOSVersion=10.13, uni-vers=10.13,
48:032  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
48:032  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
48:032  0:000  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext
48:035  0:002  current kext name FakeSMC.kext Match Other, while sysver: 10.13
48:035  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
48:038  0:003  current kext name AppleALC.kext Match Other, while sysver: 10.13
48:038  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
48:042  0:003    |-- PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
48:156  0:114  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
48:156  0:000  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
48:156  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
48:156  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
48:156  0:000  current kext name FakeSMC.kext Match Other, while sysver: 10.13
48:156  0:000  current kext name AppleALC.kext Match Other, while sysver: 10.13
48:156  0:000  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
48:156  0:000  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
48:162  0:005  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
48:162  0:000  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
48:171  0:008  Custom boot screen not used because entry has unset use graphics

chris1111 · October 5, 2017

Again, for me r4238 works fine.

Kext Injection management shows the kexts in 10.13 and Other.

injection seems to go fine too.
48:035  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext

Yea FakeSMC in Other

Working also here, the issue is FakeSMC /10.13

October 5, 2017

Yea FakeSMC in Other

Working also here, the issue is FakeSMC /10.13

That works too

7:422  0:000  OSVesion: 10.13.1, ShortOSVersion=10.13, uni-vers=10.13,
7:422  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
7:422  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
7:422  0:000  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext
7:425  0:002  current kext name AppleALC.kext Match Other, while sysver: 10.13
7:425  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
7:427  0:002    |-- PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
7:538  0:110  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
7:538  0:000  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
7:538  0:000  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
7:538  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
7:538  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
7:538  0:000  current kext name AppleALC.kext Match Other, while sysver: 10.13
7:538  0:000  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
7:538  0:000  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
7:552  0:013  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
7:552  0:000  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
7:557  0:005  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
7:557  0:000  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
7:565  0:007  Custom boot screen not used because entry has unset use graphics

I guess the issue only exists if you have multiple macOS versions installed. I only have 10.13.1

EDIT: I'll test and see what happens if I plug my 10.12.6 SSD in. I'll also install SL/Yosemite on a seperate HDD to test.

Badruzeus · October 5, 2017

Yea FakeSMC in Other

Working also here, the issue is FakeSMC /10.13

U mean, if we placed FakeSMC on /EFI/CLOVER/kexts/10.13/ it prevents another kexts on a whole folder to be injected ..?

chris1111 · October 5, 2017

U mean, if we placed FakeSMC on /EFI/CLOVER/kexts/10.13/ it prevents another kexts on a whole folder to be injected ..?

No I mean FakeSMC works in Other for 10.13 High Sierra

That works too

7:422  0:000  OSVesion: 10.13.1, ShortOSVersion=10.13, uni-vers=10.13,
7:422  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
7:422  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
7:422  0:000  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext
7:425  0:002  current kext name AppleALC.kext Match Other, while sysver: 10.13
7:425  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext
7:427  0:002    |-- PlugIn kext: EFI\CLOVER\kexts\Other\AppleALC.kext\Contents\PlugIns\PinConfigs.kext
7:538  0:110  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
7:538  0:000  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
7:538  0:000  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
7:538  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
7:538  0:000  current kext name Lilu.kext Match Other, while sysver: 10.13
7:538  0:000  current kext name AppleALC.kext Match Other, while sysver: 10.13
7:538  0:000  current kext name FakeSMC.kext Match 10.13, while sysver: 10.13
7:538  0:000  Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext
7:552  0:013  current kext name USB_Injector.kext Match 10.13, while sysver: 10.13
7:552  0:000  Extra kext: EFI\CLOVER\kexts\10.13\USB_Injector.kext
7:557  0:005  current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13
7:557  0:000  Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext
7:565  0:007  Custom boot screen not used because entry has unset use graphics

I guess the issue only exists if you have multiple macOS versions installed. I only have 10.13.1

EDIT: I'll test and see what happens if I plug my 10.12.6 SSD in. I'll also install SL/Yosemite on a seperate HDD to test.

Are you in ESP or Legacy only

Its important to know

Badruzeus · October 5, 2017

No I mean FakeSMC works in Other for 10.13 High Sierra

Are you in ESP or Legacy only

Its important to know

Running on Legacy-GPT Partition Scheme with ESP OK, let me try first.. thanks.

October 5, 2017

Are you in ESP or Legacy only

Its important to know

ESP (RC Scripts on target volume)

chris1111 · October 5, 2017

ESP (RC Scripts on target volume)

Schermafbeelding 2017-10-05 om 14.45.23.png

APFS or HFS

Maybe issue its from APFS

October 5, 2017

APFS or HFS

Maybe issue its from APFS

APFS

Can you give me your Snow Leopard FakeSMC?

chris1111 · October 5, 2017

APFS

Schermafbeelding 2017-10-05 om 14.57.34.png

Can you give me your Snow Leopard FakeSMC?

Here

FakeSMC.kext.zip

macq · October 5, 2017

On legacy EFI with clover installed to ESP.

Now 10.13.1 boots with only 10.13 in Clover/Kexts/10.13.

Others folder not needed as was happening with earlier clover versions.

Tripple booting from one disk and macOS installed on APFS volume on a HDD.

Just reporting

chris1111 · October 5, 2017

11:451 0:000 Beginning FSInjection

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: CDF7DA98

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: CDF7DA98

11:452 0:001 Use origin smbios table type 1 guid.

11:453 0:000 OSVesion: 10.13, ShortOSVersion=10.13, uni-vers=10.13,

11:453 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other

11:453 0:000 current kext name FakeSMC.kext Match 10.13, while sysver: 10.13

11:453 0:000 current kext name Marvel-Injector.kext Match 10.13, while sysver: 10.13

11:453 0:000 current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13

11:453 0:000 current kext name AppleALC.kext Match 10.13, while sysver: 10.13

11:453 0:000 current kext name Lilu.kext Match 10.13, while sysver: 10.13

11:453 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13

11:453 0:000 current kext name FakeSMC.kext Match 10.13, while sysver: 10.13

11:453 0:000 Extra kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext

11:493 0:040 |-- PlugIn kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext

11:496 0:003 |-- PlugIn kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext

11:505 0:008 |-- PlugIn kext: EFI\CLOVER\kexts\10.13\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext

11:531 0:026 current kext name Marvel-Injector.kext Match 10.13, while sysver: 10.13

11:531 0:000 Extra kext: EFI\CLOVER\kexts\10.13\Marvel-Injector.kext

11:532 0:000 current kext name IntelMausiEthernet.kext Match 10.13, while sysver: 10.13

11:532 0:000 Extra kext: EFI\CLOVER\kexts\10.13\IntelMausiEthernet.kext

11:538 0:006 current kext name AppleALC.kext Match 10.13, while sysver: 10.13

11:538 0:000 Extra kext: EFI\CLOVER\kexts\10.13\AppleALC.kext

11:569 0:031 |-- PlugIn kext: EFI\CLOVER\kexts\10.13\AppleALC.kext\Contents\PlugIns\PinConfigs.kext

11:691 0:122 current kext name Lilu.kext Match 10.13, while sysver: 10.13

11:691 0:000 Extra kext: EFI\CLOVER\kexts\10.13\Lilu.kext

11:713 0:021 Custom boot screen not used because entry has unset use graphics

Ok got it for me FIX here

10.13 woks 4238

My issue its comes from a Bad EFI partition on APFS Volumes

But 10.6 and 10.7 not working

Badruzeus · October 5, 2017

No I mean FakeSMC works in Other for 10.13 High Sierra

Well, since r4235 afaik "Other" folder is working fine for kext_inject; not only for FakeSMC but also another kexts ie. Lilu, AppleALC, ApplePS2 are loadable to boot High Sierra. The problem till r4238 is if they were placed on 10.13. Correct?

Slice · October 5, 2017

Well, since r4235 afaik "Other" folder is working fine for kext_inject; not only for FakeSMC only but another kexts ie. Lilu, AppleALC, ApplePS2 are loadable. The problem till r2438 is if they were placed on 10.13. Correct?

No.

"10.xy" folder will work only for first main menu entry.

"Other" folder always works.

Clover General discussion

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
