RehabMan Posted August 19, 2017 Share Posted August 19, 2017 Guys, why you want XCPM? Does it has advantages? XCPM on Ivy useful for certain laptop CPUs to avoid panic otherwise. (probably mismatch between X86PlatformPlugin data and CPU capabilities). 4 Link to comment Share on other sites More sharing options...
wern apfel Posted August 19, 2017 Share Posted August 19, 2017 Should there be a folder call Gaming-5 etc.. Screen Shot 2017-08-18 at 10.03.24 am.png Nevermind seen this I've seen a few Mainboards without the board description, or something like "to be filled by OEM", but they all had a board-id. Link to comment Share on other sites More sharing options...
Andrey1970 Posted August 19, 2017 Share Posted August 19, 2017 Guys, why you want XCPM? Does it has advantages? It makes sense only on not supported CPU Pentium/Celeron. 2 Link to comment Share on other sites More sharing options...
PMheart Posted August 19, 2017 Share Posted August 19, 2017 (edited) Ok then that makes sense now. My current MacOS is 10.12.6. If you are currently fine with AICPUPM now, then I don't suggest you switch to XCPM. Anyway. If you really want to try XCPM, here you go. (Apply them via KernelToPatch) 8d43c483f822 -> 8d43c283f822 be0700000031d2e894fcffff -> be0700000031d29090909090 Thanks Pike R. Alpha for the initial patch method. Edited August 19, 2017 by PMheart Link to comment Share on other sites More sharing options...
gujiangjiang Posted August 19, 2017 Share Posted August 19, 2017 Guys, why you want XCPM? Does it has advantages? I don't think xcpm have much more advantages than aicpupm on ivy bridge because the real mac with ivy processors don't use xcpm any more. If xcpm have much much more advantages than aicpupm then why apple don't use it on real mac?And i dont heard one use real mac with aicpupm told there mac have poor power management. I think if someone really want to use this function not supported by default on hackintosh they can add it by kexttopatch manually because force to open xcpm on unsupported bridge may cause potential risk or unstable problem and people will think these bug is clover's bug. 从我的 iPhone 发送,使用 Tapatalk 1 Link to comment Share on other sites More sharing options...
apianti Posted August 19, 2017 Share Posted August 19, 2017 Only enabled automatically for cpus that require in order to boot, haswell+ pentium/celeron and some other miscellaneous models. Doubtful it's going to cause problems for any other cpus, either it is patched and is used, or it's not. There's no reason to believe it's not going to work, pretty much every intel cpu has the same pm techniques, they are just more refined and have more features on later models. There's also no proof that it works any better than AICPUPM, and probably actually doesn't, why wouldn't it be used otherwise? It must also be used by some mac, or why leave the code in for multiple major releases? 2 Link to comment Share on other sites More sharing options...
gujiangjiang Posted August 21, 2017 Share Posted August 21, 2017 @Sherlock Hi Sherlock i have an idea of BoardSerialNumber generate automatically by Clover. As we all know Clover can automatically inject almost all the SMBIOS info and we only need to set "ProductName" "SerialNumber" and "BoardSerialNumber" But i found many people dont set BoardSerialNumber so they have some problems such as iCloud and iMessage and i found clover will inject a BoardSerialNumber when we dont set BoardSerialNumber but the BoardSerialNumber clover injected are all same so it may all of the people who dont set BoardSerialNumber are use same BoardSerialNumber because clver inject this value and that is not good for our hackintosh. I have found the BoardSerialNumber have some regular of component. In the "Board Serial Number" field, paste in your system serial number (the one generated by the magic wand) and add 5 random letters and numbers to the end to reach a total of 17 characters. So i think if we can add some function when we dont set BoardSerialNumber then Clover can automatically set this value and be uniqe such as use some method of SerialNumber we set. Such as if our SerialNumber is C02TGX8WGTFN then clover can inject "C02TGX8WGTFN2G8GF" as BoardSerialNumber or some other method wo compute this value but as well as make this value be unique with the unique SerialNumber then the people who dont set BoardSerialNumber may be dont face some problem with iCloud or have some postive affect of iMessage and Facetime. Thanks very much. 1 Link to comment Share on other sites More sharing options...
tluck Posted August 21, 2017 Share Posted August 21, 2017 Question about fresh install with High Sierra ... I tried to do a fresh install of High Sierra PB 6 and got an error message about can't validate firmware - and it stopped before it installed anything. Is this what the FirmwareFeature fixes from recent month(s) are all about? or is there more to this? Link to comment Share on other sites More sharing options...
chris1111 Posted August 21, 2017 Share Posted August 21, 2017 Question about fresh install with High Sierra ... I tried to do a fresh install of High Sierra PB 6 and got an error message about can't validate firmware - and it stopped before it installed anything. Is this what the FirmwareFeature fixes from recent month(s) are all about? or is there more to this? used latest Clover 4182 and Unplug Windows SSD 1 Link to comment Share on other sites More sharing options...
tluck Posted August 21, 2017 Share Posted August 21, 2017 chris1111 - my disk is dual boot? so are you saying temporarily remove the Microsoft folder from the ESP/EFI? Link to comment Share on other sites More sharing options...
chris1111 Posted August 21, 2017 Share Posted August 21, 2017 chris1111 - my disk is dual boot? so are you saying temporarily remove the Microsoft folder from the ESP/EFI? With all the tests of the last days what is recommended and not to plug the disk windows You need Clover r4179 and more, 4182 works good I test this morning in my ProBook 6570b for my part I need to Unplug windows SSD if the ssd windows is plug I have the firmware error @tiuck You can see here the 10 latest pages lots infos about firmware error http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/page-1 1 Link to comment Share on other sites More sharing options...
tluck Posted August 21, 2017 Share Posted August 21, 2017 @chris1111 - thanks. I just have 1 disk so I removed EFI/Microsoft and with r4182 and i am able to (re)install High Sierra without the Firmware error message etc ... still have 27 minutes but it seems like it is happening! Link to comment Share on other sites More sharing options...
chris1111 Posted August 21, 2017 Share Posted August 21, 2017 @chris1111 - thanks. I just have 1 disk so I removed EFI/Microsoft and with r4182 and i am able to (re)install High Sierra without the Firmware error message etc ... still have 27 minutes but it seems like it is happening! good Link to comment Share on other sites More sharing options...
tluck Posted August 21, 2017 Share Posted August 21, 2017 well, it converted my HFS to APFS so just needed to add apfs.efi to drivers64UEFI (there used be a checkbox?) and then it booted. Link to comment Share on other sites More sharing options...
chris1111 Posted August 21, 2017 Share Posted August 21, 2017 well, it converted my HFS to APFS so just needed to add apfs.efi to drivers64UEFI (there used be a checkbox?) and then it booted. No chekbox apfs.efi for UEFI apfs-64.efi for ESP or Legacy Question for you tiuck do you think its possible to Fix the Package for install in the APFS Volumes ? It is currently impossible to install the Clover Package on an APFS volume Link to comment Share on other sites More sharing options...
tluck Posted August 22, 2017 Share Posted August 22, 2017 @chris1111 - hmm i just tried to install a new clover package to my new APFS system ... its seems to not find the real ESP and installs stuff in / vs actual ESP so seems like a matter of needing new script logic to find the ESP of a target volume. so yes it should be fixable. for example macOS volume is on disk1s1 (which is synthetic)... so it doesn't find the actual ESP which is on disk0s1 $ diskutil list /dev/disk0 (internal, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *512.1 GB disk0 1: EFI EFI 209.7 MB disk0s1 2: Apple_APFS Container disk1 459.7 GB disk0s2 3: Apple_KernelCoreDump 655.4 MB disk0s3 4: Microsoft Basic Data C 51.5 GB disk0s4 /dev/disk1 (synthesized): #: TYPE NAME SIZE IDENTIFIER 0: APFS Container Scheme - +459.7 GB disk1 Physical Store disk0s2 1: APFS Volume macOS 298.3 GB disk1s1 2: APFS Volume Preboot 18.5 MB disk1s2 3: APFS Volume Recovery 516.9 MB disk1s3 4: APFS Volume VM 8.6 GB disk1s4 Link to comment Share on other sites More sharing options...
chris1111 Posted August 22, 2017 Share Posted August 22, 2017 @chris1111 - hmm i just tried to install a new clover package to my new APFS system ... its seems to not find the real ESP and installs stuff in / vs actual ESP so seems like a matter of needing new script logic to find the ESP of a target volume. so yes it should be fixable. for example macOS volume is on disk1s1 (which is synthetic)... so it doesn't find the actual ESP which is on disk0s1 $ diskutil list /dev/disk0 (internal, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *512.1 GB disk0 1: EFI EFI 209.7 MB disk0s1 2: Apple_APFS Container disk1 459.7 GB disk0s2 3: Apple_KernelCoreDump 655.4 MB disk0s3 4: Microsoft Basic Data C 51.5 GB disk0s4 /dev/disk1 (synthesized): #: TYPE NAME SIZE IDENTIFIER 0: APFS Container Scheme - +459.7 GB disk1 Physical Store disk0s2 1: APFS Volume macOS 298.3 GB disk1s1 2: APFS Volume Preboot 18.5 MB disk1s2 3: APFS Volume Recovery 516.9 MB disk1s3 4: APFS Volume VM 8.6 GB disk1s4 yes exactly is not find the good volume UID mutch more complicated for Legacy or ESP with the boot file Link to comment Share on other sites More sharing options...

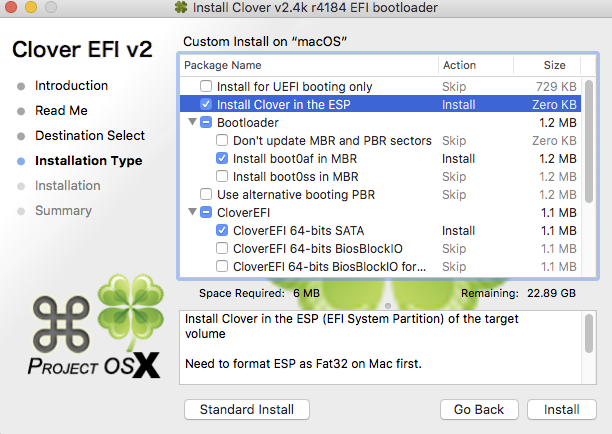

tluck Posted August 22, 2017 Share Posted August 22, 2017 well it was easy to trick the installer... i just mounted the real ESP on say /Volumes/ESP then make sym link like this: sudo ln -s /Volumes/ESP/EFI /EFI then installed Clover but told it not to install in the ESP. 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted August 22, 2017 Share Posted August 22, 2017 Is AsusAICPUPM depreciated now? 1 Link to comment Share on other sites More sharing options...
Sherlocks Posted August 22, 2017 Share Posted August 22, 2017 Is AsusAICPUPM depreciated now? Screen Shot 2017-08-22 at 12.00.45 pm.png Screen Shot 2017-08-22 at 12.05.31 pm.png Totally same.No need two option. I just suggested one option to mackie100 to avoid confusion. Because many users use CC. Now, clover has two option for user's old config. This is not clean. For future, to make more clean option, so changed option in CC. If user have Asus option at config, CC detect asus option, then change to AppleIntelCPUPM. Maybe after will spend many time, most of system(already has ASUS option) uses AppleIntelCPUPM, then will be cleanup option. 나의 LG-F800S 의 Tapatalk에서 보냄 3 Link to comment Share on other sites More sharing options...
SavageAUS Posted August 22, 2017 Share Posted August 22, 2017 This may be o/t but oh well. Is there any issue in running macOS Sierra and high Sierra on the same SSD with the same configs? eg: same serial numbers etc? Link to comment Share on other sites More sharing options...
Cyberdevs Posted August 22, 2017 Share Posted August 22, 2017 This may be o/t but oh well. Is there any issue in running macOS Sierra and high Sierra on the same SSD with the same configs? eg: same serial numbers etc? Nope there won't be a problem unless you use APFS, AFIAK macOS Sierra can't be installed on an APFS volume and it can't boot from it. But it's like having two OS's on you Mac. APFS on macOS Sierra was introduce in 2016 but it was used for storing data not as the boot volume. Tried to install macOS Sierra on an APFS volume but at the last second of the first stage (deploying the files from the installer to the destination) it always fails. 2 Link to comment Share on other sites More sharing options...
Funky frank Posted August 22, 2017 Share Posted August 22, 2017 Guys, something is seriously wrong with legacy mode in clover. It seems to me that a boot1h2 bootblock is required on partition #1, no matter if that is a EFI partition or not! It will become even worse, if the drive has 2 HFS+ partitions, so 3 partitions overall. Can you please fix this mess? I tried all combinations of boot0 using clover installer. Also I tried to install on hfs partition 1 (partition #2) and also on partition 2. It is a GPT partition table. EDIT: So, let me guess: Because I use GPT partitions, but booting in legacy, clover has these problems? This is not acceptable. So the only why to fix is installing boot0md? Or is it because of my EFI bios, that is only capable of reading partition bootblock 1?? Link to comment Share on other sites More sharing options...
chris1111 Posted August 22, 2017 Share Posted August 22, 2017 well it was easy to trick the installer... i just mounted the real ESP on say /Volumes/ESP then make sym link like this: sudo ln -s /Volumes/ESP/EFI /EFI then installed Clover but told it not to install in the ESP. For the Legacy boot it will still be difficult to get there Here I see a portion of the script postinstall for Legacy boot if [[ ${boot_volume_format} = "hfs" ]]; then echo "Stage 1 - Writting ${partitionloaderhfs} to ${bootrdev}" >> "$install_log" echo "File system is HFS." >> "$install_log" echo "dd if=${DEST_VOL}/usr/standalone/i386/${partitionloaderhfs} of=${bootrdev}" >> "$install_log" dd if="${DEST_VOL}/usr/standalone/i386/${partitionloaderhfs}" of=${bootrdev} I do not know if this can be done on System APFS I am a simple Packager and not Coder but I am concerned with the use of Package Clover in the Future I do not have the knowledge to get to know it and do it 1 Link to comment Share on other sites More sharing options...
fusion71au Posted August 22, 2017 Share Posted August 22, 2017 Guys, something is seriously wrong with legacy mode in clover. It seems to me that a boot1h2 bootblock is required on partition #1, no matter if that is a EFI partition or not! It will become even worse, if the drive has 2 HFS+ partitions, so 3 partitions overall. Can you please fix this mess? I tried all combinations of boot0 using clover installer. Also I tried to install on hfs partition 1 (partition #2) and also on partition 2. It is a GPT partition table. EDIT: So, let me guess: Because I use GPT partitions, but booting in legacy, clover has these problems? This is not acceptable. So the only why to fix is installing boot0md? Or is it because of my EFI bios, that is only capable of reading partition bootblock 1?? Clover working very well here on my legacy BIOS machines, installed in EFI system partition on GPT formatted drives. How did you install Clover? With the Clover pkg installer, after selecting the target OSX volume, I select "customize" with the following options... The Clover wiki describes the legacy booting process: Essentially BIOS--->MBR--->PBR--->boot--->CLOVERX64.efi--->OSLoader In terms of the bootsectors: BIOS--->boot0af in MBR--->boot1f32 in the PBR of the EFI System Partition--->boot6 in ESP--->CLOVERX64.efi in ESP--->OSLoader Clover_v2.4k_r4184.pkg.zip 3 Link to comment Share on other sites More sharing options...
