cecekpawon
cecekpawon
Posted
Posted

That's because the legacy layer (CSM) is limited to few 4:3 resolutions (may vary for the different boards). The UEFI native mode has no such limitations. The only requirement is the Video BIOS to be UEFI - compatible as well (mostly for all external video cards).



Maybe it sounds strange. My CSM always disabled & looks differ when I boot to Windows with Clover vs Ozmosis / direct from boot menu.

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

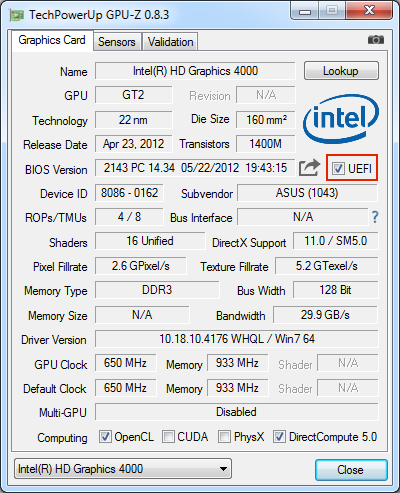

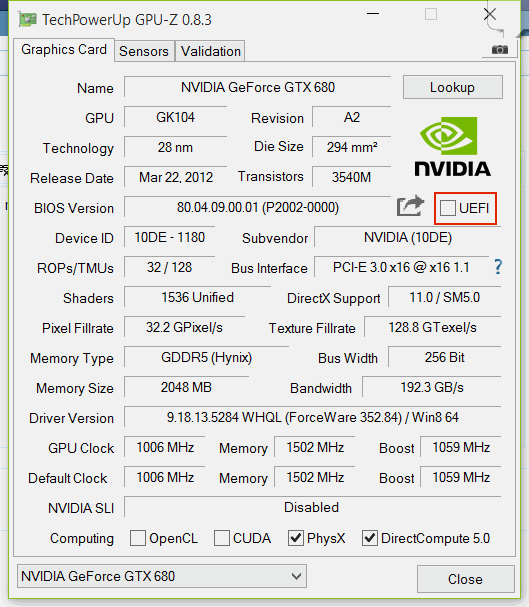

Hi Philip Petev! How I can know if my video card is UEFI capable? Thanks!

One trick.

See ACPI tables list in Clover GUI.

If you find a table with name VFCT then your videocard has UEFI VBIOS.

  • Like 2
Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted

That's because the legacy layer (CSM) is limited to few 4:3 resolutions (may vary for the different boards). The UEFI native mode has no such limitations. The only requirement is the Video BIOS to be UEFI - compatible as well (mostly for all external video cards).



Sent from my MI 5s using Tapatalk

So not compatible for Internal HD Graphics 4000 ?

Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted



Maaan, that's like rocket science for most of the users. :)) It's good that you CAN do that, in case you can't get your hands on one already made from the manufacturer. But man, I don't know, I wouldn't go into that on my own. :)) Also, is this only for ATI/Radeon cards?

Link to comment
Share on other sites
Wppley2
Wppley2
Posted
Posted

One trick.

See ACPI tables list in Clover GUI.

If you find a table with name VFCT then your videocard has UEFI VBIOS.

Hi Slice! Thanks for the response. I will try to verify.

Link to comment
Share on other sites
Cyberdevs
Cyberdevs
Posted
Posted

Maaan, that's like rocket science for most of the users. :)) It's good that you CAN do that, in case you can't get your hands on one already made from the manufacturer. But man, I don't know, I wouldn't go into that on my own. :)) Also, is this only for ATI/Radeon cards?

Sorry if it's off topic but it's related to the recent posts :)



Take a look at this thread: http://www.insanelymac.com/forum/topic/299614-asus-eah6450-video-bios-uefi-gop-upgrade-and-gop-uefi-binary-in-efi-for-many-ati-cards/page-1?hl=+uefi%20+maker



They published an app for making a UEFI vBIOS from the original BIOS and it's for AMD GPUs if anyone is interested.



I tested it on my AMD 5770 GPU and it didn't brick my GPU but use it at your own RISK!!! :rofl:

  • Like 1
Link to comment
Share on other sites
Wppley2
Wppley2
Posted
Posted

Slice, see this please:



1:175  0:000  === [ GetAcpiTablesList ] =================================

1:175  0:000  Get Acpi Tables List from RSDT:
1:175  0:000   - [00]: FACP  A M I len=132
1:175  0:000   - [01]: APIC  A M I len=114
1:175  0:000   - [02]: MCFG  A M I len=60
1:175  0:000   - [03]: HPET  A M I len=56
1:175  0:000   - [04]: SSDT  SataTabl len=877
1:175  0:000   - [05]: SSDT  Cpu0Ist len=2408
1:175  0:000   - [06]: SSDT  CpuPm len=2706
1:175  0:000   - [07]: BGRT  A M I len=56
1:175  0:000  Calibrated TSC Frequency = 2986994163 = 2986MHz

My vbios is not a UEFI, right? My video card have the first version of bios and on the Gigabyte´s site exists 3 newer versions. Is it possible update vbios on Mac Sierra? and with this update is possible to get UEFI for this card?
Link to comment
Share on other sites
Slice
Slice
Posted
Posted



Slice, see this please:



1:175  0:000  === [ GetAcpiTablesList ] =================================

1:175  0:000  Get Acpi Tables List from RSDT:
1:175  0:000   - [00]: FACP  A M I len=132
1:175  0:000   - [01]: APIC  A M I len=114
1:175  0:000   - [02]: MCFG  A M I len=60
1:175  0:000   - [03]: HPET  A M I len=56
1:175  0:000   - [04]: SSDT  SataTabl len=877
1:175  0:000   - [05]: SSDT  Cpu0Ist len=2408
1:175  0:000   - [06]: SSDT  CpuPm len=2706
1:175  0:000   - [07]: BGRT  A M I len=56
1:175  0:000  Calibrated TSC Frequency = 2986994163 = 2986MHz

My vbios is not a UEFI, right? My video card have the first version of bios and on the Gigabyte´s site exists 3 newer versions. Is it possible update vbios on Mac Sierra? and with this update is possible to get UEFI for this card?



May be.

     Asus EAH6450 Video BIOS UEFI GOP Upgrade (And GOP UEFI binary in .efi for many ATI cards)

But what did you expected to have?

I propose nothing.

  • Like 1
Link to comment
Share on other sites
TheRacerMaster
TheRacerMaster
Posted
Posted

Maaan, that's like rocket science for most of the users. :)) It's good that you CAN do that, in case you can't get your hands on one already made from the manufacturer. But man, I don't know, I wouldn't go into that on my own. :)) Also, is this only for ATI/Radeon cards?

Just use GOPupd: http://www.win-raid.com/t892f16-AMD-and-Nvidia-GOP-update-No-requests-DIY.html

I've used it on many GPUs, never had problems with it.



Slice, see this please:



1:175  0:000  === [ GetAcpiTablesList ] =================================

1:175  0:000  Get Acpi Tables List from RSDT:
1:175  0:000   - [00]: FACP  A M I len=132
1:175  0:000   - [01]: APIC  A M I len=114
1:175  0:000   - [02]: MCFG  A M I len=60
1:175  0:000   - [03]: HPET  A M I len=56
1:175  0:000   - [04]: SSDT  SataTabl len=877
1:175  0:000   - [05]: SSDT  Cpu0Ist len=2408
1:175  0:000   - [06]: SSDT  CpuPm len=2706
1:175  0:000   - [07]: BGRT  A M I len=56
1:175  0:000  Calibrated TSC Frequency = 2986994163 = 2986MHz

My vbios is not a UEFI, right? My video card have the first version of bios and on the Gigabyte´s site exists 3 newer versions. Is it possible update vbios on Mac Sierra? and with this update is possible to get UEFI for this card?



The VFCT ACPI table is only found when the AMD GOP driver is loaded. NVIDIA GPUs do not create such an ACPI table.

  • Like 2
Link to comment
Share on other sites
Wppley2
Wppley2
Posted
Posted

Just use GOPupd: http://www.win-raid.com/t892f16-AMD-and-Nvidia-GOP-update-No-requests-DIY.html

I've used it on many GPUs, never had problems with it.

The VFCT ACPI table is only found when the AMD GOP driver is loaded. NVIDIA GPUs do not create such an ACPI table.

Oh TheRacerMaster! Thats the point! Im searching for UEFI for my GTX 750 Ti. What I need to do?

The link is broken. Thanks.

Thanks Slice, but is for my GTX 750 Ti. What im looking for is to boot with boot rom priority = efi rom.

Link to comment
Share on other sites
Wppley2
Wppley2
Posted
Posted

@Wppley2 Better contact your video card vendor and ask him for UEFI upgrade for your card. That's what I did in order to upgrade mine EVGA GTX 650 SC.

Hey Philip Petev! Thank you for the response! I'm reading in Win Raid and discover one bug of my mobo bios with PCI Rom priority. Is a bug with various Asus mobos.

  • Like 1
Link to comment
Share on other sites
TheRacerMaster
TheRacerMaster
Posted
Posted

Oh TheRacerMaster! Thats the point! Im searching for UEFI for my GTX 750 Ti. What I need to do?

The link is broken. Thanks.

Thanks Slice, but is for my GTX 750 Ti. What im looking for is to boot with boot rom priority = efi rom.

Hmm, seems like some referral check? Just search for GOPupd on Win-Raid.

  • Like 1
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted

Hi



I want to try different config.plist on my hack under EFI/Clover with same kexts. For example, config-1.plist with Imac13,2 SMBIOS and config-2.plist for macpro6,1 SMBIOS. When I select config-2.plist in Clover/Options, I've kernel panic and empty boot args.



However, config-2.plist is fully functional on my external drive



Any ideas?

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Hi



I want to try different config.plist on my hack under EFI/Clover with same kexts. For example, config-1.plist with Imac13,2 SMBIOS and config-2.plist for macpro6,1 SMBIOS. When I select config-2.plist in Clover/Options, I've kernel panic and empty boot args.



However, config-2.plist is fully functional on my external drive



Any ideas?

Set Boot->Debug=YES and catch the moment of panic.

  • Like 1
Link to comment
Share on other sites
Matgen84
Matgen84
Posted
Posted

@Slice

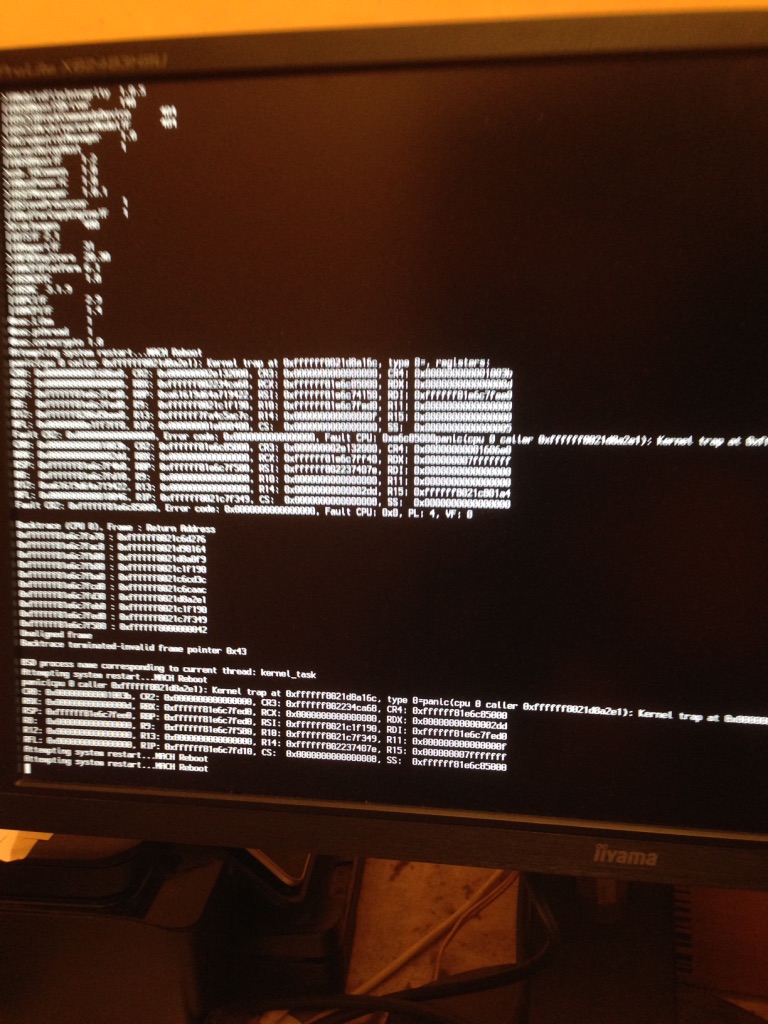

Screen catches attached : below



I don't understand: config-2.plist work alone on USB disk and don't work on HDD. How to use Clover/options/Config?



Thanks


Link to comment
Share on other sites
Slice
Slice
Posted
Posted

is there a possibility to have "Save clover options as default" from GUI? like when changing bios features but for clover GUI. so we can make permanent changes from Clover boot GUI. it already saves other tables and dumps.

Not new question again. This was discussed several years.

This is very hard to do because config.plist is not complete set of settings. CloverConfigurator is wrong because it forced users to make full config. No, don't do this!

In most cases config must be very reduced. Clover will calculate most values depending on current hardware state.

And then there is a problem for Clover programmers where to catch all settings.

They came from config.plist.

User can change the config and then values will be changed.

User can enter GUI and change setting here.

Some settings will be calculated, some recalculated.

Some setting are stored in gSetting, some in GlobalConfig, some in internal arrays (patches for example), some in nvram.plist which will be updated next time.

This inconvenience appears because of history of Clover development. As is.



Did you know an appointment of utility clover-genconfig?

When you can't boot you enter GUI and change something. After this change you are trying to boot and after some attempts the victory!

You enter the system! At this point you may start clover-genconfig and got almost all setting that you changed last time booting.

You can copy them into your config.plist finally.

@Slice



Screen catches attached : below



I don't understand: config-2.plist work alone on USB disk and don't work on HDD. How to use Clover/options/Config?



Thanks

Looks like you missed something. Take into account that Kernel and Kext patches will not replaced in config.plist changes.

  • Like 2
Link to comment
Share on other sites
Cyberdevs
Cyberdevs
Posted
Posted

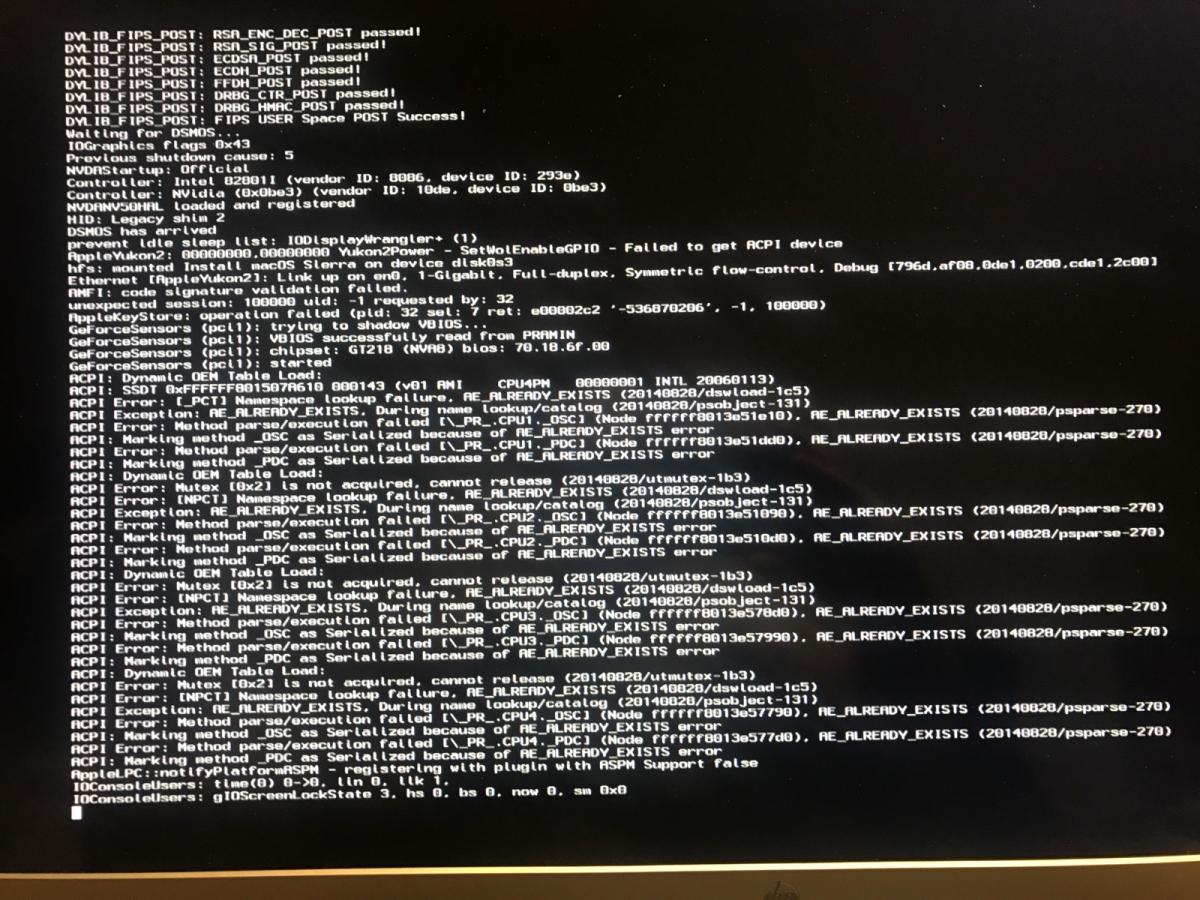

Screen catches attached : below



I don't understand: config-2.plist work alone on USB disk and don't work on HDD. How to use Clover/options/Config?



Thanks

The same thing happened to me you I edited my BIOS and enabled all the CPU power management configurations.

  • Like 1
Link to comment
Share on other sites
pkdesign
pkdesign
Posted
Posted

You can use Darwin Dumper to extract the EDID. One of the best tools I've ever used.



For as far as I know, Clover already detects and injects EDID by default. I could be wrong though...



But anyway, you do have the option to use your own, if you so desire. And Darwin Dumper is, in my opinion, the easiest way to get it on MacOS.



By the way, if the card in your signature is the one you want to use for this case, there might be another way to do it:



1. UEFI GOP VBIOS (if you don't already have it). Basically the video card's ROM (you can request it on manufacturer's forums, usually). You can check if you already have a "UEFI" ROM using GPU-Z on Windows (I'm not aware of a Mac tool that can do that, but there probably are).

2. Disable Windows CSM (Compatibility Support Module) in BIOS. You don't need it, unless you're planning on putting XP on that machine. Which... I don't know why would anyone want to do, but yeah, for newer versions of Windows, you certainly don't need it.



That should bring you full native resolution in preboot.

That's a great tip. I never thought of using Darwin Dumper for that. It did pull up the same EDID I got using other tools, and in fact, whether I choose to inject custom EDID or not, Clover does find the same EDID.



But, using Monitor Asset Manager in Windows, I get the same basic EDID but there is more code afterward:



From both Darwin Dumper and letting Clover inject:



00,FF,FF,FF,FF,FF,FF,00,10,AC,67,D0,53,33,30,30,

05,1A,01,03,80,3C,22,78,EE,44,55,A9,55,4D,9D,26,

0F,50,54,A5,4B,00,B3,00,D1,00,71,4F,A9,40,81,80,

77,80,01,01,01,01,56,5E,00,A0,A0,A0,29,50,30,20,

35,00,55,50,21,00,00,1A,00,00,00,FF,00,48,37,59,

43,43,36,32,33,30,30,33,53,0A,00,00,00,FC,00,44,

45,4C,4C,20,55,32,37,31,35,48,0A,20,00,00,00,FD,

00,38,56,1E,71,1E,00,0A,20,20,20,20,20,20,01,23,



Additional lines using MAM:

02,03,22,F1,4F,10,05,04,03,02,07,16,01,14,1F,12,

13,20,21,22,23,09,07,07,83,01,00,00,65,03,0C,00,

10,00,02,3A,80,18,71,38,2D,40,58,2C,25,00,55,50,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,

55,50,21,00,00,9E,01,1D,00,72,51,D0,1E,20,6E,28,55,00,55,50,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,

10,3E,96,00,55,50,21,00,00,18,48,3F,00,CA,80,80,30,40,1A,50,13,00,55,50,21,00,00,1E,00,00,00,94



BUT regardless of which I use, I still never get 1920x1080 resolution. (I wouldn’t even dream for 2560x1440!)



My mobo is legacy and no UEFI, therefore has no switch for CSM. What I understated, and I may be wrong, is that he EVGA NVIDIA 750ti is UEFI compatible though. Not sure how this helps.

I have the BIOS for my card that I download from TechPowerUp. I have tried renaming it and putting it in the ROM folder but that does nor work either.

Link to comment
Share on other sites
Pastorino
Pastorino
Posted
Posted

Hi everyone,



I am having "scan entries" error on clover, due to a raid 0 error.



If I disable devices, it boots normally.



After a research, I saw several people disabling scanning and enabling root device individually, but I am not being able to do that.



Here is my conf.plist:

<key>GUI</key>
	<dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<false/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<false/>
		</dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
				<dict>
					<key>AddArguments</key>
					<string>root=UUID=A551A28D-2647-3720-B6C1-A0F8F581654C</string>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>El Macintosh HD</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>El Macintosh HD</string>
					<key>VolumeType</key>
					<string>Internal</string>
		</dict>
etc....

I added my boot device with custom entries, but if I plug in my raid he keeps trying to read it and I get stuck on "scan entries" again, even thou I disable it on Scan > Entries.



How do I disable all readings from hard discs, so I boot on my os with raid plugged in?



Thanks in advance!!





Edit: The situation just got weirder. I disabled the cache from custom entry and now I can't see any device, but if I put the raid 0 in it does try to read it and I still get stuck. How is this possible??? I disabled everything from scan, I can't even see my boot device, even thou I manually entered it, and clover still tries to read the raid 0.
