smolderas Posted June 14, 2017 Share Posted June 14, 2017 What is the difference now between both "FirmwareFeatures" and "FirmwareFeaturesMask" in the latest revision? Link to comment Share on other sites More sharing options...
Slice Posted June 14, 2017 Share Posted June 14, 2017 What is the difference now between both "FirmwareFeatures" and "FirmwareFeaturesMask" in the latest revision? As I see there is misunderstanding for many users what is value and what is mask. FirmwareFeatures is a set of bits each one corresponding to one feature. FirmwareFeaturesMask is a mask what to check and what to not check. Mask like 0xff1fff3f mean that we don't want to check if bits 0xE00C0 are set or not. Anyway this is our decision set or no these bits. So why this restriction? I suppose to use FirmwareFeaturesMask=0xFFFFFFFF which means check all bits we set. Other opinions? 5 Link to comment Share on other sites More sharing options...
mhaeuser Posted June 14, 2017 Share Posted June 14, 2017 So why this restriction? I suppose to use FirmwareFeaturesMask=0xFFFFFFFF which means check all bits we set. Other opinions? I wouldn't report a bit to be valid when it isn't even known what it does. 1 Link to comment Share on other sites More sharing options...
codgician Posted June 14, 2017 Share Posted June 14, 2017 Here's a fix for those having issues with the firmware during macOS High Sierra installation. Needs testing to make sure it's not causing issues for others. Best regards. That works! Thank you very much. Is it ok if I share it with friends in China? I have mentioned the source (see here). 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted June 14, 2017 Share Posted June 14, 2017 Clover 4088 freezes up on my desktop rig right before icons show up. Rolled back to 4087 no issues. 4088 works fine on my laptop. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Needy Posted June 14, 2017 Share Posted June 14, 2017 That works! Thank you very much. Is it ok if I share it with friends in China? I have mentioned the source (see here). Sure, you're most welcome to do so. Also, the changes are already present in clover, see revision 4085. https://sourceforge.net/p/cloverefiboot/code/4085/ Best regards. 1 Link to comment Share on other sites More sharing options...
p.H Posted June 14, 2017 Share Posted June 14, 2017 0xffffffff. i dont know where is value. You need test your case Temp using mask in GUI Keep your mask value in Config.plist 나의 LG-F800S 의 Tapatalk에서 보냄 Am I alone? Clover 4084 and later seems failing to dump ACPI tables to EFI/ACPI. Link to comment Share on other sites More sharing options...
savvas Posted June 14, 2017 Share Posted June 14, 2017 Clover 4088 freezes up on my desktop rig right before icons show up. Rolled back to 4087 no issues. 4088 works fine on my laptop. Sent from my SM-G930F using Tapatalk Give me debug.log plz Link to comment Share on other sites More sharing options...
Slice Posted June 14, 2017 Share Posted June 14, 2017 Am I alone? Clover 4084 and later seems failing to dump ACPI tables to EFI/ACPI. What is last working revision for you? Link to comment Share on other sites More sharing options...
chris1111 Posted June 14, 2017 Share Posted June 14, 2017 I dont have issue 4087 to Dump ACPI Link to comment Share on other sites More sharing options...
Sherlocks Posted June 14, 2017 Share Posted June 14, 2017 I dont have issue 4087 to Dump ACPI me too. dump is no problem. r4088 with my smbios fix. Link to comment Share on other sites More sharing options...
SavageAUS Posted June 14, 2017 Share Posted June 14, 2017 Give me debug.log plzDo I need to reinstall 4088 for the right log? Where do I get the debug.log? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Needy Posted June 14, 2017 Share Posted June 14, 2017 Am I alone? Clover 4084 and later seems failing to dump ACPI tables to EFI/ACPI. Check if there's enough free space. 1 Link to comment Share on other sites More sharing options...
savvas Posted June 14, 2017 Share Posted June 14, 2017 Clover 4088 freezes up on my desktop rig right before icons show up. Rolled back to 4087 no issues. 4088 works fine on my laptop. Sent from my SM-G930F using Tapatalk It is possible I mixed mem alloc. Try this 4088 version BOOTX64.efi.zip Patch: apfs2.patch.zip 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted June 14, 2017 Share Posted June 14, 2017 It is possible I mixed mem alloc. Try this 4088 version BOOTX64.efi.zip If no prob I'll make a patch Ok I'll reinstall 4088 tomorrow and replace the file with yours and report back. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...

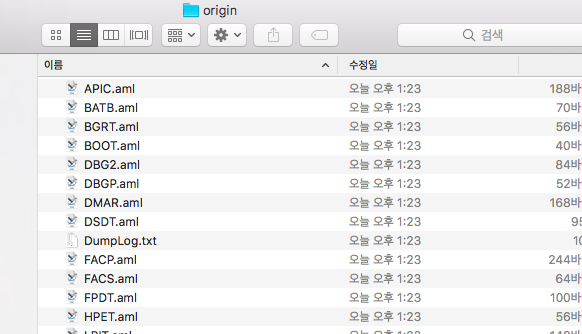

p.H Posted June 14, 2017 Share Posted June 14, 2017 What is last working revision for you? 4061 스크린샷 2017-06-14 오후 10.23.39.png me too. dump is no problem. r4088 with my smbios fix. That's strange... Don't know the reason why it failed for me. Link to comment Share on other sites More sharing options...
Slice Posted June 14, 2017 Share Posted June 14, 2017 4061 That's strange... Don't know the reason why it failed for me. Press F4 then press F2 then take preboot.log from /EFI/CLOVER/misc/ Upload it here, we want to see. Link to comment Share on other sites More sharing options...
p.H Posted June 14, 2017 Share Posted June 14, 2017 (edited) Press F4 then press F2 then take preboot.log from /EFI/CLOVER/misc/ Upload it here, we want to see. My bad. It's working correctly. BTW, what's the current status of patchVBios for Nvidia cards? I tried a lot but can not get 1920*1080 for clover boot screen. Edited June 14, 2017 by p.H Link to comment Share on other sites More sharing options...
Sherlocks Posted June 14, 2017 Share Posted June 14, 2017 What's even worse is that F2 is not working either... No log is generate inside /EFI/Clover/misc.Maybe your efi partitin has problem.Format and install clover again 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
johnnync21 Posted June 14, 2017 Share Posted June 14, 2017 where i can download clover 4088? Link to comment Share on other sites More sharing options...
p.H Posted June 14, 2017 Share Posted June 14, 2017 Maybe your efi partitin has problem. Format and install clover again 나의 LG-F800S 의 Tapatalk에서 보냄 Thanks for the tip. It's my bad. It's solved. BTW, I found that the dsdt could not be opened with MaciASL. What do you guys use for aml files? Link to comment Share on other sites More sharing options...
SavageAUS Posted June 14, 2017 Share Posted June 14, 2017 Thanks for the tip. It's my bad. It's solved. BTW, I found that the dsdt could not be opened with MaciASL. What do you guys use for aml files?MaciASL can open .aml files but you shouldn't be working with .aml.Originals need to be converted to .dsl then modified then saved as .aml. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
p.H Posted June 14, 2017 Share Posted June 14, 2017 MaciASL can open .aml files but you shouldn't be working with .aml. Originals need to be converted to .dsl then modified then saved as .aml. Sent from my SM-G930F using Tapatalk you mean using iasl to convert the extracted aml files back to dsl files. Then use MaciASL open it and make edits then compile to aml file? Link to comment Share on other sites More sharing options...
MaLd0n Posted June 14, 2017 Share Posted June 14, 2017 where i can download clover 4088? Clover_v2.4k_r4089.pkg.zip 5 Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 14, 2017 Share Posted June 14, 2017 Clover_v2.4k_r4089.pkg.zip Thanks MaLd0n I have a question, Why apfs.efi hasn't been implemented in the new clover versions? Is it ever going to be added to the new clover builds or we have to copy it manually? 1 Link to comment Share on other sites More sharing options...
