Slice Posted November 19, 2016 Share Posted November 19, 2016 If you have updated data show me. Link to comment Share on other sites More sharing options...
Sherlocks Posted November 19, 2016 Share Posted November 19, 2016 If you have updated data show me.Okay i will add info. And after test build, will report. 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
savvas Posted November 19, 2016 Share Posted November 19, 2016 As far as you solded SMC device into your motherboard. It can't be virtual device, it must be real chip. We can use SMM for such purpose 1 Link to comment Share on other sites More sharing options...
liujianwei Posted November 20, 2016 Share Posted November 20, 2016 It is not Clover related. I know that bus speed can't be >=400 since first hackintosh with chameleon. thank you slice,it will be clover related,i know p45 q9650 bus speed can be = 400. I am try to let GA-H61M-DS2 i3-3240, Radeon HD6850, ALC887(by VoodooHDA) with Razer Cynosa and Deathadder work together with Clover.can you give me suggest? Link to comment Share on other sites More sharing options...
Slice Posted November 20, 2016 Share Posted November 20, 2016 We can use SMM for such purpose Just a dream far-far away. thank you slice,it will be clover related,i know p45 q9650 bus speed can be = 400. I am try to let GA-H61M-DS2 i3-3240, Radeon HD6850, ALC887(by VoodooHDA) with Razer Cynosa and Deathadder work together with Clover.can you give me suggest? Suggest about what? My comp #1 is very similar and works with Clover defaults. 1 Link to comment Share on other sites More sharing options...
cnrd Posted November 20, 2016 Share Posted November 20, 2016 Hello Slice, you proposed to write the "nvram.plist" into the EFI partition of the boot volume, since It is not encrypted with filevault2. At least for the legacy clover with the change of the function "findFirstAppleBootDevice" from the file "rc.shutdown.d/80.save_nvram_plist.local" the content of the nvram will be saved to the EFI partition of the boot device (core storage): function findFirstAppleBootDevice { local rootDevice=$(LC_ALL=C diskutil info /|awk '{ if ($1 == "Device" && $2 == "Node:") {print $3}}') recoveryDisk=$(LC_ALL=C diskutil info /|awk '{ if ($1 == "Recovery" && $2 == "Disk:") {print $3}}') device=$(LC_ALL=C diskutil info $recoveryDisk|awk '{ if ($1 == "Part" && $2 == "of" && $3 == "Whole:") {print $4}}') # Find EFI partition signature index=$(LC_ALL=C /usr/sbin/gpt -r show "$device" 2>/dev/null | \ awk 'toupper($7) == "C12A7328-F81F-11D2-BA4B-00A0C93EC93B" {print $3; exit}') if [[ ! $index =~ ^[0-9]+$ ]];then index= fi # If index found return the device and partition (like diskXsY) [[ -n "$index" ]] && echo "${device##*/}s$index" } Cheers, Smolderas Edit: Here is the diff: 41,44c41,44 < local devices=$(LC_ALL=C ls /dev/disk* | sed -n '/\/dev\/disk[0-9]*$/p') < # Iterate over all devices < for device in $devices; do < # Find first partition with Apple Boot partition signature --- > local rootDevice=$(LC_ALL=C diskutil info /|awk '{ if ($1 == "Device" && $2 == "Node:") {print $3}}') > recoveryDisk=$(LC_ALL=C diskutil info /|awk '{ if ($1 == "Recovery" && $2 == "Disk:") {print $3}}') > device=$(LC_ALL=C diskutil info $recoveryDisk|awk '{ if ($1 == "Part" && $2 == "of" && $3 == "Whole:") {print $4}}') > # Find EFI partition signature 46,49c46,47 < awk 'toupper($7) == "426F6F74-0000-11AA-AA11-00306543ECAC" {print $3; exit}') < if [[ $index =~ ^[0-9]+$ ]];then < break < else --- > awk 'toupper($7) == "C12A7328-F81F-11D2-BA4B-00A0C93EC93B" {print $3; exit}') > if [[ ! $index =~ ^[0-9]+$ ]];then 52d49 < done EDIT: After a bit of debugging I found that the new findFirstAppleBootDevice function does not return anything on my system when shutting down (I even tried extending diskutil to it's full path). I tried to implement an extension to this commit, allowing us to choose if the nvram.plist should be saved to EFI or macOS partition, but I'm having some problems with it not saving to EFI. When I run it manually: cd /etc/rc.shutdown.d sudo ./80.save_nvram_plist.local I works fine and saves to the EFI partition, but when I shut down, it will still save it to the macOS partition. Here are the lines I added (I did add the nvram variable Clover.SaveNVRAMToEFI=Yes): # Should we save to EFI? SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]] || [[ "$SaveToEFI" == Yes ]]; then Diff here: 145c145,148 < if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]]; then --- > # Should we save to EFI? > SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') > > if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]] || [[ "$SaveToEFI" == Yes ]]; then Anyone have any idea about why it correctly saves to EFI partition when run manually, but saves to macOS partition when I shut down? Link to comment Share on other sites More sharing options...
J Lamp Posted November 20, 2016 Share Posted November 20, 2016 I'm having an issue with C3 Latency settings on an older Bloomfield CPU (i7 950). I set the C3 Latency to 0x3E8 and speed step started working, which at first was great. Unfortunately my CPU temps started rising, all cores running over 90. I then tried 0x3E9 (speed step off) and also tried just deleting all the SSDT settings in the Clover config.plist, but speed step is still on and my CPU is still running super hot. I also tried 0x00FA, didn't help the situation. Prior to this I was getting simply the 12x and 24x multipliers and temps around 60. Beyond those settings I'm not sure how to switch it back off. Link to comment Share on other sites More sharing options...
smolderas Posted November 20, 2016 Share Posted November 20, 2016 EDIT: After a bit of debugging I found that the new findFirstAppleBootDevice function does not return anything on my system when shutting down (I even tried extending diskutil to it's full path). I tried to implement an extension to this commit, allowing us to choose if the nvram.plist should be saved to EFI or macOS partition, but I'm having some problems with it not saving to EFI. When I run it manually: cd /etc/rc.shutdown.d sudo ./80.save_nvram_plist.local I works fine and saves to the EFI partition, but when I shut down, it will still save it to the macOS partition. Here are the lines I added (I did add the nvram variable Clover.SaveNVRAMToEFI=Yes): # Should we save to EFI? SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]] || [[ "$SaveToEFI" == Yes ]]; then Diff here: 145c145,148 < if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]]; then --- > # Should we save to EFI? > SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') > > if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]] || [[ "$SaveToEFI" == Yes ]]; then Anyone have any idea about why it correctly saves to EFI partition when run manually, but saves to macOS partition when I shut down? I'm more than happy to help you debug that issue. Let me get back to you tomorrow evening... Edit: Current/old version of the script writes to first available partition, be it a HFS, FAT (EFI) or even Apple Boot OSX partition. So in your case I would go through every partition by mounting them (sudo mount -t {msdos,hfs}* /dev/disk** *respectively) and remove the nvram.plist from root of that partition. After that run the script manually, it would save the nvram.plist to the efi partition of the boot volume and after every restart, it will use that partition. Link to comment Share on other sites More sharing options...
modbin Posted November 21, 2016 Share Posted November 21, 2016 Just a dream far-far away. It is already working. Not that far away. You posted there already. http://www.insanelymac.com/forum/topic/313468-smc-the-place-to-be-definitely/ No, it's not qemu. It's running on the QUO Mobo. And yes it's using SMM. 5 Link to comment Share on other sites More sharing options...
cnrd Posted November 22, 2016 Share Posted November 22, 2016 I'm more than happy to help you debug that issue. Let me get back to you tomorrow evening... Edit: Current/old version of the script writes to first available partition, be it a HFS, FAT (EFI) or even Apple Boot OSX partition. So in your case I would go through every partition by mounting them (sudo mount -t {msdos,hfs}* /dev/disk** *respectively) and remove the nvram.plist from root of that partition. After that run the script manually, it would save the nvram.plist to the efi partition of the boot volume and after every restart, it will use that partition. I'm starting to think that I may be editing the wrong script. I'm editing the script in "/etc/rc.shutdown.d/80.save_nvram_plist.local" As I tried doing this (Hardcoding disk0s1 if SaveToEFI is set): function findFirstAppleBootDevice { if [[ $SaveToEFI == Yes ]]; then device=disk0 index=1 else local devices=$(LC_ALL=C ls /dev/disk* | sed -n '/\/dev\/disk[0-9]*$/p') # Iterate over all devices for device in $devices; do # Find first partition with Apple Boot partition signature index=$(LC_ALL=C /usr/sbin/gpt -r show "$device" 2>/dev/null | \ awk 'toupper($7) == "426F6F74-0000-11AA-AA11-00306543ECAC" {print $3; exit}') if [[ $index =~ ^[0-9]+$ ]];then break else index= fi done fi # If index found return the device and partition (like diskXsY) [[ -n "$index" ]] && echo "${device##*/}s$index" } And added SaveToEFI as a global variable to the script. This also works, when running it manually, but when shutting down, it still saves to disk0s2 (macOS partition). EDIT: After a lot of debugging, I found that macOS does not like to put the nvram.plist into EFI unless it is mounted before shutdown. (It does not mount it correctly if mounting is done by the script while the system is shutting down). This works (but is a bit ugly): in 80.save_nvram_plist.local (diff): < NVRAMMountPoint=/tmp/NVRAM 29a29,35 > # Should we save nvram to EFI partition? > SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') > if [[ $SaveToEFI == Yes ]]; then > NVRAMMountPoint=/Volumes/EFI > else > NVRAMMountPoint=/tmp/NVRAM > fi 108c114,118 < local mntpt=$(mountNVRAMDisk "$device" "$NVRAMMountPoint") --- > if [[ $SaveToEFI == Yes ]]; then > local mntpt=$NVRAMMountPoint > else > local mntpt=$(mountNVRAMDisk "$device" "$NVRAMMountPoint") > fi 145c155 < if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ ]]; then --- > if [[ ! "$NVRAMDevice" =~ ^disk[0-9]*s[0-9]*$ || $SaveToEFI == Yes ]]; then in 20.mount_ESP.local (diff): > SaveToEFI=$(GetNVRamKey 'Clover.SaveNVRAMToEFI') > if [[ $SaveToEFI == Yes ]]; then > mountEFIValue='Yes' > fi Link to comment Share on other sites More sharing options...

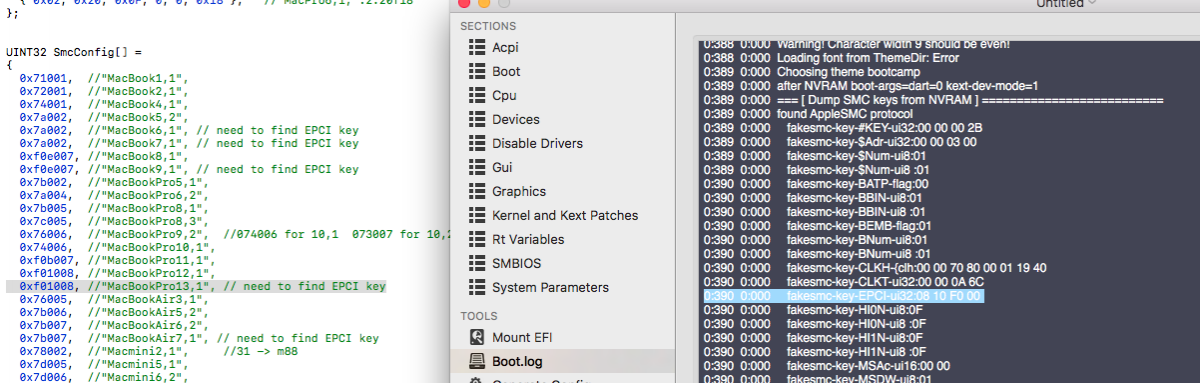

Sherlocks Posted November 22, 2016 Share Posted November 22, 2016 hello @Slice i added macbook, macbookpro, macbookair, macmini about missing info in platformdata.c complete list AppleFirmwareVersion AppleBoardID AppleReleaseDate AppleProductName AppleFamilies AppleSystemVersion AppleSerialNumber AppleChassisAsset SmcRevision not complete list SmcPlatform SmcConfig - i dont know exactly value. especially SmcRevision, SmcConfig - i dont know SetDMISettingsForModel’s code properly works each models i made data from google search, everymac, ebay, geekbench browser thanks in advance platformdata.c.zip Link to comment Share on other sites More sharing options...
Sherlocks Posted November 22, 2016 Share Posted November 22, 2016 hello @Slice i added macbook, macbookpro, macbookair, macmini about missing info in platformdata.c complete list AppleFirmwareVersion AppleBoardID AppleReleaseDate AppleProductName AppleFamilies AppleSystemVersion AppleSerialNumber AppleChassisAsset not complete list SmcPlatform SmcRevision SmcConfig - i dont know exactly value. especially SmcRevision, SmcConfig - i dont know SetDMISettingsForModel’s code properly works each models i made data from google search, everymac, ebay, geekbench browser thanks in advance completed SmcRevision UINT8 SmcRevision[][6] = { { 0x01, 0x04, 0x0F, 0, 0, 0x12 }, // MacBook1,1, { 0x01, 0x13, 0x0F, 0, 0, 0x03 }, // MacBook2,1, { 0x01, 0x31, 0x0F, 0, 0, 0x01 }, // MacBook4,1, { 0x01, 0x32, 0x0F, 0, 0, 0x08 }, // MacBook5,2, { 0x01, 0x51, 0x0F, 0, 0, 0x53 }, // MacBook6,1, { 0x01, 0x60, 0x0F, 0, 0, 0x06 }, // MacBook7,1, { 0x02, 0x25, 0x0F, 0, 0, 0x87 }, // MacBook8,1, { 0x02, 0x35, 0x0F, 0, 1, 0x01 }, // MacBook9,1, { 0x01, 0x33, 0x0F, 0, 0, 0x08 }, // MacBookPro5,1, { 0x01, 0x58, 0x0F, 0, 0, 0x17 }, // MacBookPro6,2, { 0x01, 0x68, 0x0F, 0, 0, 0x99 }, // MacBookPro8,1, { 0x01, 0x70, 0x0F, 0, 0, 0x05 }, // MacBookPro8,3, { 0x02, 0x02, 0x0F, 0, 0, 0x44 }, // MacBookPro9,2, 2.03f36 for 10,1 { 0x02, 0x03, 0x0F, 0, 0, 0x36 }, // MacBookPro10,1, { 0x02, 0x16, 0x0F, 0, 0, 0x58 }, // MacBookPro11,1, { 0x02, 0x28, 0x0F, 0, 0, 0x07 }, // MacBookPro12,1, { 0x02, 0x36, 0x0F, 0, 0, 0x93 }, // MacBookPro13,1 { 0x01, 0x67, 0x0F, 0, 0, 0x10 }, // MacBookAir3,1, { 0x02, 0x05, 0x0F, 0, 0, 0x09 }, // MacBookAir5,2, { 0x02, 0x13, 0x0F, 0, 0, 0x09 }, // MacBookAir6,2, { 0x02, 0x27, 0x0F, 0, 0, 0x02 }, // MacBookAir7,1, { 0x01, 0x19, 0x0F, 0, 0, 0x02 }, // Macmini2,1, { 0x01, 0x30, 0x0F, 0, 0, 0x03 }, // Macmini5,1, { 0x02, 0x08, 0x0F, 0, 0, 0x00 }, // Macmini6,2, { 0x02, 0x24, 0x0F, 0, 0, 0x32 }, // Macmini7,1, { 0x01, 0x30, 0x0F, 0, 0, 0x01 }, // iMac8,1, { 0x01, 0x53, 0x0F, 0, 0, 0x13 }, // iMac10,1, { 0x01, 0x54, 0x0F, 0, 0, 0x36 }, // iMac11,1, { 0x01, 0x64, 0x0F, 0, 0, 0x05 }, // iMac11,2, { 0x01, 0x59, 0x0F, 0, 0, 0x02 }, // iMac11,3, { 0x01, 0x71, 0x0F, 0, 0, 0x22 }, // iMac12,1, { 0x01, 0x72, 0x0F, 0, 0, 0x02 }, // iMac12,2, { 0x02, 0x11, 0x0F, 0, 0, 0x14 }, // iMac13,1, { 0x02, 0x11, 0x0F, 0, 0, 0x14 }, // iMac13,2 { 0x02, 0x14, 0x0F, 0, 0, 0x19 }, // iMac14,1 { 0x02, 0x15, 0x0F, 0, 0, 0x07 }, // iMac14,2 { 0x02, 0x22, 0x0F, 0, 0, 0x16 }, // iMac15,1 { 0x02, 0x33, 0x0F, 0, 0, 0x10 }, // iMac17,1 { 0x01, 0x30, 0x0F, 0, 0, 0x03 }, // MacPro3,1, { 0x01, 0x39, 0x0F, 0, 0, 0x05 }, // MacPro4,1, { 0x01, 0x39, 0x0F, 0, 0, 0x11 }, // MacPro5,1 { 0x02, 0x20, 0x0F, 0, 0, 0x18 }, // MacPro6,1 :2.20f18 }; MacBook9,1 shown 2.35f101 i'm not sure this " { 0x02, 0x35, 0x0F, 0, 1, 0x01 }, // MacBook9,1," not complete list SmcPlatform SmcConfig @Slice, where can i find smcplatform data and smcconfig? if you give me tips, i will try thanks Link to comment Share on other sites More sharing options...
Slice Posted November 22, 2016 Share Posted November 22, 2016 SmcConfig is EPCI key in reverse order (LittleEndian) EPCI [ui32] 0 (bytes 04 f0 07 00) => 0x7f004 SmcPlatform is RPlt key in string from RPlt [ch8*] (bytes 6b 37 34 00 00 00 00 00) => "k74" Link to comment Share on other sites More sharing options...
Sherlocks Posted November 22, 2016 Share Posted November 22, 2016 SmcConfig is EPCI key in reverse order (LittleEndian) EPCI [ui32] 0 (bytes 04 f0 07 00) => 0x7f004 SmcPlatform is RPlt key in string from RPlt [ch8*] (bytes 6b 37 34 00 00 00 00 00) => "k74" really thanks here is final platformdata.c. i did clean up and i express value that i can't get EPCI and RPlt. if i get it in the future, i will report you thanks in advance. have a nice day platformdata-Final.zip 2 Link to comment Share on other sites More sharing options...
Slice Posted November 22, 2016 Share Posted November 22, 2016 really thanks here is final platformdata.c. i did clean up and i express value that i can't get EPCI and RPlt. if i get it in the future, i will report you thanks in advance. have a nice day Thank you for all data and for cosmetics as well! Link to comment Share on other sites More sharing options...
Sherlocks Posted November 22, 2016 Share Posted November 22, 2016 Thank you for all data and for cosmetics as well! thank you. i confirm works data. i will see more mac data. have a nice day Link to comment Share on other sites More sharing options...
PMheart Posted November 23, 2016 Share Posted November 23, 2016 Hi Slice. I just changed something minor in kext_inject.c to avoid confusions. And could you check it for further confirmations? Thanks. Here it is: https://drive.google.com/open?id=0B9CSJfhMgxfWaE5CMWNneGZrcVk BTW, I'm new here and how to upload attachments? Thanks in advance. :-) PMheart Link to comment Share on other sites More sharing options...

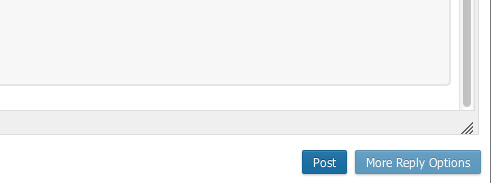

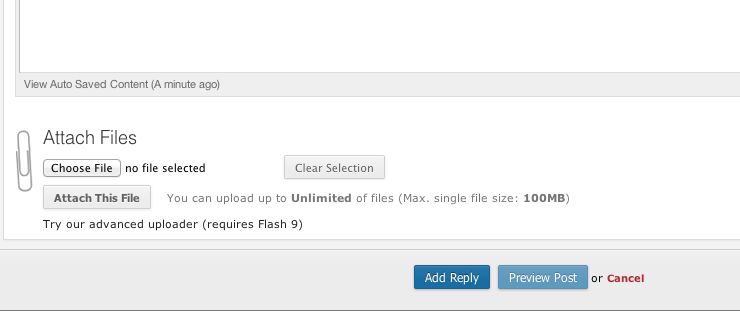

Slice Posted November 23, 2016 Share Posted November 23, 2016 Hi Slice. I just changed something minor in kext_inject.c to avoid confusions. And could you check it for further confirmations? Thanks. Here it is: https://drive.google.com/open?id=0B9CSJfhMgxfWaE5CMWNneGZrcVk BTW, I'm new here and how to upload attachments? Thanks in advance. :-) PMheart First "More reply options" Then "Choose file", "Attach", "Add to post" Link to comment Share on other sites More sharing options...

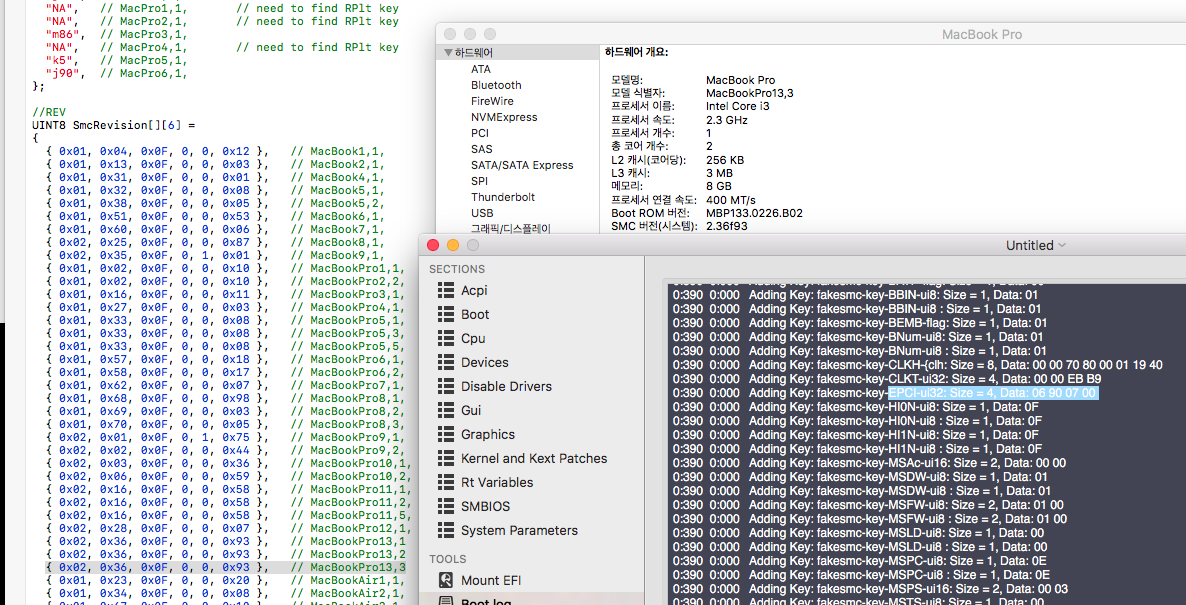

Sherlocks Posted November 23, 2016 Share Posted November 23, 2016 @Slice i finished more update platformdata.c and clean up, i will update platformdata.c if i get it about missing data contain all macpro, all macbook, all macbookpro(from 1.1 to 13,3 15inch touchbar), macmini, imac(since 8,1) i tested clover build(base 3943), good working:) i spent many time for this. but i'm really happy to help clover team. i hope that my nickname Sherlocks, but shown sherlocks in menu.c, can you change like Sherlocks? have a nice day r3943 platformdata update.zip 2 Link to comment Share on other sites More sharing options...
Slice Posted November 23, 2016 Share Posted November 23, 2016 OK Hi Slice. I just changed something minor in kext_inject.c to avoid confusions. And could you check it for further confirmations? Thanks. Here it is: https://drive.google.com/open?id=0B9CSJfhMgxfWaE5CMWNneGZrcVk BTW, I'm new here and how to upload attachments? Thanks in advance. :-) PMheart Thanks, your patch I also committed. Hope it will be helpful for next macOS releases. 2 Link to comment Share on other sites More sharing options...
Riley Freeman Posted November 23, 2016 Share Posted November 23, 2016 Looking at that platform data, does Clover inject the correct SMC version for the chosen SMBIOS now? I've always set this in FakeSMC's info.plist. Link to comment Share on other sites More sharing options...

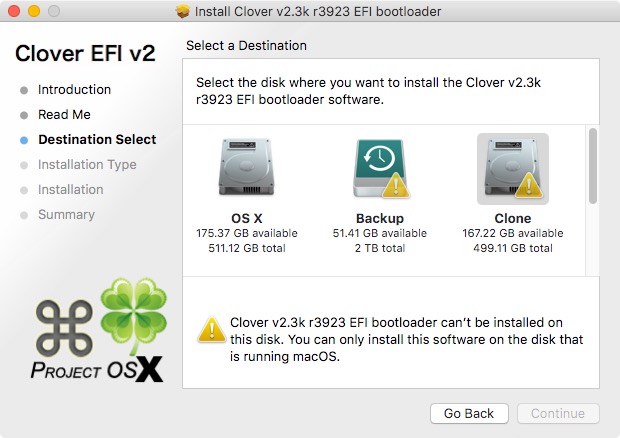

AppleIIGuy Posted November 23, 2016 Share Posted November 23, 2016 So why with the lastest installer of clover it only allows you to install it to the booted drive and not any other? I wanted to update clover on the cloned drive. It is partitioned the same as my boot drive. /dev/disk0 (internal): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme 512.1 GB disk0 1: EFI EFI 209.7 MB disk0s1 2: Apple_HFS OS X 511.1 GB disk0s2 3: Apple_Boot Recovery HD 650.0 MB disk0s3 /dev/disk1 (internal, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *500.1 GB disk1 1: EFI EFI 209.7 MB disk1s1 2: Apple_HFS Clone 499.1 GB disk1s2 3: Apple_Boot Recovery HD 650.0 MB disk1s3 It has always worked before. Link to comment Share on other sites More sharing options...
WinstonAce Posted November 23, 2016 Share Posted November 23, 2016 Looking at that platform data, does Clover inject the correct SMC version for the chosen SMBIOS now? I've always set this in FakeSMC's info.plist.It's been like that for a very long time. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Riley Freeman Posted November 23, 2016 Share Posted November 23, 2016 I replaced my FakeSMC info.plist with an unedited one to see. It displays the default (wrong) SMC version in System Profiler (and IOReg), but bdmesg shows the correct SMC version is being injected. Link to comment Share on other sites More sharing options...

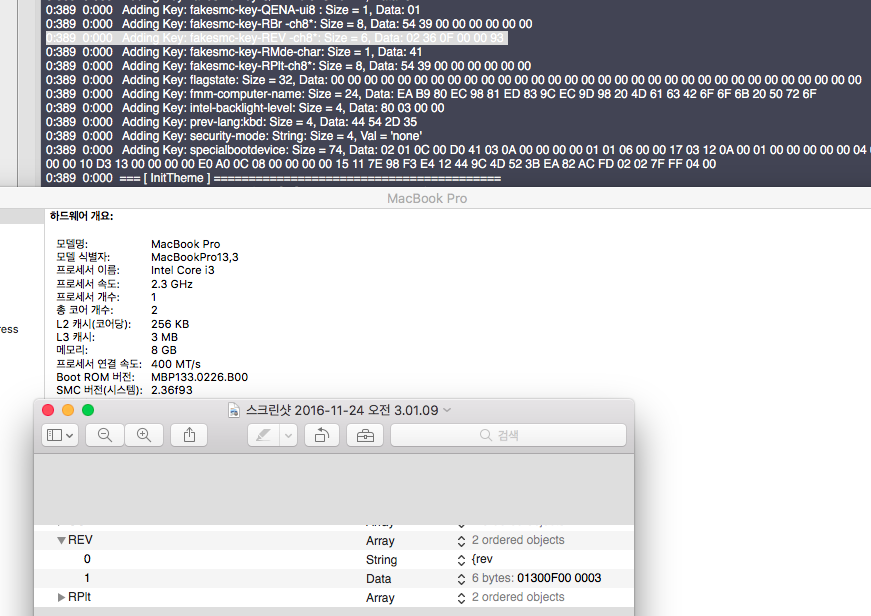

Sherlocks Posted November 23, 2016 Share Posted November 23, 2016 I replaced my FakeSMC info.plist with an unedited one to see. It displays the default (wrong) SMC version in System Profiler (and IOReg), but bdmesg shows the correct SMC version is being injected. What is your FakeSMC? It means Slice version or HWSensor. I use Slice version. I unedit smc rev. Correctly shown smc version from clover bootloader. Clover override rev value on my laptop here is 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
