Sherlocks Posted October 28, 2016 Share Posted October 28, 2016 @Slice i have this issue macbookpro 13,1 already runs 10.12.1 https://browser.primatelabs.com/v4/cpu/874771 can you add New Macbook Pro 13,1 13,2 13,3? #elif (TARGET_MODEL == MACBOOK_PRO_131) // 13-inch without Touch Bar // Intel Core i5-6360U 2.0 GHz (Max Turbo Boost 3.1 GHz). // Intel Core i7-6660U 2.4 GHz (Max Turbo Boost 3.4 GHz). #define SMB_BIOS_VERSION "MBP131.88Z.0205.B02.1610121536" #define SMB_PRODUCT_NAME "MacBookPro13,1" #define SMB_BOARD_PRODUCT "Mac-473D31EABEB93F9B" #define EFI_MODEL_NAME { 'M', 'a', 'c', 'B', 'o', 'o', 'k', 'P', 'r', 'o', '1', '3', ',', '1' } #elif (TARGET_MODEL == MACBOOK_PRO_132) // 13-inch with Touch Bar // Intel Core i5-6267U 2.9 GHz (3.3 GHz Max Turbo Boost) // Intel Core i5-6287U 3.1 GHz (3.5 GHz Max Turbo Boost) // Intel Core i7-6567U 3.3 GHz (3.6 GHz Max Turbo Boost) #define SMB_BIOS_VERSION "MBP132.88Z.0223.B00.1610201042" #define SMB_PRODUCT_NAME "MacBookPro13,2" #define SMB_BOARD_PRODUCT "Mac-66E35819EE2D0D05" #define EFI_MODEL_NAME { 'M', 'a', 'c', 'B', 'o', 'o', 'k', 'P', 'r', 'o', '1', '3', ',', '2' } #else // Defaults to MacBookPro13,3 // 15-inch with Touch Bar // Intel Core i7-6700HQ 2.6 GHz (Max Turbo Boost 3.5 GHz). // Intel Core i7-6820HQ 2.7 GHz (Max Turbo Boost 3.6 GHz). // Intel Core i7-6920HQ 2.9 GHz (Max Turbo Boost 3.8 GHz). #define SMB_BIOS_VERSION "MBP133.88Z.0223.B00.1610201042" #define SMB_PRODUCT_NAME "MacBookPro13,3" #define SMB_BOARD_PRODUCT "Mac-A5C67F76ED83108C" #define EFI_MODEL_NAME { 'M', 'a', 'c', 'B', 'o', 'o', 'k', 'P', 'r', 'o', '1', '3', ',', '3' } #endif thanks to pike.alpha 2 Link to comment Share on other sites More sharing options...
pkdesign Posted October 28, 2016 Share Posted October 28, 2016 Show me preboot log with CustomEDID containing 1920x1080. Here is preboot log with Custom EDID I got from Dump EDID inserted in to Clover. preboot_log.txt Link to comment Share on other sites More sharing options...
wastez Posted October 28, 2016 Share Posted October 28, 2016 No, I have successfull FileVault2 with VBoxHFS.efi. Forget myths! Only module that I have no is AppleKeyMapAggregator. Others work fine. So just AppleKeyMapAggregator is enough? Because savvamitrofanov before wrote that a lot more drivers are needed. Link to comment Share on other sites More sharing options...
Morpheus NS Posted October 28, 2016 Share Posted October 28, 2016 I believe he means that he has all the modules except AppleKeyMapAggregator. Link to comment Share on other sites More sharing options...

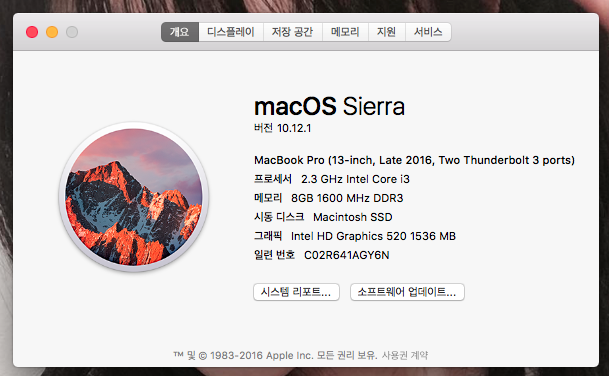

Slice Posted October 28, 2016 Share Posted October 28, 2016 Here is preboot log with Custom EDID I got from Dump EDID inserted in to Clover. No, this EDID is not custom, it is native. 1:484 0:000 EdidOverrideFound! 1:484 0:000 found Detail Timing 2560x1440 1:548 0:064 0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0 1:550 0:002 1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1 1:553 0:002 2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2 1:555 0:002 3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3 1:565 0:009 BV new mode: 3 1280x1024 You have to modify it with some EDID_Editor to have 1920x1080 in this list. I believe he means that he has all the modules except AppleKeyMapAggregator. Clover has AppleKeyAggregator performing the same function. It is our opensource replacement. @Slice i have this issue KakaoTalk_Photo_2016-10-28-23-27-23_47.jpg macbookpro 13,1 already runs 10.12.1 https://browser.primatelabs.com/v4/cpu/874771 can you add New Macbook Pro 13,1 13,2 13,3? thanks to pike.alpha I see no reason to thank PA. Your screenshot shows that this BoardID is not in supported PlatformPlist. It is not Clover mistake. Clover is not that who set this wrong BoardID. Wrong BoardID was set by your config.plist with a help of PA. 1 Link to comment Share on other sites More sharing options...
smolderas Posted October 28, 2016 Share Posted October 28, 2016 Could someone please help me build clover? I like to test filevault2, but ebuild.sh fails with following error: [CC] AutoGen /Users/<redacted>/edk2/MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c:4020:29: error: implicit declaration of function 'ARRAY_SIZE' is invalid in C99 [-Werror,-Wimplicit-function-declaration] for (Index = 0; Index < ARRAY_SIZE (mVariableEntryProperty); Index++) { ^ 1 error generated Link to comment Share on other sites More sharing options...
Slice Posted October 28, 2016 Share Posted October 28, 2016 Read PlatformSupport.plist.zip macOS 10.12.1 Could someone please help me build clover? I like to test filevault2, but ebuild.sh fails with following error: [CC] AutoGen /Users/<redacted>/edk2/MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c:4020:29: error: implicit declaration of function 'ARRAY_SIZE' is invalid in C99 [-Werror,-Wimplicit-function-declaration] for (Index = 0; Index < ARRAY_SIZE (mVariableEntryProperty); Index++) { ^ 1 error generated #define ARRAY_SIZE(x) (sizeof(x) / sizeof((x)[0])) Looks like you updated EDK2? My version 22865 contains correct line 4020 1 Link to comment Share on other sites More sharing options...
smolderas Posted October 28, 2016 Share Posted October 28, 2016 Read PlatformSupport.plist.zip macOS 10.12.1 #define ARRAY_SIZE(x) (sizeof(x) / sizeof((x)[0])) Thanks Slice, so I should define that function in every file, which uses ARRAY_SIZE? Edit: I'm sorry to bother you, I reverted to previous edk2 and it is good to go. I forget the comment out the svn up edk2 line Link to comment Share on other sites More sharing options...
Slice Posted October 28, 2016 Share Posted October 28, 2016 Thanks Slice, so I should define that function in every file, which uses ARRAY_SIZE? Edit: I'm sorry to bother you, I reverted to previous edk2 and it is good to go. I forget the comment out the svn up edk2 line It is EDK2 developers problem. I thing they resolve it in nearest commit. Yes, in every file. As I see in the whole EDK2 tree it is defined multiple times. 1 Link to comment Share on other sites More sharing options...
phi777 Posted October 28, 2016 Share Posted October 28, 2016 @smolderas I did the trick 3 times in MdeModulePkg/Universal/EbcDxe/EbcExecute.c, MdeModulePkg/Universal/DisplayEngineDxe/FormDisplay.c and MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c and now it works with newest ed2k! It's fast, if you use "vim +LineNumber file" like "vim +4020 MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c"! 1 Link to comment Share on other sites More sharing options...
smolderas Posted October 28, 2016 Share Posted October 28, 2016 @smolderas I did the trick 3 times in MdeModulePkg/Universal/EbcDxe/EbcExecute.c, MdeModulePkg/Universal/DisplayEngineDxe/FormDisplay.c and MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c and now it works with newest ed2k! It's fast, if you use "vim +LineNumber file" like "vim +4020 MdeModulePkg/Universal/Variable/RuntimeDxe/Variable.c"! Thanks for the tip. I'm trying to hold my diff from the repository to a minimum, so I've just reversed the EDK2 version and it's working again. Link to comment Share on other sites More sharing options...
tluck Posted October 28, 2016 Share Posted October 28, 2016 @slice - what are these new "mandatory" UEFI drivers all about that came in r3882/3883? $ ls -1AppleImageCodec-64.efiAppleKeyAggregator-64.efiAppleUITheme-64.efiDataHubDxe-64.efiEmuVariableUefi-64.efiFSInject-64.efiFirmwareVolume-64.efiOsxAptioFix2Drv-64.efiOsxFatBinaryDrv-64.efiSMCHelper-64.efiUsbKbDxe-64.efiVBoxHfs-64.efi Link to comment Share on other sites More sharing options...
Mirone Posted October 28, 2016 Share Posted October 28, 2016 @tluck, look here: http://www.insanelymac.com/forum/topic/317290-filevault-2/ Link to comment Share on other sites More sharing options...
Sherlocks Posted October 29, 2016 Share Posted October 29, 2016 Read PlatformSupport.plist.zip macOS 10.12.1 #define ARRAY_SIZE(x) (sizeof(x) / sizeof((x)[0])) Looks like you updated EDK2? My version 22865 contains correct line 4020 thank you serial invaild(generated random) replace plist and test for other users skylake users have bug glitch on menubar touchpad blank capslock PlatformSupport.plist.zip Link to comment Share on other sites More sharing options...
idaima Posted October 29, 2016 Share Posted October 29, 2016 thank you serial invaild(generated random) replace plist and test for other users skylake users have bug glitch on menubar touchpad blank capslock when you use the plist file on 10.12.1,glitch on menubar still exists? Link to comment Share on other sites More sharing options...
LockDown Posted October 29, 2016 Share Posted October 29, 2016 what does this platform differs in vanilla? Link to comment Share on other sites More sharing options...
Sherlocks Posted October 29, 2016 Share Posted October 29, 2016 when you use the plist file on 10.12.1,glitch on menubar still exists?Yes. I think we have to use FakeID "Iris HD540 or HD550" or find hex code to fix glitch on menubar. I see Macbook pro 13,1 geekbench. They use other MacOS build number. It use more number than10.12.1 official xxx555. We need time to clear this issue. 나의 LG-F410S 의 Tapatalk에서 보냄 what does this platform differs in vanilla?I just added platform id for macbookpro13,1 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
Slice Posted October 29, 2016 Share Posted October 29, 2016 skylake users have bug glitch on menubar touchpad blank capslock See commit 3879 #41 Link to comment Share on other sites More sharing options...
Sherlocks Posted October 29, 2016 Share Posted October 29, 2016 See commit 3879 #41 Thank Slice. report one r3882 still have bug about "return main gui with don't any touch option in submenu that i said" have a good day Link to comment Share on other sites More sharing options...
pkdesign Posted October 29, 2016 Share Posted October 29, 2016 No, this EDID is not custom, it is native. 1:484 0:000 EdidOverrideFound! 1:484 0:000 found Detail Timing 2560x1440 1:548 0:064 0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0 1:550 0:002 1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1 1:553 0:002 2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2 1:555 0:002 3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3 1:565 0:009 BV new mode: 3 1280x1024 You have to modify it with some EDID_Editor to have 1920x1080 in this list. Well i guess I'm out since I have no clue how to do this. I've also tried to find a way to edit the VBIOS of my card but can't seem to find a way to do that. I have followed several guides but can't find the hex code they tell you to. It's only a few seconds at boot time so I guess I will just live with it. Link to comment Share on other sites More sharing options...
Micky1979 Posted October 29, 2016 Share Posted October 29, 2016 Hi, may be this what you are looking for? Link to comment Share on other sites More sharing options...
Micky1979 Posted October 29, 2016 Share Posted October 29, 2016 My version 22865 contains correct line 4020 run to update my script with this version than.. Link to comment Share on other sites More sharing options...
wastez Posted October 29, 2016 Share Posted October 29, 2016 @ Clover Developers Since 10.12 it´s not possible to use a custom hibernate file path. (Clover will not load it) I saw in the Clover log that it took the hibernate preferences from /Library/Preferences/com.apple.PowerManagement.plist, what could be the reason why it can´t find the setting for "hibernatefile". hibernatefile is stored in /Library/Preferences/com.apple.PowerManagement.XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX.plist since 10.12. Would be great if somebody can have a look on it. 1 Link to comment Share on other sites More sharing options...
Balamut Posted October 30, 2016 Share Posted October 30, 2016 Does anybody else have issues with sleep on the latest Clover? Before used to sleep perfectly, now just hard reset Link to comment Share on other sites More sharing options...
iRipper Posted October 30, 2016 Share Posted October 30, 2016 Do I need FakeSMC.kext when we now have SMCHelper.efi? Or do they work together? Link to comment Share on other sites More sharing options...
