gengik84 Posted July 20, 2016 Share Posted July 20, 2016 Does anyone here have issue with latest Clover on many HP Probook/Elitebook ? I have been getting many reports from the Vietnamese hackintosh community that it just blackscreen and won't proceed to the Clover build check step. Problem doesn't seem to be on v3599 though Hi... In my Elitebook ... clover 3650 works perfectly. Link to comment Share on other sites More sharing options...

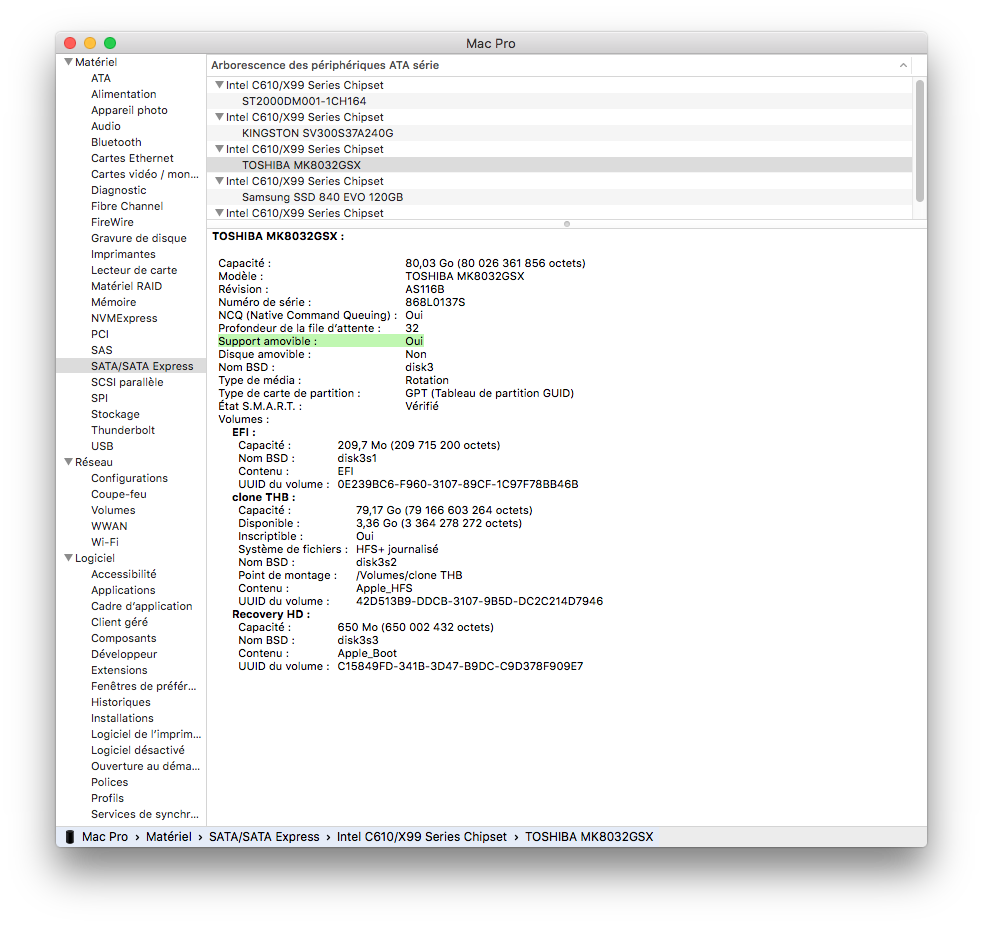

Fljagd Posted July 20, 2016 Share Posted July 20, 2016 This is on an ASUS X99 Deluxe and the BIOS has hot-swap enabled for the ports that run to the hotswap bay, Any ideas on what to try, or what files would be helpful? I use the hot swap and it works very well with clover but I'm not in MBR I am GPT/GUID Link to comment Share on other sites More sharing options...
maleorderbride Posted July 20, 2016 Share Posted July 20, 2016 I use the hot swap and it works very well with clover but I'm not in MBR I am GPT/GUID Thanks for the reply--my OS drive is not in MBR. That is just a choice within a legacy Clover install. What is the model of your hotswap bay? Link to comment Share on other sites More sharing options...
Fljagd Posted July 20, 2016 Share Posted July 20, 2016 Thanks for the reply--my OS drive is not in MBR. That is just a choice within a legacy Clover install. What is the model of your hotswap bay? it is integrated into my case (cmstorm trooper) Link to comment Share on other sites More sharing options...
Fljagd Posted July 20, 2016 Share Posted July 20, 2016 absolutely flawless clover 3650 0:100 0:100 MemLog inited, TSC freq: 3299995350 0:100 0:000 0:100 0:000 Now is 20.7.2116, 17:33:8 (GMT) 0:100 0:000 Starting Clover rev 3650 on American Megatrends EFI 0:100 0:000 Build with: [Args: ./ebuild.sh -x64 -t XCODE5 | Command: build -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 13 | OS: 10.11.5 | XCODE: 7.3.1] 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) @48792E98 0:100 0:000 SelfDirPath = \EFI\BOOT 0:102 0:002 Total Memory Slots Count = 8 0:102 0:000 Type 17 Index = 0 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 1 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 2 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 3 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 4 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 5 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 6 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 7 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Boot status=0 0:102 0:000 Clover revision: 3650 running on All Series 0:102 0:000 ... with board X99-A 0:102 0:000 CPU Vendor = 756E6547 Model=306F2 0:102 0:000 got cores from CPUID_1 = 0 0:102 0:000 The CPU supported turbo 0:102 0:000 BrandString = Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz 0:102 0:000 MSR 0xE2 before patch 00008401 0:102 0:000 MSR 0xE2 is locked, PM patches will be turned on 0:102 0:000 MSR 0xE4 00010414 0:102 0:000 MSR 0xCE 00080C3B_F3812100 0:102 0:000 MSR 0x1B0 00000000 0:102 0:000 FSBFrequency=100MHz DMIvalue=100000kHz 0:102 0:000 Corrected FSBFrequency=100MHz 0:102 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2 0:102 0:000 Family/ExtFamily: 0x6/0x0 0:102 0:000 MaxDiv/MinDiv: 33.0/12 0:102 0:000 Turbo: 41/41/41/41 0:102 0:000 Features: 0xBFEBFBFF 0:102 0:000 Threads: 12 0:102 0:000 Cores: 6 0:102 0:000 FSB: 100 MHz 0:102 0:000 CPU: 3300 MHz 0:102 0:000 TSC: 3300 MHz 0:102 0:000 PIS: 400 MHz 0:102 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400 0:102 0:000 PCI (00|01:00.00) : 1002 679A class=030000 0:102 0:000 Found Radeon model=AMD Radeon HD 7950/8950/R9 280 0:102 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300 0:102 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400 0:102 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400 0:102 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000 0:102 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000 0:102 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000 0:102 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000 0:102 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020 0:102 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF 0:102 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100 0:102 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601 0:102 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500 0:102 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000 0:103 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601 0:103 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330 0:103 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000 0:103 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000 0:103 0:000 LAN 0, Vendor=8086, MMIO=DE300000 0:103 0:000 PCI (00|00:1A.00) : 8086 8D2D class=0C0320 0:103 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300 0:103 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400 0:103 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400 0:103 0:000 PCI (00|6F:00.00) : 1B21 1142 class=0C0330 0:103 0:000 PCI (00|00:1D.00) : 8086 8D26 class=0C0320 0:103 0:000 Clover load options size = 0 bytes 0:106 0:003 Using OEM config.plist at path: EFI\CLOVER\config.plist 0:106 0:000 EFI\CLOVER\config.plist loaded: Success 0:108 0:001 Found theme directory: CrispyOSX 0:110 0:001 Found theme directory: embedded 0:111 0:001 Found theme directory: random 0:113 0:001 Found theme directory: Mecanic 0:115 0:002 Loading early settings 0:115 0:000 timeout set to 5 0:115 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 0:115 0:000 KextsToPatch: 3 requested 0:115 0:000 - [0]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: data len: 4 0:115 0:000 - [1]: IOAHCIBlockStorage (Trim) :: BinPatch :: data len: 11 0:115 0:000 - [2]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: data len: 7 0:115 0:000 Default theme: CrispyOSX 0:115 0:000 Hiding entries with string Recovery 0:115 0:000 Hiding entries with string windows 0:115 0:000 Hiding entries with string BOOTX64.EFI 0:115 0:000 LoadDrivers() start 0:116 0:000 Loading EmuVariableUefi-64.efi status=Success 0:117 0:000 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success 0:117 0:000 Loading FSInject-64.efi status=Success 0:117 0:000 Loading OsxAptioFixDrv-64.efi status=Success 0:117 0:000 Loading HFSPlus.efi status=Success 0:118 0:000 - driver needs connecting 0:118 0:000 Loading OsxFatBinaryDrv-64.efi status=Success 0:118 0:000 1 drivers needs connecting ... 0:118 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 0:118 0:000 HFS+ driver loaded 0:118 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:618 0:500 LoadDrivers() end 0:618 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 0:624 0:005 SetScreenResolution: 1920x1080 - already set 0:624 0:000 Console modes reported: 4, available modes: 0:624 0:000 Mode 1: 80x25 (current mode) 0:624 0:000 Mode 2: 80x50 0:624 0:000 Mode 3: 100x31 0:624 0:000 Mode 4: 240x56 0:624 0:000 SetScreenResolution: 1920x1080 - already set 0:624 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 1:028 0:404 ScanSPD() start 1:029 0:000 SMBus device : 8086 8D22 class=0C0500 status=Success 1:029 0:000 SMBus CmdReg: 0x3 1:029 0:000 Scanning SMBus [8086:8D22], mmio: 0xDE33C004, ioport: 0x580, hostc: 0x1 1:029 0:000 Slots to scan [8]... 1:030 0:001 ScanSPD() end 1:030 0:000 Get Acpi Tables List from RSDT: 1:030 0:000 Found table: FACP A M I len=132 1:030 0:000 Found table: APIC A M I len=256 1:030 0:000 Found table: FPDT A M I len=68 1:030 0:000 Found table: FIDT A M I len=156 1:030 0:000 Found table: MCFG A M I len=60 1:030 0:000 Found table: ASF! HCG len=160 1:030 0:000 Found table: SSDT SataTabl len=877 1:030 0:000 Found table: UEFI A M I len=66 1:030 0:000 Found table: HPET A M I len=56 1:030 0:000 Found table: MSCT A M I len=144 1:030 0:000 Found table: SLIT A M I len=45 1:030 0:000 Found table: SRAT A M I len=4440 1:030 0:000 Found table: WDDT A M I len=64 1:030 0:000 Found table: SSDT PmMgt len=86589 1:030 0:000 Calibrated TSC frequency =3299995350 =3299MHz 1:030 0:000 Loading main settings 1:030 0:000 USB FixOwnership: true 1:030 0:000 Dropping 3 tables 1:030 0:000 Drop table 0 signature="DMAR" (52414D44) 1:030 0:000 set table: 52414D44, 0 to drop: 1:030 0:000 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 1:030 0:000 set table: 54445353, 6D50757043 to drop: 1:030 0:000 Drop table 2 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 1:030 0:000 set table: 54445353, 74734930757043 to drop: 1:030 0:000 Config set EnableC6: + 1:032 0:002 found 20 volumes with blockIO 1:032 0:000 0. Volume: 1:032 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0) 1:033 0:000 1. Volume: 1:033 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 1:035 0:002 2. Volume: 1:035 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0) 1:035 0:000 found optical drive 1:035 0:000 3. Volume: 1:035 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D878D2C4-6602-4290-A8E7-676563FEBE2E,0x28,0x64000) 1:035 0:000 Result of bootcode detection: bootable unknown (legacy) 1:035 0:000 4. Volume: 1:035 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,8EC443F3-A7E4-42FB-9BE7-0BF4E266F2A3,0x64028,0x9375940) 1:063 0:027 5. Volume: 1:063 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,80C9643B-59F2-428A-909B-8931125483BB,0x93D9968,0x135F20) 1:063 0:000 hiding this volume 1:063 0:000 6. Volume: 1:063 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,8561E08C-283B-4190-A77A-5458F75F10B1,0x28,0x64000) 1:064 0:000 Result of bootcode detection: bootable unknown (legacy) 1:064 0:000 7. Volume: 1:064 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,E89D7E8F-D2D8-4982-9E33-D6A2B04576BF,0x64028,0xDDFAC40) 1:064 0:000 8. Volume: 1:064 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,CA007C04-73BE-4F1A-B3A1-F77F1F47B088,0xDE5EC68,0x135F20) 1:065 0:000 hiding this volume 1:065 0:000 9. Volume: 1:065 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0) 1:065 0:000 10. Volume: 1:065 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0) 1:066 0:000 11. Volume: 1:066 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000) 1:067 0:000 Result of bootcode detection: bootable unknown (legacy) 1:067 0:000 12. Volume: 1:067 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8) 1:067 0:000 13. Volume: 1:067 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468) 1:068 0:000 14. Volume: 1:068 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 1:069 0:000 Result of bootcode detection: bootable unknown (legacy) 1:069 0:000 This is SelfVolume !! 1:069 0:000 15. Volume: 1:069 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540) 1:070 0:000 16. Volume: 1:070 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20) 1:071 0:000 hiding this volume 1:071 0:000 17. Volume: 1:071 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0) 1:075 0:003 USB volume 1:075 0:000 USB volume 1:075 0:000 18. Volume: 1:075 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0)\HD(1,GPT,A5DFA6EE-6619-4645-9B69-95A863CD49DE,0x28,0x64000) 1:172 0:096 Result of bootcode detection: bootable unknown (legacy) 1:172 0:000 USB volume 1:172 0:000 USB volume 1:172 0:000 19. Volume: 1:172 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0)\HD(2,GPT,485C7ECA-8705-4430-8859-001B7893BE62,0x64028,0x3A2E1FE0) 1:172 0:000 USB volume 1:172 0:000 USB volume 1:194 0:021 Loading nvram.plist from Vol 'El Capitan' - loaded, size=5427 1:195 0:001 PutNvramPlistToRtVars ... 1:195 0:000 Adding Key: Clover.BackupDirOnDestVol: Size = 3, Data: 59 65 73 1:195 0:000 Adding Key: Clover.KeepBackupLimit: Size = 2, Data: 31 30 1:195 0:000 Adding Key: Clover.LogEveryBoot: Size = 2, Data: 31 30 1:195 0:000 Adding Key: Clover.LogLineCount: Size = 3, Data: 31 30 30 1:195 0:000 Adding Key: Clover.MountEFI: Size = 3, Data: 59 65 73 1:195 0:000 Adding Key: Clover.Theme: Size = 9, Data: 43 72 69 73 70 79 4F 53 58 1:195 0:000 Skipping EmuVariableUefiPresent 1:195 0:000 Skipping OsxAptioFixDrv-RelocBase 1:195 0:000 Adding Key: SystemAudioVolume: Size = 1, Data: 80 1:195 0:000 Adding Key: SystemAudioVolumeDB: Size = 1, Data: F0 1:195 0:000 Adding Key: bootercfg: Size = 2, Data: 28 00 1:195 0:000 Adding Key: csr-active-config: Size = 4, Data: 67 00 00 00 1:195 0:000 Adding Key: efi-apple-payload0: Size = 416, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 53 6D 63 46 6C 61 73 68 65 72 2E 65 66 69 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 1:195 0:000 Adding Key: efi-apple-payload0-data: Size = 174, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 64 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 53 00 6D 00 63 00 46 00 6C 00 61 00 73 00 68 00 65 00 72 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 1:195 0:000 Adding Key: efi-apple-payload1: Size = 418, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 62 61 73 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 1:195 0:000 Adding Key: efi-apple-payload1-data: Size = 178, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 68 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 62 00 61 00 73 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 1:195 0:000 Adding Key: efi-apple-payload2: Size = 420, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 75 70 64 61 74 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 1:195 0:000 Adding Key: efi-apple-payload2-data: Size = 182, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 6C 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 75 00 70 00 64 00 61 00 74 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 1:195 0:000 Adding Key: efi-apple-payload3: Size = 426, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 4D 61 63 2D 46 36 30 44 45 42 38 31 46 46 33 30 41 43 46 36 2E 65 70 6D 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 1:195 0:000 Adding Key: efi-apple-payload3-data: Size = 194, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 78 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 4D 00 61 00 63 00 2D 00 46 00 36 00 30 00 44 00 45 00 42 00 38 00 31 00 46 00 46 00 33 00 30 00 41 00 43 00 46 00 36 00 2E 00 65 00 70 00 6D 00 00 00 7F FF 04 00 1:195 0:000 Adding Key: fakesmc-key-CLKH-{clh: Size = 8, Data: 00 00 70 80 00 01 19 40 1:195 0:000 Adding Key: fakesmc-key-CLKT-ui32: Size = 4, Data: 00 00 B0 A9 1:195 0:000 Adding Key: fakesmc-key-MSDW-ui8: Size = 1, Data: 01 1:195 0:000 Adding Key: fakesmc-key-NATJ-ui8: Size = 1, Data: 00 1:195 0:000 Adding Key: fakesmc-key-NATi-ui16: Size = 2, Data: 00 00 1:195 0:000 Adding Key: fakesmc-key-NTOK-ui8: Size = 1, Data: 01 1:195 0:000 Adding Key: fmm-computer-name: Size = 7, Data: 4D 61 63 20 50 72 6F 1:195 0:000 Adding Key: install-product-url: Size = 73, Data: 78 2D 6F 73 70 72 6F 64 75 63 74 3A 2F 2F 41 37 38 33 32 43 46 44 2D 35 39 43 35 2D 33 45 46 32 2D 41 39 35 32 2D 44 46 38 37 43 33 44 33 44 33 42 43 2F 6D 61 63 4F 53 25 32 30 49 6E 73 74 61 6C 6C 25 32 30 44 61 74 61 1:196 0:000 Adding Key: prev-lang:kbd: Size = 4, Data: 66 72 3A 31 1:196 0:000 Adding Key: rc_imgsrc_info: Size = 92, Data: 62 70 6C 69 73 74 30 30 A1 01 D1 02 03 5F 10 24 41 37 38 33 32 43 46 44 2D 35 39 43 35 2D 33 45 46 32 2D 41 39 35 32 2D 44 46 38 37 43 33 44 33 44 33 42 43 53 75 73 62 08 0A 0D 34 00 00 00 00 00 00 01 01 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 1:196 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none' 1:197 0:001 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX) 1:197 0:000 theme CrispyOSX defined in NVRAM found and theme.plist parsed 1:197 0:000 OS main and drive as badge 1:199 0:002 Choosing theme CrispyOSX 1:199 0:000 Custom entries start 1:199 0:000 Custom entries finish 1:199 0:000 Scanning loaders... 1:199 0:000 0: 'Whole Disc Boot' no file system 1:199 0:000 1: 'Whole Disc Boot' no file system 1:199 0:000 2: 'Whole Disc Boot' no file system 1:199 0:000 3: 'EFI' 1:208 0:009 4: 'clone THB' 1:233 0:024 AddLoaderEntry for Volume Name=clone THB 1:284 0:051 Check if volume Is Hibernated: 1:284 0:000 Check sleep image 'by signature': 1:389 0:105 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 1:389 0:000 SleepImage name from pref: ImageVolume = 'clone THB', ImageName = '\private\var\vm\sleepimage' 1:441 0:051 sleepimage not found -> Not Found 1:441 0:000 hibernated: no - sign 1:442 0:000 Icon 17 (icons\vol_internal_hfs.icns) not found 1:442 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=4790DC20 1:459 0:017 5: 'Recovery HD' hidden 1:459 0:000 6: 'EFI' 1:466 0:006 7: 'Sierra' 1:470 0:003 AddLoaderEntry for Volume Name=Sierra 1:472 0:001 Check if volume Is Hibernated: 1:472 0:000 Check sleep image 'by signature': 1:474 0:002 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 1:475 0:000 using default sleep image name = \private\var\vm\sleepimage 1:477 0:002 sleepimage not found -> Not Found 1:477 0:000 hibernated: no - sign 1:485 0:008 8: 'Recovery HD' hidden 1:485 0:000 9: 'Whole Disc Boot' no file system 1:485 0:000 10: 'Whole Disc Boot' no file system 1:485 0:000 11: 'EFI' 1:492 0:007 12: 'Stockage' 1:499 0:007 13: 'Time Machine' 1:508 0:008 14: 'EFI' 1:515 0:006 15: 'El Capitan' 1:519 0:004 AddLoaderEntry for Volume Name=El Capitan 1:522 0:002 Check if volume Is Hibernated: 1:522 0:000 Check sleep image 'by signature': 1:527 0:005 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 1:527 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage' 1:529 0:001 sleepimage not found -> Not Found 1:529 0:000 hibernated: no - sign 1:538 0:009 16: 'Recovery HD' hidden 1:538 0:000 17: 'Whole Disc Boot' no file system 1:538 0:000 18: 'EFI' 1:545 0:006 19: 'New Osx HDD-SSD' 1:688 0:142 AddLoaderEntry for Volume Name=New Osx HDD-SSD 1:715 0:026 Check if volume Is Hibernated: 1:715 0:000 Check sleep image 'by signature': 1:739 0:024 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 1:739 0:000 using default sleep image name = \private\var\vm\sleepimage 1:757 0:017 sleepimage not found -> Not Found 1:757 0:000 hibernated: no - sign 1:771 0:013 Custom legacy start 1:771 0:000 Custom legacy end 1:771 0:000 Scanning legacy ... 1:771 0:000 0: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 1: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 2: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 3: 'EFI' (legacy) not legacy 1:771 0:000 4: 'clone THB' (legacy) not legacy 1:771 0:000 5: 'Recovery HD' (legacy) not legacy 1:771 0:000 6: 'EFI' (legacy) not legacy 1:771 0:000 7: 'Sierra' (legacy) not legacy 1:771 0:000 8: 'Recovery HD' (legacy) not legacy 1:771 0:000 9: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 10: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 11: 'EFI' (legacy) not legacy 1:771 0:000 12: 'Stockage' (legacy) not legacy 1:771 0:000 13: 'Time Machine' (legacy) not legacy 1:771 0:000 14: 'EFI' (legacy) not legacy 1:771 0:000 15: 'El Capitan' (legacy) not legacy 1:771 0:000 16: 'Recovery HD' (legacy) not legacy 1:771 0:000 17: 'Whole Disc Boot' (legacy) not legacy 1:771 0:000 18: 'EFI' (legacy) not legacy 1:771 0:000 19: 'New Osx HDD-SSD' (legacy) not legacy 1:771 0:000 Custom tool start 1:771 0:000 Custom tool end 1:771 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 1:771 0:000 Checking EFI partition Volume 3 for Clover 1:771 0:000 Found Clover 1:771 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 1:771 0:000 Checking EFI partition Volume 6 for Clover 1:771 0:000 Checking EFI partition Volume 11 for Clover 1:771 0:000 Checking EFI partition Volume 14 for Clover 1:771 0:000 Found Clover 1:771 0:000 EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored 1:771 0:000 Checking EFI partition Volume 18 for Clover 1:772 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 1:778 0:005 GetEfiBootDeviceFromNvram: efi-boot-device-data not found 1:778 0:000 EfiBootVolume not found 1:778 0:000 found entry 2. 'Boot Mac OS X from El Capitan', Volume 'El Capitan', DevicePath 'PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi' 1:778 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 1:778 0:000 DefaultIndex=2 and MainMenu.EntryCount=11 2:878 1:100 Found Mouse device: 2:879 0:000 GUI ready 10:213 7:333 Using OEM test.plist at path: EFI\CLOVER\test.plist 10:213 0:000 Loading main settings 10:213 0:000 USB FixOwnership: true 10:213 0:000 Dropping 3 tables 10:213 0:000 Drop table 0 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 10:213 0:000 set table: 54445353, 74734930757043 to drop: 10:213 0:000 Drop table 1 signature="DMAR" (52414D44) 10:213 0:000 set table: 52414D44, 0 to drop: 10:213 0:000 Drop table 2 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 10:213 0:000 set table: 54445353, 6D50757043 to drop: 10:213 0:000 Config set EnableC6: + 10:213 0:000 Config set FakeCPUID=306A0 10:213 0:000 KextsToPatch: 3 requested 10:213 0:000 - [0]: IOAHCIBlockStorage (Trim) :: MatchOS: 10.11.x,10.12.x :: BinPatch :: data len: 11 10:213 0:000 - [1]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: MatchOS: 10.12.x :: BinPatch :: data len: 4 10:213 0:000 - [2]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: MatchOS: 10.11.x :: BinPatch :: data len: 7 10:213 0:000 Theme from new config: CrispyOSX 10:213 0:000 Main settings3 from menu: Success 10:213 0:000 EDITED: test 12:821 2:607 ReinitSelfLib after theme change 12:821 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 12:821 0:000 found 20 volumes with blockIO 12:821 0:000 0. Volume: 12:821 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0) 13:158 0:337 1. Volume: 13:158 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 13:160 0:002 This is SelfVolume !! 13:160 0:000 2. Volume: 13:160 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0) 13:160 0:000 found optical drive 13:160 0:000 3. Volume: 13:160 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D878D2C4-6602-4290-A8E7-676563FEBE2E,0x28,0x64000) 13:161 0:000 Result of bootcode detection: bootable unknown (legacy) 13:161 0:000 4. Volume: 13:161 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,8EC443F3-A7E4-42FB-9BE7-0BF4E266F2A3,0x64028,0x9375940) 13:174 0:013 5. Volume: 13:174 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,80C9643B-59F2-428A-909B-8931125483BB,0x93D9968,0x135F20) 13:197 0:023 hiding this volume 13:197 0:000 6. Volume: 13:197 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,8561E08C-283B-4190-A77A-5458F75F10B1,0x28,0x64000) 13:198 0:000 Result of bootcode detection: bootable unknown (legacy) 13:198 0:000 7. Volume: 13:198 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,E89D7E8F-D2D8-4982-9E33-D6A2B04576BF,0x64028,0xDDFAC40) 13:199 0:000 8. Volume: 13:199 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,CA007C04-73BE-4F1A-B3A1-F77F1F47B088,0xDE5EC68,0x135F20) 13:199 0:000 hiding this volume 13:199 0:000 9. Volume: 13:199 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0) 13:200 0:000 10. Volume: 13:200 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0) 13:205 0:005 11. Volume: 13:205 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000) 13:220 0:015 Result of bootcode detection: bootable unknown (legacy) 13:220 0:000 12. Volume: 13:220 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8) 13:221 0:000 13. Volume: 13:221 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468) 13:221 0:000 14. Volume: 13:221 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 13:222 0:000 Result of bootcode detection: bootable unknown (legacy) 13:223 0:000 This is SelfVolume !! 13:223 0:000 15. Volume: 13:223 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540) 13:223 0:000 16. Volume: 13:223 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20) 13:224 0:000 hiding this volume 13:224 0:000 17. Volume: 13:224 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0) 13:554 0:329 USB volume 13:554 0:000 USB volume 13:554 0:000 18. Volume: 13:554 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0)\HD(1,GPT,A5DFA6EE-6619-4645-9B69-95A863CD49DE,0x28,0x64000) 13:554 0:000 Result of bootcode detection: bootable unknown (legacy) 13:554 0:000 USB volume 13:554 0:000 USB volume 13:554 0:000 19. Volume: 13:554 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x2,0x0)\HD(2,GPT,485C7ECA-8705-4430-8859-001B7893BE62,0x64028,0x3A2E1FE0) 13:568 0:013 USB volume 13:568 0:000 USB volume 13:568 0:000 change theme 13:568 0:000 Icon 22 (<null string>) not found 13:568 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=47911F20 13:571 0:002 Icon 23 (<null string>) not found 13:571 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=47911F20 13:571 0:000 Icon 21 (<null string>) not found 13:571 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=47911F20 13:571 0:000 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX) 13:571 0:000 OS main and drive as badge 13:573 0:001 Choosing theme CrispyOSX 13:573 0:000 Custom entries start 13:573 0:000 Custom entries finish 13:573 0:000 Scanning loaders... 13:573 0:000 0: 'Whole Disc Boot' no file system 13:573 0:000 1: 'Whole Disc Boot' no file system 13:573 0:000 2: 'Whole Disc Boot' no file system 13:573 0:000 3: 'EFI' 13:580 0:006 4: 'clone THB' 13:580 0:000 AddLoaderEntry for Volume Name=clone THB 13:580 0:000 Check if volume Is Hibernated: 13:580 0:000 Check sleep image 'by signature': 13:580 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 13:580 0:000 SleepImage name from pref: ImageVolume = 'clone THB', ImageName = '\private\var\vm\sleepimage' 13:580 0:000 sleepimage not found -> Not Found 13:580 0:000 hibernated: no - sign 13:581 0:000 Icon 17 (icons\vol_internal_hfs.icns) not found 13:581 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=47911F20 13:589 0:008 5: 'Recovery HD' hidden 13:589 0:000 6: 'EFI' 13:596 0:006 7: 'Sierra' 13:596 0:000 AddLoaderEntry for Volume Name=Sierra 13:597 0:000 Check if volume Is Hibernated: 13:597 0:000 Check sleep image 'by signature': 13:597 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 13:597 0:000 using default sleep image name = \private\var\vm\sleepimage 13:597 0:000 sleepimage not found -> Not Found 13:597 0:000 hibernated: no - sign 13:605 0:008 8: 'Recovery HD' hidden 13:605 0:000 9: 'Whole Disc Boot' no file system 13:605 0:000 10: 'Whole Disc Boot' no file system 13:605 0:000 11: 'EFI' 13:612 0:006 12: 'Stockage' 13:619 0:007 13: 'Time Machine' 13:627 0:007 14: 'EFI' 13:634 0:007 15: 'El Capitan' 13:635 0:000 AddLoaderEntry for Volume Name=El Capitan 13:635 0:000 Check if volume Is Hibernated: 13:635 0:000 Check sleep image 'by signature': 13:635 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 13:635 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage' 13:635 0:000 sleepimage not found -> Not Found 13:635 0:000 hibernated: no - sign 13:644 0:008 16: 'Recovery HD' hidden 13:644 0:000 17: 'Whole Disc Boot' no file system 13:644 0:000 18: 'EFI' 13:651 0:006 19: 'New Osx HDD-SSD' 13:651 0:000 AddLoaderEntry for Volume Name=New Osx HDD-SSD 13:651 0:000 Check if volume Is Hibernated: 13:651 0:000 Check sleep image 'by signature': 13:651 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 13:651 0:000 using default sleep image name = \private\var\vm\sleepimage 13:651 0:000 sleepimage not found -> Not Found 13:651 0:000 hibernated: no - sign 13:659 0:008 Custom legacy start 13:659 0:000 Custom legacy end 13:659 0:000 Scanning legacy ... 13:659 0:000 0: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 1: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 2: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 3: 'EFI' (legacy) not legacy 13:659 0:000 4: 'clone THB' (legacy) not legacy 13:659 0:000 5: 'Recovery HD' (legacy) not legacy 13:659 0:000 6: 'EFI' (legacy) not legacy 13:659 0:000 7: 'Sierra' (legacy) not legacy 13:659 0:000 8: 'Recovery HD' (legacy) not legacy 13:659 0:000 9: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 10: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 11: 'EFI' (legacy) not legacy 13:659 0:000 12: 'Stockage' (legacy) not legacy 13:659 0:000 13: 'Time Machine' (legacy) not legacy 13:659 0:000 14: 'EFI' (legacy) not legacy 13:659 0:000 15: 'El Capitan' (legacy) not legacy 13:659 0:000 16: 'Recovery HD' (legacy) not legacy 13:659 0:000 17: 'Whole Disc Boot' (legacy) not legacy 13:659 0:000 18: 'EFI' (legacy) not legacy 13:659 0:000 19: 'New Osx HDD-SSD' (legacy) not legacy 13:659 0:000 Custom tool start 13:659 0:000 Custom tool end 13:660 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 13:660 0:000 Checking EFI partition Volume 3 for Clover 13:660 0:000 Found Clover 13:660 0:000 EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored 13:660 0:000 Checking EFI partition Volume 6 for Clover 13:660 0:000 Checking EFI partition Volume 11 for Clover 13:660 0:000 Checking EFI partition Volume 14 for Clover 13:660 0:000 Found Clover 13:660 0:000 EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored 13:660 0:000 Checking EFI partition Volume 18 for Clover 13:660 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 13:666 0:006 GetEfiBootDeviceFromNvram: efi-boot-device-data not found 13:666 0:000 EfiBootVolume not found 13:666 0:000 found entry 2. 'Boot Mac OS X from El Capitan', Volume 'El Capitan', DevicePath 'PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi' 13:666 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 13:666 0:000 DefaultIndex=2 and MainMenu.EntryCount=11 14:772 1:105 Found Mouse device: 17:101 2:329 Boot option Boot0000 not found 17:101 0:000 StartLoader() start 17:101 0:000 Finally: Bus=99999kHz CPU=3300MHz 17:101 0:000 Loading boot.efi status=Success 17:184 0:083 GetOSVersion: 10.11.5 17:184 0:000 Filtering KextPatches: 17:184 0:000 - [0]: IOAHCIBlockStorage (Trim) :: BinPatch :: [OS: 10.11.5 | MatchOS: 10.11.x,10.12.x] ==> allowed 17:184 0:000 - [1]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: [OS: 10.11.5 | MatchOS: 10.12.x] ==> not allowed 17:184 0:000 - [2]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: [OS: 10.11.5 | MatchOS: 10.11.x] ==> allowed 17:184 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 17:191 0:006 insert table 9 for dev 0:0 17:191 0:000 insert table 9 for dev 0:1 17:191 0:000 insert table 9 for dev 19:0 17:191 0:000 Trusting SMBIOS... 17:191 0:000 Detected alternating SMBIOS channel banks 17:191 0:000 Channels: 4 17:191 0:000 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23 17:191 0:000 partNum unknown 17:191 0:000 SMBIOS Type 17 Index = 0 => 0 0: 17:191 0:000 DIMM1 2133MHz 4096MB 17:191 0:000 partNum unknown 17:191 0:000 SMBIOS Type 17 Index = 1 => 1 2: 17:191 0:000 DIMM2 2133MHz 4096MB 17:191 0:000 partNum unknown 17:191 0:000 SMBIOS Type 17 Index = 2 => 2 4: 17:191 0:000 DIMM3 2133MHz 4096MB 17:191 0:000 partNum unknown 17:191 0:000 SMBIOS Type 17 Index = 3 => 3 6: 17:191 0:000 DIMM4 2133MHz 4096MB 17:191 0:000 SMBIOS Type 17 Index = 4 => 4 1: 17:191 0:000 DIMM5 EMPTY 17:191 0:000 SMBIOS Type 17 Index = 5 => 5 3: 17:191 0:000 DIMM6 EMPTY 17:191 0:000 SMBIOS Type 17 Index = 6 => 6 5: 17:191 0:000 DIMM7 EMPTY 17:191 0:000 SMBIOS Type 17 Index = 7 => 7 7: 17:191 0:000 DIMM8 EMPTY 17:191 0:000 mTotalSystemMemory = 16384 17:191 0:000 NumberOfMemoryDevices = 8 17:191 0:000 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000 17:191 0:000 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000 17:191 0:000 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000 17:191 0:000 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000 17:191 0:000 Table 131 is present, CPUType=10 17:191 0:000 Change to: 507 17:191 0:000 RSDT 0x4B3BB028 17:191 0:000 FADT from RSDT: 0x4B3BB130 17:191 0:000 XSDT 0x4B3BB090 17:191 0:000 FADT from XSDT: 0x4B3F1130 17:191 0:000 Xsdt reallocation done 17:191 0:000 old FADT length=10C 17:191 0:000 Apply DsdtFixMask=0x00000000 old way 17:191 0:000 drop _DSM mask=0x0000 17:191 0:000 ========= Auto patch DSDT Starting ======== 17:191 0:000 VideoCard devID=0x679A1002 17:191 0:000 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0 17:191 0:000 USBADR[0] = 0x140000 and PCIe = 0xFFFE 17:191 0:000 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE 17:192 0:000 USBADR[2] = 0x1C0004 and PCIe = 0x0 17:192 0:000 USBADR[3] = 0x1D0000 and PCIe = 0xFFFE 17:192 0:000 first CPU found at 2C0B offset 2C0F 17:192 0:000 device candidate at 2B72 17:192 0:000 device inserted in acpi_cpu_score SCK0 17:192 0:000 score candidate at 2986 17:192 0:000 score inserted in acpi_cpu_score _SB_SCK0 17:192 0:000 Found ACPI CPU: CP00 And CP01 And CP02 And CP03 And CP04 And CP05 And CP06 And CP07 And CP08 And CP09 And CP0A And CP0B And CP0C And CP0D And CP0E And CP0F And CP10 And CP11 And CP12 And CP13 And CP14 And CP15 And CP16 And CP17 And CP18 And CP19 And CP1A And CP1B And CP1C And CP1D And CP1E And CP1F within the score: _SB_SCK0 17:192 0:000 Found PCIROOTUID = 0 17:192 0:000 ========= Auto patch DSDT Finished ======== 17:192 0:000 Patch table: SSDT SataTabl 17:192 0:000 SSDT len = 0x36D 17:192 0:000 Patch table: SSDT PmMgt 17:192 0:000 SSDT len = 0x1523D 17:192 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 17:192 0:000 Xsdt has tables count=14 17:192 0:000 corrected XSDT length=148 17:192 0:000 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12 17:192 0:000 Maximum control=0x21 17:192 0:000 Turbo control=0x29 17:192 0:000 P-States: min 0xC, max 0x29 17:192 0:000 SSDT with CPU P-States generated successfully 17:192 0:000 SSDT with CPU C-States generated successfully 17:192 0:000 EdidDiscovered size=128 17:192 0:000 00 | 00 FF FF FF FF FF FF 00 26 CD 1D 56 01 01 01 01 17:192 0:000 16 | 06 17 01 03 81 33 1D 78 2A E2 95 A2 55 4F 9F 26 17:192 0:000 32 | 11 50 54 BF EF 80 B3 00 A9 40 95 00 81 80 95 0F 17:192 0:000 48 | 71 4F 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 17:192 0:000 64 | 45 00 FE 1F 11 00 00 1E 00 00 00 FF 00 31 31 31 17:192 0:000 80 | 33 38 33 30 36 32 31 32 33 35 00 00 00 FD 00 37 17:192 0:000 96 | 4C 1E 51 11 00 0A 20 20 20 20 20 20 00 00 00 FC 17:192 0:000 112 | 00 50 4C 32 33 37 37 0A 20 20 20 20 20 20 01 77 17:192 0:000 ATI injection not set 17:192 0:000 RCBA access disabled; trying to enable 17:192 0:000 USB Controller [8086:8D31] :: PciRoot(0x0)\Pci(0x14,0x0) 17:192 0:000 LAN Controller [8086:15A1] :: PciRoot(0x0)\Pci(0x19,0x0) 17:192 0:000 USB Controller [8086:8D2D] :: PciRoot(0x0)\Pci(0x1A,0x0) 17:192 0:000 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => detected codec: 10EC:0900 17:192 0:000 USB Controller [1B21:1142] :: PciRoot(0x0)\Pci(0x1C,0x4)\Pci(0x0,0x0) 17:192 0:000 USB Controller [8086:8D26] :: PciRoot(0x0)\Pci(0x1D,0x0) 17:192 0:000 stringlength = 2792 17:192 0:000 CurrentMode: Width=1920 Height=1080 17:192 0:000 Beginning FSInjection FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 48792C18 FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 48792C18 17:196 0:003 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 17:196 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11 17:197 0:001 Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext 17:199 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext 17:200 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext 17:201 0:000 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext 17:202 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext 17:207 0:004 Extra kext: EFI\CLOVER\kexts\10.11\USB_Injector.kext 17:208 0:000 Removed efi-boot-device-data variable: Not Found 17:208 0:000 Custom boot is disabled Link to comment Share on other sites More sharing options...
Dr. Hurt Posted July 20, 2016 Share Posted July 20, 2016 Clover is now compiled without the grub drivers which makes it start significantly faster on my system Thanks Slice Link to comment Share on other sites More sharing options...
vusun123 Posted July 21, 2016 Share Posted July 21, 2016 Hi... In my Elitebook ... clover 3650 works perfectly. Well that's 3650, not 3642 though. Blackscreen happens on Probook 4430s and 450 G2 as these two are the ones I was reported with Link to comment Share on other sites More sharing options...
BaiGoogleDu Posted July 21, 2016 Share Posted July 21, 2016 I have kext-dev-mode=1 and I'm well aware of its purpose. My bug report has nothing to do with kext-dev-mode=1. It has to do with the fact that InjectKexts=Detect is broken. Kext injection should be used only when necessary (installer/recovery). So... I install everything to /S/L/E where it can go to kernel cache. Note also there are are many kexts which do not work when injected. Hello,Recently I found a compability problem on OS X, which is kinda annoying. I have installed hackintosh on my laptop,but I found that the battery status is abnormal (The battery doesn't decrease). What's worse,when I switched to windows10,I found the battery status in Windows10 is also abnormal! It doesn't decrease and always dispaly 100%,until the battery running out and the laptop shutdown suddenly.Only by removing and reinserting the battery can the battery recover. I have post a New Topic on InsanelyMac Forum,but someome said that this symptom happens on some newer HP Pavillion laptop,and they cannot solve this problem. They advice me to try consulting you.We do need your help. I would appreciate it if you can help me.Thanks! Detail: http://www.insanelym...m/?do=findComment&comment=2255697 My laptop information: HP PAVILION 15-BC013TX CPU:INTEL Core i5-6300HQ Motherboard:HP 8257 ( Intel PCI standard host CPU bridge - 100 Series/C230 Series,Family - A14E ) Graphics Intel HD Graphics 530 SSD: IM2S3138E-128GM-B Audio: Intel High Definition Audio Wireless: Dual Band Wireless-AC 7265 Link to comment Share on other sites More sharing options...
RehabMan Posted July 21, 2016 Share Posted July 21, 2016 Hello, Recently I found a compability problem on OS X, which is kinda annoying. I have installed hackintosh on my laptop,but I found that the battery status is abnormal (The battery doesn't decrease). What's worse,when I switched to windows10,I found the battery status in Windows10 is also abnormal! It doesn't decrease and always dispaly 100%,until the battery running out and the laptop shutdown suddenly.Only by removing and reinserting the battery can the battery recover. I have post a New Topic on InsanelyMac Forum,but someome said that this symptom happens on some newer HP Pavillion laptop,and they cannot solve this problem. They advice me to try consulting you.We do need your help. I would appreciate it if you can help me.Thanks! Detail: http://www.insanelym...m/?do=findComment&comment=2255697 My laptop information: HP PAVILION 15-BC013TX CPU:INTEL Core i5-6300HQ Motherboard:HP 8257 ( Intel PCI standard host CPU bridge - 100 Series/C230 Series,Family - A14E ) Graphics Intel HD Graphics 530 SSD: IM2S3138E-128GM-B Audio: Intel High Definition Audio Wireless: Dual Band Wireless-AC 7265 Off-topic here, but there are ACPI patching guides for battery status if you search for them (one written by me). Link to comment Share on other sites More sharing options...
BaiGoogleDu Posted July 21, 2016 Share Posted July 21, 2016 Off-topic here, but there are ACPI patching guides for battery status if you search for them (one written by me). I'm sorry to off-topic here,but this symptom affect Windows10's battery.Not just OS X. I have tried using DSDT+Kext,and succeed in fixing OSX's battery status,but when I switched to windows10,the battery is still abnormal.(The battery do not decrease) Link to comment Share on other sites More sharing options...
RehabMan Posted July 21, 2016 Share Posted July 21, 2016 I'm sorry to off-topic here,but this symptom affect Windows10's battery.Not just OS X. I have tried using DSDT+Kext,and succeed in fixing OSX's battery status,but when I switched to windows10,the battery is still abnormal.(The battery do not decrease) Unless you're saying that Clover booting Windows is causing the issue, you're clearly off-topic. You should test by booting Windows directly from BIOS. Note that if you make a mistake in patching for battery, you can confuse the EC (which would require an EC reset to fix for Windows, and corrective action taken regarding your ACPI patches for OS X). Link to comment Share on other sites More sharing options...
Micky1979 Posted July 22, 2016 Share Posted July 22, 2016 Is there anyone intrested in test this package? Apparently latest edk2 fail, so I used r22029 + Clover r3654 (NO_GRUB_DRIVERS_EMBEDDED), + is builted with Xcode 8 with CLT 8S162m (clang 800.0.31) Thanks Clover_v2.3k_r3654.zip 1 Link to comment Share on other sites More sharing options...
Fljagd Posted July 22, 2016 Share Posted July 22, 2016 Is there anyone intrested in test this package? Apparently latest edk2 fail, so I used r22029 + Clover r3654 (NO_GRUB_DRIVERS_EMBEDDED), + is builted with Xcode 8 with CLT 8S162m (clang 800.0.31) Thanks Thank 1 Link to comment Share on other sites More sharing options...
Micky1979 Posted July 22, 2016 Share Posted July 22, 2016 Here is ok, same for you? Link to comment Share on other sites More sharing options...
Fljagd Posted July 22, 2016 Share Posted July 22, 2016 Here is ok, same for you? yes for 10.11.6 0:100 0:100 MemLog inited, TSC freq: 3300001049 0:100 0:000 0:100 0:000 Now is 22.7.2116, 19:45:36 (GMT) 0:100 0:000 Starting Clover rev 3654 on American Megatrends EFI 0:100 0:000 Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -t XCODE5 | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12 | XCODE: 8.0] 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) @487DDA98 0:100 0:000 SelfDirPath = \EFI\BOOT 0:102 0:002 Total Memory Slots Count = 8 0:102 0:000 Type 17 Index = 0 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 1 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 2 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 3 0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:102 0:000 SmbiosTable.Type17->Size = 4096MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2 0:102 0:000 SmbiosTable.Type17->Vendor = 0:102 0:000 SmbiosTable.Type17->SerialNumber = 0:102 0:000 SmbiosTable.Type17->PartNumber = 0:102 0:000 Type 17 Index = 4 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 5 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 6 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Type 17 Index = 7 0:102 0:000 Ignoring insane frequency value 0MHz 0:102 0:000 SmbiosTable.Type17->Speed = 0MHz 0:102 0:000 SmbiosTable.Type17->Size = 0MB 0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2 0:102 0:000 SmbiosTable.Type17->Vendor = <null string> 0:102 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:102 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:102 0:000 Boot status=0 0:102 0:000 Clover revision: 3654 running on All Series 0:102 0:000 ... with board X99-A 0:102 0:000 CPU Vendor = 756E6547 Model=306F2 0:102 0:000 got cores from CPUID_1 = 0 0:102 0:000 The CPU supported turbo 0:102 0:000 BrandString = Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz 0:102 0:000 MSR 0xE2 before patch 00008401 0:102 0:000 MSR 0xE2 is locked, PM patches will be turned on 0:102 0:000 MSR 0xE4 00010414 0:102 0:000 MSR 0xCE 00080C3B_F3812100 0:102 0:000 MSR 0x1B0 00000000 0:102 0:000 FSBFrequency=100MHz DMIvalue=100000kHz 0:102 0:000 Corrected FSBFrequency=100MHz 0:102 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2 0:102 0:000 Family/ExtFamily: 0x6/0x0 0:102 0:000 MaxDiv/MinDiv: 33.0/12 0:102 0:000 Turbo: 41/41/41/41 0:102 0:000 Features: 0xBFEBFBFF 0:102 0:000 Threads: 12 0:102 0:000 Cores: 6 0:102 0:000 FSB: 100 MHz 0:102 0:000 CPU: 3300 MHz 0:102 0:000 TSC: 3300 MHz 0:102 0:000 PIS: 400 MHz 0:102 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400 0:102 0:000 PCI (00|01:00.00) : 1002 679A class=030000 0:102 0:000 Found Radeon model=AMD Radeon HD 7950/8950/R9 280 0:102 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300 0:102 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400 0:102 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400 0:102 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000 0:102 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000 0:102 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000 0:102 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000 0:102 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020 0:102 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF 0:102 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100 0:102 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601 0:102 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500 0:102 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000 0:103 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601 0:103 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330 0:103 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000 0:103 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF 0:103 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000 0:103 0:000 LAN 0, Vendor=8086, MMIO=DE300000 0:103 0:000 PCI (00|00:1A.00) : 8086 8D2D class=0C0320 0:103 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300 0:103 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400 0:103 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400 0:103 0:000 PCI (00|6F:00.00) : 1B21 1142 class=0C0330 0:103 0:000 PCI (00|00:1D.00) : 8086 8D26 class=0C0320 0:103 0:000 Clover load options size = 0 bytes 0:106 0:003 Using OEM config.plist at path: EFI\CLOVER\config.plist 0:106 0:000 EFI\CLOVER\config.plist loaded: Success 0:107 0:001 Found theme directory: CrispyOSX 0:108 0:001 Found theme directory: embedded 0:110 0:001 Found theme directory: random 0:111 0:001 Found theme directory: Mecanic 0:113 0:002 Loading early settings 0:113 0:000 timeout set to 5 0:113 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 0:113 0:000 Config set FakeCPUID=306A0 0:113 0:000 KextsToPatch: 3 requested 0:113 0:000 - [0]: IOAHCIBlockStorage (Trim) :: MatchOS: 10.11.x,10.12.x :: BinPatch :: data len: 11 0:113 0:000 - [1]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: MatchOS: 10.12.x :: BinPatch :: data len: 4 0:113 0:000 - [2]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: MatchOS: 10.11.x :: BinPatch :: data len: 7 0:113 0:000 Default theme: CrispyOSX 0:113 0:000 Hiding entries with string BOOTX64.EFI 0:113 0:000 Hiding entries with string windows 0:114 0:000 Hiding entries with string Recovery 0:114 0:000 LoadDrivers() start 0:114 0:000 Loading DataHubDxe-64.efi status=Success 0:116 0:002 Loading EmuVariableUefi-64.efi status=Success 0:117 0:000 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success 0:117 0:000 Loading FSInject-64.efi status=Success 0:117 0:000 Loading HFSPlus.efi status=Success 0:118 0:000 - driver needs connecting 0:118 0:000 Loading OsxAptioFixDrv-64.efi status=Success 0:118 0:000 Loading OsxFatBinaryDrv-64.efi status=Success 0:118 0:000 1 drivers needs connecting ... 0:118 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 0:118 0:000 HFS+ driver loaded 0:118 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:342 0:223 LoadDrivers() end 0:342 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 0:348 0:005 SetScreenResolution: 1920x1080 - already set 0:348 0:000 Console modes reported: 4, available modes: 0:348 0:000 Mode 1: 80x25 (current mode) 0:348 0:000 Mode 2: 80x50 0:348 0:000 Mode 3: 100x31 0:348 0:000 Mode 4: 240x56 0:348 0:000 SetScreenResolution: 1920x1080 - already set 0:348 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 0:751 0:403 ScanSPD() start 0:751 0:000 SMBus device : 8086 8D22 class=0C0500 status=Success 0:751 0:000 SMBus CmdReg: 0x3 0:751 0:000 Scanning SMBus [8086:8D22], mmio: 0xDE33C004, ioport: 0x580, hostc: 0x1 0:751 0:000 Slots to scan [8]... 0:752 0:001 ScanSPD() end 0:752 0:000 Get Acpi Tables List from RSDT: 0:752 0:000 Found table: FACP A M I len=132 0:752 0:000 Found table: APIC A M I len=256 0:752 0:000 Found table: FPDT A M I len=68 0:752 0:000 Found table: FIDT A M I len=156 0:752 0:000 Found table: MCFG A M I len=60 0:752 0:000 Found table: ASF! HCG len=160 0:752 0:000 Found table: SSDT SataTabl len=877 0:752 0:000 Found table: UEFI A M I len=66 0:752 0:000 Found table: HPET A M I len=56 0:752 0:000 Found table: MSCT A M I len=144 0:752 0:000 Found table: SLIT A M I len=45 0:752 0:000 Found table: SRAT A M I len=4440 0:752 0:000 Found table: WDDT A M I len=64 0:752 0:000 Found table: SSDT PmMgt len=86589 0:752 0:000 Calibrated TSC frequency =3300001049 =3300MHz 0:752 0:000 Loading main settings 0:752 0:000 USB FixOwnership: true 0:752 0:000 Dropping 3 tables 0:752 0:000 Drop table 0 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 0:752 0:000 set table: 54445353, 74734930757043 to drop: 0:752 0:000 Drop table 1 signature="DMAR" (52414D44) 0:752 0:000 set table: 52414D44, 0 to drop: 0:752 0:000 Drop table 2 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 0:752 0:000 set table: 54445353, 6D50757043 to drop: 0:752 0:000 final mask=00000000 0:752 0:000 Config set EnableC6: + 0:755 0:002 found 12 volumes with blockIO 0:755 0:000 0. Volume: 0:755 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 0:757 0:002 1. Volume: 0:757 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0) 0:757 0:000 found optical drive 0:757 0:000 2. Volume: 0:757 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,996FDAD7-B39A-46D3-B780-36516C5486C5,0x28,0x64000) 0:757 0:000 Result of bootcode detection: bootable unknown (legacy) 0:757 0:000 3. Volume: 0:757 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,7E6118B3-21E7-4009-8FFE-DAD17D1177EA,0x64028,0xDEF0B60) 0:758 0:000 4. Volume: 0:758 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0) 0:759 0:000 5. Volume: 0:759 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0) 0:759 0:000 6. Volume: 0:759 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000) 0:760 0:000 Result of bootcode detection: bootable unknown (legacy) 0:760 0:000 7. Volume: 0:760 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8) 0:761 0:000 8. Volume: 0:761 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468) 0:761 0:000 9. Volume: 0:761 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 0:762 0:000 Result of bootcode detection: bootable unknown (legacy) 0:762 0:000 This is SelfVolume !! 0:762 0:000 10. Volume: 0:762 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540) 0:763 0:000 11. Volume: 0:763 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20) 0:764 0:000 hiding this volume 0:767 0:003 Loading nvram.plist from Vol 'El Capitan' - loaded, size=5427 0:768 0:001 PutNvramPlistToRtVars ... 0:768 0:000 Adding Key: Clover.BackupDirOnDestVol: Size = 3, Data: 59 65 73 0:768 0:000 Adding Key: Clover.KeepBackupLimit: Size = 2, Data: 31 30 0:768 0:000 Adding Key: Clover.LogEveryBoot: Size = 2, Data: 31 30 0:768 0:000 Adding Key: Clover.LogLineCount: Size = 3, Data: 31 30 30 0:768 0:000 Adding Key: Clover.MountEFI: Size = 3, Data: 59 65 73 0:768 0:000 Adding Key: Clover.Theme: Size = 9, Data: 43 72 69 73 70 79 4F 53 58 0:768 0:000 Skipping EmuVariableUefiPresent 0:768 0:000 Skipping OsxAptioFixDrv-RelocBase 0:768 0:000 Adding Key: SystemAudioVolume: Size = 1, Data: 80 0:768 0:000 Adding Key: SystemAudioVolumeDB: Size = 1, Data: F0 0:768 0:000 Adding Key: bootercfg: Size = 2, Data: 28 00 0:768 0:000 Adding Key: csr-active-config: Size = 4, Data: 67 00 00 00 0:768 0:000 Adding Key: efi-apple-payload0: Size = 416, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 53 6D 63 46 6C 61 73 68 65 72 2E 65 66 69 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:768 0:000 Adding Key: efi-apple-payload0-data: Size = 174, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 64 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 53 00 6D 00 63 00 46 00 6C 00 61 00 73 00 68 00 65 00 72 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 0:769 0:000 Adding Key: efi-apple-payload1: Size = 418, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 62 61 73 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:769 0:000 Adding Key: efi-apple-payload1-data: Size = 178, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 68 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 62 00 61 00 73 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 0:769 0:000 Adding Key: efi-apple-payload2: Size = 420, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 75 70 64 61 74 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:769 0:000 Adding Key: efi-apple-payload2-data: Size = 182, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 6C 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 75 00 70 00 64 00 61 00 74 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 0:769 0:000 Adding Key: efi-apple-payload3: Size = 426, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 4D 61 63 2D 46 36 30 44 45 42 38 31 46 46 33 30 41 43 46 36 2E 65 70 6D 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:769 0:000 Adding Key: efi-apple-payload3-data: Size = 194, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 78 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 4D 00 61 00 63 00 2D 00 46 00 36 00 30 00 44 00 45 00 42 00 38 00 31 00 46 00 46 00 33 00 30 00 41 00 43 00 46 00 36 00 2E 00 65 00 70 00 6D 00 00 00 7F FF 04 00 0:769 0:000 Adding Key: fakesmc-key-CLKH-{clh: Size = 8, Data: 00 00 70 80 00 01 19 40 0:769 0:000 Adding Key: fakesmc-key-CLKT-ui32: Size = 4, Data: 00 00 B0 A9 0:769 0:000 Adding Key: fakesmc-key-MSDW-ui8: Size = 1, Data: 01 0:769 0:000 Adding Key: fakesmc-key-NATJ-ui8: Size = 1, Data: 00 0:769 0:000 Adding Key: fakesmc-key-NATi-ui16: Size = 2, Data: 00 00 0:769 0:000 Adding Key: fakesmc-key-NTOK-ui8: Size = 1, Data: 01 0:769 0:000 Adding Key: fmm-computer-name: Size = 7, Data: 4D 61 63 20 50 72 6F 0:769 0:000 Adding Key: install-product-url: Size = 73, Data: 78 2D 6F 73 70 72 6F 64 75 63 74 3A 2F 2F 41 37 38 33 32 43 46 44 2D 35 39 43 35 2D 33 45 46 32 2D 41 39 35 32 2D 44 46 38 37 43 33 44 33 44 33 42 43 2F 6D 61 63 4F 53 25 32 30 49 6E 73 74 61 6C 6C 25 32 30 44 61 74 61 0:769 0:000 Adding Key: prev-lang:kbd: Size = 4, Data: 66 72 3A 31 0:769 0:000 Adding Key: rc_imgsrc_info: Size = 92, Data: 62 70 6C 69 73 74 30 30 A1 01 D1 02 03 5F 10 24 41 37 38 33 32 43 46 44 2D 35 39 43 35 2D 33 45 46 32 2D 41 39 35 32 2D 44 46 38 37 43 33 44 33 44 33 42 43 53 75 73 62 08 0A 0D 34 00 00 00 00 00 00 01 01 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 38 0:769 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none' 0:769 0:000 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX) 0:769 0:000 theme CrispyOSX defined in NVRAM found and theme.plist parsed 0:769 0:000 OS main and drive as badge 0:771 0:001 Choosing theme CrispyOSX 0:771 0:000 Custom entries start 0:771 0:000 Custom entries finish 0:771 0:000 Scanning loaders... 0:771 0:000 0: 'Whole Disc Boot' no file system 0:771 0:000 1: 'Whole Disc Boot' no file system 0:771 0:000 2: 'EFI' 0:779 0:007 3: 'OSX Flash Drive' 0:780 0:001 AddLoaderEntry for Volume Name=OSX Flash Drive 0:783 0:002 Check if volume Is Hibernated: 0:783 0:000 Check sleep image 'by signature': 0:784 0:001 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 0:784 0:000 using default sleep image name = \private\var\vm\sleepimage 0:786 0:001 sleepimage not found -> Not Found 0:786 0:000 hibernated: no - sign 0:787 0:000 Icon 17 (icons\vol_internal_hfs.icns) not found 0:787 0:000 Theme path EFI\CLOVER\themes\CrispyOSX, ThemeDir=47C51420 0:794 0:007 4: 'Whole Disc Boot' no file system 0:794 0:000 5: 'Whole Disc Boot' no file system 0:794 0:000 6: 'EFI' 0:801 0:006 7: 'Stockage' 0:808 0:006 8: 'Time Machine' 0:815 0:007 9: 'EFI' 0:822 0:006 10: 'El Capitan' 0:825 0:003 AddLoaderEntry for Volume Name=El Capitan 0:828 0:002 Check if volume Is Hibernated: 0:828 0:000 Check sleep image 'by signature': 0:833 0:005 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 0:833 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage' 0:835 0:001 sleepimage not found -> Not Found 0:835 0:000 hibernated: no - sign 0:844 0:008 11: 'Recovery HD' hidden 0:844 0:000 Custom legacy start 0:844 0:000 Custom legacy end 0:844 0:000 Scanning legacy ... 0:844 0:000 0: 'Whole Disc Boot' (legacy) not legacy 0:844 0:000 1: 'Whole Disc Boot' (legacy) not legacy 0:844 0:000 2: 'EFI' (legacy) not legacy 0:844 0:000 3: 'OSX Flash Drive' (legacy) not legacy 0:844 0:000 4: 'Whole Disc Boot' (legacy) not legacy 0:844 0:000 5: 'Whole Disc Boot' (legacy) not legacy 0:844 0:000 6: 'EFI' (legacy) not legacy 0:844 0:000 7: 'Stockage' (legacy) not legacy 0:844 0:000 8: 'Time Machine' (legacy) not legacy 0:844 0:000 9: 'EFI' (legacy) not legacy 0:844 0:000 10: 'El Capitan' (legacy) not legacy 0:844 0:000 11: 'Recovery HD' (legacy) not legacy 0:844 0:000 Custom tool start 0:844 0:000 Custom tool end 0:844 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi 0:844 0:000 Checking EFI partition Volume 2 for Clover 0:844 0:000 Checking EFI partition Volume 6 for Clover 0:844 0:000 Checking EFI partition Volume 9 for Clover 0:844 0:000 Found Clover 0:844 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:845 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 0:851 0:005 GetEfiBootDeviceFromNvram: efi-boot-device-data not found 0:851 0:000 EfiBootVolume not found 0:851 0:000 found entry 1. 'Boot Mac OS X from El Capitan', Volume 'El Capitan', DevicePath 'PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi' 0:851 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:851 0:000 DefaultIndex=1 and MainMenu.EntryCount=8 1:945 1:093 Found Mouse device: 1:945 0:000 GUI ready 7:949 6:003 StartLoader() start 7:949 0:000 Finally: Bus=100000kHz CPU=3300MHz 7:949 0:000 Loading boot.efi status=Success 8:032 0:083 GetOSVersion: 10.11.6 8:032 0:000 Filtering KextPatches: 8:032 0:000 - [0]: IOAHCIBlockStorage (Trim) :: BinPatch :: [OS: 10.11.6 | MatchOS: 10.11.x,10.12.x] ==> allowed 8:032 0:000 - [1]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: [OS: 10.11.6 | MatchOS: 10.12.x] ==> not allowed 8:032 0:000 - [2]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: [OS: 10.11.6 | MatchOS: 10.11.x] ==> allowed 8:032 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 8:038 0:006 insert table 9 for dev 0:0 8:038 0:000 insert table 9 for dev 0:1 8:038 0:000 insert table 9 for dev 19:0 8:039 0:000 Trusting SMBIOS... 8:039 0:000 Detected alternating SMBIOS channel banks 8:039 0:000 Channels: 4 8:039 0:000 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23 8:039 0:000 partNum unknown 8:039 0:000 SMBIOS Type 17 Index = 0 => 0 0: 8:039 0:000 DIMM1 2133MHz 4096MB 8:039 0:000 partNum unknown 8:039 0:000 SMBIOS Type 17 Index = 1 => 1 2: 8:039 0:000 DIMM2 2133MHz 4096MB 8:039 0:000 partNum unknown 8:039 0:000 SMBIOS Type 17 Index = 2 => 2 4: 8:039 0:000 DIMM3 2133MHz 4096MB 8:039 0:000 partNum unknown 8:039 0:000 SMBIOS Type 17 Index = 3 => 3 6: 8:039 0:000 DIMM4 2133MHz 4096MB 8:039 0:000 SMBIOS Type 17 Index = 4 => 4 1: 8:039 0:000 DIMM5 EMPTY 8:039 0:000 SMBIOS Type 17 Index = 5 => 5 3: 8:039 0:000 DIMM6 EMPTY 8:039 0:000 SMBIOS Type 17 Index = 6 => 6 5: 8:039 0:000 DIMM7 EMPTY 8:039 0:000 SMBIOS Type 17 Index = 7 => 7 7: 8:039 0:000 DIMM8 EMPTY 8:039 0:000 mTotalSystemMemory = 16384 8:039 0:000 NumberOfMemoryDevices = 8 8:039 0:000 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000 8:039 0:000 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000 8:039 0:000 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000 8:039 0:000 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000 8:039 0:000 Table 131 is present, CPUType=10 8:039 0:000 Change to: 507 8:039 0:000 RSDT 0x4B3BB028 8:039 0:000 FADT from RSDT: 0x4B3BB130 8:039 0:000 XSDT 0x4B3BB090 8:039 0:000 FADT from XSDT: 0x4B3F1130 8:039 0:000 Xsdt reallocation done 8:039 0:000 old FADT length=10C 8:039 0:000 Apply DsdtFixMask=0x00000000 old way 8:039 0:000 drop _DSM mask=0x0000 8:039 0:000 ========= Auto patch DSDT Starting ======== 8:039 0:000 VideoCard devID=0x679A1002 8:039 0:000 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0 8:039 0:000 USBADR[0] = 0x140000 and PCIe = 0xFFFE 8:039 0:000 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE 8:039 0:000 USBADR[2] = 0x1C0004 and PCIe = 0x0 8:039 0:000 USBADR[3] = 0x1D0000 and PCIe = 0xFFFE 8:039 0:000 first CPU found at 2C0B offset 2C0F 8:039 0:000 device candidate at 2B72 8:039 0:000 device inserted in acpi_cpu_score SCK0 8:039 0:000 score candidate at 2986 8:039 0:000 score inserted in acpi_cpu_score _SB_SCK0 8:039 0:000 Found ACPI CPU: CP00 And CP01 And CP02 And CP03 And CP04 And CP05 And CP06 And CP07 And CP08 And CP09 And CP0A And CP0B And CP0C And CP0D And CP0E And CP0F And CP10 And CP11 And CP12 And CP13 And CP14 And CP15 And CP16 And CP17 And CP18 And CP19 And CP1A And CP1B And CP1C And CP1D And CP1E And CP1F within the score: _SB_SCK0 8:039 0:000 Found PCIROOTUID = 0 8:039 0:000 ========= Auto patch DSDT Finished ======== 8:039 0:000 Patch table: SSDT SataTabl 8:039 0:000 SSDT len = 0x36D 8:039 0:000 Patch table: SSDT PmMgt 8:039 0:000 SSDT len = 0x1523D 8:040 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 8:040 0:000 Xsdt has tables count=14 8:040 0:000 corrected XSDT length=148 8:040 0:000 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12 8:040 0:000 Maximum control=0x21 8:040 0:000 Turbo control=0x29 8:040 0:000 P-States: min 0xC, max 0x29 8:040 0:000 SSDT with CPU P-States generated successfully 8:040 0:000 SSDT with CPU C-States generated successfully 8:040 0:000 EdidDiscovered size=128 8:040 0:000 00 | 00 FF FF FF FF FF FF 00 26 CD 1D 56 01 01 01 01 8:040 0:000 16 | 06 17 01 03 81 33 1D 78 2A E2 95 A2 55 4F 9F 26 8:040 0:000 32 | 11 50 54 BF EF 80 B3 00 A9 40 95 00 81 80 95 0F 8:040 0:000 48 | 71 4F 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 8:040 0:000 64 | 45 00 FE 1F 11 00 00 1E 00 00 00 FF 00 31 31 31 8:040 0:000 80 | 33 38 33 30 36 32 31 32 33 35 00 00 00 FD 00 37 8:040 0:000 96 | 4C 1E 51 11 00 0A 20 20 20 20 20 20 00 00 00 FC 8:040 0:000 112 | 00 50 4C 32 33 37 37 0A 20 20 20 20 20 20 01 77 8:040 0:000 ATI injection not set 8:040 0:000 RCBA access disabled; trying to enable 8:040 0:000 USB Controller [8086:8D31] :: PciRoot(0x0)\Pci(0x14,0x0) 8:040 0:000 LAN Controller [8086:15A1] :: PciRoot(0x0)\Pci(0x19,0x0) 8:040 0:000 USB Controller [8086:8D2D] :: PciRoot(0x0)\Pci(0x1A,0x0) 8:040 0:000 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => detected codec: 10EC:0900 8:040 0:000 USB Controller [1B21:1142] :: PciRoot(0x0)\Pci(0x1C,0x4)\Pci(0x0,0x0) 8:040 0:000 USB Controller [8086:8D26] :: PciRoot(0x0)\Pci(0x1D,0x0) 8:040 0:000 stringlength = 2792 8:040 0:000 CurrentMode: Width=1920 Height=1080 8:040 0:000 Beginning FSInjection FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 487DD818 FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 487DD818 8:044 0:003 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 8:044 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11 8:044 0:000 Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext 8:046 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext 8:047 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext 8:048 0:000 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext 8:049 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext 8:055 0:005 Extra kext: EFI\CLOVER\kexts\10.11\USB_Injector.kext 8:055 0:000 Removed efi-boot-device-data variable: Not Found 8:055 0:000 Custom boot is disabled Link to comment Share on other sites More sharing options...
Micky1979 Posted July 22, 2016 Share Posted July 22, 2016 The OS does not matter, thanks! Link to comment Share on other sites More sharing options...

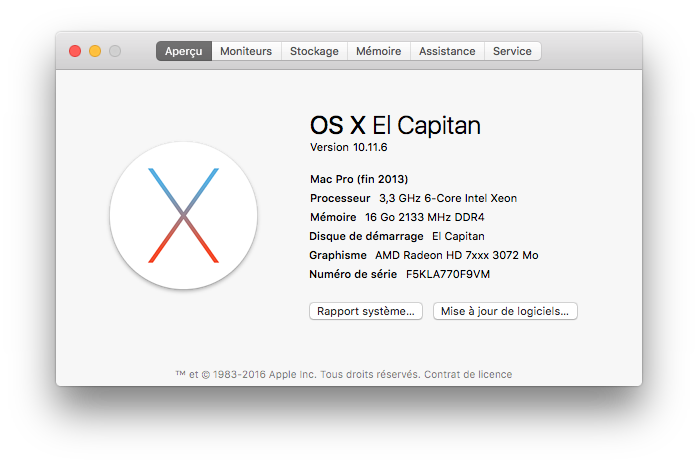

Mork vom Ork Posted July 22, 2016 Share Posted July 22, 2016 Micky1979: here also boots fine with EL CAPITAN 10.11.6. See the Log-File: 0:100 0:100 MemLog inited, TSC freq: 4008546170 0:100 0:000 MemLog was calibrated without ACPI PM Timer: ACPI I/O space is not enabled. 0:100 0:000 0:100 0:000 Now is 22.7.2016, 19:48:34 (GMT) 0:100 0:000 Starting Clover rev 3654 on American Megatrends EFI 0:100 0:000 Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -t XCODE5 | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12 | XCODE: 8.0] 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(1,GPT,436D36D1-F445-4BEA-B9E2-E92C2B4FEEDE,0x28,0x64000) @83CEF318 0:100 0:000 SelfDirPath = \EFI\BOOT 0:103 0:003 Total Memory Slots Count = 4 0:103 0:000 Type 17 Index = 0 0:103 0:000 SmbiosTable.Type17->Speed = 2667MHz 0:103 0:000 SmbiosTable.Type17->Size = 8192MB 0:103 0:000 SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0 0:103 0:000 SmbiosTable.Type17->Vendor = Kingston 0:103 0:000 SmbiosTable.Type17->SerialNumber = 16502337 0:103 0:000 SmbiosTable.Type17->PartNumber = KHX2666C15D4/8G 0:103 0:000 Type 17 Index = 1 0:103 0:000 SmbiosTable.Type17->Speed = 2667MHz 0:103 0:000 SmbiosTable.Type17->Size = 8192MB 0:103 0:000 SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1 0:103 0:000 SmbiosTable.Type17->Vendor = Kingston 0:103 0:000 SmbiosTable.Type17->SerialNumber = 16502357 0:103 0:000 SmbiosTable.Type17->PartNumber = KHX2666C15D4/8G 0:103 0:000 Type 17 Index = 2 0:103 0:000 SmbiosTable.Type17->Speed = 2667MHz 0:103 0:000 SmbiosTable.Type17->Size = 8192MB 0:103 0:000 SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0 0:103 0:000 SmbiosTable.Type17->Vendor = Kingston 0:103 0:000 SmbiosTable.Type17->SerialNumber = 16068423 0:103 0:000 SmbiosTable.Type17->PartNumber = KHX2666C15D4/8G 0:103 0:000 Type 17 Index = 3 0:103 0:000 SmbiosTable.Type17->Speed = 2667MHz 0:103 0:000 SmbiosTable.Type17->Size = 8192MB 0:103 0:000 SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1 0:103 0:000 SmbiosTable.Type17->Vendor = Kingston 0:103 0:000 SmbiosTable.Type17->SerialNumber = 16068509 0:103 0:000 SmbiosTable.Type17->PartNumber = KHX2666C15D4/8G 0:103 0:000 Boot status=0 0:103 0:000 Clover revision: 3654 running on To Be Filled By O.E.M. 0:103 0:000 ... with board Z170 Extreme7+ 0:103 0:000 CPU Vendor = 756E6547 Model=506E3 0:103 0:000 got cores from CPUID_1 = 0 0:103 0:000 The CPU supported turbo 0:103 0:000 BrandString = Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz 0:103 0:000 TSC/CCC Information Leaf: 0:103 0:000 numerator : 334 0:103 0:000 denominator : 2 0:103 0:000 Calibrated ARTFrequency: 24003270 0:103 0:000 MSR 0xE2 before patch 1E000000 0:103 0:000 MSR 0xE4 00031814 0:103 0:000 MSR 0xCE 00080838_F1012800 0:103 0:000 non-usable FLEX_RATIO = F0000 0:103 0:000 corrected FLEX_RATIO = E0000 0:103 0:000 MSR 0x1B0 00000000 0:103 0:000 FSBFrequency=100MHz DMIvalue=100000kHz 0:103 0:000 Corrected FSBFrequency=100MHz 0:103 0:000 Vendor/Model/Stepping: 0x756E6547/0x5E/0x3 0:103 0:000 Family/ExtFamily: 0x6/0x0 0:103 0:000 MaxDiv/MinDiv: 40.0/8 0:103 0:000 Turbo: 42/42/42/42 0:103 0:000 Features: 0xBFEBFBFF 0:103 0:000 Threads: 8 0:103 0:000 Cores: 4 0:103 0:000 FSB: 100 MHz 0:103 0:000 CPU: 4000 MHz 0:103 0:000 TSC: 4000 MHz 0:103 0:000 PIS: 400 MHz 0:103 0:000 PCI (00|00:00.00) : 8086 191F class=060000 0:103 0:000 PCI (00|00:01.00) : 8086 1901 class=060400 0:103 0:000 PCI (00|01:00.00) : 144D A801 class=010601 0:103 0:000 PCI (00|00:01.02) : 8086 1909 class=060400 0:103 0:000 PCI (00|02:00.00) : 1002 6798 class=030000 0:103 0:000 Found Radeon model=AMD Radeon HD 7970X/8970/R9 280X 0:103 0:000 PCI (00|02:00.01) : 1002 AAA0 class=040300 0:103 0:000 PCI (00|00:14.00) : 8086 A12F class=0C0330 0:103 0:000 PCI (00|00:14.02) : 8086 A131 class=118000 0:103 0:000 PCI (00|00:17.00) : 8086 A102 class=010601 0:103 0:000 PCI (00|00:1B.00) : 8086 A167 class=060400 0:103 0:000 PCI (00|03:00.00) : 144D A802 class=010802 0:103 0:000 PCI (00|00:1C.00) : 8086 A110 class=060400 0:103 0:000 PCI (00|00:1C.01) : 8086 A111 class=060400 0:103 0:000 PCI (00|05:00.00) : 1B21 1242 class=0C0330 0:103 0:000 PCI (00|00:1C.02) : 8086 A112 class=060400 0:103 0:000 PCI (00|06:00.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|07:01.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|08:00.00) : 8086 1539 class=020000 0:103 0:000 LAN 0, Vendor=8086, MMIO=DF900000 0:103 0:000 PCI (00|07:04.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|09:00.00) : DD01 0003 class=048000 0:103 0:000 PCI (00|07:05.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|0A:00.00) : 1B21 0612 class=010601 0:103 0:000 PCI (00|07:06.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|0B:00.00) : 1B21 0612 class=010601 0:103 0:000 PCI (00|07:07.00) : 1B21 1187 class=060400 0:103 0:000 PCI (00|00:1C.04) : 8086 A114 class=060400 0:103 0:000 PCI (00|00:1D.00) : 8086 A118 class=060400 0:103 0:000 PCI (00|00:1D.04) : 8086 A11C class=060400 0:103 0:000 PCI (00|0F:00.00) : 144D A802 class=010802 0:103 0:000 PCI (00|00:1F.00) : 8086 A145 class=060100 0:103 0:000 PCI (00|00:1F.02) : 8086 A121 class=058000 0:103 0:000 PCI (00|00:1F.04) : 8086 A123 class=0C0500 0:103 0:000 PCI (00|00:1F.06) : 8086 15B8 class=020000 0:103 0:000 LAN 1, Vendor=8086, MMIO=DFF00000 0:103 0:000 Clover load options size = 0 bytes 0:115 0:012 Using OEM config.plist at path: EFI\CLOVER\config.plist 0:115 0:000 EFI\CLOVER\config.plist loaded: Success 0:119 0:003 Found theme directory: BGM 0:131 0:012 Found theme directory: embedded 0:137 0:006 Found theme directory: iclover 0:144 0:007 Found theme directory: random 0:149 0:005 Found theme directory: Classic Mac OS 0:157 0:008 Loading early settings 0:157 0:000 timeout set to 10 0:157 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 0:157 0:000 ForceKextsToLoad: 1 requested 0:157 0:000 ForceKextsToLoad 0: System\Library\Extensions\AppleThunderboltNHI.kext 0:157 0:000 KextsToPatch: 16 requested 0:157 0:000 - [0]: AMD7000Controller (Framebuffer JUNSAI) :: BinPatch :: data len: 96 0:157 0:000 - [1]: AppleUSBXHCIPCI (Raise USB Port Limit) :: BinPatch :: data len: 7 0:157 0:000 - [2]: AppleIntelSKLGraphicsFramebuffer (Skylake IntelAccelerator Patch) :: BinPatch :: data len: 5 0:157 0:000 - [3]: IONVMeFamily (NVMe SSD IONameMatch) :: PlistPatch :: data len: 29 0:157 0:000 - [4]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#01) :: BinPatch :: data len: 16 0:157 0:000 - [5]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#02&03) :: BinPatch :: data len: 20 0:157 0:000 - [6]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#04) :: BinPatch :: data len: 16 0:157 0:000 - [7]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#05&06) :: BinPatch :: data len: 20 0:157 0:000 - [8]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#07&08&09) :: BinPatch :: data len: 80 0:157 0:000 - [9]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#10) :: BinPatch :: data len: 12 0:157 0:000 - [10]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#11) :: BinPatch :: data len: 12 0:157 0:000 - [11]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#12&13) :: BinPatch :: data len: 48 0:157 0:000 - [12]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#14) :: BinPatch :: data len: 12 0:157 0:000 - [13]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#15&16&17&18&19) :: BinPatch :: data len: 112 0:157 0:000 - [14]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#20&21&22) :: BinPatch :: data len: 72 0:157 0:000 - [15]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#23 - 50) :: BinPatch :: data len: 264 0:157 0:000 Default theme: Classic Mac OS 0:157 0:000 Hiding entries with string Windows 0:157 0:000 Hiding entries with string \EFI\BOOT\BOOTX64.EFI 0:157 0:000 LoadDrivers() start 0:159 0:002 Loading DataHubDxe-64.efi status=Success 0:171 0:011 Loading FSInject-64.efi status=Success 0:177 0:006 Loading OsxAptioFixDrv-64.efi status=Success 0:183 0:006 Loading OsxFatBinaryDrv-64.efi status=Success 0:190 0:006 Loading HFSPlus.efi status=Success 0:198 0:008 - driver needs connecting 0:199 0:001 1 drivers needs connecting ... 0:199 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 0:199 0:000 HFS+ driver loaded 0:199 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:666 0:467 LoadDrivers() end 0:666 0:000 Dump SMC keys from NVRAM: 0:669 0:003 fakesmc-key-CLKT-ui32:00 00 BA 82 0:670 0:000 fakesmc-key-CLKH-{clh:00 00 70 80 00 01 19 40 0:670 0:000 fakesmc-key-NATi-ui16:00 00 0:670 0:000 fakesmc-key-NATJ-ui8:00 0:670 0:000 fakesmc-key-QENA-ui8:01 0:670 0:000 fakesmc-key-MSTS-ui8:02 0:671 0:000 fakesmc-key-MSPC-ui8:21 0:671 0:000 fakesmc-key-HI0N-ui8:04 0:671 0:000 fakesmc-key-MSDW-ui8:00 0:671 0:000 fakesmc-key-NTOK-ui8:01 0:676 0:005 SetMaxResolution: found best mode 0: 3440x1440 0:676 0:000 - already set 0:676 0:000 Console modes reported: 4, available modes: 0:676 0:000 Mode 1: 80x25 (current mode) 0:676 0:000 Mode 2: 128x40 0:676 0:000 Mode 3: 100x31 0:676 0:000 Mode 4: 430x75 0:676 0:000 SetScreenResolution: 3440x1440 - already set 0:677 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(1,GPT,436D36D1-F445-4BEA-B9E2-E92C2B4FEEDE,0x28,0x64000) 0:681 0:004 get legacy LAN MAC, 2 card found 0:681 0:000 Legacy MAC address of LAN #0= FF:FF:FF:FF:FF:FF: 0:681 0:000 Legacy MAC address of LAN #1= FF:FF:FF:FF:FF:FF: 0:681 0:000 ScanSPD() start 0:681 0:000 SMBus device : 8086 A123 class=0C0500 status=Success 0:681 0:000 SMBus CmdReg: 0x3 0:681 0:000 Scanning SMBus [8086:A123], mmio: 0xDFF36004, ioport: 0xF000, hostc: 0x1 0:681 0:000 Slots to scan [8]... 0:682 0:000 SPD[0]: Got invalid type 0 @0x50. Will set page and retry. 0:682 0:000 SPD[0]: Type 12 @0x50 0:700 0:018 XMP Profile1: 6*125 0 ns 0:700 0:000 Found module with XMP version 2.0 0:700 0:000 Using XMP Profile1 instead of standard frequency 2666MHz 0:700 0:000 DDR speed 2666MHz 0:700 0:000 Slot: 0 Type 26 8192MB 2666MHz Vendor=Kingston PartNo=KHX2666C15D48G SerialNo=0A0603020E090205 0:701 0:000 SPD[1]: Type 12 @0x51 0:719 0:017 XMP Profile1: 6*125 0 ns 0:719 0:000 Found module with XMP version 2.0 0:719 0:000 Using XMP Profile1 instead of standard frequency 2666MHz 0:719 0:000 DDR speed 2666MHz 0:719 0:000 Slot: 1 Type 26 8192MB 2666MHz Vendor=Kingston PartNo=KHX2666C15D48G SerialNo=0A0803020E090309 0:719 0:000 SPD[2]: Type 12 @0x52 0:737 0:017 XMP Profile1: 6*125 0 ns 0:737 0:000 Found module with XMP version 2.0 0:737 0:000 Using XMP Profile1 instead of standard frequency 2666MHz 0:737 0:000 DDR speed 2666MHz 0:737 0:000 Slot: 2 Type 26 8192MB 2666MHz Vendor=Kingston PartNo=KHX2666C15D48G SerialNo=0A03000605040E0E 0:738 0:000 SPD[3]: Type 12 @0x53 0:756 0:017 XMP Profile1: 6*125 0 ns 0:756 0:000 Found module with XMP version 2.0 0:756 0:000 Using XMP Profile1 instead of standard frequency 2666MHz 0:756 0:000 DDR speed 2666MHz 0:756 0:000 Slot: 3 Type 26 8192MB 2666MHz Vendor=Kingston PartNo=KHX2666C15D48G SerialNo=0A09000605050009 0:756 0:000 ScanSPD() end 0:764 0:007 Get Acpi Tables List from RSDT: 0:764 0:000 Found table: FACP A M I len=132 0:764 0:000 Found table: APIC A M I len=188 0:764 0:000 Found table: FPDT A M I len=68 0:764 0:000 Found table: FIDT A M I len=156 0:764 0:000 Found table: MCFG A M I len=60 0:764 0:000 Found table: HPET A M I len=56 0:764 0:000 Found table: SSDT SataTabl len=877 0:764 0:000 Found table: LPIT SKL len=148 0:764 0:000 Found table: SSDT UsbCTabl len=43 0:764 0:000 Found table: DBGP len=52 0:764 0:000 Found table: DBG2 len=84 0:764 0:000 Found table: SSDT xh_rvp08 len=1556 0:764 0:000 Found table: AAFT OEMAAFT len=1367 0:764 0:000 Found table: SSDT SaSsdt len=21010 0:764 0:000 Found table: UEFI len=66 0:764 0:000 Found table: SSDT CpuSsdt len=3672 0:764 0:000 Found table: VFCT A M I len=65668 0:764 0:000 Found table: ASF! HCG len=165 0:764 0:000 Calibrated TSC frequency =4008546170 =4008MHz 0:764 0:000 Loading main settings 0:764 0:000 Add 2 devices 0:764 0:000 0: Sapphire HD7970 Graphics Controller 1: SAMSUNG SM951 NVMe SSD USB FixOwnership: true 0:764 0:000 Dropping 3 tables 0:764 0:000 Drop table 0 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 0:764 0:000 set table: 54445353, 74734930757043 to drop: 0:764 0:000 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 0:764 0:000 set table: 54445353, 6D50757043 to drop: 0:764 0:000 Drop table 2 signature="DMAR" (52414D44) 0:764 0:000 set table: 52414D44, 0 to drop: 0:764 0:000 Config set Fixes will override DSDT fix mask 00000000! 0:764 0:000 final mask=00020000 0:764 0:000 PatchesDSDT: 4 requested 0:764 0:000 patch disabled, skipped 0:764 0:000 patch disabled, skipped 0:764 0:000 patch disabled, skipped 0:764 0:000 patch disabled, skipped 0:764 0:000 Config set ChassisType=0x8 0:764 0:000 Config set CpuFreq=4000MHz 0:779 0:015 found 18 volumes with blockIO 0:779 0:000 0. Volume: 0:779 0:000 PciRoot(0x0)\Pci(0x14,0x0)\USB(0x2,0x0) 0:780 0:001 Result of bootcode detection: bootable unknown (legacy) 0:780 0:000 USB volume 0:780 0:000 1. Volume: 0:780 0:000 PciRoot(0x0)\Pci(0x14,0x0)\USB(0x2,0x0)\HD(1,MBR,0x000244FE,0x3F,0x7CDFC1) 0:782 0:001 Result of bootcode detection: bootable unknown (legacy) 0:782 0:000 USB volume 0:789 0:006 2. Volume: 0:789 0:000 PciRoot(0x0)\Pci(0x14,0x0)\USB(0x14,0x0)\USB(0x2,0x0) 0:789 0:000 USB volume 0:789 0:000 USB volume 0:789 0:000 3. Volume: 0:789 0:000 PciRoot(0x0)\Pci(0x14,0x0)\USB(0x14,0x0)\USB(0x2,0x0)\Unit(0x1) 0:789 0:000 USB volume 0:789 0:000 USB volume 0:789 0:000 4. Volume: 0:789 0:000 PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0) 0:790 0:001 5. Volume: 0:790 0:000 PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,884A15DD-2432-480B-896E-027063A35195,0x28,0x64000) 0:791 0:000 Result of bootcode detection: bootable unknown (legacy) 0:791 0:000 6. Volume: 0:791 0:000 PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,FD6DE5EC-6632-4DAB-ACF7-12CBCA729CC8,0x64028,0x3B847340) 0:792 0:000 7. Volume: 0:792 0:000 PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,AEE077E7-4399-4E09-B3D7-C65D45B813B4,0x3B8AB368,0x135F20) 0:792 0:000 8. Volume: 0:792 0:000 PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0) 0:792 0:000 found optical drive 0:792 0:000 9. Volume: 0:792 0:000 PciRoot(0x0)\Pci(0x1B,0x0)\Pci(0x0,0x0)\NVMe(0x1,F0-2E-16-5B-51-38-25-00) 0:793 0:001 10. Volume: 0:793 0:000 PciRoot(0x0)\Pci(0x1B,0x0)\Pci(0x0,0x0)\NVMe(0x1,F0-2E-16-5B-51-38-25-00)\HD(1,GPT,54129DC9-84D0-4B1B-B2B5-A9AAAE58A02A,0x800,0xE1000) 0:794 0:001 Result of bootcode detection: bootable Windows (vista,win) 0:794 0:000 11. Volume: 0:794 0:000 PciRoot(0x0)\Pci(0x1B,0x0)\Pci(0x0,0x0)\NVMe(0x1,F0-2E-16-5B-51-38-25-00)\HD(2,GPT,695F4DC8-7696-4AF2-9471-8262CF91077F,0xE1800,0x32000) 0:795 0:001 Result of bootcode detection: bootable Windows (vista,win) 0:798 0:003 12. Volume: 0:798 0:000 PciRoot(0x0)\Pci(0x1B,0x0)\Pci(0x0,0x0)\NVMe(0x1,F0-2E-16-5B-51-38-25-00)\HD(3,GPT,B53DF5D8-6034-4E50-8298-7B7B77ACD60B,0x113800,0x8000) 0:799 0:001 13. Volume: 0:799 0:000 PciRoot(0x0)\Pci(0x1B,0x0)\Pci(0x0,0x0)\NVMe(0x1,F0-2E-16-5B-51-38-25-00)\HD(4,GPT,7493FB44-0D5C-4EBA-A04D-6B0A6FDEE5AD,0x11B800,0x1DBD7800) 0:801 0:001 Result of bootcode detection: bootable Windows (vista,win) 0:801 0:000 hiding this volume 0:801 0:000 14. Volume: 0:801 0:000 PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00) 0:802 0:001 15. Volume: 0:802 0:000 PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(1,GPT,436D36D1-F445-4BEA-B9E2-E92C2B4FEEDE,0x28,0x64000) 0:803 0:001 Result of bootcode detection: bootable unknown (legacy) 0:807 0:004 This is SelfVolume !! 0:807 0:000 16. Volume: 0:807 0:000 PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(2,GPT,7830CCF1-5F82-40DE-B716-271362A76559,0x64028,0x1DB19340) 0:808 0:001 17. Volume: 0:808 0:000 PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(3,GPT,15A3BBAD-1C8D-4A6A-ADE1-F46C456F9D96,0x1DBBD368,0x135F20) 0:814 0:006 Using theme 'Classic Mac OS' (EFI\CLOVER\themes\Classic Mac OS) 0:814 0:000 OS main and drive as badge 0:821 0:006 Choosing theme Classic Mac OS 0:821 0:000 found boot-args in NVRAM:, size=1 0:821 0:000 Custom entries start 0:821 0:000 Custom entry 0 skipped because it is hidden. 0:821 0:000 Custom entries finish 0:821 0:000 Scanning loaders... 0:821 0:000 0: 'Whole Disc Boot' no file system 0:821 0:000 1: 'Z97-BIOS' 0:890 0:069 2: 'Whole Disc Boot' no file system 0:890 0:000 3: 'Whole Disc Boot' no file system 0:890 0:000 4: 'Whole Disc Boot' no file system 0:890 0:000 5: 'EFI' 0:950 0:059 6: 'SIERRA_AHCI' 0:953 0:003 AddLoaderEntry for Volume Name=SIERRA_AHCI 0:953 0:000 Not match custom entry 0: Type: not match 0:957 0:003 Check if volume Is Hibernated: 0:957 0:000 Check sleep image 'by signature': 0:960 0:002 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 0:960 0:000 using default sleep image name = \private\var\vm\sleepimage 0:962 0:002 Reading first 512 bytes of sleepimage ... 0:963 0:000 OurBlockIoRead: Lba=5364040, Offset=A6C808000 (BlockSize=512) 0:963 0:000 sig lion: 0 0:963 0:000 sig snow: 0 0:963 0:000 no valid sleep image offset was found 0:963 0:000 Reading completed -> Success 0:963 0:000 sleepimage offset could not be acquired 0:963 0:000 hibernated: no - sign 0:972 0:008 Use anime=Volume_Spacebar_Animation frames=170 1:032 0:060 7: 'Recovery HD' 1:033 0:000 AddLoaderEntry for Volume Name=Recovery HD 1:033 0:000 Skipped because matching custom entry 0! 1:092 0:059 8: 'Whole Disc Boot' no file system 1:092 0:000 9: 'Whole Disc Boot' no file system 1:092 0:000 10: 'Wiederherstellung' 1:151 0:059 11: 'EFI' 1:169 0:018 AddLoaderEntry for Volume Name=EFI 1:169 0:000 Not match custom entry 0: Type: not match 1:178 0:008 Use anime=Volume_Spacebar_Animation frames=170 1:254 0:075 12: 'Legacy HD3' no file system 1:254 0:000 13: 'WINDOWS_10_950PRO' hidden 1:254 0:000 14: 'Whole Disc Boot' no file system 1:254 0:000 15: 'EFI' 1:342 0:088 16: 'EL_CAPITAN_NVMe' 1:350 0:008 AddLoaderEntry for Volume Name=EL_CAPITAN_NVMe 1:350 0:000 Not match custom entry 0: Type: not match 1:355 0:005 Check if volume Is Hibernated: 1:355 0:000 Check sleep image 'by signature': 1:363 0:008 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 1:363 0:000 SleepImage name from pref: ImageVolume = 'EL_CAPITAN_NVMe', ImageName = '\private\var\vm\sleepimage' 1:368 0:004 Reading first 512 bytes of sleepimage ... 1:369 0:001 OurBlockIoRead: Lba=1CCE4050, Offset=399C80A000 (BlockSize=512) 1:369 0:000 sig lion: 0 1:369 0:000 sig snow: 0 1:369 0:000 no valid sleep image offset was found 1:369 0:000 Reading completed -> Success 1:369 0:000 sleepimage offset could not be acquired 1:369 0:000 hibernated: no - sign 1:373 0:004 Use anime=Volume_Spacebar_Animation frames=170 1:433 0:059 17: 'Recovery HD' 1:434 0:001 AddLoaderEntry for Volume Name=Recovery HD 1:434 0:000 Skipped because matching custom entry 0! 1:493 0:059 Custom legacy start 1:493 0:000 Custom legacy end 1:493 0:000 Custom tool start 1:493 0:000 Custom tool end 1:500 0:007 found tool \EFI\CLOVER\tools\Shell64U.efi 1:500 0:000 Checking EFI partition Volume 5 for Clover 1:500 0:000 Found Clover 1:505 0:004 Checking EFI partition Volume 11 for Clover 1:510 0:005 Checking EFI partition Volume 15 for Clover 1:516 0:006 Found Clover 1:532 0:016 GetEfiBootDeviceFromNvram:got efi-boot-device-data size=86 1:533 0:000 1:533 0:000 efi-boot-device-data: PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(2,GPT,7830CCF1-5F82-40DE-B716-271362A76559,0x64028,0x1DB19340) 1:533 0:000 Volume: 'PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(2,GPT,7830CCF1-5F82-40DE-B716-271362A76559,0x64028,0x1DB19340)' 1:533 0:000 LoaderPath: '<null string>' 1:533 0:000 Guid = 7830CCF1-5F82-40DE-B716-271362A76559 1:533 0:000 volume: partition = PciRoot(0x0)\Pci(0x1D,0x4)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(2,GPT,7830CCF1-5F82-40DE-B716-271362A76559,0x64028,0x1DB19340) 1:533 0:000 searching for that partition 1:533 0:000 found entry 2. 'Boot Mac OS X from EL_CAPITAN_NVMe', Volume 'EL_CAPITAN_NVMe' 1:533 0:000 Boot redirected to Entry 2. 'Boot Mac OS X from EL_CAPITAN_NVMe' 1:533 0:000 DefaultIndex=2 and MainMenu.EntryCount=10 1:533 0:000 Use anime=Loading_Extensions frames=450 2:170 0:637 Found Mouse device: 2:176 0:005 GUI ready 18:831 16:655 BootOption of the entry is empty 18:831 0:000 StartLoader() start 18:831 0:000 Finally: Bus=100213kHz CPU=4000MHz 18:831 0:000 Loading boot.efi status=Success 18:852 0:021 GetOSVersion: 10.11.6 18:852 0:000 Filtering KextPatches: 18:852 0:000 - [0]: AMD7000Controller (Framebuffer JUNSAI) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [1]: AppleUSBXHCIPCI (Raise USB Port Limit) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [2]: AppleIntelSKLGraphicsFramebuffer (Skylake IntelAccelerator Patch) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [3]: IONVMeFamily (NVMe SSD IONameMatch) :: PlistPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [4]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#01) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [5]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#02&03) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [6]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#04) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [7]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#05&06) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [8]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#07&08&09) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [9]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#10) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [10]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#11) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [11]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#12&13) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [12]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#14) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [13]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#15&16&17&18&19) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [14]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#20&21&22) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 - [15]: IONVMeFamily (IONVMeFamily Pike R. Alpha Patch#23 - 50) :: BinPatch :: [OS: 10.11.6 | MatchOS: All] ==> allowed 18:852 0:000 insert table 9 for dev 0:0 18:852 0:000 insert table 9 for dev 0:1 18:852 0:000 insert table 9 for dev 1F:6 18:852 0:000 Trusting SMBIOS... 18:852 0:000 Channels: 2 18:852 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23 18:852 0:000 partNum=KHX2666C15D4/8G 18:853 0:000 Type17->Speed corrected by SMBIOS from 2666MHz to 2667MHz 18:853 0:000 SMBIOS Type 17 Index = 0 => 0 0: 18:853 0:000 BANK0 DIMM0 2667MHz 8192MB 18:853 0:000 partNum=KHX2666C15D4/8G 18:853 0:000 Type17->Speed corrected by SMBIOS from 2666MHz to 2667MHz 18:853 0:000 SMBIOS Type 17 Index = 1 => 2 2: 18:853 0:000 BANK1 DIMM0 2667MHz 8192MB 18:853 0:000 partNum=KHX2666C15D4/8G 18:853 0:000 Type17->Speed corrected by SMBIOS from 2666MHz to 2667MHz 18:853 0:000 SMBIOS Type 17 Index = 2 => 1 1: 18:853 0:000 BANK0 DIMM1 2667MHz 8192MB 18:853 0:000 partNum=KHX2666C15D4/8G 18:853 0:000 Type17->Speed corrected by SMBIOS from 2666MHz to 2667MHz 18:853 0:000 SMBIOS Type 17 Index = 3 => 3 3: 18:853 0:000 BANK1 DIMM1 2667MHz 8192MB 18:853 0:000 mTotalSystemMemory = 32768 18:853 0:000 NumberOfMemoryDevices = 4 18:853 0:000 Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000 18:853 0:000 Type20[1]->End = 0x17FFFFF, Type17[2] = 0x8000 18:853 0:000 Type20[2]->End = 0xFFFFFF, Type17[1] = 0xC000 18:853 0:000 Type20[3]->End = 0x1FFFFFF, Type17[3] = 0x14000 18:853 0:000 RSDT 0x87CF0028 18:853 0:000 FADT from RSDT: 0x87CF0160 18:853 0:000 XSDT 0x87CF0098 18:853 0:000 FADT from XSDT: 0x87D13230 18:853 0:000 Xsdt reallocation done 18:853 0:000 old FADT length=10C 18:855 0:002 DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml 18:862 0:007 Apply DsdtFixMask=0x00020000 old way 18:862 0:000 drop _DSM mask=0x0000 18:862 0:000 ========= Auto patch DSDT Starting ======== 18:862 0:000 VideoCard devID=0x67981002 18:862 0:000 DisplayADR1[0] = 0x10002, DisplayADR2[0] = 0x0 18:862 0:000 USBADR[0] = 0x140000 and PCIe = 0xFFFE 18:862 0:000 USBADR[1] = 0x1C0001 and PCIe = 0x0 18:862 0:000 first CPU found at 93B1 offset 93B4 18:862 0:000 score candidate at 93AD 18:862 0:000 score inserted in acpi_cpu_score _PR_ 18:862 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7 within the score: _PR_ 18:863 0:000 Found PCIROOTUID = 0 18:863 0:000 Start RTC Fix 18:863 0:000 ========= Auto patch DSDT Finished ======== 18:863 0:000 Patch table: SSDT SataTabl 18:863 0:000 SSDT len = 0x36D 18:863 0:000 Patch table: SSDT UsbCTabl 18:863 0:000 SSDT len = 0x2B 18:863 0:000 Patch table: SSDT xh_rvp08 18:863 0:000 SSDT len = 0x614 18:863 0:000 Patch table: SSDT SaSsdt 18:863 0:000 SSDT len = 0x5212 18:863 0:000 Patch table: SSDT CpuSsdt 18:863 0:000 SSDT len = 0xE58 18:863 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 18:863 0:000 Xsdt has tables count=18 18:863 0:000 corrected XSDT length=180 18:863 0:000 Start: Processing Patched AML(s): Unsorted 18:863 0:000 Inserting USBFix.aml from EFI\CLOVER\ACPI\patched ... Success 18:867 0:004 Inserting SSDT-4_PcieTbt.aml from EFI\CLOVER\ACPI\patched ... Success 18:871 0:004 Inserting SSD0.aml from EFI\CLOVER\ACPI\patched ... Success 18:875 0:004 Inserting CpuPM_Piker.aml from EFI\CLOVER\ACPI\patched ... Success 18:879 0:004 End: Processing Patched AML(s) 18:879 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=1 18:879 0:000 Maximum control=0x28 18:879 0:000 Turbo control=0x2A 18:879 0:000 P-States: min 0x8, max 0x2A 18:879 0:000 SSDT with CPU P-States generated successfully 18:879 0:000 SSDT with CPU C-States generated successfully 18:879 0:000 EdidDiscovered size=128 18:879 0:000 00 | 00 FF FF FF FF FF FF 00 10 AC A6 A0 4C 34 45 30 18:879 0:000 16 | 25 19 01 04 A5 50 21 78 3A FD 25 A2 58 4F 9F 26 18:879 0:000 32 | 0D 50 54 A5 4B 00 71 4F 81 00 81 80 A9 40 D1 C0 18:879 0:000 48 | 01 01 01 01 01 01 E7 7C 70 A0 D0 A0 29 50 50 20 18:879 0:000 64 | CA 04 1E 4F 31 00 00 1A 00 00 00 FF 00 36 38 4D 18:879 0:000 80 | 43 46 35 39 36 30 45 34 4C 0A 00 00 00 FC 00 44 18:879 0:000 96 | 45 4C 4C 20 55 33 34 31 35 57 0A 20 00 00 00 FD 18:879 0:000 112 | 00 30 55 1E 59 20 00 0A 20 20 20 20 20 20 01 75 18:879 0:000 custom properties for device 00:00.00 injected, continue 18:879 0:000 custom properties for device 00:01.00 injected, continue 18:879 0:000 custom properties for device 01:00.00 injected, continue 18:879 0:000 custom properties for device 00:01.02 injected, continue 18:879 0:000 custom properties for device 02:00.00 injected, continue 18:879 0:000 custom properties for device 02:00.01 injected, continue 18:879 0:000 custom properties for device 00:14.00 injected, continue 18:879 0:000 custom properties for device 00:14.02 injected, continue 18:879 0:000 custom properties for device 00:17.00 injected, continue 18:879 0:000 custom properties for device 00:1B.00 injected, continue 18:879 0:000 custom properties for device 03:00.00 injected, continue 18:879 0:000 custom properties for device 00:1C.00 injected, continue 18:879 0:000 custom properties for device 00:1C.01 injected, continue 18:879 0:000 custom properties for device 05:00.00 injected, continue 18:879 0:000 custom properties for device 00:1C.02 injected, continue 18:879 0:000 custom properties for device 06:00.00 injected, continue 18:879 0:000 custom properties for device 07:01.00 injected, continue 18:879 0:000 custom properties for device 08:00.00 injected, continue 18:879 0:000 custom properties for device 07:04.00 injected, continue 18:879 0:000 custom properties for device 09:00.00 injected, continue 18:879 0:000 custom properties for device 07:05.00 injected, continue 18:879 0:000 custom properties for device 0A:00.00 injected, continue 18:879 0:000 custom properties for device 07:06.00 injected, continue 18:879 0:000 custom properties for device 0B:00.00 injected, continue 18:879 0:000 custom properties for device 07:07.00 injected, continue 18:879 0:000 custom properties for device 00:1C.04 injected, continue 18:879 0:000 custom properties for device 00:1D.00 injected, continue 18:879 0:000 custom properties for device 00:1D.04 injected, continue 18:879 0:000 custom properties for device 0F:00.00 injected, continue 18:879 0:000 custom properties for device 00:1F.00 injected, continue 18:879 0:000 custom properties for device 00:1F.02 injected, continue 18:880 0:000 custom properties for device 00:1F.04 injected, continue 18:880 0:000 custom properties for device 00:1F.06 injected, continue 18:880 0:000 stringlength = 1394 18:880 0:000 CurrentMode: Width=3440 Height=1440 18:880 0:000 Beginning FSInjection 18:880 0:000 Blocking kext caches FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 83CEF198 FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: 83CEF198 18:888 0:007 Force kext: System\Library\Extensions\AppleThunderboltNHI.kext 18:902 0:014 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 18:903 0:001 Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext 18:915 0:012 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\ACPISensors.kext 18:926 0:010 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext 18:934 0:008 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext 18:944 0:010 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext 18:959 0:015 Extra kext: EFI\CLOVER\kexts\Other\HDMIAudio.kext 18:969 0:010 Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext 18:981 0:011 Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext 18:999 0:018 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11 19:001 0:002 SetStartupDiskVolume: 19:001 0:000 * Volume: 'EL_CAPITAN_NVMe' 19:001 0:000 * LoaderPath: '<null string>' 19:001 0:000 * DevPath: EL_CAPITAN_NVMe 19:001 0:000 * GUID = 7830CCF1-5F82-40DE-B716-271362A76559 19:001 0:000 * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>7830CCF1-5F82-40DE-B716-271362A76559</string></dict></dict></dict></array> 19:002 0:000 Custom boot screen not used because entry has unset use graphics System: see my signature. 1 Link to comment Share on other sites More sharing options...
Micky1979 Posted July 22, 2016 Share Posted July 22, 2016 Thanks to you too! @Fljags, all ok in System Profiler about your RAM? Link to comment Share on other sites More sharing options...
Fljagd Posted July 22, 2016 Share Posted July 22, 2016 Thanks to you too! @Fljags, all ok in System Profiler about your RAM? yes 1 Link to comment Share on other sites More sharing options...

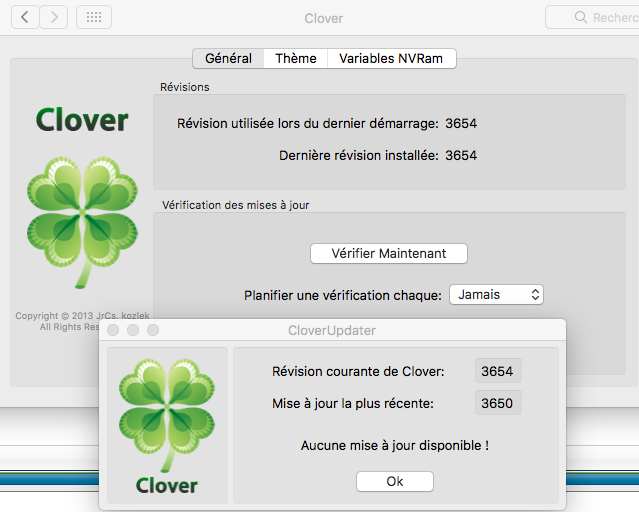

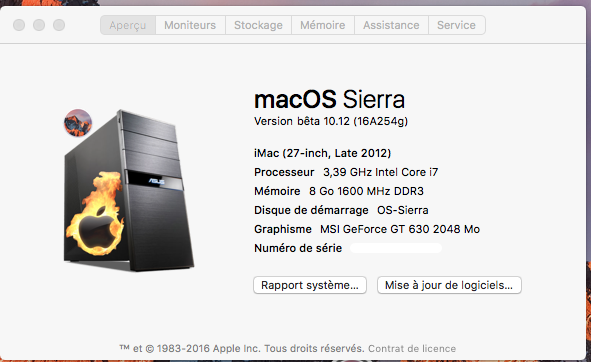

lafayen 33 Posted July 22, 2016 Share Posted July 22, 2016 Thanks 3654 ok for me . macOS-sierra 10.12 3 Link to comment Share on other sites More sharing options...
Micky1979 Posted July 22, 2016 Share Posted July 22, 2016 Thanks Link to comment Share on other sites More sharing options...
pico joe Posted July 23, 2016 Share Posted July 23, 2016 FYI: AnV repo's https://github.com/andyvand/Shim_EDK2 Link to comment Share on other sites More sharing options...
Slice Posted July 23, 2016 Share Posted July 23, 2016 FYI: AnV repo's https://github.com/andyvand/Shim_EDK2 The link is dead. Link to comment Share on other sites More sharing options...
pico joe Posted July 23, 2016 Share Posted July 23, 2016 The link is dead. fixed now (sorry) https://github.com/andyvand/Shim_EDK2 1 Link to comment Share on other sites More sharing options...
WinstonAce Posted July 24, 2016 Share Posted July 24, 2016 Hi Can I use clover to remove devices/methods "on the fly" from dsdt? for example, in the attached dsdt (unpatched) I would like to remove (among other) Device (HS04) { Name (_ADR, 0x04) // _ADR: Address } and Scope (_SB.PCI0.XHC.RHUB.HS04) { Method (_UPC, 0, Serialized) // _UPC: USB Port Capabilities { If (!PRTE (_ADR)) { Return (UPCN) /* \_SB_.PCI0.XHC_.RHUB.UPCN */ } Return (UPC3) /* \_SB_.PCI0.XHC_.RHUB.UPC3 */ } Method (_PLD, 0, Serialized) // _PLD: Physical Location of Device { Return (PLD4) /* \_SB_.PCI0.XHC_.RHUB.PLD4 */ } } System DSDT.zip Link to comment Share on other sites More sharing options...
