Slice Posted July 6, 2016 Share Posted July 6, 2016 injection is fixed again thanks with what version, me or cecekpawon? Link to comment Share on other sites More sharing options...
polyzargone Posted July 6, 2016 Share Posted July 6, 2016 with what version, me or cecekpawon? - Not working 10.12 on Acer Aspire V3-772G laptop UEFI bios. Yours or cecekpawon. No kext injection at all. - Working fine 10.11/10.12 on Gigabyte H97-HD3 UEFI bios. Link to comment Share on other sites More sharing options...
cecekpawon Posted July 6, 2016 Share Posted July 6, 2016 Appear @wardoctor boot with my version @Slice, from his build log Thankyou @joevt, smart as usual Confirm KextsToPatch currently broken, temporary comment out this OS filter fix those problem: //if (!IsPatchEnabled(MatchOS, CurrOS)) { // DBG_RT(Entry, "This patch is not allowed for booted OS %a\n", CurrOS); // return; //} 1 Link to comment Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 Different method from r3585 by Slice for 10.12 (16A239j), please compare ** add diff 0:100 0:000 Now is 6.7.2016, 8:14:6 (GMT) 0:100 0:000 Starting Clover rev 3581 on American Megatrends EFI 0:100 0:000 Build with: [Args: ./ebuild.sh -a X64 -t XCLANG | Command: build --conf=/Users/cecekpawon/src/edk2/Clover/Conf -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCLANG -n 5 | OS: 10.12 (16A239j) | SELAMAT IDUL FITRI 1434H] 0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D878D2C4-6602-4290-A8E7-676563FEBE2E,0x28,0x64000) @C88F0218 0:100 0:000 SelfDirPath = \EFI\BOOT 0:100 0:000 Total Memory Slots Count = 8 0:100 0:000 Type 17 Index = 0 0:100 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1 0:100 0:000 SmbiosTable.Type17->Vendor = 0:100 0:000 SmbiosTable.Type17->SerialNumber = 0:100 0:000 SmbiosTable.Type17->PartNumber = 0:100 0:000 Type 17 Index = 1 0:100 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2 0:100 0:000 SmbiosTable.Type17->Vendor = 0:100 0:000 SmbiosTable.Type17->SerialNumber = 0:100 0:000 SmbiosTable.Type17->PartNumber = 0:100 0:000 Type 17 Index = 2 0:100 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1 0:100 0:000 SmbiosTable.Type17->Vendor = 0:100 0:000 SmbiosTable.Type17->SerialNumber = 0:100 0:000 SmbiosTable.Type17->PartNumber = 0:100 0:000 Type 17 Index = 3 0:100 0:000 SmbiosTable.Type17->Speed = 2133MHz 0:100 0:000 SmbiosTable.Type17->Size = 4096MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2 0:100 0:000 SmbiosTable.Type17->Vendor = 0:100 0:000 SmbiosTable.Type17->SerialNumber = 0:100 0:000 SmbiosTable.Type17->PartNumber = 0:100 0:000 Type 17 Index = 4 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0MHz 0:100 0:000 SmbiosTable.Type17->Size = 0MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1 0:100 0:000 SmbiosTable.Type17->Vendor = <null string> 0:100 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:100 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:100 0:000 Type 17 Index = 5 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0MHz 0:100 0:000 SmbiosTable.Type17->Size = 0MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2 0:100 0:000 SmbiosTable.Type17->Vendor = <null string> 0:100 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:100 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:100 0:000 Type 17 Index = 6 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0MHz 0:100 0:000 SmbiosTable.Type17->Size = 0MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1 0:100 0:000 SmbiosTable.Type17->Vendor = <null string> 0:100 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:100 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:100 0:000 Type 17 Index = 7 0:100 0:000 Ignoring insane frequency value 0MHz 0:100 0:000 SmbiosTable.Type17->Speed = 0MHz 0:100 0:000 SmbiosTable.Type17->Size = 0MB 0:100 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2 0:100 0:000 SmbiosTable.Type17->Vendor = <null string> 0:100 0:000 SmbiosTable.Type17->SerialNumber = <null string> 0:100 0:000 SmbiosTable.Type17->PartNumber = <null string> 0:100 0:000 Boot status=0 0:100 0:000 Clover revision: 3581 running on All Series 0:100 0:000 ... with board X99-A 0:100 0:000 CPU Vendor = 756E6547 Model=306F2 0:100 0:000 got cores from CPUID_1 = 0 0:100 0:000 The CPU supported turbo 0:100 0:000 BrandString = Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz 0:100 0:000 MSR 0xE2 before patch 00008401 0:100 0:000 MSR 0xE2 is locked, PM patches will be turned on 0:100 0:000 MSR 0xE4 00010414 0:100 0:000 MSR 0xCE 00080C3B_F3812100 0:100 0:000 MSR 0x1B0 00000000 0:100 0:000 FSBFrequency=100MHz DMIvalue=100000kHz 0:100 0:000 Corrected FSBFrequency=100MHz 0:100 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2 0:100 0:000 Family/ExtFamily: 0x6/0x0 0:100 0:000 MaxDiv/MinDiv: 33.0/12 0:100 0:000 Turbo: 41/41/41/41 0:100 0:000 Features: 0xBFEBFBFF 0:100 0:000 Threads: 12 0:100 0:000 Cores: 6 0:100 0:000 FSB: 100 MHz 0:100 0:000 CPU: 3300 MHz 0:100 0:000 TSC: 3300 MHz 0:100 0:000 PIS: 400 MHz 0:100 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400 0:100 0:000 PCI (00|01:00.00) : 1002 679A class=030000 0:100 0:000 Found Radeon model=AMD Radeon HD 7950/8950/R9 280 0:100 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300 0:100 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400 0:100 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400 0:100 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000 0:100 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000 0:100 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000 0:100 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000 0:100 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020 0:100 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100 0:100 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601 0:100 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500 0:100 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000 0:100 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601 0:100 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330 0:100 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000 0:100 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000 0:100 0:000 LAN 0, Vendor=8086, MMIO=FBF00000 0:100 0:000 PCI (00|00:1A.00) : FFFF FFFF class=FFFFFF 0:100 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300 0:100 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400 0:100 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400 0:100 0:000 PCI (00|05:00.00) : 1B21 1142 class=0C0330 0:100 0:000 PCI (00|00:1D.00) : FFFF FFFF class=FFFFFF 0:100 0:000 Clover load options size = 0 bytes 0:115 0:015 Using OEM config.plist at path: EFI\CLOVER\config.plist 0:115 0:000 EFI\CLOVER\config.plist loaded: Success 0:118 0:003 Found theme directory: embedded 0:122 0:003 Found theme directory: random 0:122 0:000 Loading early settings 0:122 0:000 timeout set to 5 0:122 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0) 0:122 0:000 KextsToPatch: 2 requested 0:122 0:000 KextsToPatch 0: AppleUSBXHCIPCI (No Comment provided for this patch) Kext bin patch, data len: 8 0:122 0:000 KextsToPatch 1: IOAHCIBlockStorage (No Comment provided for this patch) Kext bin patch, data len: 11 0:122 0:000 Default theme: embedded 0:122 0:000 Hiding entries with string windows 0:122 0:000 Hiding entries with string BOOTX64.EFI 0:122 0:000 Hiding entries with string Recovery 0:122 0:000 LoadDrivers() start 0:133 0:010 Loading DataHubDxe-64.efi status=Success 0:134 0:001 Loading EmuVariableUefi-64.efi status=Success 0:135 0:001 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success 0:135 0:000 Loading FSInject-64.efi status=Success 0:135 0:000 Loading OsxAptioFixDrv-64.efi status=Success 0:136 0:000 Loading OsxFatBinaryDrv-64.efi status=Success 0:136 0:000 Loading PartitionDxe-64.efi status=Success 0:136 0:000 - driver needs connecting 0:136 0:000 Loading VBoxHfs-64.efi status=Success 0:147 0:011 - driver needs connecting 0:147 0:000 2 drivers needs connecting ... 0:147 0:000 PlatformDriverOverrideProtocol->GetDriver overriden 0:147 0:000 Partition driver loaded: CD disconnect Success 0:147 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 0:526 0:378 LoadDrivers() end 0:526 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 0:532 0:005 SetScreenResolution: 1920x1080 - already set 0:532 0:000 Console modes reported: 4, available modes: 0:532 0:000 Mode 1: 80x25 (current mode) 0:532 0:000 Mode 2: 80x50 0:532 0:000 Mode 3: 100x31 0:532 0:000 Mode 4: 240x56 0:532 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D878D2C4-6602-4290-A8E7-676563FEBE2E,0x28,0x64000) 0:579 0:047 ScanSPD() start 0:579 0:000 SMBus device : 8086 8D22 class=0C0500 status=Success 0:579 0:000 SMBus CmdReg: 0x1 0:579 0:000 Scanning SMBus [8086:8D22], mmio: 0xFBF3C004, ioport: 0x580, hostc: 0x1 0:579 0:000 Slots to scan [8]... 0:580 0:001 ScanSPD() end 0:580 0:000 Get Acpi Tables List from RSDT: 0:580 0:000 Found table: FACP A M I len=132 0:580 0:000 Found table: APIC A M I len=256 0:580 0:000 Found table: FPDT A M I len=68 0:580 0:000 Found table: FIDT A M I len=156 0:580 0:000 Found table: MCFG A M I len=60 0:580 0:000 Found table: ASF! HCG len=160 0:580 0:000 Found table: SSDT SataTabl len=877 0:580 0:000 Found table: UEFI A M I len=66 0:580 0:000 Found table: HPET A M I len=56 0:580 0:000 Found table: MSCT A M I len=144 0:580 0:000 Found table: SLIT A M I len=45 0:580 0:000 Found table: SRAT A M I len=4440 0:580 0:000 Found table: WDDT A M I len=64 0:580 0:000 Found table: SSDT PmMgt len=86589 0:580 0:000 Found table: BGRT A M I len=56 0:580 0:000 Calibrated TSC frequency =3300001550 =3300MHz 0:580 0:000 Loading main settings 0:580 0:000 USB FixOwnership: true 0:580 0:000 Dropping 3 tables 0:580 0:000 Drop table 0 signature="DMAR" (52414D44) 0:580 0:000 set table: 52414D44, 0 to drop: 0:580 0:000 Drop table 1 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 0:580 0:000 set table: 54445353, 74734930757043 to drop: 0:580 0:000 Drop table 2 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 0:580 0:000 set table: 54445353, 6D50757043 to drop: 0:580 0:000 Config set Fixes will override FixMask mask! 0:580 0:000 final mask=88408044 0:580 0:000 Config set EnableC6: + 0:580 0:000 Config set ChassisType=0x6 0:580 0:000 KextsToPatch: 2 requested 0:580 0:000 KextsToPatch 0: AppleUSBXHCIPCI (No Comment provided for this patch) Kext bin patch, data len: 8 0:580 0:000 KextsToPatch 1: IOAHCIBlockStorage (No Comment provided for this patch) Kext bin patch, data len: 11 0:581 0:000 found 17 volumes with blockIO 0:581 0:000 0. Volume: 0:581 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0) 0:581 0:000 1. Volume: 0:581 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0) 0:583 0:002 2. Volume: 0:583 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0) 0:583 0:000 found optical drive 0:583 0:000 3. Volume: 0:583 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D878D2C4-6602-4290-A8E7-676563FEBE2E,0x28,0x64000) 0:584 0:000 Result of bootcode detection: bootable unknown (legacy) 0:584 0:000 This is SelfVolume !! 0:584 0:000 4. Volume: 0:584 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,8EC443F3-A7E4-42FB-9BE7-0BF4E266F2A3,0x64028,0x9375940) 0:584 0:000 5. Volume: 0:584 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,80C9643B-59F2-428A-909B-8931125483BB,0x93D9968,0x135F20) 0:585 0:000 hiding this volume 0:585 0:000 6. Volume: 0:585 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,844E90D2-905C-4957-9BE3-34620A3B2133,0x28,0x64000) 0:586 0:000 Result of bootcode detection: bootable unknown (legacy) 0:586 0:000 7. Volume: 0:586 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,E2F4C234-8513-47C1-8B62-2A8ACBDDFBD4,0x64028,0xDDFAC40) 0:586 0:000 8. Volume: 0:586 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,E70433A2-8628-4F3D-A159-4031D3FA0A30,0xDE5EC68,0x135F20) 0:587 0:000 hiding this volume 0:587 0:000 9. Volume: 0:587 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0) 0:587 0:000 10. Volume: 0:587 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0) 0:589 0:002 11. Volume: 0:589 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000) 0:590 0:000 Result of bootcode detection: bootable unknown (legacy) 0:590 0:000 12. Volume: 0:590 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8) 0:591 0:000 13. Volume: 0:591 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468) 0:591 0:000 14. Volume: 0:591 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) 0:592 0:000 Result of bootcode detection: bootable unknown (legacy) 0:592 0:000 15. Volume: 0:592 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540) 0:593 0:000 16. Volume: 0:593 0:000 PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20) 0:593 0:000 hiding this volume 0:677 0:083 Loading nvram.plist from Vol 'El Capitan' - loaded, size=6000 0:678 0:001 PutNvramPlistToRtVars ... 0:678 0:000 Adding Key: Clover.BackupDirOnDestVol: Size = 3, Data: 59 65 73 0:678 0:000 Adding Key: Clover.KeepBackupLimit: Size = 2, Data: 31 30 0:678 0:000 Adding Key: Clover.LogEveryBoot: Size = 2, Data: 31 30 0:678 0:000 Adding Key: Clover.LogLineCount: Size = 3, Data: 31 30 30 0:678 0:000 Adding Key: Clover.MountEFI: Size = 3, Data: 59 65 73 0:678 0:000 Adding Key: Clover.Theme: Size = 9, Data: 43 72 69 73 70 79 4F 53 58 0:678 0:000 Skipping EmuVariableUefiPresent 0:678 0:000 Skipping OsxAptioFixDrv-RelocBase 0:678 0:000 Adding Key: SystemAudioVolume: Size = 1, Data: 41 0:678 0:000 Adding Key: SystemAudioVolumeDB: Size = 1, Data: F0 0:678 0:000 Adding Key: bootercfg: Size = 2, Data: 28 00 0:678 0:000 Adding Key: csr-active-config: Size = 4, Data: 67 00 00 00 0:678 0:000 Adding Key: efi-apple-payload0: Size = 416, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 53 6D 63 46 6C 61 73 68 65 72 2E 65 66 69 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:678 0:000 Adding Key: efi-apple-payload0-data: Size = 174, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 64 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 53 00 6D 00 63 00 46 00 6C 00 61 00 73 00 68 00 65 00 72 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 0:678 0:000 Adding Key: efi-apple-payload1: Size = 418, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 62 61 73 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:678 0:000 Adding Key: efi-apple-payload1-data: Size = 178, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 68 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 62 00 61 00 73 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 0:678 0:000 Adding Key: efi-apple-payload2: Size = 420, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 66 6C 61 73 68 65 72 5F 75 70 64 61 74 65 2E 73 6D 63 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:678 0:000 Adding Key: efi-apple-payload2-data: Size = 182, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 6C 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 66 00 6C 00 61 00 73 00 68 00 65 00 72 00 5F 00 75 00 70 00 64 00 61 00 74 00 65 00 2E 00 73 00 6D 00 63 00 00 00 7F FF 04 00 0:678 0:000 Adding Key: efi-apple-payload3: Size = 426, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 30 41 32 41 33 42 46 45 2D 43 33 41 43 2D 34 30 39 30 2D 41 37 33 36 2D 37 34 35 33 42 33 32 33 38 43 45 32 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 6B 65 79 3E 42 4C 4C 61 73 74 42 53 44 4E 61 6D 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 64 69 73 6B 30 73 31 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 45 46 49 44 65 76 69 63 65 50 61 74 68 54 79 70 65 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 4D 65 64 69 61 46 69 6C 65 50 61 74 68 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 50 61 74 68 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 5C 45 46 49 5C 41 50 50 4C 45 5C 55 50 44 41 54 45 52 53 5C 4D 55 4C 54 49 55 50 44 41 54 45 52 5C 4D 61 63 2D 46 36 30 44 45 42 38 31 46 46 33 30 41 43 46 36 2E 65 70 6D 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E 0:678 0:000 Adding Key: efi-apple-payload3-data: Size = 194, Data: 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 04 11 03 12 0A 00 03 00 00 00 00 00 04 01 2A 00 01 00 00 00 28 00 00 00 00 00 00 00 00 40 06 00 00 00 00 00 FE 3B 2A 0A AC C3 90 40 A7 36 74 53 B3 23 8C E2 02 02 04 04 78 00 5C 00 45 00 46 00 49 00 5C 00 41 00 50 00 50 00 4C 00 45 00 5C 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 53 00 5C 00 4D 00 55 00 4C 00 54 00 49 00 55 00 50 00 44 00 41 00 54 00 45 00 52 00 5C 00 4D 00 61 00 63 00 2D 00 46 00 36 00 30 00 44 00 45 00 42 00 38 00 31 00 46 00 46 00 33 00 30 00 41 00 43 00 46 00 36 00 2E 00 65 00 70 00 6D 00 00 00 7F FF 04 00 0:678 0:000 Adding Key: fakesmc-key-CLKH-{clh: Size = 8, Data: 00 00 70 80 00 01 19 40 0:678 0:000 Adding Key: fakesmc-key-CLKT-ui32: Size = 4, Data: 00 00 B0 A9 0:678 0:000 Adding Key: fakesmc-key-MSDW-ui8: Size = 1, Data: 01 0:678 0:000 Adding Key: fakesmc-key-NATJ-ui8: Size = 1, Data: 00 0:678 0:000 Adding Key: fakesmc-key-NATi-ui16: Size = 2, Data: 00 00 0:678 0:000 Adding Key: fakesmc-key-NTOK-ui8: Size = 1, Data: 01 0:678 0:000 Adding Key: fmm-computer-name: Size = 7, Data: 4D 61 63 20 50 72 6F 0:678 0:000 Adding Key: fmm-mobileme-token-FMM: Size = 615, Data: 62 70 6C 69 73 74 30 30 DA 01 02 03 04 05 06 07 08 09 0A 0B 0C 17 18 19 1A 1B 1C 1D 24 56 75 73 65 72 69 64 5F 10 13 64 61 74 61 63 6C 61 73 73 50 72 6F 70 65 72 74 69 65 73 59 61 75 74 68 54 6F 6B 65 6E 58 70 65 72 73 6F 6E 49 44 58 75 73 65 72 6E 61 6D 65 57 61 64 64 54 69 6D 65 5F 10 12 65 6E 61 62 6C 65 64 44 61 74 61 63 6C 61 73 73 65 73 54 67 75 69 64 58 75 73 65 72 49 6E 66 6F 5F 10 11 6F 73 55 73 65 72 44 69 73 61 70 70 65 61 72 65 64 11 01 F5 D1 0D 0E 5F 10 21 63 6F 6D 2E 61 70 70 6C 65 2E 44 61 74 61 63 6C 61 73 73 2E 44 65 76 69 63 65 4C 6F 63 61 74 6F 72 D4 0F 10 11 12 13 14 15 16 56 61 70 73 45 6E 76 58 68 6F 73 74 6E 61 6D 65 5D 61 75 74 68 4D 65 63 68 61 6E 69 73 6D 56 73 63 68 65 6D 65 5A 50 72 6F 64 75 63 74 69 6F 6E 5F 10 13 70 31 37 2D 66 6D 69 70 2E 69 63 6C 6F 75 64 2E 63 6F 6D 55 74 6F 6B 65 6E 55 68 74 74 70 73 5F 10 28 41 51 41 41 41 41 42 58 56 6E 48 7A 6A 32 37 4B 63 31 73 71 62 41 65 61 36 6B 50 37 73 47 6A 5A 76 64 57 58 76 66 51 7E 5A 31 30 30 30 38 38 36 37 36 30 5F 10 0F 68 6F 67 6E 6F 73 65 40 66 72 65 65 2E 66 72 23 41 D5 D5 9C 82 2B CC 8A A1 0D 5F 10 24 39 44 37 41 42 38 30 31 2D 45 43 45 39 2D 34 30 46 44 2D 41 38 39 42 2D 42 31 30 39 30 44 45 44 42 45 37 37 D3 1E 1F 20 21 22 23 5F 10 15 49 6E 55 73 65 4F 77 6E 65 72 44 69 73 70 6C 61 79 4E 61 6D 65 5F 10 13 49 6E 55 73 65 4F 77 6E 65 72 46 69 72 73 74 4E 61 6D 65 5F 10 12 49 6E 55 73 65 4F 77 6E 65 72 4C 61 73 74 4E 61 6D 65 5E 46 72 65 64 65 72 69 63 20 4C 6F 62 72 79 58 46 72 65 64 65 72 69 63 55 4C 6F 62 72 79 09 00 08 00 1D 00 24 00 3A 00 44 00 4D 00 56 00 5E 00 73 00 78 00 81 00 95 00 98 00 9B 00 BF 00 C8 00 CF 00 D8 00 E6 00 ED 00 F8 01 0E 01 14 01 1A 01 45 01 50 01 62 01 6B 01 6D 01 94 01 9B 01 B3 01 C9 01 DE 01 ED 01 F6 01 FC 00 00 00 00 00 00 02 01 00 00 00 00 00 00 00 25 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 FD 0:678 0:000 Adding Key: prev-lang:kbd: Size = 4, Data: 65 6E 3A 30 0:678 0:000 Adding Key: security-mode: String: Size = 4, Val = 'none' 0:678 0:000 using embedded theme 0:678 0:000 Choosing theme <null string> 0:679 0:000 Custom entries start 0:679 0:000 Custom entries finish 0:679 0:000 Scanning loaders... 0:679 0:000 0: 'Whole Disc Boot' no file system 0:679 0:000 1: 'Whole Disc Boot' no file system 0:679 0:000 2: 'Whole Disc Boot' no file system 0:679 0:000 3: 'EFI' 0:679 0:000 4: 'Sierra' 0:706 0:027 AddLoaderEntry for Volume Name=Sierra 0:739 0:032 Check if volume Is Hibernated: 0:739 0:000 Check sleep image 'by signature': 0:782 0:042 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found 0:782 0:000 using default sleep image name = \private\var\vm\sleepimage 0:826 0:044 sleepimage not found -> Not Found 0:826 0:000 hibernated: no - sign 0:837 0:010 5: 'Recovery HD' hidden 0:837 0:000 6: 'EFI' 0:837 0:000 7: '10.11.6' 0:848 0:010 AddLoaderEntry for Volume Name=10.11.6 0:861 0:013 Check if volume Is Hibernated: 0:861 0:000 Check sleep image 'by signature': 0:869 0:007 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 0:869 0:000 SleepImage name from pref: ImageVolume = '10.11.6', ImageName = '\private\var\vm\sleepimage' 0:876 0:007 sleepimage not found -> Not Found 0:876 0:000 hibernated: no - sign 0:884 0:007 8: 'Recovery HD' hidden 0:884 0:000 9: 'Whole Disc Boot' no file system 0:884 0:000 10: 'Whole Disc Boot' no file system 0:884 0:000 11: 'EFI' 0:884 0:000 12: 'Stockage' 0:885 0:001 13: 'Time Machine' 0:887 0:001 14: 'EFI' 0:887 0:000 15: 'El Capitan' 0:896 0:009 AddLoaderEntry for Volume Name=El Capitan 0:904 0:008 Check if volume Is Hibernated: 0:904 0:000 Check sleep image 'by signature': 0:912 0:008 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success 0:912 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage' 0:919 0:006 sleepimage not found -> Not Found 0:919 0:000 hibernated: no - sign 0:923 0:004 16: 'Recovery HD' hidden 0:923 0:000 Custom legacy start 0:923 0:000 Custom legacy end 0:923 0:000 Scanning legacy ... 0:923 0:000 0: 'Whole Disc Boot' (legacy) not legacy 0:923 0:000 1: 'Whole Disc Boot' (legacy) not legacy 0:923 0:000 2: 'Whole Disc Boot' (legacy) not legacy 0:923 0:000 3: 'EFI' (legacy) not legacy 0:923 0:000 4: 'Sierra' (legacy) not legacy 0:923 0:000 5: 'Recovery HD' (legacy) not legacy 0:923 0:000 6: 'EFI' (legacy) not legacy 0:923 0:000 7: '10.11.6' (legacy) not legacy 0:923 0:000 8: 'Recovery HD' (legacy) not legacy 0:923 0:000 9: 'Whole Disc Boot' (legacy) not legacy 0:923 0:000 10: 'Whole Disc Boot' (legacy) not legacy 0:923 0:000 11: 'EFI' (legacy) not legacy 0:923 0:000 12: 'Stockage' (legacy) not legacy 0:923 0:000 13: 'Time Machine' (legacy) not legacy 0:923 0:000 14: 'EFI' (legacy) not legacy 0:923 0:000 15: 'El Capitan' (legacy) not legacy 0:923 0:000 16: 'Recovery HD' (legacy) not legacy 0:923 0:000 Custom tool start 0:923 0:000 Custom tool end 0:936 0:012 found tool \EFI\CLOVER\tools\Shell64U.efi 0:936 0:000 Checking EFI partition Volume 3 for Clover 0:936 0:000 Found Clover 0:936 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:936 0:000 Checking EFI partition Volume 6 for Clover 0:936 0:000 Checking EFI partition Volume 11 for Clover 0:936 0:000 Checking EFI partition Volume 14 for Clover 0:937 0:000 Found Clover 0:937 0:000 EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored 0:937 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 0:943 0:005 GetEfiBootDeviceFromNvram: efi-boot-device-data not found 0:943 0:000 EfiBootVolume not found 0:943 0:000 found entry 2. 'Boot Mac OS X from El Capitan', Volume 'El Capitan', DevicePath 'PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi' 0:943 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored 0:943 0:000 DefaultIndex=2 and MainMenu.EntryCount=10 1:028 0:085 Found Mouse device: 1:030 0:001 GUI ready 6:994 5:964 Boot option Boot0000 not found 6:994 0:000 StartLoader() start 6:994 0:000 Entry->Settings: <null string> 6:994 0:000 Finally: Bus=100000kHz CPU=3300MHz 6:994 0:000 Kernel and Kext Patches at AF0A2AF8: 6:994 0:000 Allowed: y 6:994 0:000 Debug: n 6:994 0:000 KernelCpu: n 6:994 0:000 Lapic: n 6:994 0:000 Haswell-E: n 6:994 0:000 AICPUPM: y 6:994 0:000 AppleRTC: n 6:994 0:000 KernelPm: n 6:994 0:000 FakeCPUID: 0x0 6:994 0:000 ATIController: null 6:994 0:000 ATIDataLength: 0 6:994 0:000 0 Kexts to load 6:994 0:000 2 Kexts to patch 6:994 0:000 KextPatch[0]: 8 bytes, AppleUSBXHCIPCI 6:994 0:000 KextPatch[1]: 11 bytes, IOAHCIBlockStorage 6:994 0:000 Loading boot.efi status=Success 7:167 0:172 GetOSVersion: : 10.12 7:167 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success 7:174 0:006 insert table 9 for dev 0:0 7:174 0:000 insert table 9 for dev 0:1 7:174 0:000 insert table 9 for dev 19:0 7:174 0:000 Trusting SMBIOS... 7:174 0:000 Detected alternating SMBIOS channel banks 7:174 0:000 Channels: 4 7:174 0:000 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23 7:174 0:000 partNum unknown 7:174 0:000 SMBIOS Type 17 Index = 0 => 0 0: 7:174 0:000 DIMM1 2133MHz 4096MB 7:174 0:000 partNum unknown 7:174 0:000 SMBIOS Type 17 Index = 1 => 1 2: 7:174 0:000 DIMM2 2133MHz 4096MB 7:174 0:000 partNum unknown 7:174 0:000 SMBIOS Type 17 Index = 2 => 2 4: 7:174 0:000 DIMM3 2133MHz 4096MB 7:174 0:000 partNum unknown 7:174 0:000 SMBIOS Type 17 Index = 3 => 3 6: 7:174 0:000 DIMM4 2133MHz 4096MB 7:174 0:000 SMBIOS Type 17 Index = 4 => 4 1: 7:174 0:000 DIMM5 EMPTY 7:174 0:000 SMBIOS Type 17 Index = 5 => 5 3: 7:174 0:000 DIMM6 EMPTY 7:174 0:000 SMBIOS Type 17 Index = 6 => 6 5: 7:174 0:000 DIMM7 EMPTY 7:174 0:000 SMBIOS Type 17 Index = 7 => 7 7: 7:174 0:000 DIMM8 EMPTY 7:174 0:000 mTotalSystemMemory = 16384 7:174 0:000 NumberOfMemoryDevices = 8 7:174 0:000 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000 7:174 0:000 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000 7:174 0:000 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000 7:174 0:000 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000 7:174 0:000 Table 131 is present, CPUType=10 7:174 0:000 Change to: 507 7:174 0:000 RSDT 0xCB3BB028 7:174 0:000 FADT from RSDT: 0xCB3BB140 7:174 0:000 XSDT 0xCB3BB090 7:174 0:000 FADT from XSDT: 0xCB3F1140 7:174 0:000 Xsdt reallocation done 7:174 0:000 old FADT length=10C 7:174 0:000 Apply DsdtFixMask=0x88408044 new way 7:174 0:000 drop _DSM mask=0x0000 7:174 0:000 ========= Auto patch DSDT Starting ======== 7:174 0:000 VideoCard devID=0x679A1002 7:174 0:000 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0 7:174 0:000 USBADR[0] = 0x140000 and PCIe = 0xFFFE 7:227 0:052 USBADR[1] = 0x1C0004 and PCIe = 0x0 7:227 0:000 first CPU found at 2C0B offset 2C0F 7:227 0:000 device candidate at 2B72 7:227 0:000 device inserted in acpi_cpu_score SCK0 7:227 0:000 score candidate at 2986 7:227 0:000 score inserted in acpi_cpu_score _SB_SCK0 7:227 0:000 Found ACPI CPU: CP00 And CP01 And CP02 And CP03 And CP04 And CP05 And CP06 And CP07 And CP08 And CP09 And CP0A And CP0B And CP0C And CP0D And CP0E And CP0F And CP10 And CP11 And CP12 And CP13 And CP14 And CP15 And CP16 And CP17 And CP18 And CP19 And CP1A And CP1B And CP1C And CP1D And CP1E And CP1F within the score: _SB_SCK0 7:227 0:000 Found PCIROOTUID = 0 7:227 0:000 Start PIC Fix 7:227 0:000 PIC size=30 at CF1A 7:227 0:000 patch HDEF in DSDT 7:227 0:000 Start HDA Fix 7:227 0:000 found HDA device NAME(_ADR,0x001B0000) And Name is ALZA 7:227 0:000 Name ALZA present at 0x13198, renaming to HDEF 7:228 0:000 Start HDMI7 Fix 7:228 0:000 found HDMI device [0x00030000:1] at 18384 and Name is H001 7:228 0:000 Name H001 present at 0x72A, renaming to HDAU 7:228 0:000 HDMIADR1=30000 HDMIADR2=1 7:228 0:000 with default properties 7:228 0:000 deleting device CRT_ 7:229 0:000 deleting device DVI_ 7:229 0:000 deleting device SPKR 7:229 0:000 deleting device ECP_ 7:230 0:000 deleting device LPT_ 7:231 0:000 deleting device FDC0 7:231 0:000 deleting device ECP1 7:232 0:000 deleting device LPT1 7:232 0:000 Start SHUTDOWN Fix len=35FFF 7:233 0:000 ========= Auto patch DSDT Finished ======== 7:233 0:000 Patch table: SSDT SataTabl 7:233 0:000 SSDT len = 0x36D 7:233 0:000 Patch table: SSDT PmMgt 7:233 0:000 SSDT len = 0x1523D 7:233 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 7:233 0:000 Xsdt has tables count=15 7:233 0:000 corrected XSDT length=156 7:233 0:000 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12 7:233 0:000 Maximum control=0x21 7:233 0:000 Turbo control=0x29 7:233 0:000 P-States: min 0xC, max 0x29 7:233 0:000 SSDT with CPU P-States generated successfully 7:233 0:000 SSDT with CPU C-States generated successfully 7:233 0:000 EdidDiscovered size=128 7:233 0:000 00 | 00 FF FF FF FF FF FF 00 26 CD 1D 56 01 01 01 01 7:233 0:000 16 | 06 17 01 03 81 33 1D 78 2A E2 95 A2 55 4F 9F 26 7:233 0:000 32 | 11 50 54 BF EF 80 B3 00 A9 40 95 00 81 80 95 0F 7:233 0:000 48 | 71 4F 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 7:233 0:000 64 | 45 00 FE 1F 11 00 00 1E 00 00 00 FF 00 31 31 31 7:233 0:000 80 | 33 38 33 30 36 32 31 32 33 35 00 00 00 FD 00 37 7:233 0:000 96 | 4C 1E 51 11 00 0A 20 20 20 20 20 20 00 00 00 FC 7:233 0:000 112 | 00 50 4C 32 33 37 37 0A 20 20 20 20 20 20 01 77 7:233 0:000 ATI injection not set 7:233 0:000 RCBA access disabled; trying to enable 7:233 0:000 USB Controller [8086:8D31] :: PciRoot(0x0)\Pci(0x14,0x0) 7:233 0:000 LAN Controller [8086:15A1] :: PciRoot(0x0)\Pci(0x19,0x0) 7:233 0:000 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => codec not detected 7:281 0:048 USB Controller [1B21:1142] :: PciRoot(0x0)\Pci(0x1C,0x4)\Pci(0x0,0x0) 7:281 0:000 stringlength = 1640 7:282 0:000 CurrentMode: Width=1920 Height=1080 7:282 0:000 Beginning FSInjection FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C87DDF18 FSInjectionInstall ... - Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C87DDF18 7:282 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 7:282 0:000 Extra kext: EFI\CLOVER\kexts\Other\X99_Injector.kext 7:295 0:012 Removed efi-boot-device-data variable: Not Found 7:295 0:000 Custom boot screen not used because entry has unset use graphics 7:295 0:000 Closing log injection works, but no result for usb 3 Link to comment Share on other sites More sharing options...
cecekpawon Posted July 6, 2016 Share Posted July 6, 2016 @polyzargone try to build your own with supplied diff & your own options <r3585 @Fljagd to determine kext inject is working or not, do simple test: delete FAKESMC from system, drop FAKESMC CLOVER/kexts/other (recommended for common kext), & boot without caches until you reach the desktop. For KextPatches, I use AppleHDA patches until my system got sound working. I know nothing about usb3 patch dude, sorry.. not Clover fault btw Link to comment Share on other sites More sharing options...
Fljagd Posted July 6, 2016 Share Posted July 6, 2016 @Fljagd to determine kext inject is working or not, do simple test: delete FAKESMC from system, drop FAKESMC CLOVER/kexts/other (recommended for common kext), & boot without caches until you reach the desktop. For KextPatches, I use AppleHDA patches until my system got sound working. I know nothing about usb3 patch dude, sorry.. not Clover fault btw Logic, of course 0:100 0:100 MemLog inited, TSC freq: 3299998529 0:100 0:000 0:100 0:000 Now is 6.7.2016, 8:57:1 (GMT) 0:100 0:000 Starting Clover rev 3581 on American Megatrends EFI 0:100 0:000 Build with: [Args: ./ebuild.sh -a X64 -t XCLANG | Command: build --conf=/Users/cecekpawon/src/edk2/Clover/Conf -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCLANG -n 5 | OS: 10.12 (16A239j) | SELAMAT IDUL FITRI 1434H] ....... 7:704 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 7:704 0:000 Extra kext: EFI\CLOVER\kexts\Other\X99_Injector.kext 7:717 0:012 Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext 7:753 0:036 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext 7:769 0:016 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext 7:771 0:001 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext 7:774 0:003 Extra PlugIn kext: EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext 7:782 0:007 Removed efi-boot-device-data variable: Not Found 7:782 0:000 Custom boot screen not used because entry has unset use graphics 7:782 0:000 Closing log It's ok Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 Appear @wardoctor boot with my version @Slice, from his build log Thankyou @joevt, smart as usual Confirm KextsToPatch currently broken, temporary comment out this OS filter fix those problem: //if (!IsPatchEnabled(MatchOS, CurrOS)) { // DBG_RT(Entry, "This patch is not allowed for booted OS %a\n", CurrOS); // return; //} Why? Link to comment Share on other sites More sharing options...
sebinouse Posted July 6, 2016 Share Posted July 6, 2016 (edited) Appear @wardoctor boot with my version @Slice, from his build log Thankyou @joevt, smart as usual Confirm KextsToPatch currently broken, temporary comment out this OS filter fix those problem: //if (!IsPatchEnabled(MatchOS, CurrOS)) { // DBG_RT(Entry, "This patch is not allowed for booted OS %a\n", CurrOS); // return; //} I came across the same result 15 minutes after you in another thread ... So I confirm : no Kext Patch with Slice files Clover3585 ! Edit : not woking on 10.12 DP1, 10.12 DP2 and 10.11.5 ... Edited July 6, 2016 by sebinouse Link to comment Share on other sites More sharing options...
FranticJohny Posted July 6, 2016 Share Posted July 6, 2016 Devs, now you have the situation that for every new release of MacOS the kernel patches must be reworked in code. How about the idea to allow the users to define the kernel patches the same way as kext patches? So in order to fix the kext injection in 10.12 DP2 it would be a simple edit of config.plist like this (and same with lapic, kernel pm etc...): <key>KernelPatch</key><array><dict><key>Find</key><data>AAAAAAAAAA</data><key>Replace</key><data>BBBBBBBBBB</data> <key>MatchOS</key> <string>10.12</string></dict></array> Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 Use Clover 3587 without MatchOS key as before. Link to comment Share on other sites More sharing options...
sebinouse Posted July 6, 2016 Share Posted July 6, 2016 Can you share this version ? Thanks(I have neither tools nor skills to build it !) 1 Link to comment Share on other sites More sharing options...
cecekpawon Posted July 6, 2016 Share Posted July 6, 2016 @Slice, r3587 with GCC which more strict: if (!MatchOS || !OSVersion) { ^ /Users//src/edk2/Clover/rEFIt_UEFI/Platform/Settings.c:1021:8: note: each undeclared identifier Maybe we can do like attachment below? Link to comment Share on other sites More sharing options...
Sherlocks Posted July 6, 2016 Share Posted July 6, 2016 I checked kext injection hex code DP2. DP2 Injection Hex code is same like DP1. Strange. Link to comment Share on other sites More sharing options...
cecekpawon Posted July 6, 2016 Share Posted July 6, 2016 Strange. Check Yos 1 Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 Check 3588 CLOVERX64.efi-3588.zip Link to comment Share on other sites More sharing options...
cecekpawon Posted July 6, 2016 Share Posted July 6, 2016 Kext inject r3588 failed with yours Slice, KBEYosSearch2 & KBEYosReplace2 is enough for me. No need to add KBESieDP2Search & KBESieDP2Replace Kext patch is working, need more test tomorrow Link to comment Share on other sites More sharing options...
sebinouse Posted July 6, 2016 Share Posted July 6, 2016 (edited) Kext inject r3588 failed with yours Slice, KBEYosSearch2 & KBEYosReplace2 is enough for me. No need to add KBESieDP2Search & KBESieDP2Replace Kext patch is working, need more test tomorrow Same result for me : r3585, kext patch KO, kext injection OK r3588, kext patch OK, kext injection KO Edited July 6, 2016 by sebinouse Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 Kext inject r3588 failed with yours Slice, KBEYosSearch2 & KBEYosReplace2 is enough for me. No need to add KBESieDP2Search & KBESieDP2Replace Kext patch is working, need more test tomorrow OK, let it be as you propose. Really the mistake is " ;" ->" +" Link to comment Share on other sites More sharing options...
sebinouse Posted July 6, 2016 Share Posted July 6, 2016 With 3585 not all kext patch are broken : <key>KernelAndKextPatches</key> <dict> <key>AsusAICPUPM</key> <true/> <key>KernelPm</key> <true/> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Boot Graphics</string> <key>Find</key> <data> AQAAdSU= </data> <key>MatchOS</key> <string>10.12</string> <key>Name</key> <string>IOGraphicsFamily</string> <key>Replace</key> <data> AQAA6yU= </data> </dict> <dict> <key>Comment</key> <string>port 0x05 DP to HDMI pipe 0x09</string> <key>Find</key> <data> AQUJAAAEAAAHAQA= </data> <key>MatchOS</key> <string>10.12</string> <key>Name</key> <string>AppleIntelFramebufferAzul</string> <key>Replace</key> <data> AQUJAAAIAAAHAQA= </data> </dict> <dict> <key>Comment</key> <string>Trim Enabler</string> <key>Find</key> <data> QVBQTEUgU1NE </data> <key>MatchOS</key> <string>10.12</string> <key>Name</key> <string>IOAHCIBlockStorage</string> <key>Replace</key> <data> AAAAAAAAAAAA </data> </dict> <dict> <key>Comment</key> <string>Binary ALC283</string> <key>Find</key> <data> hBnUEQ== </data> <key>MatchOS</key> <string>10.12</string> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> gwLsEA== </data> </dict> <dict> <key>Comment</key> <string>Binary ALC283</string> <key>Find</key> <data> gxnUEQ== </data> <key>MatchOS</key> <string>10.12</string> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> AAAAAA== </data> </dict> </array> <key>debug</key> <true/> </dict> BTW is it possible to get a text version of this log ? Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 It is possible to start in QEMU and redirect output to Terminal. Otherwise I don't know. To get old behavior just erase key "MatchOS". Such patches will skip OS check. Link to comment Share on other sites More sharing options...

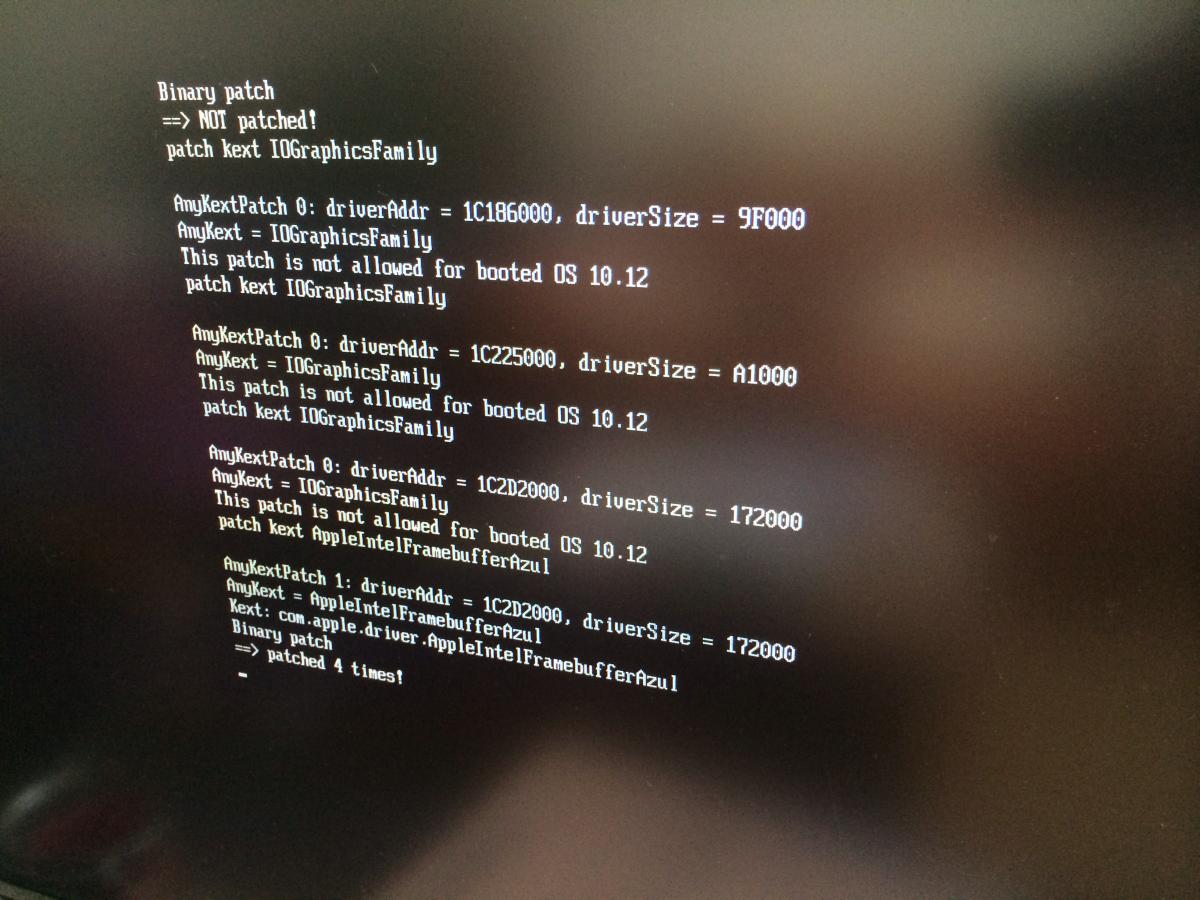

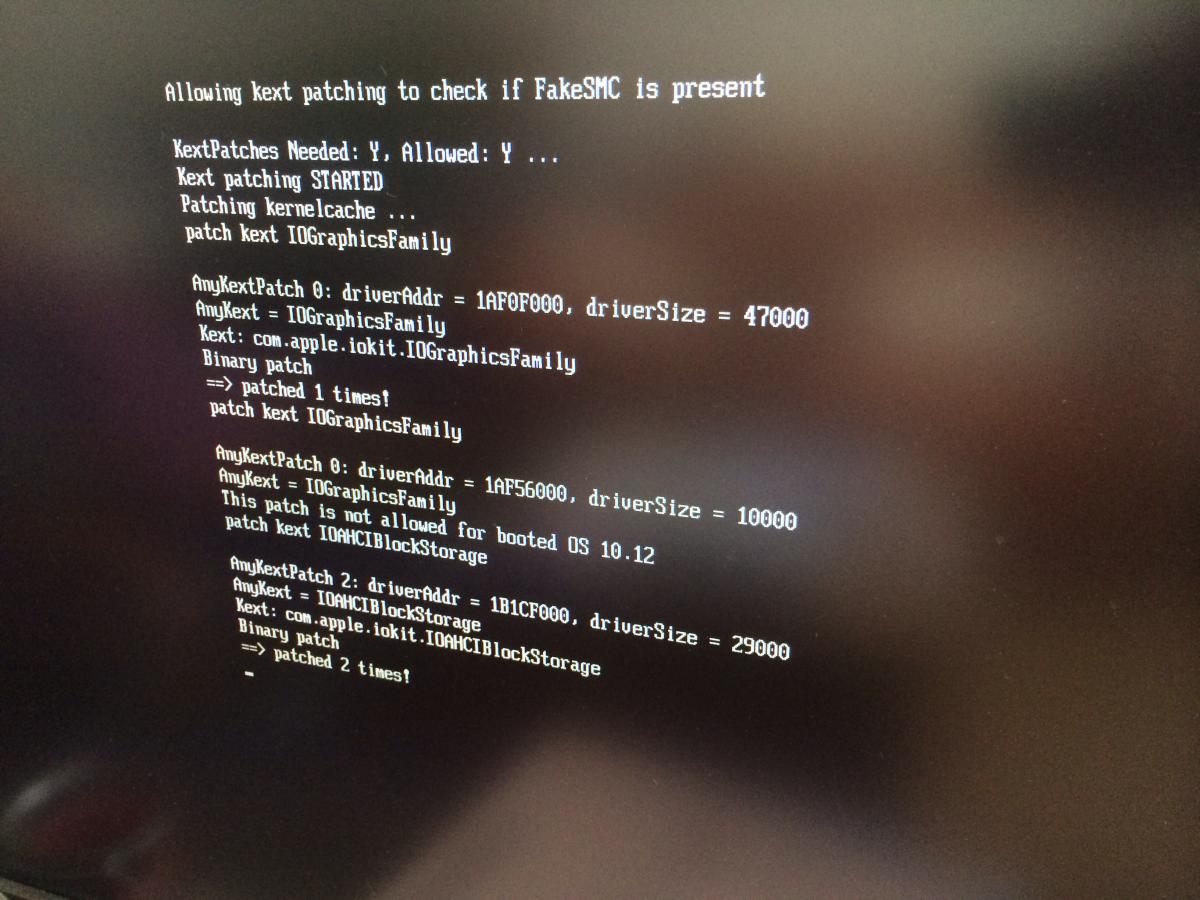

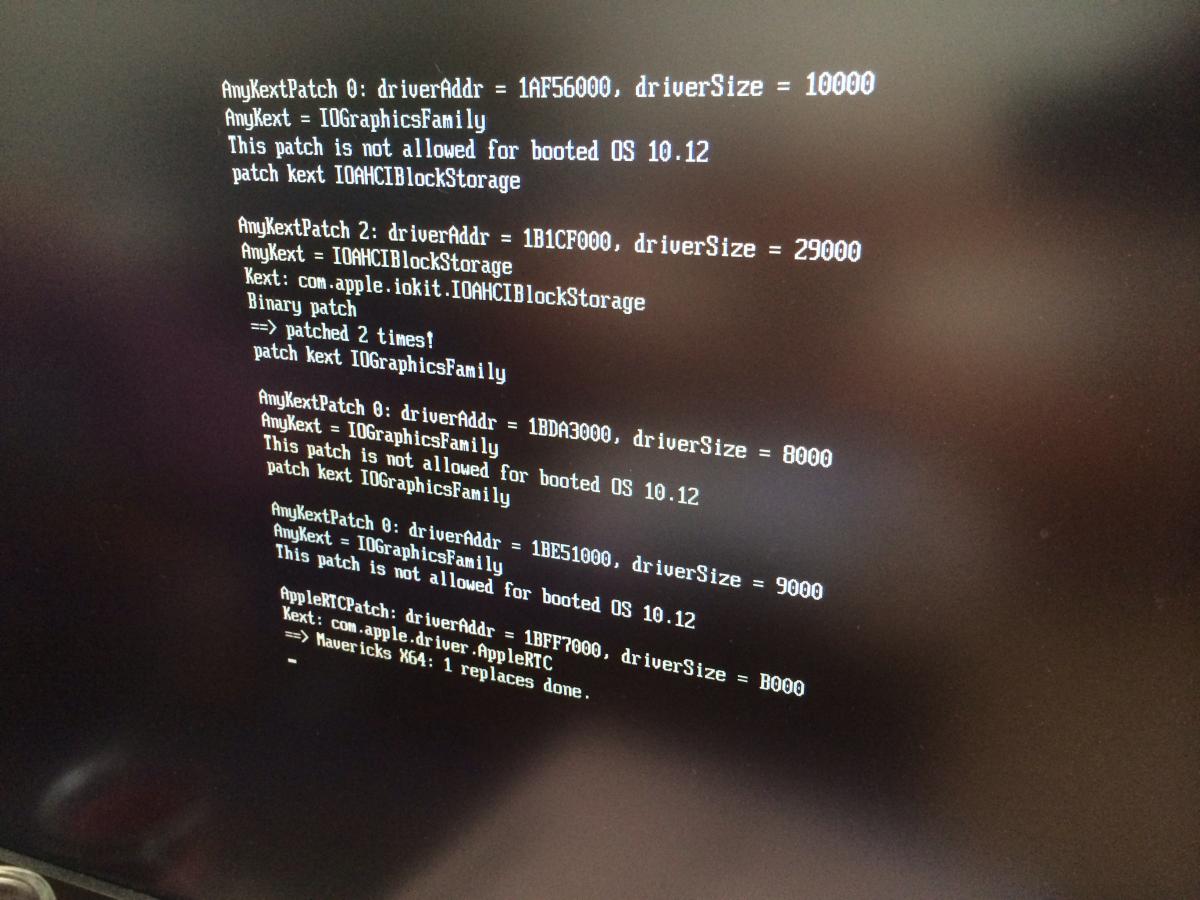

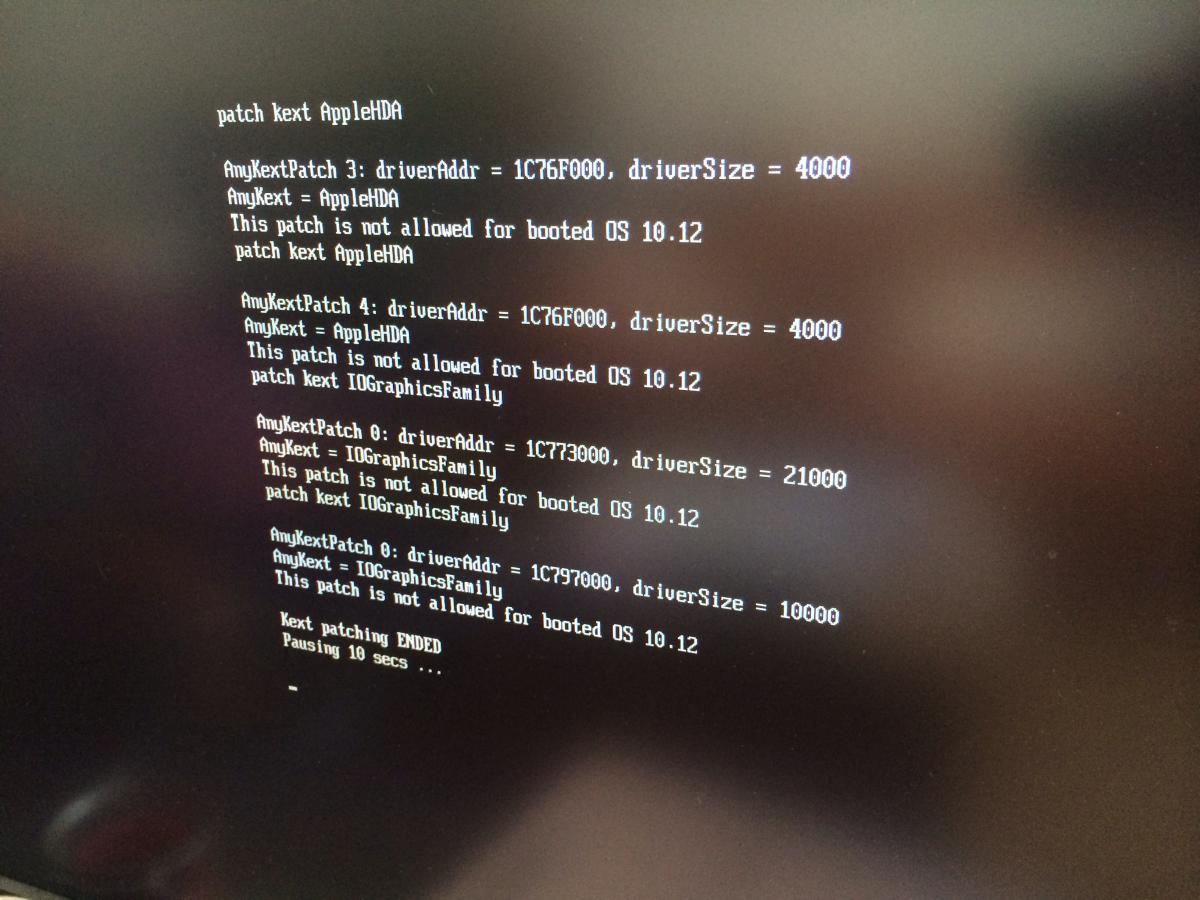

sebinouse Posted July 6, 2016 Share Posted July 6, 2016 It is possible to start in QEMU and redirect output to Terminal. Otherwise I don't know. To get old behavior just erase key "MatchOS". Such patches will skip OS check. If I remove this entry ALL patch are broken with 3585 ... I don't have 3589 to test ... Here is a dirty walk-around : <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>...</string> <key>Find</key> <data> ... </data> <key>MatchOS</key> <string>10.11,10.12</string> <key>Name</key> <string>...</string> <key>Replace</key> <data> ... </data> </dict> I noticed that with 3585 : if the target kext has been built in 10.12 and you try to boot 10.12 with MatchOS="10.12" : patch is OK if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.12" : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 without MatchOS : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.11,10.12" : patch is OK For example in the capture above : AppleIntelAzulFramebuffer has been built by Apple on 10.12 (BuildMachineOSBuild=16A239d in Info.plist) and AppleHDA has been built by Apple on 10.11 (BuildMachineOSBuild=15A284 in Info.plist) I hope this will be helpful for debugging ... Link to comment Share on other sites More sharing options...
Sherlocks Posted July 6, 2016 Share Posted July 6, 2016 @Slice. i'm sorry question VoodooHDA. Where VoodooHDA read Volume sync? how voodoohda control read or reflect volume size? i want to get hint about sync issue to fix hex code in applehda. Link to comment Share on other sites More sharing options...
Slice Posted July 6, 2016 Share Posted July 6, 2016 @Slice. i'm sorry question VoodooHDA. Where VoodooHDA read Volume sync? how voodoohda control read or reflect volume size? i want to get hint about sync issue to fix hex code in applehda. Nothing, as well as AppleHDA. Volume control is a deal of a system, Audio engine, frameworks, preferences or something else. If I remove this entry ALL patch are broken with 3585 ... I don't have 3589 to test ... Here is a dirty walk-around : <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>...</string> <key>Find</key> <data> ... </data> <key>MatchOS</key> <string>10.11,10.12</string> <key>Name</key> <string>...</string> <key>Replace</key> <data> ... </data> </dict> I noticed that with 3585 : if the target kext has been built in 10.12 and you try to boot 10.12 with MatchOS="10.12" : patch is OK if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.12" : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 without MatchOS : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.11,10.12" : patch is OK For example in the capture above : AppleIntelAzulFramebuffer has been built by Apple on 10.12 (BuildMachineOSBuild=16A239d in Info.plist) and AppleHDA has been built by Apple on 10.11 (BuildMachineOSBuild=15A284 in Info.plist) I hope this will be helpful for debugging ... Clover doesn't know OS kext built. It can't show you message the kext is skipped in this case. 1 Link to comment Share on other sites More sharing options...
Micky1979 Posted July 6, 2016 Share Posted July 6, 2016 If I remove this entry ALL patch are broken with 3585 ... I don't have 3589 to test ... Here is a dirty walk-around : <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>...</string> <key>Find</key> <data> ... </data> <key>MatchOS</key> <string>10.11,10.12</string> <key>Name</key> <string>...</string> <key>Replace</key> <data> ... </data> </dict> I noticed that with 3585 : if the target kext has been built in 10.12 and you try to boot 10.12 with MatchOS="10.12" : patch is OK if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.12" : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 without MatchOS : patch is skipped if the target kext has been built in 10.11 and you try to boot 10.12 with MatchOS="10.11,10.12" : patch is OK For example in the capture above : AppleIntelAzulFramebuffer has been built by Apple on 10.12 (BuildMachineOSBuild=16A239d in Info.plist) and AppleHDA has been built by Apple on 10.11 (BuildMachineOSBuild=15A284 in Info.plist) I hope this will be helpful for debugging ... 3589 is really fine here. BTW MatchOS = 10.11 will enable only 10.11 and not 10.11.6 (or 10.11.1/.2/.3/.4 or .5) If you want all versions of El Capitan you have to write: MatchOS = 10.11.x or MatchOS = 10.10.x,10.11.x (and so on with other OSes) x (or X capital letter) means all revisions of the given OS. You can also write: MatchOS = 10.11.6 i.e enabled only for 10.11.6 but not for 10.11.5 or any other revisions of El Capitan With latest correction by Slice finally there's no need to write anything if you want a patch always enabled like before. 3 Link to comment Share on other sites More sharing options...
fantomas Posted July 6, 2016 Share Posted July 6, 2016 3589 is really fine here. Can you post the compiled version here, please? 1 Link to comment Share on other sites More sharing options...
