Sherlocks
Sherlocks
Posted
Posted

+1



@sherlocks,



I use Kext Wizard on SL to rebuild cache. Maybe it does something extra. Monitor result in system.log.



SL and Clover AsusAICPUPM is working just fine on my Sandy Bridge ProBook 4530s.

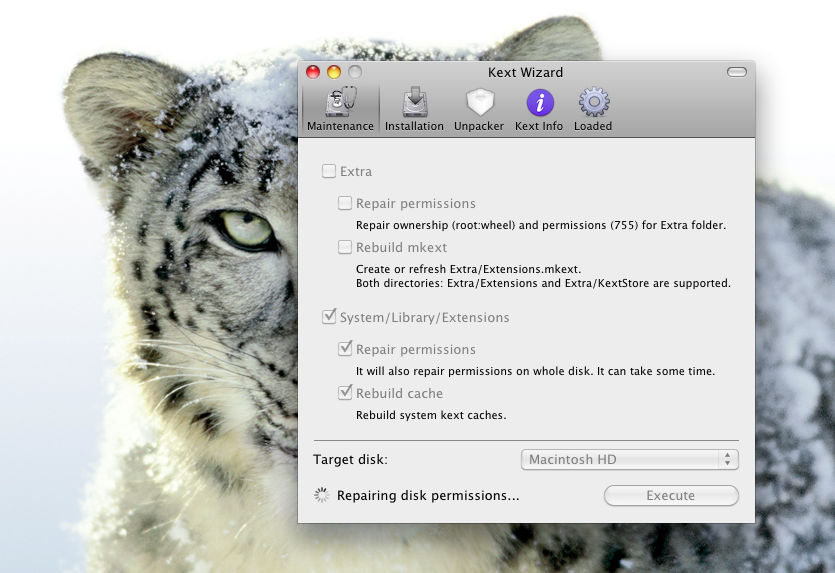

kext wizard on sl






result






still same.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

 Sherlock but was working before on your pc?





no. never work. i gave up snow leopard in 2012 on my laptop.



so i trid to install Lion since 2012. and i use osx very well from 10.7 to 10.11 in clover.



but i try to install snow leopard today. i found bug clover kext patch and asus aicpum.



i booted snow leopard and almost work. but i have to patch aicpum.kext and without cache for clover kexttopatch.



so i report it to clover team



my laptop is HP 430 B0M03PA.



my old thread is

http://x86osx.com/bbs/view.php?id=after&page=1&sn1=&divpage=1&sn=on&ss=off&sc=off&keyword=%BC%C8%B7%CF%BD%BA&select_arrange=headnum&desc=asc&no=6969

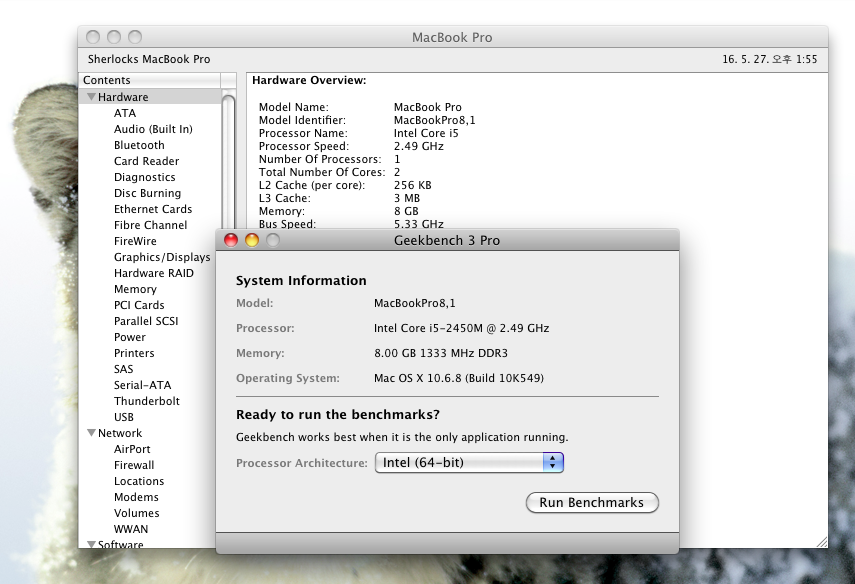

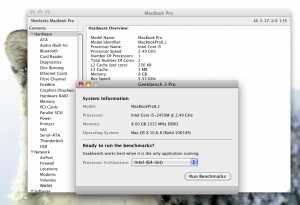

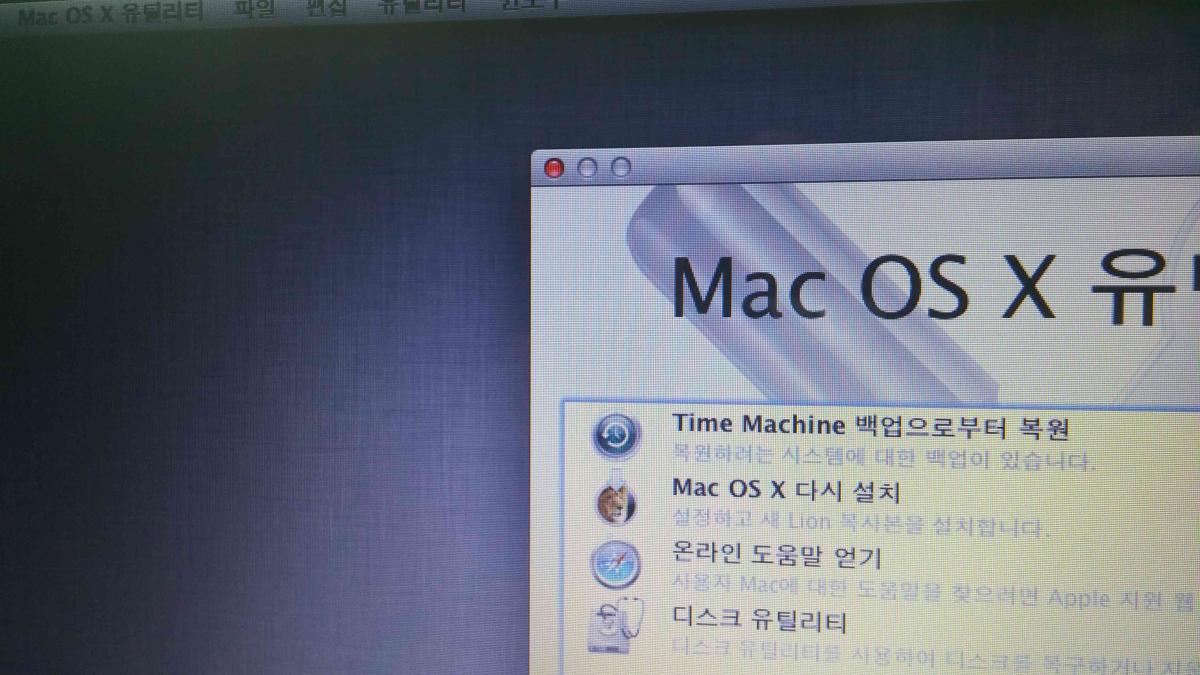

i used 10.7.4 very well above screenshot

What is ArcMSR.kext?



idk



it's default kext in 10.6.8.



i didnt touch system kexts.

  • Like 1
Link to comment
Share on other sites
Micky1979
Micky1979
Posted
Posted

That is good Bro, just searching for a possible explanations on why is not working for you but is working for others (kexts on file system patched by Clover code works :worried_anim: ..as demostrated), problem like this is not visible at first sight.

  • Like 1
Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

That is good Bro, just searching for a possible explanations on why is not working for you but is working for others (kexts on file system patched by Clover code works  :worried_anim: ..as demostrated), problem like this is not visible at first sight.







remember i dont touch system kext. just install 10.6 like osx 10.7~10.11. but have problem.



thanks in advanced





add#1

attached clover EFI folder

EFI.zip

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

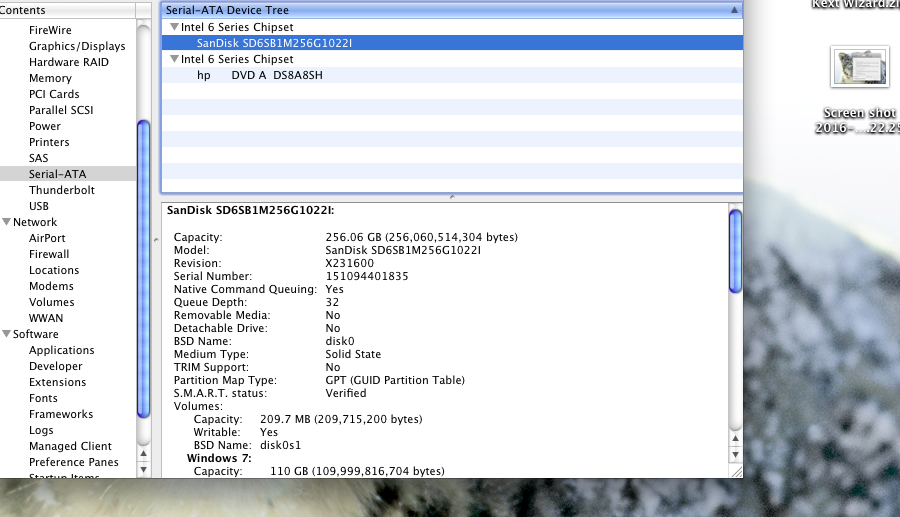

IOAHCIBlockStorage must be not in cache.



When you're booting without caches, you're doing so with the Clover menu, right?

Yes. I selected in clover menu.







나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
telepati
telepati
Posted
Posted

Hi guys, in my new Skylake build Clover GUI resolution shown 1024/768 with black border. I tried custom EDID, CsmVideoDxe.driver and Patch VBios, resolution turned normal but still with black border also apple logo and loading bar part is totally turned black. I also tried CSM disabled on BIOS but this time computer never boot Graphics Card need to CSM enable.



Could you give me an advice what can I try more?



Spec is;



Asus Z170-A

6700K

MSI GTX 660 Twinforz

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted







나의 LG-F410S 의 Tapatalk에서 보냄

I have a snow leopard 10.6.8 ! No issu with AICPU

did you try with a single SSDT.aml create by  ssdtPRGen.sh

?

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Tried a fresh install?

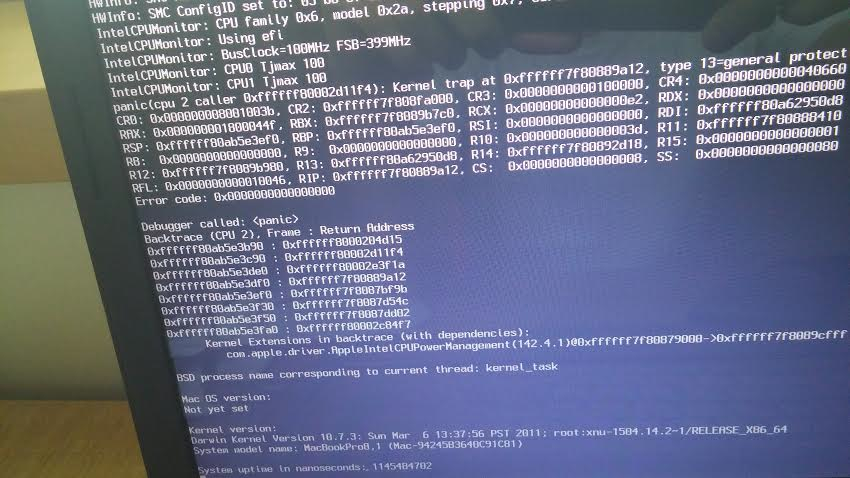

ofc. here is panic




i put in installer 10.6.3. then boot with without cache.

I have a snow leopard 10.6.8 ! No issu with AICPU

did you try with a single SSDT.aml create by  ssdtPRGen.sh

?



ofc

i use ssdtprgen.sh. 10.7~10.11 very good working.



only have problem in 10.6

Link to comment
Share on other sites
chris1111
chris1111
Posted
Posted





ofc

i use ssdtprgen.sh. 10.7~10.11 very good working.



only have problem in 10.6



I see on your EFI you are used Clover dump





Try to Used a single  SSDT.aml create by ssdtPRGen.sh

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Tried a fresh install?









0:100  0:100  MemLog inited, TSC freq: 2494333755

0:100  0:000  LegacyRegion2: Chipset/proc: 0x01048086
0:100  0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100  0:000   Test PAM1=(0x41=90, 0x5a=00, 0x81=11, 0x91=00) at chipset 01048086
0:100  0:000  , Install = Success
0:112  0:012  BiosVideoDriverBindingStart!
0:112  0:000  BiosVideoCheckForVbe
0:112  0:000  EdidOverride not found
0:124  0:012   Edid1+
0:124  0:000   found Detail Timing 1366x768
0:124  0:000  timing string after 0xFE:SAMSUNG

0:124  0:000  timing string after 0xFE:140AT07-H06

0:137  0:012   Edid0+
0:137  0:000   found Detail Timing 1366x768
0:137  0:000  ... already present
0:137  0:000  timing string after 0xFE:SAMSUNG

0:137  0:000  timing string after 0xFE:140AT07-H06

0:137  0:000     0 1024x768 attr=9B - ok, edid-, 1024x768, working, highest, pref=0
0:137  0:000     1 640x480 attr=9B - ok, edid-, 640x480, working
0:138  0:000     2 800x600 attr=9B - ok, edid-, 800x600, working
0:138  0:000  BV new mode: 0 1024x768
0:254  0:115   SetMode pref 0 (0) = Success
1:692  1:438
1:692  0:000  Now is 27.5.2016,  0:48:3 (GMT)
1:692  0:000  Starting Clover rev 3543 on CLOVER EFI
1:692  0:000  Build with: [Args: ./ebuild.sh | Command: build -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.11.5 | XCODE: 7.3.1]
1:692  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,GPT,1570E32D-2A04-4041-B434-CEC6DB8F5D6B,0x28,0x64000) @A6069018
1:692  0:000  SelfDirPath = \EFI\CLOVER
1:692  0:000  Total Memory Slots Count = 2
1:692  0:000  Type 17 Index = 0
1:692  0:000  Table has error information, checking
1:692  0:000  Found memory information in table 18/0, type=0x3, operation=0x2 syndrome=0x0
1:692  0:000  ...memory OK
1:692  0:000  SmbiosTable.Type17->Speed = 1333MHz
1:692  0:000  SmbiosTable.Type17->Size = 4096MB
1:692  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 Bottom-Slot 2(under)
1:692  0:000  SmbiosTable.Type17->Vendor = Samsung
1:692  0:000  SmbiosTable.Type17->SerialNumber = 008A18B2
1:692  0:000  SmbiosTable.Type17->PartNumber = M471B5273DH0-CH9
1:692  0:000  Type 17 Index = 1
1:692  0:000  Table has error information, checking
1:692  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
1:692  0:000  ...memory OK
1:692  0:000  SmbiosTable.Type17->Speed = 1333MHz
1:692  0:000  SmbiosTable.Type17->Size = 4096MB
1:692  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 Bottom-Slot 1(top)
1:692  0:000  SmbiosTable.Type17->Vendor = Samsung
1:692  0:000  SmbiosTable.Type17->SerialNumber = 008CD6D4
1:692  0:000  SmbiosTable.Type17->PartNumber = M471B5273DH0-CH9
1:692  0:000  Boot status=0
1:692  0:000  Clover revision: 3543  running on HP 430 Notebook PC
1:692  0:000  ... with board 3672
1:692  0:000  CPU Vendor = 756E6547 Model=206A7
1:692  0:000  got cores from CPUID_1 = 0
1:692  0:000  The CPU supported turbo
1:692  0:000  BrandString = Intel® Core i5-2450M CPU @ 2.50GHz
1:692  0:000  MSR 0xE2 before patch 1E008404
1:692  0:000  MSR 0xE2 is locked, PM patches will be turned on
1:692  0:000  MSR 0xE4              00020414
1:692  0:000  MSR 0xCE              00000800_60011900
1:692  0:000  non-usable FLEX_RATIO = 1FF00
1:692  0:000  MSR 0x1B0             00000000
1:692  0:000  FSBFrequency=100MHz DMIvalue=1333330kHz
1:692  0:000  Corrected FSBFrequency=100MHz
1:692  0:000  Vendor/Model/Stepping: 0x756E6547/0x2A/0x7
1:692  0:000  Family/ExtFamily: 0x6/0x0
1:692  0:000  MaxDiv/MinDiv: 25.0/8
1:692  0:000  Turbo: 29/29/29/31
1:692  0:000  Features: 0xBFEBFBFF
1:692  0:000  Threads: 4
1:692  0:000  Cores: 2
1:692  0:000  FSB: 100 MHz
1:692  0:000  CPU: 2500 MHz
1:692  0:000  TSC: 2500 MHz
1:692  0:000  PIS: 400 MHz
1:692  0:000  PCI (00|00:00.00) : 8086 0104 class=060000
1:692  0:000  PCI (00|00:02.00) : 8086 0126 class=030000
1:692  0:000  Found GFX model=Intel HD Graphics 3000
1:692  0:000  PCI (00|00:16.00) : 8086 1C3A class=078000
1:692  0:000  PCI (00|00:1A.00) : 8086 1C2D class=0C0320
1:692  0:000  PCI (00|00:1B.00) : 8086 1C20 class=040300
1:692  0:000  PCI (00|00:1C.00) : 8086 1C10 class=060400
1:693  0:000  PCI (00|01:00.00) : 10EC 8168 class=020000
1:693  0:000  LAN 0, Vendor=10EC, MMIO=3000
1:693  0:000  PCI (00|00:1C.02) : 8086 1C14 class=060400
1:693  0:000  PCI (00|02:00.00) : 168C 002B class=028000
1:693  0:000  PCI (00|00:1C.04) : 8086 1C18 class=060400
1:693  0:000  PCI (00|03:00.00) : 10EC 5209 class=FF0000
1:693  0:000  PCI (00|00:1D.00) : 8086 1C26 class=0C0320
1:693  0:000  PCI (00|00:1F.00) : 8086 1C49 class=060100
1:693  0:000  PCI (00|00:1F.02) : 8086 1C03 class=010601
1:693  0:000  PCI (00|00:1F.03) : 8086 1C22 class=0C0500
1:693  0:000  Clover load options size = 0 bytes
1:696  0:002  Using OEM config.plist at path: EFI\CLOVER\config.plist
1:696  0:000  EFI\CLOVER\config.plist loaded: Success
1:697  0:000  Found theme directory: bootcamp
1:698  0:000  Found theme directory: embedded
1:699  0:001  Found theme directory: random
1:700  0:000  Loading early settings
1:700  0:000  timeout set to 3
1:700  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
1:709  0:009  ForceKextsToLoad: 1 requested
1:715  0:005  ForceKextsToLoad 0: System\Library\Extensions\IONetworkingFamily.kext
1:720  0:005  KextsToPatch: 16 requested
1:725  0:005  KextsToPatch 0: AppleHDA (AppleHDA for ALC Series) Kext bin patch, data len: 4
1:743  0:017  KextsToPatch 1: AppleHDA (AppleHDA for ALC Series) Kext bin patch, data len: 4
1:763  0:020  KextsToPatch 2: AppleHDA (AppleHDA for ALC Series) Kext bin patch, data len: 4
1:785  0:022  KextsToPatch 3: IOAHCIBlockStorage (Trim Enabler) Kext bin patch, data len: 11
1:805  0:019  KextsToPatch 4: IOGraphicsFamily (Boot graphics glitch for Yosemite, El Capitan) Kext bin patch, data len: 5
1:824  0:019  KextsToPatch 5: AirPortAtheros40 (Wi-Fi Region for Mavericks) Kext bin patch, data len: 5
1:843  0:018  KextsToPatch 6: AppleIntelSNBGraphicsFB (HD 3000 for HDMI) Kext bin patch, data len: 10
1:862  0:018  KextsToPatch 7: AppleIntelSNBGraphicsFB (HD 3000 for VGA) Kext bin patch, data len: 10
1:884  0:022  KextsToPatch 8: AppleHDA (AppleHDA for ALC Series) Kext bin patch, data len: 4
1:903  0:019  KextsToPatch 9: AppleHDA (AppleHDA for ALC270) Kext bin patch, data len: 4
1:922  0:019  KextsToPatch 10: IOBluetoothHostControllerUSBTransport (Bluetooth 30 sec delay for Mountain Lion) Kext bin patch, data len: 9
1:941  0:018  KextsToPatch 11: IOBluetoothHostControllerUSBTransport (Bluetooth 30 sec delay for Mavericks, Yosemite) Kext bin patch, data len: 9
1:962  0:021  KextsToPatch 12: AppleHDA (AppleHDA for ALC270) Kext bin patch, data len: 4
1:982  0:019  KextsToPatch 13: AppleIntelSNBGraphicsFB (HD 3000 for Remove dummy code) Kext bin patch, data len: 10
2:001  0:018  KextsToPatch 14: AirPortAtheros40 (Wi-Fi Region for Mountain Lion) Kext bin patch, data len: 7
2:029  0:027  KextsToPatch 15: AppleHDA (AppleHDA for ALC Series) Kext bin patch, data len: 4
2:046  0:017  Default theme: bootcamp
2:051  0:004  Hiding entries with string 1570E32D-2A04-4041-B434-CEC6DB8F5D6B
2:057  0:006  Hiding entries with string Legacy HD3
2:064  0:007  CustomEDID ok
2:069  0:004  LoadDrivers() start
2:075  0:006  Loading FSInject-64.efi  status=Success
2:091  0:016  Loading HFSPlus.efi  status=Success
2:105  0:013   - driver needs connecting
2:110  0:004  Video bios patch requested or CustomEDID - forcing video reconnect
2:115  0:005  2 drivers needs connecting ...
2:121  0:005  PlatformDriverOverrideProtocol->GetDriver overriden
2:126  0:005  HFS+ driver loaded
2:132  0:005  Video driver loaded: disconnect Success
2:257  0:125  VideoBiosPatchNativeFromEdid:
2:262  0:005   Bios: VideoBiosPatchInit(LegacyRegion = Not Found, LegacyRegion2 = Success) = Success
2:285  0:022   VideoBiosUnlock:  unlocked
2:295  0:009   Patching: Patch BT_INTEL:  Parse Edid: descriptor block 0 is timing descriptor (h_active: 1366, v_active: 768, h_sync_offset: 48, h_sync_width: 32, h_blanking: 114, v_blanking: 12, pixel_clock: 6930, v_sync_offset: 2, v_sync_width: 5)
2:324  0:029   patched 2 time(s)
2:339  0:014   VideoBiosLock: Success
2:353  0:013  BiosVideoDriverBindingStart!
2:358  0:005  BiosVideoCheckForVbe
2:362  0:004  EdidOverrideFound!
2:366  0:003   found Detail Timing 1366x768
2:371  0:004  timing string after 0xFE:SAMSUNG

2:375  0:004  timing string after 0xFE:140AT07-H06

2:382  0:006     0 1366x768 attr=9B - ok, edid+, working, highest, pref=0
2:410  0:028     1 640x480 attr=9B - ok, edid-, 640x480, working
2:435  0:024     2 800x600 attr=9B - ok, edid-, 800x600, working
2:462  0:026  BV new mode: 0 1366x768
2:599  0:137   SetMode pref 0 (0) = Success
2:743  0:143  LoadDrivers() end
2:748  0:005  SetScreenResolution: 1366x768 - already set
2:759  0:010  Console modes reported: 4, available modes:
2:767  0:008    Mode 1: 80x25
2:772  0:004    Mode 3: 100x31
2:777  0:005    Mode 4: 170x40 (current mode)
2:782  0:004  SetScreenResolution: 1366x768 - already set
2:793  0:011  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,GPT,1570E32D-2A04-4041-B434-CEC6DB8F5D6B,0x28,0x64000)
2:799  0:005  ScanSPD() start
2:809  0:009  SMBus device : 8086 1C22 class=0C0500 status=Success
2:814  0:005  SMBus CmdReg: 0x3
2:819  0:005  Scanning SMBus [8086:1C22], mmio: 0xC2605004, ioport: 0x4040, hostc: 0x1
2:824  0:004  Slots to scan [8]...
2:829  0:005  SPD[0]: Type 11 @0x50
2:855  0:025  DDR speed 1333MHz
2:860  0:005  Slot: 0 Type 24 4096MB 1333MHz Vendor=Samsung PartNo=M471B5273DH0-CH9 SerialNo=0000080A01080B02
2:867  0:007  SPD[2]: Type 11 @0x52
2:891  0:023  DDR speed 1333MHz
2:898  0:006  Slot: 2 Type 24 4096MB 1333MHz Vendor=Samsung PartNo=M471B5273DH0-CH9 SerialNo=0000080C0D060D04
2:904  0:005  ScanSPD() end
2:909  0:005  Get Acpi Tables List from RSDT:
2:921  0:012   Found table: FACP  SLIC-MPC len=244
2:927  0:005   Found table: ASF!  SLIC-MPC len=165
2:931  0:004   Found table: HPET  SLIC-MPC len=56
2:939  0:007   Found table: APIC  SLIC-MPC len=140
2:945  0:005   Found table: MCFG  SLIC-MPC len=60
2:951  0:006   Found table: SLIC  SLIC-MPC len=374
2:958  0:006   Found table: SSDT  SLIC-MPC len=4200
2:962  0:004   Found table: BOOT  SLIC-MPC len=40
2:969  0:006   Found table: ASPT  SLIC-MPC len=52
2:975  0:006   Found table: SSDT  SLIC-MPC len=2052
2:980  0:005   Found table: SSDT  SLIC-MPC len=2454
2:987  0:006   Found table: SSDT  SLIC-MPC len=730
2:992  0:005   Found table: SSDT  SLIC-MPC len=861
2:999  0:006  Calibrated TSC frequency =2494333755 =2494MHz
3:003  0:004  Loading main settings
3:012  0:008  USB FixOwnership: true
3:019  0:007  Config set ChassisType=0x8
3:026  0:006  found 8 volumes with blockIO
3:031  0:005   0. Volume:
3:037  0:006    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
3:042  0:005    Result of bootcode detection: bootable unknown (legacy)
3:048  0:005   1. Volume:
3:053  0:005    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
3:058  0:004    found optical drive
3:063  0:005   2. Volume:
3:069  0:005    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,GPT,1570E32D-2A04-4041-B434-CEC6DB8F5D6B,0x28,0x64000)
3:078  0:008    Result of bootcode detection: bootable Clover (clover)
3:083  0:005    hiding this volume
3:089  0:005    This is SelfVolume !!
3:095  0:005   3. Volume:
3:100  0:005    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,9CF214B1-0A30-4EAD-9F8D-6BC8BFF114B9,0x64800,0xCCE4000)
3:104  0:004    Result of bootcode detection: bootable Windows (vista,win)
3:108  0:004   4. Volume:
3:113  0:004    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,GPT,0F61706F-267F-4EBC-ACEE-BBC1D8252332,0xCD48800,0x6FC2000)
3:119  0:006    Result of bootcode detection: bootable Windows (vista,win)
3:125  0:005    hiding this volume
3:130  0:005   5. Volume:
3:136  0:005    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,75F4915D-AAA7-4EC6-A38E-44F48CD01B26,0x13D0A800,0x6ECC490)
3:140  0:004   6. Volume:
3:153  0:012    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(5,GPT,592874C3-B724-4AC9-BCF6-E93572EB960D,0x1ABD6C90,0x135F20)
3:163  0:009   7. Volume:
3:169  0:006    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(6,GPT,F29081BA-DA3F-4037-AFE3-2577CBFDBF60,0x1AD0CBB0,0x2FA66D8)
3:179  0:009  Loading nvram.plist from Vol 'Macintosh SSD' - loaded, size=1185
3:187  0:008  PutNvramPlistToRtVars ...
3:192  0:004  Using theme 'bootcamp' (EFI\CLOVER\themes\bootcamp)
3:199  0:006  Warning! Character width should be even!
3:204  0:004  Choosing theme bootcamp
3:209  0:005  Custom entries start
3:214  0:005  Custom entries finish
3:221  0:007  Scanning loaders...
3:229  0:007   0: 'Whole Disc Boot' no file system
3:241  0:011   1: 'Whole Disc Boot' no file system
3:260  0:019   2: 'EFI' hidden
3:271  0:011   3: 'Legacy HD2' no file system
3:283  0:012   4: 'Legacy HD3' no file system
3:293  0:009   5: 'Macintosh SSD'
3:309  0:015      AddLoaderEntry for Volume Name=Macintosh SSD
3:322  0:013      Check if volume Is Hibernated:
3:327  0:004      Check sleep image 'by signature':
3:333  0:006      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
3:338  0:005      using default sleep image name = \private\var\vm\sleepimage
3:348  0:009      Reading first 512 bytes of sleepimage ...
3:354  0:006   OurBlockIoRead: Lba=1540D7F8, Offset=2A81AFF000 (BlockSize=512)
3:359  0:005   sig lion: 7A7A7A7A
3:364  0:004   sig snow: 0
3:368  0:004   no valid sleep image offset was found
3:373  0:004      Reading completed -> Success
3:377  0:004       sleepimage offset could not be acquired
3:383  0:005       hibernated: no - sign
3:411  0:028   6: 'Recovery HD'
3:424  0:012      AddLoaderEntry for Volume Name=Recovery HD
3:447  0:023   7: 'Macintosh HD'
3:460  0:012      AddLoaderEntry for Volume Name=Macintosh HD
3:467  0:007      Check if volume Is Hibernated:
3:472  0:005      Check sleep image 'by signature':
3:480  0:007      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
3:484  0:004      SleepImage name from pref: ImageVolume = 'Macintosh HD', ImageName = '\private\var\vm\sleepimage'
3:492  0:008      sleepimage not found -> Not Found
3:498  0:006       hibernated: no - sign
3:521  0:022  Custom legacy start
3:528  0:007  Custom legacy end
3:533  0:005  Scanning legacy ...
3:537  0:003   0: 'Whole Disc Boot' (legacy) not legacy
3:546  0:009   1: 'Whole Disc Boot' (legacy) not legacy
3:556  0:010   2: 'EFI' (clover) hidden
3:566  0:009   3: 'Legacy HD2' (vista,win) add legacy
3:578  0:011   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
3:584  0:006   4: 'Legacy HD3' (vista,win) hidden
3:594  0:010   5: 'Macintosh SSD' (legacy) not legacy
3:604  0:009   6: 'Recovery HD' (legacy) not legacy
3:614  0:009   7: 'Macintosh HD' (legacy) not legacy
3:624  0:009  Custom tool start
3:628  0:004  Custom tool end
3:634  0:006  found tool \EFI\CLOVER\tools\Shell64U.efi
3:638  0:003  Checking EFI partition Volume 2 for Clover
3:643  0:005   Found Clover
3:650  0:007  GetEfiBootDeviceFromNvram: efi-boot-device-data not found
3:666  0:016  EfiBootVolume not found
3:672  0:005   found entry 0. 'Boot Mac OS X from Macintosh SSD', Volume 'Macintosh SSD', DevicePath 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,75F4915D-AAA7-4EC6-A38E-44F48CD01B26,0x13D0A800,0x6ECC490)\System\Library\CoreServices\boot.efi'
3:676  0:003  DefaultIndex=0 and MainMenu.EntryCount=10
3:681  0:005  Use anime=logo_3D frames=50
3:953  0:272  GUI ready
4:654  0:701  BootOption of the entry is empty
4:662  0:007  StartLoader() start
4:669  0:007  Entry->Settings: <null string>
4:675  0:005  Finally: Bus=99773kHz CPU=2494MHz
4:679  0:004  KernelAndKextPatches copyed to started entry
4:684  0:004  Kernel and Kext Patches at A636AA38:
4:689  0:005   Allowed: y
4:694  0:004   Debug: n
4:699  0:005   KernelCpu: n
4:703  0:003   Lapic: y
4:708  0:005   Haswell-E: n
4:713  0:005   AICPUPM: y
4:718  0:004   AppleRTC: y
4:723  0:005   KernelPm: n
4:729  0:005   FakeCPUID: 0x0
4:733  0:004   ATIController: null
4:739  0:006   ATIDataLength: 0
4:746  0:007   1 Kexts to load
4:750  0:004    KextToLoad[0]: System\Library\Extensions\IONetworkingFamily.kext
4:754  0:004   16 Kexts to patch
4:760  0:005    KextPatch[0]: 4 bytes, AppleHDA
4:764  0:003    KextPatch[1]: 4 bytes, AppleHDA
4:769  0:005    KextPatch[2]: 4 bytes, AppleHDA
4:773  0:004    KextPatch[3]: 11 bytes, IOAHCIBlockStorage
4:778  0:004    KextPatch[4]: 5 bytes, IOGraphicsFamily
4:783  0:005    KextPatch[5]: 5 bytes, AirPortAtheros40
4:790  0:006    KextPatch[6]: 10 bytes, AppleIntelSNBGraphicsFB
4:795  0:005    KextPatch[7]: 10 bytes, AppleIntelSNBGraphicsFB
4:800  0:004    KextPatch[8]: 4 bytes, AppleHDA
4:804  0:004    KextPatch[9]: 4 bytes, AppleHDA
4:809  0:005    KextPatch[10]: 9 bytes, IOBluetoothHostControllerUSBTransport
4:814  0:004    KextPatch[11]: 9 bytes, IOBluetoothHostControllerUSBTransport
4:819  0:005    KextPatch[12]: 4 bytes, AppleHDA
4:823  0:003    KextPatch[13]: 10 bytes, AppleIntelSNBGraphicsFB
4:829  0:006    KextPatch[14]: 7 bytes, AirPortAtheros40
4:836  0:006    KextPatch[15]: 4 bytes, AppleHDA
4:841  0:004  Loading boot.efi  status=Success
4:930  0:088  GetOSVersion: : 10.6.8
4:941  0:010  insert table 9 for dev 0:0
4:946  0:005  insert table 9 for dev 0:0
4:950  0:004  Detected alternating SMBIOS channel banks
4:956  0:005  Channels: 2
4:959  0:003  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
5:083  0:123  SMBIOS Type 17 Index = 0 => 0 0:
5:088  0:004  BANK0 DIMM0 1333MHz 4096MB
5:094  0:005  SMBIOS Type 17 Index = 1 => 1 2:
5:099  0:005  BANK1 DIMM0 1333MHz 4096MB
5:104  0:004  mTotalSystemMemory = 8192
5:107  0:003  NumberOfMemoryDevices = 2
5:111  0:003  Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000
5:116  0:004  Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000
5:120  0:004  RSDT 0xA6FFE0AC
5:126  0:005  FADT from RSDT: 0xA6FFC000
5:130  0:004  XSDT 0xA6FFE120
5:135  0:005  FADT from XSDT: 0xA6FFC000
5:140  0:004  Xsdt reallocation done
5:146  0:006  old FADT length=F4
5:154  0:007  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
5:160  0:006  Apply DsdtFixMask=0x00000000 old way
5:164  0:004     drop _DSM mask=0x0000
5:169  0:004  ========= Auto patch DSDT Starting ========
5:173  0:004  VideoCard devID=0x1268086
5:178  0:004  DisplayADR1[0] = 0x20000, DisplayADR2[0] = 0xFFFE
5:183  0:004  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
5:188  0:005  Found Airport Atheros at 0x1C0002, 0x0, DeviceID=0x002B
5:194  0:005  USBADR[1] = 0x1D0000 and PCIe = 0xFFFE
5:200  0:006  first CPU found at 7F6A offset 7F6D
5:205  0:005  score candidate at 7F66
5:211  0:005  score inserted in acpi_cpu_score _PR_
5:215  0:004  Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
  within the score: _PR_
5:267  0:052  Found PCIROOTUID = 0
5:273  0:005  ========= Auto patch DSDT Finished ========
5:278  0:005  Patch table: SSDT  SLIC-MPC
5:282  0:004   SSDT len = 0x1068
5:287  0:005  Patch table: SSDT  SLIC-MPC
5:293  0:005   SSDT len = 0x804
5:299  0:006  Patch table: SSDT  SLIC-MPC
5:305  0:006   SSDT len = 0x996
5:311  0:005  Patch table: SSDT  SLIC-MPC
5:315  0:004   SSDT len = 0x2DA
5:320  0:005  Patch table: SSDT  SLIC-MPC
5:325  0:004   SSDT len = 0x35D
5:329  0:004  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
5:334  0:004   Xsdt has tables count=13
5:338  0:004  corrected XSDT length=140
5:344  0:005  Start: Processing Patched AML(s): Unsorted
5:353  0:009  Inserting SSDT.aml from EFI\CLOVER\ACPI\patched ... Success
5:366  0:012  Inserting SSDT-7.aml from EFI\CLOVER\ACPI\patched ... Success
5:376  0:010  Inserting SSDT-6.aml from EFI\CLOVER\ACPI\patched ... Success
5:385  0:009  Inserting SSDT-5x.aml from EFI\CLOVER\ACPI\patched ... Success
5:396  0:010  Inserting SSDT-4x.aml from EFI\CLOVER\ACPI\patched ... Success
5:404  0:008  Inserting SSDT-3x.aml from EFI\CLOVER\ACPI\patched ... Success
5:414  0:009  Inserting SSDT-2.aml from EFI\CLOVER\ACPI\patched ... Success
5:425  0:011  Inserting SSDT-1.aml from EFI\CLOVER\ACPI\patched ... Success
5:437  0:011  Inserting SSDT-0.aml from EFI\CLOVER\ACPI\patched ... Success
5:447  0:010  End: Processing Patched AML(s)
5:452  0:004   CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
5:457  0:005  Intel Intel HD Graphics 3000 [8086:0126] :: PcieRoot(0x0)\Pci(0x2,0x0)
5:461  0:003  Intel GFX revision  =0x9
5:466  0:005  HDA Controller [8086:1C20] :: PcieRoot(0x0)\Pci(0x1B,0x0) => detected codec: 10EC:0270
5:476  0:009  LAN Controller [10EC:8168] :: PcieRoot(0x0)\Pci(0x1C,0x0)\Pci(0x0,0x0)
5:482  0:006   RCBA access disabled; trying to enable
5:488  0:005  stringlength = 1460
5:492  0:004  CurrentMode: Width=1366 Height=768
5:498  0:005  Beginning FSInjection
5:506  0:007    Force kext: System\Library\Extensions\IONetworkingFamily.kext
5:516  0:010      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleBCM5701Ethernet.kext
5:526  0:009      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleIntel8254XEthernet.kext
5:538  0:011      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleRTL8139Ethernet.kext
5:548  0:009  Thinning failed: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleRTL8139Ethernet.kext
5:553  0:005      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleRTL8169Ethernet.kext
5:560  0:007      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleUSBEthernet.kext
5:569  0:008      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleUSBGigEthernet.kext
5:577  0:008      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\AppleYukon2.kext
5:588  0:011      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\Intel82574L.kext
5:597  0:008      Force PlugIn kext: System\Library\Extensions\IONetworkingFamily.kext\Contents\PlugIns\nvenet.kext
5:609  0:012  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
5:617  0:007  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.6
5:622  0:004    Extra kext: EFI\CLOVER\kexts\10.6\ACPIBatteryManager.kext
5:629  0:007    Extra kext: EFI\CLOVER\kexts\10.6\FakeSMC.kext
5:637  0:007      Extra PlugIn kext: EFI\CLOVER\kexts\10.6\FakeSMC.kext\Contents\PlugIns\HWInfo.kext
5:646  0:008      Extra PlugIn kext: EFI\CLOVER\kexts\10.6\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
5:655  0:009    Extra kext: EFI\CLOVER\kexts\10.6\RealtekRTL8111.kext
5:665  0:010    Extra kext: EFI\CLOVER\kexts\10.6\VoodooPS2Controller.kext
5:677  0:011      Extra PlugIn kext: EFI\CLOVER\kexts\10.6\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
5:688  0:011      Extra PlugIn kext: EFI\CLOVER\kexts\10.6\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
5:696  0:007      Extra PlugIn kext: EFI\CLOVER\kexts\10.6\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext
5:715  0:019  Removed efi-boot-device-data variable: Not Found
5:724  0:008  Custom boot is disabled
5:729  0:005  Closing log
6:223  0:493  Legacy USB Off Done
6:227  0:003  USB EHCI Ownership for device 1C2D value=1000001
6:237  0:009  Legacy USB Off Done
6:246  0:009  USB EHCI Ownership for device 1C26 value=1000001








this is clover log

I see on your EFI you are used Clover dump





Try to Used a single  SSDT.aml create by ssdtPRGen.sh





I see on your EFI you are used Clover dump





Try to Used a 10.7 working SSDT.aml



=> i already use it

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Problem seems like a kernel cache issue. It works just fine for me...



No other ideas for you.

I dont understand it.

Because i normally use osx like 10.7~10.11.

10.7~10.11 are no cache issue.



Only 10.6 happen issue. Why.. My laptop.

I can boot osx through kext patched by me. So i think clover have a issue about 10.6 cache or fly to patch



나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
RehabMan
RehabMan
Posted
Posted

Only 10.6 happen issue. Why.. My laptop.

I can boot osx through kext patched by me. So i think clover have a issue about 10.6 cache or fly to patch

No issue with 10.6.8 on my ProBook 4530s using Clover. Never tested with 10.6.

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

No issue with 10.6.8 on my ProBook 4530s using Clover. Never tested with 10.6.

10.6.x same. I test all 10.6.x

if it were an IVY then i would probaly agree with you that clover AsusAICPUPM is not working on 10.6.8

My cpu is sandybridge i5 2450m.

Already vanillia booted in 10.6.8.

not work AsusAICPUPM and kexttopatch in 10.6.8




나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

10.6.x same. I test all 10.6.x

My cpu is sandybridge i5 2450m.

Already vanillia booted in 10.6.8.

not work AsusAICPUPM and kexttopatch in 10.6.8




나의 LG-F410S 의 Tapatalk에서 보냄

Will they work if you boot "Without cache"?

Link to comment
Share on other sites
Sherlocks
Sherlocks
Posted
Posted

Will they work if you boot "Without cache"?

Not work. I have to patch AICPUM.

Also after boot with patched AICPUM.kext. rebuild cache. Then normal boot. Kexttopatch clover feature not work



나의 LG-F410S 의 Tapatalk에서 보냄

No issue with 10.6.8 on my ProBook 4530s using Clover. Never tested with 10.6.

Rehabman did you use Probook installer?



I check to install probook installer on my hp laptop.



Then i check s/l/e folder.

AICPUM.kext is patched

Installer include AICPUM patched.





나의 LG-F410S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
