Micky1979
Micky1979
Posted
Posted

I just know that the Clover installer won't install VBoxHFS if it detects HFSPlus.

Yea, also is why I have asked :



if [[ -f "$EFI_ROOT_DIR/EFI/CLOVER/$driver_dir"/HFSPlus.efi    || \

      -f "$EFI_ROOT_DIR/EFI/CLOVER/$driver_dir"/HFSPlus-32.efi || \

      -f "$EFI_ROOT_DIR/EFI/CLOVER/$driver_dir"/HFSPlus-64.efi ]]; then

    echo >> "$install_log"

    echo "Removing $driver_dir/$driver_name driver because HFSPlus driver present" >> "$install_log"

    rm -f "$EFI_ROOT_DIR/EFI/CLOVER/$driver_dir/$driver_name"

fi



..but Donwload Fritz has  has provided a good explanation: possible = yes

Link to comment
Share on other sites
Micky1979
Micky1979
Posted
Posted

Mine is from 2011. Is there any way to check the version?

no idea, but if contains:

0000000000003a9a         db         "Apple_Boot", 0                             ; XREF=sub_cf5+400

0000000000003aa5         db         "Apple_HFS", 0                              ; XREF=sub_cf5+434

0000000000003aaf         db         "Apple_HFSX", 0                             ; XREF=sub_cf5+468

0000000000003aba         db         "Apple_Recovery", 0

maybe is up-to-date

Possible != good idea, because best practise is only one of them. ;)

Ok: automatic remove of one of the two ;)

if someone need it, this is the assembly code decompiling the binary:HFSPlus.efi.asm.zip

64 bit

Link to comment
Share on other sites
smolderas
smolderas
Posted
Posted

no idea, but if contains:

0000000000003a9a         db         "Apple_Boot", 0                             ; XREF=sub_cf5+400

0000000000003aa5         db         "Apple_HFS", 0                              ; XREF=sub_cf5+434

0000000000003aaf         db         "Apple_HFSX", 0                             ; XREF=sub_cf5+468

0000000000003aba         db         "Apple_Recovery", 0

maybe is up-to-date

Ok: automatic remove of one of the two ;)

if someone need it, this is the assembly code decompiling the binary:attachicon.gifHFSPlus.efi.asm.zip

64 bit

I would like to check it myself. How did you decompile it?

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Hi all and happy Christmas holidays!

There is no problem to have both HFSPlus.efi and VBoxHFS.efi. I don't remember which one will be a winner but both works fine.

VBoxHFS.efi understands symlinks vs Apple's driver but it is slower if it does matter. No more differences.

  • Like 1
Link to comment
Share on other sites
magnifico
magnifico
Posted
Posted

Hi, anybody have same problem with me??



I get kernel panic about FakeSMC.kext several times, after pres "reset button" to reboot for once or twice then i can get desktop.

I used Latest FakeSMC and Clover.



Thanks before

wich version?

I have not latest FakeSMC and it works without problems.

See my signature.

me too  :wink_anim:

Link to comment
Share on other sites
driftwood
driftwood
Posted
Posted

Andres, Im on 10.11.3 beta and no problems here. Gigabyte Z170X Gaming G1



Im on 618


Link to comment
Share on other sites
analogo
analogo
Posted
Posted

Hello..



because I cannot start a new topic in Clover, I post it here..



My DUAL XEON Build is working, but unresponsive and laggy like hell.. And therefore absolutely unusable..   :wallbash:



I´m already trying for many weeks to solve the problem, and think it may be due to the CPU settings. Perhaps especially DUAL XEONs need to be particularly well configured and it occurred to me QPI and BusSpeed.



http://clover-wiki.zetam.org/Configuration/CPU#cpu_qpi



Which settings should I use? Because the description on Clover WIKI is confusing me..



Specs / XEON E5-2680 v3



Intel QPI Speed: 9.6 GT/s

# of QPI Links: 2



http://ark.intel.com/products/81908/Intel-Xeon-Processor-E5-2680-v3-30M-Cache-2_50-GHz



Specs / Asus Z10PE-D8 WS



https://www.asus.com/Motherboards/Z10PED8_WS/specifications/





Another problem is, that Clover cannot correctly detect all eight 4GB RDIMMs. Therefore I had to insert them manually into the config.plist. Without, Clover only detects two RDIMMs, which is resulting in over 200000% memory pressure!



In config.plist I tried Trust, FixSBUS and Halt Enabler.



From the attached Boot Log file

0:102 0:002 Total Memory Slots Count = 2
0:102 0:000 Type 17 Index = 0
0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz
0:102 0:000 SmbiosTable.Type17->Size = 4096MB
0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1
0:102 0:000 Type 17 Index = 1
0:102 0:000 SmbiosTable.Type17->Speed = 2133MHz
0:102 0:000 SmbiosTable.Type17->Size = 4096MB
0:102 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1
0:102 0:000 Boot status=0
0:102 0:000 Clover revision: 3330 running on Z10PE-D8 WS

...

4:775 0:001 Trusting SMBIOS...
4:775 0:000 Detected alternating SMBIOS channel banks
4:775 0:000 Channels: 2
4:775 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
4:775 0:000 partNum=9ASF51272PZ-2G1A2
4:775 0:000 SMBIOS Type 17 Index = 0 => 0 0:
4:775 0:000 BANK0 DIMM0 2133MHz 4096MB
4:775 0:000 mTotalSystemMemory = 4096
4:775 0:000 partNum=9ASF51272PZ-2G1A2
4:775 0:000 SMBIOS Type 17 Index = 1 => 1 2:
4:775 0:000 BANK1 DIMM0 2133MHz 4096MB
4:775 0:000 mTotalSystemMemory = 8192
4:775 0:000 NumberOfMemoryDevices = 2
4:775 0:000 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000
4:775 0:000 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000
4:775 0:000 RSDT 0x7AEC7028
4:775 0:000 FADT from RSDT: 0x7AEC7170
4:775 0:000 XSDT 0x7AEC70A0
4:775 0:000 FADT from XSDT: 0x7AEEE070
4:775 0:000 Xsdt reallocation done
4:775 0:000 old FADT length=10C
4:775 0:000 Found OperationRegion(PSYS, SystemMemory, 7BD27000, ...)
4:775 0:000 Found OperationRegion(HPTC, SystemMemory, FED1F404, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80000188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80008188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80009188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80010188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80011188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80012188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80013188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80018188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 80019188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 8001A188, ...)
4:775 0:000 Found OperationRegion(MCTL, SystemMemory, 8001B188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88000188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88008188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88009188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88010188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88011188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88012188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88013188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88018188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 88019188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 8801A188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 8801B188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80000188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80008188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80009188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80010188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80011188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80012188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80013188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80018188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80019188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 8001A188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 8001B188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80000188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80008188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80009188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80010188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80011188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80012188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80013188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80018188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 80019188, ...)
4:776 0:000 Found OperationRegion(MCTL, SystemMemory, 8001A188, ...)
4:776 0:000 Found OperationRegion(RAMW, SystemMemory, 7BD4A018, ...)
4:776 0:000 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
4:776 0:000 Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
4:776 0:000 Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
4:781 0:005 Apply DsdtFixMask=0x00000080 old way
4:781 0:000 drop _DSM mask=0x0000

Many thanks for your help!  :thumbsup_anim:

Boot Log.zip

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

perfect for me

0:102  0:000  Clover revision: 3330  running on All Series
0:102  0:000  ... with board X99-A
0:102  0:000  CPU Vendor = 756E6547 Model=306F2
0:102  0:000  The CPU not supported turbo
0:102  0:000  BrandString = Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz
Link to comment
Share on other sites
Andres ZeroCross
Andres ZeroCross
Posted
Posted

Thank for the responds.

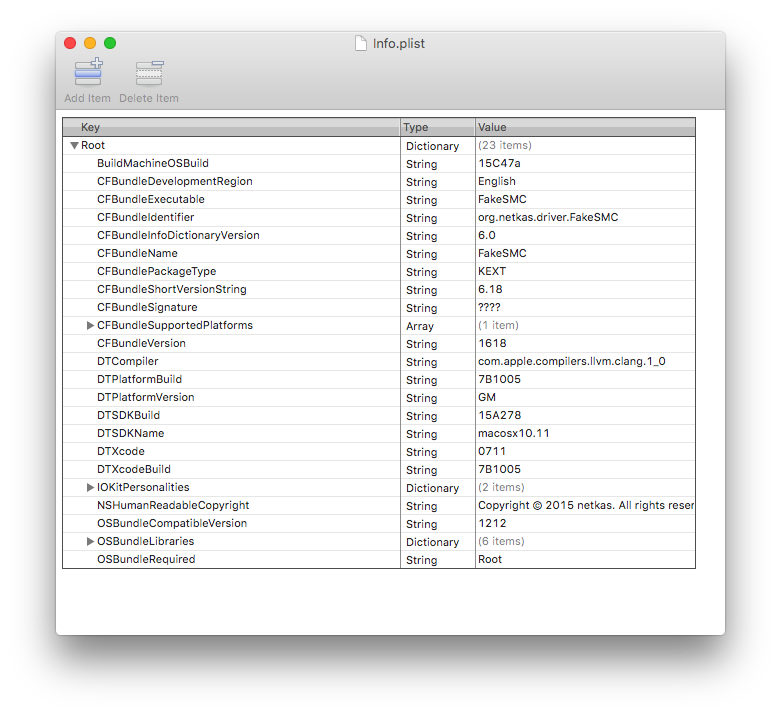

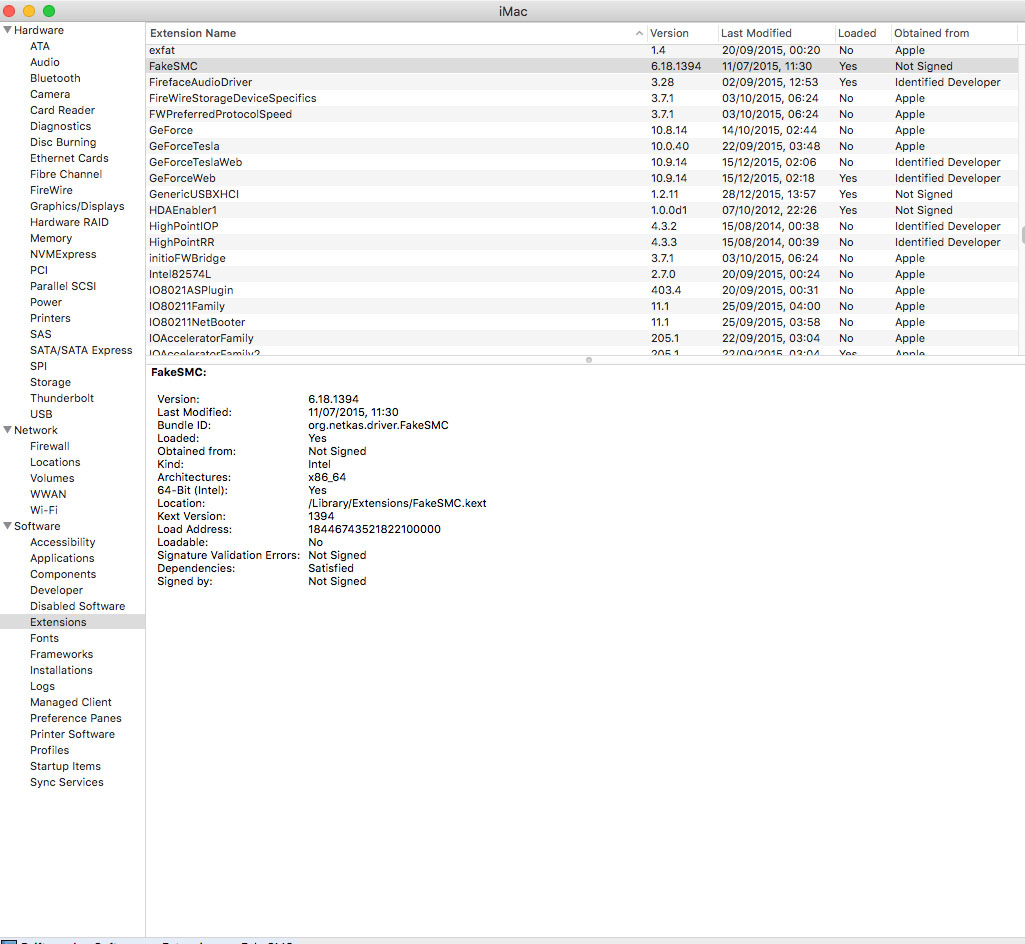

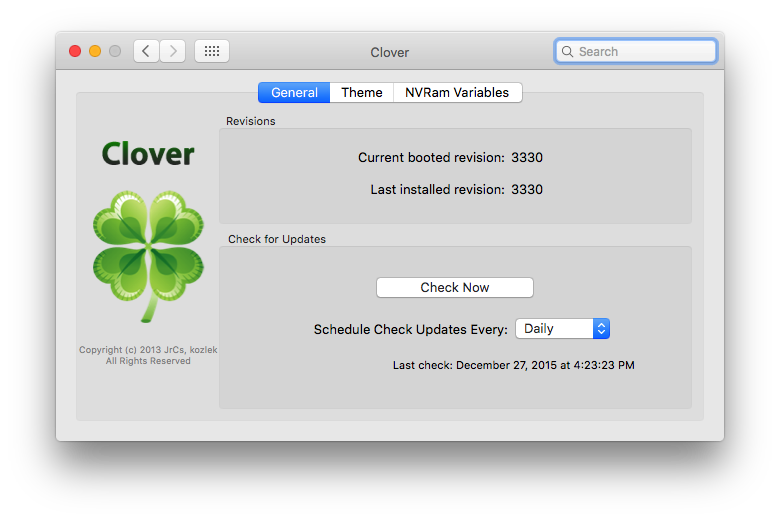

Here i upload image about version of my FakeSMC / Clover.

It's looks my Notebook (Asus A455LF-WX016D) has same problem too. And i use same File

Maybe there is miss configurations, but i don't know what it's.

What should i upload to analyze this problem, because it's random. Sometimes it boot nicely without hard reset when kernel panic about FakeSMC.



Link to comment
Share on other sites
Slice
Slice
Posted
Posted

Thank for the responds.



Here i upload image about version of my FakeSMC / Clover.



It's looks my Notebook (Asus A455LF-WX016D) has same problem too. And i use same File



Maybe there is miss configurations, but i don't know what it's.



What should i upload to analyze this problem, because it's random. Sometimes it boot nicely without hard reset when kernel panic about FakeSMC.

You have a version 6.18

I have a version 3.41

See the difference.

Link to comment
Share on other sites
UNOE
UNOE
Posted
Posted

I think you need to manually copy the driver into the appropriate clover subfolder for where it loads its kexts in EUFI mode bootup if your planning on using Clover to boot up your system. I went as far using genffs to convert that driver into a module I plugged into my bios with mmtool. That module now is hosted on Win-Raid. If your having space problems I recommend deleting non essential modules from your bios or using tools like ozmtool to compress your bios files. Then insert it and then you can boot from EUFI mode.





+1



Got my Samsung 950 pro.  Install went well just updated clover.  Then threw in NvmExpressDxe-64.efi into the 'drivers64UEFI' folder (even though the installer doesn't allow that, had to install it on a USB stick with BiosblockIO then get the driver NvmExpressDxe-64.efi and throw it in 'drivers64UEFI' folder).  After that I threw the NVMeGeneric.kext into Kext folder for clover.  Booted to a OS X installer USB stick used restore option with Disk utility to copy me oldssd install and booted up 950 pro just fine from the EFI boot loader on OldSSD.  Then installed clover with EFI on the 950 pro, transferred over all my files from my clover folder under EFI partition from old SSD to 950 pro EFI partition.  Now booting with just 950 pro with EFI.



I'm very surprised EFI boot works with my old board with no bios update.  I still have my same 4.6ghz overclock running a much older 4205 bios version on Rampage IV Extreme x79 with 3930K (Sandybridge-E).  This was not support to be possible.  I see threads were people are having issues with it showing up as EFI drive.  Other people says it shows up as PATA.  But not mine it showed as EFI drive.  Again this was with no bios mods, or bios updates, just same old bios been using for years.  Clover EFI doing all the work  :)



My speeds on old SSD were around 480 read and 410 write.  Now doing 2050 Read and 880 write.



Edit : edited post its actually even older bios 4205 released in mid 2013.  I don't have much desire to update bios because the clock speeds were really nice and stable.  I was doing 4.9ghz in windows.

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

But i have SkyLake and Broadwell system. I need sensor for my chipset,, Kozlek have built FakeSMC for SkyLake Supported. I need it :(

OK, I also added many new hardware into revision 21. See my signature for download.

  • Like 1
Link to comment
Share on other sites
